light INFINITI Q70 2016 Quick Reference Guide

23
25
*See your Owner’s Manual for information.
77
22
2424
131415
12
86
21
1110
Behind
steering wheel
Behind
steering wheelBehind
steering wheel
9
3
181917
20
1 ADAPTIVE FRONT LIGHTING SYSTEM
(AFS) SWITCH*
2 INSTRUMENT BRIGHTNESS
CONTROL SWITCHES*
3 VEHICLE INFORMATION DISPLAY
4 TRIP RESET SWITCH*
5 TRIP COMPUTER SWITCHES
6 HEADLIGHT AND TURN SIGNAL SWITCH
7 PADDLE SHIFTERS*
8 LOW TIRE PRESSURE WARNING LIGHT
9 WIPER AND WASHER SWITCH
10 STEERING WHEEL SWITCHES
FOR AUDIO* / BLUETOOTH®
11 INTELLIGENT CRUISE CONTROL
12 DYNAMIC DRIVER ASSISTANCE SWITCH*
13 VEHICLE DYNAMIC CONTROL (VDC)
OFF SWITCH*
14 BACK-UP COLLISION INTERVENTION (BCI)
SYSTEM OFF SWITCH
15 WARNING SYSTEMS SWITCH
16 TILT / TELESCOPIC STEERING WHEEL SWITCH*
17 REAR SUNSHADE SWITCH*
18 HEATED STEERING WHEEL SWITCH*
19 TRUNK LID RELEASE SWITCH
20 HOOD RELEASE*
21 CONTROL PANEL DISPLAY SCREEN
22 HEATER AND AIR CONDITIONER (automatic)
23 AUDIO SYSTEM
24 CLIMATE CONTROLLED SEAT SWITCH*
25 INFINITI DRIVE MODE SELECTOR
41
52
16Behind
steering wheel
1932611_16a_Q70_US_pQRG_092415.indd 39/24/15 11:06 AM

table of contents
Additional information about your vehicle is also available in your Owne\
r’s Manual, Navigation System Owner’s Manual and at www.InfinitiUSA.com.
Please see your Owner’s Manual for important safety information
and system operation limitations.
•
A cellular telephone should not be used for any purpose while
driving so full attention may be given to vehicle operation.
• Always wear your seat belt.
• Supplemental air bags do not replace proper seat belt usage.
•
Children 12 and under should always ride in the rear seat
properly secured in child restraints or seat belts according to
their age and weight.
• Do not drink and drive.
For more information, refer to the “Safety — Seats, seat belts and
supplemental restraint system (section 1)”, the “Monitor, climate, audio,
phone and voice recognition systems (section 4)” and the “Starting and
driving (section 5)” of your Owner’s Manual.
To view detailed
instructional videos, go to
www.infinitiownersinfo.mobi/2016/q70 or snap this barcode with an appropriate barcode reader.
new system features Around View® Monitor with Moving Object Detection (MOD)
(if so equipped) ................................................ 2
Automatic Anti-glare Mirrors ...................................... 3
Blind Spot Warning (BSW) and Blind Spot Intervention
® (BSI)
(if so equipped) ................................................ 4
Back-up Collision Intervention (BCI) (if so equipped) .................4
Predictive Forward Collision Warning (PFCW) (if so equipped) ...........4
Forward Emergency Braking (FEB) (if so equipped) ....................5
Lane Departure Warning (LDW) (if so equipped) ...................... 5
essential information Tire Pressure Monitoring System (TPMS) ............................ 6
Warning Systems Switch (if so equipped) ........................... 7
INFINITI Drive Mode Selector .................................... 8
Accessing the Front Cup Holders .................................. 8
Loose Fuel Cap ................................................. 9
Fuel-filler Door ................................................. 9
Clock Set/Adjustment ........................................... 9
first drive features INFINITI Connection™ (if so equipped) ............................ 10
INFINITI Intelligent Key System .................................. 12
Trunk Lid Release .............................................. 13
Front Power Seat Adjustments ................................... 13
Automatic Drive Positioner ...................................... 14
Outside Mirror Control Switch .................................... 14
Starting/Stopping the Engine .................................... 15
Headlight Control Switch ........................................ 15
Wiper and Washer Switch ....................................... 16
Heater and Air Conditioner (automatic) ............................ 17
FM/AM/SiriusXM
® Satellite Radio with CD/DVD (if so equipped) Player ..19
USB (Universal Serial Bus) Connection Port/iPod® Interface ........... 20
Conventional (Fixed Speed) Cruise Control (if so equipped) ...........20
Intelligent Cruise Control (ICC) (if so equipped) .....................21
system guide Trip Computer ................................................. 22
Bluetooth® Hands-free Phone System ............................. 22
System Operating Tips ....................................... 22
Bluetooth
® System with Navigation (if so equipped) ................. 23
Bluetooth® System without Navigation (if so equipped) .............. 25
Bluetooth® Streaming Audio (if so equipped) ....................... 26
Navigation System (if so equipped) ............................... 27
DVD Player (if so equipped) ...................................... 29
HomeLink
® Universal Transceiver ................................. 29
1932611_16a_Q70_US_pQRG_092415.indd 49/24/15 11:06 AM

3
3
The colored guide lines on the display screen indicate vehicle width and\
approximate
distances to objects with reference to the vehicle body line.
• Red 1.5 ft (0.5 m); Yellow 3 ft (1 m); Green 7 ft (2 m) and 1\
0 ft (3 m).

There are some areas where the system will not show objects.
• When in the front or the rear view display, an
object below the bumper or on the ground may
not be viewed
2.
• When in the bird’s-eye view, a tall object near
the seam of the camera viewing areas
3
will not appear in the monitor.

The distance between objects viewed on the Around View®
Monitor (AVM) differs from the actual distance.

Objects in the bird’s-eye view will appear further
than the actual distance.
MOVING OBJECT DETECTION (MOD)

If the MOD system detects moving objects
surrounding the vehicle, a yellow frame
4 will
be displayed on the camera image and a chime
will sound.

In the bird’s-eye view, a yellow frame is displayed
on those camera images (front, rear, right, left)
where moving objects are detected.

When the following are displayed:
• Blue MOD icon
5; the system is operative in this view.
• Gray MOD icon
6; the system is not operative in this view.
• No MOD icon; the system is off.

To temporarily turn the system on or off, touch the Sonar-MOD key 7.
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (section 4\
) ” of your
Owner’s Manual.
4 5 6
7
2
Automatic Anti-glare Mirrors
The inside rearview mirror and both outside mirrors are designed to auto\
matically change
reflection according to the intensity of the headlights of the vehicle f\
ollowing you.

The anti-glare system will be automatically turned on when the ignition \
switch is in the
ON position.
For more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
1932611_16a_Q70_US_pQRG_092415.indd 39/24/15 11:08 AM

4
Back-up Collision Intervention (BCI) (if so equipped)
The BCI system can help alert the driver of an approaching vehicle or ob\
jects behind the
vehicle when backing out of parking spaces.

The rear radar sensors detect the approaching vehicle from up to approxi\
mately
49 ft (15 m) from the bumper.
For more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
Blind Spot Warning (BSW) and Blind Spot Intervention® (BSI)
(if so equipped)
The BSW system alerts the driver when another
vehicle moves into the vehicle’s detection zone.

An indicator light located near the outside mirror 1
will illuminate if the radar sensors detect a vehicle
in the detection zone.

The BSI system can assist the driver in returning
the vehicle to the center of the traveling lane by
applying individual brake pressure to the left or right wheels for a sho\
rt
period of time.

The indicator light 2 will first illuminate in orange and then turn green
before extinguishing. This indicates that the BSW and BSI systems
are operational.
For more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
1
2
new system features
Predictive Forward Collision Warning (PFCW) (if so equipped)
The PFCW system can help alert the driver when there is sudden braking o\
f the second
vehicle traveling in front of the vehicle ahead that is traveling in the\
same lane.

The PFCW uses a sensor in the front bumper to measure the distance of a \
second vehicle
ahead in the traveling lane. The system operates at speeds above 3 mph (\
5 km/h).

If there is a potential risk, the PFCW will warn the driver with a blink\
ing driver assist system
forward indicator and an audible warning tone will be heard.
For more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
1932611_16a_Q70_US_pQRG_092415.indd 49/24/15 11:08 AM

5
Lane Departure Warning (LDW) (if so equipped)
The LDW system can help alert the driver when the vehicle is traveling t\
oo close to either
the left or the right side of a traveling lane.

The system will operate when the vehicle is driven at speeds of approxim\
ately 45 mph
(70 km/h) and above and only when the lane markings are clearly visibl\
e on the road.

When the vehicle approaches either the left or the right side of the tra\
veling
lane, the LDW system will chime and the orange LDW light
1 on the
instrument panel will blink to alert the driver.

The LDW system can be turned on and off through
the Settings menu in the vehicle information
display. To temporarily turn off the system, push the
warning systems switch
2 .

When the system is off, the indicator light 3 on the
switch is off.
For more information, refer to the “Instruments and controls (section 2)” and the “Starting and driving (section 5)” of your
Owner’s Manual.
Forward Emergency Braking (FEB) (if so equipped)
The FEB system can assist the driver when there is a risk of a forward c\
ollision with the
vehicle in the traveling lane.

The FEB operates at speeds greater than 3 mph (5 km/h).

If there is a risk of a collision, an audible tone will be heard, a visu\
al warning will display
and the vehicle will push up on the accelerator pedal. If the driver rel\
eases the accelerator
pedal, the vehicle will begin applying the brakes; however, if the drive\
r does nothing, the
system will issue another audible and visual warning and apply the brake\
s harder.
For more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
1
2
3
1932611_16a_Q70_US_pQRG_092415.indd 59/24/15 11:08 AM

6
Tire Pressure Monitoring System (TPMS)
A CHECK TIRE PRESSURE warning message will
appear in the vehicle information display
1 and
the low tire pressure warning light
2 will illuminate
when one or more tires are low in pressure and air
is needed.
• The tire pressures should be checked when the
tires are cold. The tires are considered cold after
the vehicle has been parked for 3 hours or more or
driven less than 1 mi (1.6 km) at moderate speeds.

After the tire pressures are adjusted, drive the vehicle at speeds above\
16 mph
(25 km/h). The CHECK TIRE PRESSURE warning message and low tire pressure warning
light
2 will extinguish.

When the low tire pressure warning light 2 flashes for 1 minute and then remains on, the
TPMS is not functioning properly. Have the system checked. It is recomme\
nded you visit
an INFINITI retailer for this service.

Tire pressure rises and falls depending on the heat caused by the vehicl\
e’s operation and
the outside temperature. Low outside temperature can lower the temperatu\
re of the air
inside the tire, which can cause a lower tire inflation pressure. This m\
ay cause the low tire
pressure warning light
2 to illuminate. If the warning light illuminates, check the tire
pressure in your tires.
• Check the tire pressure (including the spare tire) often and always pr\
ior to long
distance trips.

The Tire and Loading Information label contains valuable information. Pl\
ease refer to the
“Technical and consumer information” (section 9) of your Owner’\
s Manual for the location
of the Tire and Loading Information label.
For more information, refer to the “Instruments and controls (section 2)”, the “Starting and driving (section 5)” and the
“Maintenance and do-it-yourself (section 8)” of your Owner’s Manual.
essential information
1
2
1932611_16a_Q70_US_pQRG_092415.indd 69/24/15 11:08 AM

7
Warning Systems Switch (if so equipped)
The warning systems switch 1 will turn on or off
any enabled warning systems including the Lane
Departure Warning and Blind Spot Warning systems.
Systems that are not enabled will always remain off.

When the warning systems switch 1 is turned off,
the indicator light
2 on the switch is off. If the
warning systems indicator light
2 is illuminated,
the system is on. The indicator will also be off if all
of the warning systems are deactivated using the
Settings menu.

To enable or disable these systems, perform the
following operation:
1. Press the SETTING button
3 on the control panel.
2. Using the INFINITI Controller
4 , highlight the
“Driver Assistance” key
5 on the display. Then
press the ENTER button
6 .
3. Highlight the corresponding warning system key
7 , select ON (enabled) or OFF (disabled) and
press the ENTER button
6 .
For more information, refer to the “Starting and driving (section 5)” of your
Owner’s Manual.
3
4
6
2
1
5
7
1932611_16a_Q70_US_pQRG_092415.indd 79/24/15 11:08 AM

9
Fuel-filler Door
The fuel-filler door is located on the passenger’s side of
the vehicle.

When the doors of the vehicle are locked or
unlocked, the fuel-filler door is automatically locked
or unlocked at the same time.

To open the door, push the upper left side of the door.
For more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
Loose Fuel Cap
A LOOSE FUEL CAP warning message will appear in
the vehicle information display
1 when the
fuel-filler cap is not tightened correctly.

To tighten, turn the cap clockwise until a single click
is heard.

The warning message will extinguish when the
vehicle detects the fuel-filler cap is properly
tightened and the reset button
2 is pressed for
more than 1 second.

If the cap is not properly tightened, the Malfunction
Indicator Light
may illuminate.
For more information, refer to the “Instruments and controls (section 2)” and the
“Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
2
1
Clock Set/Adjustment
DIGITAL CLOCK ADJUSTMENT

To adjust the time and the appearance of the clock
on the display:
1. Press the SETTING button on the control panel.
2. Select the “Others” key.
3. Select the “Clock” key.

The following settings can be adjusted:
• On-screen Clock: The clock in the upper right corner of the display can be turned ON or\
OFF.
• Clock Format (24h): The clock can be set to 12 hours or 24 hours.
• Offset (hour): The time can be adjusted by increasing or decreasing per hour.
• Offset (min): The time can be adjusted by increasing or decreasing per minute.
• Daylight Savings Time: The application of Daylight Savings Time can be turned ON or OFF.
• Time Zone: Adjust the time zone. Choose a time zone from the available list.

Press the BACK button to return to the previous screen.
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (section 4\
) ” of your
Owner’s Manual.
1932611_16a_Q70_US_pQRG_092415.indd 99/24/15 11:08 AM

11

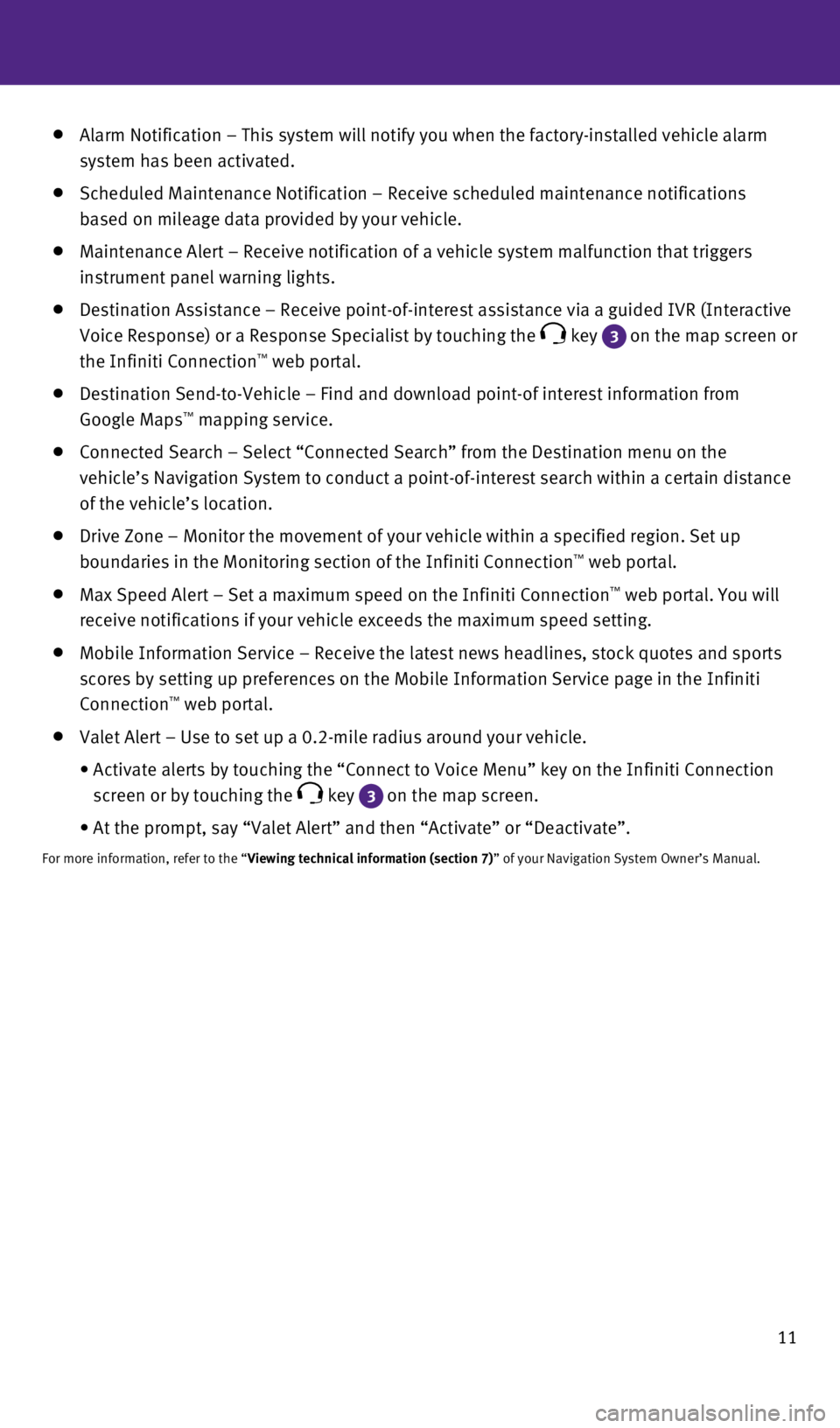

Alarm Notification – This system will notify you when the factory-ins\
talled vehicle alarm
system has been activated.

Scheduled Maintenance Notification – Receive scheduled maintenance no\
tifications
based on mileage data provided by your vehicle.

Maintenance Alert – Receive notification of a vehicle system malfunct\
ion that triggers
instrument panel warning lights.

Destination Assistance – Receive point-of-interest assistance via a g\
uided IVR (Interactive
Voice Response) or a Response Specialist by touching the
key 3 on the map screen or
the Infiniti Connection™ web portal.

Destination Send-to-Vehicle – Find and download point-of interest inf\
ormation from
Google Maps™ mapping service.

Connected Search – Select “Connected Search” from the Destinati\
on menu on the
vehicle’s Navigation System to conduct a point-of-interest search wit\
hin a certain distance
of the vehicle’s location.

Drive Zone – Monitor the movement of your vehicle within a specified \
region. Set up
boundaries in the Monitoring section of the Infiniti Connection™ web portal.

Max Speed Alert – Set a maximum speed on the Infiniti Connection™ web portal. You will
receive notifications if your vehicle exceeds the maximum speed setting.\

Mobile Information Service – Receive the latest news headlines, stock\
quotes and sports
scores by setting up preferences on the Mobile Information Service page \
in the Infiniti
Connection
™ web portal.

Valet Alert – Use to set up a 0.2-mile radius around your vehicle.
• Activate alerts by touching the “Connect to Voice Menu” key on the\
Infiniti Connection
screen or by touching the
key 3 on the map screen.
• At the prompt, say “Valet Alert” and then “Activate” or “\
Deactivate”.
For more information, refer to the “Viewing technical information (section 7)” of your Navigation System Owner’s Manual.
1932611_16a_Q70_US_pQRG_092415.indd 119/24/15 11:08 AM

12
INFINITI Intelligent Key System
The INFINITI Intelligent Key system allows you to
lock or unlock your vehicle, open your trunk and
start the engine. It is important to make sure the
Intelligent Key is with you (that is, in your pocket
or purse).
LOCKING AND UNLOCKING YOUR VEHICLE

The operating range of the Intelligent Key is within
31.5 in (80 cm) from each request switch.

To lock the vehicle, push either door handle request switch 1
once or press the
button 2 on the key fob.

To unlock the vehicle, perform one of the following procedures:
• Push either door handle request switch
1 once; the corresponding
door will unlock. Push the door handle request switch
1 again
within 1 minute; all other doors will unlock, or
• Press the
button 3 on the key fob to unlock the driver’s side door.
Press the
button 3 again; all other doors will unlock.

To open the trunk, press the HOLD button 4 for more than 1 second.

The Intelligent Key can also be used to activate the panic alarm by pres\
sing and holding
the
button 5 for more than 1 second. Once activated, the panic alarm and headlights \
will stay on for a period of time.
INTELLIGENT KEY BATTERY DISCHARGE

If the battery of the Intelligent Key is discharged or
environmental conditions interfere with the
Intelligent Key operation, start the engine according
to the following procedure:
1. Move the shift lever to the P (PARK) position.
2. Firmly apply the foot brake.
3. Touch the ignition switch with the Intelligent Key,
and a chime will sound.
4. Within 10 seconds after the chime sounds, push the ignition switch while\
depressing
the brake pedal and the engine will start.
For more information, refer to the “Pre-driving checks and adjustments (section 3)”, the “Starting and driving (section 5)” and
the “Maintenance and do-it-yourself (section 8)” of your Owner’s Manual.
1
2
3
4
5
first drive features
1932611_16a_Q70_US_pQRG_092415.indd 129/24/15 11:09 AM
