homelink INFINITI Q70-HYBRID 2014 Owners Manual

SSI0688
1. Rear sunshade (if so equipped)(P.2-59)
2. Coat hooks (P.2-54)
3. Rear personal light (P.2-61)
4. Sun visors (P.3-23)
5. Power windows (P.2-55) 6. Moonroof switch (P.2-57)
7. Map light (P.2-61)
—Active noise control system
(P.5-105)
— SOS call switch* (Refer to the
separate Navigation System Owner’s Manual.)
8. Sunglasses holder (P.2-52)
9. Inside rearview mirror —Operation (P.3-24)
— HomeLink
®(P.2-63)
10. Rear armrest (P.1-4)
11. Rear cup holders (P.2-51)
12. Console box —Power outlet (P.2-49)
— USB input operation (P.4-69)
— iPod
®player operation (P.4-79)
13. Front cup holders (P.2-51)
Illustrated table of contents0-5
PASSENGER COMPARTMENT

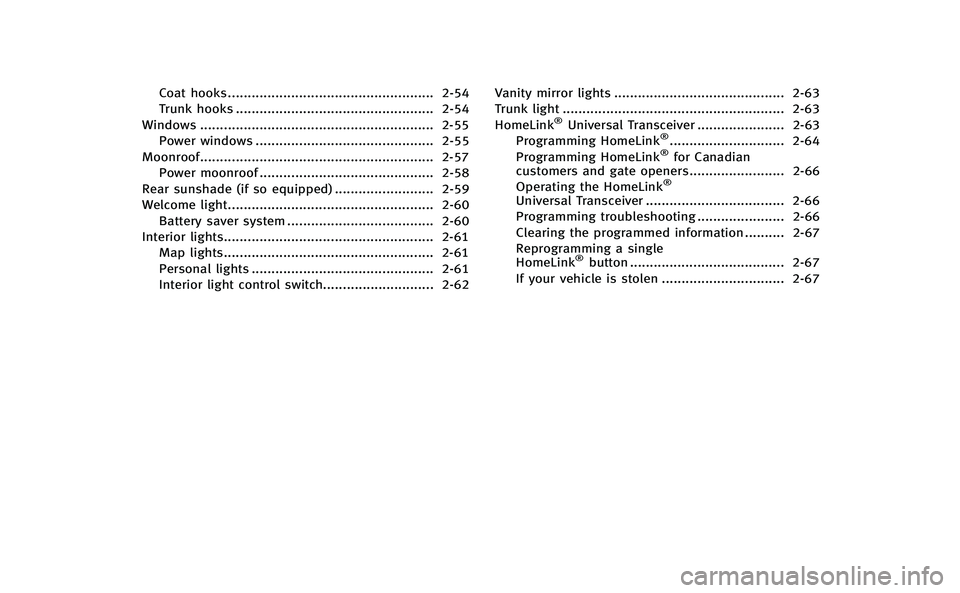

Coat hooks.................................................... 2-54
Trunk hooks .................................................. 2-54
Windows ........................................................... 2-55 Power windows ............................................. 2-55
Moonroof........................................................... 2-57 Power moonroof ............................................ 2-58
Rear sunshade (if so equipped) ......................... 2-59
Welcome light.................................................... 2-60
Battery saver system ..................................... 2-60
Interior lights..................................................... 2-61 Map lights..................................................... 2-61
Personal lights .............................................. 2-61
Interior light control switch............................ 2-62 Vanity mirror lights ........................................... 2-63
Trunk light ........................................................ 2-63
HomeLink
®Universal Transceiver ...................... 2-63
Programming HomeLink®............................. 2-64
Programming HomeLink®for Canadian
customers and gate openers........................ 2-66
Operating the HomeLink
®
Universal Transceiver ................................... 2-66
Programming troubleshooting ...................... 2-66
Clearing the programmed information .......... 2-67
Reprogramming a single
HomeLink
®button ....................................... 2-67
If your vehicle is stolen ............................... 2-67

SIC3869
The light on the vanity mirror will turn on
when the cover on the vanity mirror is
opened.
When the cover is closed, the light will turn
off.
The lights will also turn off after a period
of time when the lights remain illuminated
to prevent the 12-volt battery from becom-
ing discharged.The light illuminates when the trunk lid is
opened. When the trunk lid is closed, the
light will turn off.
The light will also turn off after a period of
time when the light remains illuminated
after the ignition switch has been pushed
to the OFF or LOCK position to prevent the
12-volt battery from becoming discharged.
The HomeLink
®Universal Transceiver pro-
vides a convenient way to consolidate the
functions of up to three individual hand-
held transmitters into one built-in device.
HomeLink
®Universal Transceiver:
. Will operate most Radio Frequency (RF)
devices such as garage doors, gates,
home and office lighting, entry door
locks and security systems.
. Is powered by your vehicle’s 12-volt
battery. No separate batteries are
required. If the vehicle’s 12-volt battery
is discharged or is disconnected,
HomeLink
®will retain all programming.
When the HomeLink®Universal Transcei-
ver is programmed, retain the original
transmitter for future programming proce-
dures (Example: new vehicle purchases).
Upon sale of the vehicle, the programmed
HomeLink
®Universal Transceiver buttons
should be erased for security purposes.
For additional information, refer to “Pro-
gramming HomeLink
®” (P.2-64).
WARNING
. Do not use the HomeLink®Universal
Transceiver with any garage door opener
that lacks safety stop and reverse
Instruments and controls2-63
VANITY MIRROR LIGHTS TRUNK LIGHT HomeLink®UNIVERSAL TRANSCEIVER

2-64Instruments and controls
features as required by federal safety
standards. (These standards became
effective for opener models manufac-
tured after April 1, 1982). A garage door
opener which cannot detect an object in
the path of a closing garage door and
then automatically stop and reverse,
does not meet current federal safety
standards. Using a garage door opener
without these features increases the risk
of serious injury or death.
. During the programming, procedure your
garage door or security gate will open
and close (if the transmitter is within
range). Make sure that people or objects
are clear of the garage door, gate, etc.
that you are programming.
. Your vehicle’s INFINITI Direct Response
Hybrid
®System should be turned off
while programming the HomeLink®Uni-
versal Transceiver. Do not breathe ex-
haust gases: they contain colorless and
odorless carbon monoxide. Carbon mon-
oxide is dangerous. It can cause uncon-
sciousness or death.
PROGRAMMING HomeLink®
If you have any questions or are having
difficulty programming your HomeLink®
buttons, refer to the HomeLink®web site
at: www.homelink.com or call 1-800-355-
3515.
NOTE:
It is also recommended that a new battery
be placed in the hand-held transmitter of
the device being programmed to
HomeLink
®for quicker programming and
accurate transmission of the radio-fre-
quency.
1. Position the end of your hand-held transmitter 1-3 in (26-76 mm) away
from the HomeLink
®surface, keeping
the HomeLink®indicator light*1in
view.
JVI0428X
2. Using both hands, simultaneously
press and hold the desired HomeLink®
button and handheld transmitter but-
ton. DO NOT release until the
HomeLink
®indicator light*1flashes
slowly and then rapidly. When the
indicator light flashes rapidly, both
buttons may be released. (The rapid
flashing indicates successful program-
ming.)
NOTE:
Some devices to be programmed may
require you to replace Step 2 with the
cycling procedure noted in the “Pro-
gramming HomeLink
®for Canadian

customers and gate openers”(P.2-66).
JVI0429X
3. Press and hold the programmed
HomeLink®button and observe the
indicator light.
.If the indicator light*1is solid/
continuous, programming is com-
plete and your device should acti-
vate when the HomeLink
®button is
pressed and released.
.If the indicator light*1blinks
rapidly for two seconds and then
turns to a solid/continuous light,
continue with Steps 4-6 for a rolling
code device. A second person may
make the following steps easier. Use
a ladder or other device. Do not stand on your vehicle to perform the
next steps.
4. At the receiver located on the garage door opener motor in the garage, locate
the “learn” or“smart” button (the
name and color of the button may vary
by manufacturer but it is usually
located near where the hanging anten-
na wire is attached to the unit). If there
is difficulty locating the button, refer-
ence the garage door opener’s manual.
5. Press and release the “learn” or
“smart” button.
NOTE:
Once the button is pressed, you have
approximately 30 seconds to initiate
the next step.
6. Return to the vehicle and firmly press and hold the programmed HomeLink
®
button for two seconds and release.
Repeat the “press/hold/release” se-
quence up to 3 times to complete the
programming process. HomeLink
®
should now activate your rolling code
equipped device.
7. If you have any questions or are having difficulty programming your
HomeLink
®buttons, refer to the
Instruments and controls2-65

2-66Instruments and controls
HomeLink®web site at: www.homelink.
com or call 1-800-355-3515.
PROGRAMMING HomeLink®FOR
CANADIAN CUSTOMERS AND GATE
OPENERS
Canadian radio-frequency laws require
transmitter signals to “time-out”(or quit)
after several seconds of transmission –
which may not be long enough for
HomeLink
®to pick up the signal during
programming. Similar to this Canadian
law, some U.S. gate operators are de-
signed to “time-out” in the same manner.
If you live in Canada or you are having
difficulties programming a gate operator or
garage door opener by using the “Pro-
gramming HomeLink
®” procedures, re-
place “Programming HomeLink®”Step 2
with the following:
NOTE:
When programming a garage door opener,
etc., unplug the device during the “cy-
cling” process to prevent possible damage
to the garage door opener components.
Step 2: Using both hands, simultaneously
press and hold the desired HomeLink
®
button and the hand-held transmitter button. During programming, your hand-
held transmitter may automatically stop
transmitting. Continue to press and hold
the desired HomeLink
®button while you
press and re-press (“cycle”) your hand-
held transmitter every two seconds until
the frequency signal has been learned. The
HomeLink
®indicator light will flash slowly
and then rapidly after several seconds
upon successful programming. DO NOT
release until the HomeLink
®indicator light
flashes slowly and then rapidly. When the
indicator light flashes rapidly, both buttons
may be released. The rapid flashing
indicates successful programming.
Proceed with “Programming HomeLink
®”
Step 3 to complete.
Remember to plug the device back in when
programming is completed.
OPERATING THE HomeLink®UNI-
VERSAL TRANSCEIVER
The HomeLink®Universal Transceiver, after
it is programmed, can be used to activate
the programmed device. To operate, simply
press and release the appropriate pro-
grammed HomeLink
®Universal Transceiver
button. The amber indicator light will
illuminate while the signal is being trans- mitted.
For convenience, the hand-held transmitter
of the device may also be used at any time.
PROGRAMMING TROUBLESHOOT-
ING
If the HomeLink®does not quickly learn
the hand-held transmitter information:
. replace the hand-held transmitter bat-
teries with new batteries.
. position the hand-held transmitter with
its battery area facing away from the
HomeLink
®surface.
. press and hold both the HomeLink®
and hand-held transmitter buttons
without interruption.
. position the hand-held transmitter 1-3
in (26-76 mm) away from the
HomeLink
®surface. Hold the transmit-
ter in that position for up to 15
seconds. If HomeLink
®is not pro-
grammed within that time, try holding
the transmitter in another position -
keeping the indicator light in view at all
times.
If you have any questions or are having
difficulty programming your HomeLink
®
buttons, refer to the HomeLink®web site
at: www.homelink.com or 1-800-355-3515.

CLEARING THE PROGRAMMED IN-
FORMATION
The following procedure clears the pro-
grammed information from both buttons.
Individual buttons cannot be cleared.
However, individual buttons can be repro-
grammed, see“Reprogramming a single
HomeLink
®button” (P.2-67).
To clear all programming
1. Press and hold the two outer
HomeLink®buttons until the indicator
light begins to flash in approximately
10 seconds. Do not hold for longer than
20 seconds.
2. Release both buttons.
HomeLink
®is now in the programming
mode and can be programmed at any time
beginning with “Programming HomeLink
®”
- Step 1.
REPROGRAMMING A SINGLE
HomeLink®BUTTON
To reprogram a HomeLink®Universal
Transceiver button, complete the following.
1. Press and hold the desired HomeLink
®
button. Do notrelease the button. 2. The indicator light will begin to flash
after 20 seconds. Without releasing the
HomeLink
®button, proceed with “Pro-
gramming HomeLink®” - Step 1.
For questions or comments, contact
HomeLink
®at: www.homelink.com or 1-
800-355-3515.
The HomeLink
®Universal Transceiver but-
ton has now been reprogrammed. The new
device can be activated by pushing the
HomeLink
®button that was just pro-
grammed. This procedure will not affect
any other programmed HomeLink
®but-
tons.
IF YOUR VEHICLE IS STOLEN
If your vehicle is stolen, you should change
the codes of any non-rolling code device
that has been programmed into
HomeLink
®. Consult the Owner’s Manual
of each device or call the manufacturer or
retailer of those devices for additional
information.
When your vehicle is recovered, you will
need to reprogram the HomeLink
®Uni-
versal Transceiver with your new transmit-
ter information. FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.
NOTE:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.
For Canada:
This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions: (1) this
device may not cause interference, and
(2) this device must accept any interfer-
ence, including interference that may
cause undesired operation of the device.
Instruments and controls2-67

Push the“*”switch*Cto make the
inside rearview mirror operate normally.
The indicator light will turn off. Push the “I”
switch
*Dto turn the system on.
Do not allow any object to cover the
sensors
*Eor apply glass cleaner on
them. Doing so will reduce the sensitivity
of the sensor, resulting in improper
operation.
For the HomeLink
®Universal Transceiver
operation, see “HomeLink®Universal
Transceiver” (P.2-63).
OUTSIDE MIRRORS
WARNING
Objects viewed in the outside mirror on the
passenger side are closer than they appear.
Be careful when moving to the right. Using
only this mirror could cause an accident.
Use the inside mirror or glance over your
shoulder to properly judge distances to
other objects.
SPA2739
Adjusting outside mirrors
The outside mirror control switch is located
on the armrest.
The outside mirror will operate only when
the ignition switch is in the ACC or ON
position.
Move the switch right or left to select the
right or left side mirror
*1, then adjust
using the control switch
*2.
Defrosting outside mirrors
The outside mirrors will be heated when
the rear window defroster switch is oper-
ated.
SPA2738
Foldable outside mirrors
CAUTION
. Do not touch the mirrors while they are
moving. Your hand may be pinched, and
the mirror may malfunction.
. Do not drive with the mirrors stored. You
will be unable to see behind the vehicle.
. If the mirrors were folded or unfolded by
hand, there is a chance that the mirror
will move forward or backward during
driving. If the mirrors were folded or
unfolded by hand, be sure to adjust
Pre-driving checks and adjustments3-25

10-4
G
Garage door openerHomeLink®Universal Transceiver ................. 2-63
Gas cap ............................................................ 3-20
Gauge ................................................................. 2-6
Assist charge gauge ....................................... 2-8
Fuel gauge ..................................................... 2-8
Odometer....................................................... 2-7
Speedometer ................................................. 2-7
Tachometer .................................................... 2-8
Trip computer .............................................. 2-28
General maintenance .......................................... 8-2
Glove box ......................................................... 2-52
H
Hands-free phone system
Bluetooth®(models with
navigation system) ....................................... 4-84
Bluetooth
®(models without
navigation system) ....................................... 4-95
Hazard warning flasher switch ............................ 6-2
Head restraints/headrests ................................... 1-5
Headlights
Aiming control (See adaptive front lighting
system (AFS)) ............................................... 2-40
Bulb replacement ......................................... 8-29
Headlight switch .......................................... 2-38
Xenon headlights ......................................... 2-38
Heated seats .................................................... 2-44
Heated steering wheel ...................................... 2-43 Heater
Automatic climate control ............................ 4-34
Engine block heater ................................... 5-104
High temperature warning light ......................... 2-14
High voltage cautions ..................... Hybrid System-2
High voltage components .............. Hybrid System-10
Hill start assist system ................................... 5-102
HomeLink
®Universal Transceiver ...................... 2-63
Hood release .................................................... 3-16
Hook
Coat hooks .................................................. 2-54
Horn ................................................................. 2-44
How to enable/disable the BSW system using the
settings menu ................................................... 5-35
How to enable/disable the FCW system using the
setting menu .................................................... 5-85
How to enable/disable the LDP system using
the settingsmenu .............................................. 5-29
How to enable/disable the LDW system using the
settings menu ................................................... 5-25
Hybrid EPS (Electrical Power Steering)
warning light .................................................... 2-14
Hybrid system over heat warning ...................... 2-25
Hybrid system start operation indicator ............ 2-23
Hybrid vehicle characteristics ........ Hybrid System-11
Hybrid vehicle precautions ............ Hybrid System-10
I
If the vehicle does not start ................................ 6-9
Ignition switch (Push-button) ................................................. 5-9 Automatic transmission models ................... 5-13
Immobilizer system ........................................... 2-34
In-cabin microfilter ............................................ 4-47
Indicator Dot matrix display ....................................... 2-21
Lights .......................................................... 2-17
Indicator lights ................................................. 2-17
Infiniti Connection (models with
navigation system) ............................................ 4-24
Infiniti Direct Response
Hybrid system ................................. Hybrid System-2
INFINITI Drive mode selector.............................. 5-18
INFINITI Vehicle Immobilizer System .................. 2-34 Engine start ................................................. 2-34
INFINITI voice recognition system .................... 4-109
INFO button ...................................................... 4-10
Inside mirror ..................................................... 3-24
Inspection/maintenance (I/M) test .................... 9-20
Instrument brightness control ........................... 2-42
Instrument panel ................................................ 2-5
Intelligent Brake Assist (IBA) off indicator light ... 2-18
Intelligent Brake Assist (IBA) system ................. 5-86
Intelligent cruise control (ICC) system ............... 5-48
Preview function .......................................... 5-69
Intelligent Cruise Control (ICC) system MAIN
switch indicator ................................................ 2-25
Intelligent Cruise Control (ICC) system
warning light .................................................... 2-14
Intelligent Key ..................................................... 3-2
Intelligent Key battery discharge ....................... 5-11
Intelligent Key ignition indicator ....................... 2-24

10-8
Precautions when starting and driving ........... 5-3
Push starting ............................................... 6-12
Starting the INFINITI Direct Response
Hybrid
®System ........................................... 5-12
Starting the INFINITI Direct Response
Hybrid
®System ................................................ 5-12
Starting the vehicle ........................................... 5-13
STATUS button .................................................. 4-10
Status light, Front passenger air bag ................ 1-44
Steering
Heated steering wheel ................................. 2-43
Power steering fluid ..................................... 8-15
Power steering system ................................. 5-95
Steering lock release
malfunction indicator ................................... 2-23
Steering-wheel-mounted controls
for audio ...................................................... 4-82
Tilt/telescopic steering ................................. 3-22
Steering lock (if so equipped) ........................... 5-10
Storage ............................................................. 2-51
Streaming audio via Bluetooth
®(models with
navigation system) ............................................ 4-74
Sun visors ........................................................ 3-23
Sunglasses holder ............................................ 2-52
Sunshade (rear) ................................................ 2-59
Supplemental air bag warning labels ................ 1-50
Supplemental air bag warning light ......... 1-50, 2-17
Supplemental restraint system .......................... 1-37
Precautions on supplemental
restraint system ........................................... 1-37 Switch
Autolight switch ........................................... 2-39
Fog light switch ........................................... 2-43
Hazard warning flasher switch ....................... 6-2
Headlight switch .......................................... 2-38
Ignition switch ............................................. 5-13
Ignition switch automatic
transmission models .................................... 5-13
Intelligent Brake Assist (IBA) OFF switch ...... 2-47
Power door lock switch .................................. 3-5
Rear window and outside mirror
defroster switch ........................................... 2-37
Turn signal switch ........................................ 2-43
Vehicle dynamic control (VDC) off switch ...... 2-48
Warning systems switch ............................... 2-47
T
Tachometer ......................................................... 2-8
Theft (INFINITI Vehicle Immobilizer System) Engine start ................................................. 2-34
Three-way catalyst .............................................. 5-4
Tilt/telescopic steering ...................................... 3-22
“TIMER” indicator.............................................. 2-24
Tire pressure
Low tire pressure warning light .................... 2-15
Tires Flat tire .......................................................... 6-3
Low tire pressure warning system ... 5-4, 6-3, 8-32
Spare tire .................................................... 8-42
Tire and Loading information label ...... 8-34, 9-11
Tire chains ................................................... 8-39 Tire dressing .................................................. 7-4
Tire pressure................................................ 8-32
Tire pressure information (display) ............... 4-12
Tire pressure monitoring
system (TPMS) .............................. 5-4, 6-3, 8-32
Tire replacement indicator ............................ 2-26
Tire rotation ................................................. 8-39
Types of tires ............................................... 8-38
Uniform tire quality grading ......................... 9-17
Wheel/tire size .............................................. 9-8
Wheels and tires .......................................... 8-32
Touch screen system ........................................... 4-6
Towing
Flat towing ................................................... 9-17
Tow truck towing .......................................... 6-13
Towing a trailer ............................................ 9-17
TPMS Tire pressure monitoring system ... 5-4, 6-3, 8-32
Tire pressure warning system ....... 5-4, 6-3, 8-32
Trailer towing .................................................... 9-17
Transceiver
HomeLink
®Universal Transceiver ................. 2-63
Transmission Automatic transmission fluid (ATF) ............... 8-15
Driving with automatic transmission ............ 5-13
Transmission shift lever lock release ............ 5-16
Transmitter (See remote keyless entry system) ... 3-13
Traveling or registering your vehicle in
another country .................................................. 9-9
Trip computer ................................................... 2-28
Trip odometer ................................................... 2-30
