1. About the INFINITI Q70 HYBRID
This hybrid electric vehicle (HEV) uses two types of batteries. One is a 12-volt battery that is the same as
the battery in vehicles powered by internal combustion engines. The 12-volt battery is located behind the
rear seat back with battery cable access through the trunk area. The other is the high voltage battery for the
traction motor which propels the vehicle. The high voltage battery is located behind the rear seat back with
service plug access through the trunk area.
When the high voltage battery level is low, engine output is used to generate power from the traction motor
and charge the high voltage battery. Additionally, the vehicle system can recharge the high voltage battery
by converting driving force into electricity while the vehicle is decelerating or being driven downhill. This is
called regenerative charging.RAG–5

1-1 Q70 HYBRID IDENTIFICATION
1-1.1 Exterior and Engine Compartment
AAYIA0407ZZ
RAG–6

No. Component Location Description High Voltage Battery Trunk area (behind
rear seat back) The high voltage battery stores and outputs
DC power (Maximum voltage 400V) needed to
propel the vehicle.
DC/DC Converter
Trunk area (mounted
to top of high
voltage battery)The DC/DC converter reduces the voltage of
the high voltage battery to provide power to
the 12-volt battery in order to operate the vehi-
cle’s electric components (headlights, audio
system, etc.) .
Service Plug Trunk area (below
parcel shelf; behind
access door in trimpanel) This is used to disable the high voltage system.
12-volt Battery Trunk area (below
parcel shelf; behind
trim panel left of
high voltage battery) A lead-acid battery that supplies power to the
low voltage devices.
High VoltageHarnesses Trunk area (on high
voltage battery) ,
under floor pan,
engine compartment Orange-colored power cables carry high DC
voltage between each of the high voltagecomponents.
Electric Air Condi-
tioner Compressor
Engine compartment
(front driver side)Air conditioner compressor
Traction MotorInverter
Engine compartment
(right rear side)Converts the DC power stored in the high volt-
age battery to three-phase AC power and con-
trols motor torque (revolution) by regulating the
motor current. The inverter has a built in high
voltage capacitor.
Traction Motor Built-into the trans-
mission Converts three-phase alternating current (AC)
power to drive power (torque) which propels
the vehicle.
2-3 High Voltage Battery Pack Specifications
High Voltage Battery Specifications
High voltage battery voltage 346V (400V max.)
Number of high voltage battery modules in the pack 12
High voltage battery module voltage 28.8V each
High voltage battery dimensions 33.35 x 17.83 x 15.43 in. (847 x 453 x 392 mm)
High voltage battery weight 121.28 lbs (55 kg)
RAG–12

2-4 High Voltage Safety Measures
Circuit insulation The high voltage positive (+) and negative (-) circuits are insulatedfrom the metal chassis.
Reducing the risk of electrocution The high voltage components and harnesses have insulated cases or orange-colored coverings which provide insulation and easy identification.
The high voltage battery case is electrically connected to the vehicle
ground. This connection helps protect the vehicle occupants and
emergency responders from high voltage electrical shock.

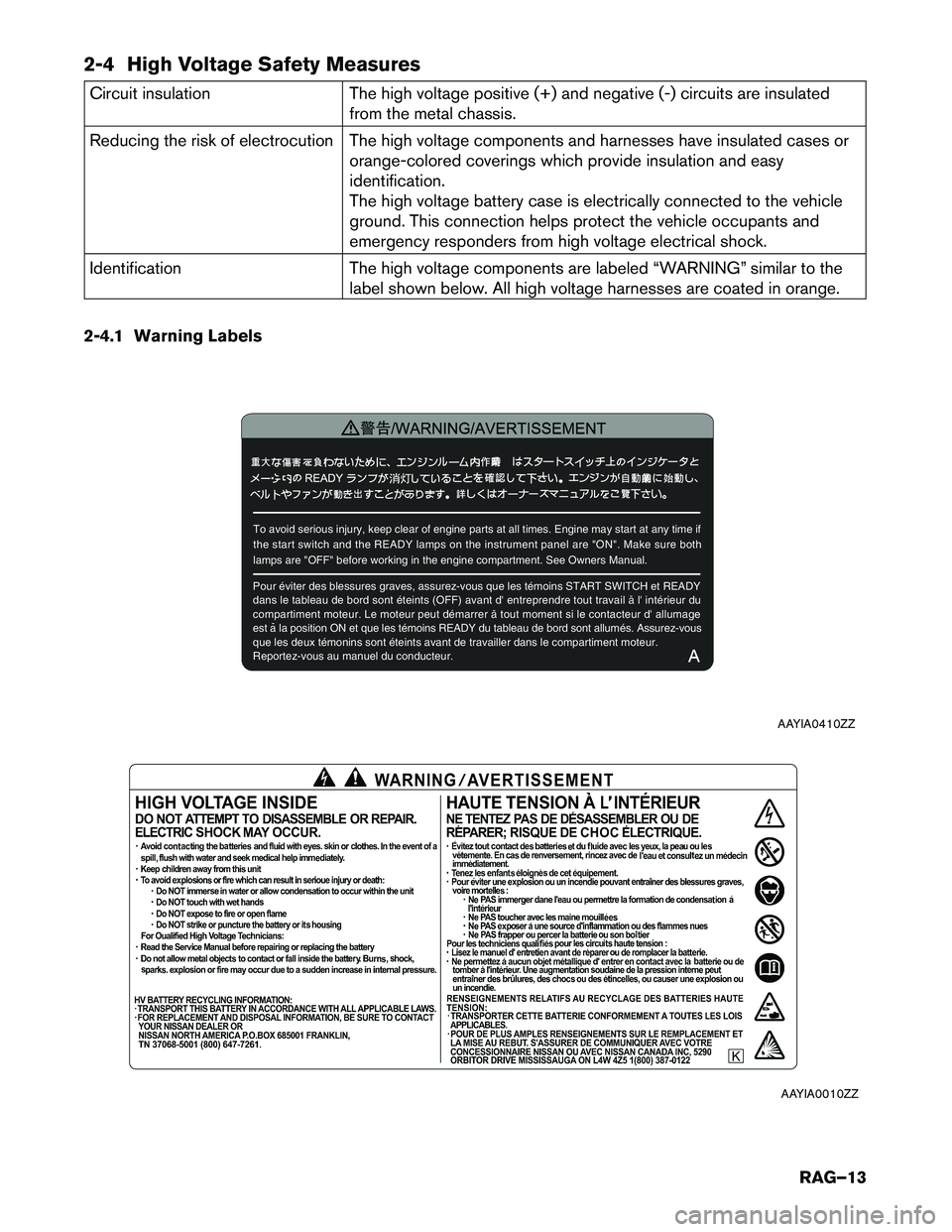

Identification The high voltage components are labeled “WARNING” similar to the label shown below. All high voltage harnesses are coated in orange.
2-4.1 Warning Labels
To avoid serious injury, keep clear of engine parts at all times. Engine may start at any time if

the start switch and the READY lamps on the instrum ent panel are "ON". Make sure both
lamps are "OFF" before working in the engine compartment. See Owners Manual.
¾¯¸æ /WARNING/AVERTISSEMENT
ÖØ ´ó
ÏûµÆ
Pour éviter des blessures graves, assurez-vous que les témoins START SWITCH et READY

dans le tableau de bord sont éteints (OFF) avant d' entreprendre tout travail a l' intérieur du
compartiment moteur. Le moteur peut démarrer a tout moment si le contacteur d' allumage
est a la position ON et que les témoins READY du ta bleau de bord sont allumés. Assurez-vous
que les deux témonins sont éteints avant de travailler dans le compartiment moteur.
Reportez-vous au manuel du conducteur.ÉË º¦
¶¯³ö
Ïê À
À
¸º
×÷ Òµ ʱ
È· ÈÏ ×Ô ¶¯ µÄʼ ¶¯
READY
A
AAYIA0410ZZ
AAYIA0010ZZ
RAG–13

Preparation Items Specification Purpose
Absorbent pad The same pad used for internal combustion engine
fluids can be used.To absorb any high voltage
battery electrolytic solutionleakage.
Standard fire fighting equipment Standard fire fighting equipment.
Depending on type of fire
(vehicle or battery) use
standard fire fighting
equipment (water or
extinguisher) .To extinguish a fire.
Insulated tape InsulatingTo cover any damaged
harnesses to protect from and
prevent electrical shock. Tape
should cover all bare or
damaged wire.
3-1.1 Personal Protective Equipment (PPE) Protective Wear Control
Perform an inspection of the Personal Protective Equipment (PPE) items before beginning work. Do not use
any damaged PPE items.
3-1.2 Daily Inspection
This inspection is performed before and after use. The worker who will be using the items should perform
the inspection and check for deterioration and damage. • Insulated rubber gloves should be inspected for scratches, holes and tears. (Visual check and airleakage test)
• Insulated safety boots should be inspected for holes, damage, nails, metal pieces, wear or other problems on the soles. (Visual check)
• Insulated rubber sheet should be inspected for tears. (Visual check)
3-1.3 Insulated Tools
When performing work at locations where high voltage is applied (such as terminals) , use insulated tools
meeting 1,000V/300A specifications.
RAG–15

3-7 High Voltage Battery Damage And Fluid Leaks
The high voltage battery contains electrolyte solution. To avoid exposure to electrolyte
solution and serious personal injury, always wear appropriate solvent resistant Personal
Protective Equipment (PPE) and read the following precautions:
• Electrolyte solution is a skin irritant.
• Electrolyte solution is an eye irritant – If contact with eyes, rinse with plenty of water andsee a doctor immediately.
• If electrolyte leak occurs, wear appropriate solvent resistant PPE and use a dry cloth to clean up the spilled electrolyte. Be sure to adequately ventilate the area.
• Electrolyte solution is highly flammable.
• Electrolyte liquid or fumes that have come into contact with water vapors in the air will create an oxidized substance. This substance may irritate skin and eyes. In these cases,
rinse with plenty of water and see a doctor immediately.
• Electrolyte fumes (when inhaled) can cause respiratory irritation and acute intoxication. Move to fresh air and wash mouth with water. See a doctor immediately.
In cases of battery case breach or electrolyte leakage, contact the fire department immediately. If you must
walk away from the vehicle, notify an appropriate responder of the fact that the vehicle is a hybrid vehicle
and contains a high voltage system and warn all others.
High Voltage Battery Electrolyte Solution Characteristics: • Clear in color
• Sweet odor
• Similar viscosity to water
• Since the high voltage battery is made up of many small sealed battery modules, electrolyte solutionleakage should be minimal.
NOTE:
Other fluids in the vehicle (such as engine oil, washer fluid, brake fluid, coolant, etc.) are
the same as those in a conventional vehicle.
RAG–19

4-1.1 Jump Starting ProceduresJumper cable connections under the hood of the Q70 HYBRID are not connected directly to
a battery. They are connected to chassis ground and a fuse box terminal. Refer to the
following instructions and the above illustration. 1. If the booster battery is in another vehicle (A) , position the two vehicles (A) and (B) to bring thebattery of booster vehicle (A) and the fuse box of jumped vehicle (B) into close proximity to eachother.
DO NOT allow the two vehicles to touch.
2. Apply the parking brake. Move the selector lever the P (Park) position. Switch off all unnecessary electrical systems (headlights, heater, air conditioner, etc.) .
3. Place the ignition switch in the “OFF” position.
• Always connect positive (+) to positive (+) and negative (-) to body ground (for example, as illustrated) , not to the 12-volt battery.
• Make sure the jumper cables do not touch moving parts in the engine compartment and that the cable clamps do not contact any other metal.
• If the hybrid system does not start right away, push the ignition switch to the OFF position and wait ten (10) seconds before trying again.
4. Connect the jumper cables in the sequence as illustrated [(1) , (2) , (3) , (4)].
5. Start the engine of the booster vehicle (A) and let it run for a few minutes.
6. Start the hybrid system of the jumped vehicle (B) in the normal manner.
7. After the hybrid system is started, carefully disconnect the jumper cables in the opposite sequence from that illustrated [(4) , (3) , (2) , (1)].
NOTE:
If it is not possible to turn the hybrid system ON by following this procedure, it is
recommended you contact an INFINITI retailer immediately.
8. Put the fuse cover and the engine compartment cover back to the original location.
AB
2+1
1234
+
3-4-
AAYIA0405ZZ
RAG–21

Rear Tie Down Hook:• Do not use the rear tie down hook for towing or vehiclerecovery.
• The rear tie down hook is designed to secure the vehicle during transport only, as illustrated.
4-4 Jacking Up the Vehicle and Changing a Tire
Always follow these instructions when jacking up the vehicle and changing a tire:
• Never change a tire when the vehicle is on a slope, ice or slippery areas. Jack must be on level ground.
• Make sure the parking brake is securely applied and shift selector is in P (Park) position.
• Never get under the vehicle while it is supported only by the jack. If it is necessary to work under the vehicle, support it with safety stands.
• Use the correct jack-up points. Never use any other part of the vehicle for jack support.
• Never jack up the vehicle more than necessary.
• Never use blocks on or under the jack.
• Do not start or run the engine while vehicle is on the jack. It may cause the vehicle to move. This is especially true for vehicles with limited slip differentials.
• Do not allow passengers to stay in the vehicle while it is on the jack.
• Never run the engine with a wheel(s) off the ground. It may cause the vehicle to move.
• Be sure to block the wheel diagonally opposite the wheel being removed as the vehicle may move and result in personal injury.
Failure to follow these instructions can result in serious personal injury or death and/or
vehicle damage.
AAYIA0400ZZ
AAYIA0357ZZ
