INFINITI Q70 HYBRID 2017 Roadside Assistance Guide

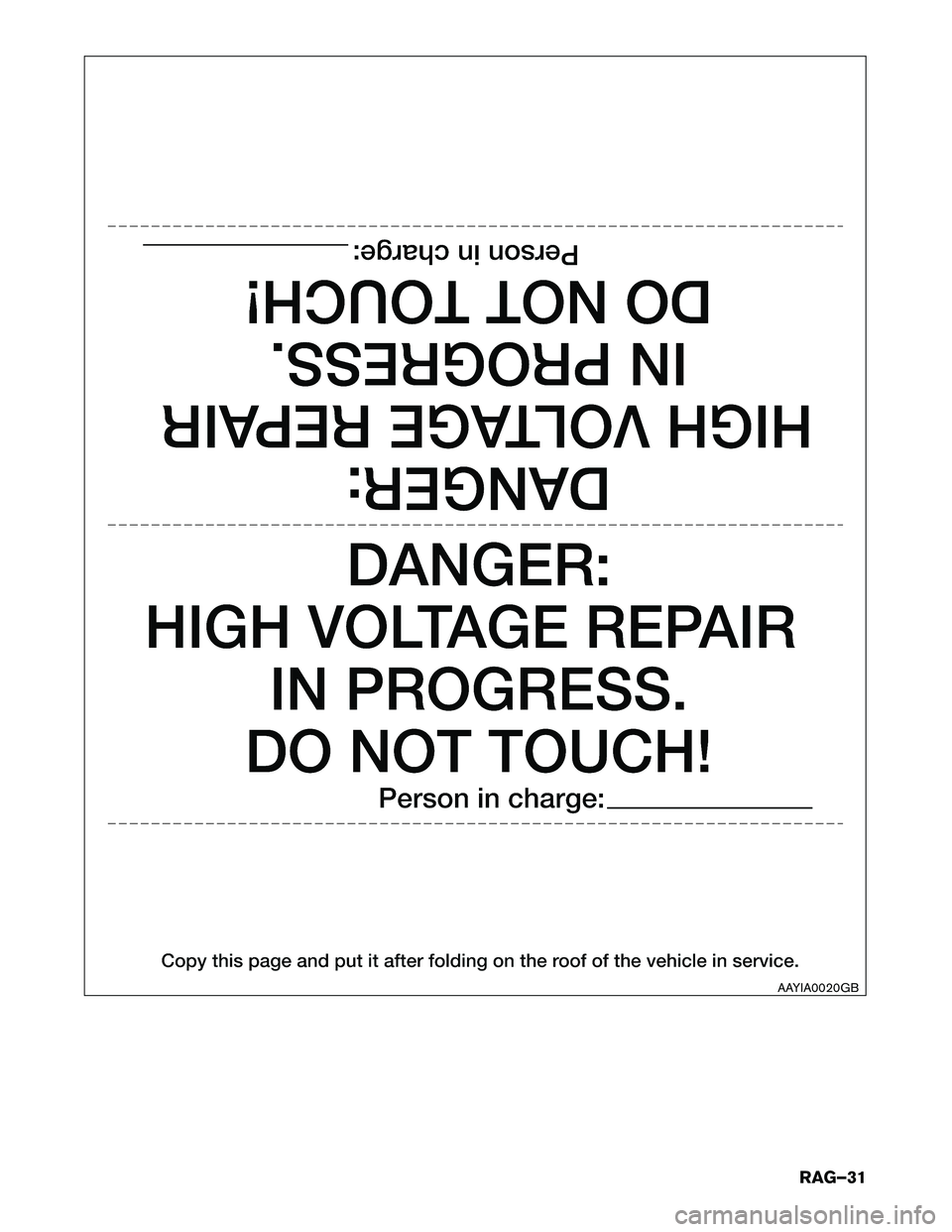

AAYIA0020GBRAG–31

5-2 Remove Service Plug
DANGER
•Do not remove the service plug without always wearing appropriate Personal
Protective Equipment (PPE) to help protect the responder from serious injury or death
by electrical shock.
•
Immediately cover the service plug socket with insulated tape. The high-voltage
battery retains high-voltage power even when the service plug is removed. To avoid
electric shock, NEVER touch the terminals inside the socket.
To avoid unintended reinstallation and risk of electrical shock and severe personal injury
or death, the service plug should be securely stored away from the vehicle while the vehicle
is in storage.
NOTE: Before disconnecting the 12-volt battery terminal, if necessary, lower the windows, adjust
the steering column, adjust the seats, unlock the doors, etc. Once 12-volt battery is
disconnected, power controls will not operate.
1. Check the READY indicator (A) status in the instrument cluster. If it is on, the high voltage systemis active.
2. Place the shift selector in the Park (P) position.
3. Push the ignition switch (B) once to turn OFF the high voltage system. Then verify whether the READY indicator (A) is off.
If the READY indicator (A) does not turn off, continue to step 5 to open the trunk for 12-volt
battery negative cable access.
AAYIA0062ZZ
RAG–32

4. If possible, keep the Infiniti Intelligent Key at least5 meters (16 feet) away from the vehicle (except as
noted below) .
5. Open the trunk using any of the following: a. push-button switch (C) on the lower LH side of the instrument panel.
b. trunk button (D) on the Infiniti Intelligent Key [press for longer than one (1) second].
c. trunk open request switch (E) (located above license plate)*.
d. with the mechanical key (F) housed inside the Infiniti Intelligent Key.
* You must have the Infiniti Intelligent Key within approximately 1 meter (3 feet) range of
trunk request switch to use the trunk open request switch function.
AAYIA0068ZZ
RAG–33

6. Open the 12-volt battery service access cover (G) .
7. Disconnect negative (-) battery cable (H) and cover it with insulated tape.
8. Open service plug access cover (J) .
9. Remove the service plug (K) by pressing the locking tab (L) and rotating the handle (M) fullyoutward (N) . Using the handle, pull the service plug (P) completely out of its socket.
HOLD
C
D
L
MN
P
E
F
K
J
GH
AAYIA0360ZZ
RAG–34

10. Wait approximately ten (10) minutes for complete discharge of the high voltage capacitor afterthe service plug has been removed.
11. The vehicle is now ready for storage.
RAG–35

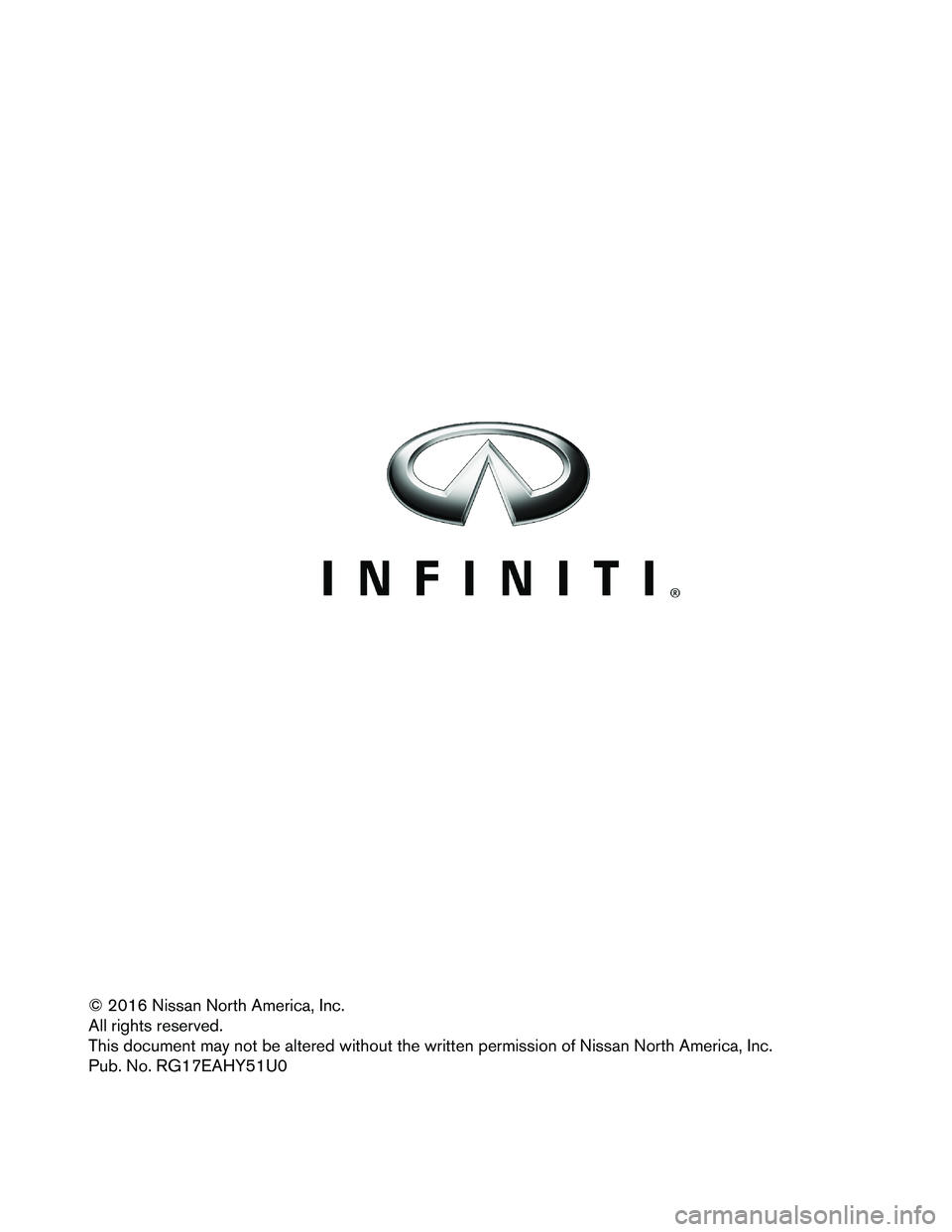

© 2016 Nissan North America, Inc.
