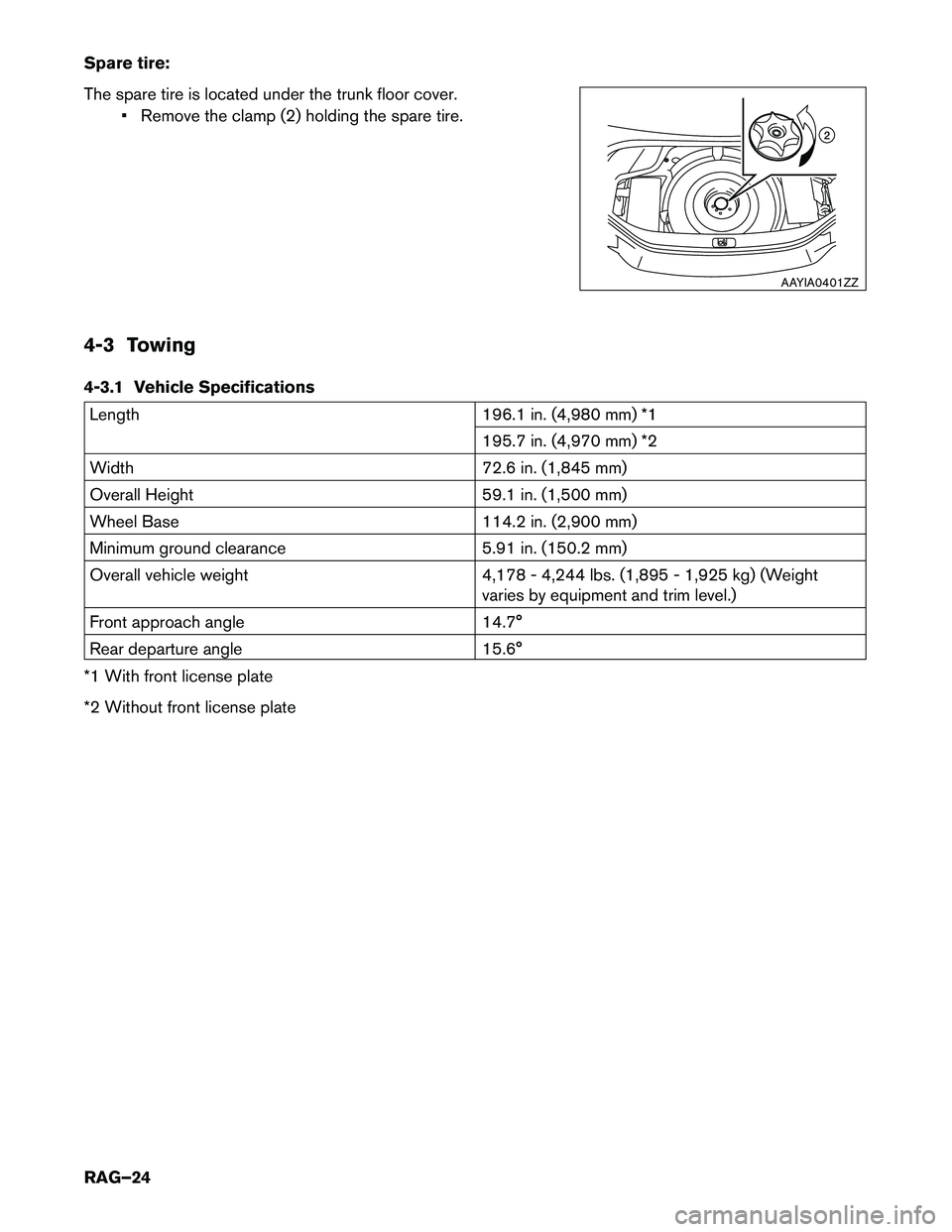

Spare tire:
The spare tire is located under the trunk floor cover.• Remove the clamp (2) holding the spare tire.
4-3 Towing
4-3.1 Vehicle Specifications
Length 196.1 in. (4,980 mm) *1
195.7 in. (4,970 mm) *2
Width 72.6 in. (1,845 mm)
Overall Height 59.1 in. (1,500 mm)
Wheel Base 114.2 in. (2,900 mm)
Minimum ground clearance 5.91 in. (150.2 mm)
Overall vehicle weight 4,178 - 4,244 lbs. (1,895 - 1,925 kg) (Weight varies by equipment and trim level.)
Front approach angle 14.7°
Rear departure angle 15.6°
*1 With front license plate
*2 Without front license plate
2
AAYIA0401ZZ
RAG–24
