INFINITI QX 2011 Owners Manual

AUTOMATIC MOONROOF
The moonroof only operates when the ignition
switch is in the ON position.
The automatic moonroof is operational for
about 45 seconds, even if the ignition switch is
pushed to the OFF position. If the driver’s door
or the passenger’s door is opened during this
period of about 45 seconds, power to the
moonroof is canceled.
Sunshade
The sunshade will open automatically when the
moonroof is opened. However, it must be
closed manually.
Tilting the moonroof
To tilt up, first close the moonroof, then push
the UP
1side of the moonroof switch and
release it; it need not be held. To tilt down the
moonroof, push the DOWN
2side.
Sliding the moonroof
To fully open or close the moonroof, push the
OPEN
2or CLOSE1side of the moonroof
switch and release it; it need not be held. The
roof will automatically open or close all the way. To stop the roof, push the switch once more
while it is opening or closing.
Auto reverse function
WARNING
There are some small distances immediately
before the closed position which cannot be de-
tected. Make sure that all passengers have
their hands, etc., inside the vehicle before clos-
ing the moonroof.
If the control unit detects something caught in
the moonroof when it is closing, the moonroof
will be immediately opened.
The auto reverse function can be activated when
the moonroof is closed by automatic operation
when the ignition switch is in the ON position or
for about 45 seconds after the ignition switch is
pushed to the OFF position.
If the moonroof cannot be closed automatically
when the auto reverse function activates due to
a malfunction, push and hold the CLOSE
1
side of the moonroof switch.
Depending on the environment or driving condi-
tions, the auto reverse function may be activated
if an impact or load similar to something being
caught in the moonroof occurs.
SIC3243
2-64Instruments and controls

If the moonroof does not operate
If the moonroof does not operate properly,
perform the following procedure to initialize the
moonroof operation system.
1. If the moonroof is open, close it fully byrepeatedly pushing the CLOSE
1side of
the moonroof switch.
2. Push and hold the CLOSE
1side of the
moonroof switch to tilt the moonroof up.
3. Release the moonroof switch after the moonroof moves slightly up and down.
4. Push and hold the OPEN
2side of the
moonroof switch to fully tilt the moonroof
down.
5. Check if the moonroof switch operates normally.
If the moonroof does not operate properly after
performing the procedure above, have your
vehicle checked by an INFINITI retailer. To activate or deactivate the welcome light
function, perform the following procedure. Note
that the function is set to disabled as the
factory default setting.1. Push the ignition switch to the ON posi-
tion.
2. Open the driver’s side door.
3. Within 20 seconds after the ignition switch is pushed to the ON position, push
the door open request switch on the
driver’s side door handle for more than 5
seconds with the driver’s door open. 4. A chime sounds when the setting is com-
pleted.
Once the welcome light function is active, the
puddle light
Aand the passenger cabin illu-
mination will illuminate when you approach the
vehicle with the Intelligent Key (within approxi-
mately 3.3 ft (1 m) of the antenna built inside
the door handles) and the following conditions
are met.
● All doors are closed and locked.
● The ignition switch is in the LOCK or OFF
position.
● The Intelligent Key is outside the vehicle.
● The puddle light operates within a set dura-
tion.
SIC3642
WELCOME LIGHT
Instruments and controls2-65

BATTERY SAVER SYSTEM
The welcome light function will be deactivated
automatically to prevent battery discharge un-
der the following conditions. To activate the
welcome light function again, unlock any door.
●If the welcome light function does not oper-
ate within a set duration. Note that the
duration is set to 9 days as the factory
default setting.
● If the welcome light function is activated 15
consecutive times when you approach and
leave the vehicle with the Intelligent Key
without the doors being unlocked.
MAP LIGHTS
Push the button as illustrated to turn the light
on or off.
REAR PERSONAL LIGHTS
Push the button as illustrated to turn the light
on or off.
SIC3249SIC3250
INTERIOR LIGHTS
2-66Instruments and controls

INTERIOR LIGHT CONTROL SWITCH
The interior light control switch has three posi-
tions: ON, DOOR and OFF.
ON position
When the switch is in the ON position1the
map lights and rear personal lights will illumi-
nate.
DOOR position
When the switch is in the DOOR position2, the
map lights and rear personal lights will illumi-
nate under the following conditions:
● ignition switch is switched to the LOCK or
OFF position
– remain on for about 15 seconds.
● doors are unlocked by pushing the UNLOCK
button on the Intelligent Key or door handle
request switch with the ignition switch in the
LOCK or OFF position
– remain on for about 15 seconds.
● any door is opened and then closed with the
ignition switch in the LOCK or OFF position
– remain on for about 15 seconds.
● any door is opened with the ignition switch
in the ACC or ON position
– remain on while the door is opened. When the door is closed, the lights go off.
The lights will also turn off after 30 minutes
when the lights remain illuminated after the ig-
nition switch has been pushed to the OFF or
LOCK position to prevent the battery from be-
coming discharged. When the auto interior illumination is set to the
OFF position (see “VEHICLE INFORMATION AND
SETTINGS” in the “4. Monitor, climate, audio,
phone and voice recognition systems” section),
the lights will illuminate under the following
condition:
●
any door is opened with the ignition switch
in any position
– remain on while the door is opened. When the door is closed, the lights go off.
OFF position
When the switch is in the OFF position3, the
lights will not illuminate, regardless of the
condition.
CAUTION
Do not use for extended periods of time with
the engine stopped. This could result in a dis-
charged battery.
SIC3251
Instruments and controls2-67

The light on the vanity mirror will turn on when
the cover on the vanity mirror is opened.
When the cover is closed, the light will turn off.
The lights will also turn off after 30 minutes
when the lights remain illuminated to prevent
the battery from becoming discharged.The cargo light switch has three positions: ON
1, center2and OFF3.
ON position
When the switch is in the ON position
1, the
cargo light will illuminate.
Center position
When the switch is in the center position
2,
the cargo light will illuminate when the lift gate
is opened.
OFF position
When the switch is in the OFF position
3, the
cargo light will not illuminate. HomeLink
Universal Transceiver provides a
convenient way to consolidate the functions of
up to three individual hand-held transmitters
into one built-in device.
HomeLink Universal Transceiver:
● Will operate most Radio Frequency (RF) de-
vices such as garage doors, gates, home and
office lighting, entry door locks and security
systems.
● Is powered by your vehicle’s battery. No
separate batteries are required. If the vehi-
cle’s battery is discharged or is discon-
nected, HomeLink will retain all program-
ming.
Once HomeLink Universal Transceiver is pro-
grammed, retain the original transmitter for fu-
ture programming procedures (Example: new ve-
hicle purchases). Upon sale of the vehicle, the
programmed HomeLink Universal Transceiver
buttons should be erased for security purposes.
For additional information, see “PROGRAMMING
HomeLink” later in this section.
SIC4448SIC4418
VANITY MIRROR LIGHTS CARGO LIGHTHOMELINKUNIVERSAL TRANSCEIVER
2-68Instruments and controls

WARNING
●Do not use HomeLink Universal Transceiver
with any garage door opener that lacks
safety stop and reverse features as required
by federal safety standards. (These stan-
dards became effective for opener models
manufactured after April 1, 1982.) A garage
door opener which cannot detect an object in
the path of a closing garage door and then
automatically stop and reverse, does not
meet current federal safety standards. Using
a garage door opener without these features
increases the risk of serious injury or death.
● During programming procedure, your garage
door or security gate may open or close.
Make sure that people and objects are clear
of the garage door, gate, etc. that you are
programming.
● Your vehicle’s engine should be turned off
while programming HomeLink Universal
Transceiver.
PROGRAMMING HOMELINK
To program your HomeLink Universal Trans-
ceiver to operate a garage door, gate, or entry
door opener, home or office lighting, you need
to be at the same location as the device. Note:
Garage door openers (manufactured after 1996)
have “rolling code protection”. To program a
garage door opener equipped with “rolling code
protection”; you will need to use a ladder to get
up to the garage door opener motor to be able
to access the “smart or learn” program button.
1. To begin, push and hold the 2 outer HomeLink buttons (to clear the memory)
until the indicator light
Ablinks (after 20
seconds). Release both buttons.
2. Position the end of the hand-held trans- mitter 1-3 inches away from the
HomeLink surface.
SIC3612
Instruments and controls2-69

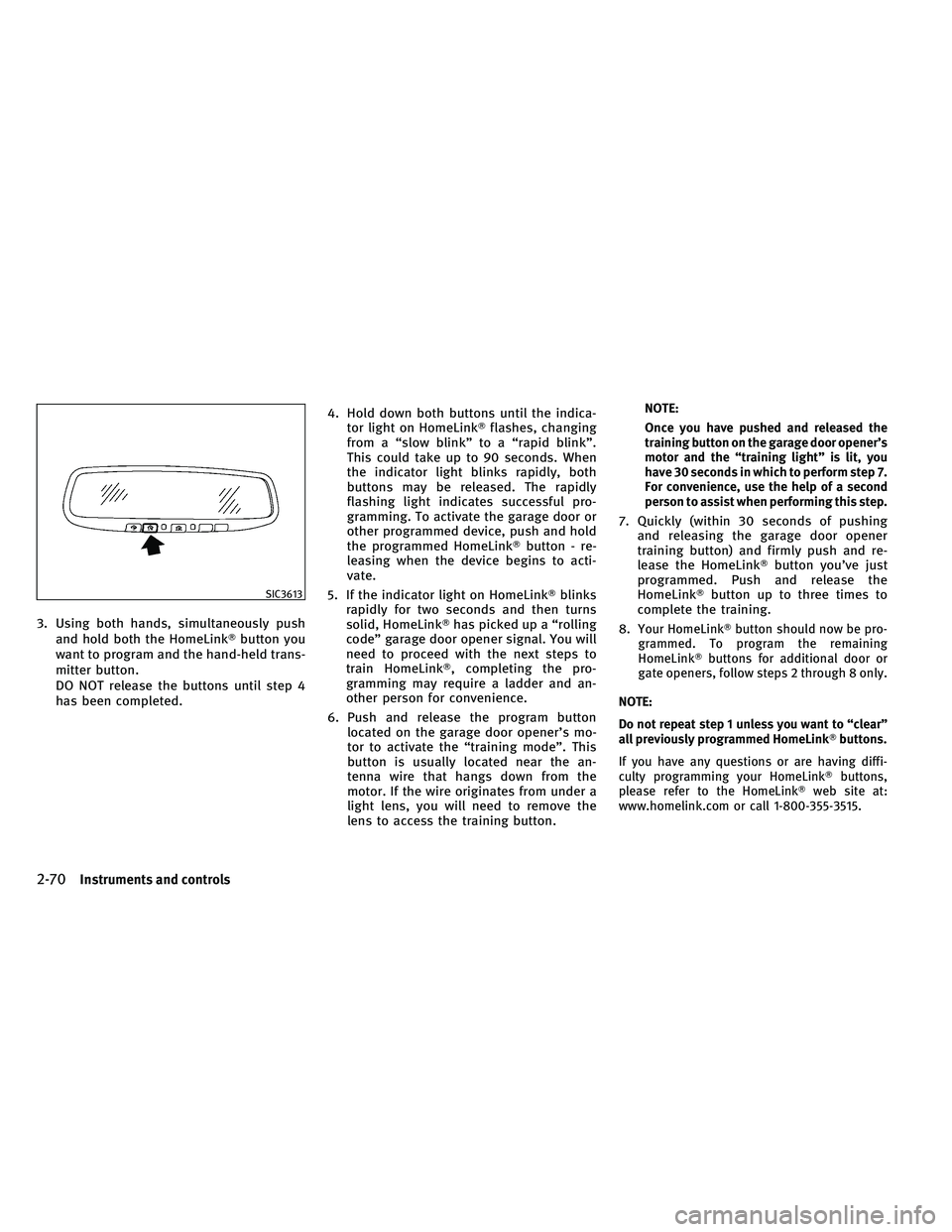

3. Using both hands, simultaneously pushand hold both the HomeLink button you
want to program and the hand-held trans-
mitter button.
DO NOT release the buttons until step 4
has been completed. 4. Hold down both buttons until the indica-
tor light on HomeLink flashes, changing
from a “slow blink” to a “rapid blink”.
This could take up to 90 seconds. When
the indicator light blinks rapidly, both
buttons may be released. The rapidly
flashing light indicates successful pro-
gramming. To activate the garage door or
other programmed device, push and hold
the programmed HomeLink button - re-
leasing when the device begins to acti-
vate.
5. If the indicator light on HomeLink blinks
rapidly for two seconds and then turns
solid, HomeLink has picked up a “rolling
code” garage door opener signal. You will
need to proceed with the next steps to
train HomeLink, completing the pro-
gramming may require a ladder and an-
other person for convenience.
6. Push and release the program button located on the garage door opener’s mo-
tor to activate the “training mode”. This
button is usually located near the an-
tenna wire that hangs down from the
motor. If the wire originates from under a
light lens, you will need to remove the
lens to access the training button.
NOTE:
Once you have pushed and released the
training button on the garage door opener’s
motor and the “training light” is lit, you
have 30 seconds in which to perform step 7.
For convenience, use the help of a second
person to assist when performing this step.
7. Quickly (within 30 seconds of pushingand releasing the garage door opener
training button) and firmly push and re-
lease the HomeLink button you’ve just
programmed. Push and release the
HomeLink button up to three times to
complete the training.
8.
Your HomeLink button should now be pro-
grammed. To program the remaining
HomeLink buttons for additional door or
gate openers, follow steps 2 through 8 only.
NOTE:
Do not repeat step 1 unless you want to “clear”
all previously programmed HomeLink buttons.
If you have any questions or are having diffi-
culty programming your HomeLink buttons,
please refer to the HomeLink web site at:
www.homelink.com or call 1-800-355-3515.
SIC3613
2-70Instruments and controls

PROGRAMMING HOMELINKFOR
CANADIAN CUSTOMERS
Prior to 1992, D.O.C. regulations required hand-
held transmitters to stop transmitting after 2
seconds. To program your hand-held transmit-
ter to HomeLink, continue to push and hold
the HomeLink button (note steps 2 through 4
under “Programming HomeLink”) while you
push and re-push (“cycle”) your hand-held
transmitter every 2 seconds until the indicator
light flashes rapidly (indicating successful pro-
gramming).
NOTE:
If programming a garage door opener, etc., it is
advised to unplug the device during the “cy-
cling” process to prevent possible damage to
the garage door opener components.
OPERATING THE HOMELINK
UNIVERSAL TRANSCEIVER
HomeLink Universal Transceiver (once pro-
grammed) may now be used to activate the
garage door, etc. To operate, simply push the
appropriate programmed HomeLink Universal
Transceiver button. The red indicator light will
illuminate while the signal is being transmitted.
PROGRAMMING TROUBLE-DIAGNOSIS
If HomeLink does not quickly learn the hand-
held transmitter information:
● replace the hand-held transmitter batteries
with new batteries.
● position the hand-held transmitter with its
battery area facing away from the
HomeLink surface.
● push and hold both the HomeLink and
hand-held transmitter buttons without inter-
ruption.
● position the hand-held transmitter 2 to 5 in
(50 to 127 mm) away from the HomeLink
surface. Hold the transmitter in that position
for up to 15 seconds. If HomeLink is not
programmed within that time, try holding
the transmitter in another position - keeping
the indicator light in view at all times.
If you continue to have programming difficul-
ties, please contact the INFINITI Consumer Af-
fairs Department. The phone numbers are lo-
cated in the Foreword of this Owner’s Manual.
CLEARING THE PROGRAMMED
INFORMATION
Individual buttons cannot be cleared, however to
clear all programming, push and hold the two
outside buttons and release when the indicator
light begins to flash (in approximately 20 seconds).
REPROGRAMMING A SINGLE
HOMELINK BUTTON
To reprogram a HomeLink Universal Trans-
ceiver button, complete the following.
1. Push and hold the desired HomeLink button. Do notrelease the button until
step 4 has been completed.
2. When the indicator light begins to flash slowly (after 20 seconds), position the
hand-held transmitter 2 to 5 in (50 to 127
mm) away from the HomeLink surface.
3. Push and hold the hand-held transmitter button.
4. The HomeLink indicator light will flash,
first slowly and then rapidly. When the
indicator light begins to flash rapidly,
release both buttons.
The HomeLink Universal Transceiver button
has now been reprogrammed. The new device
can be activated by pushing the HomeLink
button that was just programmed. This proce-
dure will not affect any other programmed
HomeLink buttons.
Instruments and controls2-71

IF YOUR VEHICLE IS STOLEN
If your vehicle is stolen, you should change the
codes of any non-rolling code device that has
been programmed into HomeLink. Consult the
Owner’s Manual of each device or call the
manufacturer or retailer of those devices for
additional information.
When your vehicle is recovered, you will need to
reprogram the HomeLinkUniversal Transceiver
with your new transmitter information.
FCC Notice:
This device complies with FCC rules part 15. Op-
eration is subject to the following two condi-
tions: (1) This device may not cause harmful in-
terference and (2) This device must accept any
interference that may be received, including in-
terference that may cause undesired operation.
The transmitter has been tested and complies
with FCC and DOC/MDC rules. Changes or modi-
fications not expressly approved by the party
responsible for compliance could void the user’s
authority to operate the device.
DOC: ISTC 1763K1313
FCC I.D.: CB2V67690
2-72Instruments and controls

3 Pre-driving checks and adjustments
Keys............................................. 3-2
Intelligent Key ................................. 3-2
Valet hand-off .................................. 3-3
Doors ............................................ 3-4
Locking with mechanical key .................... 3-4
Opening and closing windows with the
mechanical key ................................ 3-4
Locking with inside lock knob ................... 3-5
Locking with power door lock switch ............. 3-5
Automatic door locks ........................... 3-5
Child safety rear door lock ...................... 3-6
Intelligent Key system ............................. 3-6
Intelligent Key operating range .................. 3-8
Door locks/unlocks precaution .................. 3-9
Intelligent Key operation ........................ 3-9
Battery saver system .......................... 3-12
Warning signals ............................... 3-12
Troubleshooting guide ......................... 3-13
Remote keyless entry system .......................3-15
How to use remote keyless entry system .........3-15 Hood
............................................ 3-18
Lift gate ......................................... 3-19
Operating manual lift gate .....................3-19
Operating power lift gate ......................3-19
Auto closure .................................. 3-23
Lift gate release lever .......................... 3-23
Fuel-filler door ................................... 3-23
Opening the fuel-filler door ....................3-23
Fuel-filler cap ................................. 3-24
Tilt/telescopic steering ........................... 3-26
Electric operation ............................. 3-26
Sun visors ....................................... 3-26
Mirrors .......................................... 3-27
Inside mirror .................................. 3-27
Outside mirrors ............................... 3-28
Vanity mirror .................................. 3-30
Automatic drive positioner ........................3-30
Entry/exit function ............................ 3-30
Memory storage ............................... 3-31
System operation ............................. 3-32
