INFINITI QX 2011 Owners Manual

Linking Intelligent Key to a stored
memory position
The Intelligent Key can be linked to a stored
memory position with the following procedure.
1. Follow the steps for storing a memoryposition.
2. While the indicator light for the memory switch being set is illuminated for 5 sec-
onds, push the
button on the Intel-
ligent Key. If the indicator light blinks, the
Intelligent Key is linked to that memory
setting.
Push the ignition switch to the OFF position,
and then push thebutton on the Intelli-
gent Key. The driver’s seat, steering wheel and
outside mirrors will move to the memorized
position.
Confirming memory storage
● Push the ignition switch to the ON position
and push the SET switch. If the main memory
has not been stored, the indicator light will
come on for approximately 0.5 second.
When the memory has stored in position, the
indicator light will stay on for approximately
5 seconds.
● If the battery cable is disconnected, or if the
fuse opens, the memory will be canceled. In this case, reset the desired position using
the previous procedure.
● If optional Intelligent Keys are added to your
vehicle, the memory storage procedure to
switch 1 or 2 and linking Intelligent Key
procedure to a stored memory position
should be performed again for each Intelli-
gent Key. For additional Intelligent Key infor-
mation, see “KEYS” earlier in this section.
Selecting the memorized position
1. Move the selector lever to the P (Park) position.
2. Use one of the following methods to move the driver’s seat, the outside mirrors and
the steering wheel.
●Push the ignition switch to the ON posi-
tion and push the memory switch (1 or 2)
fully for at least 1 second.
● Within 45 seconds of opening the driver’s
door, push the memory switch (1 or 2)
fully for at least 1 second.
The driver’s seat, steering column and
outside mirrors will move to the memo-
rized position or to the exit position when
the entry/exit function is set to active with
the indicator light flashing, and then the
light will stay on for approximately 5
seconds.
SYSTEM OPERATION
The automatic drive positioner system will not
work or will stop operating under the following
conditions:
● When the vehicle speed is above 4 MPH (7
km/h).
● When the adjusting switch for the driver’s
seat and steering column is turned on while
the automatic drive positioner is operating.
● When the memory switch 1 or 2 is not
pushed for at least 1 second.
● When the seat, steering column and outside
mirrors have already been moved to the
memorized position.
● When no position is stored in the memory
switch.
● When the engine is started while moving the
automatic drive positioner.
● When the AT selector lever is moved from the
P (Park) position to any other position. (How-
ever, it will not be canceled if the switch is
pushed while the seat and steering column
are returning to the previous positions
(entry/exit function).)
● When the driver’s door remains open for
more than 45 seconds and the ignition
switch is not in the ON position.
3-32Pre-driving checks and adjustments

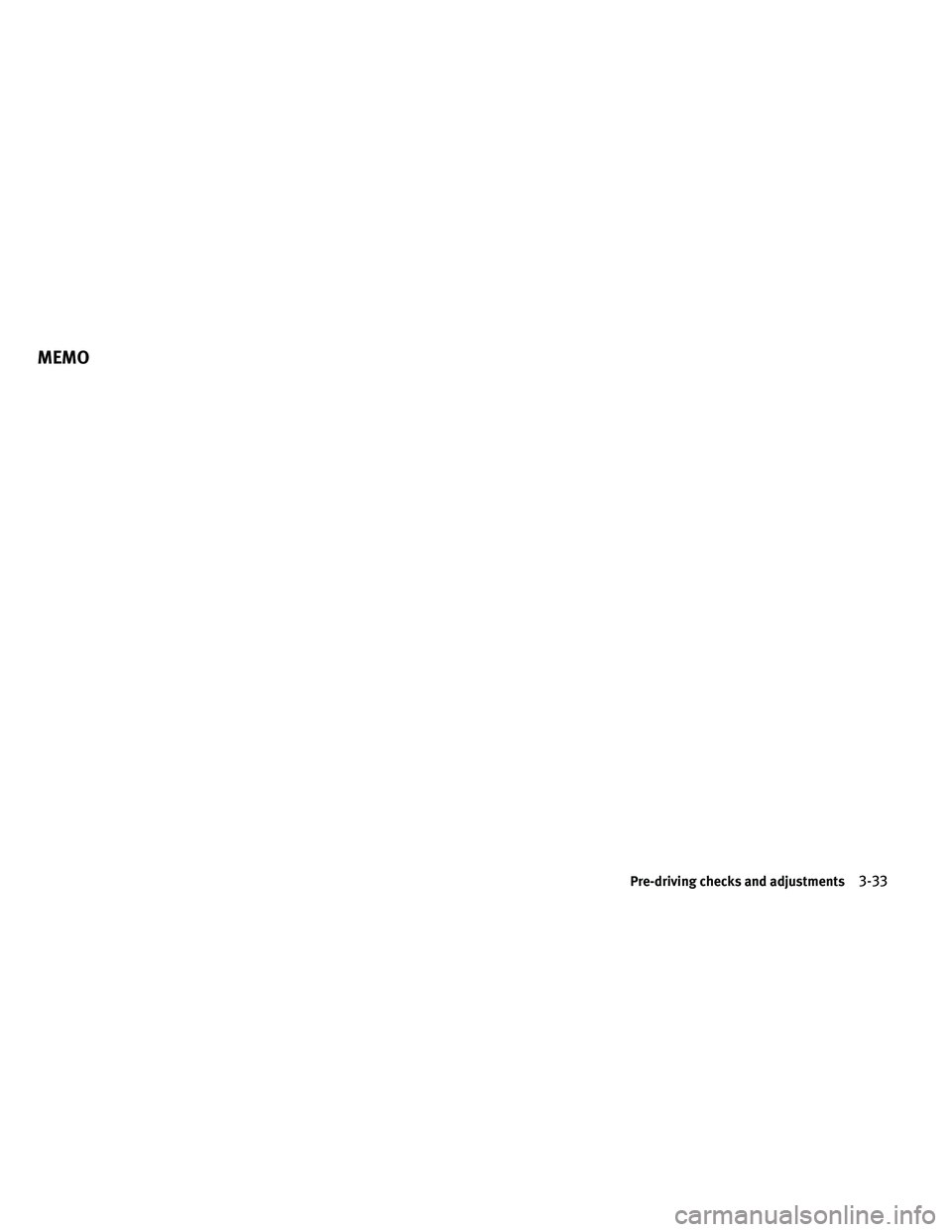

MEMO
Pre-driving checks and adjustments3-33

4 Monitor, climate, audio, phone and voice
recognition systems
Safety note....................................... 4-2
Center multi-function control panel ................. 4-3
How to use INFINITI controller ................... 4-3
How to use touch screen ........................ 4-4
Menu options .................................. 4-6
How to select menus on the screen .............. 4-6
Vehicle information and settings .................... 4-7
How to use STATUS button ...................... 4-7
How to use brightness control and display
ON/OFF button ................................. 4-7
How to use INFO button ........................ 4-7
How to use SETTING button .....................4-11
Around view™ monitor ........................... 4-19
How to switch the display ......................4-21
How to see each view ......................... 4-22
Difference between predicted and actual
distances ..................................... 4-26
Camera aiding corner sonar function ............4-28
How to adjust the screen view ..................4-29
Around view™ monitor settings ................4-29
Operating tips ................................ 4-29
Ventilators ....................................... 4-30
Automatic climate control ......................... 4-31
Automatic climate control ......................4-34Operating tips
................................ 4-39
In-cabin microfilter ............................ 4-39
Servicing climate control ....................... 4-40
Audio system .................................... 4-40
Audio operation precautions ...................4-40
FM-AM-SAT radio with Compact Disc (CD)
player ........................................ 4-54
DVD (DIGITAL VERSATILE DISC) player
operation ..................................... 4-58
Usb memory operation ......................... 4-61
Bluetooth streaming audio .................... 4-66
iPod player operation ......................... 4-70
Music box ................................... 4-72
Front auxiliary input jacks ......................4-78
Cd/dvd/usb memory care and cleaning .........4-80
Steering-wheel-mounted
controls for audio......4-81
Antenna ...................................... 4-82
Dual head restraint DVD system (if so equipped) ....4-83
System components ........................... 4-83
Before operating dual head restraint DVD
system ....................................... 4-88
Playing Digital Versatile Disc (DVD) .............4-90
Operating tips ................................ 4-94
Care and maintenance ......................... 4-95
Car phone or CB radio ............................ 4-95

BluetoothHands-Free Phone System ..............4-96
Regulatory information ......................... 4-97
Voice commands .............................. 4-97
Control buttons ............................... 4-98
Connecting procedure ......................... 4-98
Phone selection ............................... 4-99
Vehicle phonebook ............................ 4-99
Making a call ................................ 4-101
Receiving a call .............................. 4-102
During a call ................................. 4-103Phone setting
................................ 4-104
Troubleshooting guide ........................ 4-105
INFINITI Voice Recognition system ................4-106
INFINITI Voice Recognition standard mode ......4-106
Using the system ............................. 4-109
INFINITI Voice Recognition alternate
command mode ............................... 4-119
Using the system ............................. 4-125
Troubleshooting guide ........................ 4-130

WARNING
●Do not disassemble or modify this system. If
you do, it may result in accidents, fire, or
electric shock.
● Do not use this system if you notice any
abnormality, such as a frozen screen or lack
of sound. Continued use of the system may
result in accident, fire or electric shock.
● In case you notice any foreign object in the
system hardware, spill liquid on it, or notice
smoke or smell coming from it, stop using
the system immediately and contact your
nearest INFINITI retailer. Ignoring such con-
ditions may lead to accidents, fire, or electric
shock.
● Park the vehicle in a safe location and apply
the parking brake to view the images on the
front center display screen using devices
connected to the auxiliary input jacks.
● Positioning the heating or air conditioning
controls and display controls should not be
done while driving so that full attention may
be given to driving operation. Do not attempt to operate the system in extreme
temperature conditions [below
4°F (20°C)
and above 158°F (70°C)]. Operating this system
under these conditions may result in system
malfunctions.
SAFETY NOTE
4-2Monitor, climate, audio, phone and voice recognition systems

1. “CAMERA” Around View Monitor displaybutton (P. 4-19)
2, 6, 7. For navigation system control buttons (Refer to the separate Navigation Sys-
tem Owner’s Manual.)
3. INFINITI controller (P. 4-3)
4. “INFO” vehicle and navigation informa-tion button (P. 4-7)
5. “SETTING” button (P. 4-11)
8. “STATUS” status display button (P. 4-7)
9. “
OFF” brightness control and dis-
play ON/OFF button (P. 4-7)
HOW TO USE INFINITI CONTROLLER
Choose an item on the display by rotating or
pushing the center dial
1upward/ downward,
and push the ENTER button
2for operation.
If you push the BACK button
3before the
setup is completed, the setup will be canceled
and/or the display will return to the previous
screen. This button can also be used to delete
characters that have been input.
After the setup is completed, push the BACK
button
3and return to the previous screen.
For the VOICE button
4functions, refer to the
separate Navigation System Owner’s Manual.
SAA3020SAA3025
CENTER MULTI-FUNCTION CONTROL PANEL
Monitor, climate, audio, phone and voice recognition systems4-3

HOW TO USE TOUCH SCREEN
CAUTION
●The glass screen on the liquid crystal display
may break if it is hit with a hard or sharp
object. If the glass breaks, do not touch the
liquid crystalline material. In case of contact
with skin, wash immediately with soap and
water.
● To clean the display, use a soft, dry cloth. If
additional cleaning is necessary, use a small
amount of neutral detergent with a soft
cloth. Never use a rough cloth, alcohol, ben-
zine, thinner or any kind of solvent or paper
towel with a chemical cleaning agent. They
will scratch or deteriorate the panel.
● Do not splash any liquid such as water or car
fragrance on the display. Contact with liquid
will cause the system to malfunction.
To ensure safe driving, some functions cannot
be operated while driving.
The on-screen functions that are not available
while driving will be “grayed out” or muted.
Park the vehicle in a safe location and then
operate the navigation system.
WARNING
● ALWAYS give your full attention to driving.
● Avoid using vehicle features that could dis-
tract you. If distracted, you could lose con-
trol of your vehicle and cause an accident.
Touch screen operation
With this system, the same operations as those
for the INFINITI controller are possible using the
touch screen operation.
Selecting the item :
Touch an item to select it. To select the “Audio”
settings, touch the “Audio” area
1on the
screen.
Touch the BACK
2button to return to the
previous screen.
SAA2473
4-4Monitor, climate, audio, phone and voice recognition systems

Adjusting an item :
Touch the+
1or2button to adjust the
settings.
Touch the
3or4button to
move to the previous or next item.
Touch the
5or6button to
move to the previous or next page. Inputting characters :
Touch the letter or number
1.
There are some options available when input-
ting characters.
● Uppercase:
Shows uppercase characters.
● Lowercase:
Shows lowercase characters.
● Symbols:
Shows symbols such as the question mark
(?). ●
Space:
Inserts a space.
● Delete:
Deletes the last character that has been
input with one touch. Push and hold the
button to delete all of the characters.
● OK:
Completes character inputs.
Touch screen maintenance
If you clean the display screen, use a dry, soft
cloth. If additional cleaning is necessary, use a
small amount of neutral detergent with a soft
cloth. Never spray the screen with water or
detergent. Dampen the cloth first, and then
wipe the screen.SAA2474SAA2475
Monitor, climate, audio, phone and voice recognition systems4-5

MENU OPTIONS
The start menu can be displayed using the
menu control switch on the steering-wheel-
mounted controls.
1. While the MAP or STATUS screen is dis-played, push and hold the menu control
switch until the “Menu Options” screen
appears.
2. Highlight the preferred item by tilting the menu control switch up or down, and then
push the menu control switch to select it.
Available items
Destination/Route :
These items are for the navigation system. See
the separate Navigation System Owner’s
Manual for details.
Info :
Displays the information screen. It is the same
screen that appears when you push the INFO
button.
Settings :
Displays the settings screen. It is the same
screen that appears when you push the SET-
TING button.
HOW TO SELECT MENUS ON THE
SCREEN
Vehicle functions are viewed on the display
screen in menus. To select each key item,
highlight the preferred item using the INFINITI
controller and push the ENTER button.
Whenever a menu selection is made or menu
item is highlighted, different areas on the
screen provide you with important information.
See the following for details.
1. Header:
Shows the path used to get to the current
screen.
SAA3275SAA2476SAA2477
4-6Monitor, climate, audio, phone and voice recognition systems

2. Menu Selections:
Shows the options to choose within that
menu screen.
3. UP/DOWN Movement indicator:
Shows that the INFINITI controller may be
used to move UP/DOWN on the screen and
select more options.
4. Menu Items Counter:
Shows the total number of items listed
across all pages for the current menu.
5. Footer/Information Line:
Provides more information (if available)
about the menu selection currently high-
lighted.
HOW TO USE STATUS BUTTON
To display the status of the audio, air condi-
tioner system, fuel consumption and navigation
system, push the STATUS button. The following
information will appear when the STATUS but-
ton is pushed repeatedly.
Audio and Air conditioner system→Audio and
fuel economy →Audio and Navigation system
HOW TO USE BRIGHTNESS CONTROL
AND DISPLAY ON/OFF BUTTON
Push the “OFF” button to switch the
display brightness to the daytime mode or the
nighttime mode, and to adjust the display
brightness using the INFINITI controller while
the indicator is displayed at the bottom of the
screen.
Push and hold the “
OFF” button for more
than 2 seconds to turn the display off. Push the
button again to turn the display on.
HOW TO USE INFO BUTTON
The display screen shows vehicle and naviga-
tion information for your convenience.
The information shown on the screen should be
a guide to determine the condition of the ve-
hicle. See the following for details.
VEHICLE INFORMATION AND SETTINGS
Monitor, climate, audio, phone and voice recognition systems4-7
