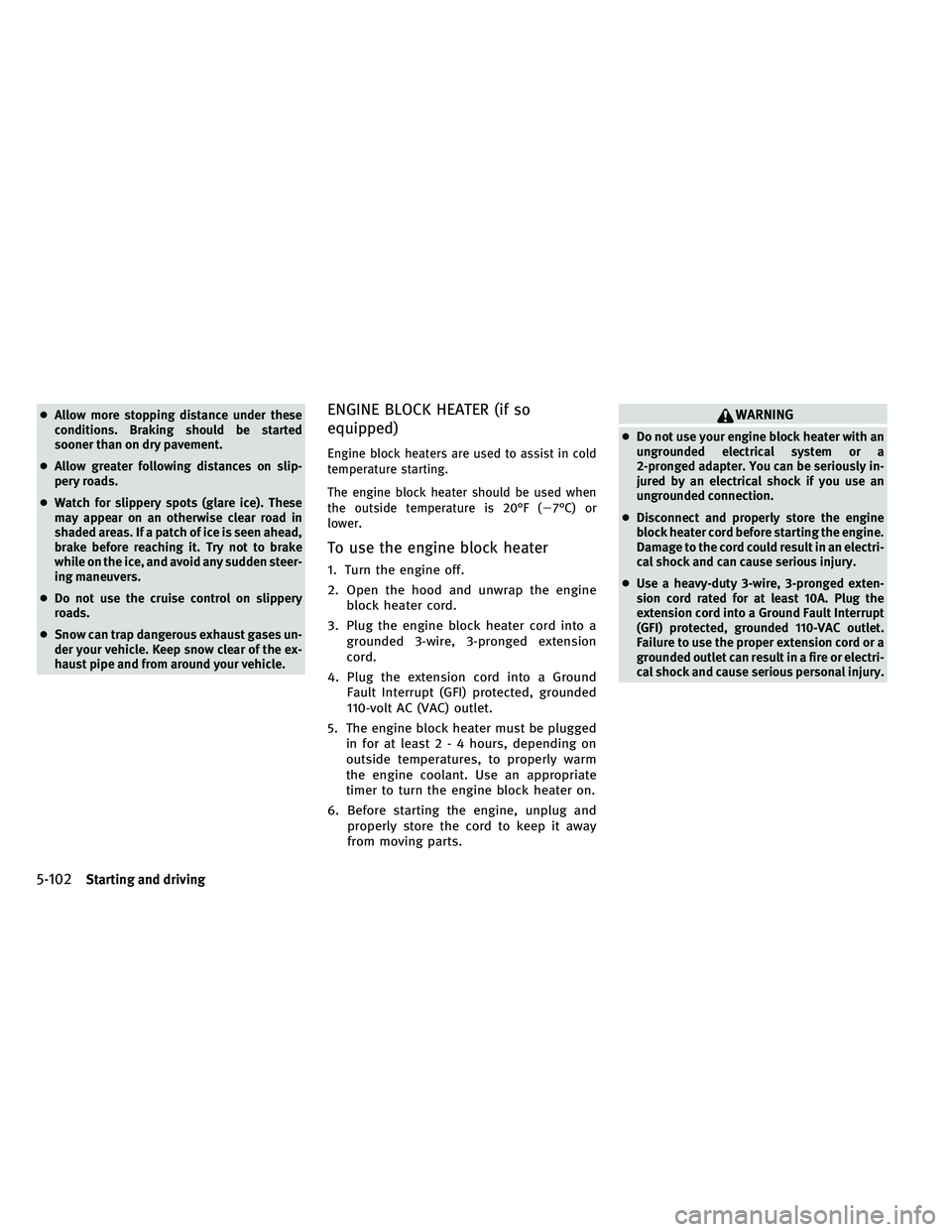

●Allow more stopping distance under these
conditions. Braking should be started
sooner than on dry pavement.
● Allow greater following distances on slip-
pery roads.
● Watch for slippery spots (glare ice). These
may appear on an otherwise clear road in
shaded areas. If a patch of ice is seen ahead,
brake before reaching it. Try not to brake
while on the ice, and avoid any sudden steer-
ing maneuvers.
● Do not use the cruise control on slippery
roads.
● Snow can trap dangerous exhaust gases un-
der your vehicle. Keep snow clear of the ex-
haust pipe and from around your vehicle.ENGINE BLOCK HEATER (if so
equipped)
Engine block heaters are used to assist in cold
temperature starting.
The engine block heater should be used when
the outside temperature is 20°F (7°C) or
lower.
To use the engine block heater
1. Turn the engine off.
2. Open the hood and unwrap the engine
block heater cord.
3. Plug the engine block heater cord into a grounded 3-wire, 3-pronged extension
cord.
4. Plug the extension cord into a Ground Fault Interrupt (GFI) protected, grounded
110-volt AC (VAC) outlet.
5. The engine block heater must be plugged in for at least2-4hours, depending on
outside temperatures, to properly warm
the engine coolant. Use an appropriate
timer to turn the engine block heater on.
6. Before starting the engine, unplug and properly store the cord to keep it away
from moving parts.
WARNING
●Do not use your engine block heater with an
ungrounded electrical system or a
2-pronged adapter. You can be seriously in-
jured by an electrical shock if you use an
ungrounded connection.
● Disconnect and properly store the engine
block heater cord before starting the engine.
Damage to the cord could result in an electri-
cal shock and can cause serious injury.
● Use a heavy-duty 3-wire, 3-pronged exten-
sion cord rated for at least 10A. Plug the
extension cord into a Ground Fault Interrupt
(GFI) protected, grounded 110-VAC outlet.
Failure to use the proper extension cord or a
grounded outlet can result in a fire or electri-
cal shock and cause serious personal injury.
5-102Starting and driving

CAUTION
Do not keep the starter motor engaged for more
than 10 seconds. If the engine does not start
right away, push the ignition switch to the OFF
position and wait 10 seconds before trying
again.
8. After starting your engine, carefully dis-connect the negative cable and then the
positive cable (
4→3→2→1).
9. Replace the vent caps (if so equipped). Be sure to dispose of the cloth used to cover
the vent holes as it may be contaminated
with corrosive acid.
10. Put the battery cover on.
Do not attempt to start the engine by pushing.
CAUTION
● Automatic transmission models cannot be
push-started or tow-started. Attempting to
do so may cause transmission damage.
● Three way catalyst equipped models should
not be started by pushing since the three
way catalyst may be damaged.
● Never try to start the vehicle by towing it;
when the engine starts, the forward surge
could cause the vehicle to collide with the
tow vehicle.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada).
CAUTION
● Do not continue to drive if your vehicle over-
heats. Doing so could cause engine damage
or a vehicle fire.
● To avoid the danger of being scalded, never
remove the radiator cap or coolant reservoir
cap while the engine is still hot. When the
radiator cap or coolant reservoir cap is re-
moved, pressurized hot water will spurt out,
possibly causing serious injury.
● Do not open the hood if steam is coming out.
If your vehicle is overheating (indicated by an
extremely high temperature gauge reading), or
if you feel a lack of engine power, detect
abnormal noise, etc., take the following steps:
1. Move the vehicle safely off the road, apply the parking brake and move the selector
lever to the P (Park) position.
Do not stop the engine.
2. Turn off the climate control. Open all the windows, move the heater or air condi-
tioner temperature control to maximum
hot and fan control to high speed.
PUSH STARTING IF YOUR VEHICLE OVERHEATS
In case of emergency6-13

3. If engine overheating is caused by climb-ing a long hill on a hot day, run the engine
at a fast idle (approximately 1,500 rpm)
until the temperature gauge indication
returns to normal.
4. Get out of the vehicle. Look and listen for steam or coolant escaping from the radia-
tor before opening the hood. (If steam or
coolant is escaping, turn off the engine.)
Do not open the hood further until no
steam or coolant can be seen.
5. Open the engine hood.
WARNING
If steam or water is coming from the engine,
stand clear to prevent getting burned.
6. Visually check drive belts for damage or looseness. Also check if the cooling fan is
running. The radiator hoses and radiator
should not leak water. If coolant is leak-
ing or the cooling fan does not run, stop
the engine.
WARNING
Be careful not to allow your hands, hair, jewelry
or clothing to come into contact with, or get
caught in, engine belts or the engine cooling
fan. The engine cooling fan can start at any
time.
7. After the engine cools down, check thecoolant level in the reservoir tank with the
engine running. Add coolant to the reser-
voir tank if necessary. Have your vehicle
repaired at the nearest INFINITI retailer.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada). When towing your vehicle, all State (Provincial
in Canada) and local regulations for towing
must be followed. Incorrect towing equipment
could damage your vehicle. Towing instructions
are available from an INFINITI retailer. Local
service operators are familiar with the appli-
cable laws and procedures for towing. To assure
proper towing and to prevent accidental dam-
age to your vehicle, INFINITI recommends that
you have a service operator tow your vehicle. It
is advisable to have the service operator care-
fully read the following precautions.WARNING
●
Never ride in a vehicle that is being towed.
● Never get under your vehicle after it has been
lifted by a tow truck.
CAUTION
● When towing, make sure that the transmis-
sion, axles, steering system and powertrain
are in working condition. If any of these con-
ditions apply, dollies or a flatbed tow truck
must be used.
● Always attach safety chains before towing.
TOWING YOUR VEHICLE
6-14In case of emergency

REPLACING SPARK PLUGS
If replacement is required, see an INFINITI re-
tailer for servicing.
Iridium-tipped spark plugs
It is not necessary to replace the iridium-tipped
spark plugs as frequently as the conventional
type spark plugs since they will last much
longer. Follow the maintenance schedule in
“INFINITI Service and Maintenance Guide”, but
do not reuse them by cleaning or regapping.
Always replace spark plugs with recommended
or equivalent ones.To remove the filter, release the lock pins
1
and pull the unit upward2.
The filter element should not be cleaned and
reused. Replace it according to the mainte-
nance intervals. See “INFINITI Service and Main-
tenance Guide” for maintenance intervals.
When replacing the filter, wipe the inside of the
air cleaner housing and the cover with a damp
cloth.
WARNING
● Operating the engine with the air cleaner
removed can cause you or others to be
burned. The air cleaner not only cleans the
air, it stops flame if the engine backfires. If it
isn’t there, and the engine backfires, you
could be burned. Do not drive with the air
cleaner removed, and be careful when work-
ing on the engine with the air cleaner
removed.
● Never pour fuel into the throttle body or at-
tempt to start the engine with the air cleaner
removed. Doing so could result in serious
injury.
SDI2020SDI2515
AIR CLEANER
8-18Maintenance and do-it-yourself

Under some driving or climate conditions, occa-
sional brake squeak, squeal or other noise may
be heard. Occasional brake noise during light to
moderate stops is normal and does not affect
the function or performance of the brake sys-
tem.
Proper brake inspection intervals should be fol-
lowed.For additional information, see the main-
tenance log section of your “INFINITI Service
and Maintenance Guide” for maintenance inter-
vals.
BRAKE BOOSTER
Check the brake booster function as follows:
1. With the engine off, depress and release the foot brake pedal more than 20 times.
When the foot brake pedal movement
(distance of travel) remains the same from
one pedal application to the next, con-
tinue on to the next step.
2. While depressing the foot brake pedal, start the engine.
3. With the foot brake pedal depressed, stop the engine. Keep the pedal depressed for
about 30 seconds. 4. Run the engine for 1 minute without de-
pressing the foot brake pedal, then turn it
off. Depress the foot brake pedal several
times. The pedal travel distance will de-
crease gradually with each depression as
the hydraulic pressure decreases.
If the brakes do not operate properly, have the
brakes checked by an INFINITI retailer.
SDI2518
SDI2532
FUSES
Maintenance and do-it-yourself8-21

Several types of braking systems are available.
Surge Brakes -The surge brake actuator is
mounted on the trailer tongue with a hydraulic
line running to each trailer wheel. Surge brakes
are activated by the trailer pushing against the
hitch ball when the tow vehicle is braking.
Hydraulic surge brakes are common on rental
trailers and some boat trailers. In this type of
system, there is no hydraulic or electric connec-
tion for brake operation between the tow ve-
hicle and the trailer.
Electric Trailer Brakes - Electric braking systems
are activated by an electronic signal sent from a
trailer brake controller (special brake sensing
module).
Have a professional supplier of towing equip-
ment make sure the trailer brakes are properly
installed and demonstrate proper brake func-
tion testing.
WARNING
Never connect a trailer brake system directly to
the vehicle brake system.
Pre-towing tips
● Be certain your vehicle maintains a level
position when a loaded or unloaded trailer is
hitched. Do not drive the vehicle if it has an
abnormal nose-up or nose-down condition;
check for improper tongue load, overload,
worn suspension or other possible causes of
either condition.
● Always secure items in the trailer to prevent
load shift while driving.
● Keep the cargo load as low as possible in the
trailer to keep the trailer center of gravity
low.
● Load the trailer so approximately 60% of the
trailer load is in the front half and 40% is in
the back half. Also make sure the load is
balanced side to side.
● Check your hitch, trailer tire pressure, ve-
hicle tire pressure, trailer light operation,
and trailer wheel lug nuts every time you
attach a trailer to the vehicle.
● Be certain your rearview mirrors conform to
all federal, state or local regulations. If not,
install any mirrors required for towing before
driving the vehicle.
● Determine the overall height of the vehicle
and trailer so the required clearance is
known.
Trailer towing tips
In order to gain skill and an understanding of
the vehicle’s behavior, you should practice turn-
ing, stopping and backing up in an area which
is free from traffic. Steering stability, and brak-
ing performance will be somewhat different
than under normal driving conditions.
● Always secure items in the trailer to prevent
load shift while driving.
● Lock the trailer hitch coupler with a pin or
lock to prevent the coupler from inadver-
tently becoming unlatched.
● Avoid abrupt starts, acceleration or stops.
● Avoid sharp turns or lane changes.
● Always drive your vehicle at a moderate
speed. Some states or provinces have spe-
cific speed limits for vehicles that are towing
trailers. Obey the local speed limits.
● When backing up, hold the bottom of the
steering wheel with one hand. Move your
hand in the direction in which you want the
trailer to go. Make small corrections and
back up slowly. If possible, have someone
guide you when you are backing up.
Technical and consumer information9-25

Always block the wheels on both vehicle and
trailer when parking. Parking on a slope is not
recommended; however, if you must do so:
CAUTION
If you move the shift selector lever to the P
(Park) position before blocking the wheels and
applying the parking brake, transmission dam-
age could occur.
1. Apply and hold the brake pedal.
2. Have someone place blocks on the down-hill side of the vehicle and trailer wheels.
3. After the wheel blocks are in place, slowly release the brake pedal until the blocks
absorb the vehicle load.
4. Apply the parking brake.
5. Shift the transmission into P (Park).
6. Four-Wheel Drive (4WD) models:
Make sure that the 4WD shift switch is
engaged in the AUTO, 4HI or 4LO position
and the Automatic Transmission (AT) park
warning light is turned off.
7. Turn off the engine.
To drive away:
1. Apply and hold the brake pedal.
2. Start the engine.
3. Shift the transmission into gear.
4. Release the parking brake.
5. Drive slowly until the vehicle and trailer
are clear from the blocks.
6. Apply and hold the brake pedal.
7. Have someone retrieve and store the blocks.
● While going downhill, the weight of the
trailer pushing on the tow vehicle may de-
crease overall stability. Therefore, to main-
tain adequate control, reduce your speed
and shift to a lower gear. Avoid long or
repeated use of the brakes when descending
a hill, as this reduces their effectiveness and
could cause overheating. Shifting to a lower
gear instead provides “engine braking” and
reduces the need to brake as frequently.
● If the engine coolant temperature rises to a
high temperature, see “IF YOUR VEHICLE
OVERHEATS” in the “6. In case of emer-
gency” section.
● Trailer towing requires more fuel than nor-
mal circumstances. ●
Avoid towing a trailer for your vehicle’s first
500 miles (800 km).
● Have your vehicle serviced more often than
at intervals specified in the recommended
maintenance schedule in the INFINITI Service
and Maintenance Guide.
● When making a turn, your trailer wheels will
be closer to the inside of the turn than your
vehicle wheels. To compensate for this,
make a larger than normal turning radius
during the turn.
● Crosswinds and rough roads will adversely
affect vehicle/trailer handling, possibly
causing vehicle sway. When being passed by
larger vehicles, be prepared for possible
changes in crosswinds that could affect ve-
hicle handling.
Do the following if the trailer begins to sway:
1. Take your foot off the accelerator pedal to allow the vehicle to coast and steer as
straight ahead as the road conditions
allow. This combination will help stabilize
the vehicle.
– Do not correct trailer sway by steering orapplying the brakes.
2. When the trailer sway stops, gently apply the brakes and pull to the side of the road
in a safe area.
9-26Technical and consumer information

10 Index
A
ABS (Anti-lock Braking System) .......5-97
Adaptive front lighting system (AFS) ....2-40
Advanced air bag system ...........1-55
Aiming control Adaptive front lighting system (AFS) . . 2-40
Headlights ................. 2-39
Air bag system Advanced air bag system .........1-55
Front passenger air bag and status
light ..................... 1-57
Front-seat mounted side-impact
supplemental air bag system ......1-60
Roof-mounted curtain side-impact and
rollover supplemental air bag system . . 1-60
Air bag warning labels ............1-63
Air bag warning light ..........1-63, 2-16
Air cleaner housing filter ...........8-18
Air conditioner Advanced Climate Control System
(ACCS) ................... 4-35
Air conditioner service ..........4-40
Air conditioner specification label ....9-12
Air conditioning system refrigerant and
lubricant recommendations .....4-40, 9-7
Automatic climate control .....4-31, 4-34
In-cabin microfilter ............4-39
Alarm, How to stop alarm
(see vehicle security system) .........2-31
Alcohol, drugs and driving ...........5-8
Antenna .................... 4-82Anti-lock Braking System (ABS)
.......5-97
Anti-lock braking system (ABS) warning
light ....................... 2-11
Appearance care Exterior appearance care ..........7-2
Interior appearance care ..........7-4
Armrest ..................... 1-16
Around View™ Monitor ............4-19
Audible reminders ............... 2-20
Audio operation precautions .........4-40
Audio system ................. 4-40
Steering wheel audio controls ......4-81
Auto closure .................. 3-23
Autolight system ................ 2-37
Automatic Automatic transmission fluid (ATF) ....8-11
Climate control ........... 4-31,
4-34
Door locks ..................3-5
Drive positioner .............. 3-30
Driving with automatic transmission . . . 5-15
Moonroof .................. 2-64
Seat positioner .............. 3-30
Average fuel consumption and speed ....2-27
Avoiding collision and rollover ........5-6
B
Back door (See lift gate) ...........3-19
Battery ..................... 8-15
Battery saver system ........2-39, 2-66
Intelligent Key ............... 8-24
Variable voltage control system .....8-16 Before starting the engine
..........5-13
Belts (See drive belts) .............8-17
Blind Spot Warning (BSW) system . . . . . . 5-29
Blind Spot Warning (BSW) system warning
light ....................... 2-12
Bluetooth Hands-Free Phone System . . . 4-96
Booster seats ................. 1-47
Brake Anti-lock Braking System (ABS) . ....5-97
Brake booster ............... 8-21
Brake fluid .............. 8-12, 8-13
Brake system ............... 5-94
Parking brake operation .........5-19
Warning light ................ 2-12
Break-in schedule ............... 5-83
Brightness control Display ON/OFF button ...........4-7
Instrument panel .............. 2-41
Bulb check/instrument panel .........2-11
Bulb replacement ............... 8-26
C
Cabin air filter ................. 4-39
Capacities and recommended
fuel/lubricants .................9-2
Car phone or CB radio ............4-95
Cargo floor box ................ 2-60
Cargo light ................... 2-68
Catalytic converter, Three way catalyst ....5-2
CD/CF/USB memory care and cleaning . . . 4-80
Center
multi-function control panel . . ....4-3
