CAUTION
Continued vehicle operation when the AT oil
temperature warning light is on may damage
the AT.
orBrake warning
light
This light functions for both the parking brake
and the foot brake systems.
Parking brake indicator :
When the ignition switch is in the ON position,
the light comes on when the parking brake is
applied.
Low brake fluid warning light :
When the ignition switch is in the ON position,
the light warns of a low brake fluid level. If the
light comes on while the engine is running with
the parking brake not applied, stop the vehicle
and perform the following:
1. Check the brake fluid level. If brake fluid isnecessary, add fluid and have the system
checked by your INFINITI retailer. (See
“BRAKE FLUID” in the “8. Maintenance
and do-it-yourself” section.) 2. If the brake fluid level is correct, have the
warning system checked by an INFINITI
retailer.
Low hydraulic pressure warning indicator :
If the brake warning light illuminates when the
engine is running, or while driving with the
parking brake is released, check the brake fluid
level. If the brake fluid level is sufficient, it may
indicate low hydraulic pressure in the brake
booster. Have the brake system checked by an
INFINITI retailer promptly.
Anti-lock Braking System (ABS) warning indica-
tor :
When the parking brake is released and the
brake fluid level is sufficient, if both the brake
warning light and the Anti-lock Braking System
(ABS) warning light illuminate, it may indicate
the ABS is not functioning properly. Have the
brake system checked, and if necessary re-
paired, by an INFINITI retailer promptly. (See
“Anti-lock Braking System (ABS) warning light”
earlier in this section.)
WARNING
●Your brake system may not be working prop-
erly if the warning light is on. Driving could
be dangerous. If you judge it to be safe, drive
carefully to the nearest service station for
repairs. Otherwise, have your vehicle towed
because driving it could be dangerous.
● Pressing the brake pedal with the engine
stopped and/or low brake fluid level may
increase your stopping distance and braking
will require greater pedal effort as well as
pedal travel.
● If the brake fluid level is below the minimum
or MIN mark on the brake fluid reservoir, do
not drive until the brake system has been
checked at an INFINITI retailer.
Blind Spot Warning (BSW)
system warning light
(orange; if so equipped)
If the light comes on in orange and remains on,
it may indicate that the BSW system is not
functioning properly. Although the vehicle is
still driveable, have the system checked by an
INFINITI retailer. See “BLIND SPOT WARNING
(BSW) SYSTEM” in the “5. Starting and driving”
section.
2-12Instruments and controls

Charge warning light
If the light comes on while the engine is run-
ning, it may indicate the charging system is not
functioning properly. Turn the engine off and
check the alternator belt. If the belt is loose,
broken, missing or if the light remains on, see
an INFINITI retailer immediately.
CAUTION
Do not continue driving if the alternator belt is
loose, broken or missing.
Distance Control Assist (DCA)
system warning light
(orange; if so equipped)
This light comes on if there is a malfunction in
the Distance Control Assist (DCA) system.
If the warning light illuminates, park the vehicle
in a safe place. Turn the engine off, restart the
engine, resume driving and turn on the DCA
system again.
If it is not possible to turn on the system or the
warning light stays on, it may indicate that the
system is malfunctioning. Although the vehicle
is still driveable under normal conditions, have
the vehicle checked at an INFINITI retailer.See “DISTANCE CONTROL ASSIST (DCA) SYS-
TEM” in the “5. Starting and driving” section.
Engine oil pressure warning
light
This light warns of low engine oil pressure. If
the light flickers or comes on during normal
driving, pull off the road in a safe area, stop the
engine
immediately and call an INFINITI retailer
or other authorized repair shop.
The engine oil pressure warning light is not de-
signed to indicate a low oil level. Use the dip-
stick to check the oil level. (See “ENGINE OIL” in
the “8. Maintenance and do-it-yourself” sec-
tion.)
CAUTION
Running the engine with the engine oil pres-
sure warning light on could cause serious dam-
age to the engine almost immediately. Such
damage is not covered by warranty. Turn off the
engine as soon as it is safe to do so.
Four-Wheel Drive (4WD)
warning light (4WD models)
Thewarning light comes on when the
ignition switch is pushed to ON. It turns off
soon after the engine is started.
If the 4WD system malfunctions, or the diam-
eter of the front and the rear wheels are differ-
ent, the warning light will either remain illumi-
nated or blink. (See “INFINITI ALL-MODE 4WD”
in the “5. Starting and driving” section.)
CAUTION
● If the warning light comes on while driving
there may be a malfunction in the 4WD sys-
tem. Reduce the vehicle speed and have your
vehicle checked by an INFINITI retailer as
soon as possible.
● If the 4WD warning light turns on when driv-
ing on dry or hard surfaced roads:
– in the 4H(I) position, shift the 4WD shift switch to AUTO
– in the 4L(O) position, stop the vehicle and shift the transmission selector lever to
the “N” (Neutral) position and shift the
4WD shift switch to AUTO
Instruments and controls2-13

●If the warning light is still on after the above
operations, have your vehicle checked by an
INFINITI retailer as soon as possible.
Intelligent Cruise Control
(ICC) system warning light
(orange; if so equipped)
This light comes on if there is a malfunction in
the Intelligent Cruise Control (ICC) system.
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart the
engine, resume driving and set the ICC system
again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the sys-
tem is malfunctioning. Although the vehicle is
still driveable under normal conditions, have the
vehicle checked at an INFINITI retailer.
Intelligent Key warning light
After the ignition switch is pushed to the ON
position, this light comes on for about 2 sec-
onds and then turns off.
This light warns of a malfunction with the
electrical steering lock system or the Intelligent
Key system.
If the light comes on while the engine is
stopped, it may be impossible to free the
steering lock or to start the engine. If the light
comes on while the engine is running, you can
drive the vehicle. However in these cases, con-
tact an INFINITI retailer for repair as soon as
possible.
Lane departure warning light
(orange; if so equipped)
When the ignition switch is pushed to the ON
position, the light will come on in orange, turn
green, and then turn off. This indicates that the
Lane Departure Warning (LDW) and Lane Depar-
ture Prevention (LDP) systems are operational.
While the LDW and/or LDP system is on, the
light will blink in orange and a warning chime
will sound if the vehicle is traveling close to
either the left or the right of a traveling lane
with detectable lane markers. If the light comes on in orange and remains on,
it may indicate that the LDW and LDP systems
are not functioning properly. Although the ve-
hicle is still driveable, have the systems
checked by an INFINITI retailer.
See “LANE DEPARTURE WARNING (LDW)/ PRE-
VENTION (LDP) SYSTEM” in the “5. Starting and
driving” section.
Low tire pressure warning
light
Your vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors the
tire pressure of all tires except the spare.
The low tire pressure warning light warns of low
tire pressure or indicates that the TPMS is not
functioning properly.
After the ignition switch is pushed ON, this light
illuminates for about 1 second and turns off.
Low tire pressure warning :
If the vehicle is being driven with low tire
pressure, the warning light will illuminate. A
CHECK TIRE PRESSURE warning (if so equipped)
also appears in the dot matrix liquid crystal
display. If you select the tire pressure informa-
tion in the display, the LOW PRESSURE informa-
tion will be displayed. The tire pressure for each
tire will also be displayed.
2-14Instruments and controls

When the low tire pressure warning light illumi-
nates, you should stop and adjust the tire
pressure to the recommended COLD tire pres-
sure shown on the Tire and Loading Information
label. The low tire pressure warning light does
not automatically turn off when the tire pres-
sure is adjusted. After the tire is inflated to the
recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h) to
activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure.
The CHECK TIRE PRESSURE warning (if so
equipped) is active as long as the low tire
pressure warning light remains illuminated.
For additional information, see “DOT MATRIX
LIQUID CRYSTAL DISPLAY” later in this section,
“TIRE PRESSURE MONITORING SYSTEM (TPMS)”
in the “5. Starting and driving” section and
“TIRE PRESSURE MONITORING SYSTEM (TPMS)”
in the “6. In case of emergency” section.
TPMS malfunction :
If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi-
mately 1 minute when the ignition switch is
pushed ON. The light will remain on after 1
minute. Have the system checked by an INFINITI
retailer. The CHECK TIRE PRESSURE warning (ifso equipped) does not appear if the low tire
pressure warning light illuminates to indicate a
TPMS malfunction.
For additional information, see “TIRE PRESSURE
MONITORING SYSTEM (TPMS)” in the “5. Start-
ing and driving” section.
WARNING
●
If the light does not illuminate with the igni-
tion switch pushed ON, have the vehicle
checked by an INFINITI retailer as soon as
possible.
● If the light illuminates or LOW PRESSURE
information is displayed on the monitor
screen while driving, avoid sudden steering
maneuvers or abrupt braking, reduce vehicle
speed, pull off the road to a safe location and
stop the vehicle as soon as possible. Driving
with under-inflated tires may permanently
damage the tires and increase the likelihood
of tire failure. Serious vehicle damage could
occur and may lead to an accident and could
result in serious personal injury. Check the tire pressure for all four tires. Adjust the tire
pressure to the recommended COLD tire
pressure shown on the Tire and Loading In-
formation label to turn the low tire pressure
warning light OFF. If the light still illumi-
nates while driving after adjusting the tire
pressure, a tire may be flat. If you have a flat
tire, replace it with a spare tire as soon as
possible.
● When a spare tire is mounted or a wheel is
replaced, the TPMS will not function and the
low tire pressure warning light will flash for
approximately 1 minute. The light will re-
main on after 1 minute. Contact your INFINITI
retailer as soon as possible for tire replace-
ment and/or system resetting.
● Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
Instruments and controls2-15

Lane Departure Prevention
(LDP) ON indicator light
(green; if so equipped)
The light comes on in green when the Lane
Departure Prevention (LDP) system is turned on.
The light turns off when the system is turned off.
NOTE:
This light is common with the lane departure
warning light (orange). (See “Lane departure
warning light” earlier in this section.)
For more details, see “LANE DEPARTURE WARN-
ING (LDW)/PREVENTION (LDP) SYSTEM” in the
“5. Starting and driving” section.
Low beam indicator light
The light illuminates when the front park, side
marker, tail and license plate lights are on.
Malfunction Indicator Light
(MIL)
If the malfunction indicator light comes on
steady or blinks while the engine is running, it
may indicate a potential emission control mal-
function.
The malfunction indicator light may also come
on steady if the fuel-filler cap is loose ormissing, or if the vehicle runs out of fuel. Check
to make sure the fuel-filler cap is installed and
closed tightly, and that the vehicle has at least
3 US gallons (14 liters) of fuel in the fuel tank.
After a few driving trips, the
light should
turn off if no other potential emission control
system malfunction exists.
If this indicator light remains on for 20 seconds
and then blinks for 10 seconds when the engine
is not running, it indicates that the vehicle is
not ready for an emission control system
inspection/maintenance test. (See “READINESS
FOR INSPECTION/MAINTENANCE (I/M) TEST” in
the “9. Technical and consumer information”
section.)
Operation :
The malfunction indicator light will come on in
one of two ways:
● Malfunction indicator light on steady — An
emission control system malfunction has
been detected. Check the fuel-filler cap if the
LOOSE FUEL CAP warning (if so equipped)
appears in the dot matrix liquid crystal dis-
play. If the fuel-filler cap is loose or missing,
tighten or install the cap and continue to
drive the vehicle. The
light should
turn off after a few driving trips. If the
light does not turn off after a few driving trips, have the vehicle inspected by an
INFINITI retailer. You do not need to have
your vehicle towed to the retailer.
● Malfunction indicator light blinking — An
engine misfire has been detected which may
damage the emission control system.
To reduce or avoid emission control system
damage:
a) Do not drive at speeds above 45 MPH (72 km/h).
b) Avoid hard acceleration or deceleration.
c) Avoid steep uphill grades.
d) If possible, reduce the amount of cargo being hauled or towed.
The malfunction indicator light may stop
blinking and remain on.
Have the vehicle inspected by an INFINITI
retailer. You do not need to have your vehicle
towed to the retailer.
Instruments and controls2-19

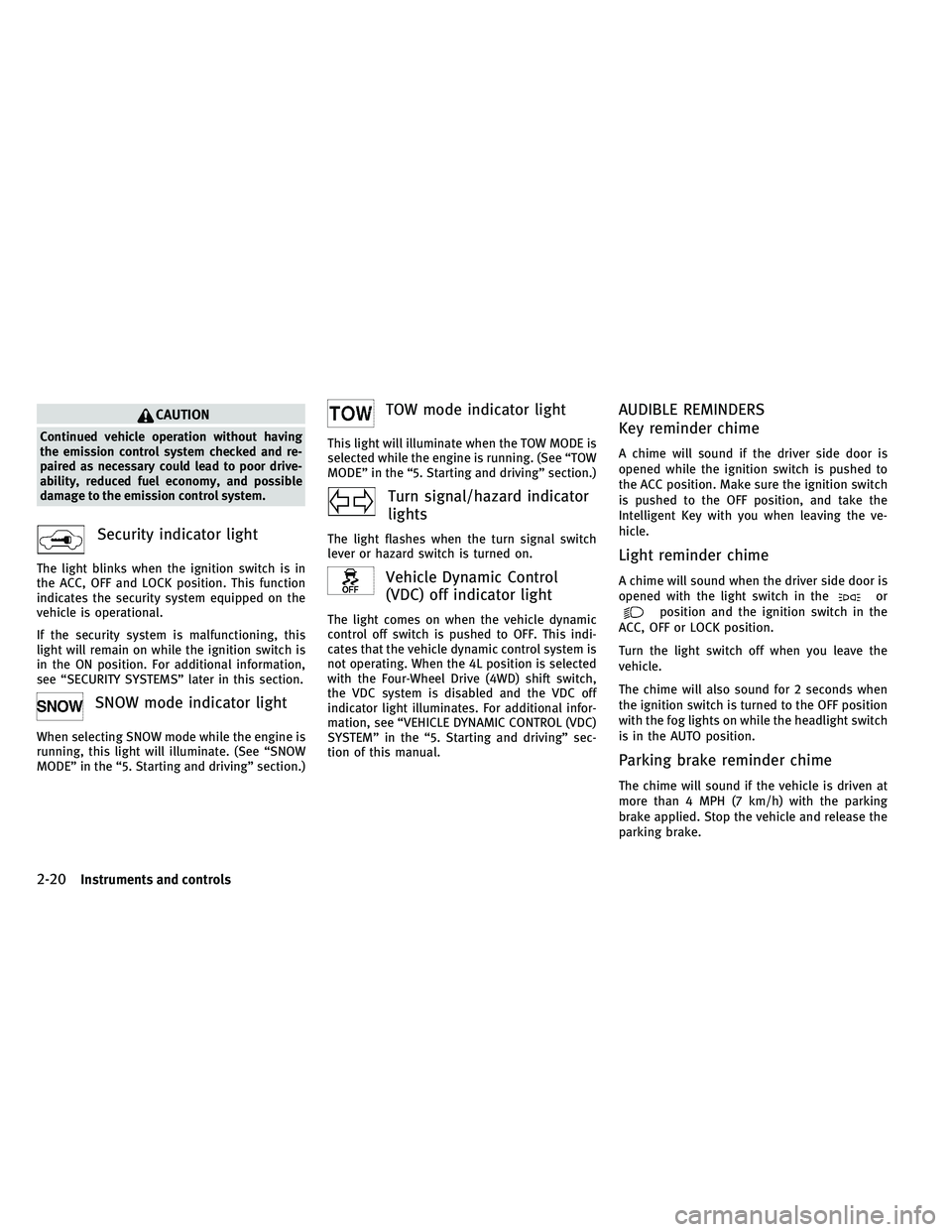

CAUTION
Continued vehicle operation without having
the emission control system checked and re-
paired as necessary could lead to poor drive-
ability, reduced fuel economy, and possible
damage to the emission control system.
Security indicator light
The light blinks when the ignition switch is in
the ACC, OFF and LOCK position. This function
indicates the security system equipped on the
vehicle is operational.
If the security system is malfunctioning, this
light will remain on while the ignition switch is
in the ON position. For additional information,
see “SECURITY SYSTEMS” later in this section.
SNOW mode indicator light
When selecting SNOW mode while the engine is
running, this light will illuminate. (See “SNOW
MODE” in the “5. Starting and driving” section.)
TOW mode indicator light
This light will illuminate when the TOW MODE is
selected while the engine is running. (See “TOW
MODE” in the “5. Starting and driving” section.)
Turn signal/hazard indicator
lights
The light flashes when the turn signal switch
lever or hazard switch is turned on.
Vehicle Dynamic Control
(VDC) off indicator light
The light comes on when the vehicle dynamic
control off switch is pushed to OFF. This indi-
cates that the vehicle dynamic control system is
not operating. When the 4L position is selected
with the Four-Wheel Drive (4WD) shift switch,
the VDC system is disabled and the VDC off
indicator light illuminates. For additional infor-
mation, see “VEHICLE DYNAMIC CONTROL (VDC)
SYSTEM” in the “5. Starting and driving” sec-
tion of this manual.
AUDIBLE REMINDERS
Key reminder chime
A chime will sound if the driver side door is
opened while the ignition switch is pushed to
the ACC position. Make sure the ignition switch
is pushed to the OFF position, and take the
Intelligent Key with you when leaving the ve-
hicle.
Light reminder chime
A chime will sound when the driver side door is
opened with the light switch in theorposition and the ignition switch in the
ACC, OFF or LOCK position.
Turn the light switch off when you leave the
vehicle.
The chime will also sound for 2 seconds when
the ignition switch is turned to the OFF position
with the fog lights on while the headlight switch
is in the AUTO position.
Parking brake reminder chime
The chime will sound if the vehicle is driven at
more than 4 MPH (7 km/h) with the parking
brake applied. Stop the vehicle and release the
parking brake.
2-20Instruments and controls

INDICATORS FOR OPERATION
1. Engine start operation indicator
This indicator appears when the selector lever
is in the P (Park) position.
This indicator means that the engine will start
by pushing the ignition switch with the brake
pedal depressed.
2. Steering lock release malfunction
indicator
This indicator appears when the steering wheel
cannot be released from the LOCK position.
If this indicator appears, push the push-button
ignition switch while lightly turning the steering
wheel right and left.
3. NO KEY warning
This warning appears in either of the following
conditions.
No key inside the vehicle :
The warning appears when the door is closed
with the Intelligent Key left outside the vehicle
and the ignition switch in the ACC or ON
position. Make sure that the Intelligent Key is
inside the vehicle.Unregistered Intelligent Key :
The warning appears when the ignition switch
is pushed from the LOCK position and the
Intelligent Key cannot be recognized by the
system. You cannot start the engine with an
unregistered key. Use the registered Intelligent
Key.
See “INTELLIGENT KEY SYSTEM” in the “3. Pre-
driving checks and adjustments” section for
more details.
4. SHIFT “P” warning
This warning appears when the ignition switch
is pushed to stop the engine with the selector
lever in any position except the P (Park) posi-
tion.
If this warning appears, move the selector lever
to the P (Park) position or push the ignition
switch to the ON position.
An inside warning chime will also sound. (See
“INTELLIGENT KEY SYSTEM” in the “3. Pre-
driving checks and adjustments” section.)
5. “PUSH” warning
This warning appears when the selector lever is
moved to the P (Park) position with the ignition
switch in the ACC position after the SHIFT “P”
warning appears.To push the ignition switch to the OFF position,
perform the following procedure:
SHIFT “P” warning →(Move the selector lever
to “P”) →PUSH warning →(Push the ignition
switch →ignition switch position is turned to
ON) →PUSH warning →(Push the ignition
switch →ignition switch position is turned to
OFF)
6. Intelligent Key battery discharge
indicator
This indicator appears when the Intelligent Key
battery is running out of power.
If this indicator appears, replace the battery
with a new one. (See “INTELLIGENT KEY BATTERY
REPLACEMENT” in the “8. Maintenance and
do-it-yourself” section.)
7. Engine start operation for
Intelligent Key system indicator
This indicator appears when the Intelligent Key
battery is running out of power and when the
Intelligent Key System and vehicle are not
communicating normally.
If this indicator appears, touch the ignition
switch with the Intelligent Key while depressing
the brake pedal. (See “INTELLIGENT KEY BAT-
TERY DISCHARGE” in the “5. Starting and driv-
ing” section.)
Instruments and controls2-23

8. Parking brake release warning
This warning appears when the vehicle speed is
above 4 MPH (7 km/h) and the parking brake is
applied.
9. Low fuel warning
This warning appears when the fuel level in the
tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the 0 (Empty) position.
There is a small reserve of fuel remaining in the
tank when the fuel gauge reaches the 0 (Empty)
position.
10. Low washer fluid warning
This warning appears when the washer tank
fluid is at a low level. Add washer fluid as
necessary. (See “WINDOW WASHER FLUID” in
the “8. Maintenance and do-it-yourself” sec-
tion.)
11. Door/lift gate open warning
(ignition switch is in the ON position)
This warning appears if any of the doors and/or
the lift gate are open or not closed securely. The
vehicle icon indicates which door or the lift gate
is open on the display.
12. Loose fuel cap warning (if so
equipped)
This warning appears when the fuel-filler cap is
not tightened correctly after the vehicle has
been refueled. (See “FUEL-FILLER CAP” in the
“3. Pre-driving checks and adjustments” sec-
tion.)
13. Check tire pressure warning (if so
equipped)
This warning appears when the low tire pres-
sure warning light in the meter illuminates and
low tire pressure is detected. If this warning
appears, stop the vehicle and adjust the tire
pressure to the recommended COLD tire pres-
sure shown on the Tire and Loading Information
label. (See “Low tire pressure warning light”
earlier in this section and “TIRE PRESSURE
MONITORING SYSTEM (TPMS)” in the “5. Start-
ing and driving” section.)
14. “TIMER” indicator
This indicator appears when the set “TIMER”
indicator activates. You can set the time for up
to 6 hours. (See “TRIP COMPUTER” later in this
section.)
15. Low outside temperature warning
This warning appears if the outside temperature
is below 37°F (3°C). The warning can be set not
to be displayed. (See “TRIP COMPUTER” later in
this section.)
16. Four-Wheel Drive (4WD) shift
indicator (4WD models)
This indicator shows the Four-Wheel Drive
(4WD) driving mode (AUTO, 4HI or 4LO) that is
selected by the 4WD shift switch. (See “INFINITI
ALL-MODE 4WD” in the “5. Starting and driv-
ing” section.)
17. Intelligent Cruise Control (ICC)
system MAIN switch indicator (if so
equipped)
The indicator is displayed when the Intelligent
Cruise Control (ICC) system main switch is
pushed. When the main switch is pushed again,
the indicator disappears. While the main switch
indicator is displayed, the ICC system is opera-
tional. (See “INTELLIGENT CRUISE CONTROL
(ICC) SYSTEM” in the “5. Starting and driving”
section.)
2-24Instruments and controls

The alarm is activated by:
●Unlocking the door or opening the lift gate
without using the button on the Intelligent
Key, the door handle request switch or the
mechanical key. (Even if the door is opened
by releasing the door inside lock knob, the
alarm will activate.)
● Opening the hood.
How to stop an activated alarm
The alarm will stop when a door is unlocked by
pushing the unlock button on the Intelligent
Key, the door handle request switch or using
the mechanical key, or when the ignition switch
is pushed to the ACC or ON position.
If the system does not operate as described
above, have it checked by an INFINITI retailer.
INFINITI VEHICLE IMMOBILIZER
SYSTEM
The INFINITI Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered Intelligent Key. Never leave these
keys in the vehicle.
This device complies with Part 15 of FCC Rules
and RSS-Gen of IC Rules. Operation is subject to
the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, in-
cluding interference that may cause undesired
operation of this device.
Security indicator light
The security indicator light is located on the
meter panel. It indicates the status of the
INFINITI Vehicle Immobilizer System.
The light blinks after the ignition switch was in
the ACC, OFF and LOCK position. This function
indicates the security systems equipped on the
vehicle are operational.
If the INFINITI Vehicle Immobilizer System is
malfunctioning, this light will remain on while
the ignition switch is in the ON position.
SIC2045
Instruments and controls2-31

If the light still remains on and/or the engine will
not start, see an INFINITI retailer for INFINITI Ve-
hicle Immobilizer System service as soon as
possible. Please bring all Intelligent Keys that
you have when visiting an INFINITI retailer for
service.WARNING
In freezing temperatures the washer solution
may freeze on the window and obscure your
vision which may lead to an accident. Warm the
window with the defroster before you wash the
window.
CAUTION
●Do not operate the washer continuously for
more than 30 seconds.
● Do not operate the washer if the reservoir
tank is empty.
● Do not fill the window washer reservoir tank
with washer fluid concentrates at full
strength. Some methyl alcohol based
washer fluid concentrates may permanently
stain the grille if spilled while filling the win-
dow washer reservoir tank.
● Pre-mix washer fluid concentrates with wa-
ter to the manufacturer’s recommended lev-
els before pouring the fluid into the window
washer reservoir tank. Do not use the win-
dow washer reservoir tank to mix the washer
fluid concentrate and water. If the windshield wiper operation is interrupted
by snow or ice, the wiper may stop moving to
protect its motor. If this occurs, turn the wiper
switch to the OFF position and remove the snow
or ice that is on and around the wiper arms. In
approximately 1 minute, turn the switch on again
to operate the wiper.
WINDSHIELD WIPER AND WASHER SWITCH
2-32Instruments and controls
