•If you change the settings of the climate
control system, the climate status display
appears for approximately three seconds at
the bottom of the screen in the center display
(see separate operating instructions). You
will see the current settings of the various
climate control functions.
Idle Stop/Start function
During automatic engine switch-off, the Climate
control only operates at a reduced capacity. If
you require the full climate control output, you
can switch off the Idle Stop/Start function by
pressing the ECO button (seeIdle Stop/Start
System (if equipped) in the5. Starting and
driving section).
Switching automatic climate control
on/off
When the climate control is switched off, the air
supply and air circulation are also switched off.
The windows could mist up. Therefore, only
switch off climate control briefly.
Make sure the ignition switch is in the ON
position.
To activate
:
Press thebutton The indicator lamp in
thebutton lights up. Airflow and air
distribution are set to automatic mode. or
Press the
button. The indicator lamp in
thebutton goes out. The previous set-
tings are reactivated.
To deactivate
:
Press thebutton. The indicator lamp in
thebutton lights up.
NOTE
Automatic climate control: switch on climate
control primarily using the
button.
Activating/deactivating the cooling
with air dehumidification function
If you deactivate the Cooling with air dehumidi-
fication function, the air inside the vehicle will
not be cooled. The air inside the vehicle will
also not be dehumidified. The windows can mist
up more quickly. Therefore, only deactivate the
Cooling with air dehumidification function
briefly.
The Cooling with air dehumidification function
is only available when the engine is running.
The air inside the vehicle is cooled and dehu-
midified according to the temperature selected.
Condensation may drip from the underside of
the vehicle when cooling mode is active. This is normal and not a sign that there is a malfunc-
tion.
To activate
:
Press thebutton The indicator lamp in
thebutton lights up.
To deactivate
:
Press thebutton. The indicator lamp in
thebutton goes out. The cooling with air
dehumidification function has a delayed switch-
off feature.
Problems with the Cooling with air dehumidifi-
cation function
:
Problem: The indicator lamp in thebutton flashes three times or remains off. The
cooling with air dehumidification function can-
not be activated.
Cause and solution: The cooling with air dehu-
midification function has been deactivated due
to a malfunction. Have the system checked. It is
recommended you visit an INFINITI retailer for
this service.
Setting automatic climate control to
automatic mode
Only automatic climate control features the
Control climate control automatically function.
4-48Display screen, heater and air conditioner, and audio system

In automatic mode, the set temperature is
maintained automatically at a constant level
The system automatically regulates the tem-
perature of the dispensed air, the airflow and
the air distribution.
The automatic mode functions optimally when
theCooling with air dehumidification function
is activated. If desired, cooling with air dehu-
midification can be deactivated.
If you deactivate the Cooling with air-
dehumidification function, the air inside the
vehicle will not be cooled. The air inside the
vehicle will also not be dehumidified. The win-
dows can mist up more quickly. Therefore, only
deactivate the Cooling with air-
dehumidification function briefly.
To set climate control to automatic mode
:
Make sure the ignition switch is in the ON
position.
Set the desired temperature.
To activate: press the
button The indica-
tor lamp in thebutton lights up. Auto-
matic air distribution and airflow are activated.
To switch to manual mode: press the
orbutton
or Press the
orbutton. The indicator
lamp in thebutton goes out. Automatic
air distribution and airflow are deactivated.
Setting the temperature
Different temperatures can be set for the driv-
er’s and front-passenger sides. The set tem-
perature is automatically maintained at a con-
stant level.
Make sure the ignition switch is in the ON
position.
To increase or reduce temperature: turn control
1or9counterclockwise or clockwise. Only
change the temperature setting in small incre-
ments. Start at 70
oF (22oC).
Setting the air distribution
Directs the airflow through the demister ventilators.
Directs the airflow through the center
and side air ventilators.
Directs the airflow through the footwell
air ventilators.
Directs the airflow through the center
and side air ventilators as well as the
footwell air ventilators.
Directs the airflow through the center
and side air ventilators as well as the
demister ventilators.
Directs the airflow through the footwell
and demister ventilators.
Directs the airflow through the demister ventilators, the center and side air ven-
tilators as well as the footwell air venti-
lators.
NOTE
Regardless of the air distribution setting, airflow
is always directed through the side air ventila-
tors. The side air ventilators can only be closed if
the adjusters are turned clockwise until they
engage.
To set the air distribution:
1. Make sure the engine is running.
2. Press the
orbutton repeatedly
until the desired symbol appears in the
display.
Setting the airflow
1. Make sure the ignition switch is in the ON position.
2. To increase or reduce airflow: press the
orbutton.
Display screen, heater and air conditioner, and audio system4-49

Switching the ZONE function on/off
This function is only available with automatic
climate control.
To activate:press the
button. The indi-
cator light in thebutton lights up. The
temperature setting for the driver’s side is not
adopted for the front-passenger side.
To deactivate: press the
button. The
indicator lamp in thebutton goes out.
The temperature setting for the driver’s side is
adopted for the front-passenger side.
Defogging the windshield
You can use this function to de-ice the wind-
shield or to defog the inside of the windshield
and the side windows.
NOTE
You should only select the Windshield demist-
ing function until the windshield is clear again.
Activating the Windshield demisting function
:
Make sure the ignition switch is in the ON
position.
To activate: press the
button The indica-
tor light in thebutton lights up. The climate control system switches to the
following functions:
•High airflow
•High temperature
•Air distribution to the windshield and front
side windows
•Air-recirculation mode off
NOTE
•The Windshield demisting function auto-
matically sets the blower output to the opti-
mum demisting effect. As a result, the airflow
may increase or decrease automatically after
the
button is pressed.
•You can adjust the blower output manually
while the Windshield demisting function is
in operation. Press the
orbutton.
Deactivating the Windshield demisting func-
tion
:
Press thebutton. The indicator lamp in
thebutton goes out. The previous set-
tings are reactivated Air-recirculation mode re-
mains deactivated.
or Turn temperature control
1or9counter-
clockwise or clockwise.
Defogging the windows
Windows misted up on the inside:
1. Activate theCooling with air dehu-
midification function.
2. Activate automatic mode
.
3. If the windows continue to mist up, activate the
Windshield demisting function.
NOTE
You should only select this setting until the
windshield is clear again.
Windows misted up on the outside
:
1. Activate the windshield wipers.
2. Set the air distribution to
or.
NOTE
You should only select this setting until the win-
dows are clear again.
Air recirculation mode
You can deactivate the flow of fresh air if
unpleasant odors are entering the vehicle from
outside. The air already inside the vehicle will
then be recirculated.
4-50Display screen, heater and air conditioner, and audio system

If you activate air-recirculation mode, the win-
dows can mist up more quickly, in particular at
low temperatures. Only use air recirculation
mode briefly to prevent the windows misting
up.
Activating air recirculation mode
:
Make sure the ignition switch is in the ON
position.
Press the
button. The indicator light in
thebutton lights up.
Air-recirculation mode is activated automati-
cally at high outside temperatures or high
levels of pollution. When air-recirculation mode
is activated automatically, the indicator light in
the
button is not lit. Outside air is added
after about 30 minutes.
Deactivating air recirculation mode
:
Press thebutton. The indicator light in
thebutton goes out.
NOTE
Air-recirculation mode is deactivated automati-
cally:
•After approximately five minutes at outside
temperatures below approximately 45oF
(7oC).
•After approximately five minutes if the Cool-
ing with air dehumidification function is
deactivated.
•After approximately 30 minutes at outside
temperatures above approximately 45oF
(7oC) if the cooling with air dehumidification
function is activated.
SERVICING AIR CONDITIONER
WARNING
The air conditioner system contains refriger-
ant under high pressure. To avoid personal in-
jury, any air conditioner service should be
done only by an experienced technician with
the proper equipment.
The air conditioner system in your vehicle is
charged with a refrigerant designed with the
environment in mind.
This refrigerant will not harm the earth’s ozone
layer.
Special charging equipment and lubricant are
required when servicing your vehicle’s air con-
ditioner. Using improper refrigerants or lubri-
cants will cause severe damage to the air
conditioner system. (See Air conditioner sys-tem refrigerant and oil recommendations
in the
9. Maintenance and Schedules section.)
An INFINITI retailer will be able to service your
environmentally friendly air conditioner system.
Air conditioner filter
The air conditioner system is equipped with an
air conditioner filter. To make sure the air
conditioner heats, defogs, and ventilates effi-
ciently, replace the filter in accordance with the
specified maintenance intervals listed in the
separate maintenance booklet. It is recom-
mended you visit an INFINITI retailer for this
service.
The filter should be replaced if the air flow
decreases significantly or if windows fog up
easily when operating the heater or air condi-
tioner.
Display screen, heater and air conditioner, and audio system4-51

AUDIO OPERATION PRECAUTIONS
WARNING
•The driver must not attempt to operate the
audio system while the vehicle is in motion,
so that full attention may be given to vehicle
operation.
•Park the vehicle in a safe location and apply
the parking brake before operating the au-
dio system and playing movies (if
equipped).
CAUTION
•Operate the audio system only when the
vehicle engine is running. Operating the au-
dio system for extended periods of time
with the engine turned off can discharge the
vehicle battery.
•Do not allow the system to get wet. Exces-
sive moisture such as spilled liquids may
cause the system to malfunction.
Radio
Turn the ignition switch to the ACC or ON
position before turning on the radio. If you
listen to the radio when the engine is not
running, the ignition switch should be pushed
to the ACC position.
Radio reception is affected by station signal
strength, distance from radio transmitter, build-
ings, bridges, mountains and other external
influences. Intermittent changes in reception
quality are normally caused by these external
influences.
Using a cellular phone in or near the vehicle may
influence radio reception quality.
Radio reception
Your radio system is equipped with state-of-the-
art electronic circuits to enhance radio recep-
tion. These circuits are designed to extend
reception range, and to enhance the quality of
that reception.
However there are some general characteristics
of both FM and AM radio signals that can affect
radio reception quality in a moving vehicle,
even when the best quality equipment is used.
These characteristics are completely normal in
a given reception area, and do not indicate any
malfunction in your radio system.Reception conditions will constantly change
because of vehicle movement. Buildings, ter-
rain, signal distance and interference from
other vehicles can adversely affect ideal recep-
tion. Described below are some of the factors
that can affect radio reception.
Some cellular phones or other devices may
cause interference or a buzzing noise to come
from the audio system speakers. Storing the
device in a different location may reduce or
eliminate the noise.
AUDIO SYSTEM (IF EQUIPPED)
4-52Display screen, heater and air conditioner, and audio system

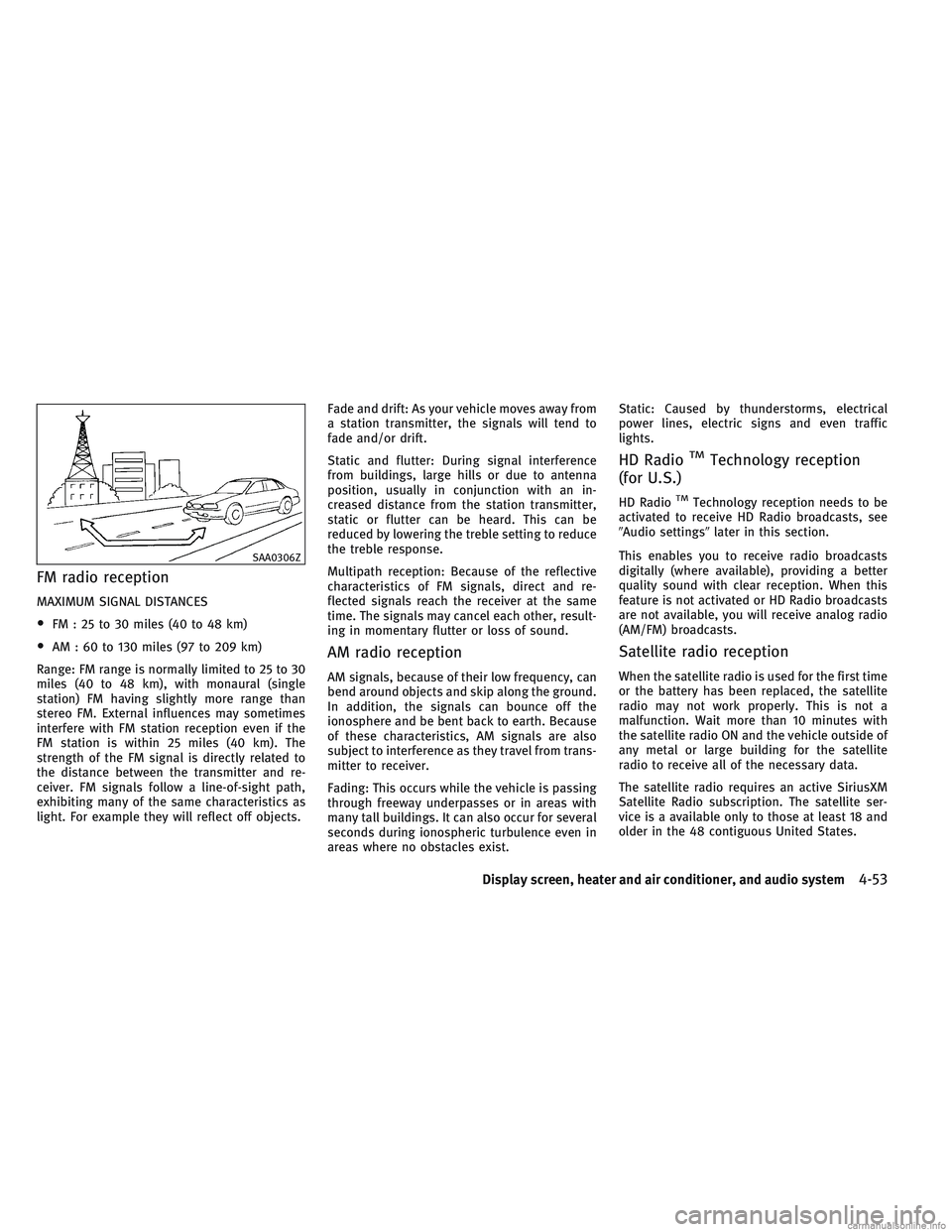

FM radio reception
MAXIMUM SIGNAL DISTANCES
•FM : 25 to 30 miles (40 to 48 km)
•AM : 60 to 130 miles (97 to 209 km)
Range: FM range is normally limited to 25 to 30
miles (40 to 48 km), with monaural (single
station) FM having slightly more range than
stereo FM. External influences may sometimes
interfere with FM station reception even if the
FM station is within 25 miles (40 km). The
strength of the FM signal is directly related to
the distance between the transmitter and re-
ceiver. FM signals follow a line-of-sight path,
exhibiting many of the same characteristics as
light. For example they will reflect off objects. Fade and drift: As your vehicle moves away from
a station transmitter, the signals will tend to
fade and/or drift.
Static and flutter: During signal interference
from buildings, large hills or due to antenna
position, usually in conjunction with an in-
creased distance from the station transmitter,
static or flutter can be heard. This can be
reduced by lowering the treble setting to reduce
the treble response.
Multipath reception: Because of the reflective
characteristics of FM signals, direct and re-
flected signals reach the receiver at the same
time. The signals may cancel each other, result-
ing in momentary flutter or loss of sound.AM radio reception
AM signals, because of their low frequency, can
bend around objects and skip along the ground.
In addition, the signals can bounce off the
ionosphere and be bent back to earth. Because
of these characteristics, AM signals are also
subject to interference as they travel from trans-
mitter to receiver.
Fading: This occurs while the vehicle is passing
through freeway underpasses or in areas with
many tall buildings. It can also occur for several
seconds during ionospheric turbulence even in
areas where no obstacles exist.Static: Caused by thunderstorms, electrical
power lines, electric signs and even traffic
lights.
HD RadioTMTechnology reception
(for U.S.)
HD RadioTMTechnology reception needs to be
activated to receive HD Radio broadcasts, see
Audio settings later in this section.
This enables you to receive radio broadcasts
digitally (where available), providing a better
quality sound with clear reception. When this
feature is not activated or HD Radio broadcasts
are not available, you will receive analog radio
(AM/FM) broadcasts.
Satellite radio reception
When the satellite radio is used for the first time
or the battery has been replaced, the satellite
radio may not work properly. This is not a
malfunction. Wait more than 10 minutes with
the satellite radio ON and the vehicle outside of
any metal or large building for the satellite
radio to receive all of the necessary data.
The satellite radio requires an active SiriusXM
Satellite Radio subscription. The satellite ser-
vice is a available only to those at least 18 and
older in the 48 contiguous United States.
SAA0306Z
Display screen, heater and air conditioner, and audio system4-53

The satellite radio performance may be affected
if cargo carried on the roof blocks the satellite
radio signal.
If possible, do not put cargo near the satellite
antenna.
The build up of ice on the satellite radio an-
tenna can affect satellite radio performance.
Remove the ice to restore satellite radio recep-
tion.
Trademarks
HD Radio Technology manufactured under li-
cense from iBiuity Digital Corporation. U.S. and
Foreign Patents. HD Radio
TMand the HD, HD
Radio, and “Arc” logos are proprietary trade-
marks of iBiquity Digita; Corp.
The Bluetooth® word mark and logos are reg-
istered trademarks owned by Bluetooth SIG,
Inc. and any use of such marks by DENSO
CORPORATION is under license. Other trade-
marks and trade names are those of their
respective owners.
SiriusXM services require a subscription after
trial period and are sold separately or as a package. Our satellite service is available only
to those at least 18 and older in the 48 contigu-
ous USA and DC. For more information visit
www.siriusxm.com.
Required SiriusXM Satellite Radio and SiriusXM
Travel Link monthly subscriptions are sold
separately. Sirius XM Travel Link is only avail-
able in select markets. For more information,
see www.sirius.com/travellink
“Made for iPodR” and “Made for iPhoneR”
mean that an electronic accessory has been
designed to connect specifically to iPod
Ror
iPhone
R, respectively, and has been certified
by the developer to meet Apple performance
standards. Apple is not responsible for the
operation of this device or its compliance with
safety and regulatory standards. Please note
that the use of this accessory with iPod
Ror
iPhone
Rmay affect wireless performance.
Apple, the Apple logo, iPhone
R, iPodR, iPod
classic
R, iPod nanoR, and iPod touchRare trademarks of Apple Inc., registered in the
U.S. and other countries. Lightning is a trade-
mark of Apple Inc. App Store is a service mark of
Apple Inc.
Music recognition technology and related data
are provided by Gracenote®. Gracenote is the
industry standard in music recognition technol-
ogy and related content delivery. For more
information, visit www.gracenote.com.
CD and music-related data from Gracenote, Inc.,
copyright
c2000 to present Gracenote.
Gracenote Software, copyright
c2000 to pres-
ent Gracenote. One or more patents owned by
Gracenote apply to this product and service.
See the Gracenote website for a non-exhaustive
list of applicable Gracenote patents. Gracenote,
CDDB, MusicID, MediaVOCS, the Gracenote
logo and logotype, and the “Powered by
Gracenote” logo are either registered trade-
marks or trademarks of Gracenote in the United
States and/or other countries.
App Store
SM
Apple and the Apple logo are trademarks of
Apple Inc., registered in the U.S. and other
countries. App Store is a service mark of Apple
Inc.
Google Play
TM
Google Play is a trademark of Google Inc.
4-54Display screen, heater and air conditioner, and audio system

Google
c2012 Google Inc. All rights reserved. Google
CalendarTMcalendaring application is a trade-
mark of Google Inc.
Compact Disc (CD) player
•Do not force a compact disc into the CD
insert slot. This could damage the CD and/or
CD player.
•Trying to load a CD with the CD door closed
could damage the CD and/or CD player.
•During cold or rainy weather, the player may
malfunction due to the humidity. If this oc-
curs, remove the CD and dehumidify or ven-
tilate the player completely.
•The player may skip while driving on rough
roads.
•The CD player sometimes cannot function
when the passenger compartment tempera-
ture is extremely high. Decrease the tem-
perature before use.
•Only use high quality 4.7 in (12 cm) round
discs that have the “COMPACT disc DIGITAL
AUDIO” logo on the disc or packaging.
•Do not expose the CD to direct sunlight.
•CDs that are of poor quality, are dirty,
scratched, or covered with fingerprints, or
that have pin holes may not work properly.
•The following CDs may not work properly: – Copy control compact discs (CCCD)
– Recordable compact discs (CD-R)
– Rewritable compact discs (CD-RW)
•Do not use the following CDs as they may
cause the CD player to malfunction.– 3.1 in (8 cm) discs
– CDs that are not round
SAA0480
Display screen, heater and air conditioner, and audio system4-55

– CDs with a paper label
– CDs that are warped, scratched, or haveabnormal edges
•This audio system can only play prerecorded
CDs. It has no capabilities to record or burn
CDs.
•If a CD cannot be played, one of the following
messages will be displayed.
[Disc Reading Error]
Indicates a CLV/Focus, TOC or Access error.
Check and re-insert the CD. Make sure that it
is inserted correctly.
[Please Eject Disc]
Indicates a mechanism error. If the CD can be
ejected, eject and re-insert the CD. If the CD
cannot be ejected, have the system checked.
It if recommended you contact an INFINITI
retailer for this service.
[File type is not supported]
Indicates that no readable files are found on
the inserted CD. Check the data on your CD.
USB (Universal Serial Bus) connection
port/ iPod
The Media Hub is located in the center console
and consists of the USB connectors. 1) USB/iPod connection port
Connect to play media from an iPod
R,
iPhone
Ror a USB memory device. When
using INFINITI InTouch Apps with an
iPhone
R, connect via a USB cable. Refer to
the device manufacturer’s owner information
regarding the proper use and care of the
device.
WARNING
Do not connect, disconnect or operate the USB
device while driving. Doing so can be a distrac-
tion. If distracted you could lose control of your
vehicle and cause an accident or serious injury.
CAUTION
•Do not force the USB device into the USB
port. Inserting the USB device tilted or up-
side-down into the port may damage the
port. Make sure that the USB device is con-
nected correctly into the USB port.
•Do not grab the USB port cover (if equipped)
when pulling the USB device out of the port.
This could damage the port and the cover.
•Do not leave the USB cable in a place where
it can be pulled unintentionally. Pulling the
cable may damage the port.
The vehicle is not equipped with a USB device.
USB devices should be purchased separately as
necessary.
This system cannot be used to format USB
devices. To format a USB device, use a personal
computer.
In some areas, the USB device for the front
seats plays only sound without images for
regulatory reasons, even when the vehicle is
parked.
This system supports various USB memory de-
vices, USB hard drives and iPod players. Some
NAA1628
4-56Display screen, heater and air conditioner, and audio system

USB devices may not be supported by this
system.
•Partitioned USB devices may not play cor-
rectly.
•Some characters used in other languages
(Chinese, Japanese, etc.) may not appear
properly in the display. Using English lan-
guage characters with a USB device is rec-
ommended.
General notes for USB use
:
Refer to your device manufacturer’s owner in-
formation regarding the proper use and care of
the device.
Notes for iPod use
:
iPod is a trademark of Apple Inc., registered in
the U.S. and other countries.
•Improperly plugging in the iPod may cause a
checkmark to be displayed on and off (flick-
ering). Always make sure that the iPod is
connected properly.
•An iPod nano (1st Generation) may remain in
fast forward or rewind mode if it is connected
during a seek operation. In this case, please
manually reset the iPod.
•An iPod nano (2nd Generation) will continue
to fast-forward or rewind if it is disconnected
during a seek operation.
•An incorrect song title may appear when the
Play Mode is changed while using an iPod
nano (2nd Generation)
•Audiobooks may not play in the same order
as they appear on an iPod.
•Large video files cause slow responses in an
iPod. The vehicle display may momentarily
black out, but will soon recover.
•If an iPod automatically selects large video
files while in the shuffle mode, the vehicle
display may momentarily black out, but will
soon recover.
Display screen, heater and air conditioner, and audio system4-57
