INFINITI QX30 2017 Owner's Manual

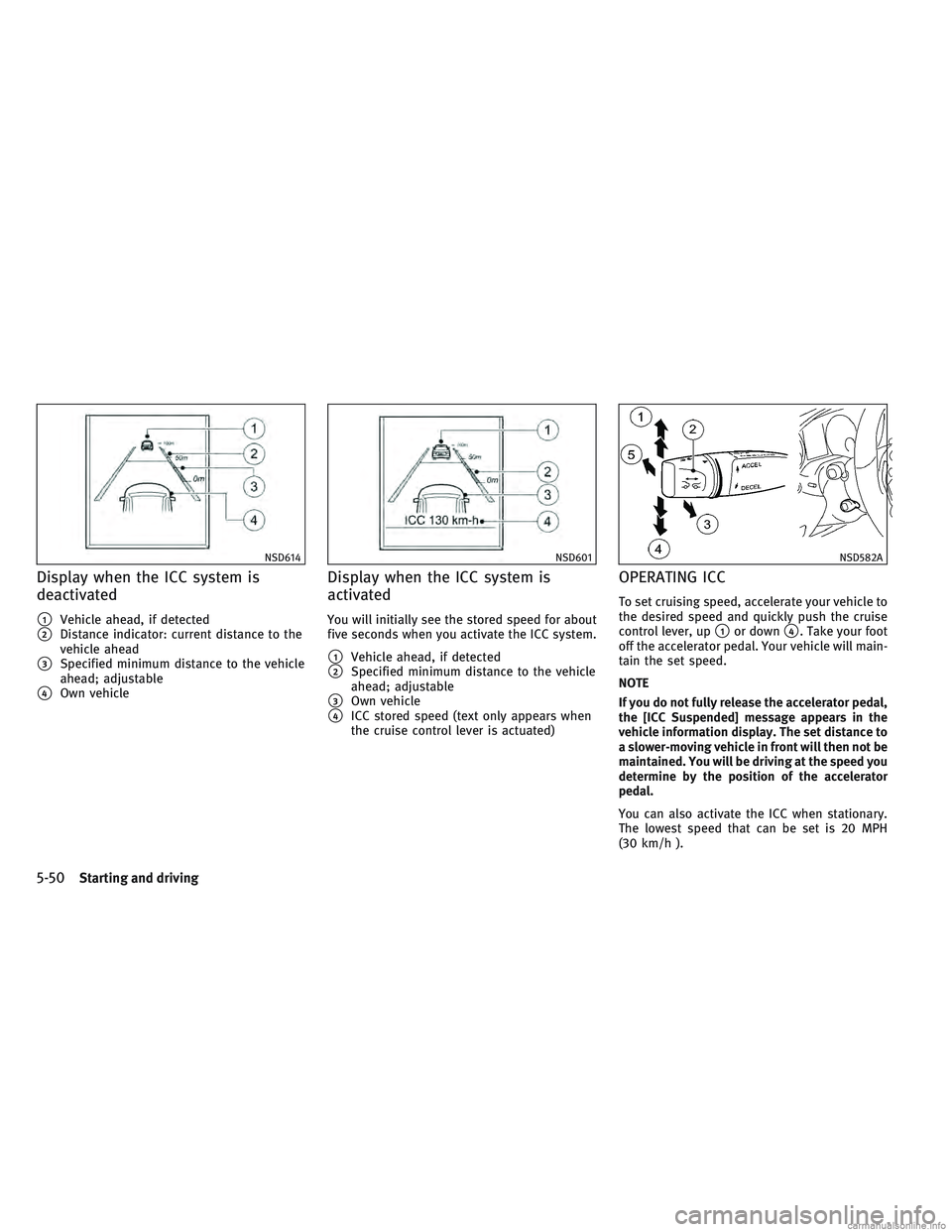

Display when the ICC system is
deactivated
1Vehicle ahead, if detected
2Distance indicator: current distance to the
vehicle ahead
3Specified minimum distance to the vehicle
ahead; adjustable
4Own vehicle
Display when the ICC system is
activated
You will initially see the stored speed for about
five seconds when you activate the ICC system.
1Vehicle ahead, if detected
2Specified minimum distance to the vehicle
ahead; adjustable
3Own vehicle
4ICC stored speed (text only appears when
the cruise control lever is actuated)
OPERATING ICC
To set cruising speed, accelerate your vehicle to
the desired speed and quickly push the cruise
control lever, up
1or down4. Take your foot
off the accelerator pedal. Your vehicle will main-
tain the set speed.
NOTE
If you do not fully release the accelerator pedal,
the [ICC Suspended] message appears in the
vehicle information display. The set distance to
a slower-moving vehicle in front will then not be
maintained. You will be driving at the speed you
determine by the position of the accelerator
pedal.
You can also activate the ICC when stationary.
The lowest speed that can be set is 20 MPH
(30 km/h ).
NSD614NSD601NSD582A
5-50Starting and driving

System operation
The driver sets the desired vehicle speed based
on the road conditions. The ICC system main-
tains the set vehicle speed, similar to standard
cruise control, as long as no vehicle is detected
in the lane ahead. The ICC system displays the
set speed for 5 seconds after the cruise control
lever is activated.
Vehicle detected ahead
:
When a vehicle is detected in the lane ahead,
the ICC system decelerates the vehicle by con-
trolling the throttle and applying the brakes to
match the speed of a slower vehicle ahead. The
system then controls the vehicle speed based
on the speed of the vehicle ahead to maintain
the driver selected distance.The brake lights of the vehicle come on when
braking is performed by the ICC system. When
the brake operates, a noise may be heard. This
is not a malfunction.
When a vehicle ahead is detected, the vehicle
ahead symbol
1appears in the vehicle infor-
mation display.
Vehicle ahead not detected
:
When a vehicle is no longer detected ahead, the
ICC system gradually accelerates your vehicle to
resume the previously set vehicle speed. The
ICC system then maintains the set speed.
When a vehicle is no longer detected, the
vehicle ahead display turns off
2.
If a vehicle ahead appears during acceleration
to the set vehicle speed or any time the ICC system is in operation, the system controls the
distance to that vehicle.
Changing lanes to pass another
vehicle:
When you changes lane to pass another ve-
hicle, ICC supports the action if:
•The vehicle speed is more than 45 MPH
(70 km/h)
•The ICC is maintaining the distance to a
vehicle in front
•The respective turn signal is activated
If these conditions are met, the vehicle will be
accelerated. Acceleration will be interrupted if
changing lanes takes too long or if the distance
between your vehicle and the vehicle in front
becomes too small.
NSD615System set display with vehicle aheadNSD616System set display without vehicle ahead
Starting and driving5-51

How to change the set vehicle speed
To cancel the preset speed, use any of these
methods:
•Tap the brake pedal when the vehicle is
moving.
•Quickly push the cruise control lever in the
direction of arrow
5.
The message [ICC OFF] appears in the vehicle
information display for 5 seconds.
To reset at a higher cruising speed, use one of
the following methods:
•Depress the accelerator pedal. When the
vehicle attains the desired speed, quickly
pull the cruise control lever towards you
3.
•Pull the cruise control lever up1beyond
the pressure point. The set vehicle speed will
increase by approximately 10 MPH (10 km/h).
•Pull the cruise control lever up (1) at the
pressure point. The set vehicle speed will
increase by approximately 1 MPH (1 km/h).
To reset at a lower cruising speed, use one of
the following methods:
•Lightly tap the brake pedal. When the vehicle
attains the desired speed, quickly pull the
cruise control lever towards you
3.
•Pull the cruise control lever down4beyond
the pressure point. The set vehicle speed will
decrease by approximately 10 MPH (10 km/
h).
•Pull the cruise control lever down4to the
pressure point. The set vehicle speed will
decrease by approximately 1 MPH (1 km/h).
To resume the preset speed, quickly pull the
cruise control lever towards you
4. The vehicle
will resume the last set cruising speed when the
vehicle speed is over 20 MPH (30 km/h).
NOTE
If you do not fully release the accelerator pedal,
the [ICC Deactivated Automatically] message
appears in the vehicle information display. The
set distance to a slower-moving vehicle in front will then not be maintained. You will be driving
at the speed you determine by the position of the
accelerator pedal.
You can also activate ICC when stationary. The
lowest speed that can be set is 20 MPH
(30 km/h).
Stopping
WARNING
•To help avoid risk of injury or death through
unintended operation of the vehicle and/or
its systems, do not leave children, people
who require the assistance of others, or
pets unattended in your vehicle.
•The ICC system should only be used to keep
the vehicle stationary when the driver is
actively using the system. When parking
the vehicle, make sure to turn OFF the ICC
system, use the brake, press the PARK (P)
button, and place the ignition switch in the
LOCK position prior to exiting the vehicle.
Failure to do so could lead to serious injury
or death. The ICC system will not hold the
vehicle in place after coming to a stop when
any of the following conditions occur:
– There is a malfunction in the system or in
the voltage supply.
NSD582A
5-52Starting and driving

–The ICC system has been deactivated
with the cruise control lever, e. g. by a
vehicle occupant.
– The accelerator pedal has been de-
pressed, e.g. by a vehicle occupant.
For further information on deactivating the ICC
system, see ICC switch (cruise control lever)
earlier in this section
If the ICC system detects that the vehicle in
front is stopping, it brakes your vehicle until it
is stationary (within the braking limitations of
the system).
Once your vehicle is stationary, it remains
stationary and you do not need to depress the
brake.
NOTE
•After a short period, the vehicle is secured by
the electric parking brake, thus relieving the
service brake.
•Depending on the specified minimum dis-
tance, your vehicle will come to a standstill
at a sufficient distance behind the vehicle in
front. The specified minimum distance is set
using the control on the cruise control lever. The electric parking brake secures the vehicle
automatically if the ICC system is activated
when the vehicle is stationary and:
•A system fault occurs.
•The power supply is insufficient.
If a malfunction in the electric parking brake
occurs, then the transmission may also be
shifted into position P (Park) automatically.
How to change the set distance to
the vehicle ahead
The distance to the vehicle ahead can be se-
lected at any time depending on the traffic
conditions.
To increase the distance to the vehicle ahead,
turn the knob
3toward the rear2. To de-
crease the distance to the vehicle ahead, turn
the knob
3toward the front1.
You can see this distance in the vehicle infor-
mation display.
The distance to the vehicle ahead will change
according to the vehicle speed. The higher the
vehicle speed, the longer the distance.
NSD583A
Starting and driving5-53

Approach warning
If your vehicle comes closer to the vehicle
ahead due to rapid deceleration of that vehicle
or if another vehicle cuts in, the system warns
the driver with the chime and distance warning
light. Decelerate by depressing the brake pedal
to maintain a safe vehicle distance if:
•The chime sounds.
•The distance warning light is illuminated.
The warning chime may not sound and the
distance warning light may not illuminate in
some cases when there is a short distance
between vehicles. Some examples are:
•When the vehicles are traveling at the same
speed and the distance between vehicles is
not changing. In this case, the distance
warning light will be on.
•When the vehicle ahead is traveling faster
and the distance between vehicles is increas-
ing.
•When a vehicle cuts in near your vehicle
•The warning chime will not sound and the
distance warning light will not illuminate
when: – The vehicle approaches other vehicles that are parked or moving slowly. – The accelerator pedal is depressed, over-
riding the system.
Also, the sensor sensitivity can be affected by
vehicle operation (steering maneuver or driving
position in the lane) or traffic or vehicle condi-
tion (for example, if a vehicle is being driven
with some damage).
Automatic cancellation
A chime sounds and the message [ICC off] is
displayed in the vehicle information display for
5 seconds under the following conditions and
the control is automatically canceled.
•The electric parking brake is applied.
•The VDC intervenes or the VDC is deacti-
vated.
•The P (Park), R (Reverse) or N (Neutral)
position is engaged.
•The cruise control lever is pulled in order to
pull away but the front passenger door or
one of the rear doors is open.
•The vehicle is skidding or a wheel slips.
•Active Park Assist is activated.
ICC LIMITATIONS
WARNING
Listed below are the system limitations for the
ICC system. Failure to operate the vehicle in
accordance with these system limitations
could result in serious injury or death.
•This system is only an aid to assist the
driver and is not a collision warning or
avoidance device. It is the driver’s responsi-
bility to stay alert, drive safely and be in
control of the vehicle at all times.
•The system is primarily intended for use on
straight, dry, open roads with light traffic. It
is not advisable to use the system in city
traffic or congested areas.
•This system will not adapt automatically to
road conditions. This system should be
used in evenly flowing traffic. Do not use the
system on roads with sharp curves, or on icy
roads, in heavy rain or in fog.
•As there is a performance limit to the dis-
tance control function, never rely solely on
the ICC system. This system does not cor-
rect careless, inattentive or absent-minded
driving, or overcome poor visibility in rain,
fog, or other bad weather. Decelerate the
vehicle speed by depressing the brake
5-54Starting and driving

pedal, depending on the distance to the ve-
hicle ahead and the surrounding circum-
stances in order to maintain a safe distance
between vehicles.
•If the vehicle ahead comes to a stop, the
vehicle decelerates to a standstill within
the limitations of the system. Once the ve-
hicle is stationary, it remains stationary and
you do not need to depress the brake pedal.
•Always pay attention to the operation of the
vehicle and be ready to manually control the
proper following distance. The ICC system
may not be able to maintain the selected
distance between vehicles (following dis-
tance) or selected vehicle speed under
some circumstances.
•Normally when controlling the distance to a
vehicle ahead, this system automatically
accelerates or decelerates your vehicle ac-
cording to the speed of the vehicle ahead. If
required, depress the accelerator to prop-
erly accelerate your vehicle when accelera-
tion is required for a lane change. Depress
the brake pedal when deceleration is re-
quired to maintain a safe distance to the
vehicle ahead due to its sudden braking or if
a vehicle cuts in. Always stay alert when
using the ICC system.
•The system may not detect the vehicle in
front of you in certain road or weather con-
ditions. To avoid accidents, never use the
ICC system under the following conditions:– On roads where the traffic is heavy or
there are sharp curves.
– On slippery road surfaces such as on ice
or snow, etc.
– During bad weather (rain, fog, snow,
etc.).
– When rain, snow or dirt adhere to the
system sensor.
– On steep downhill roads (the vehicle
may go beyond the set vehicle speed and
frequent braking may result in overheat-
ing the brakes).
– On repeated uphill and downhill roads.
– When traffic conditions make it difficult
to keep a proper distance between ve-
hicles because of frequent acceleration
or deceleration.
– If there is interference by other radar
sources.
•Do not use the ICC system if you are towing a
trailer. The system may not detect a vehicle
ahead.
•In some road or traffic conditions, a vehicle
or object can unexpectedly come into the
sensor detection zone and cause automatic braking. You may need to control the dis-
tance from other vehicles using the accel-
erator pedal. Always stay alert and avoid
using the ICC system when it is not recom-
mended in this section.
•The distance sensor will not detect the fol-
lowing objects:
– Stationary and slow moving vehicles.
– Pedestrians or objects in the roadway.
– Oncoming vehicles in the same lane.
– Motorcycles traveling offset in the travel
lane.
The following are some conditions in which the
sensor cannot properly detect a vehicle ahead
and the system may not operate properly:
•When the snow or road spray from traveling
vehicles reduces the sensor’s visibility.
•When excessively heavy baggage is loaded
in the rear seat or the luggage room of your
vehicle.
The ICC system is designed to automatically
check the sensor’s operation within the limita-
tion of the system. When the sensor is covered
with dirt or is obstructed, the system will auto-
matically be canceled. If the sensor is covered
with ice, a transparent or translucent vinyl bag,
etc., the ICC system may not detect them. In
Starting and driving5-55

these instances, the ICC system may not cancel
and may not be able to maintain the selected
following distance from the vehicle ahead. Be
sure to check and clean the sensor regularly.
TIPS FOR DRIVING WITH THE ICC
SYSTEM
General notes
The following contains descriptions of certain
road and traffic conditions in which you must be
particularly attentive. In such situations, brake
if necessary. The ICC system is then deactivated
Cornering, entering and exiting a
bend
The ability of the ICC system to detect vehicles
when cornering is limited. Your vehicle may
brake unexpectedly or late.
Vehicles that are not driving in the
middle of their lane
The ICC system may not detect vehicles which
are not driving in the middle of their lane. The
system will not brake for or keep a following
distance to the car which is offset.
NSD603NSD606
5-56Starting and driving

Other vehicles changing lanes
The ICC system has not detected the vehicle
cutting in yet. The system will not brake for or
keep a following distance to this vehicle.
Narrow vehicles (including
motorcycles)
The ICC system has not yet detected the vehicle
ahead on the edge of the lane because of its
narrow width. The system will not brake for or
keep a following distance to this vehicle.
Obstructions and stationary vehicles
The ICC system does not brake for obstacles or
stationary vehicles. If, for example, the de-
tected vehicle turns a corner and reveals an
obstacle or stationary vehicle The ICC system
will not brake for these.
NSD604NSD605NSD607
Starting and driving5-57

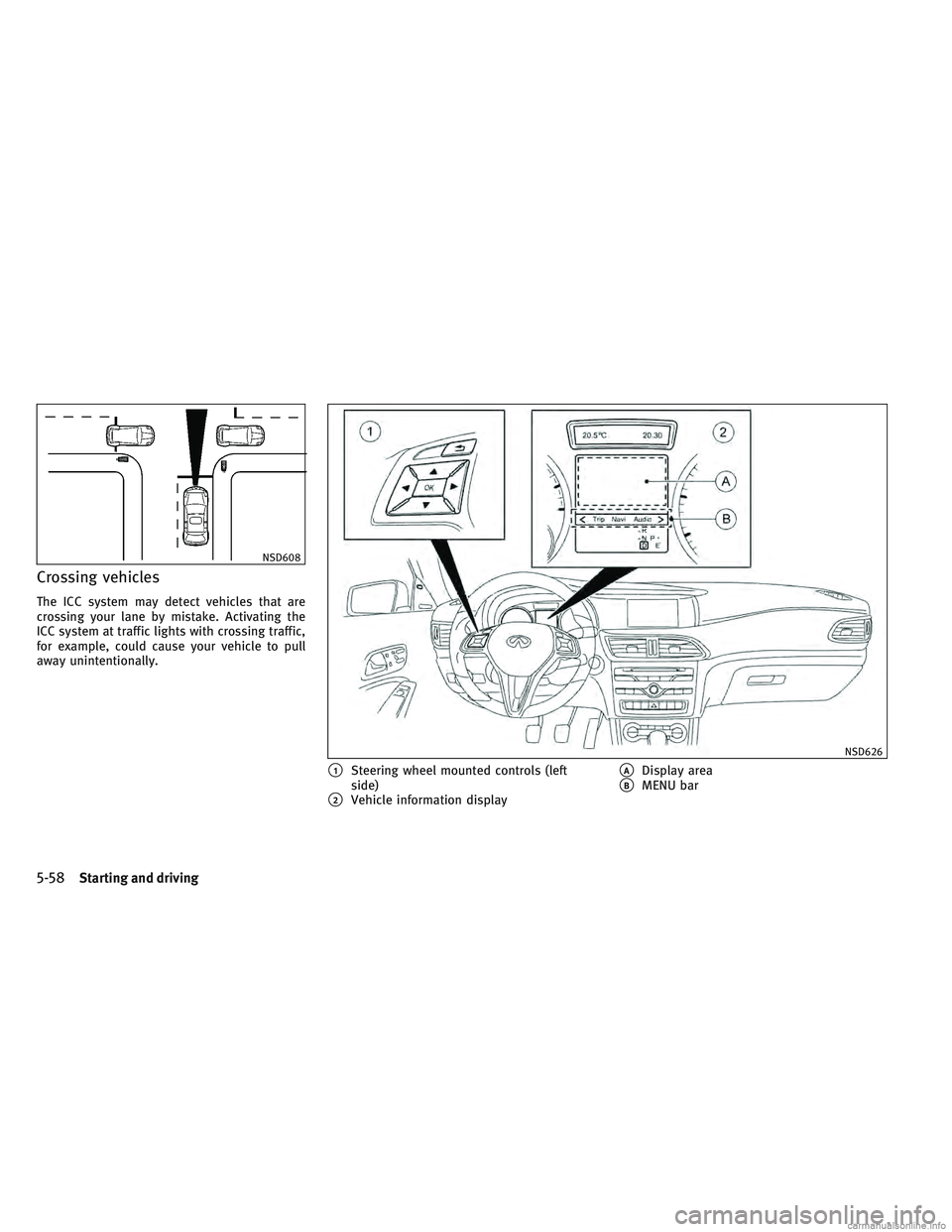

Crossing vehicles
The ICC system may detect vehicles that are
crossing your lane by mistake. Activating the
ICC system at traffic lights with crossing traffic,
for example, could cause your vehicle to pull
away unintentionally.
1Steering wheel mounted controls (left
side)
2Vehicle information display
ADisplay area
BMENU bar
NSD608
NSD626
5-58Starting and driving

SYSTEM TEMPORARILY UNAVAILABLE
When the radar sensor area is covered with dirt
or is obstructed, the system will automatically
be canceled. If the radar sensor area is covered
with ice, a transparent or translucent vinyl bag,
etc., the ICC system may not detect them. In
these instances, the ICC system may not cancel
and may not be able to maintain the selected
following distance from the vehicle ahead.
If the ICC system stops working due to a
malfunction or some other reason, one of the
following messages will be displayed in the
vehicle information display
2.
•[ICC off]
•[ICC Now Available]
•[ICC Currently Unavailable See Operator’s
Manual]
•[ICC Inoperative]
•[ICC Suspended]
•[ICC–––MPH]
[ICC off]: The ICC system has been deactivated.
If it was not deactivated by the driver, a warning
tone also sounds. [ICC Now Available]:
The ICC system is opera-
tional again after having been temporarily un-
available. You can now reactivate the ICC sys-
tem.
[ICC Currently Unavailable See Operator’s
Manual]: The ICC system is temporarily inopera-
tive. Possible causes:
•The function is impaired due to heavy rain or
snow.
•The radar sensor system is temporarily inop-
erative, e. g. due to electromagnetic radia-
tion emitted by nearby TV or radio stations or
other sources of electromagnetic radiation.
•The system is outside the operating tempera-
ture range.
•The on-board voltage is too low.
A warning tone also sounds.
Once the causes listed above no longer apply,
the display message goes out.
If the display message does not disappear:
•Pull over and stop the vehicle safely as soon
as possible, paying attention to road and
traffic conditions.
•Secure the vehicle against rolling away.
•Restart the engine. [ICC Inoperative]:
The ICC system is malfunc-
tioning. The adaptive brake assist function may
also have failed. A warning tone also sounds.
Have the system checked. It is recommended
you visit an INFINITI retailer for this service.
[ICC Suspended]: You have depressed the accel-
erator pedal. The ICC system is no longer
controlling the speed of the vehicle.
The display message should disappear when
you remove your foot from the accelerator pedal
[ICC–––MPH]: An activation condition for the
ICC system is not fulfilled.
Check the activation conditions for the ICC
system.
Starting and driving5-59
