•Do not stop or park the vehicle over flam-
mable materials such as dry grass, waste-
paper or rags. They may ignite and cause a
fire.
CAUTION
•Do not use leaded gasoline. (SeeRecom-
mended fluids/lubricants and capacities in
the 9. Maintenance and Schedules sec-
tion.) Deposits from leaded gasoline seri-
ously reduce the ability of the three-way
catalyst to help reduce exhaust pollutants
and/or damage the three-way catalyst.
•Keep your engine tuned up. Malfunctions in
the ignition, fuel injection, or electrical sys-
tems may cause overrich fuel to flow into
the three-way catalyst, causing it to over-
heat. Do not keep driving if the engine mis-
fires, or if noticeable loss of performance or
other unusual operating conditions are de-
tected. Have the vehicle inspected
promptly. It is recommended you visit an
INFINITI retailer for this service.
•Avoid driving with an extremely low fuel
level. Running out of fuel could cause the engine to misfire, damaging the three-way
catalyst.
•Do not race the engine while warming it up.
•Do not push or tow your vehicle to start the
engine.
TIRE PRESSURE MONITORING SYSTEM
(TPMS)
Each tire, including the spare (if present),
should be checked monthly when cold and
inflated to the inflation pressure recommended
by the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If your
vehicle has tires of a different size than the size
indicated on the vehicle placard or tire inflation
pressure label, you should determine the
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has
been equipped with a tire pressure monitoring
system (TPMS) that illuminates a low tire pres-
sure telltale when one or more of your tires is
significantly under-inflated. Accordingly, when
the low tire pressure telltale illuminates, you
should stop and check your tires as soon as
possible, and inflate them to the proper pres-
sure. Driving on a significantly under-inflated
tire causes the tire to overheat and can lead totire failure. Under-inflation also reduces fuel
efficiency and tire tread life, and may affect the
vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver’s
responsibility to maintain correct tire pressure,
even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire
pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate when
the system is not operating properly. The TPMS
malfunction indicator is combined with the low
tire pressure telltale. When the system detects
a malfunction, the telltale will flash for approxi-
mately one minute and then remain continu-
ously illuminated. This sequence will continue
upon subsequent vehicle start-ups as long as
the malfunction exists. When the malfunction
indicator is illuminated, the system may not be
able to detect or signal low tire pressure as
intended. TPMS malfunctions may occur for a
variety of reasons, including the installation of
replacement or alternate tires or wheels on the
vehicle that prevent the TPMS from working
properly. Always check the TPMS telltale after
replacing one or more tires or wheels on your
vehicle to ensure that the replacement or alter-
nate tires and wheels allow the TPMS to con-
tinue to function properly.
Starting and driving5-5

The vehicle’s wheels have sensors fitted that
monitor the tire pressures in all four tires The
tire pressure monitor warns you if the pressure
drops in one or more of the tires The tire
pressure monitor only functions if the corre-
sponding sensors are fitted to all wheels.
Information on tire pressures is shown in the
vehicle information display. After a few minutes
of driving, the current tire pressure of each tire
is shown in the [Serv.] menu of the vehicle
information display.
WARNING
•Radio waves could adversely affect electri-
cal medical equipment. Those who use a
pacemake should contact their electrical
medical equipment manufacturer for the
pssible influences before use.
•If the low tire pressure warning light illumi-
nates or a tire pressure-related warning is
displayed by the vehicle information dis-
play while driving, avoid sudden steering
maneuvers or abrupt braking, reduce ve-
hicle speed, pull off the road to a safe loca-
tion and stop the vehicle as soon as pos-
sible. Driving with under-inflated tires may
permanently damage the tires and increase
the likelihood of tire failure. Serious vehicle
damage could occur and may lead to an ac-cident and could result in serious personal
injury. Check the tire pressure for all four
tires. Adjust the tire pressure to the recom-
mended COLD tire pressure shown on the
tire and loading information label to turn
the low tire pressure warning light OFF. If
you have a flat tire, replace it with a replace-
ment tire as soon as possible.
•If a replacement wheel is fitted without an
INFINITI TPMS Sensor, the TPMS will not
function and the low tire pressure warning
light will flash for approximately 1 minute.
The light will remain on after 1 minute. It is
recommended you contact an INFINITI re-
tailer as soon as possible for tire replace-
ment and/or system resetting.
•For models with run-flat tires, although you
can continue driving with a punctured run-
flat tire, remember that vehicle handling
stability is reduced, which could lead to an
accident and personal injury. Also, driving a
long distance at high speeds may damage
the tires.
– Do not drive at speeds above 50 MPH (80
km/h) and do not drive more than ap-
proximately 93 miles (150 km) with a
punctured run-flat tire. The actual dis-
tance the vehicle can be driven on a flat
NSD633
5-6Starting and driving

tire depends on outside temperature, ve-
hicle load, road conditions and other fac-
tors.
– If you detect any unusual sounds or vi-
brations while driving with a punctured
run-flat tire, pull off the road to a safe
location and stop the vehicle as soon as
possible. The tire may be seriously dam-
aged and need to be replaced.
•Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
•If you used Emergency Tire Sealant to repair
a minor tire puncture, the TPMS sensor
should be checked when repairing or re-
placing the tire (for models equipped with
the emergency tire puncture repair kit). It is
recommended you visit an INFINITI retailer
for this service.
•INFINITI recommends using only INFINITI
Genuine Emergency Tire Sealant provided
with your vehicle. Other tire sealants may
damage the valve stem seal which can
cause the tire to lose air pressure (for mod-
els equipped with the emergency tire punc-
ture repair kit).
CAUTION
•The TPMS may not function properly when
the wheels are equipped with snow chains
or the wheels are buried in snow.
•Do not place metalized film or any metal
parts (antenna, etc.) on the windows. This
may cause poor reception of the signals
from the tire pressure sensors, and the
TPMS will not function properly.
It is the driver’s responsibility to set the tire
pressure to the recommended cold tire pressure
suitable for the operating situation (see
Wheels and tires in the8. Do-it-yourself
section). Note that the correct tire pressure for
the current operating situation must first be
taught-in to the tire pressure monitor (see
Restarting TPMS later in this section).
If there is a substantial loss of pressure, the
warning threshold for the warning message is
aligned to the reference values taught-in. Re-
start the tire pressure monitor after adjusting to
the cold tire pressure. The current pressures are
saved as new reference values. This will ensure
that a warning message will only appear if the
tire pressure drops significantly. The tire pressure monitor does not warn you of
an incorrectly set tire pressure.
TPMS is not able to warn you of a sudden loss
of pressure, e. g. if the tire is penetrated by a
foreign object. In the event of a sudden loss of
pressure, bring the vehicle to a halt by braking
carefully. Avoid abrupt steering maneuvers.
TPMS has a yellow warning lamp in the combi-
nation meter for indicating a pressure loss or
malfunction. Depending on how the warning
lamp flashes or lights up, a tire pressure that is
too low or a malfunction in TPMS is indicated:
•If the warning lamp is lit continuously, the
tire pressure on one or more tires is signifi-
cantly too low. TPMS is not malfunctioning.
•If the warning lamp flashes for around a
minute and then remains lit constantly, the
TPMS is malfunctioning.
In addition to the warning lamp, a message
appears in the vehicle information display. Ob-
serve the information on display messages (see
Safety systems in the2. Instruments and
controls section
It may take up to ten minutes for a malfunction
of the tire pressure monitor to be indicated. A
malfunction will be indicated by the tire pres-
sure warning lamp flashing for approximately
one minute and then remaining lit. When the
Starting and driving5-7

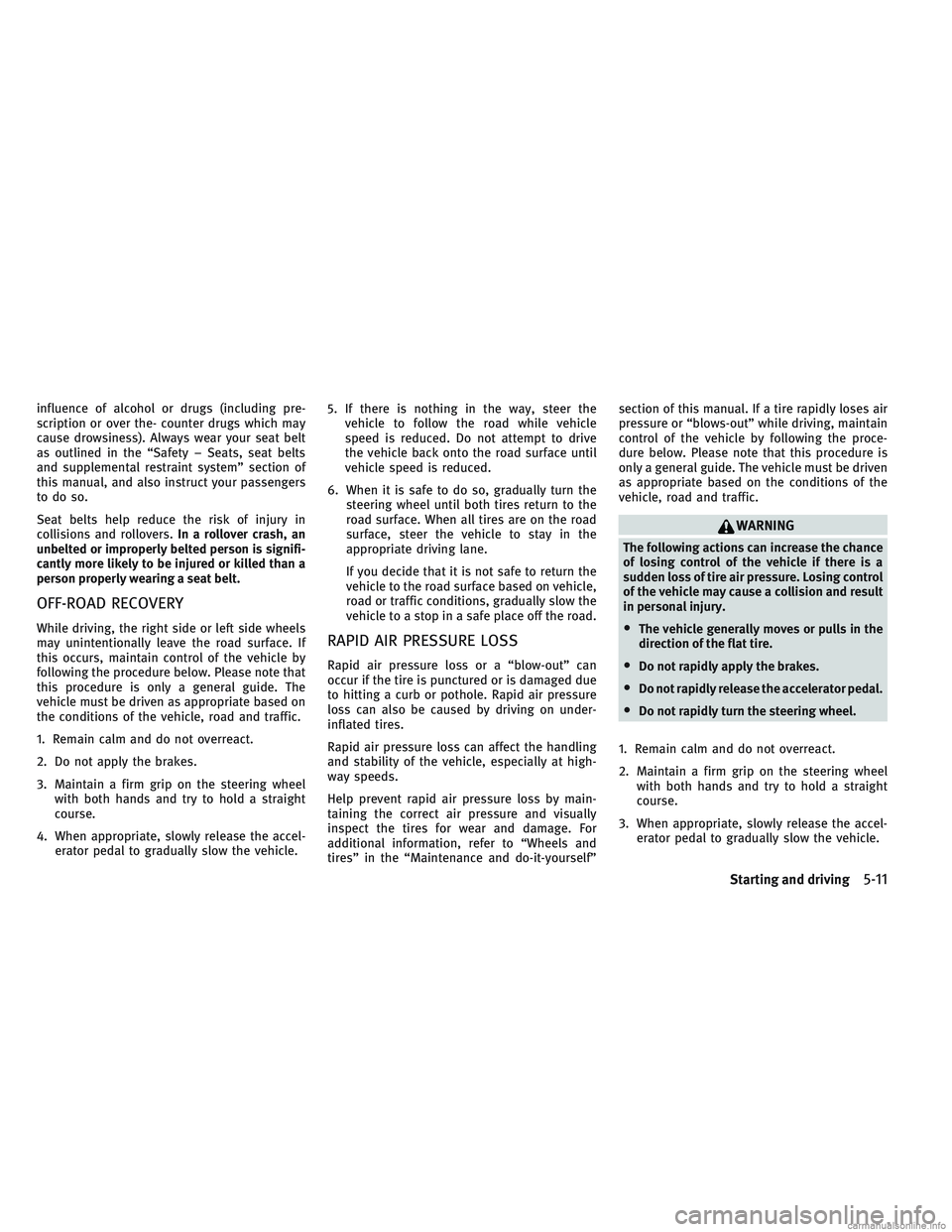

influence of alcohol or drugs (including pre-
scription or over the- counter drugs which may
cause drowsiness). Always wear your seat belt
as outlined in the “Safety – Seats, seat belts
and supplemental restraint system” section of
this manual, and also instruct your passengers
to do so.
Seat belts help reduce the risk of injury in
collisions and rollovers.In a rollover crash, an
unbelted or improperly belted person is signifi-
cantly more likely to be injured or killed than a
person properly wearing a seat belt.
OFF-ROAD RECOVERY
While driving, the right side or left side wheels
may unintentionally leave the road surface. If
this occurs, maintain control of the vehicle by
following the procedure below. Please note that
this procedure is only a general guide. The
vehicle must be driven as appropriate based on
the conditions of the vehicle, road and traffic.
1. Remain calm and do not overreact.
2. Do not apply the brakes.
3. Maintain a firm grip on the steering wheel with both hands and try to hold a straight
course.
4. When appropriate, slowly release the accel- erator pedal to gradually slow the vehicle. 5. If there is nothing in the way, steer the
vehicle to follow the road while vehicle
speed is reduced. Do not attempt to drive
the vehicle back onto the road surface until
vehicle speed is reduced.
6. When it is safe to do so, gradually turn the steering wheel until both tires return to the
road surface. When all tires are on the road
surface, steer the vehicle to stay in the
appropriate driving lane.
If you decide that it is not safe to return the
vehicle to the road surface based on vehicle,
road or traffic conditions, gradually slow the
vehicle to a stop in a safe place off the road.RAPID AIR PRESSURE LOSS
Rapid air pressure loss or a “blow-out” can
occur if the tire is punctured or is damaged due
to hitting a curb or pothole. Rapid air pressure
loss can also be caused by driving on under-
inflated tires.
Rapid air pressure loss can affect the handling
and stability of the vehicle, especially at high-
way speeds.
Help prevent rapid air pressure loss by main-
taining the correct air pressure and visually
inspect the tires for wear and damage. For
additional information, refer to “Wheels and
tires” in the “Maintenance and do-it-yourself” section of this manual. If a tire rapidly loses air
pressure or “blows-out” while driving, maintain
control of the vehicle by following the proce-
dure below. Please note that this procedure is
only a general guide. The vehicle must be driven
as appropriate based on the conditions of the
vehicle, road and traffic.
WARNING
The following actions can increase the chance
of losing control of the vehicle if there is a
sudden loss of tire air pressure. Losing control
of the vehicle may cause a collision and result
in personal injury.
•The vehicle generally moves or pulls in the
direction of the flat tire.
•Do not rapidly apply the brakes.
•Do not rapidly release the accelerator pedal.
•Do not rapidly turn the steering wheel.
1. Remain calm and do not overreact.
2. Maintain a firm grip on the steering wheel with both hands and try to hold a straight
course.
3. When appropriate, slowly release the accel- erator pedal to gradually slow the vehicle.
Starting and driving5-11

4. Gradually steer the vehicle to a safe locationoff the road and away from traffic if possible.
5. Lightly apply the brake pedal to gradually stop the vehicle.
6. Turn on the hazard warning flashers and contact a roadside emergency service to
change the tire. For additional information,
refer to Flat tire in the6. In case of
emergency section.
DRINKING ALCOHOL/DRUGS AND
DRIVING
WARNING
Never drive under the influence of alcohol or
drugs. Alcohol in the bloodstream reduces co-
ordination, delays reaction time and impairs
judgement. Driving after drinking alcohol in-
creases the likelihood of being involved in an
accident injuring yourself and others. Addi-
tionally, if you are injured in an accident, alco-
hol can increase the severity of the injury.
INFINITI is committed to safe driving. However,
you must choose not to drive under the influ-
ence of alcohol. Every year thousands of people
are injured or killed in alcohol-related acci-
dents. Although the local laws vary on what is
considered to be legally intoxicated, the fact is that alcohol affects all people differently and
most people underestimate the effects of alco-
hol.
Remember, drinking and driving don’t mix! And
that is true for drugs, too (over-the-counter,
prescription, and illegal drugs). Don’t drive if
your ability to operate your vehicle is impaired
by alcohol, drugs, or some other physical con-
dition.
DRIVING SAFETY PRECAUTIONS
Your INFINITI is designed for both normal and
off-road use. However, avoid driving in deep
water or mud as your INFINITI is mainly de-
signed for leisure use, unlike a conventional
off-road vehicle.
Remember that 2–wheel drive vehicles are less
capable than all-wheel drive (AWD) models for
rough road driving and extrication when stuck
in deep snow or mud, or the like.
Please observe the following precautions:
WARNING
•Spinning the front wheels on slippery sur-
faces may cause the AWD warning message
to display and the AWD system to automati-
cally switch from the AWD to 2WD mode.
This could reduce the traction. Be especially
careful when towing a trailer. (AWD models)
•Drive carefully when off the road and avoid
dangerous areas. Every person who drives
or rides in this vehicle should be seated
with their seat belt fastened. This will keep
you and your passengers in position when
driving over rough terrain.
•Do not drive across steep slopes. Instead
drive either straight up or straight down the
slopes. Off-road vehicles can tip over side-
ways much more easily than they can for-
ward or backward.
•Many hills are too steep for any vehicle. If
you drive up them, you may stall. If you drive
down them, you may not be able to control
your speed. If you drive across them, you
may roll over.
•Do not shift gears while driving on downhill
grades as this could cause loss of control of
the vehicle.
•Stay alert when driving to the top of a hill. At
the top there could be a drop-off or other
hazard that could cause an accident.
•If your engine stalls or you cannot make it to
the top of a steep hill, never attempt to turn
around. Your vehicle could tip or roll over.
5-12Starting and driving

NOTE
For vehicles fitted with Idle Stop/Start System:
When the engine is automatically stopped by
the Idle Stop/Start System the ignition switch
can still be operated as usual.
At the end of a journey turn the ignition OFF to
avoid a discharged battery. The Idle Stop/Start
System does not automatically turn ignition off.•Make sure the area around the vehicle is
clear.
•Check fluid levels such as engine oil, cool-
ant, brake fluid, and windshield-washer fluid
as frequently as possible, or at least when-
ever you refuel.
•Check that all windows and lights are clean.
•Visually inspect tires for their appearance
and condition. Measure and check the tire
pressure for proper inflation.
•Check that all doors are closed.
•Position seat and adjust head restraints/
headrests.
•Adjust the inside and outside rear view mir-
rors.
•Fasten your seat belt and ask all passengers
to do likewise.
•Check the operation of the warning lights
when the ignition switch is pushed to the ON
position.
STARTING PROCEDURE WITH THE KEY
0OFF position
1ACC position
2ON position
3START position
1. Apply the parking brake.
2. Shift the transmission to position P (Park) by pressing the

button.
The transmission position indicator in the
vehicle information display shows

When the transmission is in position N (Neu-
tral), you can also start the engine with the
brake pedal depressed.
The starter is designed not to operate if the shift
lever is in any of the driving positions.
NPA1483
BEFORE STARTING ENGINE STARTING ENGINE
5-16Starting and driving

3. Turn the key to the START position3in the
ignition lock and release it as soon as the
engine is running.
If the engine is very hard to start because it is
flooded, depress the accelerator pedal all the
way to the floor and hold it. Turn the ignition
switch to the START position to start cranking
the engine. After 5 or 6 seconds, stop cranking
by turning the ignition switch to OFF. After
cranking the engine, release the accelerator
pedal. Crank the engine with your foot off the
accelerator pedal by depressing the brake
pedal and turning the ignition switch to start
the engine. If the engine starts, but fails to run,
repeat the above procedure.CAUTION
Do not operate the starter for more than 15
seconds at a time. If the engine does not start,
turn the ignition key to the OFF position and
wait 10 seconds before cranking again, other-
wise the starter could be damaged.
4. Warm-up
Allow the engine to idle for at least 30
seconds after starting. Do not race the en-
gine while warming it up. Drive at moderate
speed for a short distance first, especially in
cold weather. In cold weather, keep the
engine running for a minimum of2-3
minutes before shutting it off. Starting and
stopping the engine over a short period of
time may make the vehicle more difficult to
start.
5. To stop the engine, Shift the transmission to position P (Park) by pressing the

button.
and turn the ignition switch to the OFF
position. NOTE
Care should be taken to avoid situations that can
lead to potential battery discharge and potential
no-start conditions such as:
•Installation or extended use of electronic
accessories that consume battery power
when the engine is not running (Phone char-
gers, GPS, DVD players, etc.)
•Vehicle is not driven regularly and/or only
driven short distances. In these cases, the
battery may need to be charged to maintain
battery health.
Starting and driving5-17

DRIVING WITH AUTOMATIC
TRANSMISSION
Driving precautions
•Do not depress the accelerator pedal while
shifting from P (Park) or N (Neutral) to R (Re-
verse), D (Drive), or M (Manual shift mode).
Always depress the brake pedal until shifting
is completed. Failure to do so could cause you
to lose control and have an accident.
•Cold engine idle speed is high, so use caution
when shifting into a forward or reverse gear
before the engine has warmed up.
•Never shift to either the P (Park) or R (Reverse)
position while the vehicle is moving forward
and P (Park) or D (Drive) position while the
vehicle is reversing. This could cause an acci-
dent or damage the transmission.
•Except in an emergency, do not shift to the N
(Neutral) position while driving. Coasting
with the transmission in the N (Neutral) posi-
tion may cause serious damage to the trans-
mission.
WARNING
•Do not downshift abruptly on slippery
roads. this may cause a loss of control.
CAUTION
•To avoid possible damage to your vehicle;
when stopping the vehicle on an uphill
grade, do not hold the vehicle by depress-
ing the accelerator pedal. The foot brake
should be used for this purpose.
•Except in an emergency, do not shift to the N
(Neutral) position while driving. Coasting
with the transmission in the N (Neutral) po-
sition may cause serious damage to the
transmission.
Starting the vehicle
1. After starting the engine, fully depress thebrake pedal before shifting the shift lever to
R (Reverse), D (Drive) or Manual shift mode.
2. Keep the brake pedal depressed and push the shift lever to shift into a driving gear.
3. Release the parking brake and brake, then gradually put the vehicle in motion by press-
ing the accelerator pedal.
The automatic transmission is designed so that
the brake pedal MUSTbe depressed before
shifting from P (Park) to any drive position while
the ignition switch is ON.
Shifting
P Park position with parking lock
R Reverse
N Neutral
D Drive
NSD585
DRIVING THE VEHICLE
5-18Starting and driving

Transmission position display:
NOTE
If the transmission position display in the ve-
hicle information display is not working, you
should pull away carefully to check whether the
desired transmission position IS engaged. Ide-
ally, you should select transmission position D
and automatic drive program E or S.
The shift lever indicator
1located in the lower
part of the vehicle information display shows
the current position of the transmission.
It shows the P,R,N,D modes when the transmis-
sion is in auto mode or the shift position when
the transmission is in manual mode.
WARNING
Apply the parking brake if the shift lever is in
any position while the engine is not running.
Failure to do so could cause the vehicle to move
unexpectedly or roll away and result in serious
personal injury or property damage.
CAUTION
Use the P (Park) or R (Reverse) position only
when the vehicle is completely stopped. P (Park)
:
CAUTION
To prevent transmission damage, use the P
(Park) position only when the vehicle is com-
pletely stopped.
Use this position when the vehicle is parked or
when starting the engine. Always make sure
that the vehicle is completely stopped before
pressing button
1to engage the P (Park)
position. For maximum safety, the brake pedal
must be depressed before engaging the P (Park)
position. Use this position together with the
parking brake. When parking on a hill, first
depress the brake pedal, apply the parking
brake and then engage the P (Park) position.
The parking lock should not be used as a brake
when parking. In order to secure the vehicle,
NSD649NSD586
Starting and driving5-19

always apply the electric parking brake in addi-
tion to the parking lock.
In the event of a malfunction of the vehicle’s
electronics, the transmission may lock in posi-
tion P (Park). Have the vehicle electronics
checked immediately. It is recommended you
visit an INFINITI retailer for this service.
Park position P is automatically engaged if:
•You switch off the engine using the key and
remove the key.
•You open the driver’s door when the vehicle
is stationary or driving at very low speed and
the transmission is in position D (Drive) or R
(Reverse).
R (Reverse)
:
CAUTION
To prevent transmission damage, use the R
(Reverse) position only when the vehicle is
completely stopped.
Use this position to back up the vehicle.
Make sure the vehicle is completely stopped
before selecting the R (Reverse) position. The
brake pedal must be depressed and the shift
lever button pushed in to move the shift lever from P (Park), N (Neutral) or any drive position to
R (Reverse).
N (Neutral)
:
Neither forward nor reverse gear is engaged.
The engine can be started in this position. You
may shift to N (Neutral) and restart a stalled
engine while driving the vehicle.
D (Drive)
:
Use this position for all normal forward driving.
The automatic transmission changes gear auto-
matically. All forward gears are available.
Changing gear
The automatic transmission shifts to the indi-
vidual gears automatically when it is in trans-
mission position D (Drive). Shifting is deter-
mined by:
•The selected drive program.
•The position of the accelerator pedal.
•The road speed.
Accelerator pedal position
:
Your style of driving influences how the auto-
matic transmission shifts gear:
•little throttle: early upshifts
•more throttle: late upshifts
Holding the vehicle stationary on
uphill gradients
WARNING
If the transmission overheats, the electronic
management system is automatically deacti-
vated. This interrupts the power transmission
from the engine to the wheels. The vehicle
may, for example, roll backwards on gradients.
There is a risk of an accident. Never hold the
vehicle stationary on uphill gradients by de-
pressing the accelerator.
The transmission may overheat if you hold the
vehicle stationary on uphill gradients by de-
pressing the accelerator pedal. If the transmis-
sion overheats, a warning tone sounds and the
[Stop Vehicle Shift to P Leave Engine Running]
display message appears in the vehicle infor-
mation display. You will only be able to con-
tinue your journey once the transmission has
cooled down and the display message in the
vehicle information display has disappeared.
5-20Starting and driving
