1. Power windows (P. 2-72)
2. Windshield wipers and washers— Switch operation (P. 2-59)
— Blade replacement (P. 8-13)
— Window washer fluid (P. 8-8)
— Windshield de-icer* (P. 2-62) 3. Recovery hook (P. 6-14)
4. Front fog lights (P. 2-69)
5. Headlights
— Switch operation (P. 8-23) 6. Turn signal lights (P. 2-65, 8-22)
— Side turn signal light (P. 8-22)
Mirrors
— Adjustment (P. 3-18)
*: if equipped
NIC2837
EXTERIOR FRONT
Illustrated table of contents0-3

1. Antenna (P. 4-52)
2. High-mounted stop light (Bulb replace-ment) (P. 8-22)
3. Rear window defroster (P. 2-61) 4. Rear window wiper and washer
— Operation (P. 2-61)
— Wiper blade replacement (P. 2-13)
5. Recovery hook (P. 6-15)
6. Lift gate (P. 3-7) — Intelligent Key system (P. 6-4) 7. Rear view camera* (P. 4-16)
8. Rear reflector
9. Rear combination lights (P. 8-24)
10. Fuel-filler door
— Operation (P. 3-15)
— Fuel information (P. 8-2)
*: if equipped
NIC2836
EXTERIOR REAR
0-4Illustrated table of contents

1. Rear armrest* (P. 1-7)
2. Rear personal lights (P. 2-86)
3. Overhead control panel (P. 2-75)
4. Sunshade switch* (P. 2-75)
5. Sun visor (P. 2-17)
6. Security system buttons (P. 3-58)7. Interior rear-view mirror (P. 3-17)
8. Door handle (P. 3-6)
9. Door armrest
— Power windows controls (P. 2-72)
— Exterior rear view mirror remote control
switch (P. 2-17) 10. Front cup holders (P. 2-79)
11. Air conditioner controls (P. 4-42)
12. Glove box/storage (P. 2-78)
*: if equipped
NIC2701
PASSENGER COMPARTMENT
Illustrated table of contents0-5

2.0L GASOLINE ENGINE
1. Engine coolant reservoir (P. 8-3)
2. Engine oil dipstick (P. 8-5)
3. Engine oil filler cap (P. 8-5)
4. Brake fluid reservoir (P. 8-7)5. Engine air cleaner filter (P. 8-13)
6. Battery (P. 8-9)
7. Fuse box (P. 8-17)
8. Window washer fluid reservoir (P. 8-8)
NIC2833
ENGINE COMPARTMENT
Illustrated table of contents0-9

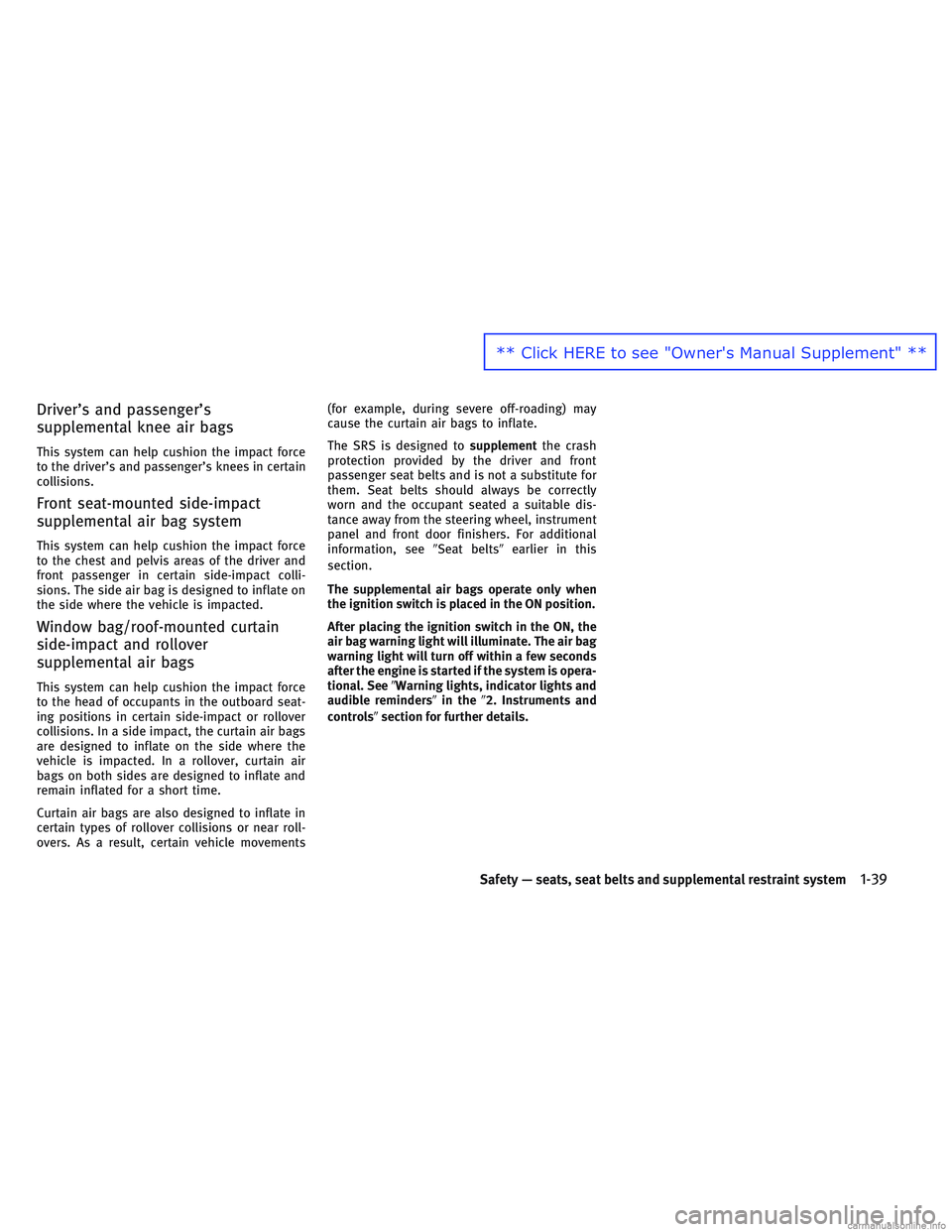

Driver’s and passenger’s
supplemental knee air bags
This system can help cushion the impact force
to the driver’s and passenger’s knees in certain
collisions.
Front seat-mounted side-impact
supplemental air bag system
This system can help cushion the impact force
to the chest and pelvis areas of the driver and
front passenger in certain side-impact colli-
sions. The side air bag is designed to inflate on
the side where the vehicle is impacted.
Window bag/roof-mounted curtain
side-impact and rollover
supplemental air bags
This system can help cushion the impact force
to the head of occupants in the outboard seat-
ing positions in certain side-impact or rollover
collisions. In a side impact, the curtain air bags
are designed to inflate on the side where the
vehicle is impacted. In a rollover, curtain air
bags on both sides are designed to inflate and
remain inflated for a short time.
Curtain air bags are also designed to inflate in
certain types of rollover collisions or near roll-
overs. As a result, certain vehicle movements(for example, during severe off-roading) may
cause the curtain air bags to inflate.
The SRS is designed to
supplementthe crash
protection provided by the driver and front
passenger seat belts and is not a substitute for
them. Seat belts should always be correctly
worn and the occupant seated a suitable dis-
tance away from the steering wheel, instrument
panel and front door finishers. For additional
information, see Seat beltsearlier in this
section.
The supplemental air bags operate only when
the ignition switch is placed in the ON position.
After placing the ignition switch in the ON, the
air bag warning light will illuminate. The air bag
warning light will turn off within a few seconds
after the engine is started if the system is opera-
tional. See Warning lights, indicator lights and
audible reminders in the2. Instruments and
controls section for further details.
Safety — seats, seat belts and supplemental restraint system1-39
** Click HERE to see "Owner's Manual Supplement" **

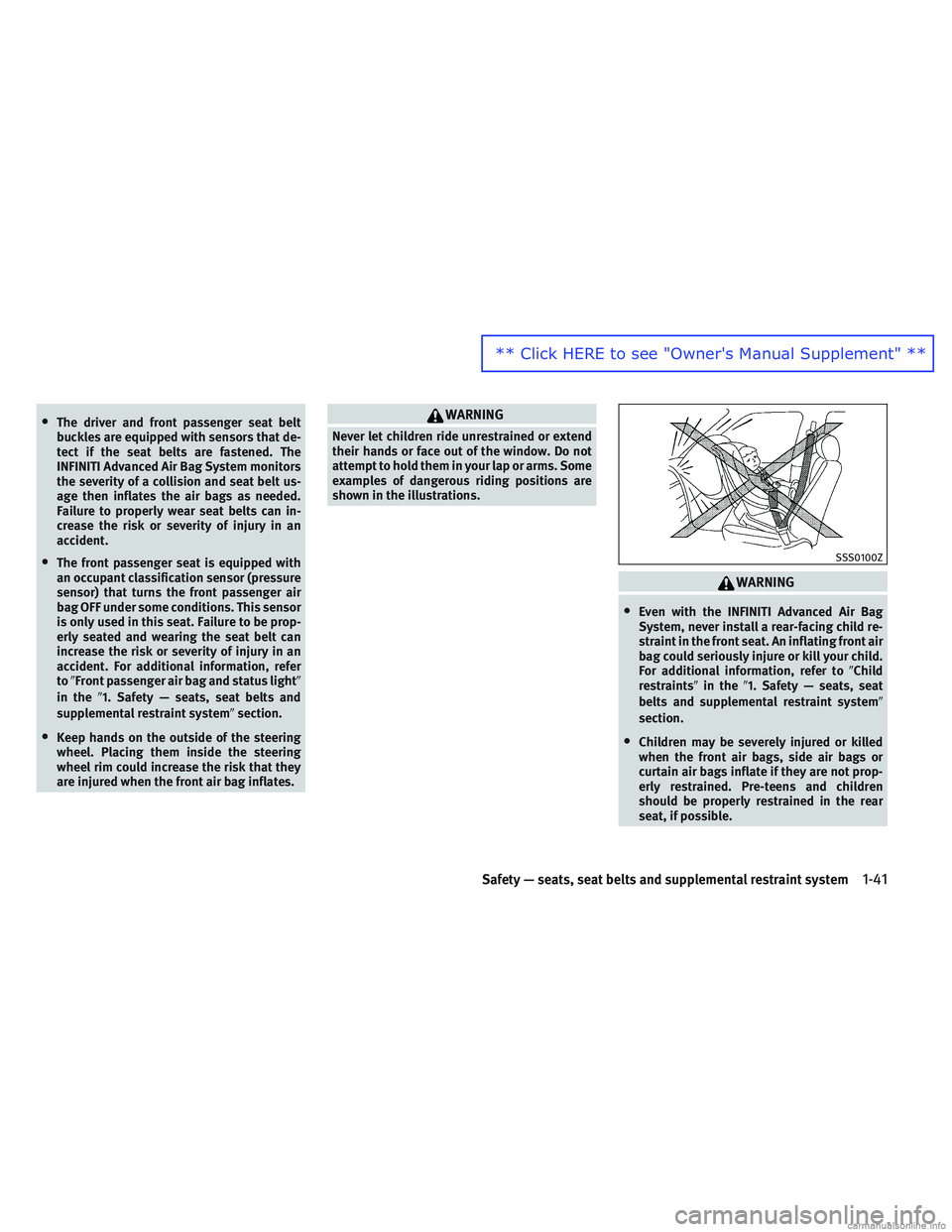

•The driver and front passenger seat belt
buckles are equipped with sensors that de-
tect if the seat belts are fastened. The
INFINITI Advanced Air Bag System monitors
the severity of a collision and seat belt us-
age then inflates the air bags as needed.
Failure to properly wear seat belts can in-
crease the risk or severity of injury in an
accident.
•The front passenger seat is equipped with
an occupant classification sensor (pressure
sensor) that turns the front passenger air
bag OFF under some conditions. This sensor
is only used in this seat. Failure to be prop-
erly seated and wearing the seat belt can
increase the risk or severity of injury in an
accident. For additional information, refer
toFront passenger air bag and status light
in the 1. Safety — seats, seat belts and
supplemental restraint system section.
•Keep hands on the outside of the steering
wheel. Placing them inside the steering
wheel rim could increase the risk that they
are injured when the front air bag inflates.
WARNING
Never let children ride unrestrained or extend
their hands or face out of the window. Do not
attempt to hold them in your lap or arms. Some
examples of dangerous riding positions are
shown in the illustrations.
WARNING
•Even with the INFINITI Advanced Air Bag
System, never install a rear-facing child re-
straint in the front seat. An inflating front air
bag could seriously injure or kill your child.
For additional information, refer to Child
restraints in the1. Safety — seats, seat
belts and supplemental restraint system
section.
•Children may be severely injured or killed
when the front air bags, side air bags or
curtain air bags inflate if they are not prop-
erly restrained. Pre-teens and children
should be properly restrained in the rear
seat, if possible.
SSS0100Z
Safety — seats, seat belts and supplemental restraint system1-41 ** Click HERE to see "Owner's Manual Supplement" **

WARNING
•The seat belts, the side air bags and curtain
air bags are most effective when you are
sitting well back and upright in the seat
with both feet on the floor. The side air bag
and curtain air bag inflate with great force.
Do not allow anyone to place their hand, leg
or face near the side air bag on the side of
the seatback of the front seat or near the
side roof rails. Do not allow anyone sitting
in the front seats or rear outboard seats to
extend their hand out of the window or lean
against the door. Some examples of danger-
ous riding positions are shown in the previ-
ous illustrations.
•When sitting in the rear seats, do not hold
onto the seatback of the front seats. If side
air bags and curtain air bags inflate, you
may be seriously injured. Be especially
careful with children, who should always be
properly restrained. Some examples of dan-
gerous riding positions are shown in the
illustrations.
•Do not use seat covers on the front seat-
backs. They may interfere with the side air
bag inflation.WRS0363Z
1-44Safety — seats, seat belts and supplemental restraint system
** Click HERE to see "Owner's Manual Supplement" **

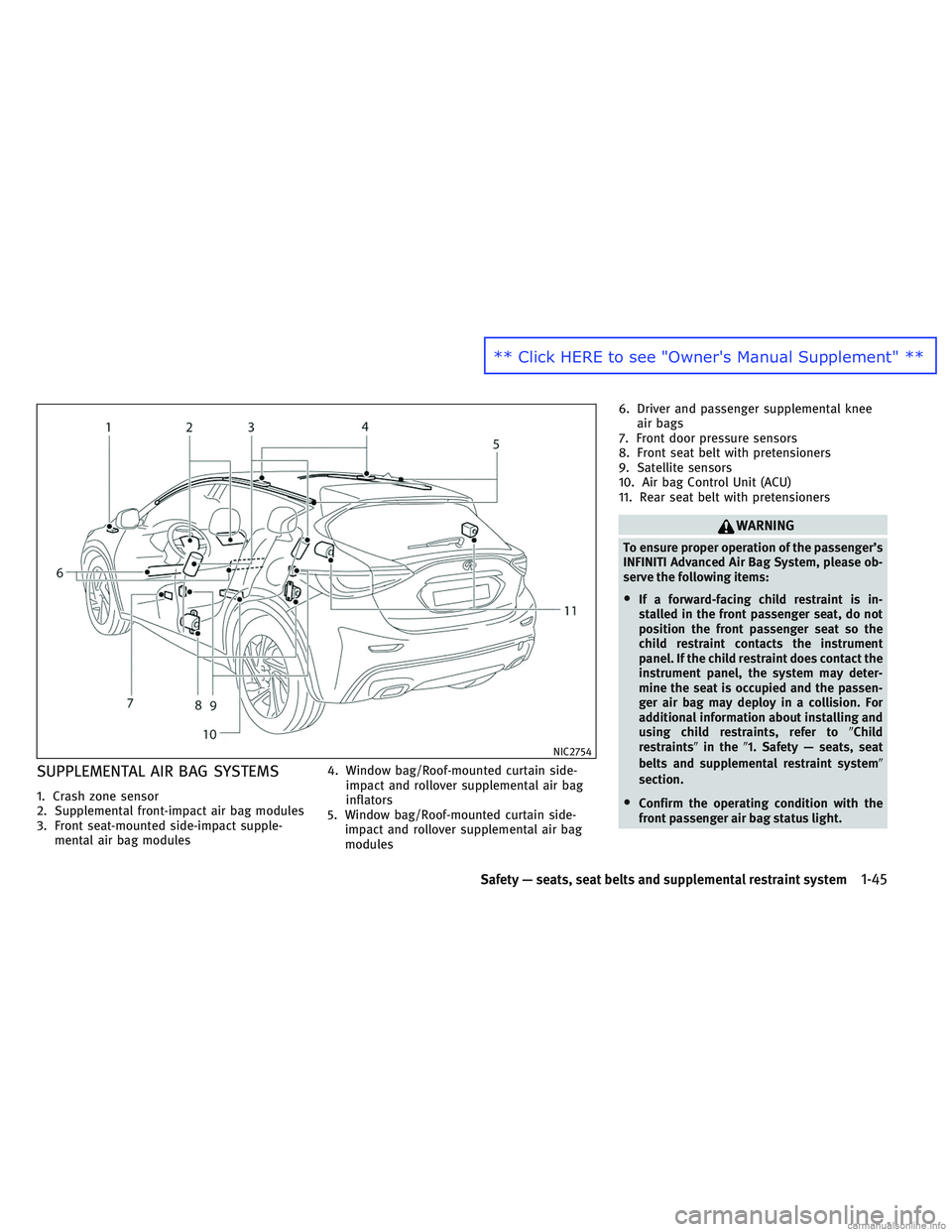

SUPPLEMENTAL AIR BAG SYSTEMS
1. Crash zone sensor
2. Supplemental front-impact air bag modules
3. Front seat-mounted side-impact supple-mental air bag modules 4. Window bag/Roof-mounted curtain side-
impact and rollover supplemental air bag
inflators
5. Window bag/Roof-mounted curtain side- impact and rollover supplemental air bag
modules 6. Driver and passenger supplemental knee
air bags
7. Front door pressure sensors
8. Front seat belt with pretensioners
9. Satellite sensors
10. Air bag Control Unit (ACU)
11. Rear seat belt with pretensioners
WARNING
To ensure proper operation of the passenger’s
INFINITI Advanced Air Bag System, please ob-
serve the following items:
•If a forward-facing child restraint is in-
stalled in the front passenger seat, do not
position the front passenger seat so the
child restraint contacts the instrument
panel. If the child restraint does contact the
instrument panel, the system may deter-
mine the seat is occupied and the passen-
ger air bag may deploy in a collision. For
additional information about installing and
using child restraints, refer to Child
restraints in the1. Safety — seats, seat
belts and supplemental restraint system
section.
•Confirm the operating condition with the
front passenger air bag status light.
NIC2754
Safety — seats, seat belts and supplemental restraint system1-45
** Click HERE to see "Owner's Manual Supplement" **

Front seat-mounted side-impact
supplemental air bag and window
bag/roof-mounted curtain side-impact
and rollover supplemental air bag
systems
The side air bags are located in the outside of
the seatback of the front seats. The curtain air
bags are located in the side roof rails.All of the
information, cautions and warnings in this
manual apply and must be followed. The side air
bags and curtain air bags are designed to
inflate in higher severity side collisions, al-
though they may inflate if the forces in another
type of collision are similar to those of a higher
severity impact. They are designed to inflate on
the side where the vehicle is impacted. They
may not inflate in certain side collisions. Cur-
tain air bags are also designed to inflate in certain types of rollover collisions or near roll-
overs. As a result, certain vehicle movements
(for example, during severe off-roading) may
cause the curtain air bags to inflate.
Vehicle damage (or lack of it) is not always an
indication of proper side air bag and curtain air
bag operation.
When the side air bags and curtain air bags
inflate, a fairly loud noise may be heard, fol-
lowed by release of smoke. This smoke is not
harmful and does not indicate a fire. Care
should be taken not to inhale it, as it may cause
irritation and choking. Those with a history of a
breathing condition should get fresh air
promptly.
Side air bags, along with the use of seat belts,
help to cushion the impact force on the chest of
the front occupants. Curtain air bags help to
cushion the impact force to the head of occu-
pants in the front and rear outboard seating
positions in all rows. They can help save lives
and reduce serious injuries. However, an inflat-
ing side air bag or curtain air bag may cause
abrasions or other injuries. Side air bags and
curtain air bags do not provide restraint to the
lower body.
The seat belts should be correctly worn and the
driver and front passenger seated upright as far
as practical away from the side air bag. Rearseat passengers should be seated as far away
as practical from the door finishers and side
roof rails. The side air bags and curtain air bags
inflate quickly in order to help protect the
occupants. Because of this, the force of the side
air bags and curtain air bags inflating can
increase the risk of injury if the occupant is too
close to, or is against, these air bag modules
during inflation. The side air bag will deflate
quickly after the collision is over.
The curtain air bag will remain inflated for a
short time.
The side air bags and curtain air bags operate
only when the ignition switch is placed in the ON
position. After placing the ignition switch in the
ON position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off a few seconds after the
engine starts if the system is operational.
WARNING
•Do not place any objects near the seatback
of the front seats. Also, do not place any
objects (an umbrella, bag, etc.) between the
front door finisher and the front seat. Such
objects may become dangerous projectiles
and cause injury if a side air bag inflates.
NPA849Z
1-52Safety — seats, seat belts and supplemental restraint system
** Click HERE to see "Owner's Manual Supplement" **

2 Instruments and controls
Cockpit............................ .2-2
Instrument panel ...................... .2-3
Meters and gauges ..................... .2-4
Speedometer and odometer ...............2-4
Outside temperature display ..............2-5
Tachometer .........................2-5
Engine coolant temperature gauge ..........2-6
Fuel gauge .........................2-6
Warning lights, indicator lights and audible
reminders .......................... .2-8
Checking lights ..................... .2-8
Warning lights ...................... .2-8
Indicator lights ..................... .2-13
Audible reminders ................... .2-14
Vehicle information display ................2-15
Menus and submenus ..................2-16
Display Messages ................... .2-29
Security system ...................... .2-58
Immobiliser ....................... .2-58
Anti-theft alarm system (if equipped) ........2-58
Wiper and washer switch .................2-59
Switching the windshield wipers on/off .......2-60
Switching the rear window wiper on/off .......2-61
Rear window and outside mirror defroster switch . . .2-61
Windshield de-icer switch (if equipped) .........2-62Headlight and turn signal switches
...........2-63
Headlight switch .................... .2-63
Combination switch .................. .2-65
Adaptive front lighting system (LED headlight
only) (if equipped) ................... .2-65
High beam assist (LED headlight only) .......2-67
Headlights misted up on the inside .........2-68
Instrument brightness control .............2-69
Fog light switch (If so equipped) .............2-69
Front fog lights .................... .2-69
Rear fog light ...................... .2-69
Horn .............................
.2-70
Seat heating

(if equipped) .................2-70
Windows .......................... .2-72
Power windows .................... .2-72
Fixed glass roof (if equipped) ...............2-75
Sunshade operation .................. .2-75
Clock ............................. .2-76
Adjusting time ..................... .2-76
Power outlet .........................2-76
Storage ........................... .2-77
Glove box .........................2-78
Front console compartment ..............2-78
Console box ...................... .2-78
Card holder ....................... .2-79
