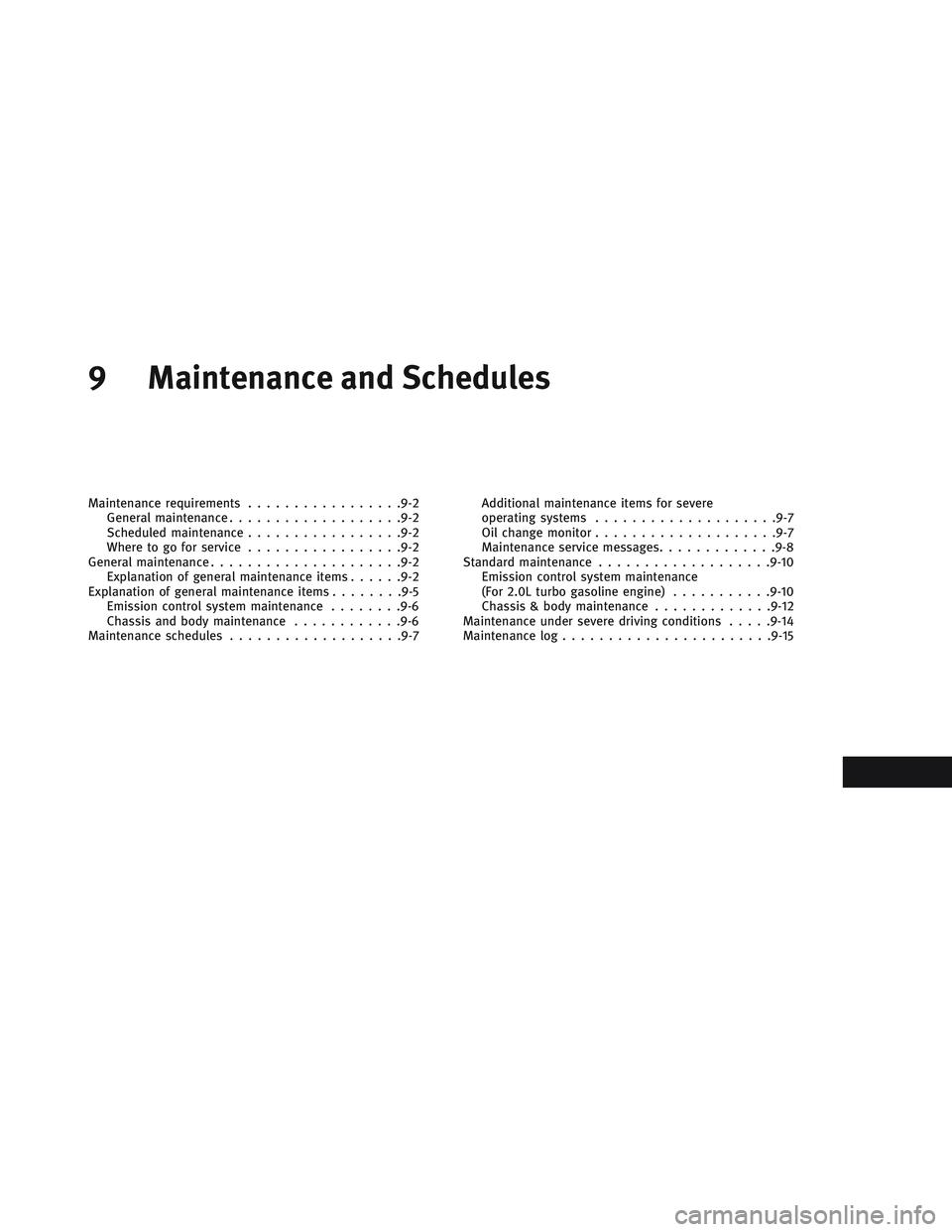

9 Maintenance and Schedules
Maintenance requirements.................9-2
General maintenance...................9-2
Scheduled maintenance.................9-2
Where to go for service.................9-2
General maintenance.....................9-2
Explanation of general maintenance items......9-2
Explanation of general maintenance items........9-5
Emission control system maintenance........9-6
Chassis and body maintenance............9-6
Maintenance schedules...................9-7Additional maintenance items for severe
operating systems....................9-7
Oil change monitor....................9-7
Maintenance service messages.............9-8
Standard maintenance...................9-10
Emission control system maintenance
(For 2.0L turbo gasoline engine)...........9-10
Chassis & body maintenance.............9-12
Maintenance under severe driving conditions.....9-14
Maintenance log.......................9-15

Some day-to-day and regular maintenance is
essential to maintain your vehicle’s good me-
chanical condition, as well as its emission and
engine performance.
It is the owner’s responsibility to make sure that
the specified maintenance, as well as general
maintenance, is performed.
As the vehicle owner, you are the only one who
can ensure that your vehicle receives the proper
maintenance care. You are a vital link in the
maintenance chain.
GENERAL MAINTENANCE
General maintenance includes those items
which should be checked during normal day-to-
day operation of the vehicle. They are essential
if your vehicle is to continue to operate prop-
erly. It is your responsibility to perform these
procedures regularly as prescribed.
Performing general maintenance checks re-
quires minimal mechanical skill and only a few
general automotive tools.
These checks and inspections can be done by
yourself, a qualified technician, or if you prefer,
an INFINITI retailer.
SCHEDULED MAINTENANCE
The maintenance items listed underMainte-
nance scheduleslater in this section are re-
quired to be serviced at regular intervals. How-
ever under severe driving conditions, additional
or more frequent maintenance will be required.
WHERE TO GO FOR SERVICE
If maintenance service is required or your ve-
hicle appears to malfunction, have the systems
checked and serviced. It is recommended you
visit an INFINITI retailer for this service.
INFINITI technicians are well-trained specialists
and are kept up to date with the latest service
information through technical bulletins, service
tips and training programs. They are completely
qualified to work on INFINITI vehiclesbefore
work begins.
You can be confident that an INFINITI retailer’s
service department can perform the service
needed to meet the maintenance requirements
on your vehicle.During normal day-to-day operation of the ve-
hicle, general maintenance should be per-
formed regularly as prescribed in this section. If
you detect any unusual sounds, vibrations or
smells, be sure to check for the cause or have
an INFINITI retailer do it promptly. In addition, it
is recommended you notify an INFINITI retailer if
you think that repairs are required.
When performing any checks or maintenance
work, closely observeExplanation of general
maintenance itemslater in this section.
EXPLANATION OF GENERAL
MAINTENANCE ITEMS
Additional information on the following items
with “*” is found later in the “Do-it-yourself”
section of this manual.
Outside the vehicle
The maintenance items listed here should be
performed from time to time, unless otherwise
specified.
Doors and engine hood
:
Check that all doors, the lift gate and the engine
hood operate smoothly. Also make sure that all
latches lock securely. Lubricate if necessary.
Make sure that the secondary latch keeps the
hood from opening when the primary latch is
MAINTENANCE REQUIREMENTS GENERAL MAINTENANCE
9-2Maintenance and Schedules

Parking brake*:
Check the parking brake operation regularly.
Also make sure that the vehicle is held securely
on a fairly steep hill when only the parking
brake is applied. If the parking brake needs
adjustment, it is recommended you visit an
INFINITI retailer for this service.
Seats
:
Check seat position controls such as seat ad-
justers, seatback recliner, etc. to ensure they
operate smoothly and that all latches lock
securely in every position. Check that the head
restraints move up and down smoothly and that
the locks (if so equipped) hold securely in all
latched positions.
Seat belts
:
Check that all parts of the seat belt system (for
example, buckles, anchors, adjusters and re-
tractors) operate properly and smoothly, and
are installed securely. Check the belt webbing
for cuts, fraying, wear or damage.
Steering wheel
:
Check for changes in the steering condition,
such as excessive free play, hard steering or
strange noises.Warning lights and chimes
:
Make sure that all warning lights and chimes
are operating properly.
Windshield defroster
:
Check that the air comes out of the defroster
outlets properly and in good quantity when
operating the heater or air conditioner.
Windshield wiper and washer*
:
Check that the wipers and washer operate
properly and that the wipers do not streak.
Under the hood and vehicle
The maintenance items listed here should be
checked periodically (for example, each time
you check the engine oil or refuel).
Battery*
:
Except for maintenance free battery, check the
fluid level in each cell. It should be between the
“UPPER” and “LOWER” lines. Vehicles operated
in high temperatures or under severe condi-
tions require frequent checks of the battery
fluid level.NOTE
Care should be taken to avoid situations that can
lead to potential battery discharge and potential
no-start conditions such as:
1. Installation or extended use of electronic ac-
cessories that consume battery power when
the engine is not running (Phone chargers,
GPS, DVD players, etc.)
2. Vehicle is not driven regularly and/or only
driven short distances.
In these cases, the battery may need to be
charged to maintain battery health.
Brake fluid level*
:
Make sure that the brake fluid level is between
the “MAX” and “MIN” lines on the reservoir.
Coolant level*
:
Check the coolant level when the engine is cold.
Engine drive belt(s)*
:
Make sure that no belt is frayed, worn, cracked
or oily.
Engine oil level*
:
Check the level after parking the vehicle on a
level spot and turning off the engine. Wait more
than 15 minutes for the oil to drain back into the
oil pan.
9-4Maintenance and Schedules

For recommended fuel, lubricants, fluids,
grease, and refrigerant, refer toRecommended
fluids/lubricants and capacitiesin the10.
Technical informationTechnical information
section.
EMISSION CONTROL SYSTEM
MAINTENANCE
Drive belts*:
Check engine drive belts for wear, fraying or
cracking and for proper tension. Replace any
damaged drive belts
Engine air filter*:
Replace at specified intervals. When driving for
prolonged periods in dusty conditions, check/
replace the filter more frequently.
Engine coolant*:
Replace coolant at the specified interval. When
adding or replacing coolant, be sure to use only
Genuine INFINITI Engine Coolant or equivalent
in its quality (BASF Glysantin® G40®). (For
additional information, refer toEngine cooling
systemin the9. Maintenance and Schedules
section.)NOTE
Mixing any other type of coolant or the use of
non-distilled water may reduce the recom-
mended service interval of the coolant.
Engine oil and oil filter:
Replace engine oil and oil filter at the specified
intervals. For recommended oil grade and vis-
cosity refer toRecommended fluids/lubricants
and capacitiesin the10. Technical informa-
tionsection.
Fuel filter:
Replace the fuel filter and drain the water at the
specified intervals.
Fuel lines*:
Check the fuel hoses, piping and connections
for leaks, looseness, or deterioration. Tighten
connections or replace parts as necessary.
Spark plugs:
Replace at specified intervals. Install new plugs
of the type as originally equipped.
CHASSIS AND BODY MAINTENANCE
Brake lines and cables:
Visually inspect for proper installation. Check
for chafing, cracks, deterioration, and signs of
leaking. Replace any deteriorated or damaged
parts immediately.
Brake pads, rotors, drums, & linings:
Check for wear, deterioration and fluid leaks.
Replace any deteriorated or damaged parts
immediately.
Exhaust system:
Visually inspect the exhaust pipes, muffler and
hangers for leaks, cracks, deterioration, and
damage. Tighten connections or replace parts
as necessary.
In-cabin microfilter:
Replace at specified intervals. When driving for
prolonged periods in dusty conditions, replace
the filter more frequently.
Propeller shaft(s):
Check for damage, looseness, and grease leak-
age. (4WD/AWD).
9-6Maintenance and Schedules

Steering gear and linkage, axle and suspension
parts, drive shaft boots:
Check for damage, looseness, and leakage of
oil or grease. Under severe driving conditions,
inspect more frequently
Tire rotation:
Tires should be rotated every 6,000 miles
(10,000 km) for 2WD, every 3000 miles (5000
km) for 4WD/AWD according to the instructions
underTire rotation*earlier in this section“Ge-
neral maintenance” in this section. When rotat-
ing tires, check for damage and uneven wear.
Replace if necessary.
Transmission fluid/oil, differential oil, transfer
case oil:
Visually inspect for signs of leakage at specified
intervals.To ensure smooth, trouble-free, safe and eco-
nomical driving, INFINITI provides two mainte-
nance schedules that may be used, depending
upon the conditions in which you usually drive.
These schedules contain both distance and
time intervals, up to 120,000 miles (192,000
km)/144 months. For most people, the odom-
eter reading will indicate when service is
needed. However, if you drive very little, your
vehicle should be serviced at the regular time
intervals shown in the schedule.
After 120,000 miles (192,000 km)/144 months,
continue maintenance at the same mileage/time
intervals.
ADDITIONAL MAINTENANCE ITEMS
FOR SEVERE OPERATING SYSTEMS
Additional maintenance items for severe oper-
ating conditions; should be performed on ve-
hicles that are driven under especially demand-
ing conditions. Additional maintenance items
should be performed if you primarily operate
your vehicle under the following conditions:
•Repeated short trips of less than 5 miles in
normal temperatures or less than 10 miles in
freezing temperatures.
•Stop-and-go traffic in hot weather or low
speed driving for long distances.
•Driving in dusty conditions or on rough,
muddy or salt-spread roads.
•Towing a trailer, or using a camper or car-top
carrier.
OIL CHANGE MONITOR
This vehicle is equipped with oil change moni-
tor. It calculates engine oil and filter change
interval base on driving conditions. Driving in
severe conditions will shorten the engine oil
and filter change interval. When the Engine Oil
– Service Due Now warning appears in the
vehicle information display, the engine oil and
filter need to be replaced.
NOTE
For vehicles operated in Canada, both standard
and severe maintenance items should be per-
formed at every interval.
MAINTENANCE SCHEDULES
Maintenance and Schedules9-7

MAINTENANCE SERVICE MESSAGES
The maintenance service interval display in-
forms you of the next service due date.
NOTE
The maintenance service interval display does
not show any information on the engine oil level.
The vehicle information display shows a service
message for a few seconds, e g:
•[Service A In .. days]
•[Service A Due]
•[Service A Exceeded by .. days]
Depending on the operating conditions of the
vehicle, the remaining time or distance until the
next service due date is displayed.
The letter indicates which service is due. A
stands for a minor service and B for a major
service. A number or another letter may be
displayed after the letter.
Only for certain countries: the position after the
letter A or B indicates any necessary additional
maintenance work. If you notify an INFINITI
retailer of this display, you will receive a state-
ment on the associated costs.The maintenance service interval display does
not take into account any periods of time during
which the battery is disconnected.
Maintaining the time-dependent service sched-
ule:
Note down the service due date displayed in the
vehicle information display before disconnect-
ing the battery.
or
After reconnecting the battery, subtract the
battery disconnection periods from the service
date shown on the display.Hiding service messages
Press the orbutton on the steering
wheel.
Displaying service messages
1. Switch the ignition on.
2. Press the
orbutton on the
steering wheel to select the [Serv.] menu.
3. Press the
orbutton to select
[Maintenance] submenu and confirm by
pressing the OK button.
The service due date appears in the vehicle
information display.
Information about service
Resetting the maintenance service interval dis-
play:
CAUTION
If the maintenance service interval display has
been inadvertently reset, this setting can be
corrected at an INFINITI retailer.
Have service work carried out as described in
the Maintenance Schedule. This may other-
wise lead to increased wear and damage to the
major assemblies or the vehicle.
An INFINITI retailer will reset the maintenance
service interval display after the service work
has been carried out. You can also obtain
further information on maintenance work, for
example.
Special service requirements
:
The prescribed service interval is based on
normal operation of the vehicle. Service work
will need to be performed more often if the
vehicle is operated under arduous conditions or
increased loads, for example:
•Regular city driving with frequent intermedi-
ate stops
•If the vehicle is primarily used to travel short
distance
9-8Maintenance and Schedules

•For frequent operation in mountainous ter-
rain or on poor road surfaces
•If the engine is often left idling for long
periods
In these or similar operating conditions, have,
for example, the air filter, engine oil and oil
filter changed more frequently. The tires must
be checked more frequently if the vehicle is
operated under increased loads. Further infor-
mation can be obtained at an INFINITI retailer.
Maintenance and Schedules9-9

The following tables show the standard maintenance schedule. Depending upon weather and atmospheric conditions, varying road surfaces, individual
driving habits and vehicle usage, additional or more frequent maintenance may be required. After 120,000 miles (192,000 km)/144 months, continue
maintenance at the same mileage/time intervals.
EMISSION CONTROL SYSTEM MAINTENANCE (FOR 2.0L TURBO GASOLINE ENGINE)
Abbreviations: I = Inspect and correct or replace as necessary, R = Replace
MAINTENANCE OPERATIONmiles x 1,000MAINTENANCE INTERVAL
Perform at number of miles,
kilometers or months, whichever
comes first.51015202530354045505560
(km x 1,000) (8) (16) (24) (32) (40) (48) (56) (64) (72) (80) (88) (96)
months 6 12 18 24 30 36 42 48 54 60 66 72
Engine compartment See NOTE (1)
V-belt See NOTE (2) I* I* I*
Replace every 155,000 miles or 180 months
Air cleaner filter Replace every 45,000 miles or 48 months
Fuel lines I* I* I*
Fuel filter See NOTE (3)
Engine coolant* Replace every 155,000 miles or 180 months
Engine oil R R R R R R
Engine oil filter R R R R R R
Spark plugs Replace every 45,000 miles or 48 months
NOTE:
(1) All visible parts checked for leaks and damage.
(2) In visible area only.
(3) Maintenance-free item.
* Maintenance items and intervals with ”*” are recommended by INFINITI for reliable vehicle operation. The owner need not perform such maintenance
in order to maintain the emission warranty or manufacturer recall liability. Other maintenance items and intervals are required
STANDARD MAINTENANCE
9-10Maintenance and Schedules

Abbreviations: I = Inspect and correct or replace as necessary, R = Replace
MAINTENANCE OPERATIONmiles x 1,000MAINTENANCE INTERVAL
Perform at number of miles, kilome-
ters or months, whichever comes
first.65 70 75 80 85 90 95 100 105 110 115 120
(km x 1,000) (104) (112) (120) (128) (136) (144) (152) (160) (168) (176) (184) (192)
months 78 84 90 96 102 108 114 120 126 132 138 144
Engine compartment See NOTE (1)
V-belt See NOTE (2) I* I* I*
Replace every 155,000 miles or 180 months
Air cleaner filter Replace every 45,000 miles or 48 months
Fuel lines I* I* I*
Fuel filter See NOTE (3)
Engine coolant* Replace every 155,000 miles or 180 months
Engine oil R R R R R R
Engine oil filter R R R R R R
Spark plugs Replace every 45,000 miles or 48 months
NOTE:
(1) All visible parts checked for leaks and damage.
(2) In visible area only.
(3) Maintenance-free item.
* Maintenance items and intervals with ”*” are recommended by INFINITI for reliable vehicle operation. The owner need not perform such maintenance
in order to maintain the emission warranty or manufacturer recall liability. Other maintenance items and intervals are required
Maintenance and Schedules9-11

10 Technical information
Recommended fluids/lubricants and capacities. . . .10-2
Fuel recommendation..................10-3
Engine oil and oil filter recommendations......10-5
Air conditioner system refrigerant and oil
recommendations....................10-6
Engine specifications....................10-7
Wheels and Tires......................10-8
Dimensions..........................10-9
When traveling or registering in another country . . .10-10
Vehicle identification....................10-10
Vehicle identification number (VIN) plate....10-10
Vehicle identification number (chassis number) . .10-11
Engine serial number..................10-11
F.M.V.S.S./C.M.V.S.S. Certification label......10-11
Emission control information label..........10-11
Tire and loading information label..........10-12
Air conditioner specification label..........10-12Installing front license plate...............10-13
Vehicle loading information................10-14
TERMS..........................10-14
Vehicle load capacity..................10-15
Loading tips.......................10-16
Measurement of weights...............10-16
Trailer towing........................10-16
Uniform tire quality grading................10-17
Treadwear........................10-17
Traction AA, A, B and C................10-17
Temperature A, B and C................10-17
Emission control system warranty............10-18
Reporting safety defects..................10-18
Readiness for inspection/maintenance (I/M) test . . .10-19
Event data recorders (EDR) (if so equipped)......10-20
Owner’s manual/service manual order information .10-20
