NOTE
Indicates additional helpful information.
If you see this symbol, it means“Do not do this”
or“Do not let this happen”.
If you see a symbol similar to these in an
illustration, it means the arrow points to the
front of the vehicle.
Arrows in an illustration that are similar to
these indicate movement or action.
Arrows in an illustration that are similar to
these call attention to an item in the illustra-
tion.
[]:
Square brackets are used to indicate messages,
keys, or items displayed on a screen.
<>:
Chevrons or angle brackets are used to indicate
texts on controls like buttons or switches inside
or on the vehicle.
CALIFORNIA PROPOSITION 65
WARNING
WARNING
Engine Exhaust, some of its constituents, and
certain vehicle components contain or emit
chemicals known to the State of California to
cause cancer and birth defects or other repro-
ductive harm. In addition, certain fluids con-
tained in vehicles and certain products of com-
ponent wear contain or emit chemicals known
to the State of California to cause cancer and
birth defects or other reproductive harm.
CALIFORNIA PERCHLORATE ADVISORY
Some vehicle parts, such as lithium batteries,
may contain perchlorate material. The following
advisory is provided: “Perchlorate Material - spe-
cial handling may apply, See www.dtsc.ca.gov/
hazardouswaste/perchlorate.”
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by
DENSO CORPORATION is under license.
Other trademarks and trade names are
those of their respective owners.
SiriusXM® services require a subscription
after trial period and are sold separately or
as a package. The satellite service is avail-
able only in the 48 contiguous USA and DC.
SiriusXM® satellite service is also available
in Canada: see www.siriusxm.ca
Required SiriusXM Satellite Radio and
SiriusXM Travel Link monthly subscriptions
are sold separately. Sirius XM Travel Link is
only available in select markets. For more
information, see www.siriusxm.com/
travellink

1. Rear armrest* (P. 1-7)
2. Rear personal lights (P. 2-85)
3. Overhead control panel (P. 2-74)
4. Sunshade switch* (P. 2-74)
5. Sun visor (P. 2-16)
6. Security system buttons (P. 3-57)7. Interior rear-view mirror (P. 3-17)
8. Door handle (P. 3-6)
9. Door armrest
— Power windows controls (P. 2-71)
— Exterior rear view mirror remote control
switch (P. 2-17)10. Front cup holders (P. 2-78)
11. Air conditioner controls (P. 4-43)
12. Glove box/storage (P. 2-77)
*: if equipped
NIC2701
PASSENGER COMPARTMENT
Illustrated table of contents0-5

The HomeLink® Universal Transceiver, inte-
grated in the vehicle’s inside rear view mirror,
provides a convenient way to consolidate the
functions of up to three individual hand-held
transmitters into one built-in device.
HomeLink® Universal Transceiver:
•Will operate most Radio Frequency (RF)
devices such as garage doors, gates, home
and office lighting, entry door locks and
security systems.
•Is powered by your vehicle’s battery. No
separate batteries are required. If the vehi-
cle’s battery is discharged or is discon-
nected, HomeLink® will retain all program-
ming.
When the HomeLink® Universal Transceiver is
programmed, retain the original transmitter for
future programming procedures (Example: new
vehicle purchases). Upon sale of the vehicle, the
programmed HomeLink® Universal Transceiver
buttons should be erased for security purposes.
For additional information, refer toProgram-
ming HomeLink®later in this section.
WARNING
•Do not use the HomeLink® Universal Trans-
ceiver with any garage door opener that
lacks safety stop and reverse features as
required by federal safety standards.
(These standards became effective for
opener models manufactured after April 1,
1982). A garage door opener which cannot
detect an object in the path of a closing
garage door and then automatically stop
and reverse, does not meet current federal
safety standards. Using a garage door
opener without these features increases the
risk of serious injury or death.
•During the programming procedure your
garage door or security gate will open and
close (if the transmitter is within range).
Make sure that people or objects are clear of
the garage door, gate, etc. that you are pro-
gramming.
•Your vehicle’s engine should be turned off
while programming the HomeLink® Univer-
sal Transceiver.NOTE
Certain garage door drives are incompatible
with the integrated garage door opener. If you
have difficulty programing the integrated ga-
rage door opener, it is recommended you contact
your INFINITI retailer.
PROGRAMMING HOMELINK®
If you have any questions or are having diffi-
culty programming your HomeLink® buttons,
refer to the HomeLink® web site at:
www.homelink.com or call 1-800-355-3515.
HOMELINK® UNIVERSAL TRANSCEIVER (IF
EQUIPPED)
2-86Instruments and controls

1. Turn the ignition key to the ON position.
2. Press and hold one of buttons
2to4on
the HomeLink®.
HomeLink® is now in programing mode.
After a short time, indicator lamp
1lights
up yellow.
Indicator lamp
1lights up yellow as soon
as button
2,3or4is programed for the
first time. If the selected button has already
been programed, indicator lamp
1will only
light up yellow after ten seconds have elapsed.
3. Release button2,3or4. Indicator lamp
1flashes yellow.
4. Position the end of your hand-held trans-
mitter
52–8 inches (5–20 cm) away from
the HomeLink® surface, keeping the
HomeLink® indicator light
1in view.5. Press and hold button
6on the hand held
transmitter until indicator lamp
1lights up
green. When indicator lamp
1: lights up
green: programing is finished.
When indicator lamp
1flashes green: pro-
graming was successful. The next step is to
synchronize the rolling code.
6. Release button
6on the hand held trans-
mitter
5for the garage door drive system.
If indicator lamp
1lights up red: repeat the
programing procedure for the corresponding
button on the rear-view mirror. When doing
so, vary the distance between the hand held
transmitter
5and the rear-view mirror.
The required distance between the hand
held transmitter
5and the integrated ga-
rage door opener depends on the garage
door drive system. Several attempts might
be necessary. You should test every position
for at least 25 seconds before trying another
position.
Synchronizing the rolling code
If the garage door system uses a rolling code,
you will also have to synchronize the garage
door system with the integrated garage door
opener in the rear-view mirror. To do this you
will need to use the programing button on the
door drive control panel. The programing buttonmay be positioned at different locations de-
pending on the manufacturer. It is usually lo-
cated on the door drive unit on the garage
ceiling.
Familiarize yourself with the garage door drive
operating instructions before carrying out the
following steps.
Your vehicle must be within reach of the garage
door or gate opener drive. Make sure that
neither your vehicle nor any persons/ objects
are present within the sweep of the door or
gate.
1. Turn the ignition key to the ON position.
2. Get out of the vehicle.
3. Press the programing button on the door
drive unit.
Usually, you now have 30 seconds to initiate
the next step.
4. Get into the vehicle.
5. Press previously programed button
2,3or4on the HomeLink® until the door
closes.
The rolling code synchronization is then com-
plete.
NDI1631
Instruments and controls2-87

If you live in Canada
Canadian radio frequency laws require abreak
(or interruption) of the transmission signals
after broadcasting for a few seconds. Therefore,
these signals may not last long enough for the
integrated garage door opener. The signal is not
recognized during programing. Comparable
with Canadian law, some U.S. garage door
openers also feature abreak.
Proceed as follows:
•If you live in Canada
•If you have difficulties programing the ga-
rage door opener (regardless of where you
live) when using the programing steps.
1. Press and hold one of buttons
2to4on
the HomeLink®. After a short time, indicator
lamp
1lights up yellow.
2. Release the button.
Indicator lamp
1flashes yellow.
3. Press button
6of the hand held transmit-
ter
5for two seconds, then release it for
two seconds.
4. Press button
6again for two seconds.5. Repeat this sequence on button
6of the
hand held transmitter
5until indicator
lamp
1lights up green.
When indicator lamp
1lights up green:
programing is finished.
When indicator lamp
1flashes green: pro-
graming was successful. The next step is to
synchronize the rolling code.
6. Release button
6of the hand held trans-
mitter
5for the garage door drive.
If indicator lamp
1lights up red: repeat the
programing process for the corresponding
button on the rear-view mirror. When doing
so, vary the distance between the hand held
transmitter
5and the rear-view mirror.
The required distance between the hand
held transmitter
5and the HomeLink®
depends on the garage door drive system.
Several attempts might be necessary. You
should test every position for at least 25
seconds before trying another position.
PROGRAMMING TROUBLE DIAGNOSIS
If the HomeLink® does not quickly learn the
hand-held transmitter information:
•Check the transmitter frequency used by
garage door drive hand-held transmitter
5and whether it is supported. The transmitter
frequency can usually be found on the back
of the garage door drive hand-held transmit-
ter. HomeLink® is compatible with devices
that have units which operate in the fre-
quency range of 280 to 433 MHz.
•Replace the hand-held transmitter5bat-
teries with new batteries.
This increases the likelihood that the hand-
held transmitter
5will transmit a strong
and precise signal to the HomeLink®.
•When programing, hold the hand-held trans-
mitter
5at varying distances and angles
from the button which you are programing.
Try various angles at a distance between 2
and 12 inches (5 to 30 cm) or at the same
angle but at varying distances.
2-88Instruments and controls

•If another hand-held transmitter is available
for the same garage door drive, repeat the
same programing steps with this hand-held
transmitter
5. Before performing these
steps, make sure that new batteries have
been installed in the hand-held transmitter
5.
•Note that some hand-held transmitters only
transmit for a limited amount of time (the
indicator lamp on the hand-held transmitter
goes out). Press button
6on remote hand-
held transmitter
5again before transmis-
sion ends.
•Align the antenna cable of the garage door
opener unit. This can improve signal
reception/ transmission.
If you have any questions or are having diffi-
culty programming your HomeLink® buttons,
refer to the HomeLink® web site at:
www.homelink.com or 1-800-355-3515.
OPERATING THE HOMELINK®
UNIVERSAL TRANSCEIVER
The HomeLink® Universal Transceiver, after it is
programmed, can be used to activate the pro-
grammed device.
1. Turn the ignition key to the ON position.
2. Press button
2,3or4which you have
programed to operate the garage door.
Garage door system with a fixed code: indi-
cator lamp
1lights up green
Garage door system with a rolling code:
indicator lamp
1flashes green.
The transmitter will transmit a signal as long as
the button is pressed. The transmission is
halted after a maximum of ten seconds and
indicator lamp
1lights up yellow. Press button
2,3or4again if necessary.
For convenience, the hand-held transmitter of
the device may also be used at any time.
CLEARING THE PROGRAMMED
INFORMATION
Make sure that you clear the memory of the
integrated garage door opener before selling
the vehicle.
1. Turn the ignition key to the ON position.
2. Press and hold buttons
2and4.
The indicator lamp initially lights up yellow
and then green.
3. Release buttons
2and4.
The memory of the integrated garage door
opener in the rear-view mirror is cleared.
IF YOUR VEHICLE IS STOLEN
If your vehicle is stolen, you should change the
codes of any non-rolling code device that has
been programmed into HomeLink®. Consult the
Owner’s Manual of each device or call the
manufacturer of those devices for additional
information or contact an INFINITI retailer.
Instruments and controls2-89

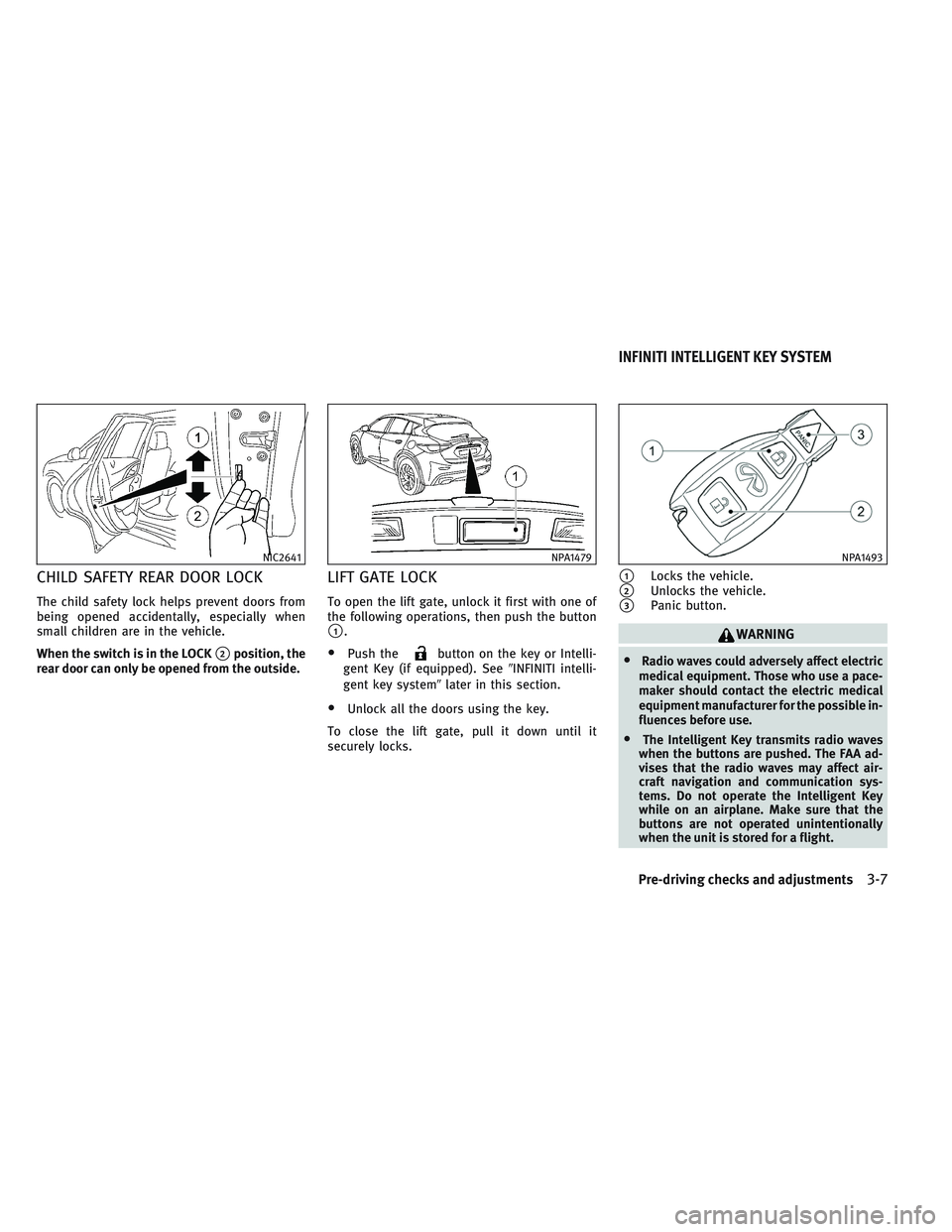

CHILD SAFETY REAR DOOR LOCK
The child safety lock helps prevent doors from
being opened accidentally, especially when
small children are in the vehicle.
When the switch is in the LOCK
2position, the
rear door can only be opened from the outside.
LIFT GATE LOCK
To open the lift gate, unlock it first with one of
the following operations, then push the button
1.
•Push thebutton on the key or Intelli-
gent Key (if equipped). SeeINFINITI intelli-
gent key systemlater in this section.
•Unlock all the doors using the key.
To close the lift gate, pull it down until it
securely locks.
1Locks the vehicle.
2Unlocks the vehicle.
3Panic button.
WARNING
•Radio waves could adversely affect electric
medical equipment. Those who use a pace-
maker should contact the electric medical
equipment manufacturer for the possible in-
fluences before use.
•The Intelligent Key transmits radio waves
when the buttons are pushed. The FAA ad-
vises that the radio waves may affect air-
craft navigation and communication sys-
tems. Do not operate the Intelligent Key
while on an airplane. Make sure that the
buttons are not operated unintentionally
when the unit is stored for a flight.
NIC2641NPA1479NPA1493
INFINITI INTELLIGENT KEY SYSTEM
Pre-driving checks and adjustments3-7

Unlocking doors
1. Carry the Intelligent Key.
2. Touch the inner surface of the door handle.
3. All doors and the lift gate will unlock.
4. The turn signals flash once.
CHANGING THE SETTINGS OF THE
LOCKING SYSTEM
You can change the settings of the locking
system. This means that only the driver’s door
and the fuel-filler lid are unlocked when the
vehicle is unlocked. This is useful if you fre-
quently travel alone.
To change the setting:simultaneously press the
andbuttons for approximately 6
seconds.
NOTE
If the setting of the locking system is changed
within the signal range of the vehicle, pressing
the
andbutton will lock or unlock
the vehicle.The key now functions as follows:
To unlock the driver’s door:press the
button once.
To unlock centrally:press the
button
twice.
To lock centrally:press the
button.
The Intelligent key function is changed as fol-
lows:
To unlock the driver’s door:touch the inner
surface of the door handle on the driver’s door.
To unlock centrally:touch the inner surface of
the door handle on the front passenger door or
the rear door.
To lock centrally:touch the outer sensor surface
on one of the door handles
To restore the factory settings:simultaneously
press the
andbutton for approxi-
mately 6 seconds.
Pre-driving checks and adjustments3-11

Audio system(if equipped)................4-53
Audio operation precautions..............4-53
Names and functions of audio control buttons . .4-64
Main audio operation..................4-65
Radio...........................4-67
Compact Disc (CD) player................4-71
USB (Universal Serial Bus) connection port.....4-73
iPod player........................4-75
Bluetooth® streaming audio.............4-78
Audio settings......................4-82
Disc/USB memory device care and cleaning. . . .4-84
USB memory device...................4-84
Gracenote® End User License Agreement......4-85
Bluetooth® Hands-Free Phone System.........4-86
Regulatory information.................4-87
Phone...........................4-88
Connecting Bluetooth® device............4-91
Hands-free text messaging assistant........4-92
Phone and text message settings..........4-94
Bluetooth® information................4-98
INFINITI InTouch Apps overview..............4-99
Using Applications...................4-100
Vehicle Apps......................4-100Vehicle Apps Manager (if equipped)........4-102
Major Apps available for use in this system . . .4-103
Examples of how Vehicle Apps is used......4-104
Mobile Apps.......................4-104
Getting user ID and password............4-104
Notes on linking smartphone App to vehicle . . .4-105
Using smartphone applications...........4-105
INFINITI Voice Recognition system............4-105
Using Voice Recognition system...........4-105
Before starting.....................4-105
Giving voice commands................4-106
Voice recognition settings...............4-116
Information menu......................4-117
SiriusXM Travel Link®...............4-118
Settings menu.....................4-122
Troubleshooting guide...................4-124
Customer assistance..................4-124
System unit.......................4-125
Audio system......................4-126
Bluetooth® Hands-Free Phone System.......4-134
Monitor system.....................4-137
Voice recognition....................4-138

A[Settings] key
B
