INFINITI QX30 2017 Owners Manual

Specification chart for CD:
Supported media CD, CD-R, CD-RW
Supported file systems CD, CD-R, CD-RW
Supported ver-
sions*1MP3 Version MPEG1 Audio Layer3, MPEG2 Audio Layer3, MPEG2.5 Audio Layer3
Sampling
frequencyMPEG2.5 Audio Layer3: 8kHz, 11.025kHz, 12kHz
MPEG2 Audio Layer3: 16kHz, 22.05kHz, 24kHz
MPEG1 Audio Layer3: 32kHz, 44.1kHz, 48kHz
Bit rate 8 kbps - 320 kbps, VBR
WMA*2 Version WMA7, WMA8, WMA9, WMA9.1, WMA9.2
Bit rate/Sampling
frequencyBit rate: Ver7, Ver8: 32-192kbps Ver9,Ver9.1,Ver9.2: 32-192kbps, VBR
Sampling frequency: Ver7, Ver8: 8k/11.025k/16k/22k/32k/44.1k Ver9,Ver9.1,Ver9.2: 8k/11.025k/16k/22k/32k/
44.1k/48 kHz
AAC*4 Bit rate/Sampling
frequencyBit rate: 8-320 kbps, VBR
Sampling frequency: 11.025-48kHz
Tag information (Song title, Artist name and Album
name)ID3 tag VER1.0, VER1.1, VER2.2, VER2.3, VER2.4 (MP3 only)
WMA tag (WMA only)
AAC Tag (AAC only)
Folder levels CD, CD-R, CD-RW: Folder levels: 8, Folders: 255 (including root folder), Files: 510 (Max. 255 files for one folder)
Displayable character codes*3 01: SHIFT-JIS, ASCII, ISO-8859-1, UTF-8, UTF-16 BOM, UTF-16 Big Endian, UTF-16 Little Endian, 02: UNICODE, 03:
UTF-16
*1 Files created with a combination of 48 kHz sampling frequency and 64 kbps bit rate cannot be played.
*2 Protected WMA files (DRM) cannot be played.
*3 Available codes depend on what kind of media, versions, and information are going to be displayed.
*4 Made by iTunes.
4-62Display screen, heater and air conditioner, and audio system

Windows Media Player:
This product is protected by certain intellectual
property right of Microsoft. Use or distribution
of such technology outside of this product is
prohibited without a license from Microsoft.
Bluetooth® Audio player
The Bluetooth® word mark and logos are reg-
istered trademarks owned by Bluetooth SIG,
Inc. and any use of such marks by DENSO
CORPORATION is under license. Other trade-
marks and trade names are those of their
respective owners.
•Some Bluetooth® streaming audio devices
may not be recognized by the in-vehicle
audio system.
•It is necessary to set up the wireless con-
nection between a compatible Bluetooth®
streaming audio device and the in-vehicle
Bluetooth® module before using the
Bluetooth® streaming audio.
•The Bluetooth® streaming audio may be
stopped under the following conditions:
– When receiving a hands-free call
– When checking the connection to the
hands-free phone
– When connecting the hands-free phone
or the audio device
– When downloading a phonebook memory
from a connected cellular phone
•Do not place a Bluetooth® streaming audio
device in an area surrounded by metal or far
away from the in-vehicle Bluetooth® module
to prevent tone quality degradation and wire-
less connection disruption.
•While an audio device is connected through
Bluetooth® wireless connection, the battery
of the device may discharge quicker than
usual.
•This system supports the Bluetooth® Ad-
vanced Audio Distribution Profile (A2DP) and
Audio/Video Remote Control Profile (AVRCP).
•Wireless LAN (Wi-Fi) and the Bluetooth®
functions share the same frequency band
(2.4 GHz). Using the Bluetooth® and the
wireless LAN functions at the same time may
slow down or disconnect the communication
and cause undesired noise. It is recom-
mended that you turn off the wireless LAN
(Wi-Fi) when using the Bluetooth® functions.
Display screen, heater and air conditioner, and audio system4-63

NAMES AND FUNCTIONS OF AUDIO
CONTROL BUTTONS
Main audio buttons
1:Functions to seek radio stations or to skip
and fast-forward/rewind through tracks.
2<>:
Push to eject a disc.
3:
Push to switch to the radio mode. The
radio band will switch between AM, FM,
and SXM (SiriusXM) each time the but-
ton is pushed.
4:
Each time the button is pushed, a differ-
ent audio source (CD, iPod, USB or
Bluetooth® Streaming Audio) will be
selected.
5Disc slot:
Insert a disc with the label side facing
up.
6:
Functions to manually tune AM/FM , to
select SXM categories and to select
MP3/WMA/AAC folders.
7Radio memory buttons:Up to six pre-
ferred stations can be registered in the
preset list for each band.
8:
Push to turn the audio system on/off.
Turn to adjust the volume.
Audio APPS information will be displayed when
music is played via INFINITI InTouch Apps.
NAA1704
4-64Display screen, heater and air conditioner, and audio system

Steering wheel mounted audio
control buttons
1System on/off: Push to turn on/off the
audio system.
2Volume control: Push the upper <+> or
lower <-> buttons to increase or decrease
the volume.
INFINITI controller AUDIO button
Push

Selecting audio source
1. Turn on the audio source menu screen by
touching [Source] on the upper left corner of
the audio screen.
2. Select an item from the audio source menu
screen.
•Pushingorcan also
change the audio source.
SeeMain audio buttonsearlier in this
section.
•If the audio system has been turned off
while one of the audio sources was playing,
turning the audio system back on will play
the audio source that was playing when the
system was turned off.
•The audio source can also be changed with
the source bar on top of the audio screen.
•Audio APPS information will be displayed
when music is played via INFINITI InTouch
Apps.
Audio source bar
The audio source can be changed with the
source bar on top of the audio screen. The
source bar display can be turned on/off.
Turning source bar on/off
:
You can select whether the source bar on top of
the audio screens is displayed or not.1. Touch [Source] on the upper left corner of
the audio screen.
2. Touch [Show Source Bar] to turn the indica-
tor on/off.
Editing source bar
:
The audio sources to be displayed on the
source bar can be changed.
1. Touch [Source] on the upper left corner of
the audio screen.
2. Touch [Edit Source Bar].
3. Touch one of the keys on the source bar and
then touch one of the audio sources from the
source list to register the audio source in the
source bar.
NAA1714NAA1715
4-66Display screen, heater and air conditioner, and audio system

RADIO
How to view radio operation screen
* For models with radio status indicator and re-
ception information display.The radio screen can be viewed and operated
on the display.1Radio mode indicator: The current radio
mode is displayed.
2[Source]: Touch to switch to the source
select screen. SeeSelecting audio
sourcelater in this section
3[Control]: Touch to display the control
screen. SeeRadio Controlslater in this
section
4HD Radio reception status indicator (for
AM and FM):
The icon is displayed when HD Radio
digital signal is received. The icon flashes
when the radio is acquiring the digital
signal but the sound output is not yet in
the HD mode.
5Radio band indicator: The currently se-
lected radio band (AM, FM or SXM) is
displayed.
6Reception information display: Reception
information available at the time such as
frequency, station/channel name, etc..
are displayed.
On the SXM screen, touch this area to
display the category list.
736 stations/channels can be registered
in the preset list.
SeePresettinglater in this section.NAA1716
Display screen, heater and air conditioner, and audio system4-67

NOTE
HD Radio reception needs to be activated to re-
ceive HD Radio broadcasts. This enables you to
receive radio broadcasts digitally (where avail-
able), providing a better quality sound with clear
reception. When this feature is not activated or
HD Radio broadcasts are not available, you will
receive analog radio (AM/FM broadcasts).
Radio source control
There are 2 elements used in the preset list area
that are associated with radio source:
1Highlight for INFINITI controller opera-
tion.
2(With triangle) Indicator of current se-
lected preset station.
Radio operation
Radio activation and band selection:
Pushor select the preferred radio band
(AM, FM or SXM) from the audio source list to
turn on the radio. Each timeis pushed,
the radio band will change.
For details, seeSelecting audio sourcelater in
this section.NOTE
When the stereo broadcast signal is weak, the
radio will automatically change from stereo to
monaural reception.
Seeking stations/channels
:
AM and FM Radio
Pushto tune from low to
high or high to low frequencies and to stop at
the next broadcasting station.
SiriusXM Satellite Radio
Pushto tune to the first
channel of the next or previous category.
Scan tuning
:
To tune the stations/channels, touch [Control]
on the display and touch [Scan]. The stations/
channels will be tuned form low to high fre-
quencies and stop at each broadcasting
station/channel for 5 seconds. Touching [Scan]
again during this 5 second period will stop scan
tuning and the radio will remain tuned to that
station/channel.
Presetting
:
Up to 36 stations/channels can be registered
for AM, FM and SXM in the preset list.
1. Select a radio band (AM, FM or SXM).
NAA1717
4-68Display screen, heater and air conditioner, and audio system

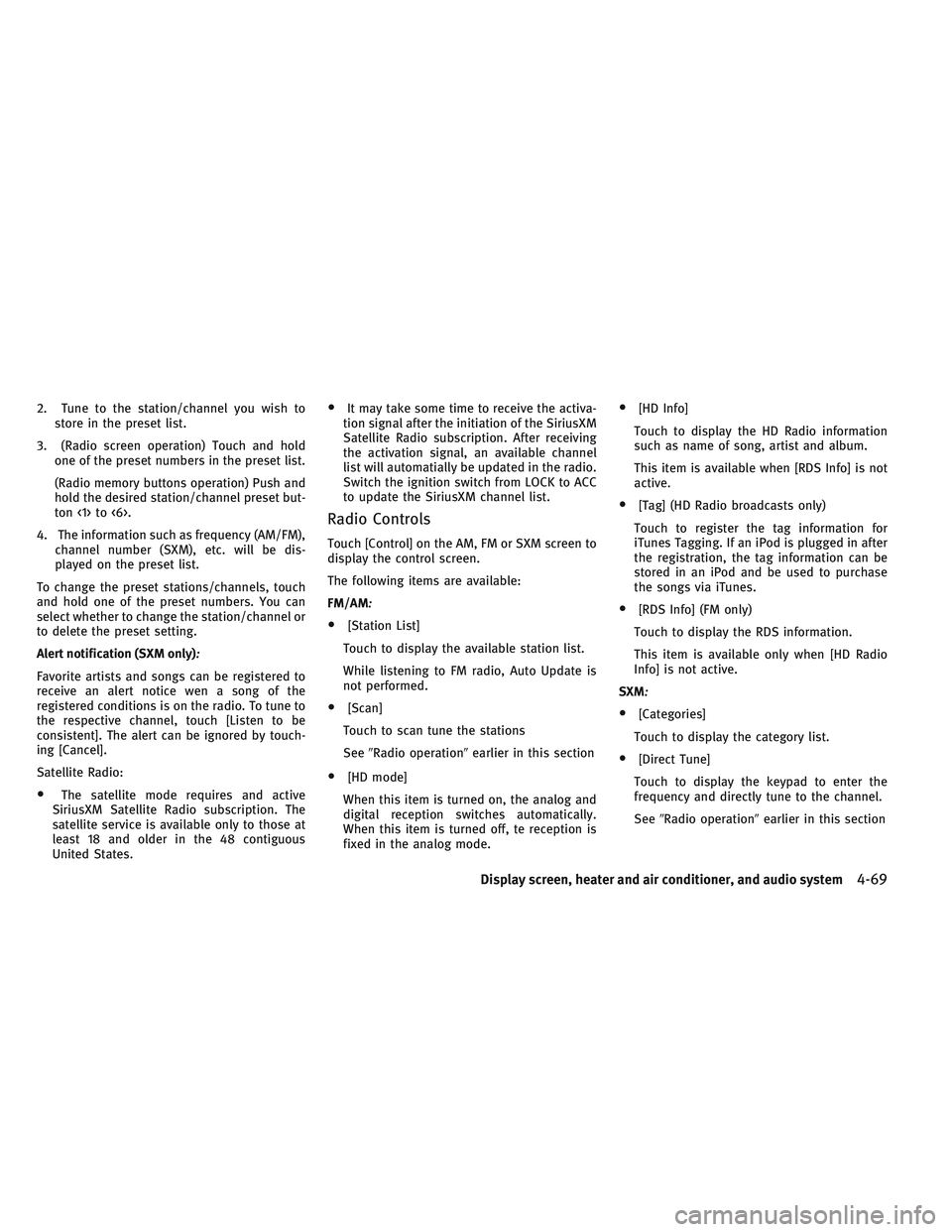

2. Tune to the station/channel you wish to
store in the preset list.
3. (Radio screen operation) Touch and hold
one of the preset numbers in the preset list.
(Radio memory buttons operation) Push and
hold the desired station/channel preset but-
ton <1> to <6>.
4. The information such as frequency (AM/FM),
channel number (SXM), etc. will be dis-
played on the preset list.
To change the preset stations/channels, touch
and hold one of the preset numbers. You can
select whether to change the station/channel or
to delete the preset setting.
Alert notification (SXM only)
:
Favorite artists and songs can be registered to
receive an alert notice wen a song of the
registered conditions is on the radio. To tune to
the respective channel, touch [Listen to be
consistent]. The alert can be ignored by touch-
ing [Cancel].
Satellite Radio:
•The satellite mode requires and active
SiriusXM Satellite Radio subscription. The
satellite service is available only to those at
least 18 and older in the 48 contiguous
United States.
•It may take some time to receive the activa-
tion signal after the initiation of the SiriusXM
Satellite Radio subscription. After receiving
the activation signal, an available channel
list will automatially be updated in the radio.
Switch the ignition switch from LOCK to ACC
to update the SiriusXM channel list.
Radio Controls
Touch [Control] on the AM, FM or SXM screen to
display the control screen.
The following items are available:
FM/AM
:
•[Station List]
Touch to display the available station list.
While listening to FM radio, Auto Update is
not performed.
•[Scan]
Touch to scan tune the stations
SeeRadio operationearlier in this section
•[HD mode]
When this item is turned on, the analog and
digital reception switches automatically.
When this item is turned off, te reception is
fixed in the analog mode.
•[HD Info]
Touch to display the HD Radio information
such as name of song, artist and album.
This item is available when [RDS Info] is not
active.
•[Tag] (HD Radio broadcasts only)
Touch to register the tag information for
iTunes Tagging. If an iPod is plugged in after
the registration, the tag information can be
stored in an iPod and be used to purchase
the songs via iTunes.
•[RDS Info] (FM only)
Touch to display the RDS information.
This item is available only when [HD Radio
Info] is not active.
SXM
:
•[Categories]
Touch to display the category list.
•[Direct Tune]
Touch to display the keypad to enter the
frequency and directly tune to the channel.
SeeRadio operationearlier in this section
Display screen, heater and air conditioner, and audio system4-69

•[Scan]
Touch to scan tune the channels.
SeeRadio operationearlier in this section
•[Instant Replay]
Up to 30 minutes of the broadcast of the
channel that has been tuned in to can be
replayed.
Touch to select from
,,,,
and
•[Tag]
Touch to register the tag information for
iTunes Tagging. If an iPod is plugged in after
the registration, the tag information can be
stored in an iPod and be use to purchase the
songs via iTunes.
•[Other]-[Favorite Artists]
Touch to set a favorite artists alert notifica-
tion. Up to 8 artists can be registered. While
a song of your favorite artist is playing, touch
the list and touch [Add]/[Update]. To receive
the alert notification, select [Turn ALL Alerts
ON].
•[Other]-[Favorite Songs]
Touch to set a favorite songs alert notifica-
tion. Up to 8 songs can be registered. While
a song of your favorite artist is playing, touch
the list and touch [Add]/[Update]. To receive
the alert notification, select [Turn ALL Alerts
ON].
•[Other]-[Customize Channel List]
Touch to customize the channel list. Only the
selected channels will be tuned in to when
you seek or scan the channels. You can
select each item or [Select All]/[Deselect All].
•[Other]-[Favorite Artists Now Playing]
Touch to display the artist list for an alert
notice.
•[Other]-[Favorite Songs Now Playing]
Touch to display the song list for an alert
notice.
•[Other]-[Favorite Alert Settings]
Touch to turn on/off the alert notice for the
registered favorite artists and songs.
•[Other]-[Channel Locking Settings]
Touch to select or unselect the channel that
you wish to lock out. A passcode is required
to change the settings. The default passcode
is 1234.
4-70Display screen, heater and air conditioner, and audio system

COMPACT DISC (CD) PLAYER
How to view CD operation screen
1[Source]:
Touch to switch to the source list
screen.For details, seeSelecting audio source
later in this section2[Scan]:
Touch to play the first 10 seconds of the
tracks. Touch again to stop scanning.
3Track information:Track information such as the song title,
artist name, and album name is displayed.
4Audio source indicator:
Indicates that CD is currently selected.
5Play time:
The play time of the track is displayed.
6Track number:
This indicates the current track number
and the total number of tracks.
7CD menu:
CD menu items are displayed. Touch an
icon to display the list or to change the
setting.
- [Track]
- [Folder] (for MP3, WMA, AAC)
- [Play Mode]
8Play Mode Indicator:
This indicates the current play mode.
Touch to change the play mode.
9Folder number (for MP3, WMA, AAC):This indicates the folder number when a
CD with compressed audio files is loaded.
NAA1718
Display screen, heater and air conditioner, and audio system4-71
