3. Slowly back up the vehicle adjusting the
steering wheel so that the predicted course
lines
Benter the parking spaceC.4. When the rear of the vehicle enters the
parking space
C, maneuver the steering
wheel to make the vehicle width guide lines
Dparallel to the parking spaceC.
5. When the vehicle is parked in the space
completely, press the P (Park) button and
apply the parking brake.
ADJUSTING THE SCREEN
1. While the RearView Monitor is displayed,
touch the settings icon.
2. Select the item you wish to adjust:
[Brightness]:
Adjust display settings by touching [+]/[-].
[Contrast]:
Adjust display settings by touching [+]/[-].
[Black level]:
Adjust display settings by touching [+]/[-].
[Tint]:
Adjust display settings by touching [+]/[-].
[Color]:
Adjust display settings by touching [+]/[-].[Reset Settings]:
Return all the settings to default
NOTE
Do not adjust any of the display settings of the
RearView Monitor while the vehicle is moving.
Make sure the parking brake is firmly applied.
SAA1898
4-22Display screen, heater and air conditioner, and audio system

A[Settings] key
B

•Objects in the RearView Monitor will appear
visually opposite than when viewed in the
rear view and outside mirrors.
•Use the displayed lines as a reference. The
lines are highly affected by the number of
occupants, fuel level, vehicle position, road
conditions and road grade.
•Make sure that the lift gate is securely
closed when backing up.
•Do not put anything on the rear view cam-
era. The rear view camera is installed above
the license plate.
•When washing the vehicle with high-
pressure water, be sure not to spray it
around the camera. Otherwise, water may
enter the camera unit causing water con-
densation on the lens, a malfunction, fire or
an electric shock.
•Do not strike the camera. It is a precision
instrument. Otherwise, it may malfunction
or cause damage resulting in a fire or an
electric shock.The following are operating limitations and do
not represent a system malfunction:
•When the temperature is extremely high or
low, the screen may not clearly display ob-
jects.
•When strong light shines directly on to the
camera, objects may not be displayed
clearly.
•Vertical lines may be seen in objects on the
screen. This is due to strong reflected light
from the bumper.
•The screen may flicker under fluorescent
light.
•The colors of objects on the RearView Moni-
tor may differ somewhat from the actual
color of objects.
•Objects on the monitor may not be clear in a
dark environment.
•Do not use wax on the camera window. Wipe
off any wax with a clean cloth dampened
with mild detergent diluted with water.
SYSTEM MAINTENANCE
CAUTION
•Do not use alcohol, benzine or thinner to
clean the camera. This will cause discolou-
ration. To clean the camera, wipe with a
cloth dampened with diluted mild cleaning
agent and then wipe with a dry cloth.
•Do not damage the camera as the monitor
screen may be adversely affected.
If dirt, rain or snow accumulates on the camera
1, the RearView Monitor may not display
objects clearly. Clean the camera by wiping it
with a cloth dampened with a diluted mild
cleaning agent and then wiping it with a dry
cloth.
NAA1688

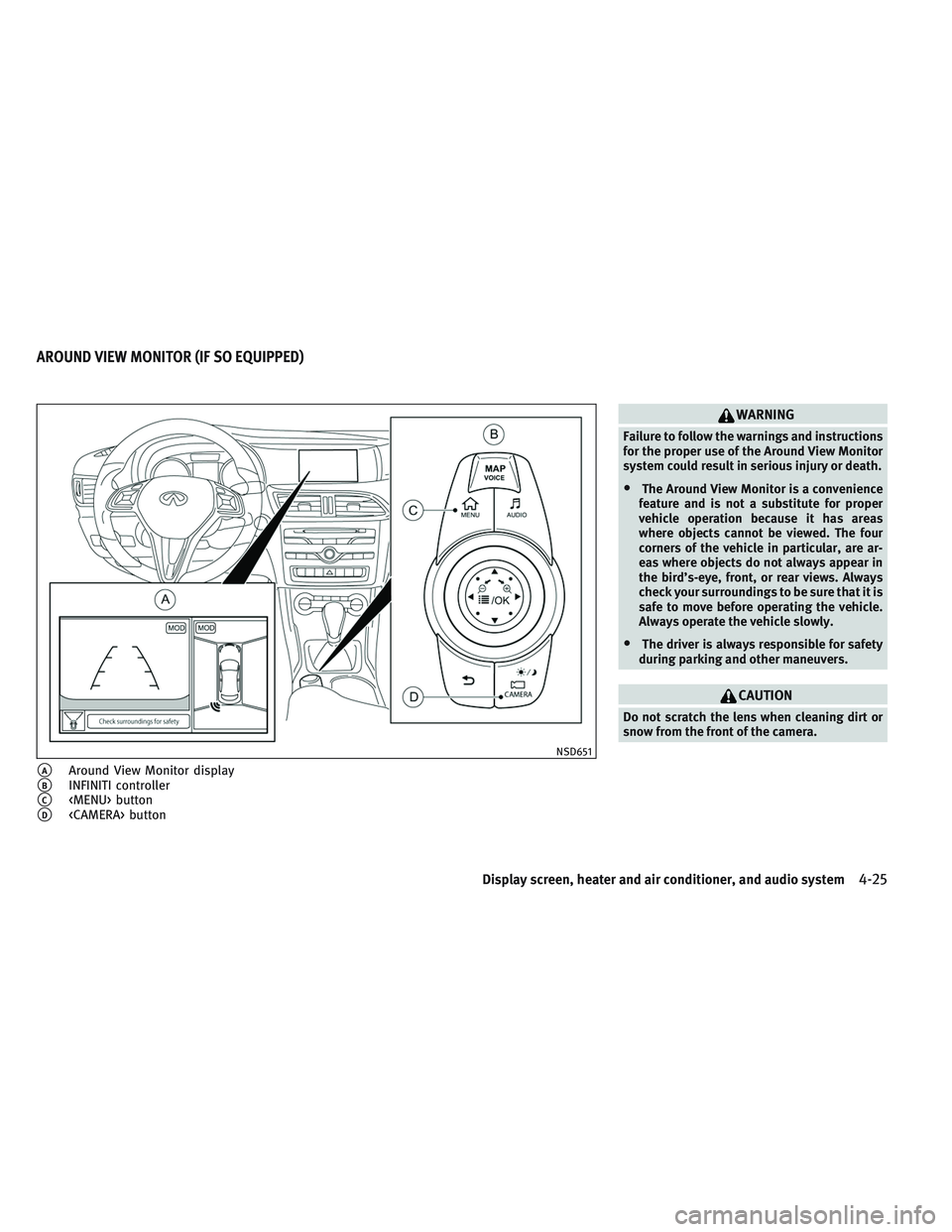

4-24Display screen, heater and air conditioner, and audio system

AAround View Monitor display
BINFINITI controller
C

The Around View Monitor system is designed as
an aid to the driver in situations such as slot
parking or parallel parking.
The monitor displays various views of the posi-
tion of the vehicle in a split screen format. All
views are not available at all times.
Available views:
•Front View
An approximately 150-degree view of the
front of the vehicle.
•Rear View
An approximately 150-degree view of the rear
of the vehicle.
•Bird’s-Eye View
The surrounding view of the vehicle from
above.
•Front-Side View
The view around and ahead of the front
passenger’s side wheel.To display the multiple views, the Around View
Monitor system uses cameras
1located in the
front grille, on the vehicle’s outside mirrors and
one just above the vehicle’s rear number plate.
AROUND VIEW MONITOR SYSTEM
OPERATION
With the ignition switch in the ON position,
move the shift lever to the R (Reverse) position
or press thebutton to operate the
Around View Monitor.
The screen displayed on the Around View Moni-
tor will automatically return to the previous
screen 3 minutes after thebutton
has been pushed while the shift lever is in a
position other than the R (Reverse) position.
Available views
WARNING
•The distance guide lines and the vehicle
width lines should be used as a reference
only when the vehicle is on a paved, level
surface. The distance viewed on the monitor
is for reference only and may be different
than the actual distance between the ve-
hicle and displayed objects.
•Use the displayed lines and the bird’s-eye
view as a reference. The lines and the bird’s-
eye view are greatly affected by the number
of occupants, fuel level, vehicle position,
road condition and road grade.
•When driving the vehicle up a hill, objects
viewed in the monitor are farther than they
appear. When driving the vehicle down a
hill, objects viewed in the monitor are closer
than they appear.
•Objects in the monitor will appear visually
opposite compared to when viewed in the
rear view and outside mirrors.
•Use the mirrors or actually look to properly
judge distances to other objects.
NAA1638
4-26Display screen, heater and air conditioner, and audio system

•The distance between objects viewed in the
rear view differs from actual distance be-
cause a wide-angle lens is used.
•The displayed lines on the rear view will
appear slightly off to the right because the
rear view camera is not installed in the rear
center of the vehicle.
Front view Rear view
Front and rear views:
Guiding lines, which indicate the vehicle width and
distances to objects with reference to the vehicle
body line
A, are displayed on the monitor.
Distance guide lines:
Indicate distances from the vehicle body:
•Red line1: approx.1.5 ft (0.5 m)
•Yellow line2: approx. 3 ft (1 m)
•Green line3: approx. 7 ft (2 m)
•Green line4: approx. 10 ft (3 m)
Vehicle width guide lines
5:
Indicate the approximate vehicle width when
backing up.Predicted course lines
6:
Indicate the predicted course when operating the
vehicle. The predicted course lines will be dis-
played on the monitor when the steering wheel is
turned. The predicted course lines will move
depending on how much the steering wheel is
turned and will not be displayed while the steer-
ing wheel is in the straight ahead position.
The front view will not be displayed when the
vehicle speed is above 10 km/h (6 MPH).
NOTE
When the monitor displays the front view and
the steering wheel turns about 90 degrees or
less from the neutral position, both the right and
left predicted course lines
6are displayed.
When the steering wheel turns about 90 degrees
or more, a line is displayed only on the opposite
side of the turn.
SAA1840ZSAA1896Z
Display screen, heater and air conditioner, and audio system4-27

Bird’s-eye view:
WARNING
•Objects in the bird’s-eye view will appear
farther than the actual distance.
•Tall objects, such as a curb or a vehicle, may
be misaligned or not displayed at the seam
of the views.
•Objects that are above the camera cannot
be displayed.
•The view for the bird’s-eye view may be
misaligned when the camera position al-
ters.
•A line on the ground may be misaligned and
is not seen as being straight at the seam of
the views. The misalignment will increase
as the line proceeds away from the vehicle.
•Tire angle display does not indicate the
actual tire angle.
The bird’s-eye view shows the overhead view of the
vehicle, which helps confirm the vehicle position.
The vehicle icon1shows the position of the
vehicle.
NOTE
The size of the vehicle icon on the bird’s-eye view
may differ somewhat from the actual vehicle.
The areas that the cameras cannot cover2are
indicated in black.
The non-viewable area
2is highlighted in
yellow for several seconds after the bird’s-eye
view is displayed. It will be shown only the first
time after the ignition switch is placed in the ON
position.
When the corner of the vehicle moves closer to
an object, the corner sensor indicator
3ap-
pears.Front-side view
:
Guiding lines that indicate the approximate
width and the front end of the vehicle are
displayed on the monitor.
The front-of-vehicle line
1shows the front part
of the vehicle.
The side-of-vehicle line
2shows the approxi-
mate vehicle width including the outside mir-
rors.
The extensions
3of both the front1and side
2lines are shown with a green dotted line.
The corner sensor indicator
4will appear
when a corner of the vehicle moves closer to an
object.
NAA1681SAA1842ZLeft-Hand Drive (LHD) models*
4-28Display screen, heater and air conditioner, and audio system

DIFFERENCE BETWEEN PREDICTED AND
ACTUAL DISTANCES
The displayed guidelines and their locations on
the ground are for approximate reference only.
Objects on uphill or downhill surfaces or pro-
jecting objects will be actually located at dis-
tances different from those displayed in the
monitor relative to the guidelines (refer to illus-
trations). When in doubt, turn around and view
the objects as you are backing up, or park and
exit the vehicle to view the positioning of
objects behind the vehicle.
Backing up on a steep uphill
When backing up the vehicle up a hill, the
distance guide lines and the vehicle width
guide lines are shown closer than the actual
distance. Note that any object on the hill is
viewed in the monitor farther than it appears.
Backing up on a steep downhill
When backing up the vehicle down a hill, the
distance guide lines and the vehicle width
guide lines are shown farther than the actual
distance. Note that any object on the hill is
viewed in the monitor closer than it appears.
NAA1675NAA1676
Display screen, heater and air conditioner, and audio system4-29

Backing up near a projecting object
The predicted course linesAdo not touch the
object in the display. However, the vehicle may
hit the object if it projects over the actual
moving course.
Backing up behind a projecting
object
The positionCis shown farther than the
position
Bin the display. However, the posi-
tion
Cis actually at the same distance as theposition
A. The vehicle may hit the object
when backing up to the position
Aif the object
projects over the actual moving course.
HOW TO PARK WITH PREDICTED
COURSE LINES
WARNING
•If the tires are replaced with different sized
tires, the predicted course lines may not be
displayed correctly.
•On a snow-covered or slippery road, there
may be a difference between the predicted
course lines and the actual course.
•The displayed lines will appear slightly off
to the right because the rear view camera is
not installed in the rear center of the ve-
hicle.
•If the battery is disconnected or becomes
discharged, the predicted course lines may
be displayed incorrectly. If this occurs,
please perform the following procedures:
–Turn the steering wheel from lock to lock
while the engine is running.
–Drive the vehicle on a straight road for
more than 5 minutes.
SAA1923SAA1980
4-30Display screen, heater and air conditioner, and audio system

•When the steering wheel is turned with the
ignition switch in the ACC position, the pre-
dicted course lines may be displayed
incorrectly.
The vehicle width and predicted course lines
are wider than the actual width and course.
1. Visually check that the parking space is safe
before parking your vehicle.2. The rear view of the vehicle is displayed on
the screenAas illustrated when the shift
lever is moved to the R (Reverse) position.
SAA1897
Display screen, heater and air conditioner, and audio system4-31
