INFINITI QX30 2017 Owners Manual

NOTE
Activate VDC as soon as the situations described
above no longer apply. VDC will otherwise not be
able to stabilize the vehicle if the vehicle starts
to skid or a wheel starts to spin.
You can activate/deactivate VDC using the ve-
hicle information display. To activate/
deactivate VDC:
1. Start the engine
2. Press the
orbutton on the
steering wheel to select the [DriveAssist]
menu in the vehicle information display.
3. Press the
orbutton to select
VDC.
4. Press thebutton on the steering
wheel. The current selection is displayed.
5. To activate/deactivate: press thebut-
ton again.
VDC is deactivated if the
warning light
in the combination meter lights up continu-
ously when the engine is running.
Characteristics when VDC is deactivated
:
If VDC is deactivated and one or more wheels
start to spin, theVDC warning lamp
flashes in the combination meter. In such situ-
ations, VDC will not stabilize the vehicle.If you deactivate VDC:
•VDC no longer intervenes in understeer or
oversteer situations.
•Engine torque is no longer limited and the
drive wheels are able to spin.
The spinning of the wheels results in a
cutting action, so the tires cut through the
loose surface until the hit solid ground,
giving better traction.
•Traction control is still activated.
•VDC still provides support when you brake.
EBD (ELECTRONIC BRAKE FORCE
DISTRIBUTION)
EBD monitors and controls the brake pressure
on the rear wheels to help improve handling
during braking.
WARNING
If EBD is malfunctioning, the EBD [Inoperative
See Operator’s Manual] warning is displayed
in the vehicle information display. The
VDC warning lamp may also light up.
If EBD is malfunctioning as a result of a VDC
malfunction, the rear wheels can lock, e.g. un-
der full braking. This increases the risk of skid-
ding and an accident.You should therefore adapt your driving style
to the different handling characteristics. Have
the brake system checked. It is recommended
you see an INFINITI retailer.
STEER CONTROL
STEER CONTROL helps you by transmitting a
noticeable steering force to the steering wheel
in the direction required for vehicle stabilisa-
tion.
This steering support is provided in particular if:
•Both right wheels or both left wheels are on
a wet or slippery road surface when you
brake.
•The vehicle starts to skid.
WARNING
No steering support is provided from STEER
CONTROL, if:
•VDC is malfunctioning.
•The steering is faulty.
Power steering will, however, continue to
function.
5-92Starting and driving

WARNING
•Never rely solely on the Hill Start Assist
(HSA) system to prevent the vehicle from
moving backward on a hill. Always drive
carefully and attentively. Depress the brake
pedal when the vehicle is stopped on a
steep hill. Be especially careful when
stopped on a hill on frozen or muddy roads.
Failure to prevent the vehicle from rolling
backwards may result in a loss of control of
the vehicle and possible serious injury or
death.
•The Hill Start Assist system is not designed
to hold the vehicle at a standstill on a hill.
Depress the brake pedal when the vehicle is
stopped on a steep hill. Failure to do so may
cause the vehicle to roll backwards and may
result in a collision or serious personal in-
jury.
•The Hill Start Assist system may not pre-
vent the vehicle from rolling backwards on a
hill under all load or road conditions. Al-
ways be prepared to depress the brake
pedal to prevent the vehicle from rolling
backwards. Failure to do so may result in a
collision or serious personal injury.
•After a short time, hill start assist will no
longer brake your vehicle and it could roll
away There is a risk of an accident and in-
jury. Therefore, quickly move your foot from
the brake pedal to the accelerator pedal.
Never leave the vehicle when it is held by
hill start assist.
Hill start assist helps you when pulling away
forwards or in reverse on an uphill gradient. It
holds the vehicle for a short time after you have
removed your foot from the brake pedal. This
gives you enough time to move your foot from
the brake pedal to the accelerator pedal and
depress it before the vehicle begins to roll.
Hill start assist is not active if
•You are pulling away on a level road or a
downhill gradient.
•On vehicles with automatic transmission,
the transmission is in position N.
•The electric parking brake is applied.
•VDC is malfunctioning.
FREEING A FROZEN DOOR LOCK
To prevent a door lock from freezing, apply
deicer through the key hole. If the lock becomes
frozen, heat the key before inserting it into the
key hole, or use the INFINITI Intelligent Key.
ANTIFREEZE
In the winter when it is anticipated that the
temperature will drop below 32°F (0°C), check the
antifreeze to assure proper winter protection. For
additional information, seeEngine cooling
systemin the8. Do-it-yourselfsection.
BATTERY
If the battery is not fully charged during ex-
tremely cold weather conditions, the battery
fluid may freeze and damage the battery. To
maintain maximum efficiency, the battery
should be checked regularly. For details, see
Batteryin the8. Do-it-yourselfsection of this
manual.
DRAINING OF ENGINE COOLANT
If the vehicle is to be left outside without
antifreeze, drain the cooling system, including
the engine block. Refill before operating the
vehicle. For details, seeChanging engine
coolantin the8. Do-it-yourselfsection of this
manual.
HILL START ASSIST (HSA) COLD WEATHER DRIVING
Starting and driving5-93

TIRE EQUIPMENT
1. SUMMER tires have a tread designed to
provide superior performance on dry pave-
ment. However, the performance of these
tires will be substantially reduced in snowy
and icy conditions. If you operate your ve-
hicle on snowy or icy roads, INFINITI recom-
mends the use of MUD & SNOW or ALL
SEASON TIRES on all four wheels. It is rec-
ommended that you visit an INFINITI retailer
for the tire type, size, speed rating and
availability information.
2. For additional traction on icy roads, studded
tires may be used. However, some U.S.
states and Canadian provinces prohibit their
use. Check local, state and provincial laws
before installing studded tires.
Skid and traction capabilities of studded snow
tires, on wet or dry surfaces, may be poorer than
that of non-studded snow tires.
3. Tire chains may be used if desired. Make
sure they are the proper size for the tires on
your vehicle and are installed according to
the chain manufacturer’s instructions. Use
chain tensioners when recommended by the
tire chain manufacturer to ensure a tight fit.
Loose end links of the tire chains must be
secured or removed to prevent the possibil-
ity of whipping action damage to the fendersor underbody. In addition, drive at a reduced
speed, otherwise, your vehicle may be dam-
aged and/or vehicle handling and perfor-
mance may be adversely affected.
SPECIAL WINTER EQUIPMENT
It is recommended that the following items be
carried in the vehicle during the winter:
•A scraper and stiff-bristled brush to remove
ice and snow from the windows.
•A sturdy, flat board to be placed under the
jack to give it firm support.
•A shovel to dig the vehicle out of snowdrifts.
•Extra washer fluid to refill the windshield
washer fluid reservoir.
DRIVING ON SNOW OR ICE
WARNING
•Wet ice (32°F, 0°C and freezing rain), very
cold snow or ice can be slick and very hard
to drive on. The vehicle will have much less
traction or “grip” under these conditions.
Try to avoid driving on wet ice until the road
is salted or sanded.
•Whatever the condition, drive with caution.
Accelerate and slow down with care. If ac-
celerating or downshifting too fast, the
drive wheels will lose even more traction.
•Allow more stopping distance under these
conditions. Braking should be started
sooner than on dry pavement.
•Allow greater following distances on slip-
pery roads.
•Watch for slippery spots (glare ice). These
may appear on an otherwise clear road in
shaded areas. If a patch of ice is seen ahead,
brake before reaching it. Try not to brake
while on the ice, and avoid any sudden
steering maneuvers.
•Do not use cruise control on slippery roads.
•Snow can trap dangerous exhaust gas under
your vehicle. Keep snow clear of the exhaust
pipe and from around your vehicle.
5-94Starting and driving

6 In case of emergency
Hazard warning flasher switch...............6-2
Flat tire.............................6-2
Tire Pressure Monitoring System (TPMS).......6-2
Stopping vehicle.....................6-3
Warning triangle (if equipped).............6-4
Run-flat tires........................6-4Removing and fitting wheels..............6-5
Jump starting.........................6-10
Push starting.........................6-12
If your vehicle overheats..................6-13
Towing your vehicle.....................6-14
Towing recommended by INFINITI...........6-14

The hazard warning flasher switch1operates
regardless of the ignition switch position except
when the battery is discharged.
The hazard warning flasher is used to warn
other drivers when you have to stop or park
under emergency conditions.
When the hazard warning flasher switch is
pushed, all turn signal lights will flash. To turn
off the hazard warning flasher, push the hazard
warning switch again.
WARNING
•If stopping for an emergency, be sure to
move the vehicle well off the road.
•Do not use the hazard warning flashers
while moving on the highway unless un-
usual circumstances force you to drive so
slowly that your vehicle might become a
hazard to other traffic.
•Turn signals do not work when the hazard
warning flasher lights are on.
Some jurisdictions may prohibit the use of the
hazard warning flasher switch while driving.If you have a flat tire, follow the instructions in
this section.
TIRE PRESSURE MONITORING SYSTEM
(TPMS)
WARNING
•If the low tire pressure warning light illumi-
nates or a tire pressure-related warning is
displayed by the vehicle information dis-
play while driving, avoid sudden steering
maneuvers or abrupt braking, reduce ve-
hicle speed, pull off the road to a safe loca-
tion and stop the vehicle as soon as pos-
sible. Driving with under-inflated tires may
permanently damage the tires and increase
the likelihood of tire failure. Serious vehicle
damage could occur and may lead to an ac-
cident and could result in serious personal
injury. Check the tire pressure for all four
tires. Adjust the tire pressure to the recom-
mended COLD tire pressure shown on the
tire and loading information label to turn
the low tire pressure warning light OFF. If
you have a flat tire, replace it with a replace-
ment tire as soon as possible.
NIC2621
HAZARD WARNING FLASHER SWITCH FLAT TIRE
6-2In case of emergency

•When a replacement tire is mounted or a
wheel is replaced, the TPMS will not func-
tion and the low tire pressure warning light
will flash for approximately 1 minute. The
light will remain on after 1 minute. It is rec-
ommended you Contact an INFINITI retailer
as soon as possible for tire replacement
and/or system resetting.
•Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
•If you used Emergency Tire Sealant to repair
a minor tire puncture, the TPMS sensor
should be checked when repairing or re-
placing the tire. It is recommended you visit
an INFINITI retailer for this service.
The Tire Pressure Monitoring System (TPMS)
monitors tire pressure of all tires. When the low
tire pressure warning light is lit, and a tire
pressure-related warning (if equipped) appears
in the vehicle information display, one or more
of your tires is significantly under-inflated. If
the vehicle is being driven with low tire pres-
sure, the TPMS will activate and warn you of it
by the low tire pressure warning light (in the
meter panel). This system will activate only
when the vehicle is driven at speeds above 16MPH (25 km/h).
For more details about the TPMS, seeTire
Pressure Monitoring System (TPMS)in the5.
Starting and drivingStarting and drivingsec-
tion.
STOPPING VEHICLE
WARNING
•Be sure to apply the parking brake firmly.
•Be sure that P (Park) is engaged.
•Never change tires when the vehicle is on a
slope, ice or slippery area. This is hazard-
ous.
•Never change tires when the oncoming traf-
fic is close to your vehicle. Call for profes-
sional road assistance.
1. Safely move the vehicle off the road away
from traffic.
2. Turn on the hazard indicator flasher lights.
3. Park on a level surface.
4. Apply the parking brake.
5. Press the P (Park) button.6. Turn off the engine.
7. Open the hood and set up the triangle
reflector (if equipped):
•To warn other traffic.
•To signal professional road assistance
personnel that you need assistance.
8. Have all passengers get out of the vehicle
and stand in a safe place, away from other
traffic and clear of the vehicle.
In case of emergency6-3

WARNING TRIANGLE (IF EQUIPPED)
Removing and refitting the warning
triangle
To remove:
1. Open the lift gate and lift the luggage
compartment floor upwards.2. To release warning triangle, push back the
retainers on the bracket.
3. Remove warning triangle
1from the
bracket.
To refit:
1. Place warning triangle
1back into the
bracket and push down to secure.
2. Fold down the luggage compartment floor.
3. Close the lift gate.
Setting up the warning triangle
1. Fold legs out to the side.
2. Fold side reflectors upwards to form a
triangle and lock them at the top using press
stud.
RUN-FLAT TIRES
With special run-flat tires, you can continue to
drive your vehicle even if there is a total loss of
pressure in one or more tires. The affected tire
must not show any clearly visible damage.
You can recognise run-flat tires by the marking
which appears on the tire side wall. You will
find this marking next to the tire size designa-
tion, the load-bearing capacity and the speed
index.Run-flat tires may only be used in conjunction
with an activated tire pressure loss warning
system or tire pressure monitor.
Pressure loss warning message
If a pressure loss warning message appears in
the vehicle information display:
•Observe the instructions in the display
messages.
•Check the tire for damage.
•If driving on, observe the following notes.
The driving distance possible in run-flat mode is
approximately 50 miles (80 km) when the ve-
hicle is partially laden and approximately 20
miles (30 km) when the vehicle is fully laden.
In addition to the vehicle load, the driving
distance possible depends upon:
•Vehicle speed.
•Road condition.
•Outside temperature.
The driving distance possible in run-flat mode
may be reduced by extreme driving conditions/
maneuvers, or it can be increased through a
moderate style of driving.NIC2686
6-4In case of emergency

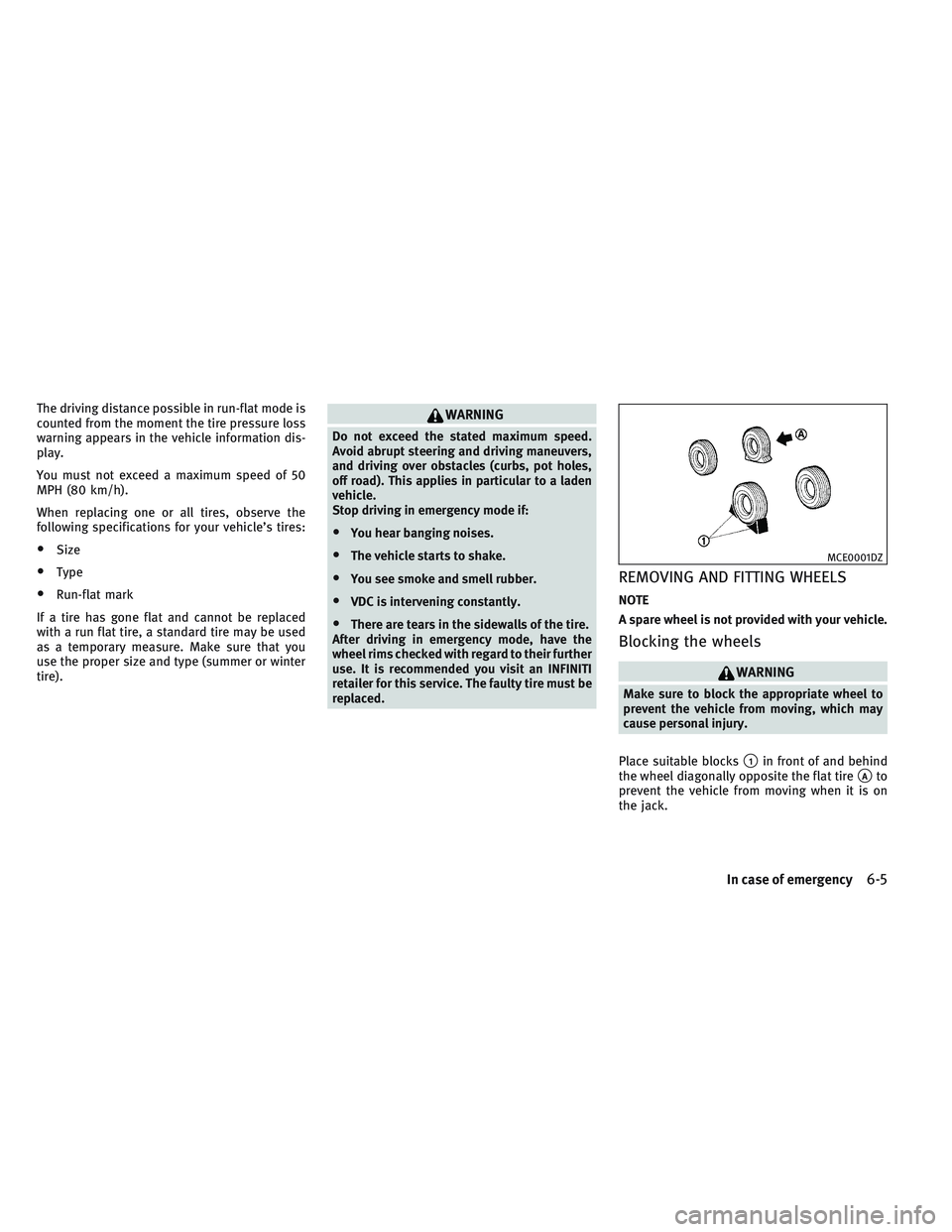

The driving distance possible in run-flat mode is
counted from the moment the tire pressure loss
warning appears in the vehicle information dis-
play.
You must not exceed a maximum speed of 50
MPH (80 km/h).
When replacing one or all tires, observe the
following specifications for your vehicle’s tires:
•Size
•Type
•Run-flat mark
If a tire has gone flat and cannot be replaced
with a run flat tire, a standard tire may be used
as a temporary measure. Make sure that you
use the proper size and type (summer or winter
tire).
WARNING
Do not exceed the stated maximum speed.
Avoid abrupt steering and driving maneuvers,
and driving over obstacles (curbs, pot holes,
off road). This applies in particular to a laden
vehicle.
Stop driving in emergency mode if:
•You hear banging noises.
•The vehicle starts to shake.
•You see smoke and smell rubber.
•VDC is intervening constantly.
•There are tears in the sidewalls of the tire.
After driving in emergency mode, have the
wheel rims checked with regard to their further
use. It is recommended you visit an INFINITI
retailer for this service. The faulty tire must be
replaced.
REMOVING AND FITTING WHEELS
NOTE
A spare wheel is not provided with your vehicle.
Blocking the wheels
WARNING
Make sure to block the appropriate wheel to
prevent the vehicle from moving, which may
cause personal injury.
Place suitable blocks
1in front of and behind
the wheel diagonally opposite the flat tire
Ato
prevent the vehicle from moving when it is on
the jack.
MCE0001DZ
In case of emergency6-5

Removing the wheel
WARNING
•The jack must be placed on firm level
ground. Failure to observe this instruction
could result in vehicle damage, or serious
injury or death.
•Make sure to read the caution label at-
tached to the jack body before use.
•DO NOT GET UNDER A VEHICLE THAT IS SUP-
PORTED BY A JACK.
•Never use a jack which was not designed for
your vehicle.
•Use the correct jacking points. Never use
any other part of the vehicle for jack sup-
port.
•Never lift the vehicle more than necessary.
•Never use blocks on or under the jack.
•Do not start or run the engine while the
vehicle is on the jack. The vehicle may move
suddenly, and this may cause an accident.
•Never allow passengers to stay in the ve-
hicle while the tire is off the ground.
•Remove all loads before lifting the vehicle
with the jack.
NOTE
A jack and rod are not provided as standard
equipment with your vehicle. These parts are
dealer options. It is recommended that you con-
tact an INFINITI retailer for more information
about obtaining these parts.1. Place the jack directly under the jack-up
point as illustrated so that the top of the jack
contacts the vehicle at the jack-up point.
The jack must be placed on firm level ground.NCE453NCE447Jack-up points
6-6In case of emergency

2. Align the center of both the jack head2and the notches at the jack-up point3as
shown.
3. Fit the groove of the jack head between the
two notches as shown.4. Loosen each wheel bolt by one or two turns
counterclockwise with the wheel wrench.
Do not remove the wheel bolts until the tire is
off the ground.
Models with wheel lock bolts (if equipped) :
If the wheel is equipped with a wheel lock
bolt, insert the wheel lock key
1and
loosen it as previously described.
The wheel lock bolt can only be removed
with the wheel lock key. A key number is
necessary if you need to duplicate the wheel
lock key.Record the key number as shown on the key
code card on the “Security information”
page at the end of this manual and keep it in
a safe place, not in the vehicle. If you lose
the wheel lock key, it is recommended you
see your INFINITI retailer for a duplicate with
the original wheel lock key code.
Make sure to keep the lock key in the
vehicle. Otherwise, wheels cannot be re-
moved and the service cannot be performed.
NCE449NCE143Z
In case of emergency6-7
