•When driving on extremely inclined sur-
faces such as higher banked corners, the
VDC system may not operate properly and
the VDC warning light
may illuminate.
Do not drive on these types of roads.
•When driving on an unstable surface such
as a turntable, ferry, elevator or ramp, the
VDC warning light
may illuminate. This
is not a malfunction. Restart the engine af-
ter driving onto a stable surface.
•If wheels or tires other than the INFINITI
recommended ones are used, the VDC sys-
tem may not operate properly and the VDC
warning light
may illuminate.
•The VDC system is not a substitute for win-
ter tires or tire chains on a snow covered
road.
•If VDC is malfunctioning, VDC is unable to
stabilize the vehicle. In addition, other driv-
ing safety systems are switched off. This
increases the risk of skidding and an acci-
dent. Drive on carefully. Have VDC checked.
It is recommended you visit an INFINITI re-
tailer for this service.
CAUTION
•When VDC is deactivated, theVDC
OFF warning light lights up continuously.
•If both thewarning light andwarning light are lit continuously, VDC is
not available due to a malfunction.
TRACTION CONTROL SYSTEM (TCS)
The Traction Control System (TCS) is part of
VDC..
Traction control brakes the drive wheels indi-
vidually if they spin. This enables you to pull
away and accelerate on slippery surfaces, for
example if the road surface is slippery on one
side. In addition, more drive torque is trans-
ferred to the wheel or wheels with traction.
Traction control remains active if you deactivate
VDC.
CHARACTERISTICS OF VDC
If theVDC warning light goes out before
beginning the journey, VDC is automatically
active.
If VDC intervenes, the
VDC warning lamp
flashes in the combination meter.If VDC intervenes:
•Do not deactivate VDC under any circum-
stances.
•When pulling away, only depress the accel-
erator pedal as far as is necessary.
•Adapt your driving style to suit the prevail-
ing road and weather conditions.
Deactivating/activating VDC
WARNING
If you deactivate VDC, VDC no longer stabilizes
the vehicle. There is an increased risk of skid-
ding and an accident.
Only deactivate VDC in the situations de-
scribed in the following section.
You can select between the following statuses
of VDC:
•VDC is activated.
•VDC is deactivated.
It may be best to deactivate VDC in the follow-
ing situations:
•When using snow chains.
•In deep snow.
•On sand or gravel.
Starting and driving5-91

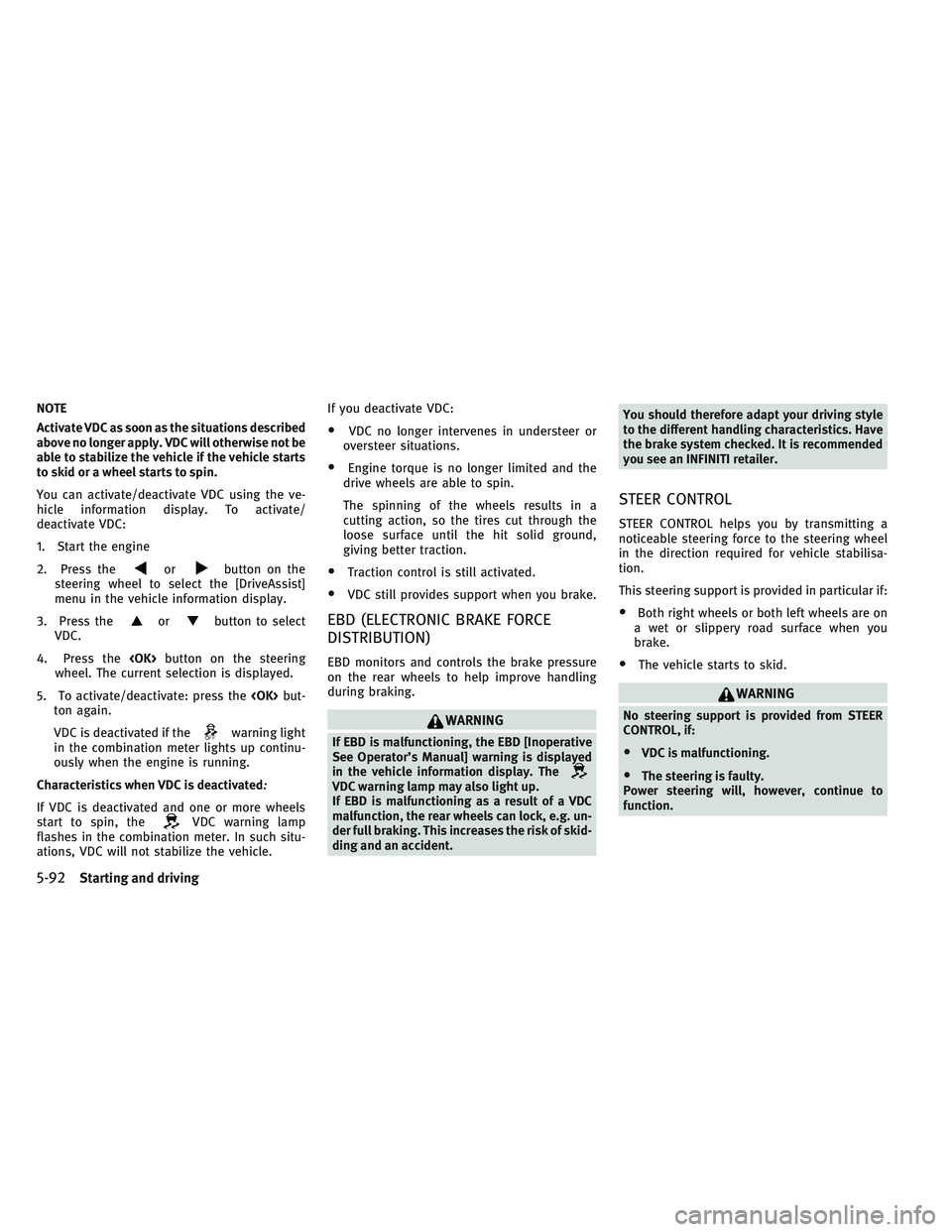

NOTE
Activate VDC as soon as the situations described
above no longer apply. VDC will otherwise not be
able to stabilize the vehicle if the vehicle starts
to skid or a wheel starts to spin.
You can activate/deactivate VDC using the ve-
hicle information display. To activate/
deactivate VDC:
1. Start the engine
2. Press the
orbutton on the
steering wheel to select the [DriveAssist]
menu in the vehicle information display.
3. Press the
orbutton to select
VDC.
4. Press thebutton on the steering
wheel. The current selection is displayed.
5. To activate/deactivate: press thebut-
ton again.
VDC is deactivated if the
warning light
in the combination meter lights up continu-
ously when the engine is running.
Characteristics when VDC is deactivated
:
If VDC is deactivated and one or more wheels
start to spin, theVDC warning lamp
flashes in the combination meter. In such situ-
ations, VDC will not stabilize the vehicle.If you deactivate VDC:
•VDC no longer intervenes in understeer or
oversteer situations.
•Engine torque is no longer limited and the
drive wheels are able to spin.
The spinning of the wheels results in a
cutting action, so the tires cut through the
loose surface until the hit solid ground,
giving better traction.
•Traction control is still activated.
•VDC still provides support when you brake.
EBD (ELECTRONIC BRAKE FORCE
DISTRIBUTION)
EBD monitors and controls the brake pressure
on the rear wheels to help improve handling
during braking.
WARNING
If EBD is malfunctioning, the EBD [Inoperative
See Operator’s Manual] warning is displayed
in the vehicle information display. The
VDC warning lamp may also light up.
If EBD is malfunctioning as a result of a VDC
malfunction, the rear wheels can lock, e.g. un-
der full braking. This increases the risk of skid-
ding and an accident.You should therefore adapt your driving style
to the different handling characteristics. Have
the brake system checked. It is recommended
you see an INFINITI retailer.
STEER CONTROL
STEER CONTROL helps you by transmitting a
noticeable steering force to the steering wheel
in the direction required for vehicle stabilisa-
tion.
This steering support is provided in particular if:
•Both right wheels or both left wheels are on
a wet or slippery road surface when you
brake.
•The vehicle starts to skid.
WARNING
No steering support is provided from STEER
CONTROL, if:
•VDC is malfunctioning.
•The steering is faulty.
Power steering will, however, continue to
function.
5-92Starting and driving

WARNING
•Never rely solely on the Hill Start Assist
(HSA) system to prevent the vehicle from
moving backward on a hill. Always drive
carefully and attentively. Depress the brake
pedal when the vehicle is stopped on a
steep hill. Be especially careful when
stopped on a hill on frozen or muddy roads.
Failure to prevent the vehicle from rolling
backwards may result in a loss of control of
the vehicle and possible serious injury or
death.
•The Hill Start Assist system is not designed
to hold the vehicle at a standstill on a hill.
Depress the brake pedal when the vehicle is
stopped on a steep hill. Failure to do so may
cause the vehicle to roll backwards and may
result in a collision or serious personal in-
jury.
•The Hill Start Assist system may not pre-
vent the vehicle from rolling backwards on a
hill under all load or road conditions. Al-
ways be prepared to depress the brake
pedal to prevent the vehicle from rolling
backwards. Failure to do so may result in a
collision or serious personal injury.
•After a short time, hill start assist will no
longer brake your vehicle and it could roll
away There is a risk of an accident and in-
jury. Therefore, quickly move your foot from
the brake pedal to the accelerator pedal.
Never leave the vehicle when it is held by
hill start assist.
Hill start assist helps you when pulling away
forwards or in reverse on an uphill gradient. It
holds the vehicle for a short time after you have
removed your foot from the brake pedal. This
gives you enough time to move your foot from
the brake pedal to the accelerator pedal and
depress it before the vehicle begins to roll.
Hill start assist is not active if
•You are pulling away on a level road or a
downhill gradient.
•On vehicles with automatic transmission,
the transmission is in position N.
•The electric parking brake is applied.
•VDC is malfunctioning.
FREEING A FROZEN DOOR LOCK
To prevent a door lock from freezing, apply
deicer through the key hole. If the lock becomes
frozen, heat the key before inserting it into the
key hole, or use the INFINITI Intelligent Key.
ANTIFREEZE
In the winter when it is anticipated that the
temperature will drop below 32°F (0°C), check the
antifreeze to assure proper winter protection. For
additional information, seeEngine cooling
systemin the8. Do-it-yourselfsection.
BATTERY
If the battery is not fully charged during ex-
tremely cold weather conditions, the battery
fluid may freeze and damage the battery. To
maintain maximum efficiency, the battery
should be checked regularly. For details, see
Batteryin the8. Do-it-yourselfsection of this
manual.
DRAINING OF ENGINE COOLANT
If the vehicle is to be left outside without
antifreeze, drain the cooling system, including
the engine block. Refill before operating the
vehicle. For details, seeChanging engine
coolantin the8. Do-it-yourselfsection of this
manual.
HILL START ASSIST (HSA) COLD WEATHER DRIVING
Starting and driving5-93

•When a replacement tire is mounted or a
wheel is replaced, the TPMS will not func-
tion and the low tire pressure warning light
will flash for approximately 1 minute. The
light will remain on after 1 minute. It is rec-
ommended you Contact an INFINITI retailer
as soon as possible for tire replacement
and/or system resetting.
•Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
•If you used Emergency Tire Sealant to repair
a minor tire puncture, the TPMS sensor
should be checked when repairing or re-
placing the tire. It is recommended you visit
an INFINITI retailer for this service.
The Tire Pressure Monitoring System (TPMS)
monitors tire pressure of all tires. When the low
tire pressure warning light is lit, and a tire
pressure-related warning (if equipped) appears
in the vehicle information display, one or more
of your tires is significantly under-inflated. If
the vehicle is being driven with low tire pres-
sure, the TPMS will activate and warn you of it
by the low tire pressure warning light (in the
meter panel). This system will activate only
when the vehicle is driven at speeds above 16MPH (25 km/h).
For more details about the TPMS, seeTire
Pressure Monitoring System (TPMS)in the5.
Starting and drivingStarting and drivingsec-
tion.
STOPPING VEHICLE
WARNING
•Be sure to apply the parking brake firmly.
•Be sure that P (Park) is engaged.
•Never change tires when the vehicle is on a
slope, ice or slippery area. This is hazard-
ous.
•Never change tires when the oncoming traf-
fic is close to your vehicle. Call for profes-
sional road assistance.
1. Safely move the vehicle off the road away
from traffic.
2. Turn on the hazard indicator flasher lights.
3. Park on a level surface.
4. Apply the parking brake.
5. Press the P (Park) button.6. Turn off the engine.
7. Open the hood and set up the triangle
reflector (if equipped):
•To warn other traffic.
•To signal professional road assistance
personnel that you need assistance.
8. Have all passengers get out of the vehicle
and stand in a safe place, away from other
traffic and clear of the vehicle.
In case of emergency6-3

WARNING
•Do not continue to drive if your vehicle over-
heats. Doing so could cause engine damage
or a vehicle fire.
•To avoid the danger of being scalded, never
remove the radiator or coolant reservoir cap
while the engine is hot. When the radiator or
coolant reservoir cap is removed, pressur-
ized hot water will spurt out, possibly caus-
ing serious injury.
•Do not open the hood if steam is coming
out.
If the engine of your vehicle is overheating
(indicated by the engine coolant temperature
gauge) or if you feel a lack of engine power,
detect unusual noise, etc., proceed as follows:
1. Move and park the vehicle safely off the
road and away from traffic.
2. Turn on the hazard warning flasher lights.
3. Apply the parking brake.
4. Press the P (Park) button.
DO NOT STOP THE ENGINE.
5. Open all windows.6. Switch off the air conditioner system (if
equipped).
7. Set the heater or air conditioner tempera-
ture control to maximum “HOT” and fan
speed control to maximum speed.
8. Exit the vehicle.
9. Visually inspect and listen for steam or
coolant escaping from the radiator before
opening the hood.WARNING
If steam or water is coming from the engine,
stand clear to prevent getting burned.
10. Open the hood. For details, seeHoodin
the3. Pre-driving checks and adjustments
section.
11. Visually check if the cooling fan is running.
12. Visually check the radiator and radiator
hoses for leakage.
WARNING
Be careful not to allow your hands, hair, jew-
elry or clothing to come into contact with, or
get caught in, engine belts or the engine cool-
ing fan. The engine cooling fan can start at any
time.
13. After the engine cools down, check the
coolant level in the engine coolant reservoir
with the engine running.Do not open the
radiator cap (if equipped).
14. If the level is low, remove the engine
coolant reservoir cap and add coolant
slowly into the reservoir. After refilling the
reservoir to the MAX level, install the res-
ervoir cap.
15. Close the hood.
Have your vehicle inspected or repaired. It is
recommended you visit an INFINITI retailer.
IF YOUR VEHICLE OVERHEATS
In case of emergency6-13

8 Do-it-yourself
Maintenance precautions..................8-2
Engine compartment check locations...........8-3
2.0L Gasoline engine...................8-3
Engine cooling system....................8-3
Checking engine coolant level.............8-4
Changing engine coolant................8-5
Engine oil............................8-5
Checking engine oil level................8-5
Changing engine oil...................8-5
Changing engine oil filter................8-6
Automatic Transmission Fluid (ATF)............8-7
Brake fluid...........................8-7
Window washer fluid.....................8-8
Battery.............................8-9
Accessing Vehicle battery...............8-10
Maintenance free battery................8-10
Models with Idle Stop/Start System.........8-11
Battery replacement...................8-11
Reinitialisation procedure after battery
reconnection.......................8-12
Jump-starting.......................8-12
Drive belt...........................8-12
Spark plugs..........................8-13
Air cleaner filter.......................8-13
Wiper blades.........................8-13Cleaning..........................8-13
Replacing front window wiper blades........8-14
Replacing rear window wiper blade..........8-15
Brakes.............................8-17
Self-adjusting brakes..................8-17
Fuses..............................8-17
Before replacing a fuse.................8-17
Engine compartment...................8-17
Passenger compartment................8-18
Intelligent key battery replacement..........
.8-20
Checking the battery..................8-20
Replacing the battery..................8-20
Lights.............................8-22
Exterior and interior lights...............8-22
Replacement procedures................8-24
Wheels and tires.......................8-27
Tire Pressure.......................8-27
Tire inflation pressure.................8-29
Tire labeling.......................8-30
Types of tires.......................8-31
Tire chains........................8-33
Tire wear and damage.................8-33
Tire rotation.......................8-34
Replacing wheels and tires..............8-34
Wheel balance......................8-36

2.0L GASOLINE ENGINE
1. Engine coolant reservoir (P. 8-3)
2. Engine oil dipstick (P. 8-5)
3. Engine oil filler cap (P. 8-5)
4. Brake fluid reservoir (P. 8-7)
5. Engine air cleaner filter (P. 8-13)6. Battery (P. 8-9)
7. Fuse box (P. 8-17)
8. Window washer fluid reservoir (P. 8-8)
WARNING
The engine cooling system is filled at the fac-
tory with a high-quality, year-round, antifreeze
coolant solution. The antifreeze solution con-
tains rust and corrosion inhibitors, therefore
additional cooling system additives are not
necessary.
•Never remove the radiator or coolant reser-
voir cap when the engine is hot. Wait until
the engine and radiator cool down. Serious
burns could be caused by high-pressure
fluid escaping from the radiator. For addi-
tional information on precautions, refer to
If your vehicle overheatsin the6. In case
of emergencysection
•The engine coolant reservoir tank is
equipped with a pressure type cap. To pre-
vent engine damage, use only a genuine
INFINITI pressure cap.
NIC2833
ENGINE COMPARTMENT CHECK
LOCATIONSENGINE COOLING SYSTEM
Do-it-yourself8-3

CAUTION
•Never use any cooling system additives
such as radiator sealer. Additives may clog
the cooling system and cause damage to
the engine, transmission and/or cooling
system.
•When adding or replacing coolant, be sure
to use only INFINITI Genuine Engine Cool-
ant, BASF Glysantin G40 or equivalent in its
quality. The use of other types of engine
coolant may damage the engine cooling
system.
CHECKING ENGINE COOLANT LEVEL
NOTE
The coolant level must only be checked and cor-
rected when the engine is cold.
1. Park the vehicle on a level surface.
Only check the coolant level if the vehicle is
on a level surface and the engine is cold.
2. Slowly turn cap
1half a turn counter-
clockwise to allow excess pressure to es-
cape.
3. Turn cap
1further counter-clockwise and
remove it.
If the coolant is at the level of marker bar
3in the filler neck when cold, there is enough
coolant in coolant expansion tank
2.4. If necessary, top up with INFINITI Genuine
Engine Coolant, BASF Glysantin G40 or
equivalent in its quality.
5. Replace cap
1and turn it clockwise as far
as it will go.
If the cooling system frequently requires cool-
ant, have it checked. It is recommended that you
visit an INFINITI retailer for this service.
NDI1602
8-4Do-it-yourself

CHANGING ENGINE COOLANT
An INFINITI retailer can change the engine cool-
ant.
Improper servicing can result in reduced heater
performance and engine overheating.
WARNING
•To avoid being scalded, never change the
coolant when the engine is hot.
•Never remove the radiator cap when the
engine is hot. Serious burns could be
caused by high pressure fluid escaping from
the radiator.
•Avoid direct skin contact with used coolant.
If skin contact is made, wash thoroughly
with soap or hand cleaner as soon as pos-
sible.
•Keep coolant out of reach of children and
pets.
Engine coolant must be disposed of properly.
Check your local regulations.
CHECKING ENGINE OIL LEVEL
1. Park the vehicle on a level surface and apply
the parking brake.
2. Start the engine and let it idle until it
reaches the normal operating temperature.
3. Turn off the engine. Wait more than 10
minutes for the oil to drain back into the oil
pan.
4. Remove the dipstick
1and wipe it clean.
Reinsert it all the way.
5. Remove the dipstick and check the oil level.
It should be within the range
2and3.
If the oil level is below
3, remove the oil
filler cap and pour the recommended oil into
the opening.Do not overfill
2.It is normal to add some oil between oil mainte-
nance intervals or during the break-in period,
depending on the severity of operating condi-
tions.
CAUTION
The oil level should be checked regularly. Op-
erating the engine with an insufficient amount
of oil can damage the engine, and such dam-
age is not covered by the warranty.
CHANGING ENGINE OIL
WARNING
•Prolonged and repeated contact with used
engine oil may cause skin cancer.
•Try to avoid direct skin contact with used
oil. If skin contact is made, wash thoroughly
with soap or hand cleaner and plenty of wa-
ter as soon as possible.
•Keep used engine oil out of reach of
children.
CAUTION
Be careful not to burn yourself. The engine oil
may be hot.
NDI15962.0L gasoline engine
ENGINE OIL
Do-it-yourself8-5

1. Park the vehicle on a level surface and apply
the parking brake.
2. Start the engine and let it idle until it
reaches the normal operating temperature,
then turn it off.
3. Remove the oil filler cap by turning it
counterclockwise.
4. Remove the engine undershield.
5. Place a large drain pan under the drain plug.
6. Remove the drain plug with a wrench by
turning it counterclockwise and completely
drain the oil. If the oil filter is to be changed,
remove and replace it at this time. For
additional information, refer toChanging
engine oil filterlater in this section.
•Waste oil must be disposed of properly.
•Check your local regulations.
7. Clean and reinstall the drain plug and a new
washer. Securely tighten the drain plug with
a wrench. Do not use excessive force. Drain
plug tightening torque: 22 ft-lb, 30 N•m
8. Refill engine with recommended oil through
the oil filler opening, then install the oil filler
cap securely.
For additional information on drain and refill
capacity, refer toRecommended fluids/
lubricants and capacitiesin the9. Maintenance
and Schedulessection.
The drain and refill capacity depends on the
oil temperature and drain time. Use these
specifications for reference only. Always use
the dipstick to determine when the proper
amount of oil is in the engine.
9. Start the engine. Check for leakage around
the drain plug and oil filter. Correct as
required.
10. Turn the engine off and wait more than 10
minutes. Check the oil level with the dip-
stick. Add engine oil if necessary.
CHANGING ENGINE OIL FILTER
1. Park the vehicle on a level surface and apply
the parking brake.
2. Turn the engine off.
3. Place a large drain pan under the oil filter
1.
4. Loosen the oil filter
1with an oil filter
wrench by turning it counterclockwise. Then
remove the oil filter by turning it by hand.
CAUTION
Be careful not to burn yourself. The engine oil
may be hot.
5. Wipe the engine oil filter sealing surface
with a clean rag.
NDI1622NDI16102.0L gasoline engine
8-6Do-it-yourself
