DIFFERENCE BETWEEN PREDICTED AND
ACTUAL DISTANCES
The displayed guidelines and their locations on
the ground are for approximate reference only.
Objects on uphill or downhill surfaces or pro-
jecting objects will be actually located at dis-
tances different from those displayed in the
monitor relative to the guidelines (refer to illus-
trations). When in doubt, turn around and view
the objects as you are backing up, or park and
exit the vehicle to view the positioning of
objects behind the vehicle.
Backing up on a steep uphill
When backing up the vehicle up a hill, the
distance guide lines and the vehicle width
guide lines are shown closer than the actual
distance. Note that any object on the hill is
viewed in the monitor farther than it appears.
Backing up on a steep downhill
When backing up the vehicle down a hill, the
distance guide lines and the vehicle width
guide lines are shown farther than the actual
distance. Note that any object on the hill is
viewed in the monitor closer than it appears.
NAA1675NAA1676
Display screen, heater and air conditioner, and audio system4-29

Backing up near a projecting object
The predicted course linesAdo not touch the
object in the display. However, the vehicle may
hit the object if it projects over the actual
moving course.
Backing up behind a projecting
object
The positionCis shown farther than the
position
Bin the display. However, the posi-
tion
Cis actually at the same distance as theposition
A. The vehicle may hit the object
when backing up to the position
Aif the object
projects over the actual moving course.
HOW TO PARK WITH PREDICTED
COURSE LINES
WARNING
•If the tires are replaced with different sized
tires, the predicted course lines may not be
displayed correctly.
•On a snow-covered or slippery road, there
may be a difference between the predicted
course lines and the actual course.
•The displayed lines will appear slightly off
to the right because the rear view camera is
not installed in the rear center of the ve-
hicle.
•If the battery is disconnected or becomes
discharged, the predicted course lines may
be displayed incorrectly. If this occurs,
please perform the following procedures:
–Turn the steering wheel from lock to lock
while the engine is running.
–Drive the vehicle on a straight road for
more than 5 minutes.
SAA1923SAA1980
4-30Display screen, heater and air conditioner, and audio system

•When the steering wheel is turned with the
ignition switch in the ACC position, the pre-
dicted course lines may be displayed
incorrectly.
The vehicle width and predicted course lines
are wider than the actual width and course.
1. Visually check that the parking space is safe
before parking your vehicle.2. The rear view of the vehicle is displayed on
the screenAas illustrated when the shift
lever is moved to the R (Reverse) position.
SAA1897
Display screen, heater and air conditioner, and audio system4-31

3. Slowly back up the vehicle adjusting the
steering wheel so that the predicted course
lines
Benter the parking spaceC.4. When the rear of the vehicle enters the
parking space
C, maneuver the steering
wheel to make the vehicle width guide lines
Dparallel to the parking spaceC.
5. When the vehicle is parked in the space
completely, press the P (Park) button and
apply the parking brake.
HOW TO SWITCH THE DISPLAY
The view on the Around View Monitor screen
can be switched by pressing the
button or by changing the shift lever position.
Press thebutton:
When thebutton is pushed while a
screen other than a camera screen is displayed,
the Around View Monitor operates and the front
view and bird’s-eye view are displayed. Push
thebutton to switch the display to
the front view and front-side view screen.
ADJUSTING THE SCREEN
1. Push the

A[Settings] key
B

AROUND VIEW®MONITOR SYSTEM
LIMITATIONS
WARNING
Listed below are the system limitations for
Around View Monitor. Failure to operate the
vehicle in accordance with these system limi-
tations could result in serious injury or death.
•Do not use the Around View Monitor with
the outside mirror in the stored position,
and make sure that the lift gate is securely
closed when operating the vehicle using the
Around View Monitor.
•The apparent distance between objects
viewed on the Around View Monitor differs
from the actual distance.
•The cameras are installed on the front
grille, the outside mirrors and above the
rear license plate. Do not put anything on
the cameras.
•When washing the vehicle with high-
pressure water, be sure not to spray it
around the cameras. Otherwise, water may
enter the camera unit causing water con-
densation on the lens, a malfunction, fire or
an electric shock.
•Do not strike the cameras. They are preci-sion instruments. Doing so could cause a
malfunction or cause damage resulting in a
fire or an electric shock.
The following are operating limitations and do
not represent a system malfunction:
•There may be a delay when switching be-
tween views.
•When the temperature is extremely high or
low, the screen may not display objects
clearly.
•When strong light is directly shines on the
camera, objects may not be displayed
clearly.
•The screen may flicker under fluorescent
light.
•The colors of objects on the Around View
Monitor may differ somewhat from the actual
color of objects.
•Objects on the monitor may not be clear and
the color of the object may differ in a dark
environment.
•There may be differences in sharpness
between each camera view of the bird’s-eye
view.
•Do not use wax on the camera lens. Wipe off
any wax with a clean cloth that has been
dampened with a diluted mild cleaning
agent, then wipe with a dry cloth.
4-34Display screen, heater and air conditioner, and audio system

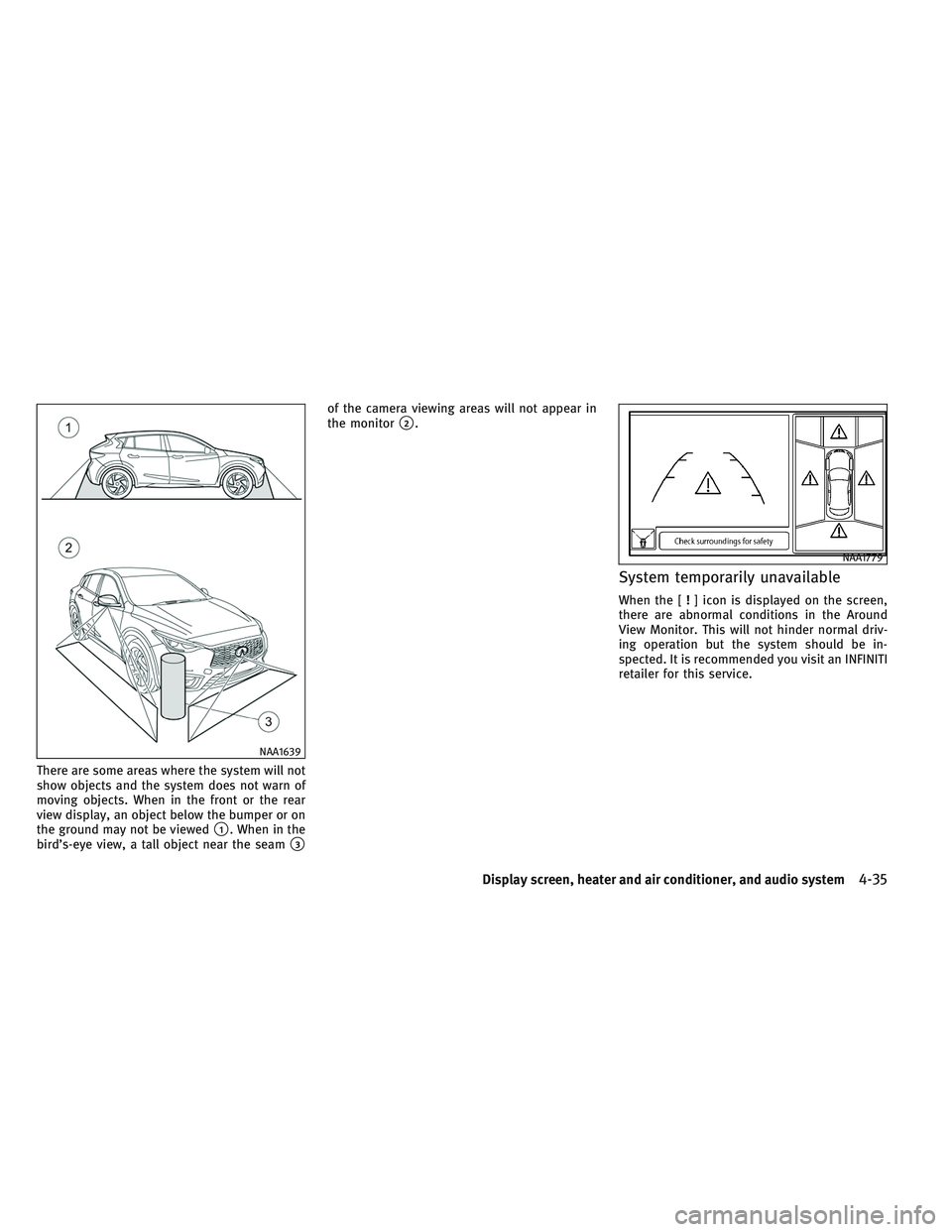

There are some areas where the system will not
show objects and the system does not warn of
moving objects. When in the front or the rear
view display, an object below the bumper or on
the ground may not be viewed
1. When in the
bird’s-eye view, a tall object near the seam
3
of the camera viewing areas will not appear in
the monitor
2.
System temporarily unavailable
When the [!] icon is displayed on the screen,
there are abnormal conditions in the Around
View Monitor. This will not hinder normal driv-
ing operation but the system should be in-
spected. It is recommended you visit an INFINITI
retailer for this service.
NAA1639
NAA1779
Display screen, heater and air conditioner, and audio system4-35

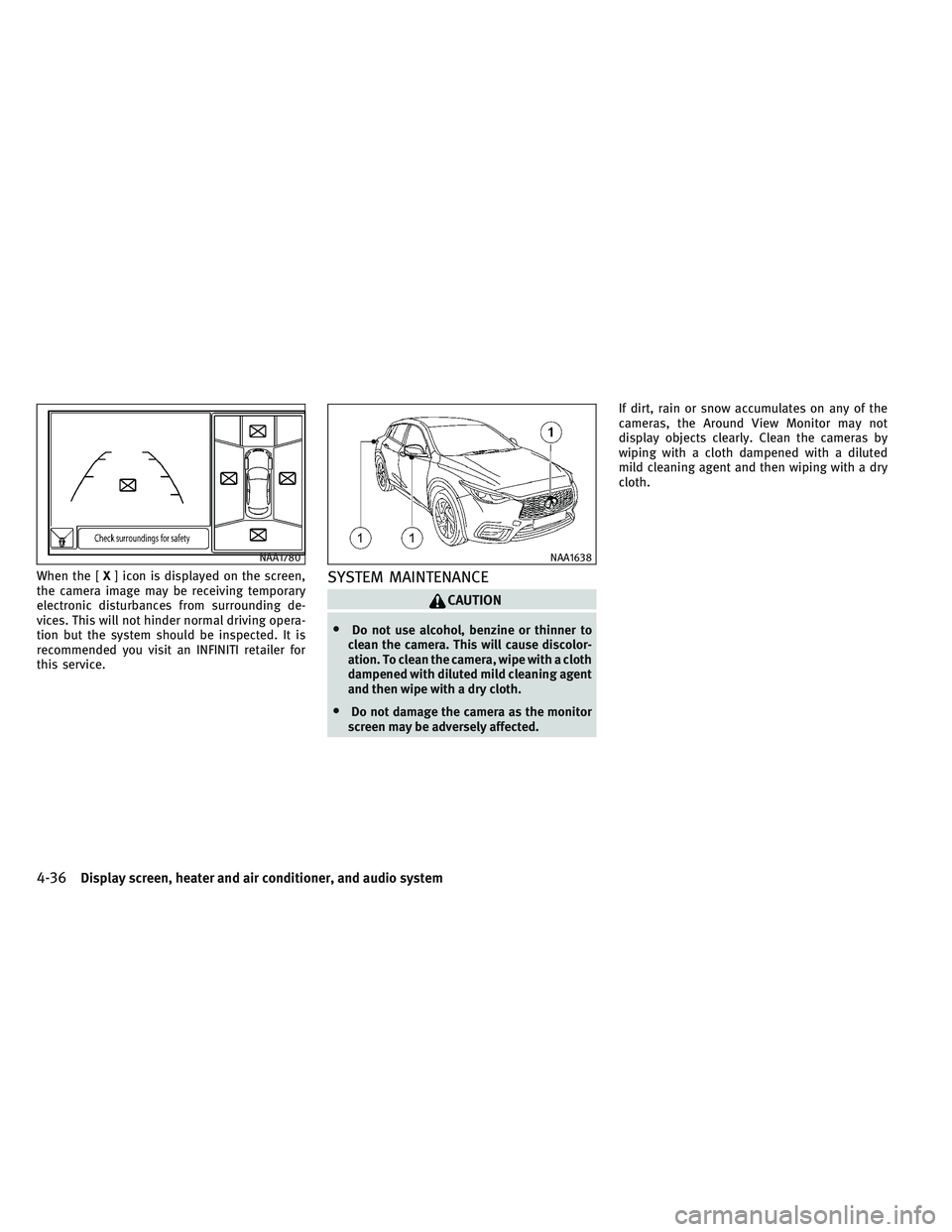

When the [X] icon is displayed on the screen,
the camera image may be receiving temporary
electronic disturbances from surrounding de-
vices. This will not hinder normal driving opera-
tion but the system should be inspected. It is
recommended you visit an INFINITI retailer for
this service.SYSTEM MAINTENANCE
CAUTION
•Do not use alcohol, benzine or thinner to
clean the camera. This will cause discolor-
ation. To clean the camera, wipe with a cloth
dampened with diluted mild cleaning agent
and then wipe with a dry cloth.
•Do not damage the camera as the monitor
screen may be adversely affected.If dirt, rain or snow accumulates on any of the
cameras, the Around View Monitor may not
display objects clearly. Clean the cameras by
wiping with a cloth dampened with a diluted
mild cleaning agent and then wiping with a dry
cloth.
NAA1780NAA1638
4-36Display screen, heater and air conditioner, and audio system

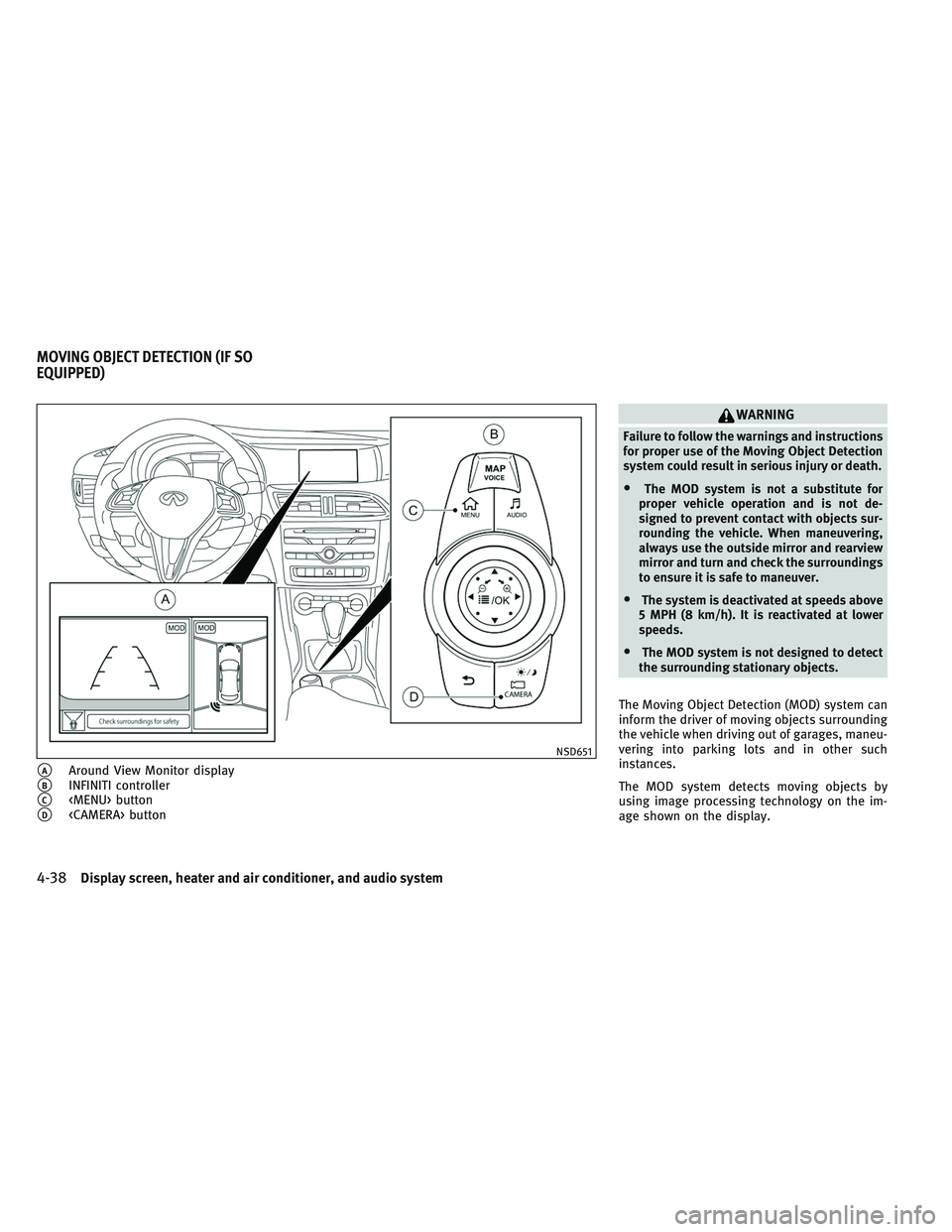

A[Settings] key
B

AAround View Monitor display
BINFINITI controller
