Mail settings
Various settings can be changed from the Mail
Settings screen.
1. Push

Phonebook
Information in the phonebook on cellular
phones can be downloaded.
Phone and text message settingsearlier in
this section
1. Push

BLUETOOTH® INFORMATION
Information about the connected Bluetooth®
device can be viewed.
1. Push

Laws in some jurisdictions may restrict the use
of some of the applications and features, such
as social networking and texting. Check local
regulations for any requirements.
INFINITI InTouch provides in-vehicle access to
two types of applications: Vehicle Apps and
Mobile Apps. Vehicle Apps can be downloaded
from App Garage in the menu screen. Mobile
Apps are a limited selection of popular
smartphone-based Apps that have been cus-
tomized for in-vehicle use. Mobile Apps can be
accessed by connecting a compatible smart-
phone to the vehicle.
The system allows you to download new appli-
cations, update downloaded applications and
delete downloaded applications in a similar
manner to popular smartphone operating sys-
tems.
Some pre-installed Vehicle Apps can be used
without taking any further action. However, you
will need to connect a compatible smartphone
to the vehicle in order to update Vehicle Apps or
use Mobile Apps.
To view a list of compatible smartphones, visit
www.infinitiusa.com/bluetooth.
The use of applications is only guaranteed for
smartphones that have been tested and ap-
proved for use with INFINITI InTouch Apps. OnlyiPhoneRand Android devices are currently
supported. Android smartphones must support
Bluetooth® and SPP (Serial Port Profile).
Using with iPhone
R:
To use InTouch Apps with your iPhone
R, the
iPhone
Rmust be connected with a USB cable.
If an additional iPhone
Ris connected by
wired connection while an iPod
Ris being
used via a wired connection, the service will not
be available. To use the service, it is first
necessary to unplug the iPod
Rcable from the
USB port where the iPod
Ris connected.
Steering wheel mounted controlsearlier in
this section
Using with Android smartphone:
To use InTouch Apps with your Android smart-
phone, the device must be connected via
Bluetooth® and registered as a hands-free
device.
Bluetooth® Hands-Free Phone Systemearlier
in this section
A compatible smartphone is required to use
Mobile Apps or to access connected features of
certain Vehicle Apps. Please visit
www.infinitiusa.com/bluetooth for a list of com-
patible devices.
CAUTION
•To use Mobile Apps, the INFINITI InTouch
App must be installed and running on the
compatible smartphone. This App can be
downloaded from the iTunes APP Store or
the Google Play store.
•Mobile Apps also require an active sub-
scription and valid INFINITI Owner Portal ac-
count. Please see www.infinitiusa.com/
infinitiintouch/support/ (for United States)
or www.infiniti.ca/infinitiintouch (for
Canada) for more information
•Communication fees may be charged de-
pending on the contents of the contract be-
tween the user and the cellular phone car-
rier.
•Before using this service, some applica-
tions may require individual subscriptions.
•For some applications, the system may not
support all functions of the applications
that are installed on your smartphone. Ad-
ditionally, due to service provider policies,
the contents of application services may be
changed or terminated.
•If the smartphone is outside the network
range, some functions cannot be used.
INFINITI INTOUCH APPS OVERVIEW
Display screen, heater and air conditioner, and audio system4-99

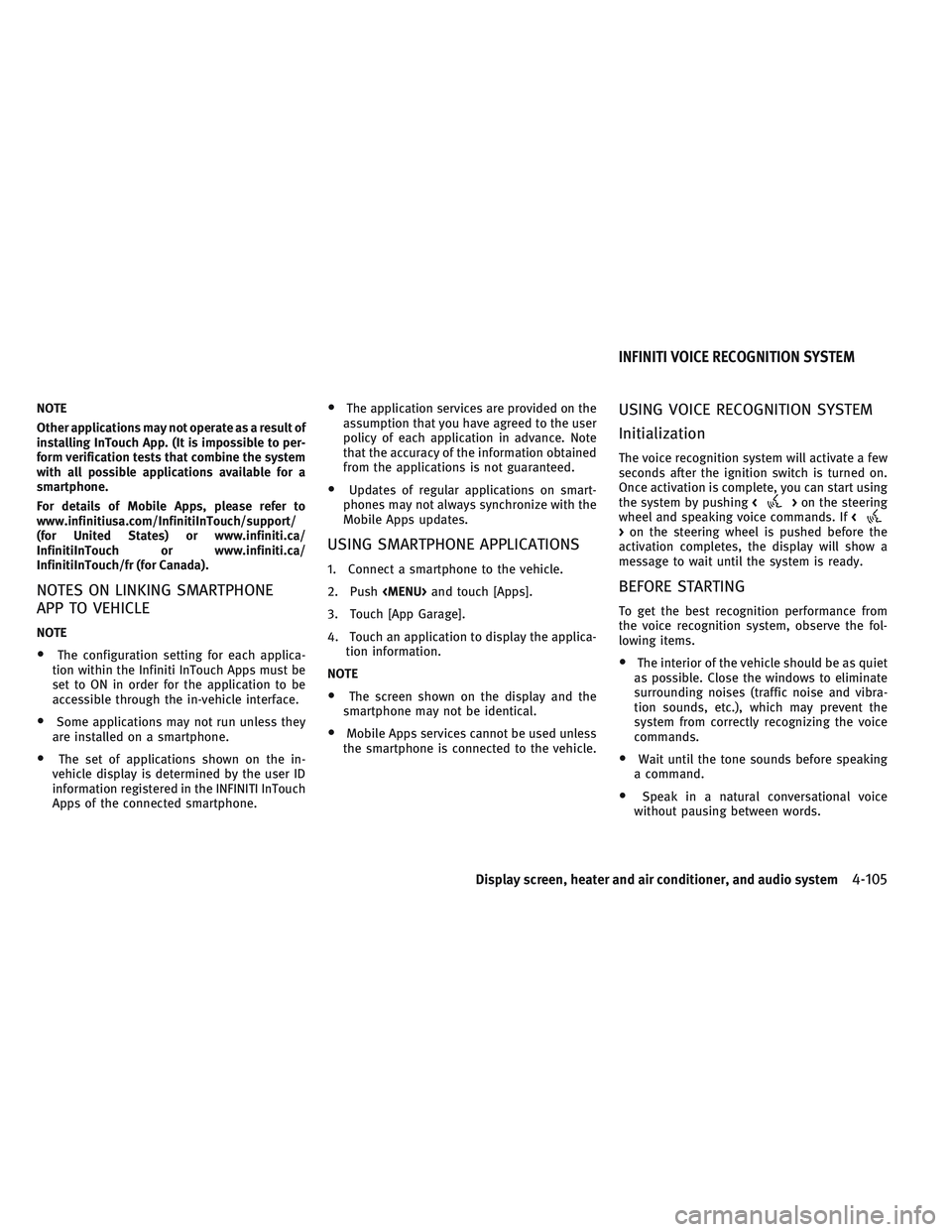

NOTE
Other applications may not operate as a result of
installing InTouch App. (It is impossible to per-
form verification tests that combine the system
with all possible applications available for a
smartphone.
For details of Mobile Apps, please refer to
www.infinitiusa.com/InfinitiInTouch/support/
(for United States) or www.infiniti.ca/
InfinitiInTouch or www.infiniti.ca/
InfinitiInTouch/fr (for Canada).
NOTES ON LINKING SMARTPHONE
APP TO VEHICLE
NOTE
•The configuration setting for each applica-
tion within the Infiniti InTouch Apps must be
set to ON in order for the application to be
accessible through the in-vehicle interface.
•Some applications may not run unless they
are installed on a smartphone.
•The set of applications shown on the in-
vehicle display is determined by the user ID
information registered in the INFINITI InTouch
Apps of the connected smartphone.
•The application services are provided on the
assumption that you have agreed to the user
policy of each application in advance. Note
that the accuracy of the information obtained
from the applications is not guaranteed.
•Updates of regular applications on smart-
phones may not always synchronize with the
Mobile Apps updates.
USING SMARTPHONE APPLICATIONS
1. Connect a smartphone to the vehicle.
2. Push

GIVING VOICE COMMANDS
1. Push<>located on the steering wheel.
2. A list of commands appears on the screen,
and the system provides a voice menu
prompt.
When this screen is displayed, almost all of
the commands can be recognized. Available
commands for each categories can be shown
on the right side of the screen. Highlight a
category listed in the left side of the screen
with the INFINITI controller to find your pre-
ferred command.
Selecting a category by touching the screen
or pushing<
/OK>will execute the
command. After executing the category com-
mand, only the commands related to the
selected category can be recognized.
Command listin the5. Starting and driv-
ingsection3. After the tone sounds and the icon on the
screen changes from
to, speak a
command. You can also select a command
by directly touching the screen.
The Voice Recognition system will pause
operation when the INFINITI controller is
moved. To resume operation, push<
>
on the steering wheel.
4. Continue to follow the voice menu prompts
and speak after the tone sounds until the
preferred operation is completed.
To cancel the voice command, push and hold<
>.
You can interrupt the voice prompt at any time
by pushing<
>.
Operating tips
•Speak a command after the tone.
•If the command is not accepted, the system
announces, “Please say again”. Repeat the
command in a clear voice.
•Push<>on the steering-wheel switch
once to return to the previous screen.
•Voice commands spoken from the passen-
ger seat cannot be recognized.
NAA1732
4-106Display screen, heater and air conditioner, and audio system

•When the<>on the steering wheel is
pressed while the air conditioner is set to the
Auto mode, the system controls the air con-
ditioner fan speed in order to improve voice
recognition performance. When the fan
speed is set higher than the 4th speed
position, the fan speed is decreased to 4th
speed. When the air conditioner is set to the
manual mode, the fan speed does not
change. The accuracy of voice recognition
may be affected depending on the fan speed
and the air direction.
•To skip the voice guidance function and give
the command immediately, push<>on
the steering-wheel to interrupt the system.
Remember to speak after the tone.
•To cancel the command, push and hold<>or<>on the steering-wheel.
•Push<>on the steering-wheel to stop
the voice prompt and give the command at
once. Remember to wait for the tone before
speaking.
•To adjust the volume of the system feed-
back, push the volume switch on the steering
wheel or use the audio system >while the system is making an announce-
ment.
•For searching with Street Address, Point of
Interest and City Center, the searching area
is automatically set to the state where your
vehicle is located. Use Change State/
Province to change the search area to an-
other state if necessary.
How to see voice command screen
1. Push<>to display the first screen of
the voice command list.
2. Speak a command or select an item from
the voice command list. The second screen
is displayed.
3. Speak a command. The list screen is dis-
played.
4. Speak the preferred number from the list to
perform operation.
The voice commands can be spoken one at a
time following prompts step by step or the
command can be spoken successively in one
step.
1Shows available command list. It is also
available to select a command from this
list by touching or using the INFINITI
controller.
2Shows available command list. Dis-
played commands are only available to
execute through voice recognition. You
can say commands from the left screen
and the right screen continuously.
5GD0015XZFirst screen
Display screen, heater and air conditioner, and audio system4-107

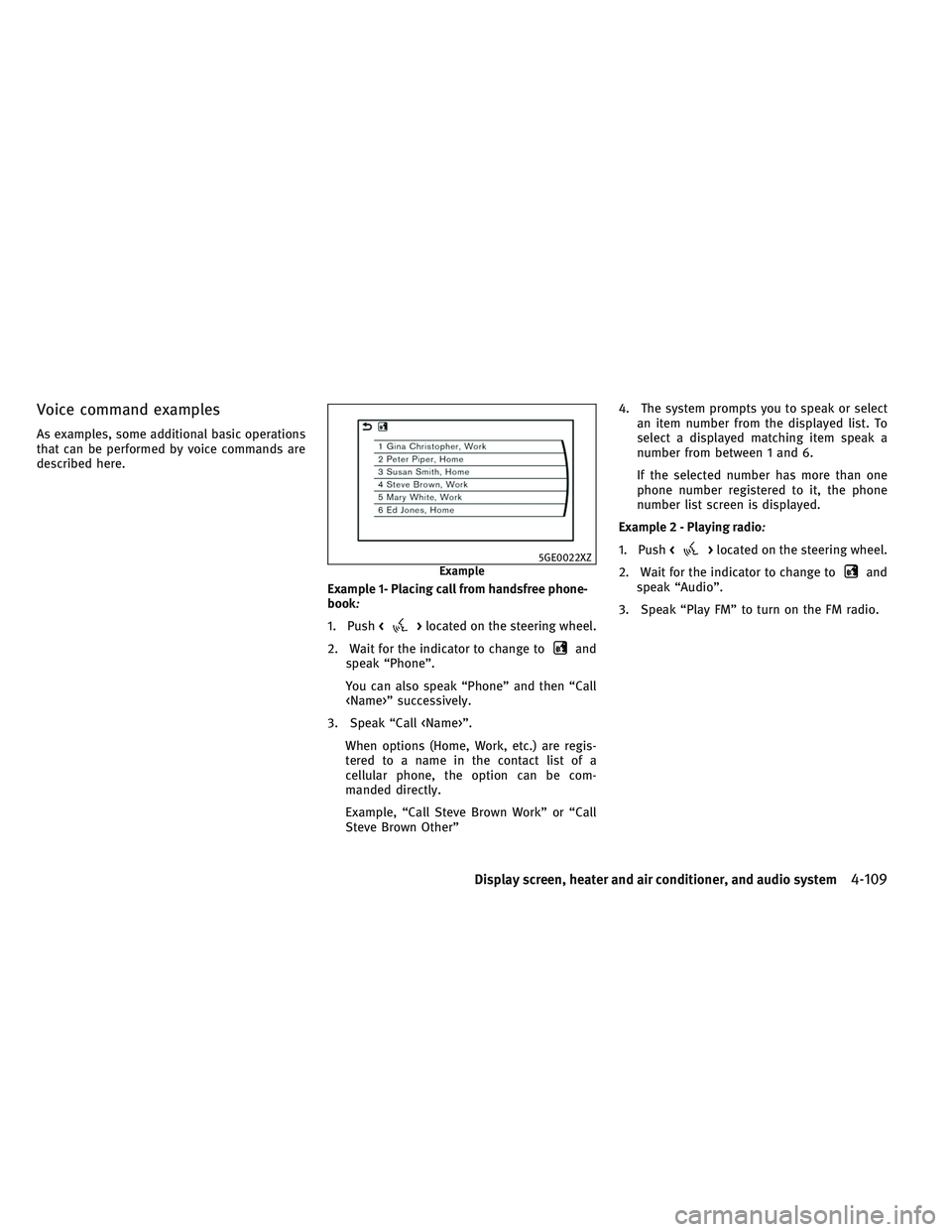

Voice command examples
As examples, some additional basic operations
that can be performed by voice commands are
described here.
Example 1- Placing call from handsfree phone-
book
:
1. Push<>located on the steering wheel.
2. Wait for the indicator to change to
and
speak “Phone”.
You can also speak “Phone” and then “Call
” successively.
3. Speak “Call ”.
When options (Home, Work, etc.) are regis-
tered to a name in the contact list of a
cellular phone, the option can be com-
manded directly.
Example, “Call Steve Brown Work” or “Call
Steve Brown Other”4. The system prompts you to speak or select
an item number from the displayed list. To
select a displayed matching item speak a
number from between 1 and 6.
If the selected number has more than one
phone number registered to it, the phone
number list screen is displayed.
Example 2 - Playing radio
:
1. Push<>located on the steering wheel.
2. Wait for the indicator to change to
and
speak “Audio”.
3. Speak “Play FM” to turn on the FM radio.5GE0022XZExample
Display screen, heater and air conditioner, and audio system4-109

5 Starting and driving
Precautions when starting and driving..........5-4
Exhaust gas (carbon monoxide)............5-4
Three-way catalyst (if equipped)............5-4
Tire Pressure Monitoring System (TPMS).......5-5
On pavement and off-road driving precautions . . .5-9
Avoiding collision and rollover............5-10
Off-road recovery.....................5-10
Rapid air pressure loss.................5-10
Drinking alcohol/drugs and driving..........5-11
Driving safety precautions...............5-11
All-wheel drive (AWD) driving safety precautions
(if so equipped).....................5-13
Infiniti Vehicle Immobilizer system............5-14
Ignition switch........................5-14
Steering lock.......................5-14
Key positions.......................5-15
Before starting engine....................5-15
Starting engine........................5-16
Starting procedure with the key............5-16
Driving the vehicle......................5-17
Driving with Automatic Transmission.........5-17
Parking brake.........................5-25
Applying/releasing manually..............5-25
Applying automatically
(vehicles with automatic transmission).......5-26Releasing automatically................5-26
Emergency braking...................5-26
Idle Stop/Start System (if equipped)...........5-27
Automatic engine switch-off..............5-27
Automatic engine start.................5-28
Deactivating/activating the Idle Stop/Start
function..........................5-28
Lane departure warning (LDW) system
(if equipped).........................5-29
LDW system operation.................5-30
How to enable/disable the LDW system.......5-31
LDW system limitations.................5-31
LDW system temporarily unavailable.........5-33
System malfunction..................
.5-34
System maintenance..................5-34
Blind Spot Warning (BSW) system (if equipped). . . .5-35
BSW system operation.................5-36
How to enable/disable the BSW system......5-38
BSW system limitations................5-38
System temporarily unavailable............5-43
Radar maintenance...................5-44
FCC Notice........................5-44
Cruise control........................5-44
Cruise control operations................5-45

Intelligent Cruise Control (ICC) system
(Full speed range) (if equipped)..............5-47
ICC system operation..................5-48
ICC switch (cruise control lever)...........5-49
ICC system display and indicators..........5-49
Operating ICC.......................5-50
ICC Limitations......................5-54
Tips for driving with the ICC system.........5-55
System temporarily unavailable............5-58
System maintenance..................5-59
Forward emergency braking (FEB) system
(if equipped).........................5-60
FEB system operation..................5-61
Turning the FEB system on/off............5-63
FEB system limitations.................5-64
System temporarily unavailable............5-65
System maintenance..................5-66
FCC Notice........................5-66
Active sound enhancement................5-67
Active sound enhancement..............5-67
Intelligent Parking Assist (IPA) (if equipped)......5-68
Important safety notes.................5-68
Detecting parking spaces...............5-69
Parking..........................5-70
Exiting a parking space.................5-72
Canceling IPA.......................5-73Parking sensor system (if equipped)...........5-73
Parking sensor overview................5-75
Range of the sensors..................5-79
Parking sensor system OFF switch..........5-79
Parking sensor function settings...........5-80
Problems with parking sensor system........5-81
Break-in schedule......................5-81
Fuel efficient driving tips..................5-82
Increasing fuel economy..................5-83
Four-Wheel Drive (4WD) (if equipped)
..........5-83
Parking............................5-84
Switching off the engine................5-85
Extended parking....................5-86
Electric power steering system..............5-86
Brake system.........................5-87
Brake precautions....................5-87
Anti-lock Braking System (ABS)............5-88
Vehicle Dynamic Control (VDC) system.........5-90
Traction Control System (TCS).............5-91
Characteristics of VDC..................5-91
EBD (electronic brake force distribution)......5-92
Steer Control.......................5-92
Hill Start Assist (HSA)....................5-93
Cold weather driving....................5-93
Freeing a frozen door lock...............5-93
Antifreeze.........................5-93
