WARNING
•If you fail to adapt your driving style,
cruise control can neither reduce the risk
of an accident nor override the laws of
physics. Cruise control cannot take into
account road, weather or traffic condi-
tions. Cruise control is only an aid. You
are responsible for the distance to the
vehicle in front, for vehicle speed, for
braking in good time, and for staying in
lane.
•Always observe the posted speed limits
and do not set the speed over them.
•Do not use the cruise control when driv-
ing under the following conditions. Do-
ing so could cause a loss of vehicle con-
trol and result in an accident.
–When it is not possible to keep the
vehicle at a constant speed
–When driving in heavy traffic
–When driving in traffic that varies
speed
–When driving in windy areas
–When driving on winding or hilly
roads
–When driving on slippery (rain, snow,
ice, etc.) roads
CRUISE CONTROL OPERATIONS
1Store the current speed or a higher speed
2Store the current speed, or if a speed has
previously been stored, call up the last
stored speed.
3Store the current speed or a lower speed
4Deactivate the cruise control system
When you activate cruise control, the stored
speed is shown in the vehicle information
display for five seconds.
Activation conditions
To activate cruise control, all of the following
activation conditions must be fulfilled:
•The electric parking brake must be re-
leased.
•You are driving faster than 20 MPH
(30 km/h).
•VDC must be switched on, but not inter-
vening.
Storing, maintaining and calling up
a speed
Storing and maintaining the current speed:
You can store the current speed if you are
driving faster than 20 MPH (30 km/h):
1. Accelerate the vehicle to the desired
speed.
2. Briefly press the cruise controller lever up
1or down3.
3. Remove your foot from the accelerator
pedal.
Cruise control is activated. The vehicle auto-
matically maintains the speed.
NOTE
Cruise control may be unable to maintain the
stored speed on uphill gradients. The stored
speed is resumed when the gradient evens
out. Cruise control maintains the stored
speed on downhill gradients by automati-
cally braking the vehicle.
NSD618A
Starting and driving5-47

Storing the current speed or calling up the
last stored speed:

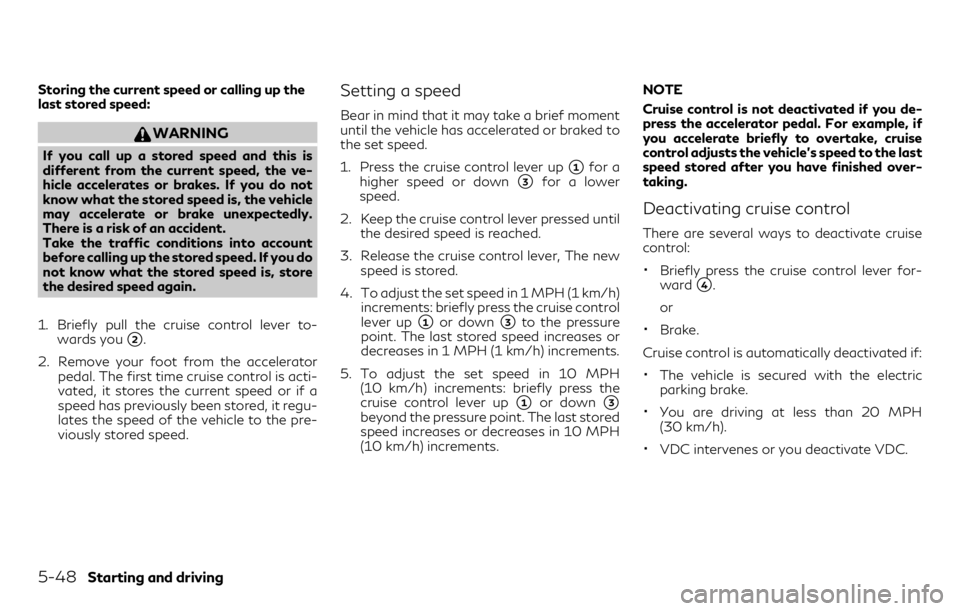

WARNING
If you call up a stored speed and this is
different from the current speed, the ve-
hicle accelerates or brakes. If you do not
know what the stored speed is, the vehicle
may accelerate or brake unexpectedly.
There is a risk of an accident.
Take the traffic conditions into account
before calling up the stored speed. If you do
not know what the stored speed is, store
the desired speed again.
1. Briefly pull the cruise control lever to-
wards you
2.
2. Remove your foot from the accelerator
pedal. The first time cruise control is acti-
vated, it stores the current speed or if a
speed has previously been stored, it regu-
lates the speed of the vehicle to the pre-
viously stored speed.
Setting a speed
Bear in mind that it may take a brief moment
until the vehicle has accelerated or braked to
the set speed.
1. Press the cruise control lever up
1for a
higher speed or down
3for a lower
speed.
2. Keep the cruise control lever pressed until
the desired speed is reached.
3. Release the cruise control lever, The new
speed is stored.
4. To adjust the set speed in 1 MPH (1 km/h)
increments: briefly press the cruise control
lever up
1or down3to the pressure
point. The last stored speed increases or
decreases in 1 MPH (1 km/h) increments.
5. To adjust the set speed in 10 MPH
(10 km/h) increments: briefly press the
cruise control lever up
1or down3beyond the pressure point. The last stored
speed increases or decreases in 10 MPH
(10 km/h) increments.NOTE
Cruise control is not deactivated if you de-
press the accelerator pedal. For example, if
you accelerate briefly to overtake, cruise
control adjusts the vehicle's speed to the last
speed stored after you have finished over-
taking.
Deactivating cruise control
There are several ways to deactivate cruise
control:
•Briefly press the cruise control lever for-
ward
4.
or
•Brake.
Cruise control is automatically deactivated if:
•The vehicle is secured with the electric
parking brake.
•You are driving at less than 20 MPH
(30 km/h).
•VDC intervenes or you deactivate VDC.
5-48Starting and driving

If cruise control is deactivated, you will hear a
warning tone. You will see the [Cruise Control
Off] message in the vehicle information dis-
play for approximately five seconds.
NOTE
The last speed stored is cleared when you
switch off the engine.WARNING
Failure to follow the warnings and instruc-
tions for proper use of the ICC system
could result in serious injury or death.
•ICC is not a collision avoidance or warn-
ing device. For highway and freeway
way use only and not intended for con-
gested areas or city driving. Failure to
apply the brakes could result in an acci-
dent. It is the driver’s responsibility to
stay alert, drive safely, and be in control
of the vehicle at all times.
•Always observe posted speed limits and
do not set the speed over them.
•Always drive carefully and attentively
when using the ICC. Read and under-
stand the Owner’s Manual thoroughly
before using the ICC system. To avoid
serious injury or death, do not rely on the
system to prevent accidents or to con-
trol the vehicle’s speed in emergency
situations. Do not use the ICC system
except in appropriate road and traffic
conditions.
INTELLIGENT CRUISE CONTROL
(ICC) SYSTEM (FULL SPEED RANGE)
(IF EQUIPPED)
Starting and driving5-49

ICC SYSTEM OPERATION
1Speedometer
2Distance warning light
3Vehicle information display
4Cruise control lever
The ICC system is intended to enhance the
operation of the vehicle when following a
vehicle traveling in the same lane and direc-
tion.
If the distance sensor
Adetects a slower
moving vehicle ahead, the system will reduce
the vehicle speed so that your vehicle follows
the vehicle in front at the selected distance.
The ICC system maintains a selected distance
from the vehicle in front of you within the
speed range of 0 to 125 MPH (0 to
200 km/h) up to the set speed. The set speed
can be selected by the driver between 20 to
125 MPH (30 to 200 km/h).The vehicle travels at a set speed when the
road ahead is clear.
The ICC system is designed to maintain a
selected distance from the vehicle in front of
you and reduce the speed to match a slower
vehicle ahead. The system will decelerate the
NSD645
NSD625
5-50Starting and driving

vehicle as necessary and if the vehicle ahead
comes to a stop, the vehicle decelerates to a
standstill. However, the ICC system can only
apply up to 50% of the vehicle’s total braking
power. This system should only be used when
traffic conditions allow vehicle speeds to re-
main fairly constant or when vehicle speeds
change gradually. If a vehicle moves into the
traveling lane ahead or if a vehicle traveling
ahead rapidly decelerates, the distance be-
tween vehicles may become closer because
the ICC system cannot decelerate the vehicle
quickly enough. If this occurs, the ICC system
will sound a warning chime and illuminate the
distance warning light to notify the driver to
take necessary action.
The following items are controlled in the ICC
system:
•When there are no vehicles traveling
ahead, the ICC system maintains the
speed set by the driver. The set speed
range is between approximately 20 and
125 MPH (30 and 200 km/h).
•When there is a vehicle traveling ahead,
the ICC system adjusts the speed to main-
tain the distance, selected by driver, from
the vehicle ahead. The adjusting speed
range is up to the set speed. If the vehicle
ahead comes to a stop, the vehicle decel-
erates to a standstill within the limitations
of the system. Once the vehicle is station-
ary, it remains stationary and you do not
need to depress the brake pedal.
•When the vehicle traveling ahead has
moved out from its lane of travel, pull the
cruise control lever or push the accelerator
pedal briefly. The ICC system accelerates
and maintains vehicle speed up to the set
speed.
The ICC system does not control vehicle
speed or warn you when you approach sta-
tionary and slow moving vehicles. You must
pay attention to vehicle operation to main-
tain proper distance from vehicles ahead
when approaching toll gates or traffic con-
gestion.
ICC SWITCH (CRUISE CONTROL
LEVER)
1Store the current speed or a higher speed
2Set the specified minimum distance
3Store the current speed or call up the last
stored speed
4Store the current speed or a lower speed
5Deactivate the ICC system
The ICC system is operated by the cruise
control lever, located on the steering column.
NSD582A
Starting and driving5-51

ICC SYSTEM DISPLAY AND
INDICATORS
Displays in the speedometer
When the ICC system is activated and there
are no vehicles detected ahead, one or two
segments
2in the set speed range light up.
If the ICC system detects a vehicle ahead,
segments
2between speed of the vehicle
ahead
3and stored speed1light up.
NOTE
For design reasons, the speed displayed in
the speedometer may differ slightly from the
speed set for the ICC system.
Display when the ICC system is
deactivated
1Vehicle ahead, if detected
2Distance indicator: current distance to
the vehicle ahead
3Specified minimum distance to the ve-
hicle ahead; adjustable
4Own vehicle
Display when the ICC system is
activated
You will initially see the stored speed for
about five seconds when you activate the
ICC system.
1Vehicle ahead, if detected
2Specified minimum distance to the ve-
hicle ahead; adjustable
3Own vehicle
4ICC stored speed (text only appears
when the cruise control lever is actuated)
NIC2824ANSD614NSD601
5-52Starting and driving

OPERATING ICC
To set cruising speed, accelerate your vehicle
to the desired speed and quickly push the
cruise control lever, up
1or down4. Take
your foot off the accelerator pedal. Your ve-
hicle will maintain the set speed.
NOTE
If you do not fully release the accelerator
pedal, the [ICC Suspended] message ap-
pears in the vehicle information display. The
set distance to a slower-moving vehicle in
front will then not be maintained. You will be
driving at the speed you determine by the
position of the accelerator pedal.
You can also activate the ICC when station-
ary. The lowest speed that can be set is
20 MPH (30 km/h ).
System operation
The driver sets the desired vehicle speed
based on the road conditions. The ICC sys-
tem maintains the set vehicle speed, similar to
standard cruise control, as long as no vehicle
is detected in the lane ahead. The ICC system
displays the set speed for 5 seconds after the
cruise control lever is activated.
Vehicle detected ahead:
When a vehicle is detected in the lane ahead,
the ICC system decelerates the vehicle by
controlling the throttle and applying the
brakes to match the speed of a slower vehicle
ahead. The system then controls the vehicle
speed based on the speed of the vehicle
ahead to maintain the driver selected dis-
tance.The brake lights of the vehicle come on when
braking is performed by the ICC system.
When the brake operates, a noise may be
heard. This is not a malfunction.
When a vehicle ahead is detected, the vehicle
ahead symbol
1appears in the vehicle infor-
mation display.
Vehicle ahead not detected:
When a vehicle is no longer detected ahead,
the ICC system gradually accelerates your
vehicle to resume the previously set vehicle
speed. The ICC system then maintains the set
speed.
When a vehicle is no longer detected, the
vehicle ahead display turns off
2.
NSD582ANSD615
System set display with vehicle ahead
NSD616
System set display without vehicle ahead
Starting and driving5-53

If a vehicle ahead appears during accelera-
tion to the set vehicle speed or any time the
ICC system is in operation, the system con-
trols the distance to that vehicle.
Changing lanes to pass another
vehicle:
When you changes lane to pass another ve-
hicle, ICC supports the action if:
•The vehicle speed is more than 45 MPH
(70 km/h)
•The ICC is maintaining the distance to a
vehicle in front
•The respective turn signal is activated
If these conditions are met, the vehicle will be
accelerated. Acceleration will be interrupted
if changing lanes takes too long or if the
distance between your vehicle and the ve-
hicle in front becomes too small.
How to change the set vehicle
speed
To cancel the preset speed, use any of these
methods:
•Tap the brake pedal when the vehicle is
moving.
•Quickly push the cruise control lever in the
direction of arrow
5.
The message [ICC OFF] appears in the ve-
hicle information display for 5 seconds.
To reset at a higher cruising speed, use one of
the following methods:
•Depress the accelerator pedal. When the
vehicle attains the desired speed, quickly
pull the cruise control lever towards you
3.
•Pull the cruise control lever up1beyond
the pressure point. The set vehicle speed
will increase by approximately 10 MPH
(10 km/h).
•Pull the cruise control lever up (1) at the
pressure point. The set vehicle speed will
increase by approximately 1 MPH (1 km/h).
To reset at a lower cruising speed, use one of
the following methods:
•Lightly tap the brake pedal. When the ve-
hicle attains the desired speed, quickly pull
the cruise control lever towards you
3.
•Pull the cruise control lever down4be-
yond the pressure point. The set vehicle
speed will decrease by approximately
10 MPH (10 km/h).
•Pull the cruise control lever down4to the
pressure point. The set vehicle speed will
decrease by approximately 1 MPH (1 km/h).
To resume the preset speed, quickly pull the
cruise control lever towards you
4. The ve-
hicle will resume the last set cruising speed
when the vehicle speed is over 20 MPH
(30 km/h).
NOTE
If you do not fully release the accelerator
pedal, the [ICC Deactivated Automatically]
message appears in the vehicle information
NSD582A
5-54Starting and driving

display. The set distance to a slower-moving
vehicle in front will then not be maintained.
You will be driving at the speed you deter-
mine by the position of the accelerator pedal.
You can also activate ICC when stationary.
The lowest speed that can be set is 20 MPH
(30 km/h).
Stopping
WARNING
•To help avoid risk of injury or death
through unintended operation of the
vehicle and/or its systems, do not leave
children, people who require the assis-
tance of others, or pets unattended in
your vehicle.
•The ICC system should only be used to
keep the vehicle stationary when the
driver is actively using the system.
When parking the vehicle, make sure to
turn OFF the ICC system, use the brake,
press the PARK (P) button, and place
the ignition switch in the LOCK position
prior to exiting the vehicle. Failure to do
so could lead to serious injury or death.
The ICC system will not hold the vehiclein place after coming to a stop when any
of the following conditions occur:
–There is a malfunction in the system
or in the voltage supply.
–The ICC system has been deactivated
with the cruise control lever, e. g. by a
vehicle occupant.
–The accelerator pedal has been de-
pressed, e.g. by a vehicle occupant.
For further information on deactivating the
ICC system, see "ICC switch (cruise control
lever)" earlier in this section
If the ICC system detects that the vehicle in
front is stopping, it brakes your vehicle until it
is stationary (within the braking limitations of
the system).
Once your vehicle is stationary, it remains
stationary and you do not need to depress
the brake.
NOTE
Depending on the specified minimum dis-
tance, your vehicle will come to a standstill
at a sufficient distance behind the vehicle in
front. The specified minimum distance is set
using the control on the cruise control lever.
How to change the set distance to
the vehicle ahead
The distance to the vehicle ahead can be
selected at any time depending on the traffic
conditions.
To increase the distance to the vehicle ahead,
turn the knob
3toward the rear2.To
decrease the distance to the vehicle ahead,
turn the knob
3toward the front1.
You can see this distance in the vehicle infor-
mation display.
The distance to the vehicle ahead will change
according to the vehicle speed. The higher the
vehicle speed, the longer the distance.
NSD583A
Starting and driving5-55

Approach warning
If your vehicle comes closer to the vehicle
ahead due to rapid deceleration of that ve-
hicle or if another vehicle cuts in, the system
warns the driver with the chime and distance
warning light. Decelerate by depressing the
brake pedal to maintain a safe vehicle dis-
tance if:
•The chime sounds.
•The distance warning light is illuminated.
The warning chime may not sound and the
distance warning light may not illuminate in
some cases when there is a short distance
between vehicles. Some examples are:
•When the vehicles are traveling at the
same speed and the distance between ve-
hicles is not changing. In this case, the
distance warning light will be on.
•When the vehicle ahead is traveling faster
and the distance between vehicles is in-
creasing.
•When a vehicle cuts in near your vehicle
•The warning chime will not sound and the
distance warning light will not illuminate
when:
– The vehicle approaches other vehicles
that are parked or moving slowly.– The accelerator pedal is depressed,
overriding the system.
Also, the sensor sensitivity can be affected by
vehicle operation (steering maneuver or driv-
ing position in the lane) or traffic or vehicle
condition (for example, if a vehicle is being
driven with some damage).
Automatic cancellation
A chime sounds and the message [ICC off] is
displayed in the vehicle information display
for 5 seconds under the following conditions
and the control is automatically canceled.
•The electric parking brake is applied.
•The VDC intervenes or the VDC is deacti-
vated.
•The P (Park), R (Reverse) or N (Neutral)
position is engaged.
•The cruise control lever is pulled in order to
pull away but the front passenger door or
one of the rear doors is open.
•The vehicle is skidding or a wheel slips.
•Active Park Assist is activated.
ICC LIMITATIONS
WARNING
Listed below are the system limitations for
the ICC system. Failure to operate the ve-
hicle in accordance with these system limi-
tations could result in serious injury or
death.
•This system is only an aid to assist the
driver and is not a collision warning or
avoidance device. It is the driver’s re-
sponsibility to stay alert, drive safely
and be in control of the vehicle at all
times.
•The system is primarily intended for use
on straight, dry, open roads with light
traffic. It is not advisable to use the sys-
tem in city traffic or congested areas.
•This system will not adapt automati-
cally to road conditions. This system
should be used in evenly flowing traffic.
Do not use the system on roads with
sharp curves, or on icy roads, in heavy
rain or in fog.
5-56Starting and driving
