belt INFINITI QX30 2018 Owner's Guide

WARNING
•After adjustment, release the adjust-
ment button and then try to move the
shoulder belt down to make sure that it
is securely fixed in position.
•The shoulder belt anchor height should
be adjusted to the position that is best
for you. Failure to do so may reduce the
effectiveness of the entire restraint sys-
tem and increase the chance or severity
of injury in an accident.
SEAT BELT EXTENDERS
If, because of body size or driving position, it
is not possible to properly fit the lap/shoulder
belt and fasten it, an extender that is compat-
ible with the installed seat belts is available
that can be purchased. The extender adds
approximately 8 in (200 mm) of length and
may be used for either the driver or front
passenger seating position. It is recom-
mended you visit an INFINITI retailer for as-
sistance with purchasing an extender if an
extender is required.
WARNING
•Only INFINITI seat belt extenders, made
by the same company which made the
original equipment seat belts, should be
used with the INFINITI seat belts.
•Adults and children who can use the
standard seat belt should not use an ex-
tender. Such unnecessary use could re-
sult in serious personal injury in the
event of an accident.
•Never use seat belt extenders to install
child restraints. If the child restraint is
not secured properly, the child could be
seriously injured in a collision or a sud-
den stop.
SEAT BELT MAINTENANCE
•To clean the seat belt webbing,apply a
mild soap solution or any solution recom-
mended for cleaning upholstery or carpets.
Then wipe with a cloth and allow the seat
belts to dry in the shade. Do not allow the
seat belts to retract until they are com-
pletely dry.
•If dirt builds up in the shoulder belt guide
of the seat belt anchors, the seat belts may
retract slowly. Wipe the shoulder belt
guide with a clean, dry cloth.
•Periodically check to see that the seat belt
and the metal components, such as buck-
les, tongues, retractors, flexible wires and
anchors, work properly. If loose parts, de-
terioration, cuts or other damage on the
webbing is found, the entire seat belt as-
sembly should be replaced.
1-16Safety — seats, seat belts and supplemental restraint system

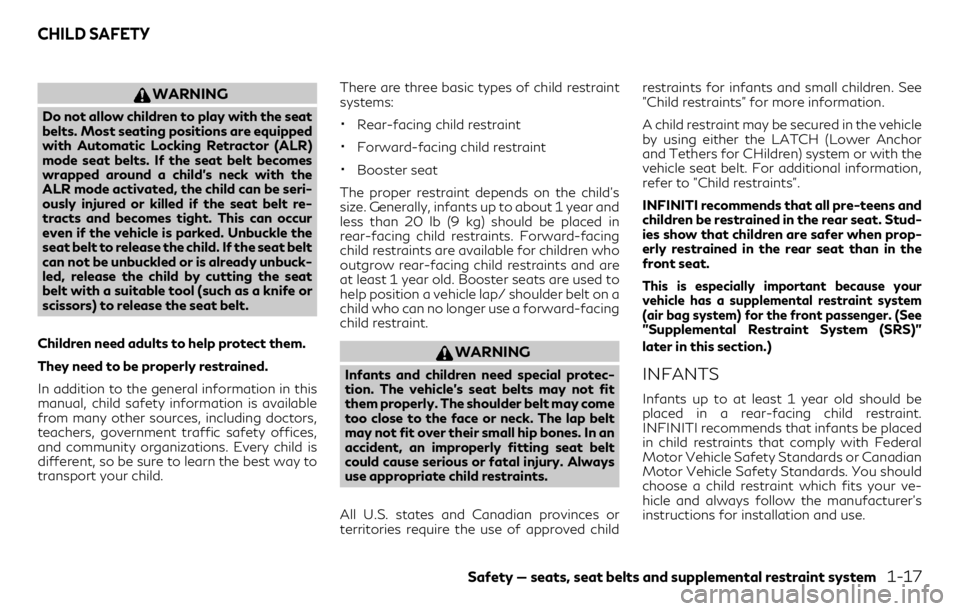

WARNING
Do not allow children to play with the seat
belts. Most seating positions are equipped
with Automatic Locking Retractor (ALR)
mode seat belts. If the seat belt becomes
wrapped around a child’s neck with the
ALR mode activated, the child can be seri-
ously injured or killed if the seat belt re-
tracts and becomes tight. This can occur
even if the vehicle is parked. Unbuckle the
seat belt to release the child. If the seat belt
can not be unbuckled or is already unbuck-
led, release the child by cutting the seat
belt with a suitable tool (such as a knife or
scissors) to release the seat belt.
Children need adults to help protect them.
They need to be properly restrained.
In addition to the general information in this
manual, child safety information is available
from many other sources, including doctors,
teachers, government traffic safety offices,
and community organizations. Every child is
different, so be sure to learn the best way to
transport your child.There are three basic types of child restraint
systems:•Rear-facing child restraint
•Forward-facing child restraint
•Booster seat
The proper restraint depends on the child’s
size. Generally, infants up to about 1 year and
less than 20 lb (9 kg) should be placed in
rear-facing child restraints. Forward-facing
child restraints are available for children who
outgrow rear-facing child restraints and are
at least 1 year old. Booster seats are used to
help position a vehicle lap/ shoulder belt on a
child who can no longer use a forward-facing
child restraint.
WARNING
Infants and children need special protec-
tion. The vehicle’s seat belts may not fit
them properly. The shoulder belt may come
too close to the face or neck. The lap belt
may not fit over their small hip bones. In an
accident, an improperly fitting seat belt
could cause serious or fatal injury. Always
use appropriate child restraints.
All U.S. states and Canadian provinces or
territories require the use of approved childrestraints for infants and small children. See
"Child restraints" for more information.
A child restraint may be secured in the vehicle
by using either the LATCH (Lower Anchor
and Tethers for CHildren) system or with the
vehicle seat belt. For additional information,
refer to "Child restraints".
INFINITI recommends that all pre-teens and
children be restrained in the rear seat. Stud-
ies show that children are safer when prop-
erly restrained in the rear seat than in the
front seat.
This is especially important because your
vehicle has a supplemental restraint system
(air bag system) for the front passenger. (See
"Supplemental Restraint System (SRS)"
later in this section.)
INFANTS
Infants up to at least 1 year old should be
placed in a rear-facing child restraint.
INFINITI recommends that infants be placed
in child restraints that comply with Federal
Motor Vehicle Safety Standards or Canadian
Motor Vehicle Safety Standards. You should
choose a child restraint which fits your ve-
hicle and always follow the manufacturer’s
instructions for installation and use.
CHILD SAFETY
Safety — seats, seat belts and supplemental restraint system1-17

SMALL CHILDREN
Children that are over 1 year old and weigh at
least 20 lbs (9 kg) should remain in a rear-
facing child restraint as long as possible up to
the height or weight limit of the child re-
straint. Children who outgrow the height or
weight limit of the rear-facing child restraint
and are at least 1 year old should be secured
in a forward-facing child restraint with a har-
ness. Refer to the manufacturer’s instructions
for minimum and maximum weight and
height recommendations. INFINITI recom-
mends that small children be placed in child
restraints that comply with Federal Motor
Vehicle Safety Standards or Canadian Motor
Vehicle Safety Standards. You should choose
a child restraint that fits your vehicle and
always follow the manufacturer’s instruc-
tions for installation and use.
LARGER CHILDREN
Children should remain in a forward-facing
child restraint with a harness until they reach
the maximum height or weight limit allowed
by the child restraint manufacturer.
Children who are too large for child restraints
should be seated and restrained by the seat
belts which are provided. The seat belt may
not fit properly if the child is less than 4 ft 9 in
(142.5 cm) tall and weighs between 40 lbs(18 kg) and 80 lbs (36 kg). A booster seat
should be used to obtain proper seat belt fit.
Once a child outgrows the height or weight
limit of the harness-equipped forward-facing
child restraint, INFINITI recommends that
the child be placed in a commercially available
booster seat to obtain proper seat belt fit. For
a seat belt to fit properly, the booster seat
should raise the child so that the shoulder belt
is properly positioned across the chest and
the top, middle portion of the shoulder. The
shoulder belt should not cross the neck or
face and should not fall off the shoulder. The
lap belt should lie snugly across the lower hips
or upper thighs, not the abdomen. A booster
seat can only be used in seating positions that
have a three-point type seat belt. The
booster seat should fit the vehicle seat and
have a label certifying that it complies with
Federal Motor Vehicle Safety Standards or
Canadian Motor Vehicle Safety Standards.
A booster seat should be used until the child
can pass the seat belt fit test below:
•Are the child’s back and hips against the
vehicle seatback?
•Is the child able to sit without slouching?
•Do the child’s knees bend easily over the
front edge of the seat with feet flat on the
floor?
•Can the child safely wear the seat belt
(lap belt low and snug across the hips
and shoulder belt across mid-chest and
shoulder)?
•Is the child able to use the properly ad-
justed head restraint/headrest?
•Will the child be able to stay in position for
the entire ride?
If you answered no to any of these questions,
the child should remain in a booster seat us-
ing a three-point type seat belt.
NOTE
Laws in some communities may follow dif-
ferent guidelines. Check local and state
regulations to confirm your child is using the
correct restraint system before traveling.
WARNING
Never let a child stand or kneel on any seat
and do not allow a child in the cargo area.
The child could be seriously injured or killed
in a sudden stop or collision.
1-18Safety — seats, seat belts and supplemental restraint system

PRECAUTIONS ON CHILD
RESTRAINTS
WARNING
•Failure to follow the warnings and in-
structions for proper use and installa-tion of child restraints could result in se-
rious injury or death of a child or other
passengers in a sudden stop or collision:
–The child restraint must be used and
installed properly. Always follow all
of the child restraint manufacturer’s
instructions for installation and use.
–Infants and children should never be
held on anyone’s lap. Even the stron-
gest adult cannot resist the forces of
a collision.
–Do not put a seat belt around both a
child and another passenger.
–INFINITI recommends that all child
restraints be installed in the rear seat.
Studies show that children are safer
when properly restrained in the rear
seat than in the front seat. If you
must install a forward-facing child
restraint in the front seat, see
"Forward-facing child restraint in-
stallation using the seat belts".
–Even with the INFINITI Advanced Air
bag System, never install a rear-
facing child restraint in the front
seat. An inflating air bag could seri-
ously injure or kill a child. A rear-
facing child restraint must only be
used in the rear seat.–Be sure to purchase a child restraint
that will fit the child and vehicle.
Some child restraints may not fit
properly in your vehicle.
–Child restraint anchorages are de-
signed to withstand only those loads
imposed by correctly fitted child re-
straints. Under no circumstances are
they to be used to attach adult seat
belts, or other items or equipment to
the vehicle. Doing so could damage
the child restraint anchorages. The
child restraint will not be properly in-
stalled using the damaged anchor-
ages, and a child could be seriously
injured or killed in a collision.
–Never use the anchor points for adult
seat belts or harnesses.
–A child restraint with a top tether
strap should not be used in the front
passenger seat.
–Keep seatbacks as upright as possible
after fitting the child restraint.
–Infants and children should always be
placed in an appropriate child re-
straint while in the vehicle.
–When the child restraint is not in use,
keep it secured with the LATCH sys-
tem or a seat belt. In a sudden stop or
collision, loose objects can injure oc-
cupants or damage the vehicle.
SSS0099Z
WRS0256Z
CHILD RESTRAINTS
Safety — seats, seat belts and supplemental restraint system1-19

CAUTION
Remember that a child restraint left in a
closed vehicle can become very hot. Check
the seating surface and buckles before
placing your child in a child restraint.
This vehicle is equipped with a universal child
restraint anchor system, referred to as the
LATCH (Lower Anchors and Tethers for
CHildren) system. Some child restraints in-
clude rigid or webbing-mounted attachments
that can be connected to these anchors.
For details, see "LATCH (Lower Anchors and
Tethers for CHildren) system".
If you do not have a LATCH compatible child
restraint, the vehicle seat belts can be used.
Several manufacturers offer child restraints
for infants and small children of various sizes.
When selecting any child restraint, keep the
following points in mind:
•Choose only a restraint with a label certi-
fying that it complies with Federal Motor
Vehicle Safety Standard 213 or Canadian
Motor Vehicle Safety Standard 213.
•Check the child restraint in your vehicle to
be sure it is compatible with the vehicle’s
seat and seat belt system.
•If the child restraint is compatible with
your vehicle, place your child in the child
restraint and check the various adjust-
ments to be sure the child restraint is com-
patible with your child. Choose a child re-
straint that is designed for your child’s
height and weight. Always follow all rec-
ommended procedures.
•If the combined weight of the child and
child restraint is less than 65 lb (29.5 kg),
you may use either the LATCH anchors or
the seat belt to install the child restraint
(not both at the same time).
•If the combined weight of the child and child
restraint is greater than 65 lb (29.5 kg),
use the vehicle’s seat belt (not the lower
anchors) to install the child restraint.
•Be sure to follow the child restraint manu-
facturer’s instructions for installation.
NOTE
All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is be-
ing operated. Canadian law requires the top
tether strap on front-facing child restraints
to be secured to the designated anchor point
on the vehicle.
LATCH (Lower Anchors and
Tethers for CHildren) system
Your vehicle is equipped with special anchor
points that are used with LATCH system
compatible child restraints. This system may
also be referred to as the ISOFIX or ISOFIX
compatible system. With this system, you do
not have to use a vehicle seat belt to secure
the child restraint unless the combined
weight of the child and child restraint exceeds
65 lb (29.5 kg). If the combined weight of the
child and child restraint is greater than 65 lb
(29.5 kg), use the vehicle’s seat belt (not the
lower anchors) to install the child restraint. Be
sure to follow the child restraint manufactur-
er’s instructions for installation.
The LATCH anchor points are provided to
install child restraints in the rear outboard
seating positions only. Do not attempt to
install a child restraint in the center position
using the LATCH anchors.
LATCH lower anchor
WARNING
Failure to follow the warnings and instruc-
tions for proper use and installation of child
restraints could result in serious injury or
death of a child or other passengers in a
sudden stop or collision:
1-20Safety — seats, seat belts and supplemental restraint system

•Attach LATCH system compatible child
restraints only at the locations shown in
the illustration.
•Do not secure a child restraint in the
center rear seating position using the
LATCH lower anchors. The child re-
straint will not be secured properly.
•Inspect the lower anchors by inserting
your fingers into the lower anchor area.
Feel to make sure there are no obstruc-
tions over the anchors such as seat belt
webbing or seat cushion material. The
child restraint will not be secured prop-
erly if the lower anchors are obstructed.
Child restraint anchorages are designed to
withstand only those loads imposed by
correctly fitted child restraints. Under no
circumstances are they to be used to attach
adult seat belts, or other items or equip-
ment to the vehicle. Doing so could damage
the child restraint anchorages. The child re-
straint will not be properly installed using
the damaged anchorage, and a child could
be seriously injured or killed in a collision.
LATCH lower anchor location
The LATCH lower anchors are located at the
rear of the seat cushion near the seatback, as
shown. A label is attached to the seatback to
help you locate the LATCH lower anchors.
Installing child restraint LATCH
lower anchor attachments
LATCH compatible child restraints include
two rigid or webbing-mounted attachments
NIC2612
LATCH lower anchor locations
SSS0643Z
LATCH webbing-mounted attachment
SSS0644Z
LATCH rigid-mounted attachment
Safety — seats, seat belts and supplemental restraint system1-21

that can be connected to two anchors lo-
cated at certain seating positions in your
vehicle. With this system, you do not have to
use a vehicle seat belt to secure the child
restraint. Check your child restraint for a label
stating that it is compatible with LATCH. This
information may also be in the instructions
provided by the child restraint manufacturer.
When installing a child restraint, carefully
read and follow the instructions in this
manual and those supplied with the child re-
straints.
Top tether anchor
WARNING
•Child restraint anchorages are designed
to withstand only those loads imposed
by correctly fitted child restraints. Un-
der no circumstances are they to be used
to attach adult seat belts, or other items
or equipment to the vehicle. Doing so
could damage the child restraint an-
chorages. The child restraint will not be
properly installed using the damaged
anchorage, and a child could be seriously
injured or killed in a collision.
•If the cargo cover (if so equipped) con-
tacts the top tether strap when it is at-
tached to the top tether anchor, remove
the cargo cover from the vehicle or se-
cure it on the cargo floor below its at-
tachment location. If the cargo cover is
not removed, it may damage the top
tether strap during a collision. A child
could be seriously injured or killed in a
collision if the top tether strap is dam-
aged.
•Do not allow cargo to contact the top
tether strap when it is attached to the
top tether anchor. Properly secure the
cargo so it does not contact the top
tether strap. Cargo that is not properly
secured or cargo that contacts the top
tether strap may damage it during a col-
lision. A child could be seriously injured
or killed in a collision if the top tether
strap is damaged.Top tether anchor point locations for
LATCH:
1Top tether straps
2Anchor points
The LATCH anchor points are provided to
install child restraints in the rear outboard
seating positions only, as shown. Do not at-
tempt to install a child restraint in the center
position using the LATCH anchors.
If you have any questions when installing a
top tether strap, it is recommended that you
visit an INFINITI retailer for this service.
NIC2849
1-22Safety — seats, seat belts and supplemental restraint system

REAR-FACING CHILD
RESTRAINT INSTALLATION
USING LATCH
For additional information, refer to all Warn-
ings and Cautions in the "Child safety" and
"Child restraints" before installing a child re-
straint. Do not use the lower anchors if the
combined weight of the child and the child
restraint exceeds 65 lb (29.5 kg). If the com-
bined weight of the child and the child re-
straint is greater than 65 lb (29.5 kg), use the
vehicle seat belt (not the lower anchors) to
install the child restraint. Be sure to follow the
child restraint manufacturer's instructions for
installation. Follow these steps to install a
rear-facing child restraint in the 2nd row
seats using the LATCH system:
1. Position the child restraint on the seat.
Always follow the child restraint manu-
facturer's instructions.2. Secure the child restraint anchor attach-
ments to the LATCH lower anchors.
Check to make sure the LATCH attach-
ment is properly attached to the lower
anchors.
WRS0801Z
Rear-facing web-mounted — step 2
WRS0802Z
Rear-facing rigid-mounted — step 2
Safety — seats, seat belts and supplemental restraint system1-23

3. For child restraints that are equipped with
webbing-mounted attachments, remove
any additional slack from the anchor at-
tachments. Press downward and rear-
ward firmly in the center of the child re-
straint with your hand to compress the
vehicle seat cushion and seatback while
tightening the webbing of the anchor at-
tachments.4. After attaching the child restraint, test it
before you place the child in it. Push it
from side to side while holding the child
restraint near the LATCH attachment
path. The child restraint should not move
more than 1 inch (25 mm), from side to
side. Try to tug it forward and check to see
if the LATCH attachment holds the re-
straint in place. If the restraint is not se-
cure, tighten the LATCH attachment as
necessary, or put the restraint in another
seat and test it again. You may need to try
a different child restraint or try installing
by using the vehicle seat belt (if appli-
cable). Not all child restraints fit in all types
of vehicles.5. Check to make sure the child restraint is
properly secured prior to each use. If the
child restraint is loose, repeat steps 2
through 4.
REAR-FACING CHILD
RESTRAINT INSTALLATION
USING THE SEAT BELTS
WARNING
The three-point seat belt with Automatic
Locking Retractor (ALR) must be used
when installing a child restraint. Failure to
use the ALR mode will result in the child
restraint not being properly secured. The
restraint could tip over or be loose and
cause injury to a child in a sudden stop or
collision.
Rear-facing child restraints must not be
used on the front seats.
For additional information, refer to all Warn-
ings and Cautions in the "Child safety" and
"Child restraints" before installing a child re-
straint.LRS0673Z
Rear-facing — step 3
LRS0674Z
Rear-facing — step 4
1-24Safety — seats, seat belts and supplemental restraint system

Do not use the lower anchors if the combined
weight of the child and the child restraint
exceeds 65 lb (29.5 kg). If the combined
weight of the child and the child restraint is
greater than 65 lb (29.5 kg), use the vehicle
seat belt (not the lower anchors) to install the
child restraint. Be sure to follow the child
restraint manufacturer's instructions for in-
stallation.
Follow these steps to install a rear-facing
child restraint using the vehicle seat belts in
the rear seats:
1.Child restraints for infants must be used
in the rear-facing direction and therefore
must not be used in the front seat.Posi-
tion the child restraint on the seat. Always
follow the child restraint manufacturer's
instructions.2. Route the seat belt tongue through the
child restraint and insert it into the buckle
until you hear and feel the tongue engage.
Be sure to follow the child restraint manu-
facturer's instructions for belt routing.
WRS0256Z
Rear-facing — step 1
WRS0761Z
Rear-facing — step 2
Safety — seats, seat belts and supplemental restraint system1-25
