WARNING
•The exhaust gas and the exhaust system
are very hot. Keep people, animals and
flammable materials away from the ex-
haust system components.
•Do not stop or park the vehicle over
flammable materials such as dry grass,
wastepaper or rags. They may ignite
and cause a fire.
CAUTION
•Do not use leaded gasoline. (See "Rec-
ommended fluids/lubricants and ca-
pacities".) Deposits from leaded gaso-
line seriously reduce the ability of the
three-way catalyst to help reduce ex-
haust pollutants and/or damage the
three-way catalyst.
•Keep your engine tuned up. Malfunc-
tions in the ignition, fuel injection, or
electrical systems may cause overrich
fuel to flow into the three-way catalyst,
causing it to overheat. Do not keep driv-
ing if the engine misfires, or if noticeable
loss of performance or other unusual op-
erating conditions are detected. Have
the vehicle inspected promptly. It is rec-ommended you visit an INFINITI retailer
for this service.
•Avoid driving with an extremely low fuel
level. Running out of fuel could cause the
engine to misfire, damaging the three-
way catalyst.
•Do not race the engine while warming it
up.
•Do not push or tow your vehicle to start
the engine.
TIRE PRESSURE MONITORING
SYSTEM (TPMS)
Each tire, including the spare (if present),
should be checked monthly when cold and
inflated to the inflation pressure recom-
mended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure label.
(If your vehicle has tires of a different size
than the size indicated on the vehicle placard
or tire inflation pressure label, you should
determine the proper tire inflation pressure
for those tires.)
As an added safety feature, your vehicle has
been equipped with a tire pressure monitor-
ing system (TPMS) that illuminates a low tire
pressure telltale when one or more of yourtires is significantly under-inflated. Accord-
ingly, when the low tire pressure telltale illu-
minates, you should stop and check your tires
as soon as possible, and inflate them to the
proper pressure. Driving on a significantly
under-inflated tire causes the tire to overheat
and can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread life,
and may affect the vehicle’s handling and
stopping ability.
Please note that the TPMS is not a substitute
for proper tire maintenance, and it is the driv-
er’s responsibility to maintain correct tire
pressure, even if under-inflation has not
reached the level to trigger illumination of the
TPMS low tire pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate
when the system is not operating properly.
The TPMS malfunction indicator is combined
with the low tire pressure telltale. When the
system detects a malfunction, the telltale will
flash for approximately one minute and then
remain continuously illuminated. This se-
quence will continue upon subsequent vehicle
start-ups as long as the malfunction exists.
When the malfunction indicator is illumi-
nated, the system may not be able to detect
or signal low tire pressure as intended. TPMS
Starting and driving5-3

malfunctions may occur for a variety of rea-
sons, including the installation of replace-
ment or alternate tires or wheels on the ve-
hicle that prevent the TPMS from working
properly. Always check the TPMS telltale af-
ter replacing one or more tires or wheels on
your vehicle to ensure that the replacement
or alternate tires and wheels allow the TPMS
to continue to function properly.
The vehicle's wheels have sensors fitted that
monitor the tire pressures in all four tires The
tire pressure monitor warns you if the pres-
sure drops in one or more of the tires The tire
pressure monitor only functions if the corre-
sponding sensors are fitted to all wheels.
Information on tire pressures is shown in the
vehicle information display. After a few min-
utes of driving, the current tire pressure of
each tire is shown in the [Serv.] menu of the
vehicle information display.
WARNING
•Radio waves could adversely affect
electrical medical equipment. Those who
use a pacemaker should contact their
electrical medical equipment manufac-
turer for the possible influences before
use.
•If the low tire pressure warning light il-
luminates or a tire pressure-related
warning is displayed by the vehicle in-
formation display while driving, avoid
sudden steering maneuvers or abrupt
braking, reduce vehicle speed, pull off
the road to a safe location and stop the
vehicle as soon as possible. Driving with
under-inflated tires may permanently
damage the tires and increase the likeli-
hood of tire failure. Serious vehicle dam-age could occur and may lead to an acci-
dent and could result in serious personal
injury. Check the tire pressure for all
four tires. Adjust the tire pressure to the
recommended COLD tire pressure
shown on the tire and loading informa-
tion label to turn the low tire pressure
warning light OFF. If you have a flat tire,
replace it with a replacement tire as
soon as possible.
•If a replacement wheel is fitted without
an INFINITI TPMS Sensor, the TPMS
will not function and the low tire pres-
sure warning light will flash for approxi-
mately 1 minute. The light will remain on
after 1 minute. It is recommended you
contact an INFINITI retailer as soon as
possible for tire replacement and/or
system resetting.
•For models with run-flat tires, although
you can continue driving with a punc-
tured run-flat tire, remember that ve-
hicle handling stability is reduced, which
could lead to an accident and personal
injury. Also, driving a long distance at
high speeds may damage the tires.
–Do not drive at speeds above 50
MPH (80 km/h) and do not drive
more than approximately 93 miles
(150 km) with a punctured run-flat
tire. The actual distance the vehicle
NSD660
5-4Starting and driving

can be driven on a flat tire depends on
outside temperature, vehicle load,
road conditions and other factors.
–If you detect any unusual sounds or
vibrations while driving with a punc-
tured run-flat tire, pull off the road to
a safe location and stop the vehicle as
soon as possible. The tire may be se-
riously damaged and need to be re-
placed.
•Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.
•If you used Emergency Tire Sealant to
repair a minor tire puncture, the TPMS
sensor should be checked when repair-
ing or replacing the tire (for models
equipped with the emergency tire punc-
ture repair kit). It is recommended you
visit an INFINITI retailer for this service.
•INFINITI recommends using only
INFINITI Genuine Emergency Tire Seal-
ant provided with your vehicle. Other
tire sealants may damage the valve stem
seal which can cause the tire to lose air
pressure (for models equipped with the
emergency tire puncture repair kit).
CAUTION
•The TPMS may not function properly
when the wheels are equipped with
snow chains or the wheels are buried in
snow.
•Do not place metallized film or any metal
parts (antenna, etc.) on the windows.
This may cause poor reception of the
signals from the tire pressure sensors,
and the TPMS will not function
properly.
It is the driver's responsibility to set the tire
pressure to the recommended cold tire pres-
sure suitable for the operating situation (see
"Wheels and tires"). Note that the correct tire
pressure for the current operating situation
must first be taught-in to the tire pressure
monitor (see "Restarting TPMS" later in this
section).
If there is a substantial loss of pressure, the
warning threshold for the warning message
is aligned to the reference values taught-in.
Restart the tire pressure monitor after ad-
justing to the cold tire pressure. The current
pressures are saved as new reference values.
This will ensure that a warning message will
only appear if the tire pressure drops signifi-
cantly.The tire pressure monitor does not warn you
of an incorrectly set tire pressure.
TPMS is not able to warn you of a sudden
loss of pressure, e. g. if the tire is penetrated
by a foreign object. In the event of a sudden
loss of pressure, bring the vehicle to a halt by
braking carefully. Avoid abrupt steering ma-
neuvers.
TPMS has a yellow warning light in the com-
bination meter for indicating a pressure loss
or malfunction. Depending on how the warn-
ing light flashes or lights up, a tire pressure
that is too low or a malfunction in TPMS is
indicated:
•If the warning light is lit continuously, the
tire pressure on one or more tires is signifi-
cantly too low. TPMS is not malfunction-
ing.
•If the warning light flashes for around a
minute and then remains lit constantly, the
TPMS is malfunctioning.
In addition to the warning light, a message
appears in the vehicle information display.
Observe the information on display mes-
sages (see "Safety systems"
It may take up to ten minutes for a malfunc-
tion of the tire pressure monitor to be indi-
cated. A malfunction will be indicated by the
Starting and driving5-5

•Keep your engine tuned up.
•Follow the recommended scheduled
maintenance.
•Keep the tires inflated to the correct pres-
sure. Low tire pressure increases tire wear
and lowers fuel economy.
•Keep all the wheels in correct alignment.
Improper alignment increases tire wear
and lowers fuel economy.
•Use the recommended viscosity engine oil.
For additional information, see "Recom-
mended fluids/lubricants and capacities"

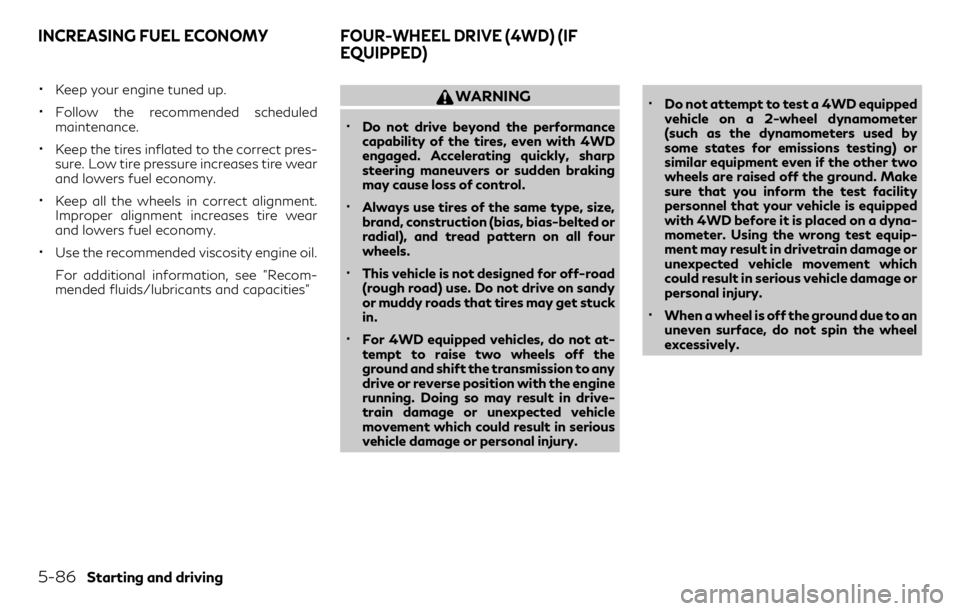

WARNING
•Do not drive beyond the performance
capability of the tires, even with 4WD
engaged. Accelerating quickly, sharp
steering maneuvers or sudden braking
may cause loss of control.
•Always use tires of the same type, size,
brand, construction (bias, bias-belted or
radial), and tread pattern on all four
wheels.
•This vehicle is not designed for off-road
(rough road) use. Do not drive on sandy
or muddy roads that tires may get stuck
in.
•For 4WD equipped vehicles, do not at-
tempt to raise two wheels off the
ground and shift the transmission to any
drive or reverse position with the engine
running. Doing so may result in drive-
train damage or unexpected vehicle
movement which could result in serious
vehicle damage or personal injury.
•Do not attempt to test a 4WD equipped
vehicle on a 2-wheel dynamometer
(such as the dynamometers used by
some states for emissions testing) or
similar equipment even if the other two
wheels are raised off the ground. Make
sure that you inform the test facility
personnel that your vehicle is equipped
with 4WD before it is placed on a dyna-
mometer. Using the wrong test equip-
ment may result in drivetrain damage or
unexpected vehicle movement which
could result in serious vehicle damage or
personal injury.
•When a wheel is off the ground due to an
uneven surface, do not spin the wheel
excessively.
INCREASING FUEL ECONOMY FOUR-WHEEL DRIVE (4WD) (IF
EQUIPPED)
5-86Starting and driving

6 In case of emergency
Hazard warning flasher switch.............6-2
Flat tire............................6-2
Tire Pressure Monitoring System (TPMS).....6-2
Stopping vehicle.....................6-3
Warning triangle (if equipped)............6-4
Run-flat tires.......................6-4Removing and fitting wheels.............6-5
Jump starting.......................6-10
Push starting........................6-12
If your vehicle overheats.................6-13
Towing your vehicle...................6-14
Towing recommended by INFINITI........6-14

WARNING TRIANGLE
(IF EQUIPPED)
Removing and refitting the warning
triangle
To remove:
1. Open the lift gate and lift the luggage
compartment floor upwards.
2. To release warning triangle, push back the
retainers on the bracket.
3. Remove warning triangle
1from the
bracket.
To refit:
1. Place warning triangle
1back into the
bracket and push down to secure.
2.
Fold down the luggage compartment floor.
3. Close the lift gate.
Setting up the warning triangle
1. Fold legs out to the side.
2. Fold side reflectors upwards to form a
triangle and lock them at the top using
press stud.
RUN-FLAT TIRES
With special run-flat tires, you can continue
to drive your vehicle even if there is a total
loss of pressure in one or more tires. The
affected tire must not show any clearly visible
damage.
You can recognize run-flat tires by the mark-
ing which appears on the tire side wall. You
will find this marking next to the tire size
designation, the load-bearing capacity and
the speed index.
Run-flat tires may only be used in conjunction
with an activated tire pressure loss warning
system or tire pressure monitor.
Pressure loss warning message
If a pressure loss warning message appears
in the vehicle information display:
•Observe the instructions in the display
messages.
•Check the tire for damage.
•If driving on, observe the following notes.
The driving distance possible in run-flat mode
is approximately 50 miles (80 km) when the
vehicle is partially laden and approximately
20 miles (30 km) when the vehicle is fully laden.
NIC2686
6-4In case of emergency

In addition to the vehicle load, the driving
distance possible depends upon:
•Vehicle speed.
•Road condition.
•Outside temperature.
The driving distance possible in run-flat mode
may be reduced by extreme driving
conditions/maneuvers, or it can be increased
through a moderate style of driving.
The driving distance possible in run-flat mode
is counted from the moment the tire pressure
loss warning appears in the vehicle informa-
tion display.
You must not exceed a maximum speed of
50 MPH (80 km/h).
When replacing one or all tires, observe the
following specifications for your vehicle's tires:
•Size
•Type
•Run-flat mark
If a tire has gone flat and cannot be replaced
with a run flat tire, a standard tire may be
used as a temporary measure. Make sure that
you use the proper size and type (summer or
winter tire).
WARNING
Do not exceed the stated maximum speed.
Avoid abrupt steering and driving maneu-
vers, and driving over obstacles (curbs, pot
holes, off road). This applies in particular to
a laden vehicle.
Stop driving in emergency mode if:
•You hear banging noises.
•The vehicle starts to shake.
•You see smoke and smell rubber.
•VDC is intervening constantly.
•There are tears in the sidewalls of the
tire.
After driving in emergency mode, have the
wheel rims checked with regard to their
further use. It is recommended you visit an
INFINITI retailer for this service. The faulty
tire must be replaced.
REMOVING AND FITTING
WHEELS
NOTE
A spare wheel is not provided with your ve-
hicle.
Blocking the wheels
WARNING
Make sure to block the appropriate wheel
to prevent the vehicle from moving, which
may cause personal injury.
Place suitable blocks
1in front of and be-
hind the wheel diagonally opposite the flat
tire
Ato prevent the vehicle from moving
when it is on the jack.
MCE0001DZ
In case of emergency6-5

FUEL INFORMATION
Gasoline engine
CAUTION
Do not use leaded gasoline. Using leaded
gasoline will damage the three-way catalyst.
2.0L gasoline engine model:
Use unleaded premium gasoline with an oc-
tane rating of at least 91 AKI (Anti-Knock
Index) number (Research octane number 95).
If unleaded premium gasoline is not available,
unleaded regular gasoline with an octane rat-
ing of at least 89 AKI number (Research oc-
tane number 93) may be temporarily used,
but only under the following precautions:
•Have the fuel tank filled only partially with
unleaded regular gasoline, and fill up with
unleaded premium gasoline as soon as pos-
sible.
•Avoid full throttle driving and abrupt ac-
celeration.
Use unleaded premium gasoline for maxi-
mum vehicle performance.
CAUTION
•Using a fuel other than that specified
could adversely affect the emission con-trol system, and may also affect war-
ranty coverage.
•Under no circumstances should a leaded
gasoline be used, because this will dam-
age the three-way catalyst.
•Do not use E-15 or E-85 fuel in your
vehicle. Your vehicle is not designed to
run on E-15 or E-85 fuel. Using E-15 or
E- 85 fuel in a vehicle not specifically
designed for E-15 or E-85 fuel can ad-
versely affect the emission control de-
vices and systems of the vehicle. Dam-
age caused by such fuel is not covered by
the INFINITI new vehicle limited war-
ranty.
•U.S. government regulations require
ethanol dispensing pumps to be identi-
fied by a small, square, orange and black
label with the common abbreviation or
the appropriate percentage for that
region.
RECOMMENDED ENGINE OIL
See "Recommended fluids/lubricants and ca-
pacities".
TIRE COLD PRESSURE
See the tire and loading information label
affixed to the driver’s side center pillar.
•In case of emergency ... 6-2
(Flat tire, engine will not start, overheat-
ing, towing)
•How to start the engine ... 5-16
•How to read the meters and gauges ... 2-4
•Maintenance and do-it-yourself ... 8-2
•Technical information ... 9-2
GASOLINE STATION INFORMATION QUICK REFERENCE
