USB INFINITI QX30 2018 User Guide

For CDs without compressed audio files:
ModeScreen display
Disc Repeat
Disc
1 Track Repeat
1 Track
Disc Random
Disc
For CDs with compressed audio files:
Mode Screen display
Disc Repeat
Disc
1 Folder Repeat
1 Folder
1 Track Repeat
1 Track
Disc Random
Disc
1 Folder Random
1 Folder
CD player operation
Loading:
Insert the CD into the slot with the label side
facing up. The CD will be guided automati-
cally into the slot and starts playing.
After loading the CD, the CD screen will ap-
pear on the display. Activation and playing:
The CD mode can be selected from the
source list or by pushing the
button
with a CD loaded to play the CD.
For details, see "Selecting audio source" ear-
lier in this section and "Main audio buttons"
earlier in this section.
If the system has been turned off while the
CD was playing, pushing >will
start the Audio system set to the CD screen.
Selecting track/folder:
Touch [Track] or [Folder] in the CD menu and
select a preferred track or folder from the list.
Push to move to the
next or previous track.
For CDs with compressed audio files, push
to move to the next or
previous folder.
For details, see "Main audio buttons" earlier in
this section.
Fast-forwarding/rewinding:
Push and hold to fast-
forward or rewind the track. Release •CAT•TRACK> to play the track at normal
speed. Scanning:
Touch [Scan] on the display to scan the
tracks in the CD. While scanning, the CD will
play the first 10 seconds of each track and
move on to the next track. Pushing [Scan]
again within the 10 seconds will stop scan-
ning.
Changing play mode:
Touch [Play Mode] or the play mode icon ([
]or[]) to select the play mode.
Ejecting CD:
Push <
>to eject the CD. If the CD is
ejected and left unremoved, it will be re-
loaded into the slot to protect the CD.
USB (UNIVERSAL SERIAL BUS)
CONNECTION PORT
Connecting USB memory device
WARNING
Do not connect, disconnect or operate the
USB device while driving. Doing so can be a
distraction. If distracted you could lose
control of your vehicle and cause an acci-
dent or serious injury.
4-72Display screen, heater and air conditioner, and audio system

CAUTION
•Do not force the USB device into the
USB port. Inserting the USB device
tilted or upside down into the port may
damage the port. Make sure that the
USB device is connected correctly to the
USB port.
•Do not grab the USB port cover (if
equipped) when pulling the USB device
out of the port. This could damage the
port and the cover.
•Do not leave the USB cable in a place
where it can be pulled unintentionally.
Pulling the cable may damage the port.
Refer to your device manufacturer's owner
information regarding the proper use and
care of the device.
Two USB connectors are located on the cen-
ter console box.
USB (Universal Serial Bus) connection port/
iPod page 4-57
When compatible storage devices are
plugged into the jack, compatible audio files
on the storage devices can be played through
the vehicle's audio system.
How to view USB operation screen
1[Source]:
Touch to switch to the source list screen.
Selecting audio source page 4-65
2Play time:
The play time of the track is displayed.
3Track information:
Track information such as the song title,
artist name and folder name is displayed.
4Audio source indicator:
Indicates which of the two USB memory
device is selected.
NAA1719
Display screen, heater and air conditioner, and audio system4-73

5[USB1]/[USB2]:
Touch to switch to the other connected
USB memory device.
6Album artwork (if equipped):
An image of the CD cover is displayed
when available.
7Track number:
This indicates the track number and the
total number of tracks.
8[]/[]:
Touch to play or pause the track.
9USB menu:
USB menu items are displayed. Touch an
icon to display the list or to change the
setting.
- [Folder/Track]
- [Artists]
- [Albums]
- [Previous List]
- [Scan]
- [Play Mode]
10Play mode indicator:
This indicates the current play mode.
Touch to change the play mode.
Mode Screen display
All Track Repeat
All
1 Folder Repeat
1 Folder
1 Track Repeat
1 Track
All Random
All
1 Folder Random
1 Folder
11Folder number:
This indicates the folder, artist or album
number and the total number of folders/
lists.
USB memory device player
operation
Activation and playing:
USB memory device mode can also be acti-
vated from the audio source list and the audio
source bar by the touch panel operation or by
pushing .
Selecting audio source page 4-65
Main audio buttons page 4-64
To play the USB memory device touch [
],
and to pause the USB memory touch []
on the USB operation screen. Selecting play list:
Select a play list by touching an icon in the
USB menu.
•Folder/Track (List)
•Artist (List)
•Album (List)
•Previous List
Skipping tracks/folders:
Push to skip to the next
or previous track.
To skip to the next or previous folder, Push
.
Fast-forwarding/rewinding:
Push and hold to fast-
forward or rewind the track. Release •CAT•TRACK> to play the track at normal
speed.
Scanning:
Touch [Scan] on the display to scan the
tracks in the USB memory device. While
scanning, the USB memory device will play
the first 10 seconds of each track and move
on to the next track. Touching [Scan] again
within the 10 seconds will stop scanning.
4-74Display screen, heater and air conditioner, and audio system

Changing play mode:
Touch [Play Mode] on the display to select
the play mode.
Only one of the two connected USB memory
devices can be operated by the voice recog-
nition system.
IPOD PLAYER
Connecting iPod
WARNING
Do not connect, disconnect or operate the
iPod while driving. Doing so can be a dis-
traction. If distracted you could lose con-
trol of your vehicle and cause an accident or
serious injury.
CAUTION
•Do not force the iPod device into the
USB port. Inserting the iPod cable tilted
or upside down into the port may dam-
age the port. Make sure that the iPod
cable is connected correctly to the USB
port.
•Do not grab the USB port cover (if
equipped) when pulling the iPod cable
out of the port. This could damage the
port and the cover.
•Do not leave the iPod cable in a place
where it can be pulled unintentionally.
Pulling the cable may damage the port.
Refer to your device manufacturer's owner
information regarding the proper use and
care of the device.
Two USB (iPod) connectors are located on
the center console box.
USB (Universal Serial Bus) connection port/
iPod page 4-57
The battery of the iPod will be charged while
the device is connected to the vehicle if the
iPod supports USB connection charging.
Depending on the model and firmware ver-
sion of the iPod, the display on the iPod
shows an INFINITI or Accessory Attached
screen when the connection is completed.
When the iPod is connected to the vehicle,
the iPod music library can only be operated
using the vehicle audio controls.
Compatibility:
Made for
•iPod touch® (5th generation)
•iPod touch® (4th generation)
•iPod touch® (3rd generation)
•iPod touch® (2nd generation)
•iPod touch® (1st generation)
•iPod touch®
•iPod® with video
•iPod classic®
•iPod nano® (7th generation)
•iPod nano® (6th generation)
•iPod nano® (5th generation)
•iPod nano® (4th generation)
•iPod nano® (3rd generation)
•iPod nano® (2nd generation)
•iPod nano® (1st generation)
•iPhone® 6 Plus
•iPhone® 6
•iPhone® 5S
•iPhone® 5
•iPhone® 4S
•iPhone® 4
•iPhone® 3GS
•iPhone® 3G
•iPhone®
Display screen, heater and air conditioner, and audio system4-75

The iPod touch® may not respond quickly
with the system in some cases.
Make sure that the iPod® firmware is up-
dated.
The Lightning
TMconnector works with
iPhone® 5, iPhone® 5S, iPhone® 6, iPhone®
6 Plus, iPod touch® (5th generation), and
iPod nano® (7th generation).
The 30-pin connector works with iPhone®
4S, iPhone® 4, iPhone® 3GS, iPhone® 3G,
iPhone®, iPod touch® (1st through 4th gen-
eration), iPod classic®, and iPod nano® (1st
through 6th generation).
USB works with iPhone® 5, iPhone® 4S,
iPhone® 4, iPhone® 3GS, iPhone® 3G,
iPhone®, iPod touch® (1st through 5th gen-
eration), iPod classi®c, and iPod nano ® (1st
through 7th generation).
4-76Display screen, heater and air conditioner, and audio system

- [Audiobooks]
- [Shuffle]
- [Repeat]
11Repeat mode indicator:
Touch to change the repeat mode.
Mode Screen display
All Track Repeat
All
1 Track Repeat
1 Track
Repeat Off
OFF
iPod player operation
Activation and playing:
Inserting the iPod cable into the connector
will activate the iPod mode.
iPod can also be selected from the audio
sources list and the source bar by touch panel
operation or by pushing .
Selecting audio source page 4-65
Main audio buttons page 4-64
To play and pause the iPod, touch [Play]/
[Pause] in the iPod menu.
Selecting search method:
A list of search methods is displayed in the
iPod menu. Touch and select an item to play
the iPod in your preferred settings. Fast-forwarding/rewinding:
Push and hold
to fast-
forward or rewind the song. Release •CAT•TRACK> to play the song at normal
speed.
Changing play mode:
Touch [Shuffle] or [Repeat] from the iPod
menu to select the play mode.
Skipping songs:
Push to skip to the
next or previous song.
Even when iPods or iPhones are inserted into
both of the two USB connectors, the system
recognizes only one of the connected iPods
or iPhones at a time.
BLUETOOTH® STREAMING
AUDIO
Your vehicle is equipped with Bluetooth®
Streaming Audio.
If you have a compatible Bluetooth® device
with streaming audio (A2DP profile), you can
set up a wireless connection between your
Bluetooth® device and the in-vehicle audio
system. This connection allows you to listen
to the audio from the Bluetooth® device us-
ing your vehicle speakers. It may also allow
basic control of the device for playing and skipping audio files using the AVRCP
Bluetooth® profile. Not all Bluetooth® de-
vices have the same level of controls for
AVRCP. Please consult the manual for your
Bluetooth® device for more details.
Wireless LAN (Wi-Fi) and the Bluetooth®
functions share the same frequency band
(2.4 GHz). Using the Bluetooth® and the
wireless LAN functions at the same time may
slow down or disconnect the communication
and cause undesired noise. It is recom-
mended that you turn off the wireless LAN
(Wi-Fi) when using the Bluetooth® functions.
Regulatory Information
FCC Regulatory information:
FCC ID : HYQDNNS075
NOTE: This device complies with part 15 of
the FCC Rules. Operation is subject to the
following two conditions: (1) This device may
not cause harmful interference, and (2) this
device must accept any interference received,
including interference that may cause unde-
sired operation.
FCC WARNING: Changes or modifications
not expressly approved by the party respon-
sible for compliance could void the user’s au-
thority to operate the equipment.
CAUTION : Radio Frequency Radiation Ex-
posure
4-78Display screen, heater and air conditioner, and audio system

DISC/USB MEMORY DEVICE
CARE AND CLEANING
DISCS
•Handle a disc by its edges. Never touch the
surface of the disc. Do not bend the disc.
•Always place discs in their storage cases
when they are not being used.
•To clean a disc, wipe the surface from the
center to the outer edge using a clean, soft
cloth. Do not wipe the disc using a circular
motion.
Do not use a conventional record cleaner
or alcohol intended for industrial use.
•The inner and outer edges of a new disc
may be rough. Remove the rough edges by
rubbing the inner and outer edges with the
side of a pen or pencil as illustrated.
USB MEMORY DEVICE
•Never touch the terminal portion of the
USB memory device.
•Do not place heavy objects on the USB
memory device.
•Do not store the USB memory device in
very humid locations.
•Do not expose the USB memory device to
direct sunlight.
•Do not spill any liquids on the USB memory
device.
Refer to the owner's manual for the USB
memory device for details.
GRACENOTE® END USER
LICENSE AGREEMENT
This application or device contains software
from Gracenote, Inc. of Emeryville, California
(“Gracenote”). The software from Gracenote
(the “Gracenote Software”) enables this ap-
plication to perform disc and/or file identifi-
cation and obtain music-related information,
including name, artist, track, and title infor-
mation (“Gracenote Data”) from online serv-
ers or embedded databases (collectively,
“Gracenote Servers”) and to perform other
functions. You may use Gracenote Data only by means of the intended End-User functions
of this application or device.
You agree that you will use Gracenote Data,
the Gracenote Software, and Gracenote
Servers for your own personal non-
commercial use only. You agree not to assign,
copy, transfer or transmit the Gracenote
Software or any Gracenote Data to any third
party. YOU AGREE NOT TO USE OR EX-
PLOIT GRACENOTE DATA, THE
GRACENOTE SOFTWARE, OR
GRACENOTE SERVERS, EXCEPT AS EX-
PRESSLY PERMITTED HEREIN.
You agree that your non-exclusive license to
use the Gracenote Data, the Gracenote Soft-
ware, and Gracenote Servers will terminate if
you violate these restrictions. If your license
terminates, you agree to cease any and all
use of the Gracenote Data, the Gracenote
Software, and Gracenote Servers. Gracenote
reserves all rights in Gracenote Data, the
Gracenote Software, and the Gracenote
Servers, including all ownership rights. Under
no circumstances will Gracenote become li-
able for any payment to you for any informa-
tion that you provide. You agree that
Gracenote, Inc. may enforce its rights under
this Agreement against you directly in its own
name.
The Gracenote service uses a unique identi-
fier to track queries for statistical purposes.
SAA0451Z
4-84Display screen, heater and air conditioner, and audio system

BLUETOOTH® INFORMATION
Information about the connected
Bluetooth® device can be viewed.
1. Push

App Garage Settings screen
Application settings can be changed on the App Garage Settings screen.
1. Push

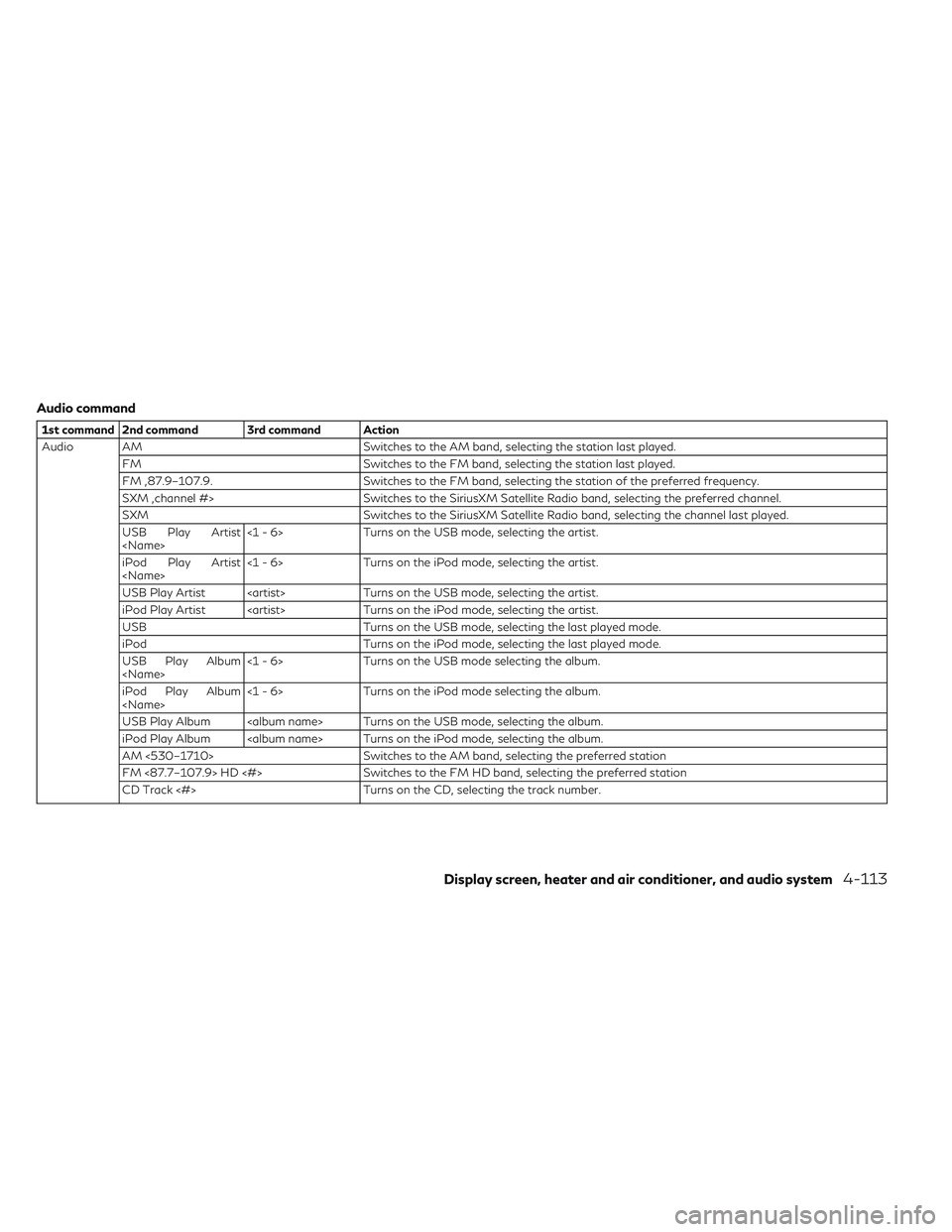

Audio command
1st command 2nd command 3rd command Action
Audio AM Switches to the AM band, selecting the station last played.FM Switches to the FM band, selecting the station last played.
FM ,87.9–107.9. Switches to the FM band, selecting the station of the preferred frequency.
SXM ,channel #> Switches to the SiriusXM Satellite Radio band, selecting the preferred channel.
SXM Switches to the SiriusXM Satellite Radio band, selecting the channel last played.
USB Play Artist
<1 - 6>
Turns on the USB mode, selecting the artist.
iPod Play Artist
<1 - 6>
Turns on the iPod mode, selecting the artist.
USB Play Artist Turns on the USB mode, selecting the artist.
iPod Play Artist Turns on the iPod mode, selecting the artist.
USB Turns on the USB mode, selecting the last played mode.
iPod Turns on the iPod mode, selecting the last played mode.
USB Play Album
<1 - 6>
Turns on the USB mode selecting the album.
iPod Play Album
<1 - 6>
Turns on the iPod mode selecting the album.
USB Play Album Turns on the USB mode, selecting the album.
iPod Play Album Turns on the iPod mode, selecting the album.
AM <530–1710> Switches to the AM band, selecting the preferred station
FM <87.7–107.9> HD <#> Switches to the FM HD band, selecting the preferred station
CD Track <#> Turns on the CD, selecting the track number.
Display screen, heater and air conditioner, and audio system4-113
