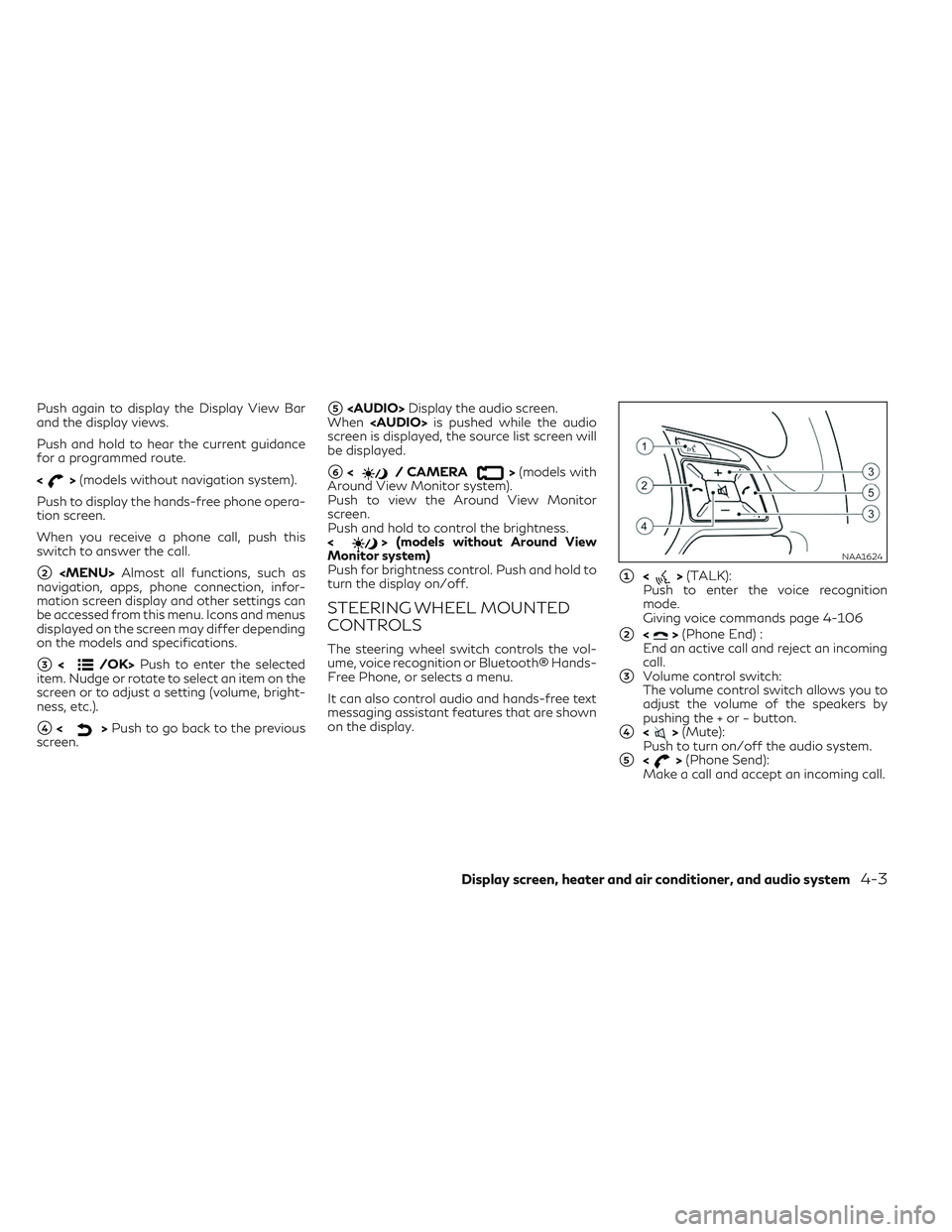

Push again to display the Display View Bar
and the display views.
Push and hold to hear the current guidance
for a programmed route.
<
>(models without navigation system).
Push to display the hands-free phone opera-
tion screen.
When you receive a phone call, push this
switch to answer the call.
2

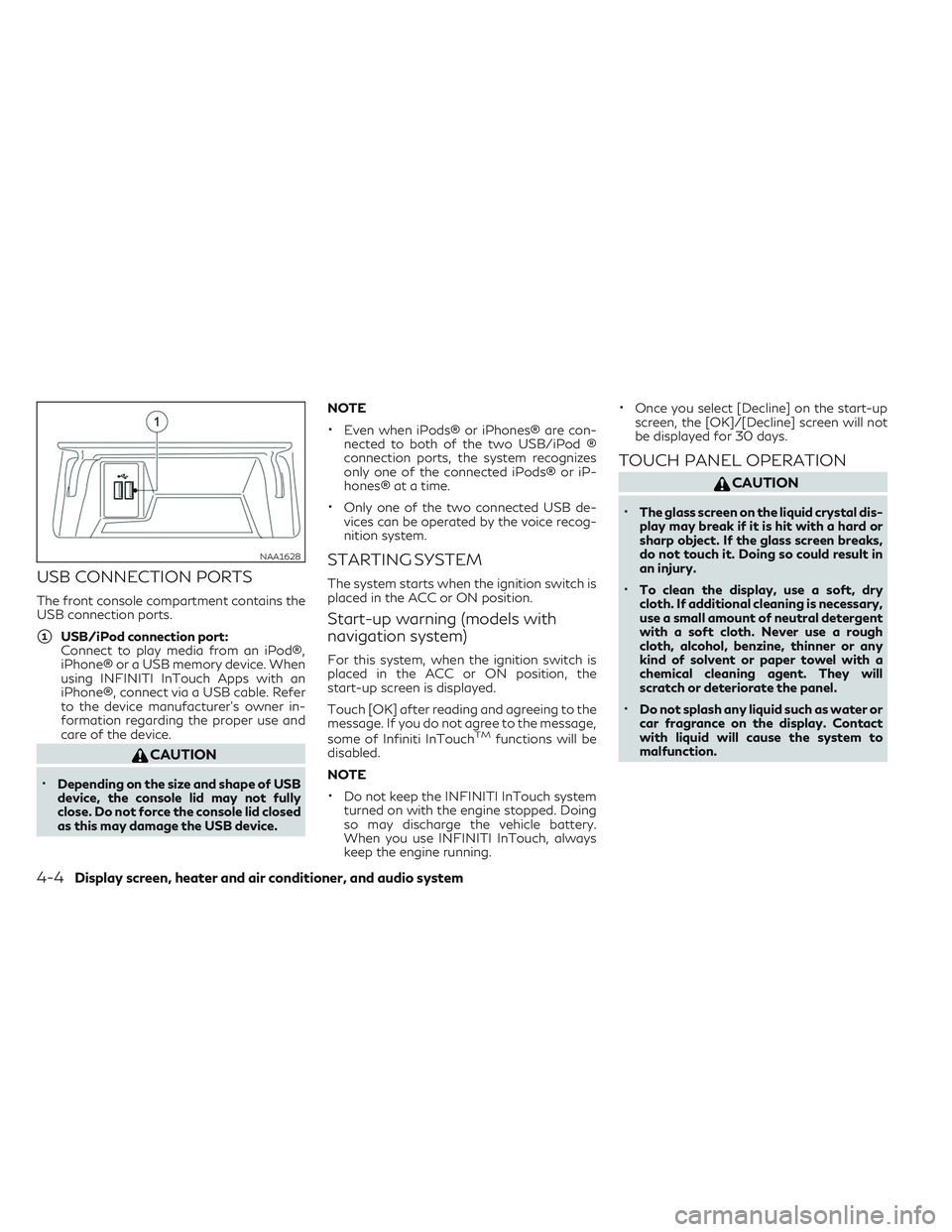

USB CONNECTION PORTS
The front console compartment contains the
USB connection ports.
1USB/iPod connection port:
Connect to play media from an iPod®,
iPhone® or a USB memory device. When
using INFINITI InTouch Apps with an
iPhone®, connect via a USB cable. Refer
to the device manufacturer’s owner in-
formation regarding the proper use and
care of the device.
CAUTION
•Depending on the size and shape of USB
device, the console lid may not fully
close. Do not force the console lid closed
as this may damage the USB device. NOTE
•Even when iPods® or iPhones® are con-
nected to both of the two USB/iPod ®
connection ports, the system recognizes
only one of the connected iPods® or iP-
hones® at a time.
•Only one of the two connected USB de-
vices can be operated by the voice recog-
nition system.
STARTING SYSTEM
The system starts when the ignition switch is
placed in the ACC or ON position.
Start-up warning (models with
navigation system)
For this system, when the ignition switch is
placed in the ACC or ON position, the
start-up screen is displayed.
Touch [OK] after reading and agreeing to the
message. If you do not agree to the message,
some of Infiniti InTouch
TMfunctions will be
disabled.
NOTE
•Do not keep the INFINITI InTouch system
turned on with the engine stopped. Doing
so may discharge the vehicle battery.
When you use INFINITI InTouch, always
keep the engine running.
•Once you select [Decline] on the start-up
screen, the [OK]/[Decline] screen will not
be displayed for 30 days.
TOUCH PANEL OPERATION
CAUTION
•The glass screen on the liquid crystal dis-
play may break if it is hit with a hard or
sharp object. If the glass screen breaks,
do not touch it. Doing so could result in
an injury.
•To clean the display, use a soft, dry
cloth. If additional cleaning is necessary,
use a small amount of neutral detergent
with a soft cloth. Never use a rough
cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.
•Do not splash any liquid such as water or
car fragrance on the display. Contact
with liquid will cause the system to
malfunction.
NAA1628
4-4Display screen, heater and air conditioner, and audio system

HOW TO OPERATE DISPLAY
Touch screen display
To operate the display, touch the display di-
rectly or use the INFINITI controller.
Shortcut menu
Models with navigation system:
The shortcut menu can be displayed on the
display. The display may differ depending on
the conditions of the current map screen.While the current vehicle location is displayed
on the map, push<
/OK>on the INFINITI
controller to display the shortcut menu on the
display. Available items:
•[Audio Source]
•[Audio List]
•[Call History]
•[Phonebook]
•[Cancel Route]*
•[Nearby Places]*
•[Store Location]*
•[View Settings]*
•[Store Location]*
•[Select Add/Edit]*
* For these items see the separately provided
navigation manual (if equipped).
Models without navigation system:
The shortcut menu can be displayed on the
display.
Push <
/OK> on the INFINITI controller
to display the shortcut menu.
NAA1712
Display screen, heater and air conditioner, and audio system4-9

Available items:
•[Audio Source]
•[Audio List]
•[Call History]
•[Phonebook]
•[Select Add/Edit]
Edit shortcut menu:
The following procedure can be used to edit
or sort the shortcut menu.
1. Select [Select Add/Edit] to register a new item to the menu, or to change an existing
menu item.
2. Select the preferred setting.
•[Change Order] Change the order in which shortcut menu
items are shown.
•[Edit Shortcut Items]
Select items to be displayed in the shortcut
menu.
MENU BUTTON OPERATION
Push

SYSTEM STATUS SCREEN
By pushingon the audio switch
the current status of the system can be dis-
played.
Models with navigation system:
Touch [<] / [>] to switch between air condi-
tioner status and navigation route informa-
tion screen.
ITEMS TO BE SET INITIALLY
The initial setting operations included in this
section should be performed before using the
system for the first time.
Screen settings
The display can be turned on/off and the
image quality of the display can be adjusted in
this menu.
1. Push

Volume settings
Volume setting items can be turned on/off and the sound for various functions including audio, phone (ringtone, incoming, and outgoing
volumes), navigation voice guidance (if equipped) and the system beeps can be adjusted.
1. Push

Clock settings
Clock settings can be changed.
1. Push

ADDITIONAL SYSTEM
INFORMATION
System Start-Up
Due to the large number of features and
capabilities that the INFINITI InTouch system
needs to load on start-up, it may take up to a
minute for all functions (such as Apps) to be
available. The system will display the mes-
sage indicating that the application is loading
during this time. During the start-up period,
hard button controls for audio will become
available before start-up is complete. Fea-
tures will become available in the following
order.
•Audio volume and music playback
•Audio Full Screen Access
•Full App Availability – System will display
the message indicating the completion of
the application loading process.
System Response Delay
INFINITI InTouch uses an operating system
like those found on many computers, tablets
and cell phones. Like these devices, process-
ing speed may vary, and system response
delays or resets may occur intermittently.
This does not indicate a malfunction, and
further information on system operation can
be found below. In most situations, simply waiting a few mo-
ments longer should be sufficient for the
pending operations to complete.
If the system temporarily does not respond to
commands, the system can be easily reset.
Simply push down the Audio Power knob for
at least 5 seconds. The system will turn off
and restart.
After restart, all functions should be avail-
able.
•Audio will resume, but if you were using
Bluetooth® Audio or an Audio App, the
connection may need to be re-established.
•If a navigation route was set, the route
should resume automatically (models with
navigation system).
•If a phone call was in progress, the call may
be temporarily transferred back to the
handset.
System Reset
As noted above, intermittent system resets
may occur during normal operation. You may
also wish to reset the system if you find that a
particular feature is not loading or respond-
ing. Often, a quick system reset will resolve
any issue you may be experiencing. After re-
start, all functions will be available as de-
scribed above. System Updates
Like many digital devices, the INFINITI
InTouch system is designed to allow for soft-
ware updates as enhancements are devel-
oped and additional features added. If you
have questions about system performance, it
is recommended you contact your INFINITI
retailer to ensure that your vehicle has had
the latest available software installed.
Operating Tips
INFINITI InTouch provides several methods
of operation to suit your preferences. The
following are suggested operating tips.
•Operating the INFINITI Controller, Steer-
ing Wheel Controls, or other controls too
quickly can cause a lag between the con-
trol and the display. Operate the controls
carefully and allow the system to respond
to your request.
•INFINITI recommends using Voice Recog-
nition whenever possible to select options
while driving. Some touch screen function-
ality is intentionally unavailable during
driving. Please view the available voice
commands by pushing <
>on the steer-
ing wheel and then selecting a category on
the display.
4-16Display screen, heater and air conditioner, and audio system

Receiving a call
When you received a phone call, a notifica-
tion message is displayed on the touch screen
display with a ring tone.
Taking a call:
To answer a call, take one of the following
actions.
•Push<>on the steering wheel.
•Push <>on the INFINITI controller
(models without navigation system).
•Touch [Answer].
Reject a call:
To reject a call, touch [Decline]. Receiving a call while on the line to another
person:
When another phone call is received while on
the line to another person, a message box
informing you of the incoming call will appear
on the display.
Available items
Avail-
able
items
Action
[An-
swer] Take the second call and put the first
call on hold.
[De-
cline] Reject the second call and keep the first
call on line.
During a call
There are various options available during a
call. Select one of the following options dis-
played on the screen if necessary.
Available items
Avail-
able
itemsAction
[Switch
Call]* Answer another incoming call. The per-
son you are talking to will be placed on
hold. Push once more to speak to the
person on hold again.
[Hang
Up] This disconnects the person you are
currently connected to and will connect
you to the person who is on hold.
[Mute]/
[Cancel
Mute] When muted, your voice will not be
heard by the person on the other end of
the line.
NAA1654NAA1655NAA1721
Display screen, heater and air conditioner, and audio system4-89

3) Turn “Show Notification” ON fromBluetooth® setting menu on your iPhone
®.
4) Connect iPhone® from vehicle setting menu.
Displaying received message list
1. To display the phone menu screen, takeone of the following actions:
•Push
