lock INFINITI QX30 2018 Owners Manual

LightName Page Light NamePage Light NamePage
Anti-lock Braking System
(ABS) warning light 2-8Seat belt (driver and front pas-
senger) warning light2-11High beam assist indicator
light *2-14
Brake warning light (red) 2-11Supplemental Restraint Sys-
tem (SRS) air bag warning light2-12High beam indicator light 2-14
Low tire pressure warning
light*2-9Low fuel warning light 2-13Rear fog light indicator light 2-14
Malfunction indicator light
(yellow)2-10Vehicle Dynamic Control
(VDC) warning light2-13Side light indicator light 2-14
Distance warning light* 2-11Turn signal/hazard indicator
lights2-13Front passenger air bag status
light**2-14
Electric parking brake warning
light (red)2-11Low beam indicator light 2-14
Electric parking brake warning
light (yellow)2-11Vehicle Dynamic Control
(VDC) OFF indicator light2-13
Coolant warning light 2-13Front fog light indicator light* 2-14 *: if equipped
**: located above heater and air condi-
tioner controls
WARNING AND INDICATOR LIGHTS
0-10Illustrated table of contents

WARNING
•The seatback should not be reclined any
more than needed for comfort. Seat
belts are most effective when the pas-
senger sits well back and straight up in
the seat. If the seatback is reclined, the
risk of sliding under the lap belt and be-
ing injured is increased.
•For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back and up-
right in the seat with both feet on the
floor and adjust the seat properly. (See
"Seat belts" later in this section.)
•After adjustment, gently rock in the seat
to make sure it is securely locked.
•To help avoid risk of injury or death
through unintended operation of the
vehicle and/or its systems, do not leave
children, people who require the assis-
tance of others, or pets unattended in
your vehicle. Additionally, the tempera-
ture inside a closed vehicle on a warm
day can quickly become high enough to
cause a significant risk of injury or death
to people and pets.
•Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls or move the
vehicle. Unattended children could be-
come involved in serious accidents.
•Do not adjust the driver’s seat while
driving so full attention may be given to
vehicle operation. The seat may move
suddenly and could cause loss of control
of the vehicle.
CAUTION
•When moving the seats forward or
backward, or returning a reclined seat-
back to its upright position, make sure
you hold onto the seatback while oper-
ating. If the seatback is not held, the
seat or seatback may move suddenly
and could cause injury.
•When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
SSS0133AZ
SEATS
1-2Safety — seats, seat belts and supplemental restraint system

FRONT SEATS
Manual seat adjustment
Forward and backward:
Pull the lever
1up and hold it while sliding
the seat forward or backward to the pre-
ferred position. Release the lever to lock the
seat in position.
Seat cushion angle (if equipped):
Adjust the angles so that your thighs are
lightly supported. Turn handwheel
2for-
wards or backwards.
Seat lifter (if equipped):
Repeatedly pull up or push down the adjust-
ing lever
3, to adjust the seat height to the
desired position. Seatback angle:
Relieve the pressure on the seatback and turn
handwheel
4forwards or backwards.
The reclining feature allows the adjustment
of the seatback for occupants of different
sizes to help obtain the proper seat belt fit.
(See "Seat belts" later in this section.)
The seatback may be reclined to allow occu-
pants to rest when the vehicle is parked.
Lumbar support:
The lumbar support feature provides lower
back support to the driver.
Push each side of the adjusting switch to
adjust the seat lumbar area until the desired
position is achieved.
1To raise the seatback contour
2To soften the seatback contour
3To lower the seatback contour
4To harden the seatback contour
Power seat adjustment
Operating tips:
•The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during the seat adjustment, wait 30
seconds, then reactivate the switch.
NIC2605NIC2607
Safety — seats, seat belts and supplemental restraint system1-3

Folding
The luggage compartment loading capacity
can be increased by folding the rear seat-
backs forward.
To fold the seatback:
1. Ensure head restraints are properlystowed, see "Head restraints/Headrests"
later in this section.
2. Release the seatback lock by pulling the release handle as shown.
3. Fold the seatback forward as shown. 4. Insert the seat belt into the seat belt
holder as shown.
To return the seatback to an upright posi-
tion:
1. Make sure the seat belts are clear of the seatback latch mechanism.
2. Lift the seatback up and push firmly to lock.
3. If the red marker is visible then the seat- back has not latched properly — release
and then re-latch the seat.
4. If the head restraint/headrest was re- moved, reinstall and properly adjust the
head restraint/headrest before an occu-
pant uses the seating position. See "Head
restraints/Headrests" later in this section.
WARNING
Always use the seat belt holder, and ensure
that the seat belt is not trapped in the seat-
back latch mechanism. Failure to do so may
cause damage to the seat belt, and this may
increase the risk of serious injury or death
in a collision.
NPA1293NIC2669
1-6Safety — seats, seat belts and supplemental restraint system

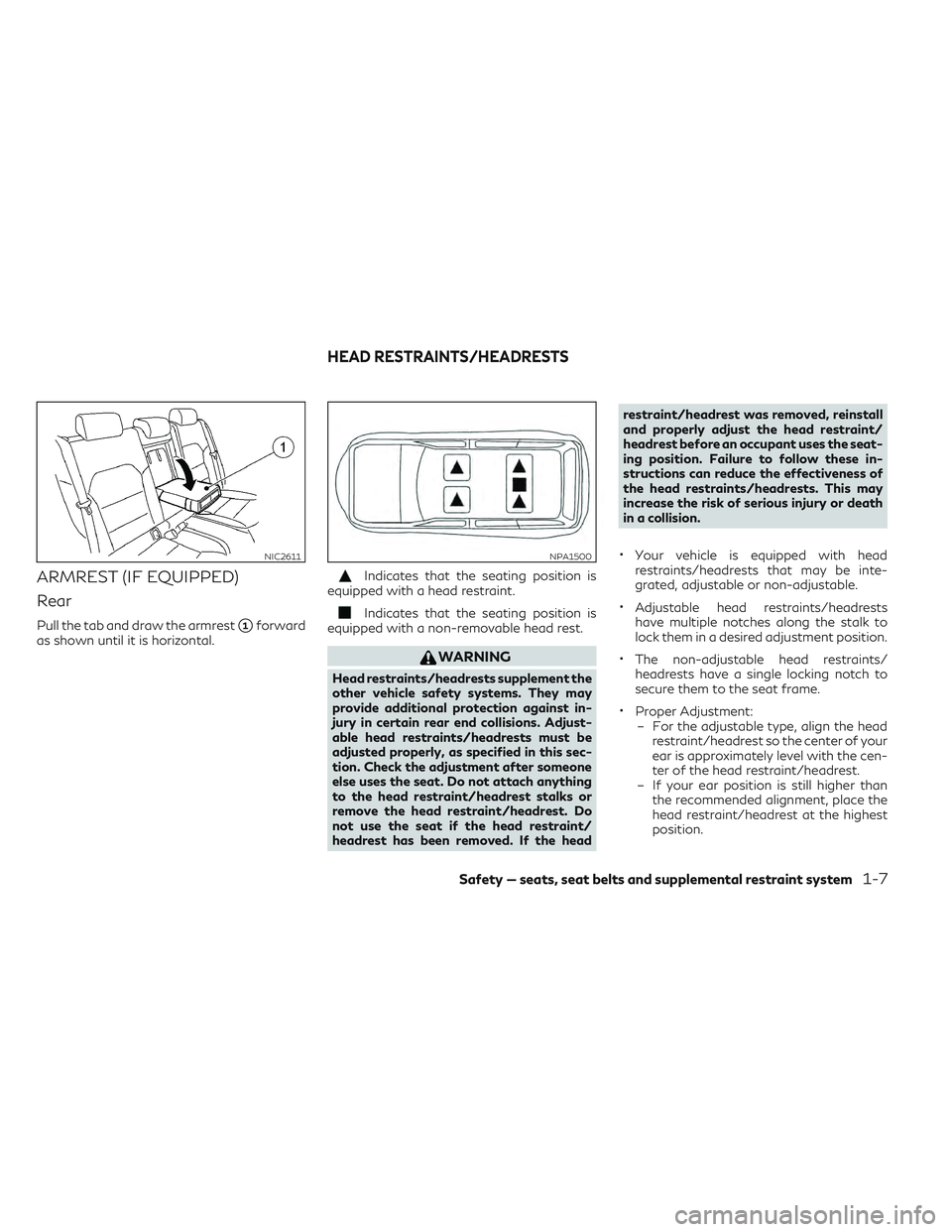

ARMREST (IF EQUIPPED)
Rear
Pull the tab and draw the armrest1forward
as shown until it is horizontal.
Indicates that the seating position is
equipped with a head restraint.
Indicates that the seating position is
equipped with a non-removable head rest.
WARNING
Head restraints/headrests supplement the
other vehicle safety systems. They may
provide additional protection against in-
jury in certain rear end collisions. Adjust-
able head restraints/headrests must be
adjusted properly, as specified in this sec-
tion. Check the adjustment after someone
else uses the seat. Do not attach anything
to the head restraint/headrest stalks or
remove the head restraint/headrest. Do
not use the seat if the head restraint/
headrest has been removed. If the head restraint/headrest was removed, reinstall
and properly adjust the head restraint/
headrest before an occupant uses the seat-
ing position. Failure to follow these in-
structions can reduce the effectiveness of
the head restraints/headrests. This may
increase the risk of serious injury or death
in a collision.
•Your vehicle is equipped with head
restraints/headrests that may be inte-
grated, adjustable or non-adjustable.
•Adjustable head restraints/headrests
have multiple notches along the stalk to
lock them in a desired adjustment position.
•The non-adjustable head restraints/
headrests have a single locking notch to
secure them to the seat frame.
•Proper Adjustment: – For the adjustable type, align the head restraint/headrest so the center of your
ear is approximately level with the cen-
ter of the head restraint/headrest.
– If your ear position is still higher than the recommended alignment, place the
head restraint/headrest at the highest
position.
NIC2611NPA1500
HEAD RESTRAINTS/HEADRESTS
Safety — seats, seat belts and supplemental restraint system1-7

•If the head restraint/headrest has been
removed, ensure that it is reinstalled and
locked in place before riding in that desig-
nated seating position.
NOTE
For vehicles with sports seats you cannot
adjust the front head restraints/headrests
or the outer rear head restraints/headrests.
ADJUSTABLE HEAD RESTRAINT
COMPONENTS
1. Removable head restraint/headrest
2. Multiple notches
3. Lock knob
4. Stalks
REMOVE
Use the following procedure to remove the
head restraint/headrest.
1. Pull the head restraint/headrest up to the highest position.
2. Push and hold the lock knob.
3. Remove the head restraint/headrest from the seat.
4. Store the head restraint/headrest prop- erly in a secure place so it is not loose in
the vehicle.
5. Reinstall and properly adjust the head restraint/headrest before an occupant
uses the seating position.
SSS0992ZSSS1037Z
1-8Safety — seats, seat belts and supplemental restraint system

INSTALL
1. Align the head restraint/headrest stalkswith the holes in the seat. Make sure that
the head restraint/headrest is facing the
correct direction. The stalk with the ad-
justment notch
1must be installed in the
hole with the lock knob
2.
2. Push and hold the lock knob and push the head restraint/headrest down.
3. Properly adjust the head restraint/ headrest before an occupant uses the
seating position.
ADJUST
For adjustable head restraint/ headrest
Adjust the head restraint/headrest so the
center is level with the center of your ears. If
your ear position is still higher than the rec-
ommended alignment, place the head
restraint/headrest at the highest position.
Raise
To raise the head restraint/headrest, pull it
up.
Make sure the head restraint/headrest is po-
sitioned from the stored position or any non-
latch position so the lock knob is engaged in
the notch before riding in that designated
seating position.
SSS1038ZSSS0997ZSSS1035Z
Safety — seats, seat belts and supplemental restraint system1-9

Lower
To lower, push and hold the lock knob1and
push the head restraint/headrest down.
Make sure the head restraint/headrest is po-
sitioned so the lock knob is engaged in the
notch before riding in that designated seating
position.
Fore-aft
This function allows you to adjust the dis-
tance between the head restraint/headrest
and the back of the head.
•To move forwards: pull the head restraint/
headrest forwards in the direction of the
arrow until it engages. There are a number
of detents.
•To move backwards: press and hold but-
ton
1and push the head restraint/
headrest backwards.
•When the head restraint/headrest is in the
desired position, release the button and
make sure that the head restraint/
headrest is engaged in position.
PRECAUTIONS ON SEAT BELT
USAGE
If you are wearing your seat belt properly
adjusted, and you are sitting upright and well
back in your seat, your chances of being in-
jured or killed in an accident and/or the se-
verity of injury may be greatly reduced.
INFINITI strongly encourages you and all of
your passengers to buckle up every time you
drive, even if your seating position includes a
supplemental air bag.
Most U.S. states and Canadian provinces or
territories specify that seat belts be worn at
all times when a vehicle is being driven.
SSS1036ZNIC2610
SEAT BELTS
1-10Safety — seats, seat belts and supplemental restraint system

INJURED PERSONS
INFINITI recommends that injured persons
use seat belts. Check with your doctor for
specific recommendations.
SEAT BELT WARNING LIGHT
The seat belt warning light reminds you to
fasten your seat belts. The light illuminates if
the engine is started, all doors are closed and
the driver’s and/or front passenger’s seat
belt is unfastened. It will remain illuminated
until the driver and/or front passenger fas-
tens their seat belt. A chime will sound once
the vehicle is in motion.
If the seat belt warning light flashes, together
with an intermittent warning tone, this means
that the driver or passenger has not fastened
their seat belt, and the speed of the vehicle is
exceeding 15 MPH (25 km/h).
For additional information, refer to "Warning
lights, indicator lights and audible reminders"
in the "2. Instruments and controls" section.
THREE-POINT TYPE SEAT BELT
WITH RETRACTOR
WARNING
•Every person who drives or rides in this
vehicle should use a seat belt at all times.
Children should be in the rear seats and
in an appropriate restraint.
•Do not ride in a moving vehicle when the
seatback is reclined. This can be danger-
ous. The shoulder belt will not be against
your body. In an accident, you could be
thrown into it and receive neck or other
serious injuries. You could also slide un-
der the lap belt and receive serious inter-
nal injuries.
•For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back and up-
right in the seat with both feet on the
floor and adjust the seat belt properly.
•Do not allow children to play with the
seat belts. Most seating positions are
equipped with Automatic Locking Re-
tractor (ALR) mode seat belts. If the
seat belt becomes wrapped around a
child’s neck with the ALR mode acti-
vated, the child can be seriously injured
NIC2743
Safety — seats, seat belts and supplemental restraint system1-13

or killed if the seat belt retracts and be-
comes tight. This can occur even if the
vehicle is parked. Unbuckle the seat belt
to release the child. If the seat belt can-
not be unbuckled or is already unbuck-
led, release the child by cutting the seat
belt with a suitable tool (such as a knife
or scissors) to release the seat belt.
Fastening the seat belts
1. Adjust the seat. (See "Seats" earlier in thissection.)
2. Slowly pull the seat belt out of the retrac- tor and insert the tongue into the buckle
until you hear and feel the latch engage.•The retractor is designed to lock dur-
ing a sudden stop or on impact. A slow
pulling motion permits the belt to
move and allows you some freedom of
movement in the seat.
•If the seat belt cannot be pulled from
its fully retracted position, firmly pull
the belt and release it. Then smoothly
pull the belt out of the retractor.
3. Position the lap belt portion low and snug
on the hips as shown 4. Pull the shoulder belt portion toward the
retractor to take up extra slack. Be sure
the shoulder belt is routed over your
shoulder and across your chest.
The front passenger seat and the rear seating
positions three-point seat belts have two
modes of operation:
•Emergency Locking Retractor (ELR)
•Automatic Locking Retractor (ALR)
The ELR mode allows the seat belt to extend
and retract to allow the driver and passen-
gers some freedom of movement in the seat.
The ELR locks the seat belt when the vehicle
slows down rapidly or during certain impacts.
The ALR mode (child restraint mode) locks
the seat belt for child restraint installation.
When the ALR mode is activated, the seat
SSS0292ZSSS0290Z
1-14Safety — seats, seat belts and supplemental restraint system
