INFINITI QX30 2019 Owner's Manual

Message Possible causes/consequences and solutions
[Steering Malfunction See
Operator's Manual]The electric steering lock is malfunctioning.WARNING
The steering may be locked by the electric steering lock.
There is a risk of an accident.
1. Pull over and stop the vehicle safely as soon as possible, paying attention to road and traffic conditions.
2. Secure the vehicle against rolling away.
3. Do not drive on. It is recommended you contact the nearest INFINITI retailer.
The electric steering lock was unable to unlock the steering.
1. Remove the key from the ignition switch.
2. To unlock the steering, move the steering wheel slightly.
3. Insert the key into the ignition lock again.
[Check Washer Fluid]The washer fluid level in the washer fluid reservoir has dropped below the minimum.
Top up the washer fluid (see "Window washer fluid")
[Wiper Malfunctioning] The windshield wipers are defective.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Hazard Warning Flashers
Malfunctioning]The hazard warning lights are faulty.
Visit an INFINITI retailer.
Instruments and controls2-57

Key
Problem Possible causes/consequences and solutions
[Key Does Not Belong to
Vehicle]You have put the wrong key in the ignition switch.
Use the correct key.
[Obtain a New Key]The key needs to be replaced.
It is recommended you visit an INFINITI retailer for this service.
[Replace Key Battery]The key battery is discharged.
Replace the battery (see "Checking the battery")
[Key Not Detected] (red
display message)The key is not in the vehicle.
A warning tone also sounds.
If the engine is switched off, you can no longer lock the vehicle centrally or start the engine.
1. Pull over and stop the vehicle safely as soon as possible, paying attention to road and traffic conditions.
2. Secure the vehicle against rolling away.
3. Locate the key.
Because there is interference from a strong source of radio waves, the key is not detected whilst the engine is running.
A warning tone also sounds.
If the engine is switched off, you can no longer lock the vehicle centrally or start the engine.
1. Pull over and stop the vehicle safely as soon as possible, paying attention to road and traffic conditions.
2. Secure the vehicle against rolling away.
3. Insert the key into the ignition lock and bring into key mode.
2-58Instruments and controls

Problem Possible causes/consequences and solutions
[Remove 'Start' Button,
Then Insert Key]The key is continually undetected.
The key detection function has a temporary malfunction or is faulty. A warning tone also sounds.•Insert the key into the ignition lock and turn it to the desired position.•It is recommended you consult an INFINITI retailer.
[Key Not Detected] (white
display message)The key is currently undetected.
Change the location of the key in the vehicle.
If the key still cannot be detected, operate the vehicle with the key in the ignition switch if necessary.
Instruments and controls2-59

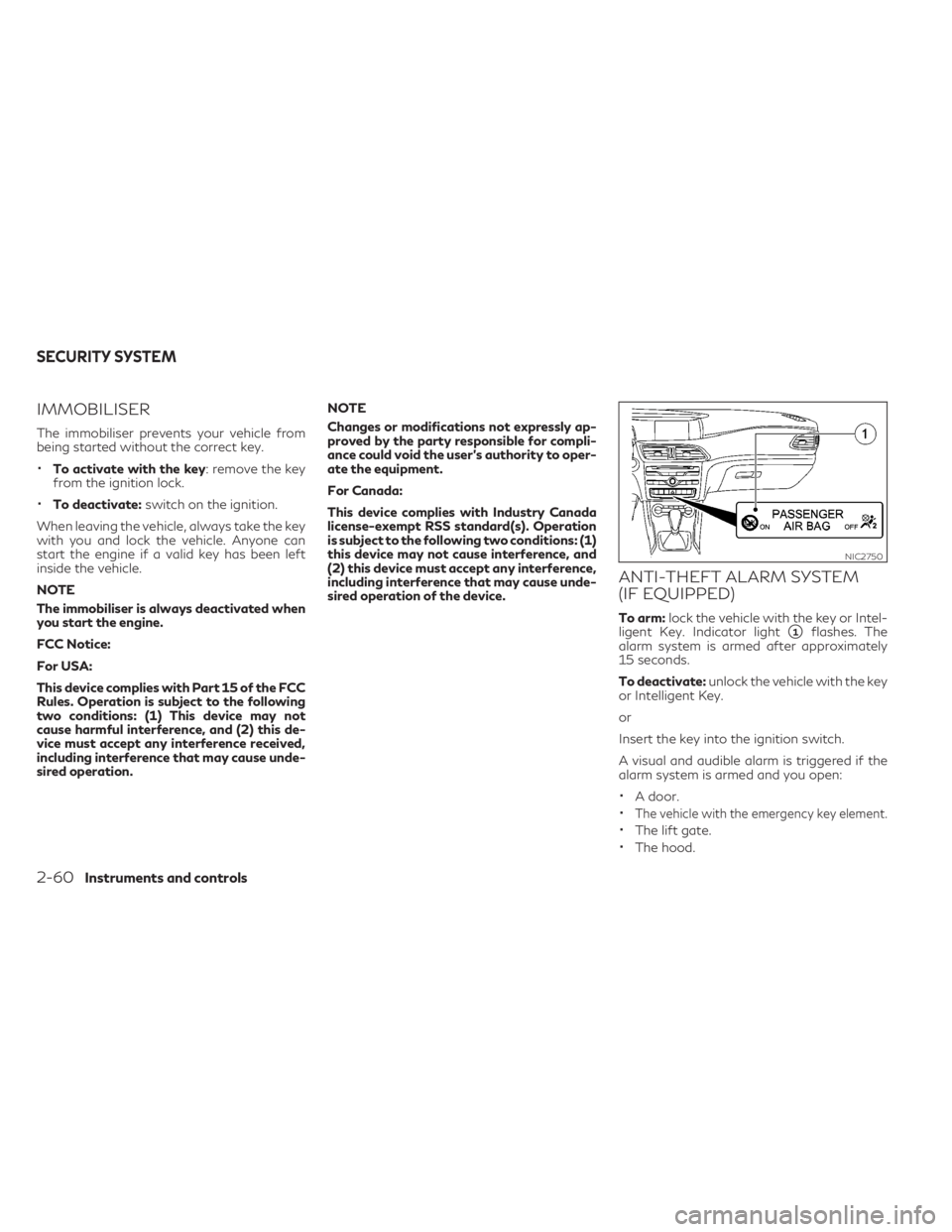

IMMOBILISER
The immobiliser prevents your vehicle from
being started without the correct key.
•To activate with the key: remove the key
from the ignition lock.
•To deactivate:switch on the ignition.
When leaving the vehicle, always take the key
with you and lock the vehicle. Anyone can
start the engine if a valid key has been left
inside the vehicle.
NOTE
The immobiliser is always deactivated when
you start the engine.
FCC Notice:
For USA:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference, and (2) this de-
vice must accept any interference received,
including interference that may cause unde-
sired operation.NOTE
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.
For Canada:
This device complies with Industry Canada
license-exempt RSS standard(s). Operation
is subject to the following two conditions: (1)
this device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause unde-
sired operation of the device.
ANTI-THEFT ALARM SYSTEM
(IF EQUIPPED)
To arm:lock the vehicle with the key or Intel-
ligent Key. Indicator light
1flashes. The
alarm system is armed after approximately
15 seconds.
To deactivate:unlock the vehicle with the key
or Intelligent Key.
or
Insert the key into the ignition switch.
A visual and audible alarm is triggered if the
alarm system is armed and you open:
•A door.
•The vehicle with the emergency key element.
•The lift gate.
•The hood.
NIC2750
SECURITY SYSTEM
2-60Instruments and controls

To switch the alarm off with the key: press
theorbutton on the key. The
alarm is switched off
or
Vehicles with a push button ignition switch:
•Remove the start/stop button from the
ignition lock (see " Push-button ignition
switch (if equipped)")
•Insert the key into the ignition lock. The
alarm stops.
The alarm is not switched off, even if you
close the open door that has triggered it, for
example.
WARNING
In freezing temperatures the washer solu-
tion may freeze on the windshield and ob-
scure your vision which may lead to an ac-
cident. Warm the windshield with the
defroster before you wash the windshield.
CAUTION
•Do not operate the washer continuously
for more than 30 seconds.
•Do not operate the washer if the win-
dow washer fluid reservoir is empty.
•Do not fill the window washer reservoir
tank with washer fluid concentrates at
full strength. Some methyl alcohol
based washer fluid concentrates may
permanently stain the grille if spilled
while filling the window washer reser-
voir tank.
•Pre-mix washer fluid concentrates with
water to the manufacturer’s recom-
mended levels before pouring the fluid
into the window washer reservoir tank.
Do not use the window washer reservoir
tank to mix the washer fluid concentrate
and water.NOTE
•If the wiper operation is interrupted by
snow or ice, the wiper may stop moving to
protect its motor. If this occurs, turn the
wiper switch to the “OFF” position and
remove the snow or ice on and around the
wiper arms. In approximately 1 minute,
turn the switch on again to operate the
wiper.
•Do not operate the windshield wipers
when the windshield is dry, as this could
damage the wiper blades. Moreover, dust
that has collected on the windshield can
scratch the glass if wiping takes place
when the windshield is dry.
•If it is necessary to switch on the wipers in
dry weather conditions, always operate
them using washer fluid.
•If the windshield wipers leave smears on
the windshield after the vehicle has been
washed in an automatic car wash, this
may be due to wax or other residue. Clean
the windshield with washer fluid after an
automatic car wash.
WIPER AND WASHER SWITCH
Instruments and controls2-61

SWITCHING THE WINDSHIELD
WIPERS ON/OFF
1Windshield wipers off.
2Intermittent wipe, low (rain sensor
set to low sensitivity).
3Intermittent wipe, high (rain sen-
sor set to high sensitivity).
4Continuous wipe, slow.
5Continuous wipe, fast.
ASingle wipe/
wipe the windshield using washer fluid.
The windshield wiper and washer operate
when the ignition switch is in the ON position.
Turn the combination switch to the desired
position.
Rain sensor (if equipped)
The rain-sensing auto wiper system uses the
rain sensor located on the upper part of the
windshield
1.
CAUTION
•Do not touch the rain sensor and around
it
1when the wiper switch is in the
orposition and the ignition switch
is in the ON position. The wipers may
operate unexpectedly and cause an in-
jury or may damage a wiper.
•The rain-sensing auto wipers are in-
tended for use during rain. If the switch
is left in the
orposition, the
wipers may operate unexpectedly when
dirt, fingerprints, oil film or insects are
stuck on or around the sensor. The wip-
ers may also operate when exhaust gas
or moisture affect the rain sensor.
•When the windshield glass is coated
with water repellent, the speed of the
rain-sensing auto wipers may be higher
even though the amount of the rainfall is
small.
•Be sure to turn off the rain-sensing auto
wiper system when you use a car wash.
•The rain-sensing auto wipers may not
operate if rain does not hit the rain sen-
sor even if it is raining.
•Using genuine wiper blades is recom-
mended for proper operation of the
rain-sensing auto wiper system. For ad-
ditional information, refer to "Wiper
blades".
NIC2810
Combination switch
NSD610
2-62Instruments and controls

•Vehicles with a rain sensor: if the wind-
shield becomes dirty in dry weather con-
ditions, the windshield wipers may be
activated inadvertently. This could
damage the windshield wiper blades or
scratch the windshield.
For this reason, you should always
switch off the windshield wipers in dry
weather.
Vehicles with a rain sensor: in the
orposition, the appropriate wiping fre-
quency is automatically set according to the
intensity of the rain. In the
position, the
rain sensor is more sensitive than in the
position, causing the windshield wiper
to wipe more frequently.
If the wiper blades are worn, the windshield
will no longer be wiped properly. This could
prevent you from observing the traffic condi-
tions.
SWITCHING THE REAR WINDOW
WIPER ON/OFF
WARNING
In freezing temperatures the washer solu-
tion may freeze on the windshield and ob-
scure your vision which may lead to an ac-
cident. Warm the windshield with the
defroster before you wash the windshield.
CAUTION
•Do not operate the washer continuously
for more than 30 seconds.
•Do not operate the washer if the win-
dow washer fluid reservoir is empty.
•Do not fill the window washer reservoir
tank with washer fluid concentrates atfull strength. Some methyl alcohol
based washer fluid concentrates may
permanently stain the grille if spilled
while filling the window washer reser-
voir tank.
•Pre-mix washer fluid concentrates with
water to the manufacturer’s recom-
mended levels before pouring the fluid
into the window washer reservoir tank.
Do not use the window washer reservoir
tank to mix the washer fluid concentrate
and water.
1Switch
2Wipes with washer fluid
3Switches on intermittent wiping
4Switches off intermittent wiping
5Wipes with washer fluid
1. Switch the ignition switch to the ON po-
sition.
2. Turn switch
1on the combination switch
to the corresponding position.
When the rear window wiper is switched
on, the
symbol appears in the as-
sistance graphic in the combination meter.
Further information on the assistance
graphic (see "Showing the distance
display" earlier in this section).
NIC2617
Instruments and controls2-63

The defroster switchBoperates when the
ignition switch is in the ON position for the
rear window, and (if equipped) for the outside
rear view mirrors.
The defroster is used to reduce the moisture,
fog or frost on the rear window surface and
on the outside mirror surface to improve the
rear view.
When the defroster switch
is pushed,
the indicator light illuminates and the de-
froster operates for several minutes. After
the preset time has passed, the defroster will
turn off automatically. To turn off the de-
froster manually, push the defroster switch
again, and the indicator light turns off.
CAUTION
•When cleaning the inner side of the rear
window, be careful not to scratch or
damage the rear window defroster.
•When operating the defroster con-
tinuously, be sure to start the engine.
Otherwise, it may cause the battery to
discharge.
•When cleaning the inner side of the win-
dow, be careful not to scratch or dam-
age the electrical conductors on the sur-
face of the window.The windshield de-icer switch (defogger
switch)
Aoperates when the ignition switch
is in the ON position.
You can use this function to defrost the wind-
shield or to demist the inside of the wind-
shield and the side windows
NOTE
You should only select the windshield de-icer
function until the windshield is clear again.
When the switch
is pushed, the indica-
tor light in the switch illuminates. The climate
control system switches to the following
functions:
•High airflow
•High temperature
•Air distribution to the windshield and front
side windows
•Air recirculation mode off
NAA1659NAA1659
REAR WINDOW AND OUTSIDE
MIRROR DEFROSTER SWITCHWINDSHIELD DE-ICER SWITCH (IF
EQUIPPED)
2-64Instruments and controls

NOTE
The “Windshield demisting” function auto-
matically sets the blower output to the opti-
mum demisting effect. As a result, the air-
flow may increase or decrease automatically
after the
button is pressed
NOTE
You can adjust the blower output manually
while the “Windshield demisting” function is
in operation: by adjusting the airflow control
for the air-conditioning or climate control
system (see "Heater and air conditioner").
To deactivate the de-icer:
•Press thebutton. The indicator light
in thebutton turns off. The previous
settings are reactivated. Air-recirculation
mode remains deactivated.
or
•Automatic climate control: press the
button. The indicator light in the
button turns off. Airflow and air dis-
tribution are set to automatic mode.
or
•Air-conditioning system or automatic cli-
mate control: adjust the temperature con-
trol (see "Heater and air conditioner").
HEADLIGHT SWITCH
1Left-hand parking lights
2Right-hand parking lights
3Side lights and license plate lighting
4Automatic headlight mode,
controlled by the light sensor
5Low beam/high beam headlights
6Rear fog light
7Front fog lights (if equipped)
8Headlight aiming control (halogen head-
lights only)
INFINITI recommends that you consult the
local regulations concerning the use of lights.
If
you hear a warning tone when you leave the
vehicle, the side lights may still be switched on.
Turn the light switch to.
The exterior lighting (except the side lights/
parking lights) switches off automatically if you:
•Remove the key from the ignition switch
(if equipped).
•Open the driver's door with the ignition
switch in the OFF position.
CAUTION
Use the headlights with the engine running
to avoid discharging the vehicle battery.
NIC2619
LED headlights
NIC2697
Halogen headlights
HEADLIGHT AND TURN SIGNAL
SWITCHES
Instruments and controls2-65

Automatic headlight mode
is the preferred light switch setting.
The light setting is automatically selected ac-
cording to the brightness of the ambient light
(exception: poor visibility due to weather con-
ditions such as fog, snow or spray):
•Ignition switch in ACC or ON position: the
side lights are switched on or off auto-
matically depending on the brightness of
the ambient light.
•With the engine running: if you have
switched on the daytime driving lights
function in the vehicle information display,
the side lights and low beam headlights
are switched on or off automatically de-
pending on the brightness of the ambient
light.
To switch on automatic headlight mode:turn
the light switch to.
WARNING
When the light switch is set to , the
low-beam headlights may not be switched
on automatically if there is fog, snow or
other causes of poor visibility due to the
weather conditions such as spray. There is
a risk of an accident
In such situations, turn the light switch to
.The automatic headlight feature is only an
aid. The driver is responsible for the vehicle
lighting at all times.
The daytime driving lights improve the de-
tectability of your vehicle during the day.
WARNING
When the daytime running light system is
active, tail lights on your vehicle are not on.
It is necessary at dusk to turn on your
headlights. Failure to do so could cause an
accident injuring yourself and others.
When the side lights and low-beam head-
lights are switched on, the green
(side
lights) and(low-beam headlights) indi-
cator lights in the combination meter light up.
Low-beam headlights
When the ignition is switched on and the light
switch is in theposition, the side lights
and low-beam headlights are switched on
even if the light sensor does not sense dark
ambient light conditions. This is advanta-
geous when there is fog or rain.
To switch on the low-beam headlights:
•Switch the ignition switch to the ON posi-
tion, or start the engine.
•Turn the light switch to. The greenindicator light in the combination
meter lights up.
Side lights
NOTE
Always park your vehicle safely and suffi-
ciently lit according to legal standards. To
reduce the chance of a discharged vehicle
battery, avoid the continuous use of the
sidelights or parking lights for several
hours.
To switch on:turn the light switch to
.
The greenindicator light in the combi-
nation meter lights up.
Parking lights
Switching on the parking lights ensures that
the corresponding side of the vehicle is illumi-
nated.
To switch on the parking lights:
•The key is not in the ignition switch or the
switch is in the OFF position.
•Turn the light switch to(left-hand
side of the vehicle) or(right-hand
side of the vehicle).
2-66Instruments and controls
