AUTOMATIC BACK DOOR SYSTEM
BL-115
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: October 20052005 QX56
Back Door Power Supply and Ground Circuit InspectionEIS008RC
1. BACK DOOR POWER SUPPLY CIRCUIT INSPECTION
1. Turn ignition switch OFF.
2. Disconnect back door control unit.
3. Check voltage between back door control unit connector B55
terminals 3, 10 and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace harness.
2. BACK DOOR GROUND CIRCUIT INSPECTION
Check continuity between back door control unit connector B55 ter-
minal 1, 2 and ground.
OK or NG
OK >> Circuit is OK.
NG >> Repair or replace harness.
During auto closing operations, if obstruction is detected, the
door does not operate in reverse.Back door motor assembly —
During close or cinch operations, the door does not operate in
reverse if the back door handle is operated.Handle switch systemBL-125
When the keyfob is operated, the back door does not operate
automatically.Remote keyless entry system inspectionBL-44Power window serial linkBL-112
Pinch strip system inspectionBL-121
Auto closure does not operate.Half-latch switch systemBL-122Cinch latch motor systemBL-126
Handle switch systemBL-125
The back door does not open.
(Closure motor rotation is not reversed.)Open switch systemBL-123
Handle switch systemBL-125
Warning chime does not sound. Back door warning chime systemBL-122
Auto closure operation works, but the back door is not fully
closedClose switch systemBL-124Handle switch systemBL-125
Cinch latch motor systemBL-126
Back door latch assembly mechanism dam-
aged or worn.— Symptom Suspect systems Refer to
3 - Ground : Approx. battery voltage
10 - Ground : Approx. battery voltage
WIIA0567E
1 - Ground : Continuity should exist.
2 - Ground : Continuity should exist.
LIIA0801E

DOOR
BL-129
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: October 20052005 QX56
Removal and InstallationEIS008RO

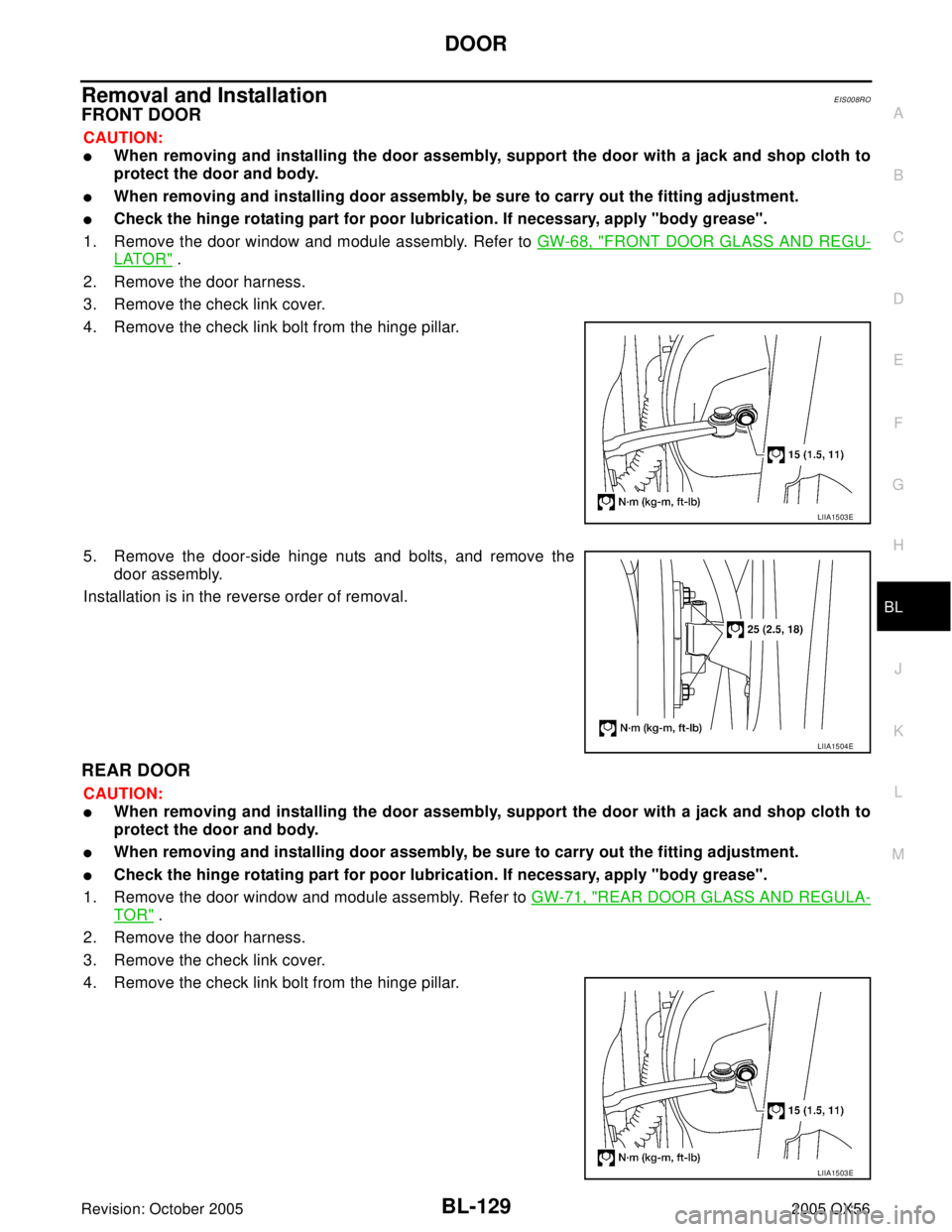

FRONT DOOR
CAUTION:

When removing and installing the door assembly, support the door with a jack and shop cloth to
protect the door and body.

When removing and installing door assembly, be sure to carry out the fitting adjustment.

Check the hinge rotating part for poor lubrication. If necessary, apply "body grease".
1. Remove the door window and module assembly. Refer to GW-68, "
FRONT DOOR GLASS AND REGU-
LATOR" .
2. Remove the door harness.
3. Remove the check link cover.
4. Remove the check link bolt from the hinge pillar.
5. Remove the door-side hinge nuts and bolts, and remove the
door assembly.
Installation is in the reverse order of removal.
REAR DOOR
CAUTION:

When removing and installing the door assembly, support the door with a jack and shop cloth to
protect the door and body.

When removing and installing door assembly, be sure to carry out the fitting adjustment.

Check the hinge rotating part for poor lubrication. If necessary, apply "body grease".
1. Remove the door window and module assembly. Refer to GW-71, "
REAR DOOR GLASS AND REGULA-
TOR" .
2. Remove the door harness.
3. Remove the check link cover.
4. Remove the check link bolt from the hinge pillar.
LIIA1503E
LIIA1504E
LIIA1503E

BL-130
DOOR
Revision: October 20052005 QX56
5. Remove the door-side hinge nuts and bolts, and remove the
door assembly.
Installation is in the reverse order of removal.
BACK DOOR
WAR NIN G:
Always support back door when removing or replacing back door stays. Power back door opener will
not support back door with back door stays removed.
1. Remove the back door glass. Refer to GW-13, "
REAR WINDOW GLASS AND MOLDING" .
2. Remove the back door lock assembly. Refer to BL-135, "
BACK DOOR LOCK" .
3. Remove the rear wiper motor. Refer to WW-53, "
Removal and Installation of Rear Wiper Motor" .
4. Remove the back door wire harness.
5. Remove the rear washer nozzle and hose from the back door. Refer to WW-54, "
Removal and Installation
of Rear Washer Nozzle" .
CAUTION:
Two technicians should be used to avoid damaging the back door during removal.
6. Support the back door.
7. Disconnect the power back door lift arm from the door.
8. Remove the back door stays.
9. Remove the door side nuts and the back door assembly.
Installation is in the reverse order of removal.
LIIA1504E
WIIA0890E

BL-134
REAR DOOR LOCK
Revision: October 20052005 QX56
REAR DOOR LOCKPFP:82502
Component StructureEIS008RS
Removal and InstallationEIS008RT
REMOVAL
1. Remove the rear door window and rear door module assembly. Refer to GW-71, "REAR DOOR GLASS
AND REGULATOR" .
2. Remove door grommets, and remove outside handle nuts from grommet hole.
3. Remove outside handle.
4. Disconnect the door lock actuator connector.
5. Separate outside handle rod connection.
INSTALLATION
Installation is in the reverse order of removal.
WIIA0892E
