SPARK PLUG (PLATINUM-TIPPED TYPE)
EM-27
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: October 20052005 QX56
SPARK PLUG (PLATINUM-TIPPED TYPE)PFP:22401
Removal and InstallationEBS00LM5
REMOVAL
1. Remove the ignition coil. Refer to EM-26, "REMOVAL" .
2. Remove the spark plug using suitable tool.
INSPECTION AFTER REMOVAL
Use standard type spark plug for normal condition.
The hot type spark plug is suitable when fouling occurs with the standard type spark plug under conditions
such as:

Frequent engine starts

Low ambient temperatures
The cold type spark plug is suitable when spark knock occurs with the standard type spark plug under condi-
tions such as:

Extended highway driving

Frequent high engine revolution

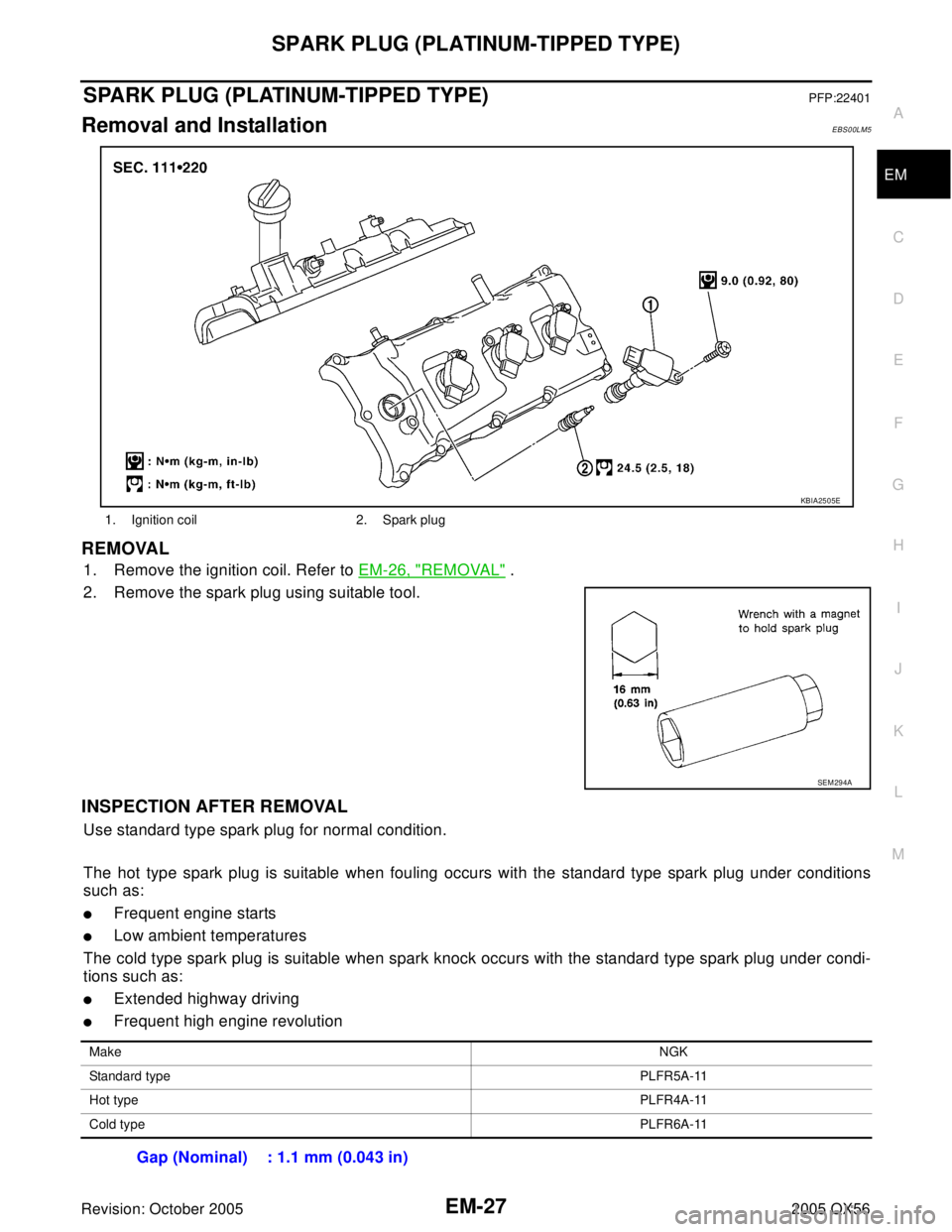

1. Ignition coil 2. Spark plug
KBIA2505E
SEM 29 4A
MakeNGK
Standard typePLFR5A-11
Hot typePLFR4A-11
Cold typePLFR6A-11
Gap (Nominal) : 1.1 mm (0.043 in)

EM-32Revision: October 2005
FUEL INJECTOR AND FUEL TUBE
2005 QX56

Lubricate O-ring with new engine oil.

Do not clean O-ring with solvent.

Make sure that O-ring and its mating part are free of foreign material.

When installing O-ring, be careful not to scratch it with tool or fingernails. Also be careful not to
twist or stretch O-ring. If O-ring was stretched while it was being attached, do not insert it
quickly into fuel tube.

Insert new O-ring straight into fuel tube. Do not twist it.
6. Installation of the remaining components is in the reverse order of removal.
INSPECTION AFTER INSTALLATION
After installing the fuel tubes, make sure there are no fuel leaks at the connections using the following steps.
1. Apply fuel pressure to the fuel lines by turning ignition switch ON (with engine stopped). Then check for
fuel leaks at the connections.
NOTE:
Use mirrors for checking on hidden points.
2. Start the engine and rev it up and check for fuel leaks at the connections.
CAUTION:
Do not touch the engine immediately after stopping, as engine becomes extremely hot.

ROCKER COVER
EM-33
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: October 20052005 QX56
ROCKER COVERPFP:13264
Removal and InstallationEBS00LM7
REMOVAL
1. Remove the engine room cover using power tool. Refer to EM-11, "REMOVAL" .
2. Remove the air duct and resonator assembly. Refer to EM-14, "
REMOVAL" (for left bank only) .
3. Move the harness on the upper rocker cover and its peripheral aside.
4. Remove the electric throttle control actuator, loosening the bolts diagonally (for left bank only).
5. Remove the ignition coil. Refer to EM-26, "
REMOVAL" .
6. Remove the PCV hose from the PCV control valve.
7. Loosen the bolts in reverse order shown using power tool.
CAUTION:
Do not hold the rocker cover by the oil filler neck (right
bank).

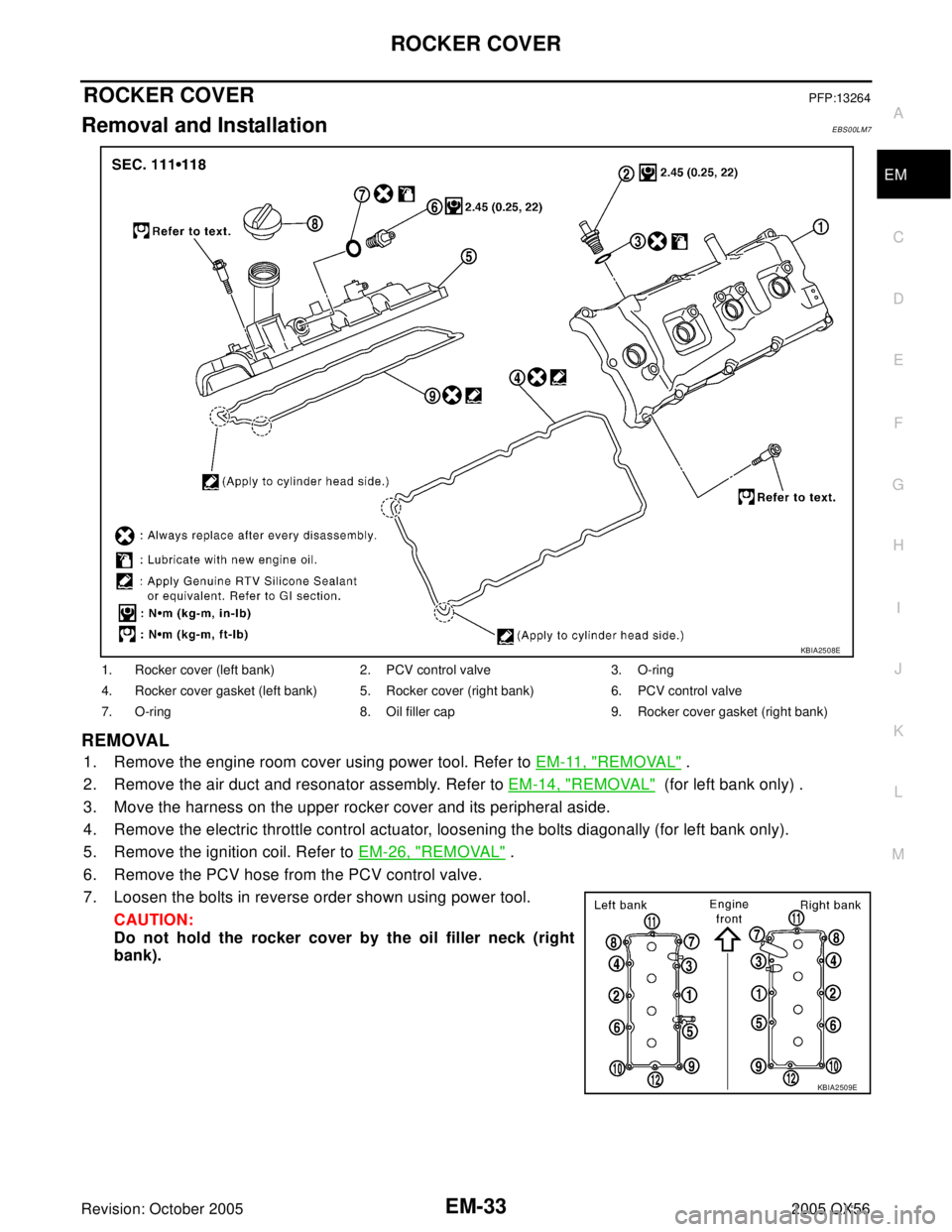

1. Rocker cover (left bank) 2. PCV control valve 3. O-ring
4. Rocker cover gasket (left bank) 5. Rocker cover (right bank) 6. PCV control valve
7. O-ring 8. Oil filler cap 9. Rocker cover gasket (right bank)
KBIA2508E
KBIA2509E

EM-36Revision: October 2005
TIMING CHAIN
2005 QX56
NOTE:

To remove timing chain and associated parts, start with those on the left bank. The procedure for remov-
ing parts on the right bank is omitted because it is the same as that for removal on the left bank.

To install timing chain and associated parts, start with those on the right bank. The procedure for installing
parts on the left bank is omitted because it is the same as that for installation on the right bank.
REMOVAL
1. Remove the engine assembly from the vehicle. Refer to EM-69, "REMOVAL" .
2. Remove the following components and related parts:

Drive belt auto tensioner and idler pulley. Refer to EM-12, "DRIVE BELTS" .

Thermostat housing and water hose. Refer to CO-19, "Removal of Thermostat Housing, Water Outlet
and Heater Pipe" .

Power steering pump bracket. Refer to PS-26, "REMOVAL" .

Oil pan (lower), (upper) and oil strainer. Refer to EM-22, "OIL PAN AND OIL STRAINER" .

Ignition coil. Refer to EM-26, "IGNITION COIL" .

Rocker cover. Refer to EM-33, "ROCKER COVER" .
3. Remove the chain case cover (right bank) and (left bank).
a. Loosen and remove the bolts in the reverse of order shown.
b. Cut the liquid gasket and remove the covers using Tool.
CAUTION:
Do not damage mating surfaces.
4. Obtain compression TDC of No. 1 cylinder as follows:
a. Turn the crankshaft pulley clockwise to align the TDC identifica-
tion notch (without paint mark) with the timing indicator on the
front cover.
1. Camshaft sprocket (left bank EXH) 2. Camshaft sprocket (left bank INT) 3. Camshaft sprocket (right bank INT)
4. Camshaft sprocket (right bank EXH) 5. Front cover 6. Chain case cover (right bank)
7. Chain case cover (left bank) 8. Crankshaft pulley bolt 9. Crankshaft pulley
10. Chain tensioner cover 11. Front oil seal 12. Oil pump drive spacer
13. Oil pump assembly 14. Crankshaft sprocket 15. Bracket
16. O-ring 17. Timing chain tension guide (right
bank)18. Timing chain slack guide (right bank)
19. Timing chain (right bank) 20. Timing chain (left bank) 21. Chain tensioner (right bank)
22. Timing chain slack guide (left bank) 23. Timing chain tension guide (left
bank)24. Chain tensioner (left bank)
Tool number: KV10111100 (J-37228)
KBIA2475E
KBIA2476E

EM-58Revision: October 2005
CYLINDER HEAD
2005 QX56
CYLINDER HEADPFP:11041
On-Vehicle ServiceEBS00LME
CHECKING COMPRESSION PRESSURE
1. Warm up the engine thoroughly. Then stop the engine.
2. Release the fuel pressure. Refer to EC-93, "
FUEL PRESSURE RELEASE" .
CAUTION:
Leave the fuel pump fuse disconnected until step 7.
3. Remove the spark plug from each cylinder. Refer to EM-27, "
REMOVAL" .
4. Connect the engine tachometer (not required in use of CONSULT-II).
5. Install the compression tester with Tool into the spark plug hole.
6. With the accelerator pedal fully depressed, turn the ignition
switch to “START” for cranking. When the gauge pointer stabi-
lizes, read the compression pressure and engine rpm. Perform
these steps to check each cylinder.
Unit: kPa (kg/cm2 , psi) /rpm
CAUTION:
Always use a fully charged battery to obtain specified engine speed.

If the engine speed is out of the specified range, check the battery liquid for proper gravity. Check the
engine speed again with normal battery gravity.

If the compression pressure is below the minimum value, check the valve clearances and parts associ-
ated with the combustion chamber (valve, valve seat, piston, piston ring, cylinder bore, cylinder head,
cylinder head gasket). After checking, measure the compression pressure again.

If some cylinders have low compression pressure, pour a small amount of engine oil into the spark plug
hole of the cylinder to re-check it for compression.
–If the added engine oil improves the compression, the piston rings may be worn out or damaged. Check
the piston rings and replace if necessary.
–If the compression pressure remains at a low level despite the addition of engine oil, the valves may be
malfunctioning. Check the valves for damage. Replace the valve or valve seat accordingly.

If two adjacent cylinders have respectively low compression pressure and their compression remains
low even after the addition of engine oil, the gaskets may be leaking, or a valve in adjacent cylinders
may be damaged. Inspect and repair as required.
7. Install the components in the reverse order of removal.
8. Start the engine and confirm that it runs smoothly.
9. Perform trouble diagnosis. If DTC appears, erase it. Refer to EC-95, "
TROUBLE DIAGNOSIS" . Tool number : EG15050500 (J-45402)
Standard MinimumDeference limit
between cylinders
1,520 (15.5, 220) / 200 1,324 (13.5, 192) / 200 98 (1.0, 14) / 200
WBIA0605E

CYLINDER HEAD
EM-59
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: October 20052005 QX56
Removal and InstallationEBS00LMF
REMOVAL
1. Remove the engine assembly from the vehicle. Refer to EM-69, "REMOVAL" .
2. Remove the following components and related parts:

Auto tensioner of drive belts and idler pulley. Refer to EM-12, "DRIVE BELTS" .

Thermostat housing and hose. Refer to CO-19, "Removal of Thermostat Housing, Water Outlet and
Heater Pipe" .

Oil pan and oil strainer. Refer to EM-22, "OIL PAN AND OIL STRAINER" .

Fuel tube and fuel injector assembly. Refer to EM-29, "FUEL INJECTOR AND FUEL TUBE" .

Intake manifold. Refer to EM-15, "INTAKE MANIFOLD" .

Ignition coil. Refer to EM-26, "IGNITION COIL" .

Rocker cover. Refer to EM-33, "ROCKER COVER" .
3. Remove the crankshaft pulley, front cover, oil pump, and timing chain. Refer to EM-35, "
TIMING CHAIN" .
4. Remove the camshaft sprockets and camshafts. Refer to EM-43, "
CAMSHAFT" .
5. Remove the cylinder head bolts in reverse of order shown.
1. Harness bracket 2. Engine coolant temperature sensor 3. Washer
4. Cylinder head gasket (left bank) 5. Cylinder head (right bank) 6. Cylinder head bolt
7. Cylinder head gasket (right bank) 8. Cylinder head (left bank)
KBIA2528E
PBIC0068E

ENGINE ASSEMBLY
EM-71
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: October 20052005 QX56
CAUTION:

Be careful not to damage the drive plate. Especially
avoid deforming and damaging of the signal plate teeth
(circumference position).

Place the drive plate with the signal plate surface fac-
ing other than downward.

Keep magnetic materials away from the signal plate.
CAUTION:
Use an engine stand that has a load capacity [approximately 240kg (529 lb) or more] large enough
for supporting the engine weight.

If the load capacity of the stand is not adequate, remove the following parts beforehand to
reduce the potential risk of overturning the stand.
–Remove the fuel tube and fuel injector assembly. Refer to EM-29, "REMOVAL" .
–Remove the intake manifold. Refer to EM-15, "REMOVAL" .
–Remove the ignition coil. Refer to EM-26, "REMOVAL" .
–Remove the rocker cover. Refer to EM-33, "REMOVAL" .
–Other removable brackets.
CAUTION:
Before removing the hanging chains, make sure the engine stand is stable and there is no risk of
overturning.
31. Remove the alternator. Refer to SC-27, "
REMOVAL" .
32. Remove the engine mounting insulator and bracket using power tool.
KBIA2491E

EM-72Revision: October 2005
ENGINE ASSEMBLY
2005 QX56
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:

When replacing an engine or transmission you must make sure the dowels are installed correctly
during re-assembly.

Improper alignment caused by missing dowels may cause vibration, oil leaks or breakage of driv-
etrain components.
INSPECTION AFTER INSTALLATION

Before starting the engine, check oil/fluid levels including engine coolant and engine oil. If the levels are
lower than required quantity, fill to the specified level. Refer to MA-11, "
RECOMMENDED FLUIDS AND
LUBRICANTS" .

Use procedure below to check for fuel leakage.

Turn ignition switch ON (with engine stopped). With fuel pressure applied to the fuel piping, check for fuel
leakage at the connection points.

Start engine. With engine speed increased, check again for fuel leakage at connection points.

Run engine to check for unusual noise and vibration.

Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gas, or any oils/fluids includ-
ing engine oil and engine coolant.

Bleed air from passages in lines and hoses, such as in cooling system.

After cooling down the engine, again check oil/fluid levels including engine oil and engine coolant. Refill to
specified level if necessary.

Summary of the inspection items:
*Transmission/transaxle/CVT fluid, power steering fluid, brake fluid, etc.Item Before starting engine Engine running After engine stopped
Engine coolant Level Leakage Level
Engine oil Level Leakage Level
Other oils and fluids* Level Leakage Level
Fuel Leakage Leakage Leakage
Exhaust gas — Leakage —

FL-4Revision: October 2005
FUEL SYSTEM
2005 QX56

After connecting the fuel tube quick connectors, make sure
the quick connectors are secure.
Ensure that the connector and resin tube do not contact
any adjacent parts.

After installing tubes, make sure there is no fuel leakage at
connections in the following steps.
–Apply fuel pressure to fuel lines with turning ignition switch
ON (with engine stopped). Then check for fuel leaks at con-
nections.
–Start the engine and rev it up and check for fuel leaks at
connections.

Use only a Genuine NISSAN fuel filler cap as a replacement.
If an incorrect fuel filler cap is used, the MIL may come on.

For servicing “Evaporative Emission System” parts, refer to
EC-32, "
EVAPORATIVE EMISSION SYSTEM" .

For servicing “On Board Refueling Vapor Recovery
(ORVR)” parts, refer to EC-39, "
ON BOARD REFUELING
VAPOR RECOVERY (ORVR)" .
PBIC1268E

FL-8Revision: October 2005
FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY
2005 QX56
11. Remove the lock ring using Tool.
12. Remove the fuel level sensor, fuel filter, and fuel pump assem-
bly.
CAUTION:

Do not bend the float arm during removal.

Avoid impacts such as dropping when handling the com-
ponents.
INSTALLATION
Installation is in the reverse order of removal.

Connect the quick connector as follows:
–Check the connection for any damage or foreign materials.
–Align the connector with the pipe, then insert the connector straight into the pipe until a click is heard.
–After connecting the quick connector, make sure that the con-
nection is secure by checking as follows:
–Pull the tube and the connector to make sure they are securely
connected.
–Visually inspect the connector to make sure the two retainer tabs
are securely connected.
INSPECTION AFTER INSTALLATION
1. Turn the ignition switch ON but do not start engine, then check the fuel pipes and hose connections for
leaks while applying fuel pressure to the system.
2. Start the engine and rev it above idle speed, then check that there are no fuel leaks at any of the fuel pipe
and hose connections.Tool number : — (J-46536)
LBIA0389E
PBIC1653E
