trailer INFINITI QX4 2005 Factory Service Manual

NAVIGATION SYSTEM
AV-101
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: October 20052005 QX56
On Board Self-Diagnosis FunctionEKS00BJP
DESCRIPTION

Diagnosis function consists of the self-diagnosis mode performed automatically and the CONFIRMATION/
ADJUSTMENT mode operated manually.

Self-diagnosis mode checks for connections between the units constituting this system, analyzes each
individual unit at the same time, and displays the results on the LCD screen.

CONFIRMATION/ADJUSTMENT mode is used to perform trouble diagnosis that require operation and
judgment by an operator (trouble that cannot be automatically judged by the system), to check/change the
set value, and to display the History of Errors of the navigation system.
DIAGNOSIS ITEM
NOTE:
Make the status that is set by D/N function be shown.
Self-Diagnosis Mode (DCU)EKS00BJQ
OPERATION PROCEDURE
1. Start the engine.
2. Turn the audio system off.
Mode Description
Self-diagnosis (DCU) Display control unit diagnosis.
Self-diagnosis (NAVI)

NAVI Control unit diagnosis (DVD-ROM drive) will not be diagnosed
when no map DVD-ROM is in it.

Analyzes connection between the NAVI control unit and the GPS
antenna and operation of each unit.
CONFIRMATION/
ADJUSTMENTDisplay diagnosisIn display control unit mode, color tone and shading of the screen can be
checked by the display of a color bar and a gray scale.
Vehicle signalsIn display control unit mode, analyzes the following vehicle signals: Vehi-
cle speed signal, light signal
NOTE , ignition switch signal, and reverse sig-
nal.
Auto Climate Control A/C self-diagnosis of A/C system.
NavigationDisplay diagnosisIn NAVI C/U mode, color tone and shading of the screen can be checked
by the display of a color bar and a gray scale.
Vehicle signalsIn NAVI C/U mode, analyzes the following vehicle signals: Vehicle speed
signal, light signal, ignition switch signal, and reverse signal.
History of ErrorsDiagnosis results previously stored in the memory (before turning ignition
switch ON) are displayed in this mode. Time and location when/where the
errors occurred are also displayed.
Naviga-
tionDisplay Lon-
gitude & Lat-
itudeDisplay the map. Use the joystick to adjust position. Longitude and latitude
will be displayed.
Speed Cali-
brationUnder ordinary conditions, the navigation system distance measuring
function will automatically compensate for minute decreases in wheel and
tire diameter caused by tire wear or low-pressure. Speed calibration imme-
diately restores system accuracy in cases such as when distance calibra-
tion is needed because of the use of tire chains in inclement weather.
Angle
adjustmentCorrects difference between actual turning angle of a vehicle and turning
angle of the car mark on the display.
Initialize
LocationThis mode is for initializing the current location. Use when the vehicle is
transported a long distance on a trailer, etc.
CAN DIAG SUPPORT MONITOR Display status of CAN communication.

LT-3
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: October 20052005 QX56 Component Parts and Harness Connector Location . 108
System Description .............................................. 108
OPERATION BY LIGHTING SWITCH .............. 109
COMBINATION SWITCH READING FUNCTION . 109
EXTERIOR LAMP BATTERY SAVER CONTROL . 109
CAN Communication System Description ............ 109
Schematic ............................................................. 110
Wiring Diagram — TAIL/L — ................................ . 111
Terminals and Reference Values for BCM ............ 114
Terminals and Reference Values for IPDM E/R .... 115
How to Proceed With Trouble Diagnosis ............... 115
Preliminary Check ................................................. 115
CHECK POWER SUPPLY AND GROUND CIR-
CUIT ................................................................... 115
CONSULT-II Functions .......................................... 116
Parking, License Plate and/or Tail Lamps Do Not
Illuminate ............................................................... 117
Parking, License Plate and Tail Lamps Do Not Turn
OFF (After Approx. 10 Minutes) ........................... 120
Front Parking Lamp .............................................. 121
BULB REPLACEMENT ..................................... 121
Tail Lamp .............................................................. 121
BULB REPLACEMENT ..................................... 121
License Plate Lamp .............................................. 121
BULB REPLACEMENT ..................................... 121
REAR COMBINATION LAMP ................................ 122
Bulb Replacement (Turn Signal) .......................... 122
Removal and Installation ...................................... 122
.......................................................................... 122
TRAILER TOW ....................................................... 123
Component Parts and Harness Connector Location . 123
System Description .............................................. 123
TRAILER TAIL LAMP OPERATION .................. 124
TRAILER TURN SIGNAL AND HAZARD LAMP
OPERATION ..................................................... 124
TRAILER STOP LAMP OPERATION ................ 124
TRAILER POWER SUPPLY OPERATION ........ 124
Schematic ............................................................ 125
Wiring Diagram — T/TOW — ............................... 126
INTERIOR ROOM LAMP ........................................ 129
Component Parts and Harness Connector Location . 129System Description ...............................................130
POWER SUPPLY AND GROUND ....................130
SWITCH OPERATION ......................................131
ROOM LAMP TIMER OPERATION ..................131
INTERIOR LAMP BATTERY SAVER CONTROL .132
Schematic .............................................................133
Wiring Diagram — INT/L — ..................................135
Terminals and Reference Values for BCM ............142
How to Proceed With Trouble Diagnosis ..............143
Preliminary Check ................................................143
INSPECTION FOR POWER SUPPLY AND
GROUND CIRCUIT ...........................................143
CONSULT-II Function (BCM) ...............................144
CONSULT-II OPERATION .................................144
WORK SUPPORT .............................................145
DATA MONITOR ...............................................145
ACTIVE TEST ...................................................146
Room/Map Lamp Control Does Not Operate .......146
Personal Lamp Control Does Not Operate (Room/
Map Lamps Operate) ............................................148
All Step/Foot/Puddle Lamps Do Not Operate .......149
All Interior Room Lamps Do Not Operate .............150
Ignition Keyhole Illumination Control Does Not
Operate .................................................................150
ILLUMINATION .......................................................152
Component Parts and Harness Connector Location .152
System Description ...............................................152
ILLUMINATION OPERATION BY LIGHTING
SWITCH ............................................................153
EXTERIOR LAMP BATTERY SAVER CONTROL .154
CAN Communication System Description ............154
Schematic .............................................................155
Wiring Diagram — ILL — ......................................158
Removal and Installation of Illumination Control
Switch ...................................................................169
REMOVAL .........................................................169
INSTALLATION .................................................169
BULB SPECIFICATIONS ........................................170
Headlamp .............................................................170
Exterior Lamp .......................................................170
Interior Lamp/Illumination .....................................170

TRAILER TOW
LT-123
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: October 20052005 QX56
TRAILER TOWPFP:93020
Component Parts and Harness Connector LocationEKS00BB1
System DescriptionEKS00BB2
Power is supplied at all times

to ignition relay, located in the IPDM E/R (intelligent power distribution module engine room), and

through 50A fusible link (letter f , located in the fuse and fusible link box)

to BCM (body control module) terminal 70, and

through 10A fuse (No. 32, located in the IPDM E/R)

through IPDM E/R terminal 61

to trailer tow relay 1 terminal 3, and

through 20A fuse (No. 53, located in the IPDM E/R)

to CPU (central processing unit) of the IPDM E/R, and

through 30A fusible link (letter j , located in the fuse and fusible link box)

to trailer tow relay 2 terminals 3 and 6, and

through 40A fusible link (letter k , located in the fuse and fusible link box)

to electric brake (pre-wiring) terminal 5.
WKIA3469E

LT-124
TRAILER TOW
Revision: October 20052005 QX56
With the ignition switch in the ON or START position, power is supplied

to ignition relay, located in the IPDM E/R, and

through 10A fuse (No. 59, located in the fuse and relay box)

to BCM terminal 38, and

through 10A fuse (No. 51, located in the IPDM E/R)

to trailer tow relay 2 terminal 1.
Ground is supplied

to BCM terminal 67, and

to electric brake (pre-wiring) terminal 1

through grounds M57, M61 and M79, and

to IPDM E/R terminals 38 and 59

to trailer tow relay 1 terminal 2

to trailer tow relay 2 terminal 2, and

to trailer connector terminal 2

through grounds E9, E15 and E24.
TRAILER TAIL LAMP OPERATION
The trailer tail lamps are controlled by the trailer tow relay 1.
With the lighting switch in the parking and tail lamp ON (1ST) position, AUTO position (and the auto light sys-
tem is activated) or headlamp ON (2ND) position, power is supplied

through the tail lamp relay, located in the IPDM E/R

through 10A fuse (No. 36, located in the IPDM E/R)

through IPDM E/R terminal 49

to trailer tow relay 1 terminal 1.
When energized, trailer tow relay 1 supplies tail lamp power to trailer connector terminal 6.
TRAILER TURN SIGNAL AND HAZARD LAMP OPERATION
The trailer turn signal and hazard lamps are controlled by the BCM. If either turn signal or the hazard lamps
are turned on, the BCM supplies voltage to the trailer lamps to make them flash.
Left turn signal and hazard lamp output is supplied

through BCM terminal 52

to trailer connector terminal 1.
Right turn signal and hazard lamp output is supplied

through BCM terminal 51

to trailer connector terminal 4.
TRAILER STOP LAMP OPERATION
The trailer stop lamps are controlled by the electric brake. The electric brake receives stop lamp switch signal
when the brake pedal is pressed.
When the brake pedal is pressed, power is supplied

through electric brake (pre-wiring) terminal 3

to trailer connector terminal 3.
TRAILER POWER SUPPLY OPERATION
The trailer power supply is controlled by the trailer tow relay 2.
When the ignition switch is in the ON or START position, power is supplied

through 10A fuse (No. 51, located in the IPDM E/R)

through IPDM E/R terminal 16

to trailer tow relay 2 terminal 1.
When energized, the trailer tow relay 2 supplies power

through trailer tow relay 2 terminals 5 and 7

to trailer connector terminal 5.

TRAILER TOW
LT-125
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: October 20052005 QX56
SchematicEKS00BB3
WKWA2417E

LT-126
TRAILER TOW
Revision: October 20052005 QX56

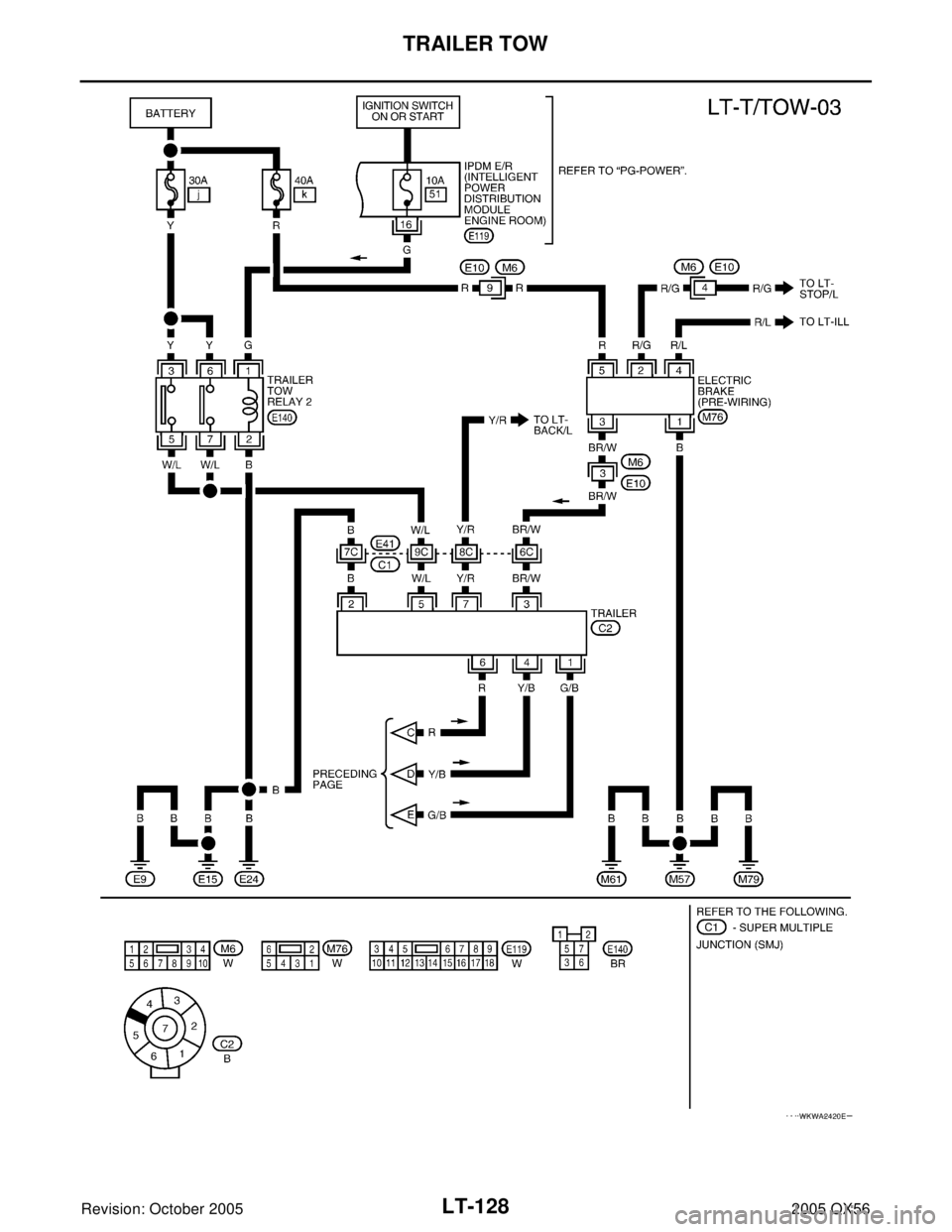

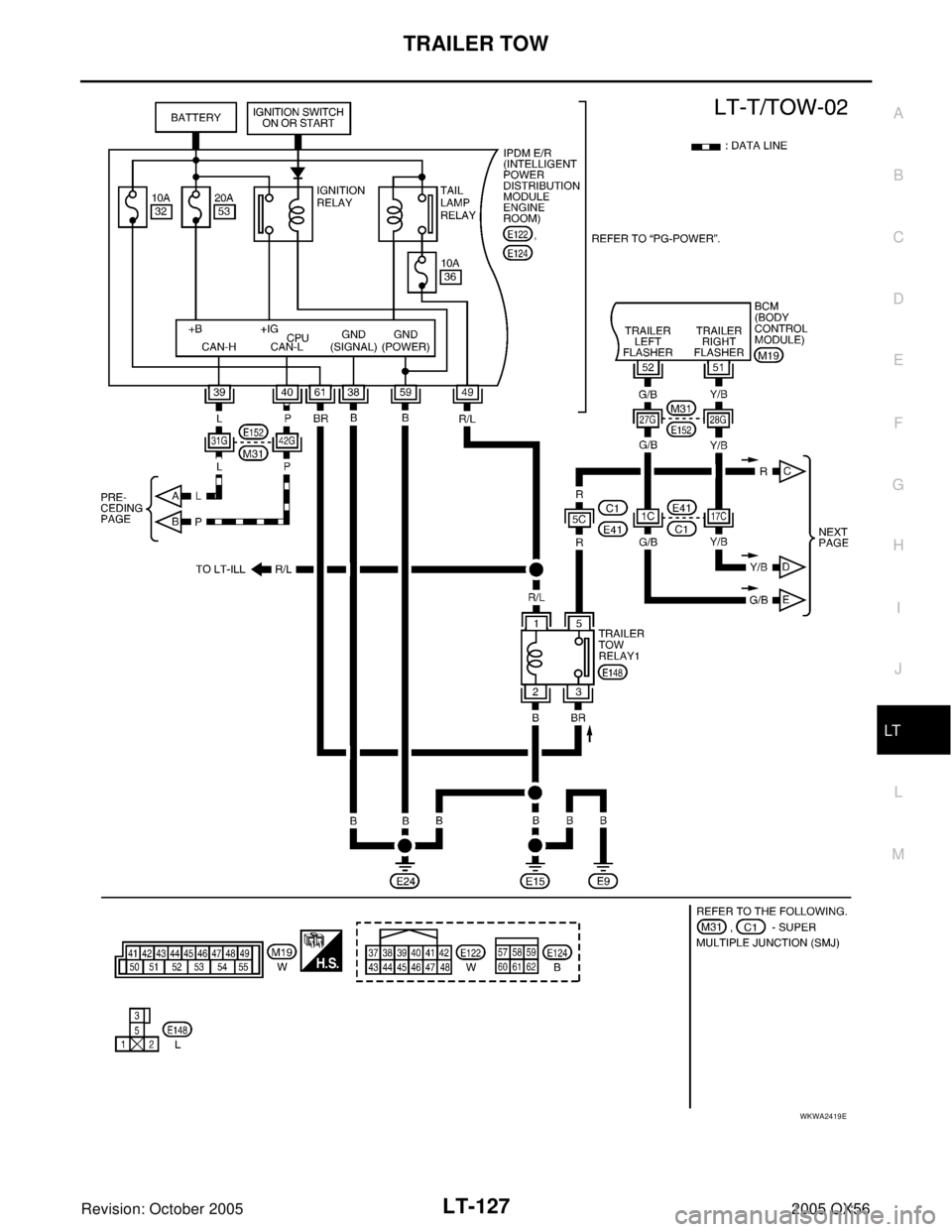

Wiring Diagram — T/TOW —EKS00BB4
WKWA2418E

TRAILER TOW
LT-127
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: October 20052005 QX56
WKWA2419E

LT-128
TRAILER TOW
Revision: October 20052005 QX56
WKWA2420E

PERIODIC MAINTENANCE
MA-7
C
D
E
F
G
H
I
J
K
MA
B
MA
Revision: October 20052005 QX56
PERIODIC MAINTENANCEPFP:00026
Introduction of Periodic MaintenanceELS001BJ
Two different maintenance schedules are provided, and should be used, depending upon the conditions in
which the vehicle is mainly operated. After 60,000 miles (96,000 km) or 48 months, continue the periodic
maintenance at the same mileage or time intervals, whichever comes first.
Maintenance For Off-road Driving (4WD only)ELS001BK
After driving the vehicle off-road through sand, mud, or water; more frequent maintenance may be required for
the following items:
Brake pads and rotors
Brake lines and hoses
Rear final drive oil, transmission fluid, and transfer fluid
Steering linkage
Drive shafts
Engine air cleaner filter
In-cabin microfilters
Schedule 1ELS001BL
EMISSION CONTROL SYSTEM MAINTENANCE
Abbreviations: R = Replace. I = Inspect. Correct or replace if necessary. [ ]: At the mileage intervals only Schedule 1Follow Periodic Maintenance Schedule 1 if your driving habits frequently includes
one or more of the following driving conditions:

Repeated short trips of less than 5 miles (8 km).

Repeated short trips of less than 10 miles (16 km) with outside temperatures
remaining below freezing.

Operating in hot weather in stop-and-go “rush hour” traffic.

Extensive idling and/or low speed driving for long distances, such as police,
taxi or door-to-door delivery use.

Driving in dusty conditions.

Driving on rough, muddy, or salt spread roads.

Towing a trailer or using a car-top carrier.Emission Control Sys-
tem MaintenanceMA-7
Chassis and Body
MaintenanceMA-8
Schedule 2Follow Periodic Maintenance Schedule 2 if none of the driving conditions shown
in Schedule 1 apply to the driving habits.Emission Control Sys-
tem MaintenanceMA-7Chassis and Body
MaintenanceMA-8
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
Section -
Page or -
Content Title Perform at number of miles, kilo-
meters or months, whichever
comes first.Miles x 1,000
(km x 1,000)
Months3.75
(6)
37.50
(12)
611 . 2 5
(18)
915
(24)
1218.75
(30)
1522.5
(36)
1826.25
(42)
2130
(48)
24
Drive belts NOTE (1)MA-13
Air cleaner filter NOTE (2) [R]MA-16
EVAP vapor linesI*MA-20
Fuel linesI*MA-16
Fuel filter NOTE (3)—
Engine coolant NOTE (4)MA-13
Engine oil R R R R R R R RMA-17
Engine oil filter R R R R R R R RMA-17
Spark plugs (double PLATINUM-
TIPPED type)Replace every 105,000 miles (169,000 km).MA-18
Intake and exhaust valve clear-
ance*NOTE (5)EM-51

PERIODIC MAINTENANCE
MA-9
C
D
E
F
G
H
I
J
K
MA
B
MA
Revision: October 20052005 QX56
(1) If towing a trailer, or using a car-top carrier, or driving on rough or muddy roads, change (not just inspect) oil at every 30,000 miles
(48,000 km) or 24 months.
(2) Refer to “Tire rotation” under the “General maintenance” heading earlier in this section.
Schedule 2ELS001BM
EMISSION CONTROL SYSTEM MAINTENANCE
Abbreviations: R = Replace. I = Inspect. Correct or replace if necessary. [ ]: At the mileage intervals only
(1) After 60,000 miles (96,000 km) or 48 months, inspect every 15,000 miles (24,000 km) or 12 months. Replace drive belts if damaged.
(2) Maintenance-free item. For service procedures, go to FL section.
(3) After 60,000 miles (96,000 km) or 48 months, replace every 30,000 miles (48,000 km) or 24 months.
(4) If valve noise increases, inspect valve clearance.
* Maintenance items and intervals with “*” are recommended by NISSAN for reliable vehicle operation. The owner need not perform
such maintenance in order to maintain the emission warranty or manufacturer recall liability. Other maintenance items and intervals are
required. MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
Section
- Page
or
- Content
Title Perform at number of miles, kilometers or
months, whichever comes first.Miles x
1,000
(km x
1,000)
Months33.75
(54)
2737.5
(60)
3041.25
(66)
3345
(72)
3648.75
(78)
3952.5
(84)
4256.25
(90)
4560
(96)
48
Brake lines and cables I IMA-28
Brake pads and rotors I I I IMA-28
Automatic transmission fluid NOTE (1) I IMA-22
Transfer fluid and front final drive oil NOTE (1) I IMA-25,
MA-25
Rear final drive oil NOTE (1) I IMA-25,
MA-25
Steering gear, linkage, axle, and suspension
partsIIIIMA-29,
MA-30
Tire Rotation NOTE (2)MA-28
Drive shaft boots and propeller shaft (4WD) I I I IMA-25
Exhaust system I I I IMA-22
In-cabin microfilter R RMA-21
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
Section - Page
or - Content
Title Perform at number of miles, kilome-
ters or months, whichever comes first.Miles x 1,000
(km x 1,000)
Months7.5
(12)
615
(24)
1222.5
(36)
1830
(48)
2437.5
(60)
3045
(72)
3652.5
(84)
4260
(96)
48
Drive belts NOTE (1) I*MA-13
Air cleaner filter [R] [R]MA-16
EVAP vapor lines I* I*MA-20
Fuel lines I* I*MA-16
Fuel filter NOTE (2)—
Engine coolant NOTE (3) R*MA-13
Engine oil R R R R R R R RMA-17
Engine oil filter R R R R R R R RMA-17
Spark plugs (PLATINUM-TIPPED
type)Replace every 105,000 miles (169,000 km).MA-18
Intake and exhaust valve clearance* NOTE (4)EM-51
