key INFINITI QX50 2019 User Guide

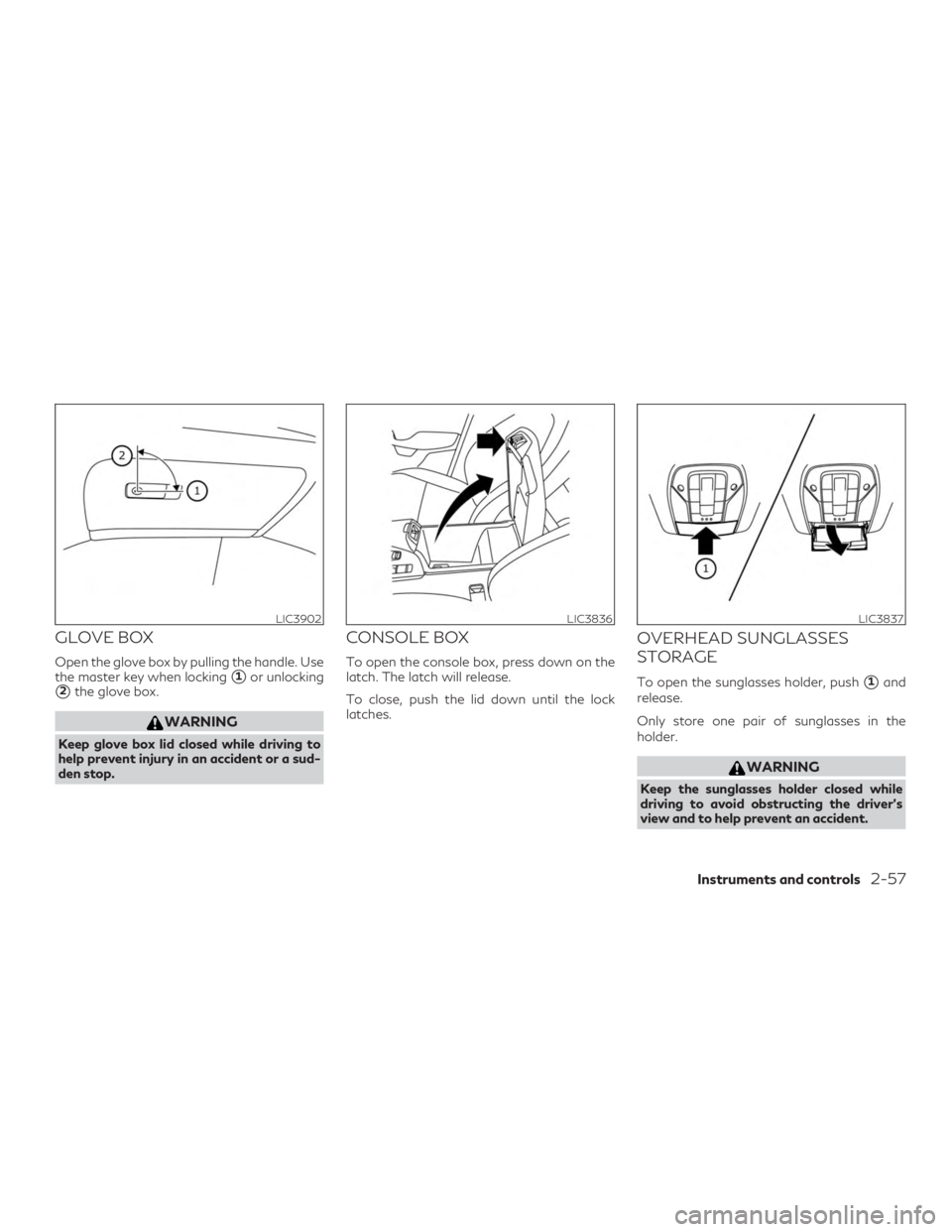

GLOVE BOX
Open the glove box by pulling the handle. Use
the master key when locking
1or unlocking
2the glove box.
WARNING
Keep glove box lid closed while driving to
help prevent injury in an accident or a sud-
den stop.
CONSOLE BOX
To open the console box, press down on the
latch. The latch will release.
To close, push the lid down until the lock
latches.
OVERHEAD SUNGLASSES
STORAGE
To open the sunglasses holder, push1and
release.
Only store one pair of sunglasses in the
holder.
WARNING
Keep the sunglasses holder closed while
driving to avoid obstructing the driver’s
view and to help prevent an accident.
LIC3902LIC3836LIC3837
Instruments and controls2-57

∙ Properly secure all cargo with ropes orstraps to help prevent it from sliding or
shifting. In a sudden stop or collision, un-
secured cargo could cause personal
injury.
Installing crossbars (if so equipped)
WARNING
∙ It is recommended that you have the roofrack crossbars installed by an INFINITI
retailer.
∙ Make sure the moonroof is in the closed position during the installation process.
∙ Protect the painted area on the vehicle’s roof under the crossbars by placing a
piece of cloth under the cross bars to pre-
vent scratch damage.
∙ Do not load the crossbars more than the rated load capacity and always distribute
the load uniformly.
The roof rack crossbars may be installed or
removed. Use the TORX® provided wrench in
the tool kit to install and remove the cross-
bars. The TORX® wrench will be in the glove
box. 1. Manually remove the protective covers
from the roof rails.
2. Using a quarter, rotate the key-slot coun-
terclockwise to remove the plastic cover.
LIC3890LIC3891
2-62Instruments and controls

9. Assemble the plastic cover. Slide the cover
over the crossbar.10. Ensure the cover is in the final position. 11. Using a quarter, turn the key-slot clock-
wise to lock the plastic cover.
NOTE:
After assembling both the front and rear
crossbars, wiggle the crossbars by hand to
check for loose parts. If either crossbar is
loose, remove the crossbars and repeat
steps 1–11 carefully.
LIC3898LIC3899LIC3900
Instruments and controls2-65

The interior lights will automatically turn on
and stay on for a period of time when:∙ The doors are unlocked by the Intelligent Key, a key or the request switch while all
doors are closed and the ignition switch is
in the OFF position.
∙ The doors and/or liftgate is opened.
∙ The switch is individually pushed.
When the ON switch
1is pushed, the inte-
rior lights illuminate.
When the DOOR/OFF switch
2is pushed,
the interior lights do not illuminate unless
individually pushed. NOTE:
The footwell lights and step lights illuminate
when the driver and passenger doors are
open regardless of the interior light switch
position. These lights will turn off automati-
cally after a period of time while doors are
open to prevent the battery from becoming
discharged.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could result in
a discharged battery.
MAP LIGHTS
To turn the map lights on, push the switches.
To turn them off, push the switches again.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could result in
a discharged battery.
LIC3841LIC3842
INTERIOR LIGHTS
Instruments and controls2-71

3 Pre-driving checks and adjustments
Keys.............................................3-2
INFINITI Intelligent Key ........................3-2
INFINITI Vehicle Immobilizer System
keys ..........................................3-4
Doors ............................................3-4
Locking with key ..............................3-5
Locking with inside lock knob Type A
(if so equipped) ................................3-5
Locking with inside lock knob Type B
(if so equipped) ................................3-6
Locking with power door lock switch ...........3-6
Automatic door locks ..........................3-6
Child safety rear door lock .....................3-7
INFINITI Intelligent Key System ...................3-7
Operating range ..............................3-9
Door locks/unlocks precaution ...............3-10
INFINITI Intelligent Key operation .............3-11
How to use the remote keyless entry
function .................................... 3-15
Warning signals ............................. 3-18
Troubleshooting guide ....................... 3-18
Log-in function ............................. 3-20
Remote Engine Start (if so equipped) ............3-21
Remote Engine Start operating range ........3-21 Remote starting the vehicle
..................3-22
Extending engine run time ...................3-22
Canceling a Remote Engine Start ............3-22
Conditions the Remote Engine Start will
not work .................................... 3-23
Hood .......................................... 3-24
Liftgate ........................................ 3-24
Operating the power liftgate ................3-25
Motion-Activated Liftgate
(if so equipped) .............................. 3-27
Power liftgate main switch ..................3-29
Liftgate release ............................. 3-29
Liftgate position setting .....................3-30
Fuel-filler door ................................. 3-31
Opening the fuel-filler door ..................3-31
Fuel-filler cap ............................... 3-31
Steering wheel ................................. 3-34
Manual operation (if so equipped) ............3-34
Automatic operation(if

so equipped) .........3-34
Sun visors ...................................... 3-35
Vanity mirrors ............................... 3-35
Card holder ................................. 3-36
Mirrors ........................................ 3-36

1. Intelligent Keys (two sets)
2. Mechanical key
3. Key number plate (one plate)
INFINITI INTELLIGENT KEY
Your vehicle can only be driven with the Intel-
ligent Keys which are registered to your vehi-
cle’s Intelligent Key System components and
INFINITI Vehicle Immobilizer System compo-
nents.
Never leave the keys in the vehicle.As many as four Intelligent Keys can be reg-
istered and used with one vehicle. The new
keys must be registered prior to use with the
Intelligent Key System and INFINITI Vehicle
Immobilizer System of your vehicle. It is rec-
ommended that you visit an INFINITI retailer
for this service. Since the registration process
requires erasing all memory in the Intelligent
Key components when registering new keys,
be sure to take all Intelligent Keys that you
have to an INFINITI retailer.
A key number plate is supplied with your keys.
Record the key number and keep it in a safe
place (such as your wallet), not in the vehicle.If you lose your keys, it is recommended that
you visit an INFINITI retailer for duplicates by
using the key number. INFINITI does not re-
cord key numbers so it is very important to
keep track of your key number plate.
A key number is only necessary when you
have lost all keys and do not have one to
duplicate from. If you still have a key, it can be
duplicated without knowing the key number.
CAUTION
∙ Be sure to carry the Intelligent Key with
you when driving. The Intelligent Key is a
precision device with a built-in transmit-
ter. To avoid damaging it, please note the
following:
– The Intelligent Key is water resistant; however, wetting may damage the In-
telligent Key. If the Intelligent Key
gets wet, immediately wipe until it is
completely dry.
– Do not bend, drop or strike it against another object.
– If the outside temperature is below 14°F (-10°C), the battery of the Intel-
ligent Key may not function properly.
Type A (if so equipped)
WPD0427
Type B (if so equipped)
LPD2052
KEYS
3-2Pre-driving checks and adjustments

– Do not place the Intelligent Key for anextended period in a place where tem-
peratures exceed 140°F (60°C).
– Do not change or modify the Intelli- gent Key.
– Do not use a magnet key holder.
– Do not place the Intelligent Key near an electric appliance such as a televi-
sion set or a personal computer.
– Do not allow the Intelligent Key to come into contact with water or salt
water, and do not wash it in a washing
machine. This could affect the system
function.
If an Intelligent Key is lost or stolen, INFINITI
recommends erasing the ID code of that In-
telligent Key from the vehicle. This may pre-
vent the unauthorized use of the Intelligent
Key to operate the vehicle. For information
regarding the erasing procedure, it is recom-
mended that you visit an INFINITI retailer.
Mechanical key
The Intelligent Key contains the mechanical
key.
To remove the mechanical key, release the
lock knob on the back of the Intelligent Key.
To install the mechanical key, firmly insert it
into the Intelligent Key until the lock knob
returns to the lock position.
Use the mechanical key to lock or unlock the
driver’s door and glove box if they are
equipped with a key cylinder.
CAUTION
Always carry the mechanical key installed
in the Intelligent Key slot.
For additional information, refer to “Doors” in
this section and “Storage” in the “Instruments
and controls” section of this manual.
Valet hand-off
When you have to leave a key with a valet,
give them the Intelligent Key itself and keep
the mechanical key with you to protect your
belongings.
To prevent the glove box from being opened
during valet hand-off, follow the procedure
below. 1. Remove the mechanical key from the In- telligent Key.
2. Lock the glove box with the mechanical key.
3. Hand the Intelligent Key to the valet and keep the mechanical key with you.
For additional information, refer to “Storage”
in the “Instruments and controls” section of
this manual.
SPA1951
Pre-driving checks and adjustments3-3

INFINITI VEHICLE IMMOBILIZER
SYSTEM KEYS
You can only drive your vehicle using the
Intelligent Keys which are registered to the
INFINITI Vehicle Immobilizer System compo-
nents in your vehicle.
The mechanical key can be used for all the
locks.
Never leave the keys in the vehicle.
Additional or replacement keys:
If you still have a key, the key number is not
necessary when you need extra INFINITI Ve-
hicle Immobilizer System keys. Your existing
key can be duplicated without knowing the
key number. As many as four INFINITI Ve-
hicle Immobilizer System keys can be used
with one vehicle. You should bring all
INFINITI Vehicle Immobilizer System keys
that you have to the INFINITI retailer for
registration. This is because the registration
process will erase the memory of all key
codes previously registered into the INFINITI
Vehicle Immobilizer System. After the regis-
tration process, these components will only
recognize keys coded into the INFINITI Ve-
hicle Immobilizer System during registration.Any key that is not given to the retailer at the
time of registration will no longer be able to
start your vehicle.CAUTION
Do not allow the immobilizer system key,
which contains an electrical transponder,
to come into contact with water or salt wa-
ter. This could affect system function.
When the doors are locked using one of the
following methods, the doors cannot be
opened using the outside door handles. The
doors must be unlocked to open the doors.WARNING
∙ Always have the doors locked while driv-
ing. Along with the use of seat belts, this
provides greater safety in the event of an
accident by helping to prevent persons
from being thrown from the vehicle. This
also helps keep children and others from
unintentionally opening the doors, and
will help keep out intruders.
∙ Before opening any door, always look for and avoid oncoming traffic.
∙ To help avoid risk of injury or death through unintended operation of the ve-
hicle and/or its systems, including en-
trapment in windows and/or inadver-
tent door lock activation, do not leave
children, people who require the assis-
tance of others and/or pets unattended
in your vehicle. Additionally, the tem-
perature inside a closed vehicle on a
warm day can quickly become high
enough to cause a significant risk of in-
jury or death to people and/or pets.
DOORS
3-4Pre-driving checks and adjustments

LOCKING WITH KEY
To lock or unlock the vehicle, turn the key as
shown.
Manual
To lock the doors and liftgate, turn the key
toward the front of the vehicle
1.
To unlock the driver’s door, turn the key to-
ward the rear of the vehicle
3, then return it
to the neutral position
2. To unlock all doors and the liftgate, turn the
key toward the rear of the vehicle again
3
within 60 seconds of unlocking the driver’s
door.
LOCKING WITH INSIDE LOCK
KNOB TYPE A (if so equipped)
To lock the door without the key, move the
inside lock to the lock position
1, then close
the door.
To unlock the door without the key, move the
inside lock knob to the unlock position
2.
Front doors
LPD2750
Inside lock
LPD2714
Pre-driving checks and adjustments3-5

LOCKING WITH INSIDE LOCK
KNOB TYPE B (if so equipped)
To lock the door without the key, move the
inside lock knob to the lock position
1, then
close the door.
To unlock the door without the key, move the
inside lock knob to the unlock position
2.
For front doors, the door can also be un-
locked by pulling on the inside handle lever
one time
3.
LOCKING WITH POWER DOOR
LOCK SWITCH
To lock all the doors without a key, push the
door lock switch (driver’s or front passenger’s
side) to the lock position
1. When locking the
door this way, be certain not to leave the key
inside the vehicle.
To unlock all the doors without a key, push
the door lock switch (driver’s or front passen-
ger’s side) to the unlock position
2.
Lockout protection
If the Intelligent Key is left in the vehicle while
any door is open, all doors will unlock auto-
matically and a warning chime will sound af-
ter the door is closed.
This function helps to prevent the Intelligent
Key from being accidentally locked inside the
vehicle.
AUTOMATIC DOOR LOCKS
∙ All doors lock automatically when the ve- hicle speed reaches 15 mph (24 km/h).
∙ All doors unlock automatically when the transmission is placed in the P (Park) po-
sition or when the ignition switch is
placed in the OFF position.
NOTE:
The automatic door unlock function can be
changed using “Vehicle Settings” of the
lower touch-screen display. For additional
information, refer to the separate INFINITI
InTouch™ Owner’s Manual.
Inside lock
LPD2713SPA2727
3-6Pre-driving checks and adjustments
