FEB WITH PEDESTRIAN
DETECTION SYSTEM
LIMITATIONS
WARNING
Listed below are the system limitations for
the FEB with Pedestrian Detection system.
Failure to operate the vehicle in accordance
with these system limitations could result
in serious injury or death.
∙ The FEB with Pedestrian Detection sys-tem cannot detect all vehicles or pedes-
trians under all conditions.
∙ The radar sensor FEB with Pedestrian Detection system does not detect the
following objects:
– Small pedestrians (including small children), animals and cyclists.
– Pedestrians in wheelchairs or using mobile transport such as scooters,
child-operated toys, or skateboards.
– Pedestrians who are seated or other- wise not in a full upright standing or
walking position.
– Oncoming vehicles
– Crossing vehicles – Obstacles on the roadside
∙ The FEB with Pedestrian Detection sys- tem has some performance limitations.
– If a stationary vehicle is in the vehicle’s path, the FEB with Pedestrian Detec-
tion system will not function when the
vehicle is driven at speeds over ap-
proximately 50 mph (80 km/h).
– For pedestrian detection, the FEB with Pedestrian Detection system will
not function when the vehicle is driven
at speeds over approximately 37 mph
(60 km/h) or below approximately
6 mph (10km/h).
∙ The FEB with Pedestrian Detection sys- tem will not function for pedestrians in
darkness or in tunnels, even if there is
street lighting in the area.
∙ For pedestrians, the FEB with Pedestrian Detection system will not issue the first
warning and will not push the accelerator
pedal up.
∙ The FEB with Pedestrian Detection sys- tem may not function if the vehicle ahead
is narrow (for example, a motorcycle). ∙ The FEB with Pedestrian Detection sys-
tem may not function if speed difference
between the two vehicles is too small.
∙ The radar sensor FEB with Pedestrian Detection system may not function prop-
erly or detect a vehicle ahead in the fol-
lowing conditions:
– Poor visibility (conditions such as rain, snow, fog, dust storms, sandstorms,
and road spray from other vehicles).
– Driving on a steep downhill slope or roads with sharp curves.
– Driving on a bumpy road surface, such as an uneven dirt road.
– If dirt, ice, snow or other material is covering the radar sensor area.
– Interference by other radar sources.
– The camera area of the windshield is fogged up, or covered with dirt, water
drops, ice, snow, etc.
– Strong light (for example, sunlight or high beams from oncoming vehicles)
enters the front camera. Strong light
causes the area around the pedestrian
to be cast in a shadow, making it diffi-
cult to see.
Starting and driving5-153

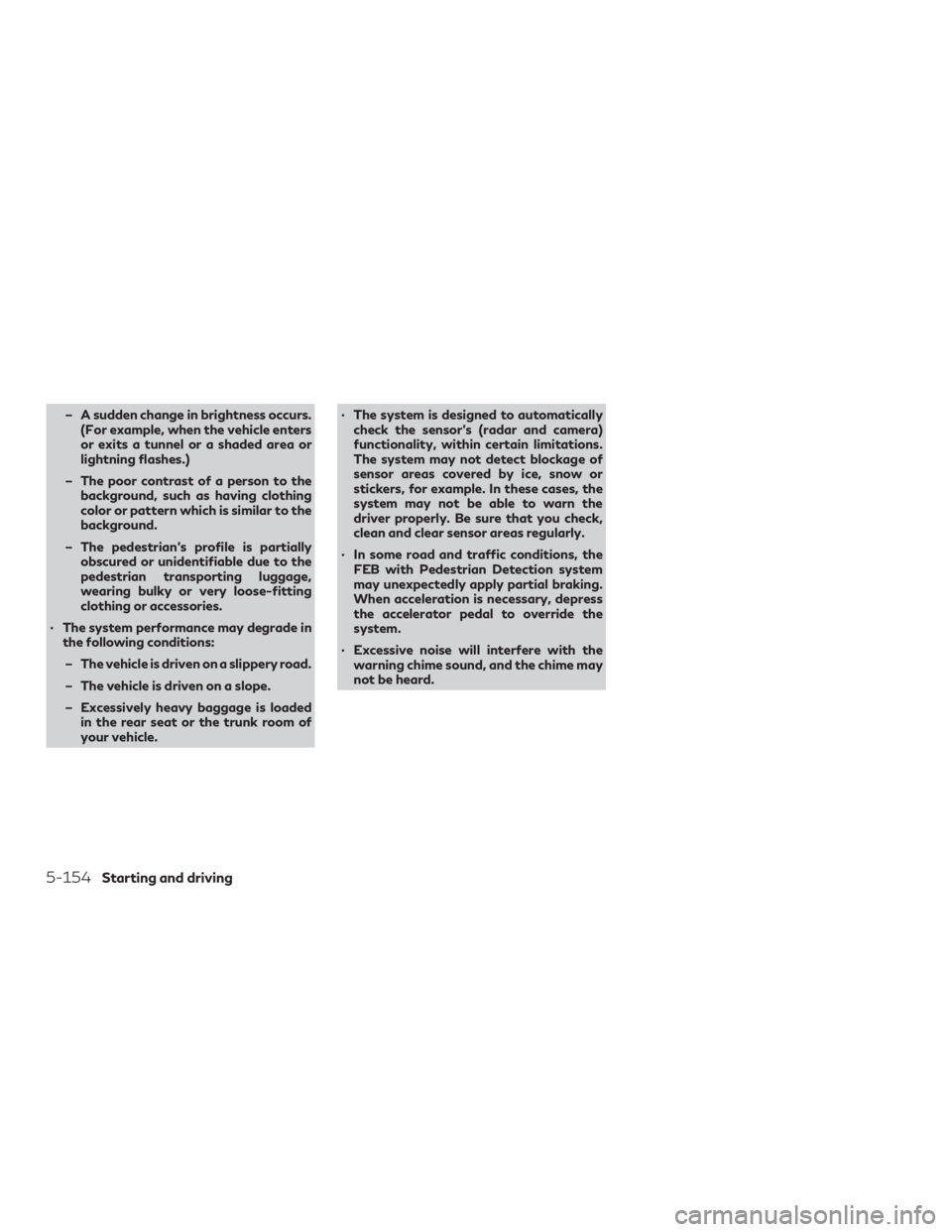

– A sudden change in brightness occurs.(For example, when the vehicle enters
or exits a tunnel or a shaded area or
lightning flashes.)
– The poor contrast of a person to the background, such as having clothing
color or pattern which is similar to the
background.
– The pedestrian’s profile is partially obscured or unidentifiable due to the
pedestrian transporting luggage,
wearing bulky or very loose-fitting
clothing or accessories.
∙ The system performance may degrade in the following conditions:
– The vehicle is driven on a slippery road.
– The vehicle is driven on a slope.
– Excessively heavy baggage is loaded in the rear seat or the trunk room of
your vehicle. ∙ The system is designed to automatically
check the sensor’s (radar and camera)
functionality, within certain limitations.
The system may not detect blockage of
sensor areas covered by ice, snow or
stickers, for example. In these cases, the
system may not be able to warn the
driver properly. Be sure that you check,
clean and clear sensor areas regularly.
∙ In some road and traffic conditions, the FEB with Pedestrian Detection system
may unexpectedly apply partial braking.
When acceleration is necessary, depress
the accelerator pedal to override the
system.
∙ Excessive noise will interfere with the warning chime sound, and the chime may
not be heard.
5-154Starting and driving

When driving on some roads, such as wind-
ing, hilly, curved, narrow roads, or roads
which are under construction, the sensor may
detect vehicles in a different lane, or may
temporarily not detect a vehicle traveling
ahead. This may cause the system to work
inappropriately.The detection of vehicles may also be af-
fected by vehicle operating (steering maneu-
ver or traveling position in the lane, etc.) or
vehicle condition. If this occurs, the system
may warn you by blinking the system indica-
tor and sounding the chime unexpectedly.
You will have to manually control the proper
distance away from the vehicle traveling
ahead.
SSD0253
Starting and driving5-155

SYSTEM TEMPORARILY
UNAVAILABLE
Condition A:
In the following conditions, the FEB with Pe-
destrian Detection system warning light blinks
and the system will be turned off automatically.
∙ The radar sensor picks up interferencefrom another radar source.
∙ The camera area of the windshield is misted or frozen.
∙ Strong light is shining from the front.
∙ The cabin temperature is over approxi- mately 104°F (40°C) in direct sunlight.
∙ The camera area of the windshield glass is continuously covered with dirt, etc.
Action to take
When the above conditions no longer exist,
the FEB with Pedestrian Detection system
will resume automatically.
NOTE:
When the inside of the windshield or camera
area is misted or frozen, it will take a period
of time to remove it after A/C turns ON. If
dirt appears on this area have it checked. It is
recommended that you visit an INFINITI re-
tailer for this service.
LSD2957
5-156Starting and driving

Condition B:
In the following conditions, the FEB with Pe-
destrian Detection system warning light will
illuminate, the system will be turned off au-
tomatically and the “Unavailable: Front Radar
Blocked” warning message will appear in the
vehicle information display.∙ The sensor area of the front bumper is covered with dirt or is obstructed.
Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe place, place the shift lever
in the P (Park) position and turn the engine
off. Clean the radar sensor area of the front
bumper or the camera area of the windshield
with a soft cloth, and restart the engine. If the
warning light continues to illuminate, have
the FEB with Pedestrian Detection system
checked. It is recommended that you visit an
INFINITI retailer for this service.
When driving on roads with limited road
structures or buildings (for example, long
bridges, deserts, snow fields, driving next to
long walls). Action to take
When the above conditions no longer exist,
the FEB with pedestrian detection system
will resume automatically.
NOTE:
If the FEB with Pedestrian Detection system
stops working, the PFCW system (if so
equipped) will also stop working.
SYSTEM MALFUNCTION
If the FEB with Pedestrian Detection system
malfunctions, it will be turned off automati-
cally, a chime will sound, the FEB with Pedes-
trian Detection system warning light (orange)
will illuminate and the warning message
[Malfunction] will appear in the vehicle infor-
mation display.
Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe location, turn the engine
off and restart the engine. If the warning light
continues to illuminate, have the FEB with
Pedestrian Detection system checked. It is
recommended that you visit an INFINITI re-
tailer for this service.NOTE:
If the FEB with Pedestrian Detection system
stops working, the PFCW system (if so
equipped) will also stop working.
Starting and driving5-157

SYSTEM MAINTENANCE
The radar sensorAis located on the front of
the vehicle. The camera
Bis located on the
upper side of the windshield.
To keep the FEB with Pedestrian Detection
system operating properly, be sure to ob-
serve the following:
∙ Always keep sensor areas of the front bumper and windshield clean.
∙ Do not strike or damage the areas around the sensors (ex. Bumper, windshield). ∙ Do not cover or attach stickers, or install
any accessory near the sensors. This
could block sensor signals, and/or cause
failure or malfunction.
∙ Do not attach metallic objects near the radar sensor (brush guard, etc.). This
could cause failure or malfunction.
∙ Do not place reflective materials, such as white paper or a mirror, on the instrument
panel. The reflection of sunlight may ad-
versely affect the camera unit’s detection
capability.
∙ Do not alter, remove or paint the front bumper. Before customizing or restoring
the front bumper, it is recommended that
you visit an INFINITI retailer.Radio frequency statement
For USA/Canada
Model: ARS4–A
IC: 4135A-ARS4A
FCC ID: OAYARS4A This device complies with Part 15 of the FCC
Rules and with Industry Canada licence-
exempt RSS standard(s). Operation is subject
to the following two conditions: (1) This de-
vice may not cause interference, and (2) this
device must accept any interference, includ-
ing interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR
d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes: (1)
L’appareil ne doit pas produire de brouillage,
et (2) l’utilisateur de l’appareil doit accepter
tout brouillage radioélectrique subi, même si
le brouillage est susceptible d’en comprom-
ettre le fonctionnement.
Radio Frequency Radiation Exposure Infor-
mation:
This equipment complies with FCC and IC
radiation exposure limits set forth for an un-
controlled environment.
This equipment should be installed and oper-
ated with minimum distance of 30 cm be-
tween the radiator and your body.
This transmitter must not be co-located or
operating in conjunction with any other an-
tenna or transmitter.
LSD2954
5-158Starting and driving

Cet équipment est conforme aux limites
d’exposition aux rayonnements IC établies
pour un environnement non contrôlé. Cet
équipment doit étre installé et utilisé avec un
minimum de 30 cm de distance entre la
source de rayonnnement et votre corps.
FCC Notice
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.WARNING
Failure to follow the warnings and instruc-
tions for proper use of the PFCW system
could result in serious injury or death.
∙ The PFCW system can help warn thedriver before a collision occurs but will
not avoid a collision. It is the driver’s re-
sponsibility to stay alert, drive safely and
be in control of the vehicle at all times.
The PFCW system can help alert the driver
when there is a sudden braking of a second
vehicle traveling in front of the vehicle ahead
in the same lane. The PFCW system uses a radar sensor
A
located on the front of the vehicle to measure
the distance to the vehicle ahead in the same
lane.
LSD2952
PREDICTIVE FORWARD COLLISION
WARNING (PFCW)
Starting and driving5-159

PFCW SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
the PFCW system. Failure to operate the
vehicle in accordance with these system
limitations could result in serious injury or
death.
∙ The PFCW system cannot detect all ve-hicles under all conditions.
∙ The radar sensor does not detect the fol- lowing objects: – Pedestrians, animals or obstacles in
the roadway
– Oncoming vehicles
– Crossing vehicles
∙ (Illustration A) The PFCW system does not function when a vehicle ahead is a
narrow vehicle, such as a motorcycle.
∙ The radar sensor may not detect a vehicle ahead in the following conditions:
– Snow or heavy rain. – Dirt, ice, snow or other material cov-
ering the radar sensor.
– Interference by other radar sources.
– Snow or road spray from traveling vehicles.
– Driving in a tunnel.
– (Illustration B) When the vehicle ahead is being towed.
Illustration B
LSD2265
5-164Starting and driving

– (Illustration C) When the distance tothe vehicle ahead is too close, the
beam of the radar sensor is
obstructed.
– (Illustration D) When driving on a steep downhill slope or roads with
sharp curves.
∙ The system is designed to automatically check the sensor’s functionality, within
certain limitations. The system may not
detect some forms of obstruction of the
sensor area such as ice, snow, stickers,
etc. In these cases, the system may not be
able to warn the driver properly. Be sure
that you check, clean and clear the sensor
area regularly.
∙ Excessive noise will interfere with the warning chime sound, and the chime may
not be heard.
Starting and driving5-165

SYSTEM TEMPORARILY
UNAVAILABLE
Condition A
When the radar sensor picks up interference
from another radar source, making it impos-
sible to detect a vehicle ahead, the PFCW
system is automatically turned off.
The FEB with Pedestrian Detection system
warning light (orange) will illuminate.
Action to take
When the above conditions no longer exist,
the PFCW system will resume automatically.
Condition B
When the sensor area of the front bumper is
covered with dirt or is obstructed, making it
impossible to detect a vehicle ahead, the
PFCW system is automatically turned off.
The FEB with Pedestrian Detection system
warning light (orange) will illuminate and the
“Unavailable: Front Radar Blocked” warning
message will appear in the vehicle informa-
tion display.
LSD2957
5-168Starting and driving
