active noise INFINITI QX50 2019 Owner's Manual

Intelligent All-Wheel Drive (AWD)
(if so equipped)................................ 5-172
Parking/parking on hills .......................5-175
Power steering ................................ 5-176
Electric power steering type ................5-176
Direct Adaptive Steering® type .............5-176
Park with Easy Steering (if so equipped) .....5-178
Brake system ................................. 5-179
Brake precautions .......................... 5-179
Anti-lock Braking System (ABS) .............5-180
Brake Assist ............................... 5-181
Vehicle Dynamic Control (VDC) system .........5-181
Brake force distribution .....................5-183
Chassis Control ............................... 5-184
Active Trace Control ....................... 5-184
Active Engine Brake ........................ 5-184
Active Ride Control ......................... 5-185
Hill start assist system ......................... 5-186
Front and rear sonar system (if so equipped) ....5-186 System operation
.......................... 5-187
How to enable/disable the sonar system ....5-189
Sonar limitations ........................... 5-189
System temporarily unavailable .............5-190
System maintenance ....................... 5-190
Cold weather driving .......................... 5-191
Freeing a frozen door lock ..................5-191
Antifreeze ................................. 5-191
Battery .................................... 5-191
Draining of coolant water ..................5-191
Tire equipment ............................. 5-191
Special winter equipment ...................5-192
Driving on snow or ice ...................... 5-192
Engine block heater (if so equipped) .........5-192
Active noise cancellation/Active sound
enhancement ................................. 5-193
Active noise cancellation ....................5-193
Active soundenhancement ................. 5-194

When the Active Engine Brake is operated at
corners and the “Chassis Control” mode is
selected in the lower display, the Active En-
gine Brake graphics are shown in the vehicle
information display.
If the chassis control warning message ap-
pears in the vehicle information display, it
may indicate that the Active Engine Brake is
not functioning properly. Have the system
checked as soon as possible. It is recom-
mended that you visit an INFINITI retailer for
this service.WARNING
The Active Engine Brake may not be effec-
tive depending on the driving condition. Al-
ways drive carefully and attentively.
When the Active Engine Brake is operating,
the needle of the tachometer will rise up and
you may hear an engine noise. This is normal
and indicates that the Active Engine Brake is
operating properly.
ACTIVE RIDE CONTROL
This system senses upper body motion
(based on wheel speed information) and con-
trols engine torque and four wheel brake
pressure. This will enhance ride comfort in an
effort to restrain uncomfortable upper body
movement when passing over undulated
road surfaces. This system comes into effect
above 25 mph (40 km/h).
When the lower display is used to turn off the
VDC system, the Active Ride Control is also
turned off.
If the Integrated Dynamics-control Module
warning message appears in the vehicle in-
formation display, it may indicate that the
Active Ride Control is not functioning prop-
erly. Have the system checked as soon as
possible. It is recommended that you visit an
INFINITI retailer for this service.
When the Active Ride Control is operating,
you may hear noise and sense slight decel-
eration. This is normal and indicates that the
Active Ride Control is operating properly.
LSD2185
Starting and driving5-185

∙ Use a heavy-duty 3-wire, 3-pronged ex-tension cord rated for at least 10 A. Plug
the extension cord into a Ground Fault
Interrupt (GFI) protected, grounded
110-VAC outlet. Failure to use the
proper extension cord or a grounded out-
let can result in a fire or electrical shock
and cause serious personal injury.
To use the engine block heater: 1. Turn the engine off.
2. Open the hood and unwrap the engine block heater cord.
3. Plug the engine block heater cord into a grounded 3-wire, 3-pronged extension
cord.
4. Plug the extension cord into a Ground Fault Interrupt (GFI) protected,
grounded 110-volt AC (VAC) outlet.
5. The engine block heater must be plugged in for at least2-4hours, de-
pending on outside temperatures, to
properly warm the engine coolant. Use
an appropriate timer to turn the engine
block heater on.
6. Before starting the engine, unplug and properly store the cord to keep it away
from moving parts.

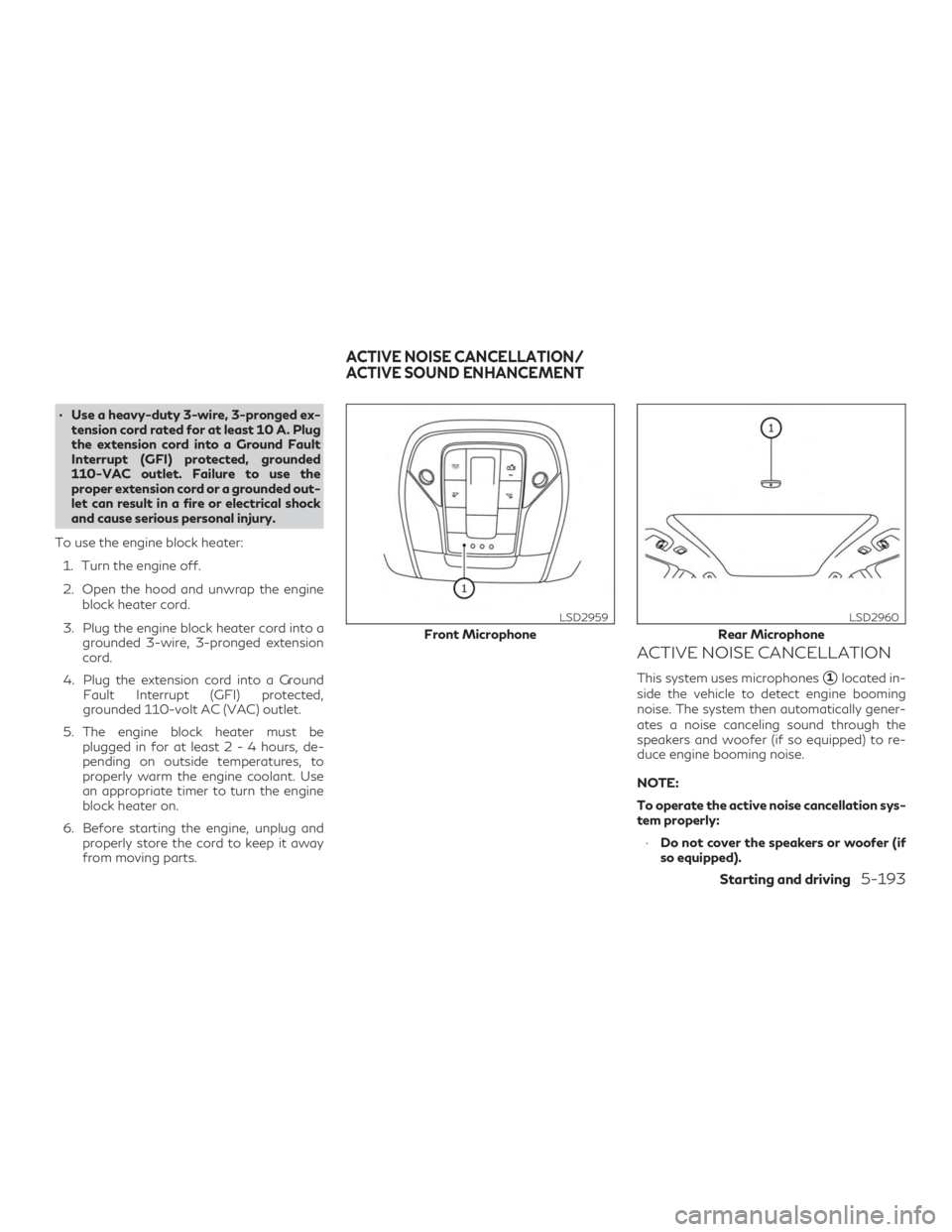

ACTIVE NOISE CANCELLATION
This system uses microphones1located in-
side the vehicle to detect engine booming
noise. The system then automatically gener-
ates a noise canceling sound through the
speakers and woofer (if so equipped) to re-
duce engine booming noise.
NOTE:
To operate the active noise cancellation sys-
tem properly:
∙ Do not cover the speakers or woofer (if
so equipped).
Front Microphone
LSD2959
Rear Microphone
LSD2960
ACTIVE NOISE CANCELLATION/
ACTIVE SOUND ENHANCEMENT
Starting and driving5-193

and black label with the common abbrevia-
tion or the appropriate percentage for that
region.
E–85 fuel
E-85 fuel is a mixture of approximately 85%
fuel ethanol and 15% unleaded gasoline.
E-85 can only be used in a Flexible Fuel Ve-
hicle (FFV). Do not use E-85 in your vehicle.
U.S. government regulations require fuel
ethanol dispensing pumps to be identified by
a small, square, orange and black label with
the common abbreviation or the appropriate
percentage for that region.
Fuel containing MMT
MMT, or methylcyclopentadienyl manganese
tricarbonyl, is an octane boosting additive.
INFINITI does not recommend the use of fuel
containing MMT. Such fuel may adversely
affect vehicle performance, including the
emissions control system. Note that while
some fuel pumps label MMT content, not all
do, so you may have to consult your gasoline
retailer for more details.
Aftermarket fuel additives
INFINITI does not recommend the use of any
aftermarket fuel additives (for example, fuel
injector cleaner, octane booster, intake valve
deposit removers, etc.) which are sold com-
mercially. Many of these additives intended
for gum, varnish or deposit removal may con-
tain active solvents or similar ingredients that
can be harmful to the fuel system and engine.
Octane rating tips
Using unleaded gasoline with an octane rat-
ing lower than recommended can cause per-
sistent, heavy “spark knock.” (“Spark knock”
is a metallic rapping noise.) If severe, this can
lead to engine damage. If you detect a per-
sistent heavy spark knock even when using
gasoline of the stated octane rating, or if you
hear steady spark knock while holding a
steady speed on level roads, it is recom-
mended that you have an INFINITI retailer
correct the condition. Failure to correct the
condition is misuse of the vehicle, for which
INFINITI is not responsible.Incorrect ignition timing may result in spark
knock, after-run and/or overheating, which
may cause excessive fuel consumption or en-
gine damage. If any of the above symptoms
are encountered, have your vehicle checked.
It is recommended that you visit an INFINITI
retailer.
However, now and then you may notice light
spark knock for a short time while accelerat-
ing or driving up hills. This is not a cause for
concern, because you get the greatest fuel
benefit when there is light spark knock for a
short time under heavy engine load.
Technical and consumer information10-5

11 Index
2nd row bench seat adjustment.......1-4
A
Active noise cancellation Active sound enhancement . .5-193, 5-193
Aiming control, headlights .........2-44
Air bag (See supplemental restraint
system).....................1-43
Air bag system Front (See supplemental front impact air
bag system) ................1-50
Air bag warning labels ............1-62
Airbagwarninglight.........1-62,2-15
Air bag warning light,
supplemental ..............1-62,2-15
Air cleaner ...................8-15
Air cleaner housing filter ...........8-15
Air conditioner Air conditioner operation ........4-37
Air conditioner specification label . .10-12
Air conditioner system refrigerant and oil
recommendations ............10-7
Heater and air conditioner (automatic)
(if so equipped) ..............4-36
Heater and air conditioner controls . .4-37
Servicing air conditioner .........4-43
Alarm system
(See vehicle security system) ........2-32
Anchor point locations ............1-26
Antenna ....................4-44
Antifreeze ..................5-191 Anti-lock brake warning light
........2-10
Anti-lock Braking System (ABS) .....5-180
Armrests.....................1-5
Around View® Monitor ...........4-11
Audible reminders ..............2-18
Autolight switch ...............2-40
Automatic Automatic drive positioner . . .3-38, 3-41
Automatic power window switch . . .2-67
Automatic anti-glare inside mirror .....3-36
Automaticbrakehold ............5-26
Automatic door locks .............3-6
Automatic drive positioner .....3-38,3-41
B
Backup Collision Intervention (BCI) ....5-65
Battery.................5- 191, 8-11
Charge warning light ...........2-11
Battery replacement .............8-21
INFINITI Intelligent Key .........8-22
Keyfob...................8-21
Before starting the engine ..........5-17
Belt (See drive belt) ..............8-13
Blind Spot Intervention® (BSI) .......5-53
Blind Spot Warning (BSW) .........5-44
Boosterseats.................1-39
Brake Anti-lock Braking System (ABS) . . .5-180
Brakefluid.................8-10
Brakelight(Seestoplight) .......8-24
Brake system ...............5-179 Brakewarninglight ...........2-10
Brake wear indicators
......2-18,8-18
Self-adjusting brakes ..........8-18
Brakeassist .................5-181
Brakefluid...................8-10
Brakes.....................8-18
Brake system ................. 5-179
Break-in schedule ..............5-170
Brightness control Instrument panel .............2-45
Bulb check/instrument panel ........2-10
Bulb replacement ............... 8-24
C
Camera Aiding Sonar (parking sensor) . .4-24
Capacities and recommended
fuel/lubricants ................10-2
Cargoareastoragebin...........2-60
Cargo
(See vehicle loading information) .....10-14
Car phone or CB radio ............4-45
Chassis control ............... 5

-184
Check tire pressure .............. 2-26
Child restraints .....1-19,1-20, 1-22, 1-24
LATCH (Lower Anchors and Tethers for
CHildren) System .............1-24
Precautions on child
restraints ......1-22,1-29,1 -35, 1-40
Top tether strap anchor point
locations..................1-26
Child restraint with top tether strap ....1-26
