display INFINITI QX50 2019 Owners Manual

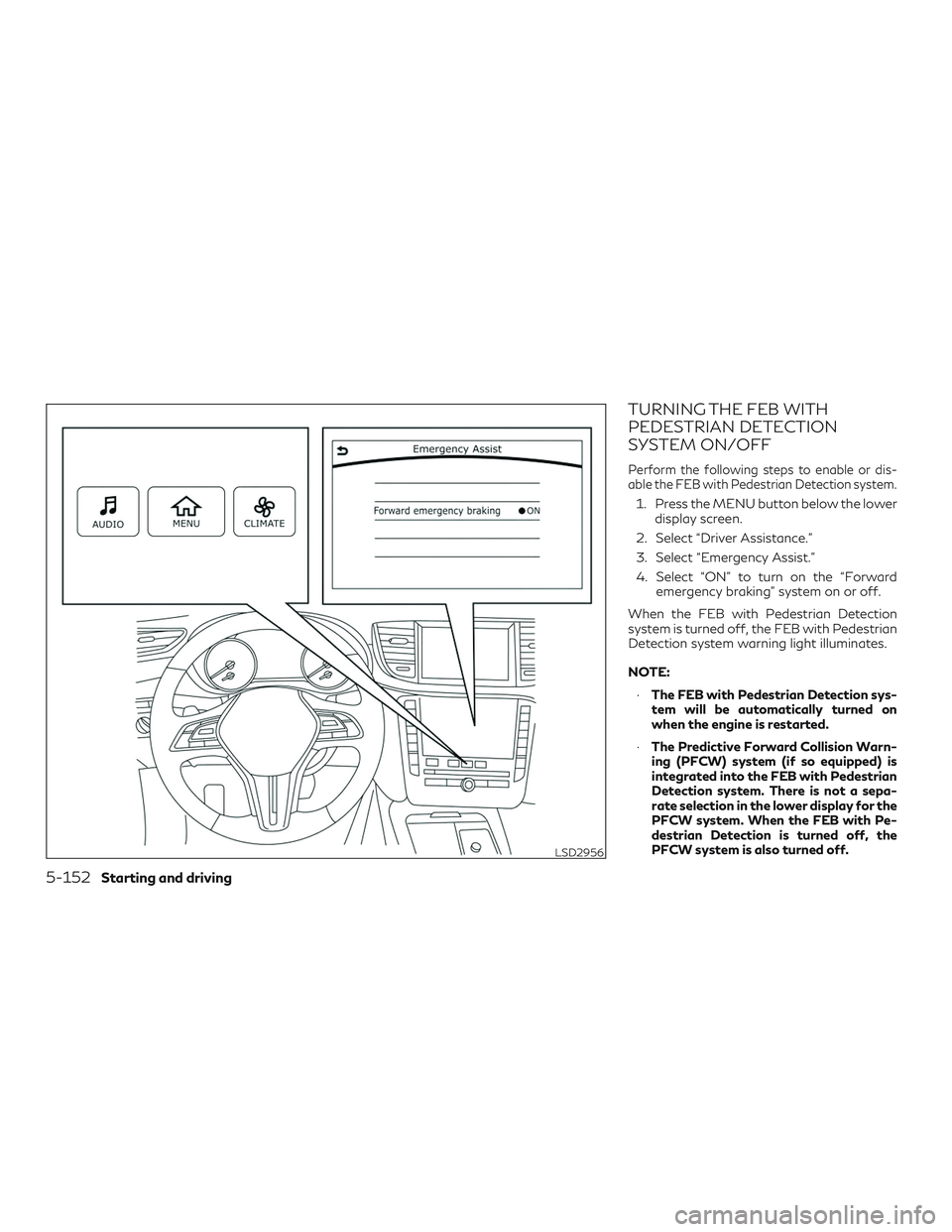

TURNING THE FEB WITH
PEDESTRIAN DETECTION
SYSTEM ON/OFF
Perform the following steps to enable or dis-
able the FEB with Pedestrian Detection system.
1. Press the MENU button below the lowerdisplay screen.
2. Select “Driver Assistance.”
3. Select “Emergency Assist.”
4. Select “ON” to turn on the “Forward emergency braking” system on or off.
When the FEB with Pedestrian Detection
system is turned off, the FEB with Pedestrian
Detection system warning light illuminates.
NOTE: ∙ The FEB with Pedestrian Detection sys-
tem will be automatically turned on
when the engine is restarted.
∙ The Predictive Forward Collision Warn-
ing (PFCW) system (if so equipped) is
integrated into the FEB with Pedestrian
Detection system. There is not a sepa-
rate selection in the lower display for the
PFCW system. When the FEB with Pe-
destrian Detection is turned off, the
PFCW system is also turned off.
LSD2956
5-152Starting and driving

Condition B:
In the following conditions, the FEB with Pe-
destrian Detection system warning light will
illuminate, the system will be turned off au-
tomatically and the “Unavailable: Front Radar
Blocked” warning message will appear in the
vehicle information display.∙ The sensor area of the front bumper is covered with dirt or is obstructed.
Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe place, place the shift lever
in the P (Park) position and turn the engine
off. Clean the radar sensor area of the front
bumper or the camera area of the windshield
with a soft cloth, and restart the engine. If the
warning light continues to illuminate, have
the FEB with Pedestrian Detection system
checked. It is recommended that you visit an
INFINITI retailer for this service.
When driving on roads with limited road
structures or buildings (for example, long
bridges, deserts, snow fields, driving next to
long walls). Action to take
When the above conditions no longer exist,
the FEB with pedestrian detection system
will resume automatically.
NOTE:
If the FEB with Pedestrian Detection system
stops working, the PFCW system (if so
equipped) will also stop working.
SYSTEM MALFUNCTION
If the FEB with Pedestrian Detection system
malfunctions, it will be turned off automati-
cally, a chime will sound, the FEB with Pedes-
trian Detection system warning light (orange)
will illuminate and the warning message
[Malfunction] will appear in the vehicle infor-
mation display.
Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe location, turn the engine
off and restart the engine. If the warning light
continues to illuminate, have the FEB with
Pedestrian Detection system checked. It is
recommended that you visit an INFINITI re-
tailer for this service.NOTE:
If the FEB with Pedestrian Detection system
stops working, the PFCW system (if so
equipped) will also stop working.
Starting and driving5-157

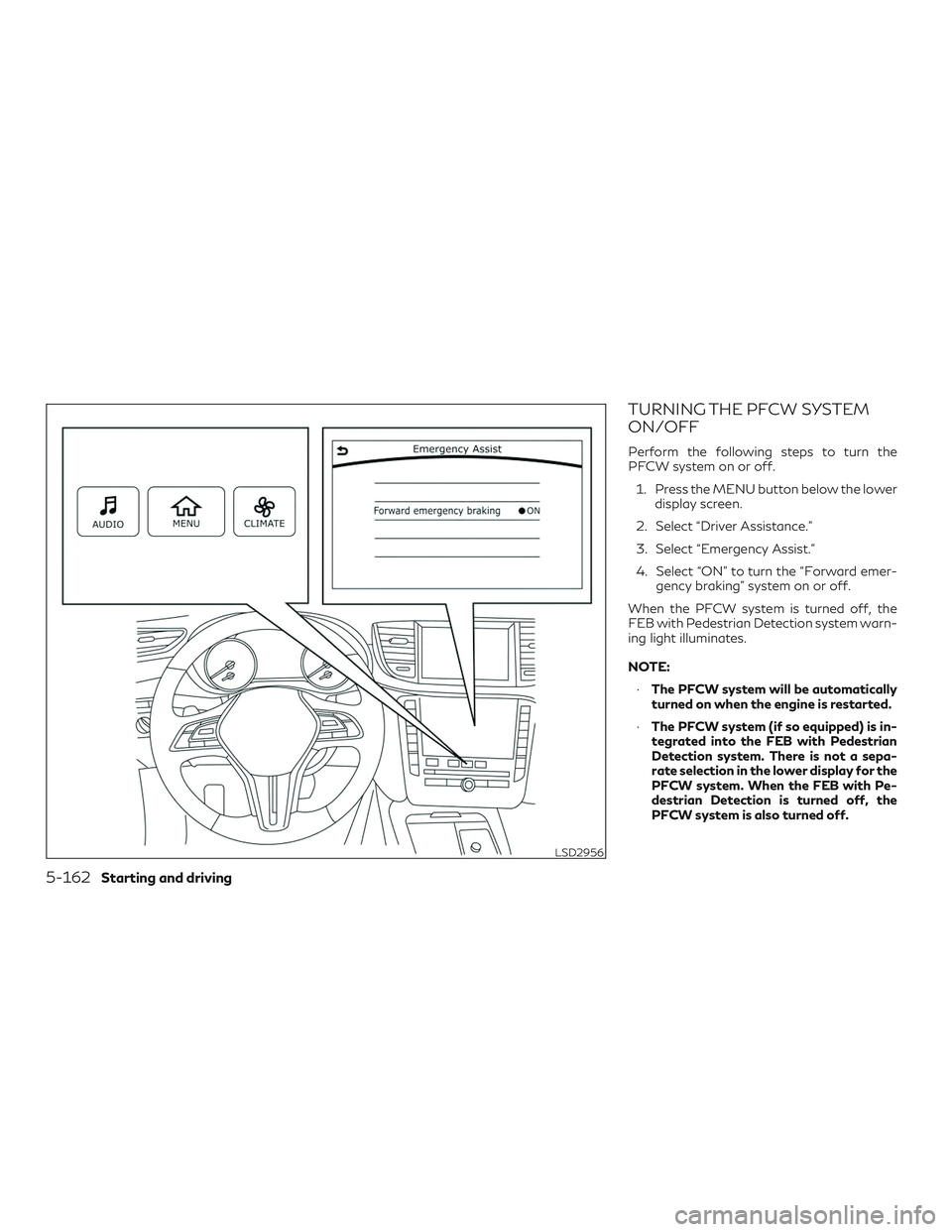

TURNING THE PFCW SYSTEM
ON/OFF
Perform the following steps to turn the
PFCW system on or off.1. Press the MENU button below the lower display screen.
2. Select “Driver Assistance.”
3. Select “Emergency Assist.”
4. Select “ON” to turn the “Forward emer- gency braking” system on or off.
When the PFCW system is turned off, the
FEB with Pedestrian Detection system warn-
ing light illuminates.
NOTE: ∙ The PFCW system will be automatically
turned on when the engine is restarted.
∙ The PFCW system (if so equipped) is in-
tegrated into the FEB with Pedestrian
Detection system. There is not a sepa-
rate selection in the lower display for the
PFCW system. When the FEB with Pe-
destrian Detection is turned off, the
PFCW system is also turned off.
LSD2956
5-162Starting and driving

SYSTEM TEMPORARILY
UNAVAILABLE
Condition A
When the radar sensor picks up interference
from another radar source, making it impos-
sible to detect a vehicle ahead, the PFCW
system is automatically turned off.
The FEB with Pedestrian Detection system
warning light (orange) will illuminate.
Action to take
When the above conditions no longer exist,
the PFCW system will resume automatically.
Condition B
When the sensor area of the front bumper is
covered with dirt or is obstructed, making it
impossible to detect a vehicle ahead, the
PFCW system is automatically turned off.
The FEB with Pedestrian Detection system
warning light (orange) will illuminate and the
“Unavailable: Front Radar Blocked” warning
message will appear in the vehicle informa-
tion display.
LSD2957
5-168Starting and driving

Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe place, press the Park
button to place the vehicle in the P (Park)
position and turn the engine off. Clean the
radar cover on the lower grille with a soft
cloth, and restart the engine. If the warning
light continues to illuminate, have the PFCW
system checked. It is recommended that you
visit an INFINITI retailer for this service.∙ When driving on roads with limited road structures or buildings (for example, long
bridges, deserts, snow fields, driving next
to long walls).
Action to take:
When the above conditions no longer exist
the PFCW system will resume automatically
NOTE:
If the FEB with Pedestrian Detection system
stops working, the PFCW system (if so
equipped) will also stop working.SYSTEM MALFUNCTION
If the PFCW system malfunctions, it will be
turned off automatically, a chime will sound,
the FEB with Pedestrian Detection system
warning light (orange) will illuminate and the
warning message [Malfunction] will appear
in the vehicle information display.
Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe location, turn the engine
off and restart the engine. If the warning light
continues to illuminate, have the PFCW sys-
tem checked. It is recommended that you visit
an INFINITI retailer for this service.
SYSTEM MAINTENANCE
The sensorAis located on the front of the
vehicle.
To keep the system operating properly, be
sure to observe the following:
∙ Always keep the sensor area of the front bumper clean.
∙ Do not strike or damage the areas around the sensor.
∙ Do not cover or attach stickers or similar objects on the front bumper near the sen-
sor area. This could cause failure or mal-
function.
LSD2952
Starting and driving5-169

10.Keeping your Vehicle Cool
∙ Park your vehicle in a covered parking area or in the shade whenever pos-
sible.
∙ When entering a hot vehicle, opening the windows will help to reduce the
inside temperature faster, resulting in
reduced demand on your A/C system. ∙ Keep your engine tuned up.
∙ Follow the recommended scheduled
maintenance.
∙ Keep the tires inflated to the correct pressure. Low tire pressure increases tire
wear and lowers fuel economy.
∙ Keep all the wheels in correct alignment. Improper alignment increases tire wear
and lowers fuel economy.
∙ Use the recommended viscosity engine oil. For additional information, refer to
“Engine oil and oil filter recommenda-
tions” in the “Technical and consumer in-
formation” section of this manual. If any malfunction occurs in the Intelligent
AWD system while the engine is running,
messages are displayed in the meter.
INCREASING FUEL ECONOMY INTELLIGENT ALL-WHEEL DRIVE
(AWD) (if so equipped)
5-172Starting and driving

If the AWD error warning message is dis-
played, there may be a malfunction in the
Intelligent AWD system. Reduce vehicle
speed and have your vehicle checked as soon
as possible. It is recommended that you visit
an INFINITI retailer for this service.The AWD high temperature message may be
displayed while trying to free a stuck vehicle
due to increased oil temperature. The driving
mode may change to 2-wheel drive. If this
message is displayed, stop the vehicle with
the engine idling, as soon as it is safe to do so.
Then if the message turns off, you can con-
tinue driving.The tire size message may be displayed if
there is a large difference between the diam-
eters of front and rear wheels. Pull off the
road in a safe area, with the engine idling.
Check that all tire sizes are the same, that the
tire pressure is correct and that the tires are
not excessively worn.
If any warning messages continue to be dis-
played, have your vehicle checked as soon as
possible. It is recommended that you visit an
INFINITI retailer for this service.
LSD2082LSD2083LSD2084
Starting and driving5-173

WARNING
∙ Do not drive beyond the performance ca-pability of the tires. Accelerating quickly,
sharp steering maneuvers or sudden
braking may cause loss of control, even
with Intelligent AWD engaged.
∙ For AWD equipped vehicles, do not at- tempt to raise two wheels off the ground
and shift the transmission to any drive or
reverse position with the engine running.
Doing so may result in drivetrain damage
or unexpected vehicle movement which
could result in serious personal injury or
vehicle damage.
∙ Do not attempt to test an AWD equipped vehicle on a 2-wheel dynamometer (such
as the dynamometers used by some
states for emissions testing) or similar
equipment even if the other two wheels
are raised off the ground. Make sure that
you inform the test facility personnel
that your vehicle is equipped with AWD
before it is placed on a dynamometer. Us-
ing the wrong test equipment may result
in drivetrain damage or unexpected ve-
hicle movement which could result in se-
rious personal injury or vehicle damage.
CAUTION
∙ Do not operate the engine on a free rollerwhen any of the wheels are raised.
∙ If you use the free roller, rotate four wheels with the same speed without rais-
ing any wheels.
∙ If an AWD warning message is displayed while driving there may be a malfunction
in the AWD system. Reduce the vehicle
speed immediately and have your vehicle
checked as soon as possible. It is recom-
mended that you visit an INFINITI re-
tailer for this service.
∙ The powertrain may be damaged if you continue driving when the AWD tem-
perature or tire size incorrect messages
are displayed.
∙ If the AWD high temperature message is displayed while you are driving, pull off
the road in a safe area, and idle the en-
gine. The driving mode will change to
2WD to prevent the AWD system from
malfunctioning. If the warning message
turns off, you can drive again. ∙ If the tire size incorrect message is dis-
played while you are driving, pull off the
road in a safe area with the engine idling.
Check that all tire sizes are the same, that
the tire pressure is correct and that the
tires are not excessively worn.
∙ If a warning message continues to be dis- played after the above operations, have
your vehicle checked as soon as possible.
It is recommended that you visit an
INFINITI retailer for this service.
5-174Starting and driving

ating the steering wheel, until the tempera-
ture of Direct Adaptive Steering cools down.
Avoid repeated steering wheel operations
that could cause Direct Adaptive Steering to
overheat.
When the vehicle is tested on the 2–wheel
dynamometer, the power steering warning
light may illuminate. To turn off the power
steering warning light, stop the vehicle in a
safe location, turn the engine off, restart the
engine, and then drive the vehicle for a period
of time.
The following conditions do not indicate a
malfunction of Direct Adaptive Steering:∙ You may notice wider steering play when the ignition switch is in the OFF or AUTO
ACC position compared to when it is in
the ON position.
∙ After the engine is started, the steering wheel may turn slightly even when driving
a straight road. To return to the normal
position, drive the vehicle on a straight
road for a period of time.
∙ After the engine is started, the steering wheel may move if the steering wheel
was turned to the fully locked position
while the ignition switch was in the OFF
position. ∙ After the vehicle is tested on the 4–wheel
dynamometer, the steering wheel may
turn slightly even when driving on a
straight road. To return the steering
wheel to the normal position, drive the
vehicle on a straight road for a period of
time.
You may hear a noise under the following
conditions. However, this is not a malfunc-
tion. ∙ When the engine is started or stopped.
∙ When the steering wheel is turned in the full lock position.
PARK WITH EASY STEERING (if so
equipped)
The Park with Easy Steering system provides
lighter steering effort at speeds of approxi-
mately 10 mph (15 km/h) and under.
The Park with Easy Steering system can be
set to on or off through the INFINITI
InTouch™ display. When enabling/disabling
the Park with Easy Steering system, the sys-
tem setting will be retained even if the engine
is restarted. NOTE:
The Park with Easy Steering system will not
activate under the following conditions:
∙ When the Direct Adaptive Steering®
system malfunctions or does not operate
normally (including activating protec-
tion mechanism).
∙ When the ProPILOT Assist system
Steering Assist activates.
When the ProPILOT Assist system malfunc-
tions or does not operate normally, the Park
with Easy Steering system may not be acti-
vated.
When the Park with Easy Steering system is
enabled/disabled, the system may not
activate/deactivate immediately. This is not
a malfunction.
The Park with Easy Steering system cannot
be set to on or off under the following condi-
tions: ∙ Before the engine is started.
∙ When the Direct Adaptive Steering sys-
tem malfunctions or does not operate
normally (including activating the pro-
tection mechanism).
5-178Starting and driving

When the ABS senses that one or more
wheels are close to locking up, the actuator
rapidly applies and releases hydraulic pres-
sure. This action is similar to pumping the
brakes very quickly. You may feel a pulsation
in the brake pedal and hear a noise from
under the hood or feel a vibration from the
actuator when it is operating. This is normal
and indicates that the ABS is operating prop-
erly. However, the pulsation may indicate
that road conditions are hazardous and extra
care is required while driving.
BRAKE ASSIST
When the force applied to the brake pedal
exceeds a certain level, the Brake Assist is
activated generating greater braking force
than a conventional brake booster even with
light pedal force.
WARNING
The Brake Assist is only an aid to assist
braking operation and is not a collision
warning or avoidance device. It is the driv-
er’s responsibility to stay alert, drive safely
and be in control of the vehicle at all times.The VDC system uses various sensors to
monitor driver inputs and vehicle motion. Un-
der certain driving conditions, the VDC sys-
tem helps to perform the following functions:
∙ Controls brake pressure to reduce wheel slip on one slipping drive wheel so power
is transferred to a non-slipping drive
wheel on the same axle.
∙ Controls brake pressure and engine out- put to reduce drive wheel slip based on
vehicle speed (traction control function).
∙ Controls brake pressure at individual wheels and engine output to help the
driver maintain control of the vehicle in
the following conditions:
– Understeer (vehicle tends to not fol- low the steered path despite in-
creased steering input)
– Oversteer (vehicle tends to spin due to certain road or driving conditions)
The VDC system can help the driver to main-
tain control of the vehicle, but it cannot pre-
vent loss of vehicle control in all driving situ-
ations. When the VDC system operates, the
indicator in the instrument panel flashes to
note the following:
∙ The road may be slippery or the system may determine some action is required to
help keep the vehicle on the steered path.
∙ You may feel a pulsation in the brake pedal and hear a noise or vibration from
under the hood. This is normal and indi-
cates that the VDC system is working
properly.
∙ Adjust your speed and driving to the road conditions.
For additional information, refer to “Slip indi-
cator light” and ”Vehicle Dynamic Control
(VDC) OFF indicator light” in the ”Instruments
and controls” section of this manual.
If a malfunction occurs in the system,
the
andindicator lights come on
in the instrument panel. The VDC system au-
tomatically turns off when these indicator
lights are on.
The lower display is used to turn off the VDC
system. The
indicator illuminates to in-
dicate the VDC system is off.
VEHICLE DYNAMIC CONTROL (VDC)
SYSTEM
Starting and driving5-181
