audio INFINITI QX50 2019 Owners Manual

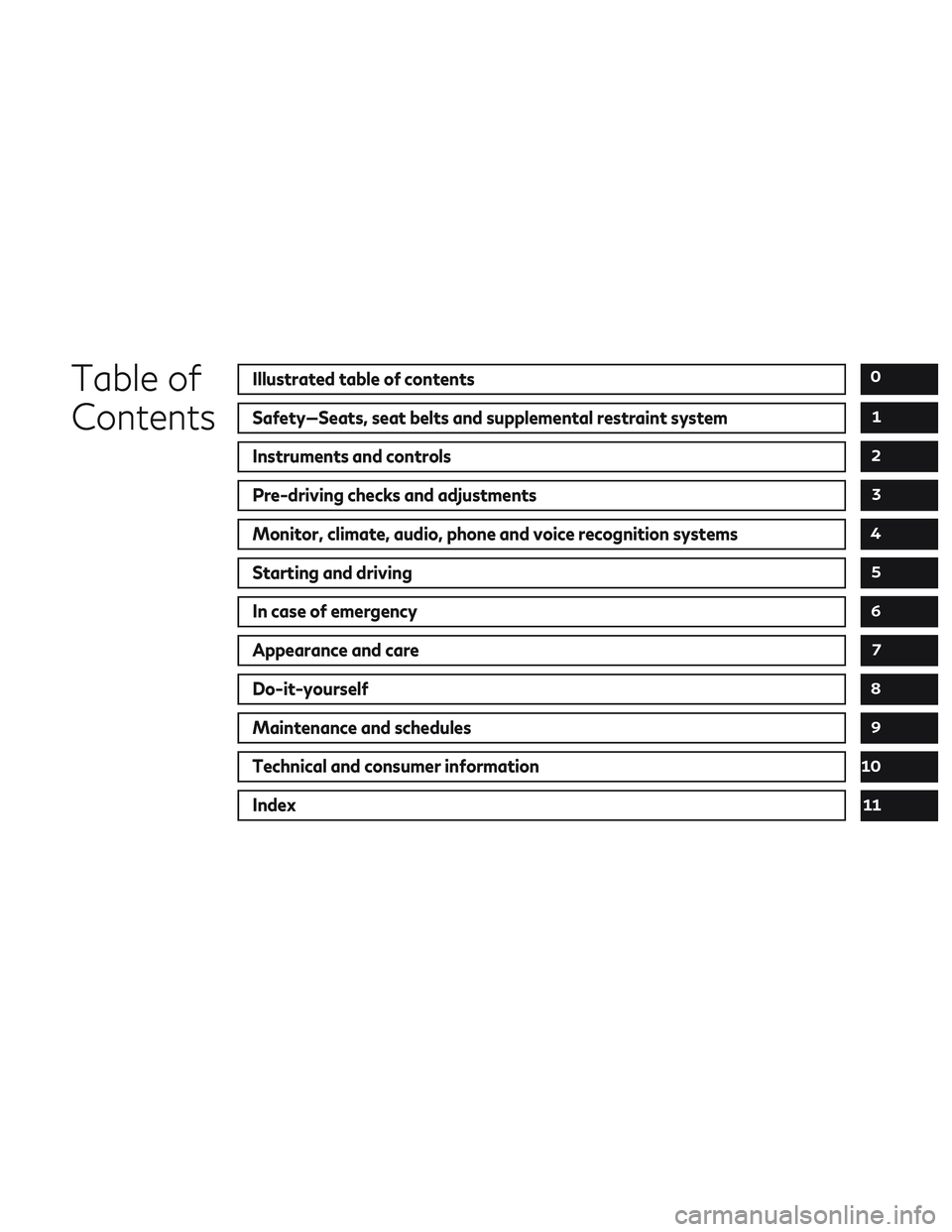

Table of
ContentsIllustrated table of contents
Safety—Seats, seat belts and supplemental restraint system
Instruments and controls
Pre-driving checks and adjustments
Monitor, climate, audio, phone and voice recognition systems
Starting and driving
In case of emergency
Appearance and care
Do-it-yourself
Maintenance and schedules
Technical and consumer information
Index
0
1
2
3
4
5
6
7
8
9
10
11

1. Vent (P. 4-35)
2. Bluetooth® Hands-Free PhoneSystem*
Steering wheel switch for audio
control*
Center display multi-function
control buttons*
Control panel and vehicle informa-
tion display switches (P. 2-20)
3. High beam/turn signal switch
(P. 2-45)
Paddle shifters (P. 5-19)
4. Driver supplemental air bag
(P. 1-43)
Horn (P. 2-46)
5. Meters and gauges (P. 2-4) Warning and indicator lights
(P. 2-9)
Vehicle information display (P. 2-19)
6. Wiper and washer switch (P. 2-35) Rear wiper and washer switch
(P. 2-35)
7. Automatic heater and air condition-
ing controls (P. 4-36)
Driver side climate controlled seat
switches (if so equipped) (P. 2-47)
Driver side heated seat switches
(if so equipped) (P. 2-48)
LIC3793
INSTRUMENT PANEL
0-6Illustrated table of contents

8. Upper and lower displays*Navigation system* (if so equipped)
9. Automatic heater and air condition-
ing controls (P. 4-36)
Passenger side climate controlled
seat switches (if so equipped)
(P. 2-47)
Passenger side heated seat
switches (if so equipped) (P. 2-48)
Rear window defroster, outside
mirror defroster, and wiper deicer
(if so equipped) switch (P. 2-39)
10. Front passenger supplemental air
bag (P. 1-43)
11. Glove box (P. 2-55)
12. Audio system controls* Front passenger air bag status light
(P. 1-43)
13. INFINITI controller*
14. Power outlet (P. 2-53) USB charging port (P. 4-44)
Cup holders (P. 2-55)
Storage (P. 2-55)
15. Shift lever (P. 5-19)
16. Push-button ignition switch
(P. 5-13)
Electronic parking brake switch
(P. 5-24) 17. Hazard warning flasher switch
(P. 6-2)
18. ProPILOT Assist Switch
(if so equipped) (P. 5-108)
Cruise control switches
(if so equipped) (P. 5-82)
Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-84)
Distance control switch
(if so equipped) (P. 5-84)
Control panel and vehicle informa-
tion display switches (P. 2-20)
19. Tilt and telescopic steering wheel
control (P. 3-34)
20. Hood release (P. 3-24)
21. Trip reset switch (P. 2-4) Instrument brightness control
(P. 2-39)
Front and rear sonar system
(if so equipped) (P. 5-186)
Steering assist switch (for vehicles
with ProPILOT Assist) (if so
equipped) (P. 2-50)
Dynamic driver assistance switch
(for vehicles without ProPILOT
Assist) (if so equipped) (P. 2-49)
Liftgate release switch (P. 3-24)
Headlight switch (P. 2-39) Fog light switch (if so equipped)
(P. 2-46)
Head Up Display (HUD) OFF switch
(if so equipped) (P. 2-51)
*: Refer to the separate INFINITI InTouchTM
Owner’s Manual.
Refer to the page number indicated in paren-
theses for operating details.
Illustrated table of contents0-7

1. Vent (P. 4-35)
2. Bluetooth® Hands-Free PhoneSystem*
Steering wheel switch for audio
control*
Center display multi-function
control buttons*
Control panel and vehicle informa-
tion display switches (P. 2-20)
3. High beam/turn signal switch
(P. 2-45)
Paddle shifters (P. 5-19)
4. Driver supplemental air bag
(P. 1-43)
Horn (P. 2-46)
5. Meters and gauges (P. 2-4) Warning and indicator lights
(P. 2-9)
Vehicle information display (P. 2-19)
6. Wiper and washer switch (P. 2-35) Rear wiper and washer switch
(P. 2-35)
7. Automatic heater and air condition-
ing controls (P. 4-36)
Driver side climate controlled seat
switches (if so equipped) (P. 2-47)
Driver side heated seat switches
(if so equipped) (P. 2-48)
LIC3793
INSTRUMENT PANEL
2-2Instruments and controls

8. Upper and lower displays*Navigation system* (if so equipped)
9. Automatic heater and air condition-
ing controls (P. 4-36)
Passenger side climate controlled
seat switches (if so equipped)
(P. 2-47)
Passenger side heated seat
switches (if so equipped) (P. 2-48)
Rear window defroster, outside
mirror defroster, and wiper deicer
(if so equipped) switch (P. 2-39)
10. Front passenger supplemental air
bag (P. 1-43)
11. Glove box (P. 2-55)
12. Audio system controls* Front passenger air bag status light
(P. 1-43)
13. INFINITI controller*
14. Power outlet (P. 2-53) USB charging port (P. 4-44)
Cup holders (P. 2-55)
Storage (P. 2-55)
15. Shift lever (P. 5-19)
16. Push-button ignition switch
(P. 5-13)
Electronic parking brake switch
(P. 5-24) 17. Hazard warning flasher switch
(P. 6-2)
18. ProPILOT Assist Switch
(if so equipped) (P. 5-108)
Cruise control switches (if so
equipped) (P. 5-82)
Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-84)
Distance control switch (if so
equipped) (P. 5-84)
Control panel and vehicle informa-
tion display switches (P. 2-20)
19. Tilt and telescopic steering wheel
control (P. 3-34)
20. Hood release (P. 3-24)
21. Trip reset switch (P. 2-4) Instrument brightness control
(P. 2-39)
Front and rear sonar system
(if so equipped) (P. 5-186)
Steering assist switch (for vehicles
with ProPILOT Assist)
(if so equipped) (P. 2-50)
Dynamic driver assistance switch
(for vehicles without ProPILOT
Assist) (if so equipped) (P. 2-49)
Liftgate release switch (P. 3-24)
Headlight switch (P. 2-39) Fog light switch (if so equipped)
(P. 2-46)
Head Up Display (HUD) OFF switch
(if so equipped) (P. 2-51)
*: Refer to the separate INFINITI InTouchTM
Owner’s Manual.
Refer to the page number indicated in paren-
theses for operating details.
Instruments and controls2-3

Light reminder chime
With the ignition switch placed in the OFF
position, a chime sounds when the driver’s
door is opened if the headlights or parking
lights are on.
Turn the headlight control switch off before
leaving the vehicle.
Intelligent Key door buzzer
The Intelligent Key door buzzer sounds if any
one of the following improper operations is
found.∙ The ignition switch is not returned to the LOCK position when locking the doors.
∙ The Intelligent Key is left inside the ve- hicle when locking the doors.
∙ The Intelligent Key is taken outside the vehicle when operating the vehicle.
∙ Any doors are not closed securely when locking the doors.
When the buzzer sounds, be sure to check
both the vehicle and the Intelligent Key Sys-
tem. For additional information, refer to
“INFINITI Intelligent Key” in the “Pre-driving
checks and adjustments” section of this
manual. The vehicle information display is located to
the left of the speedometer. It displays such
items as:
∙ Vehicle settings
∙ Trip computer information
∙ Drive system warnings and settings (if so equipped)
∙ Cruise control system information (if so equipped)
∙ Intelligent Cruise Control (ICC) (if so equipped) system information
∙ Intelligent Key operation information ∙ Indicators and warnings
∙ Tire Pressure information
∙ Compass
∙ Audio
∙ Fuel Economy
∙ Driving Aids
∙ Engine Oil
∙ Chassis Control
∙ Navigation
∙ ProPILOT Assist (if so equipped)
∙ Idling Stop System
∙ Other information
LIC3224
VEHICLE INFORMATION DISPLAY
Instruments and controls2-19

HOW TO USE THE VEHICLE
INFORMATION DISPLAY
The vehicle information display can be navi-
gated using the
andbuttons lo-
cated on the steering wheel.
1.
and— select/enter the ve-
hicle information display menu items
Vehicle settings and features can be adjusted
in the lower display. For additional informa-
tion, refer to the separate INFINITI
InTouch
TMOwner’s Manual.
STARTUP DISPLAY
When the vehicle in placed in the ON position
the screens that display in the vehicle infor-
mation include:
∙ Active system status
∙ Trip computer
∙ Tire pressure information
∙ Fuel economy
∙ Warnings
∙ Audio
∙ Navigation
∙ Engine Oil
Warnings will only display if there are any
present. For additional information refer to,
“Vehicle information display warnings and in-
dicators” in this section.
To control what items display in the vehicle
information display, refer to the separate
INFINITI InTouch
TMOwner’s Manual
RESETTING THE TRIP
COMPUTER
1. Press thebutton until you reach
the trip computer mode.
2. Press the
button again for more
than 1.5 seconds to reset average fuel
consumption, average speed, distance
to empty, and journey time.
OIL CONTROL SYSTEM
Engine oil information informs the distance
to oil change. Never exceed one year or
7500 miles (12000 km) between oil change
intervals.
Display when
ignition is ON Display timing Action Re-
quired
Engine Oil Ser-
vice due in xxx
miles Remaining oil
life is less than
940 miles
(1500 km). Plan to have
your vehicle
serviced.
Engine Oil Ser-
vice due Remaining oil
life is 0 miles
(0 km). Have your ve-
hicle serviced
within two
weeks or less
than 500 miles
(800 km).
The oil change interval cannot be adjusted
manually.
LIC3944
2-20Instruments and controls

To defrost the rear window glass, place the
ignition switch in the ON position and push
the rear window defroster switch on. The
rear window defroster indicator light comes
on. Push the switch again to turn the de-
froster off.
The rear window defroster automatically
turns off after approximately 15 minutes.
To defrost the outside mirrors, place the ig-
nition switch in the ON position and push the
outside mirror defroster switch on. The out-
side mirror defroster indicator light comes on.
Push the switch again to turn the defroster
off.To turn on the wiper deicer (if so equipped),
place the ignition switch in the ON position
and push the wiper deicer switch on. The
wiper deicer indicator light comes on. Push
the switch again to turn the deicer off.
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or dam-
age the rear window defroster.
NOTE:
The top and bottom few rows of wires on the
rear window are not part of the rear window
defroster system. These wires make up the
antenna for the audio system.
HEADLIGHT CONTROL SWITCH
Lighting
1Rotate the switch to theposition,
and the front parking, tail, license plate,
and instrument panel lights will come on.
2Rotate the switch to theposition,
and the headlights will come on and all
the other lights remain on.
CAUTION
Use the headlights with the engine running
to avoid discharging the vehicle battery.
LIC3816LIC3818
REAR WINDOW DEFROSTER, OUTSIDE
MIRROR DEFROSTER, AND WIPER
DEICER (if so equipped) SWITCHHEADLIGHT SWITCH
Instruments and controls2-39

NOTE:
The heated seats may also be adjusted in the
lower display. For additional information,
refer to “Heater and air conditioner (auto-
matic)” in the “Monitor, climate, audio,
phone and voice recognition” section of this
manual.
WARNING
When this switch is activated the following
systems (if so equipped) are turned off and
will not work.
∙ Distance Control Assist (DCA)
∙ Blind Spot Intervention (BSI)
∙ Lane Departure Prevention (LDP)
The dynamic driver assistance switch is used
to turn on and off the following systems (Dis-
tance Control Assist (DCA) , Blind Spot Inter-
vention® (BSI), and Lane Departure Preven-
tion (LDP)) that are activated (if so equipped)
using the settings menu in the lower display. When the dynamic driver assistance switch is
turned off, the indicator on the switch is off.
The indicator will also be off if the system is
deactivated using the settings menu.
The DCA system brakes and moves the ac-
celerator pedal upward according to the dis-
tance from and the relative speed of the ve-
hicle ahead to help assist the driver in
maintaining a following distance. For addi-
tional information, refer to “Distance Control
Assist (DCA)” in the “Starting and driving”
section of this manual.
The BSI system helps alert the driver of other
vehicles in adjacent lanes when changing
lanes, and helps assist the driver to return the
vehicles to the center of the traveling lane.
For additional information, refer to “Blind
Spot Intervention® (BSI)” in the “Starting and
driving” section of this manual.
The LDP system warns the driver with a
warning indicator in the vehicle information
display and a steering wheel vibration, and
helps assist the driver to return the vehicle to
the center of the traveling lane by applying
the brakes to the left or right wheels individu-
ally (for a short period of time). For additional
information, refer to “Lane Departure Pre-
vention (LDP)” in the “Starting and driving”
section of this manual
LIC3828
DYNAMIC DRIVER ASSISTANCE
SWITCH (for vehicles without
ProPILOT Assist) (if so equipped)
Instruments and controls2-49

interfere with the operation of the Intelligent
Key system under the following operating
conditions:∙ When operating near a location where strong radio waves are transmitted, such
as a TV tower, power station and broad-
casting station.
∙ When in possession of wireless equip- ment, such as a cellular telephone, trans-
ceiver or a CB radio.
∙ When the Intelligent Key is in contact with or covered by metallic materials.
∙ When any type of radio wave remote control is used nearby.
∙ When the Intelligent Key is placed near an electric appliance such as a personal
computer.
∙ When the vehicle is parked near a parking meter.
In such cases, correct the operating condi-
tions before using the Intelligent Key function
or use the mechanical key.
Although the life of the battery varies de-
pending on the operating conditions, the bat-
tery’s life is approximately two years. If the
battery is discharged, replace it with a new
one. When the Intelligent Key battery is low, a
“Key Battery Low” indicator illuminates in the
vehicle information display. For additional in-
formation, refer to “Vehicle information dis-
play warnings and indicators” in the “Instru-
ments and controls” section of this manual.
Since the Intelligent Key is continuously re-
ceiving radio waves, if the key is left near
equipment which transmits strong radio
waves, such as signals from a TV and per-
sonal computer, the battery life may become
shorter.
For additional information, refer to “Battery
replacement” in the “Do-it-yourself” section
of this manual.
CAUTION
Listed below are conditions or occurrences
which will damage the Intelligent Key:
∙ Do not allow the Intelligent Key, which
contains electrical components, to come
into contact with water or salt water.
This could affect the system function.
∙ Do not drop the Intelligent Key.
∙ Do not strike the Intelligent Key sharply against another object. ∙ Do not change or modify the Intelligent
Key.
∙ Wetting may damage the Intelligent Key. If the Intelligent Key gets wet, immedi-
ately wipe until it is completely dry.
∙ Do not place the Intelligent Key for an extended period in an area where tem-
peratures exceed 140°F (60°C).
∙ Do not attach the Intelligent Key with a key holder that contains a magnet.
∙ Do not place the Intelligent Key near equipment that produces a magnetic
field, such as a TV, audio equipment and
personal computers.
If an Intelligent Key is lost or stolen, INFINITI
recommends erasing the ID code of that In-
telligent Key from the vehicle. This may pre-
vent the unauthorized use of the Intelligent
Key to operate the vehicle. For information
regarding the erasing procedure, it is recom-
mended that you visit an INFINITI retailer.
3-8Pre-driving checks and adjustments
