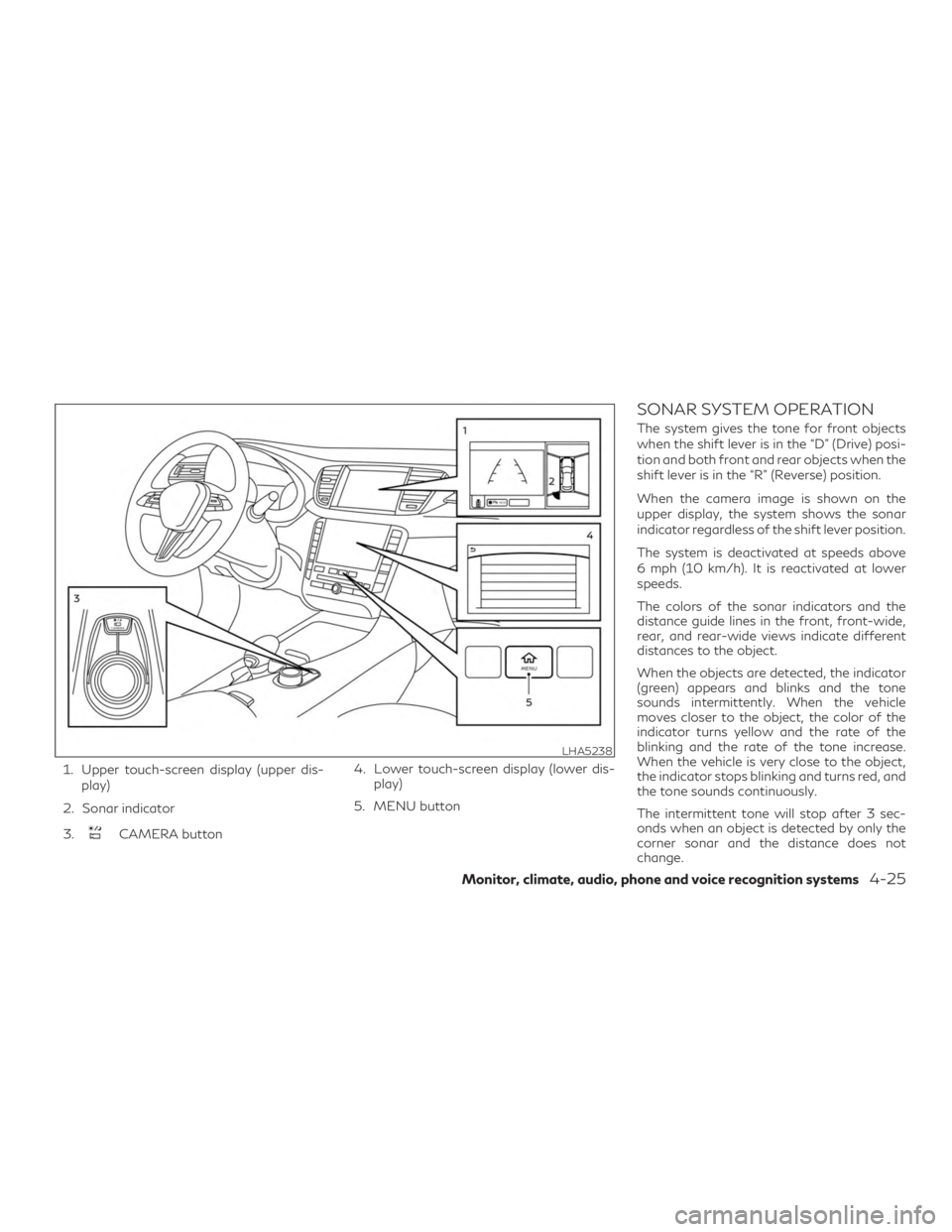

1. Upper touch-screen display (upper dis-play)
2. Sonar indicator
3.
CAMERA button 4. Lower touch-screen display (lower dis-
play)
5. MENU button
SONAR SYSTEM OPERATION
The system gives the tone for front objects
when the shift lever is in the “D” (Drive) posi-
tion and both front and rear objects when the
shift lever is in the “R” (Reverse) position.
When the camera image is shown on the
upper display, the system shows the sonar
indicator regardless of the shift lever position.
The system is deactivated at speeds above
6 mph (10 km/h). It is reactivated at lower
speeds.
The colors of the sonar indicators and the
distance guide lines in the front, front-wide,
rear, and rear-wide views indicate different
distances to the object.
When the objects are detected, the indicator
(green) appears and blinks and the tone
sounds intermittently. When the vehicle
moves closer to the object, the color of the
indicator turns yellow and the rate of the
blinking and the rate of the tone increase.
When the vehicle is very close to the object,
the indicator stops blinking and turns red, and
the tone sounds continuously.
The intermittent tone will stop after 3 sec-
onds when an object is detected by only the
corner sonar and the distance does not
change.
LHA5238
Monitor, climate, audio, phone and voice recognition systems4-25

The tone will stop when the object is no
longer near the vehicle.
TURNING ON AND OFF THE
SONAR FUNCTION
When the “” keyAis selected, the indi-
cator
Bwill turn off and the sonar will be
turned off temporarily. The Moving Object
Detection (MOD) system will also be turned
off at the same time. For additional informa-
tion, refer to “Moving Object Detection
(MOD) in this section. When the “
” key
Ais selected again, the indicator will turn on
and the sonar will turn back on.
In the below cases, the sonar will be turned
back on automatically: ∙ When the shift lever is placed in the “R”
(Reverse) position.
∙ When the
CAMERA button is
pressed and a screen other than the cam-
era view is shown on the display.
∙ When vehicle speed decreases below ap- proximately 6 mph (10 km/h).
∙ When the ignition switch is placed in the “OFF” position and turned back to the
“ON” position again.
To prevent the sonar system from activating
altogether, use the “Sonar” menu. For addi-
tional information, refer to “Sonar function
settings” in this section.
LHA5239LHA5230
4-26Monitor, climate, audio, phone and voice recognition systems

Sonar function settings
To set up the sonar function to your preferred
settings, press the MENU button, touch the
“Settings” key, and then touch the “Parking
Sonar” key on the lower display.
Designs and items displayed on the screen
may vary depending on the models.
Auto Show Sonar Image (if so equipped):
When the sonar detects an object while this
item is turned on, the Around View® Monitor
will interrupt the current view in the display to
show the surrounding area of the vehicle.Front (if so equipped):
When this item is
turned on, the front sonar sensors are active
and a sonar indicatorCwill appear at the
corner of the vehicle to inform the driver
when an obstacle is near. Another sonar indi-
cator
Dmay also appear on either a side
view, front or rear-wide view Around View®
Monitor screen to aid the driver when an
object is near.
Rear: When this item is turned on, the rear
sonar sensors are active and a sonar indicator
Cwill appear at the corner of the vehicle to
inform the driver when an obstacle is near.
Another sonar indicator
Dmay also appear
on either a side view, front or rear-wide view Around View® Monitor screen to aid the
driver when an object is near.
Distance:
Adjust the sensitivity level of the
sonar to “Short”, “Medium”, or “Long”.
Volume: Adjust the volume of the buzzer to
“High”, “Medium”, or “Low”.
SONAR SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
the sonar function. Failure to operate the
vehicle in accordance with these system
limitations could result in serious injury or
death.
∙ Inclement weather or ultrasonic sources such as an automatic car wash, a truck’s
compressed-air brakes or a pneumatic
drill may affect the function of the sys-
tem, including reduced performance or a
false activation.
∙ The system is not designed to prevent contact with small or moving objects.
∙ The system will not detect small objects below the bumper, and may not detect
objects close to the bumper or on the
ground.
LHA5275LHA5276
Monitor, climate, audio, phone and voice recognition systems4-27

∙ The system may not detect the followingobjects:
– Fluffy objects such as snow, cloth, cotton, grass or wool.
– Thin objects such as rope, wire or chain.
– Wedge-shaped objects.
∙ If your vehicle sustains damage to the bumper fascia, leaving it misaligned or
bent, the sensing zone may be altered
causing inaccurate measurement of ob-
jects or false alarms.
CAUTION
Excessive noise (such as audio system vol-
ume or an open vehicle window) will inter-
fere with the tone and it may not be heard.
System temporarily unavailable
When the amber markers are displayed at the
corners of the vehicle icon and the function
cannot be activated from the Camera setting
menu (the setting items are grayed out), the
sonar system may be malfunctioning.
SYSTEM MAINTENANCE
CAUTION
Keep the surface of the sonar sensors (lo-
cated on the front and rear bumper fascia)
free from accumulations of snow, ice and
dirt. Do not scratch the surface of the sonar
sensors when cleaning. If the sensors are
covered, the accuracy of the sonar function
will be diminished.
4-28Monitor, climate, audio, phone and voice recognition systems

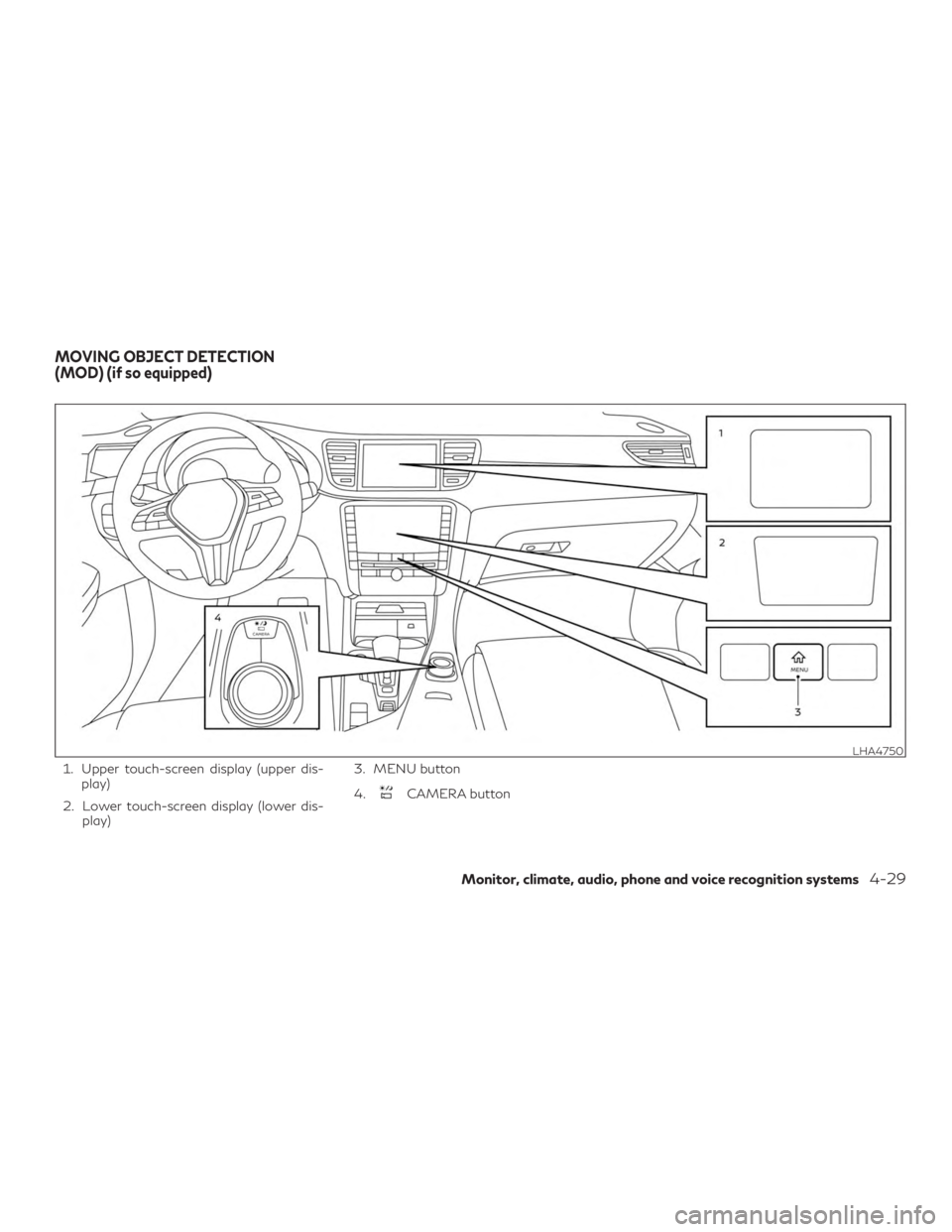

1. Upper touch-screen display (upper dis-play)
2. Lower touch-screen display (lower dis- play) 3. MENU button
4.
CAMERA button
LHA4750
MOVING OBJECT DETECTION
(MOD) (if so equipped)
Monitor, climate, audio, phone and voice recognition systems4-29

WARNING
∙ Failure to follow the warnings and in-structions for proper use of the Moving
Object Detection system could result in
serious injury or death.
∙ The MOD system is not a substitute for proper vehicle operation and is not de-
signed to prevent contact with objects
surrounding the vehicle. When maneu-
vering, always use the outside mirrors
and rearview mirror and turn and check
the surroundings to ensure it is safe to
maneuver.
∙ The system is deactivated at speeds above 6 mph (10 km/h). It is reactivated
at lower speeds.
∙ The MOD system is not designed to de- tect surrounding stationary objects.
The MOD system can inform the driver of
moving objects near the vehicle when back-
ing out of garages, maneuvering in parking
lots and in other such instances.
The MOD system detects moving objects by
using image processing technology on the
image shown in the display.
MOD SYSTEM OPERATION
The MOD system will turn on automatically
under the following conditions: ∙ When the shift lever is in the R (Reverse) position. When activating the Around
View® Monitor, the guide lines, the icons
and the messages may not be displayed
immediately.
∙ When the
CAMERA button is
pressed to activate the camera view on
the display.
∙ When vehicle speed decreases below ap- proximately 6 mph (10 km/h) and the
camera screen is shown in the upper dis-
play. The MOD system operates in the following
conditions when the camera view is dis-
played:
∙ When the shift lever is in the P (Park) or N (Neutral) position and the vehicle is
stopped, the MOD system detects mov-
ing objects in the bird’s-eye view. The
MOD system will not operate if the out-
side mirrors are moving in or out, in the
stowed position, or if either front door is
opened.
Front and bird’s-eye views
LHA5241
4-30Monitor, climate, audio, phone and voice recognition systems

∙ When the shift lever is in the D (Drive)position and the vehicle speed is below
approximately 6 mph (10 km/h), the
MOD system detects moving objects in
the front view or front-wide view. ∙ When the shift lever is in the R (Reverse)
position and the vehicle speed is below
approximately 6 mph (10 km/h), the
MOD system detects moving objects in
the rear view or rear-wide view. When
activating the Around View® Monitor,
the guide lines, the icons and the mes-
sages may not be displayed immediately.
The MOD system will not operate if the
liftgate is open.
The MOD system does not detect moving
objects in the front-side view. The MOD icon
is not displayed on the screen when in this
view. NOTE:
When activating the Around View® Moni-
tor, the guide lines, the icons and the mes-
sages may not be displayed immediately.
When the MOD system detects moving ob-
jects near the vehicle, a yellow frame will be
displayed on the view where the objects are
detected. While the MOD system continues
to detect moving objects, the yellow frame
continues to be displayed.
Front-wide view
LHA5242
Rear and bird’s-eye views
LHA5290
Rear and front-side views
LHA5291
Monitor, climate, audio, phone and voice recognition systems4-31

NOTE:
While the sonar (if so equipped) is beeping,
the MOD system does not chime.
In the bird’s-eye view, the yellow frame
1is
displayed on each camera image (front, rear,
right, left) depending on where moving ob-
jects are detected.
The yellow frame
2is displayed on each
view in the front view and rear view modes. A blue or green MOD icon
3is displayed in
the view where the MOD system is operative.
A gray MOD icon is displayed in the view
where the MOD system is not operative.
If the MOD system is turned off, the MOD
icon
3is not displayed.
TURNING MOD ON AND OFF
1. Press the MENU button beneath the lower display.
2. Touch the “Settings” key
3. Touch the “Camera’ key then the “Cam- era” key again.
4. Touch “MOD” on the menu screen to switch between on and off.
You can also turn MOD on and off by touch-
ing the “
” key4on the upper display.
When MOD is on, the indicator will turn yel-
low. When MOD is off, the indicator will turn
black.
When the sonar or MOD system is com-
pletely turned off from the setting menu, the
“
” will turn black.
MOD SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
MOD. Failure to operate the vehicle in ac-
cordance with these system limitations
could result in serious injury or death.
∙ Do not use the MOD system when tow- ing a trailer. The system may not function
properly.
∙ Excessive noise (for example, audio sys- tem volume or open vehicle window) will
interfere with the chime sound, and it
may not be heard.
∙ The MOD system performance will be limited according to environmental con-
ditions and surrounding objects such as:
– When there is low contrast between background and the moving objects.
– When there is a blinking source of light.
– When strong light such as another ve- hicle’s headlight or sunlight is present.
– When camera orientation is not in its usual position, such as when a mirror is
folded.
Rear-wide view
LHA5292
4-32Monitor, climate, audio, phone and voice recognition systems

– When there is dirt, water drops orsnow on the camera lens.
– When the position of the moving ob- jects in the display is not changed.
∙ The MOD system might detect flowing water droplets on the camera lens, white
smoke from the muffler, moving shad-
ows, etc.
∙ The MOD system may not function prop- erly depending on the speed, direction,
distance or shape of the moving objects.
∙ If your vehicle sustains damage to the parts where the camera is installed, leav-
ing it misaligned or bent, the sensing zone
may be altered and the MOD system may
not detect objects properly.
∙ When the temperature is extremely high or low, the screen may not display objects
clearly. This is not a malfunction. NOTE:
The blue or green MOD icon will change to
orange if one of the following has occurred:
∙ When the system is malfunctioning.
∙ When the component temperature reaches a high level (icon will blink).
∙ When the Rear View camera has de- tected a blockage (icon will blink).
If the icon light continues to illuminate or-
ange, have the MOD system checked. It is
recommended that you visit an INFINITI re-
tailer for this service.
SYSTEM MAINTENANCE
CAUTION
∙ Do not use alcohol, benzine or thinner to clean the camera. This will cause
discoloration.
∙ Do not damage the camera as the moni- tor screen may be adversely affected.
If dirt, rain or snow accumulates on any of the
cameras
1, the MOD system may not oper-
ate properly. Clean the camera by wiping
with a cloth dampened with a diluted mild
cleaning agent and then wiping with a dry
cloth.
LHA4554
Monitor, climate, audio, phone and voice recognition systems4-33

Adjust air flow direction for the center vents
1, driver’s and passenger’s side vents2,
rear console vents
3, by moving the vent
slide and/or vent assemblies. Open or close the vents using the dial. Move
the dial toward theto open the vents or
toward the
to close them.
LHA4575
VENTS
4-34Monitor, climate, audio, phone and voice recognition systems
