OPERATING PROPILOT ASSIST
1. Push the ProPILOT Assist switchA.
This turns on the ProPILOT Assist sys-
tem and displays the status of the Pro-
PILOT Assist system on the vehicle in-
formation display
B.
2. Accelerate or decelerate your vehicle to the desired speed.
3. Push the SET- switch
C. The ProPILOT
Assist system begins to automatically
maintain the set speed. The ProPILOT
Assist activation indicator
Dand ProPI-
LOT Assist status indicator
Eilluminate
(blue). When a vehicle ahead is traveling at a speed of 20 mph (30 km/h) or be-
low and the SET- switch is pushed, the
set speed of your vehicle is 20 mph
(30 km/h).
NOTE:
Turning the ProPILOT Assist system on will
turn on the Lane Departure Prevention sys-
tem at the same time. For additional infor-
mation, refer to “Lane Departure Preven-
tion” in this section. When the SET- switch is pushed under the
following conditions, the ProPILOT Assist
system cannot be set and the set vehicle
speed indicator
1blinks for approximately
2 seconds:
∙ When traveling below 20 mph (30 km/h) and the vehicle ahead is not detected
∙ When the shift lever is not in the D (Drive) position or manual shift mode
∙ When the electronic parking brake is ap- plied
∙ When the brakes are operated by the driver
LSD3615LSD3616LSD3617
Starting and driving5-107

WARNING
When the accelerator pedal is depressed
and you are approaching the vehicle ahead,
the ICC system will neither control the
brake nor warn the driver with the chime
and display. The driver must manually con-
trol the vehicle speed to maintain a safe
distance to the vehicle ahead. Failure to do
so could result in severe personal injury or
death.
NOTE:
When you accelerate by depressing the ac-
celerator pedal or decelerate by pushing the
SET- switch and the vehicle travels faster
than the speed set by the driver, the set
speed vehicle indicator will blink.
How to change the set distance to
the vehicle ahead
The distance to the vehicle ahead can be
selected at any time.
Each time the DISTANCE switch
Ais
pushed, the set distance will change to long,
middle, short and back to long again in that
sequence.
LSD2949
Starting and driving5-109

1Lower display buttons
2Lower display
3Steering Assist switch
HOW TO ENABLE/DISABLE THE
STEERING ASSIST
Use the following methods to enable or dis-
able the Steering Assist.
Steering Assist switch:
To turn the Steering Assist on or off, push the
Steering Assist switch
3on the instrument
panel.
NOTE:
∙ When the Steering Assist switch is used
to turn the system on or off, the system
remembers the setting even if the igni-
tion switch is cycled. The switch must be
pushed again to change the setting to on
or off.
∙ The Steering Assist switch changes the
status of the “Steering Assist” selection
made in the “Settings” screen in the
lower display.
LSD3626
Starting and driving5-111

Setting in the lower display:1. Press the MENU button below the lower display screen.
2. Select “Driver Assistance.”
3. Select “Lane Centering.”
4. Select “ON” to turn the “Steering Assist” system on or off.
NOTE: ∙ When the Cruise screen is displayed on
the vehicle information display, press
the OK button on the steering wheel to
call up the “Driving Aids” setting display
in the upper display.
∙ When enabling/disabling the system
through the lower display, the system
retains the current settings even if the
engine is restarted.
How to cancel the ProPILOT Assist
system
To cancel the ProPILOT Assist system, use
one of the following methods:
∙ Push the CANCEL switch.
∙ Tap the brake pedal (except at a stand- still). ∙ Push the ProPILOT Assist switch to turn
the system off. The ProPILOT Assist sta-
tus indicator will go out.
When the ProPILOT Assist system is can-
celed while the vehicle is stopped, the elec-
tronic parking brake is automatically acti-
vated.
WARNING
To prevent the vehicle from moving or roll-
ing unexpectedly, which could result in seri-
ous personal injury or property damage,
before exiting the vehicle make sure to push
the ProPILOT Assist switch to turn the sys-
tem off, place the shift lever in the P (Park)
position, and turn the engine off.
INTELLIGENT CRUISE CONTROL
(ICC) (for vehicles with ProPILOT
Assist)
WARNING
Failure to follow the warnings and instruc-
tions for proper use of the ICC system could
result in serious injury or death. ∙ The ICC system is only an aid to assist the
driver and is not a collision warning or
avoidance device. It is recommended for
highway use only and it is not intended
for city driving. It is the driver’s responsi-
bility to stay alert, drive safely, and be in
control of the vehicle at all times.
∙ There are limitations to the ICC system capability. The ICC system does not func-
tion in all driving, traffic, weather, and
road conditions. It is the driver’s respon-
sibility to stay alert, drive safely, keep
the vehicle in the traveling lane, and be in
control of the vehicle at all times.
∙ Always observe posted speed limits and do not set the speed over them.
∙ The ICC system does not react to sta- tionary and slow moving vehicles.
∙ Always drive carefully and attentively when using the ICC system. Read and un-
derstand the Owner’s Manual thor-
oughly before using the ICC system. To
avoid serious injury or death, do not rely
on the system to prevent accidents or to
control the vehicle’s speed in emergency
situations. Do not use the ICC system ex-
cept in appropriate road and traffic
conditions.
5-112Starting and driving

ICC system operation
The ICC system is designed to maintain a
selected distance from the vehicle in front of
you and can reduce the speed to match a
slower vehicle ahead. The system decelerates
the vehicle as necessary and if the vehicle
ahead comes to a stop, the vehicle deceler-
ates to a standstill. However, the ICC system
can only apply up to 40% of the vehicle’s total
braking power. This system should only be
used when traffic conditions allow vehicle
speeds to remain fairly constant or when ve-
hicle speeds change gradually. If a vehicle
moves into the traveling lane ahead or if a
vehicle traveling ahead rapidly decelerates,
the distance between vehicles may become
closer because the ICC system cannot decel-
erate the vehicle quickly enough. If this oc-
curs, the ICC system sounds a warning chime
and blinks the system display to notify the
driver to take necessary action.
The ICC system cancels and a warning chime
sounds if the speed is below approximately
15 mph (25 km/h) and a vehicle is not de-
tected ahead.The ICC system operates as follows:
∙ When there are no vehicles traveling ahead, the ICC system maintains the
speed set by the driver. The set speed
range is between approximately 20 and
90 mph (30 and 144 km/h).
∙ When there is a vehicle traveling ahead, the ICC system adjusts the speed to
maintain the distance, selected by the
driver, from the vehicle ahead. If the ve-
hicle ahead comes to a stop, the vehicle
decelerates to a standstill. Once your ve-
hicle stops, the ICC system keeps the ve-
hicle stopped.
∙ When your vehicle is stopped for less than 3 seconds and the vehicle ahead
begins to move, your vehicle will start
moving again automatically.
∙ When your vehicle is at a standstill for more than 3 seconds and the vehicle
ahead begins to accelerate, push the
RES+ switch or lightly depress the accel-
erator pedal. The ICC system starts to
follow the vehicle ahead.
∙ When the vehicle traveling ahead moves to a different traveling lane, the ICC sys-
tem accelerates and maintains vehicle
speed up to the set speed. The ICC system does not control vehicle
speed or warn you when you approach sta-
tionary and slow moving vehicles. You must
pay attention to vehicle operation to main-
tain proper distance from vehicles ahead
when approaching toll gates or traffic con-
gestion.
Starting and driving5-113

When driving on the freeway at a set speed
and approaching a slower traveling vehicle
ahead, the ICC system adjusts the speed to
maintain the distance, selected by the driver,
from the vehicle ahead. If the vehicle ahead
changes lanes or exits the freeway, the ICC
system accelerates and maintains the speed
up to the set speed. Pay attention to the
driving operation to maintain control of the
vehicle as it accelerates to the set speed.
The vehicle may not maintain the set speed
on winding or hilly roads. If this occurs, you
will have to manually control the vehicle
speed.Normally when controlling the distance to a
vehicle ahead, the system automatically ac-
celerates or decelerates your vehicle accord-
ing to the speed of the vehicle ahead.
Depress the accelerator to properly acceler-
ate your vehicle when acceleration is required
for a lane change. Depress the brake pedal
when deceleration is required to maintain a
safe distance to the vehicle ahead due to
sudden braking or if a vehicle cuts in. Always
stay alert when using the ICC system.
No vehicle detected ahead
The driver sets the desired vehicle speed
based on the road conditions. The ICC sys-
tem maintains the set vehicle speed, similar to
standard cruise control, as long as no vehicle
is detected in the lane ahead. The ICC system
displays the set speed.
SSD0254
System set display with no vehicle detectedahead
LSD3618
5-114Starting and driving

Vehicle detected ahead
When a vehicle is detected in the lane ahead,
the ICC system decelerates the vehicle by
controlling the throttle and applying the
brakes to match the speed of a slower vehicle
ahead. The ICC system then controls the ve-
hicle speed based on the speed of the vehicle
ahead to maintain the driver selected dis-
tance.
NOTE:∙ The stop lights of the vehicle come on
when braking is performed by the ICC
system. ∙
When the brake is applied by the system,
a noise may be heard. This is not a mal-
function.
When the ICC system detects a vehicle
ahead, the vehicle ahead detection indicator
and the speed control status indicator (dis-
tance control mode) illuminates (solid
green
).
Vehicle ahead stops
When the vehicle ahead decelerates to stop,
your vehicle decelerates to a standstill within
the system capability. Once your vehicle
stops, the ICC system automatically applies
the brakes to keep the vehicle stopped. When
your vehicle is at a standstill, the “(RES+)
Press to start” message is displayed on the
vehicle information display.
NOTE:
When your vehicle stops for less than 3 sec-
onds, your vehicle will automatically follow
the vehicle as it accelerates from a stop.
Vehicle ahead accelerates
When your vehicle is stopped and the vehicle
ahead begins to accelerate, push the RES+
switch or lightly depress the accelerator
pedal. The ICC system starts to follow the
vehicle ahead. Vehicle ahead not detected
When a vehicle is no longer detected ahead,
the ICC system gradually accelerates your
vehicle to resume the previously set vehicle
speed. The ICC system then maintains the set
speed.
When a vehicle is no longer detected, the
vehicle ahead detection indicator turns off
and speed control status indicator (maintain
speed control mode) illuminates (green
outline
).
The ICC system gradually accelerates to the
set speed, but you can depress the accelera-
tor pedal to quickly accelerate. When a ve-
hicle is no longer detected and your vehicle is
traveling under approximately 15 mph
(25 km/h), the ICC system automatically can-
cels.
System set display with vehicle ahead
LSD3619
Starting and driving5-115

When passing another vehicle, the set speed
indicator
Bflashes when the vehicle speed
exceeds the set speed. The vehicle ahead
detection indicator turns off when the area
ahead of the vehicle is open. When the pedal
is released, the vehicle returns to the previ-
ously set speed. Even though your vehicle
speed is set in the ICC system, you can de-
press the accelerator pedal when it is neces-
sary to accelerate your vehicle rapidly.
Cut-in detection
If a vehicle moves into your traveling lane
near your vehicle, the ICC system may inform
the driver by flashing the vehicle ahead de-
tection indicator.
Approach warning
If your vehicle comes closer to the vehicle
ahead due to rapid deceleration of that ve-
hicle or if another vehicle cuts in, the system
warns the driver with the chime and ICC sys-
tem display. Decelerate by depressing the
brake pedal to maintain a safe vehicle dis-
tance if:
∙ The chime sounds.
∙ The vehicle ahead detection indicator and set distance indicator blink.
∙ You judge it necessary to maintain a safe distance.
The warning chime may not sound in some
cases when there is a short distance between
vehicles. Some examples are: ∙ When the vehicles are traveling at the same speed and the distance between
vehicles is not changing. ∙ When the vehicle ahead is traveling
faster and the distance between vehicles
is increasing.
∙ When a vehicle cuts in near your vehicle.
The warning chime will not sound when: ∙ Your vehicle approaches other vehicles that are parked or moving slowly.
∙ The accelerator pedal is depressed, over- riding the system.
NOTE:
The approach warning chime may sound and
the system display may flash when the radar
sensor detects objects on the side of the ve-
hicle or on the side of the road. This may
cause the ICC system to decelerate or accel-
erate the vehicle. The radar sensor may de-
tect these objects when the vehicle is driven
on winding, narrow, or hilly roads or when
the vehicle is entering or exiting a curve. In
these cases, you will have to manually con-
trol the proper distance ahead of your ve-
hicle.
Also, the sensor sensitivity can be affected
by vehicle operation (steering maneuver or
driving position in the lane) or traffic or ve-
hicle conditions (for example, if a vehicle is
being driven with some damage).
LSD3620
5-116Starting and driving

∙ When distance measurement becomesimpaired due to adhesion of dirt or ob-
struction to the sensor.
∙ When the radar signal is temporarily in- terrupted.
Action to take:
When the conditions listed above are no lon-
ger present, turn the system off using the
ProPILOT Assist switch. Turn the ProPILOT
Assist system back on to use the system.
NOTE:
When the ICC system is canceled under the
following conditions at a standstill, the elec-
tronic parking brake is automatically acti-
vated: ∙ Any door is open.
∙ The driver’s seat belt is not fastened.
∙ Your vehicle has been stopped by the ICC
system for approximately 3 minutes or
longer.
∙ The shift lever is not in the D (Drive) po-
sition or manual shift mode.
∙ The VDC system is turned off. ∙
When distance measurement becomes
impaired due to adhesion of dirt or ob-
struction to the sensor.
∙ When the radar signal is temporarily in-
terrupted.
Condition B
When the radar sensor of the front bumper is
covered with dirt or is obstructed, the ICC
system will automatically be canceled.
The chime will sound and the “Unavailable:
Front Radar Blocked” warning message will
appear in the vehicle information display.
Action to take:
If the warning message appears, stop the
vehicle in a safe place, press the Park button
to place the vehicle in the P (Park) position,
and turn the engine off. When the radar sig-
nal is temporarily interrupted, clean the sen-
sor area of the front bumper and restart the
engine. If the “Unavailable: Front Radar
Blocked” warning message continues to be
displayed, have the system checked. It is rec-
ommended that you visit an INFINITI retailer
for this service. Condition C
When driving on roads with limited road
structures or buildings (for example, long
bridges, deserts, snow fields, driving next to
long walls), the system may illuminate the
system warning light and display the “Un-
available: Front Radar Blocked” message.
Action to take:
When the above driving conditions no longer
exist, turn the system back on.
ICC system malfunction
If the ICC system malfunctions, it will be
turned off automatically, a chime will sound,
and the speed control status warning (or-
ange) will illuminate.
Action to take:
If the warning light comes on, stop the vehicle
in a safe place. Turn the engine off, restart
the engine and set the ICC system again. If it
is not possible to set the ICC system or the
indicator stays on, it may be a malfunction.
Although the normal driving can be contin-
ued, the ICC system should be inspected. It is
recommended that you visit an INFINITI re-
tailer for this service.
5-122Starting and driving

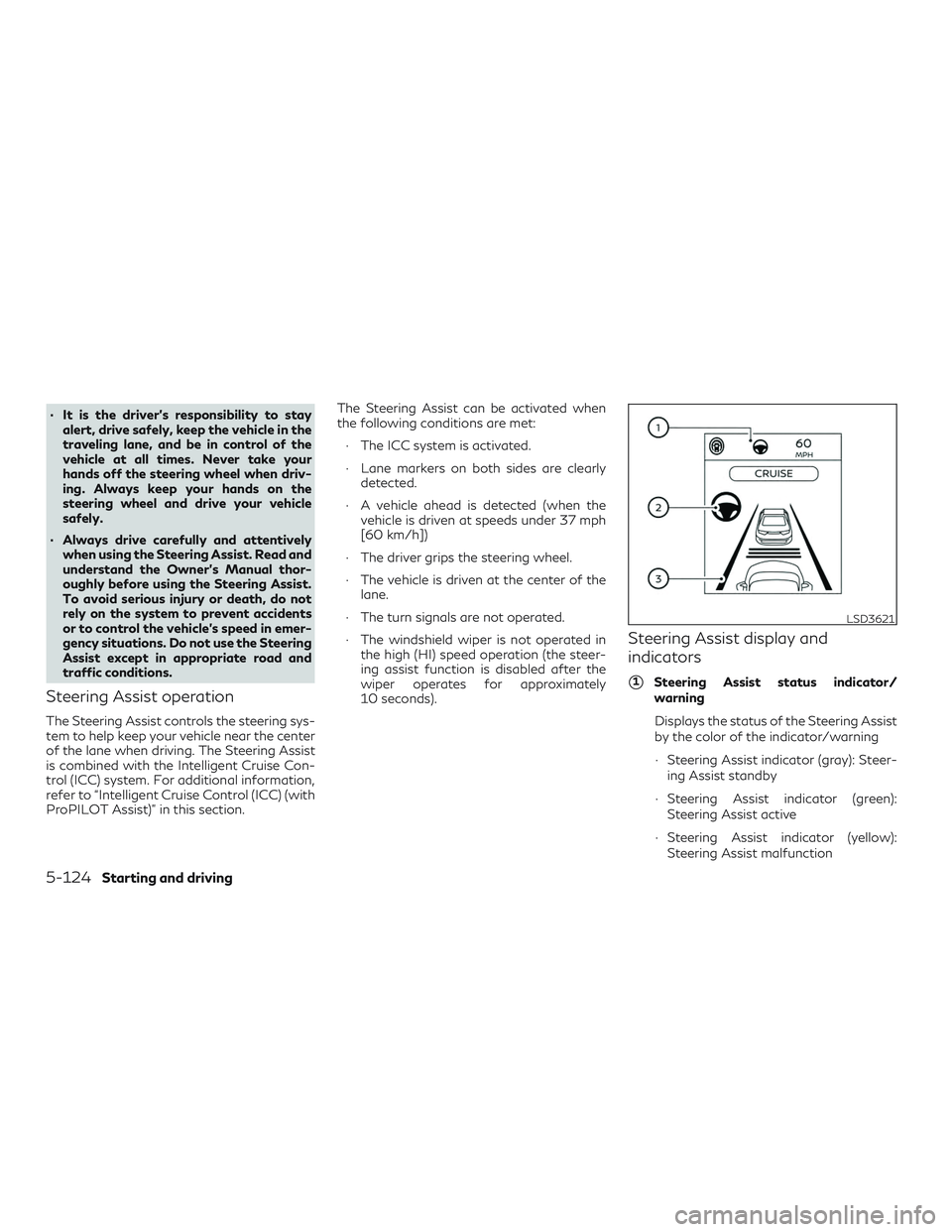

∙ It is the driver’s responsibility to stayalert, drive safely, keep the vehicle in the
traveling lane, and be in control of the
vehicle at all times. Never take your
hands off the steering wheel when driv-
ing. Always keep your hands on the
steering wheel and drive your vehicle
safely.
∙ Always drive carefully and attentively when using the Steering Assist. Read and
understand the Owner’s Manual thor-
oughly before using the Steering Assist.
To avoid serious injury or death, do not
rely on the system to prevent accidents
or to control the vehicle’s speed in emer-
gency situations. Do not use the Steering
Assist except in appropriate road and
traffic conditions.
Steering Assist operation
The Steering Assist controls the steering sys-
tem to help keep your vehicle near the center
of the lane when driving. The Steering Assist
is combined with the Intelligent Cruise Con-
trol (ICC) system. For additional information,
refer to “Intelligent Cruise Control (ICC) (with
ProPILOT Assist)” in this section. The Steering Assist can be activated when
the following conditions are met:
∙ The ICC system is activated.
∙ Lane markers on both sides are clearly detected.
∙ A vehicle ahead is detected (when the vehicle is driven at speeds under 37 mph
[60 km/h])
∙ The driver grips the steering wheel.
∙ The vehicle is driven at the center of the lane.
∙ The turn signals are not operated.
∙ The windshield wiper is not operated in the high (HI) speed operation (the steer-
ing assist function is disabled after the
wiper operates for approximately
10 seconds).
Steering Assist display and
indicators
1Steering Assist status indicator/
warning
Displays the status of the Steering Assist
by the color of the indicator/warning
∙ Steering Assist indicator (gray): Steer- ing Assist standby
∙ Steering Assist indicator (green): Steering Assist active
∙ Steering Assist indicator (yellow): Steering Assist malfunction
LSD3621
5-124Starting and driving
