∙ When the VDC system is off (To use theDCA system, turn on the VDC, then push
the dynamic driver assistance switch [for
models without ProPILOT Assist] or the
ProPILOT Assist switch [for models with
ProPILOT Assist] on the steering wheel.)
For additional information about the
VDC system, refer to “Vehicle Dynamic
Control (VDC) system” in this section.
∙ When ABS or VDC (including the TCS) is operating
∙ When the radar signal is temporarily in- terrupted
Action to take:
When the conditions listed above are no lon-
ger present, turn the system off with the
dynamic driver assistance switch (for models
without ProPILOT Assist) or the ProPILOT
Assist switch (for models with ProPILOT As-
sist) on the steering wheel. Turn the DCA
system back on to use the system. Condition B:
When the radar sensor area is covered with
dirt or is obstructed, making it impossible to
detect a vehicle ahead, the DCA system is
automatically canceled.
The chime sounds and the DCA system
warning light (orange) will come on and the
“Unavailable: Front Radar Blocked” warning
will appear.Action to take:
If the warning light comes on, park the vehicle
in a safe place, press the park button to place
the vehicle in the P (Park) position and turn
the engine off. When the radar signal is tem-
porarily interrupted, clean the sensor area
and restart the engine. If the “Unavailable:
Front Radar Blocked” warning continues to
be displayed, have the DCA system checked.
It is recommended you visit and INFINITI
retailer for this service.
When driving on roads with limited road
structures or buildings (for example, long
bridges, deserts, snow fields, driving next to
long walls) the system may illuminate the sys-
tem warning light (orange) and display the
“Unavailable Front Radar Blocked” message.
Action to take:
When the above conditions no longer exist,
the DCA system will resume automatically.
Condition C:
When the DCA system is not operating prop-
erly, the chime sounds, the DCA system
warning light (orange) and the system “Mal-
function” warning message will appear in the
vehicle information display.
LSD2992
Starting and driving5-143

1RAB system warning light and RAB sys-
tem warning indicator
2Lower display buttons
3Center display (if so equipped)
RAB SYSTEM OPERATION
When the shift lever is in the R (Reverse)
position and the vehicle speed is less than
approximately 9 mph (15 km/h), the RAB
system operates.
If a risk of a collision with an obstacle is
detected when your vehicle is backing up, the
RAB system warning indicator will flash in the
vehicle information display, a red frame will
appear in the center display (for vehicles with
the Intelligent Around View Monitor system),
and the system will chime three times. The
system will then automatically apply the
brakes. After the automatic brake applica-
tion, the driver must depress the brake pedal
to maintain brake pressure.
NOTE:∙ The brake lights of the vehicle come on
when braking is performed by the RAB
system.
∙ When the brakes operate, a noise may be
heard. This is not a malfunction.
LSD3561
5-146Starting and driving

TURNING THE RAB SYSTEM
ON/OFF
Perform the following steps to turn the RAB
system ON or OFF.1. Press the MENU button below the lower display screen.
2. Select “Driver Assistance.”
3. Select “Emergency Assist.”
4. Select “ON” to turn the “Backward” sys- tem on or off.
When the RAB system is turned off, the RAB
system warning light illuminates.
NOTE:
The RAB system will be automatically
turned on when the engine is restarted.
RAB SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
the RAB system. Failure to follow the
warnings and instructions for proper use of
the RAB system could result in serious in-
jury or death.
LSD3610
Starting and driving5-147

– The vehicle’s posture is changed (e.g.,when driving over a bump).
– The vehicle is driven on a slippery road.
– The vehicle is turned sharply by turn- ing the steering wheel fully.
– Snow chains are used.
– Wheels or tires other than INFINITI recommended are used.
– The brakes are cold at low ambient temperatures or immediately after
driving has started.
– The braking force becomes poor due to wet brakes after driving through a
puddle or washing the vehicle.
∙ Turn the RAB system off in the following conditions to prevent the occurrence of
an unexpected accident resulting from
sudden system operation:
– The vehicle is towed.
– The vehicle is carried on a flatbed truck.
– The vehicle is on the chassis dynamometer.
– The vehicle drives on an uneven road surface. –Suspension parts other than those des-
ignated as Genuine INFINITI parts are
used. (If the vehicle height or the vehicle
body inclination is changed, the system
may not detect an obstacle correctly.)
∙ Excessive noise (e.g., audio system vol-
ume, an open vehicle window) will inter-
fere with the chime sound, and it may not
be heard.
SYSTEM MALFUNCTION
If the RAB system malfunctions, it will be
turned off automatically, the RAB system
warning light will illuminate, and the “System
fault” warning message will appear in the
vehicle information display.
Action to take
If the warning light illuminates, park the ve-
hicle in a safe location, turn the engine off,
and restart the engine. If the warning light
continues to illuminate, have the RAB system
checked. It is recommended that you visit an
INFINITI retailer for this service.
NOTE:
If the RAB system cannot be operated tem-
porarily, the RAB system warning light
blinks.
SYSTEM MAINTENANCE
Observe the following items to ensure proper
operation of the system:
∙ Always keep the parking sensors
1
clean.
∙ If the parking sensors are dirty, wipe them off with a soft cloth while being
careful to not damage them.
LSD3559
Starting and driving5-149

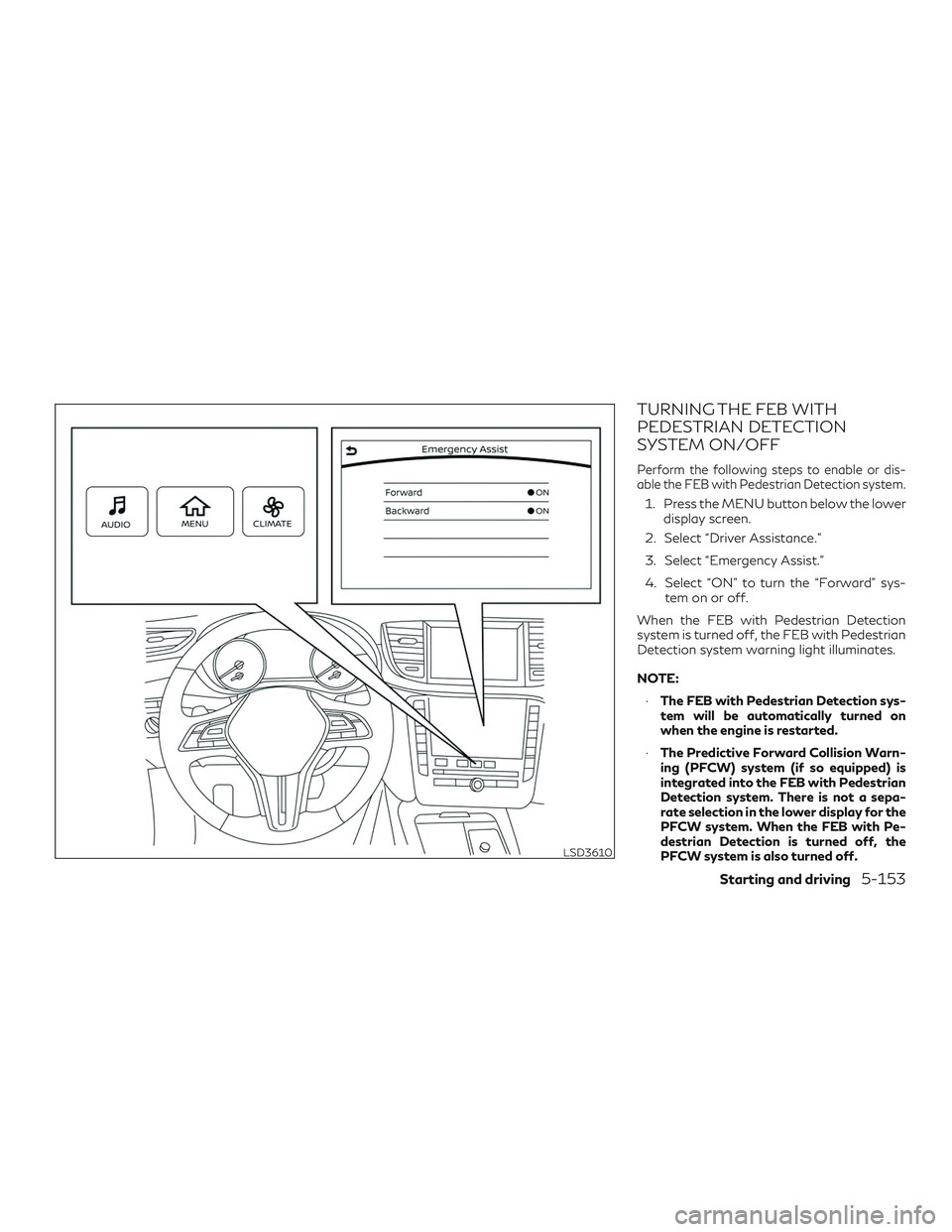

TURNING THE FEB WITH
PEDESTRIAN DETECTION
SYSTEM ON/OFF
Perform the following steps to enable or dis-
able the FEB with Pedestrian Detection system.
1. Press the MENU button below the lowerdisplay screen.
2. Select “Driver Assistance.”
3. Select “Emergency Assist.”
4. Select “ON” to turn the “Forward” sys- tem on or off.
When the FEB with Pedestrian Detection
system is turned off, the FEB with Pedestrian
Detection system warning light illuminates.
NOTE: ∙ The FEB with Pedestrian Detection sys-
tem will be automatically turned on
when the engine is restarted.
∙ The Predictive Forward Collision Warn-
ing (PFCW) system (if so equipped) is
integrated into the FEB with Pedestrian
Detection system. There is not a sepa-
rate selection in the lower display for the
PFCW system. When the FEB with Pe-
destrian Detection is turned off, the
PFCW system is also turned off.
LSD3610
Starting and driving5-153

NOTE:
When the inside of the windshield or camera
area is misted or frozen, it will take a period
of time to remove it after A/C turns ON. If
dirt appears on this area have it checked. It is
recommended that you visit an INFINITI re-
tailer for this service.
Condition B:
In the following conditions, the FEB with Pe-
destrian Detection system warning light will
illuminate, the system will be turned off au-
tomatically and the “Unavailable: Front Radar
Blocked” warning message will appear in the
vehicle information display.∙ The sensor area of the front bumper is covered with dirt or is obstructed.
Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe place, place the shift lever
in the P (Park) position and turn the engine
off. Clean the radar sensor area of the front
bumper or the camera area of the windshield
with a soft cloth, and restart the engine. If the
warning light continues to illuminate, have
the FEB with Pedestrian Detection system
checked. It is recommended that you visit an
INFINITI retailer for this service. When driving on roads with limited road
structures or buildings (for example, long
bridges, deserts, snow fields, driving next to
long walls).
Action to take
When the above conditions no longer exist,
the FEB with pedestrian detection system
will resume automatically.
NOTE:
If the FEB with Pedestrian Detection system
stops working, the PFCW system (if so
equipped) will also stop working.
SYSTEM MALFUNCTION
If the FEB with Pedestrian Detection system
malfunctions, it will be turned off automati-
cally, a chime will sound, the FEB with Pedes-
trian Detection system warning light (orange)
will illuminate and the warning message
[Malfunction] will appear in the vehicle infor-
mation display.
Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe location, turn the engine
off and restart the engine. If the warning light
continues to illuminate, have the FEB with
Pedestrian Detection system checked. It is
recommended that you visit an INFINITI re-
tailer for this service.
NOTE:
If the FEB with Pedestrian Detection system
stops working, the PFCW system (if so
equipped) will also stop working.
5-158Starting and driving

TURNING THE PFCW SYSTEM
ON/OFF
Perform the following steps to turn the
PFCW system on or off.1. Press the MENU button below the lower display screen.
2. Select “Driver Assistance.”
3. Select “Emergency Assist.”
4. Select “ON” to turn the “Forward” sys- tem on or off.
When the PFCW system is turned off, the
FEB with Pedestrian Detection system warn-
ing light illuminates.
NOTE: ∙ The PFCW system will be automatically
turned on when the engine is restarted.
∙ The PFCW system (if so equipped) is in-
tegrated into the FEB with Pedestrian
Detection system. There is not a sepa-
rate selection in the lower display for the
PFCW system. When the FEB with Pe-
destrian Detection is turned off, the
PFCW system is also turned off.
LSD3610
Starting and driving5-163

SYSTEM TEMPORARILY
UNAVAILABLE
Condition A
When the radar sensor picks up interference
from another radar source, making it impos-
sible to detect a vehicle ahead, the PFCW
system is automatically turned off.
The FEB with Pedestrian Detection system
warning light (orange) will illuminate.
Action to take
When the above conditions no longer exist,
the PFCW system will resume automatically.
Condition B
When the sensor area of the front bumper is
covered with dirt or is obstructed, making it
impossible to detect a vehicle ahead, the
PFCW system is automatically turned off.
The FEB with Pedestrian Detection system
warning light (orange) will illuminate and the
“Unavailable: Front Radar Blocked” warning
message will appear in the vehicle informa-
tion display.
LSD3575
Starting and driving5-169

Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe place, press the Park
button to place the vehicle in the P (Park)
position and turn the engine off. Clean the
radar cover on the lower grille with a soft
cloth, and restart the engine. If the warning
light continues to illuminate, have the PFCW
system checked. It is recommended that you
visit an INFINITI retailer for this service.∙ When driving on roads with limited road structures or buildings (for example, long
bridges, deserts, snow fields, driving next
to long walls).
Action to take:
When the above conditions no longer exist
the PFCW system will resume automatically
NOTE:
If the FEB with Pedestrian Detection system
stops working, the PFCW system (if so
equipped) will also stop working.SYSTEM MALFUNCTION
If the PFCW system malfunctions, it will be
turned off automatically, a chime will sound,
the FEB with Pedestrian Detection system
warning light (orange) will illuminate and the
warning message [Malfunction] will appear
in the vehicle information display.
Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe location, turn the engine
off and restart the engine. If the warning light
continues to illuminate, have the PFCW sys-
tem checked. It is recommended that you visit
an INFINITI retailer for this service.
SYSTEM MAINTENANCE
The sensorAis located on the front of the
vehicle.
To keep the system operating properly, be
sure to observe the following:
∙ Always keep the sensor area of the front bumper clean.
∙ Do not strike or damage the areas around the sensor.
∙ Do not cover or attach stickers or similar objects on the front bumper near the sen-
sor area. This could cause failure or mal-
function.
LSD2952
5-170Starting and driving

10.Keeping your Vehicle Cool
∙ Park your vehicle in a covered parking area or in the shade whenever pos-
sible.
∙ When entering a hot vehicle, opening the windows will help to reduce the
inside temperature faster, resulting in
reduced demand on your A/C system. ∙ Keep your engine tuned up.
∙ Follow the recommended scheduled
maintenance.
∙ Keep the tires inflated to the correct pressure. Low tire pressure increases tire
wear and lowers fuel economy.
∙ Keep all the wheels in correct alignment. Improper alignment increases tire wear
and lowers fuel economy.
∙ Use the recommended viscosity engine oil. For additional information, refer to
“Engine oil and oil filter recommenda-
tions” in the “Technical and consumer in-
formation” section of this manual. If any malfunction occurs in the Intelligent
AWD system while the engine is running,
messages are displayed in the meter.
INCREASING FUEL ECONOMY INTELLIGENT ALL-WHEEL DRIVE
(AWD) (if so equipped)
Starting and driving5-173
