NOTE:
While the sonar (if so equipped) is beeping,
the MOD system does not chime.
In the bird’s-eye view, the yellow frame
1is
displayed on each camera image (front, rear,
right, left) depending on where moving ob-
jects are detected.
The yellow frame
2is displayed on each
view in the front view and rear view modes. A blue or green MOD icon
3is displayed in
the view where the MOD system is operative.
A gray MOD icon is displayed in the view
where the MOD system is not operative.
If the MOD system is turned off, the MOD
icon
3is not displayed.
TURNING MOD ON AND OFF
1. Press the MENU button beneath the lower display.
2. Touch the “Settings” key
3. Touch the “Camera’ key then the “Cam- era” key again.
4. Touch “MOD” on the menu screen to switch between on and off.
You can also turn MOD on and off by touch-
ing the “
” key4on the upper display.
When MOD is on, the indicator will turn yel-
low. When MOD is off, the indicator will turn
black.
When the sonar or MOD system is com-
pletely turned off from the setting menu, the
“
” will turn black.
MOD SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
MOD. Failure to operate the vehicle in ac-
cordance with these system limitations
could result in serious injury or death.
∙ Do not use the MOD system when tow- ing a trailer. The system may not function
properly.
∙ Excessive noise (for example, audio sys- tem volume or open vehicle window) will
interfere with the chime sound, and it
may not be heard.
∙ The MOD system performance will be limited according to environmental con-
ditions and surrounding objects such as:
– When there is low contrast between background and the moving objects.
– When there is a blinking source of light.
– When strong light such as another ve- hicle’s headlight or sunlight is present.
– When camera orientation is not in its usual position, such as when a mirror is
folded.
Rear-wide view
LHA5292
4-32Monitor, climate, audio, phone and voice recognition systems

1. Lower touch-screen display (lowerdisplay)
2.
Temperature control increase
button (passenger’s side)
3.
Temperature control decrease
button (passenger’s side) 4.
Air recirculation button
5.
Front defroster button
6.
Rear window and outside mir-
ror (if so equipped) defroster switch
7. ON-OFF button
8.
CLIMATE button 9.
MENU button
10.
Manual air flow control button
11.
Fan speed decrease button
12.
Fan speed increase button
13. AUTO button
14.
Temperature control decrease
button (driver’s side)
15.
Temperature control increase
button (driver’s side)
WARNING
∙ The air conditioner cooling function op- erates only when the engine is running.
∙ Do not leave children or adults who would normally require the assistance of
others alone in your vehicle. Pets should
also not be left alone. They could acciden-
tally injure themselves or others through
inadvertent operation of the vehicle.
Also, on hot, sunny days, temperatures in
a closed vehicle could quickly become
high enough to cause severe or possibly
fatal injuries to people or animals.
∙ Do not use the recirculation mode for long periods as it may cause the interior
air to become stale and the windows to
fog up.
LHA4574
HEATER AND AIR CONDITIONER
(automatic)
Monitor, climate, audio, phone and voice recognition systems4-35

∙ If the surface temperature of thesteering-wheel is above the tempera-
ture within which the system is de-
signed to operate, the system will not
heat the steering-wheel. This is not a
malfunction. The air conditioner system in your INFINITI
vehicle is charged with a refrigerant designed
with the environment in mind.
This refrigerant does not harm the earth’s
ozone layer.
Special charging equipment and lubricant is
required when servicing your INFINITI air
conditioner. Using improper refrigerants or
lubricants will cause severe damage to your
air conditioner system. For additional infor-
mation, refer to “Air conditioner system re-
frigerant and oil recommendations” in the
“Technical and consumer information” sec-
tion of this manual.
It is recommended that you visit an INFINITI
retailer for servicing your “environmentally
friendly” air conditioning system.
WARNING
The air conditioner system contains refrig-
erant under high pressure. To avoid per-
sonal injury, any air conditioner service
should be done only by an experienced
technician with proper equipment. There are USB/iPod® charging ports located
in the 1st row on the inside of the console box
and in the 2nd row on the back of the center
console. These ports will charge compatible
devices.
NOTE:
The USB/iPod® charging ports will not op-
erate with the display screen. Only the USB
connection port located beneath the instru-
ment panel will operate USB/iPod® devices.
1st row
LHA4564
SERVICING AIR CONDITIONER USB/iPod® CHARGING PORTS
Monitor, climate, audio, phone and voice recognition systems4-43

The vehicle is equipped with a shark fin an-
tenna and an antenna pattern is printed in-
side the rear window.
CAUTION
∙ Do not place metalized film near the rearwindow glass or attach any metal parts
to it. This may cause poor reception or
noise.
∙ When cleaning the inside of the rear win- dow, be careful not to scratch or damage
the rear window antenna. Lightly wipe
along the antenna with a dampened soft
cloth. When installing a CB, ham radio or car phone
in your vehicle, be sure to observe the follow-
ing precautions; otherwise, the new equip-
ment may adversely affect the engine control
system and other electronic parts.WARNING
∙ A cellular phone should not be used for
any purpose while driving so full atten-
tion may be given to vehicle operation.
Some jurisdictions prohibit the use of cel-
lular phones while driving.
∙ If you must make a call while your vehicle is in motion, the hands free cellular phone
operational mode is highly recom-
mended. Exercise extreme caution at all
times so full attention may be given to
vehicle operation.
∙ If you are unable to devote full attention to vehicle operation while talking on the
phone, pull off the road to a safe location
and stop your vehicle.
2nd row
LHA4565
ANTENNA CAR PHONE OR CB RADIO
4-44Monitor, climate, audio, phone and voice recognition systems

5 Starting and driving
Precautions when starting and driving.............5-4
Exhaust gas (carbon monoxide) ................5-4
Three-way catalyst ............................5-4
Tire Pressure Monitoring System (TPMS) .......5-5
On-pavement and off-road driving
precautions ...................................5-9
Avoiding collision and rollover ..................5-9
Off-road recovery .............................5-9
Rapid air pressure loss ....................... 5-10
Drinking alcohol/drugs and driving ...........5-10
Driving safety precautions ....................5-11
Intelligent All-Wheel Drive (AWD) driving
safety precautions (if so equipped) ...........5-13
Push-button ignition switch ....................5-13
Operating range ............................ 5-14
Push-button ignition switch positions .........5-15
Emergency engine shut off ..................5-16
INFINITI Intelligent Key battery
discharge ................................... 5-16
INFINITI Vehicle Immobilizer System ..........5-17
Before starting the engine .......................5-17
Starting the engine .............................. 5-17
Remote Engine Start (if so equipped) .........5-18
Driving the vehicle .............................. 5-19Continuously Variable Transmission
(CVT)
....................................... 5-19
Electronic parking brake ........................ 5-24
Automatic operation ........................ 5-24
Manual operation ........................... 5-25
When towing a trailer ....................... 5-26
Automatic brake hold ........................... 5-26
How to activate/deactivate the
automatic brake hold function ...............5-27
How to use the automatic brake hold
function .................................... 5-28
INFINITI Drive Mode Selector ..................5-29
Standard mode ............................. 5-29
Sport mode ................................. 5-29
Personal mode .............................. 5-29
ECO mode .................................. 5-30
Traffic Sign Recognition (TSR) (if so equipped). . . 5-32 System operation ........................... 5-33
Turning

the Traffic Sign Recognition
(TSR) system on and off .....................5-34
System temporarily unavailable ..............5-34
System malfunction ......................... 5-34
System maintenance ........................ 5-35

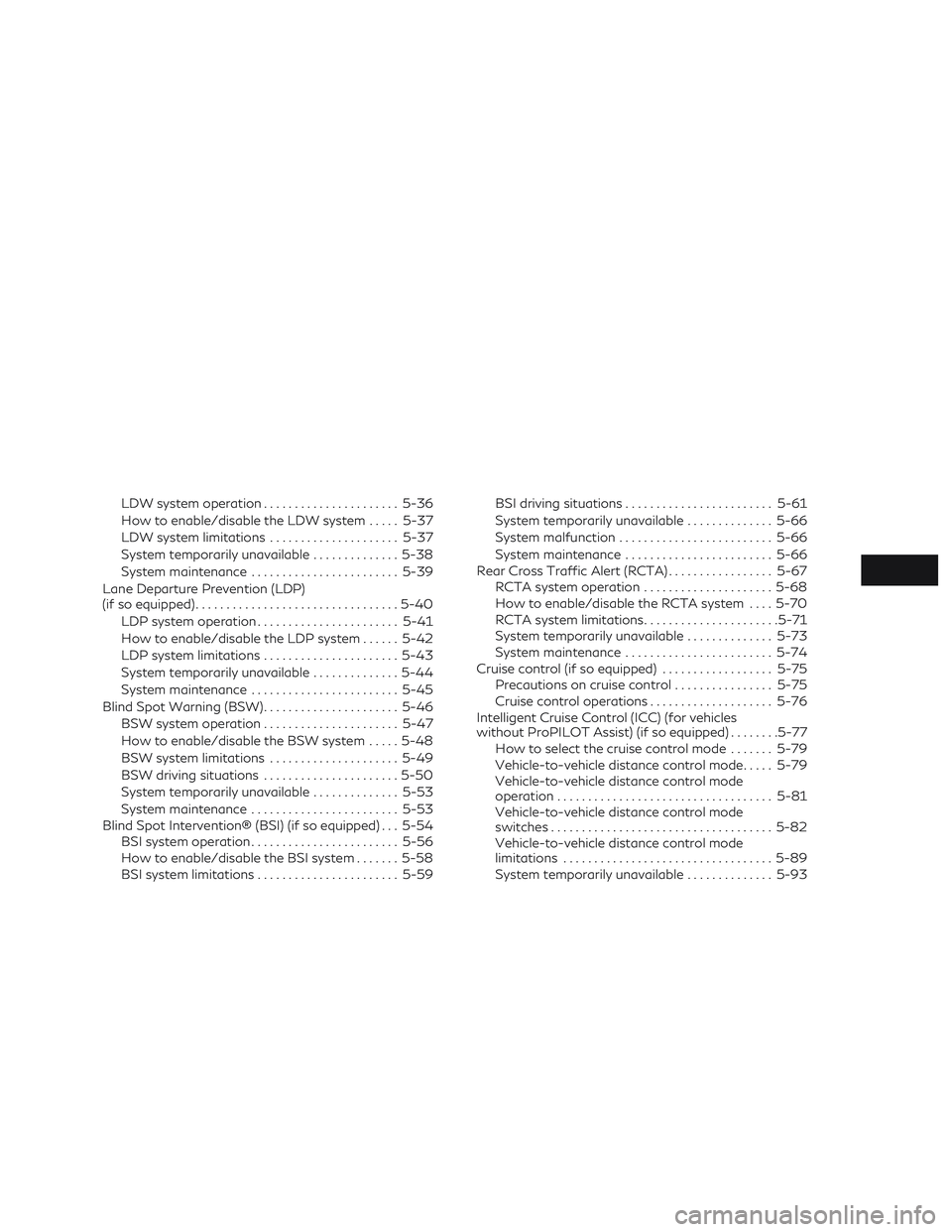

Lane Departure Warning (LDW) ................5-35

LDW system operation......................5-36
How to enable/disable the LDW system .....5-37
LDW system limitations .....................5-37
System temporarily unavailable ..............5-38
System maintenance ........................ 5-39
Lane Departure Prevention (LDP)
(if so equipped) ................................. 5-40
LDP system operation ....................... 5-41
How to enable/disable the LDP system ......5-42
LDP system limitations ......................5-43
System temporarily unavailable ..............5-44
System maintenance ........................ 5-45
Blind Spot Warning (BSW) ......................5-46
BSW system operation ......................5-47
How to enable/disable the BSW system .....5-48
BSW system limitations .....................5-49
BSW driving situations ......................5-50
System temporarily unavailable ..............5-53
System maintenance ........................ 5-53
Blind Spot Intervention® (BSI) (if so equipped) . . . 5-54 BSI system operation ........................ 5-56
How to enable/disable the BSI system .......5-58
BSI system limitations ....................... 5-59BSI driving situations
........................ 5-61
System temporarily unavailable ..............5-66
System malfunction ......................... 5-66
System maintenance ........................ 5-66
Rear Cross Traffic Alert (RCTA) .................5-67
RCTA system operation .....................5-68
How to enable/disable the RCTA system ....5-70
RCTA system limitations ......................5-71
System temporarily unavailable ..............5-73
System maintenance ........................ 5-74
Cruise control (if so equipped) ..................5-75
Precautions on cruise control ................5-75
Cruise control operations ....................5-76
Intelligent Cruise

Control (ICC) (for vehicles
without ProPILOT Assist) (if so equipped) ........5-77
How to select the cruise control mode .......5-79
Vehicle-to-vehicle distance control mode .....5-79
Vehicle-to-vehicle distance control mode
operation ................................... 5-81
Vehicle-to-vehicle distance control mode
switches .................................... 5-82
Vehicle-to-vehicle distance control mode
limitations .................................. 5-89
System temporarily unavailable ..............5-93

System maintenance........................ 5-95
Conventional (fixed speed) cruise control
mode ....................................... 5-96
ProPILOT Assist (if so equipped) ...............5-101
ProPILOT Assist system operation ..........5-103
Turning the conventional (fixed speed)
cruise control mode on .....................5-106
Operating ProPILOT Assist .................5-107
How to enable/disable the Steering
Assist ...................................... 5-111
Intelligent Cruise Control (ICC) (for
vehicles with ProPILOT Assist) .............5-112
Steering Assist ............................. 5-123
Conventional (fixed speed) cruise control
mode ...................................... 5-130
Distance Control Assist (DCA) (if so equipped) . . 5-133 DCA system operation .....................5-135
How to enable/disable the DCA system .....5-138
DCA system limitations .....................5-140
DCA driving situations ...................... 5-141
System temporarily unavailable .............5-142
System maintenance ....................... 5-144
Rear Automatic Braking (RAB) .................5-145
RAB system operation ...................... 5-146Turning the RAB system on/off
.............5-147
RAB system limitations .....................5-147
System malfunction ........................ 5-149
System maintenance ....................... 5-149
Forward Emergency Braking (FEB) with
Pedestrian Detection system ..................5-150
System operation .......................... 5-151
Turning the FEB with Pedestrian
Detection system on/off ...................5-153
FEB with Pedestrian Detection system
limitations ................................. 5-154
System temporarily unavailable .............5-157
System malfunction ........................ 5-158
System maintenance ....................... 5-159
Predictive Forward Collision Warning (PFCW) . . 5-160 PFCW system operation ...................5-162
Turning the PFCW system on/off ..........5-163
PFC W

system limitations ................... 5-165
System temporarily unavailable .............5-169
System malfunction ........................ 5-170
System maintenance ....................... 5-170
Break-in schedule ............................. 5-171
Fuel efficient driving tips .......................5-172
Increasing fuel economy .......................5-173

WARNING
∙ Do not leave children or adults whowould normally require the assistance of
others alone in your vehicle. Pets should
also not be left alone. They could acciden-
tally injure themselves or others through
inadvertent operation of the vehicle.
Also, on hot, sunny days, temperatures in
a closed vehicle could quickly become
high enough to cause severe or possibly
fatal injuries to people or animals.
∙ Properly secure all cargo with ropes or straps to help prevent it from sliding or
shifting. Do not place cargo higher than
the seatbacks. In a sudden stop or colli-
sion, unsecured cargo could cause per-
sonal injury.
EXHAUST GAS (carbon monoxide)
WARNING
∙ Do not breathe exhaust gases; they con-tain colorless and odorless carbon mon-
oxide. Carbon monoxide is dangerous. It
can cause unconsciousness or death.
∙ If you suspect that exhaust fumes are en- tering the vehicle, drive with all windows
fully open, and have the vehicle inspected
immediately. ∙ Do not run the engine in closed spaces
such as a garage.
∙ Do not park the vehicle with the engine running for any extended length of time.
∙ Keep the rear vent windows, liftgates, doors and trunk lids (if so equipped)
closed while driving, otherwise exhaust
gases could be drawn into the passenger
compartment. If you must drive with one
of these open, follow these precautions:
1. Open all the windows.
2. Set the
air recirculation button
to off and the fan control dial to high
to circulate the air.
∙ If electrical wiring or other cable connec- tions must pass to a trailer through the
seal on the liftgate or the body, follow
the manufacturer’s recommendation to
prevent carbon monoxide entry into the
vehicle.
∙ The exhaust system and body should be inspected by a qualified mechanic
whenever:
a. The vehicle is raised for service. b. You suspect that exhaust fumes are
entering into the passenger
compartment.
c. You notice a change in the sound of the exhaust system.
d. You have had an accident involving damage to the exhaust system, un-
derbody, or rear of the vehicle.
THREE-WAY CATALYST
The three-way catalyst is an emission control
device installed in the exhaust system. Ex-
haust gases in the three-way catalyst are
burned at high temperatures to help reduce
pollutants.
WARNING
∙ The exhaust gas and the exhaust systemare very hot. Keep people, animals or
flammable materials away from the ex-
haust system components.
∙ Do not stop or park the vehicle over flam- mable materials such as dry grass, waste
paper or rags. They may ignite and cause
a fire.
PRECAUTIONS WHEN STARTING
AND DRIVING
5-4Starting and driving

Additional information:∙ When replacing a wheel without the TPMS such as the spare tire, the TPMS
does not monitor the tire pressure of the
spare tire.
∙ The TPMS will activate only when the vehicle is driven at speeds above 16 mph
(25 km/h). Also, this system may not de-
tect a sudden drop in tire pressure (for
example, a flat tire while driving).
∙ The low tire pressure warning light does not automatically turn off when the tire
pressure is adjusted. After the tire is in-
flated to the recommended pressure, the
vehicle must be driven at speeds above
16 mph (25 km/h) to activate the TPMS
and turn off the low tire pressure warning
light. Use a tire pressure gauge to check
the tire pressure.
∙ The “Tire Pressure Low — Add Air” warn- ing appears in the vehicle information
display when the low tire pressure warn-
ing light is illuminated and low tire pres-
sure is detected. The “Tire Pressure Low -
Add Air” warning turns off when the low
tire pressure warning light turns off. ∙ The “Tire Pressure Low — Add Air” warn-
ing appears each time the ignition switch
is in the ON position as long as the low
tire pressure warning light remains illumi-
nated.
∙ The “Tire Pressure Low — Add Air” warn- ing does not appear if the low tire pres-
sure warning light illuminates to indicate
a TPMS malfunction.
∙ Tire pressure rises and falls depending on the heat caused by the vehicle’s opera-
tion and the outside temperature. Do not
reduce the tire pressure after driving be-
cause the tire pressure rises after driving.
Low outside temperature can lower the
temperature of the air inside the tire
which can cause a lower tire inflation
pressure. This may cause the low tire
pressure warning light to illuminate. If the
warning light illuminates, check the tire
pressure for all four tires.
∙ The Tire and Loading Information label is located in the driver’s door opening.
∙ You can also check the pressure of all tires (except the spare tire) on the vehicle
information display screen. The order of
the tire pressure figures displayed on the
screen corresponds with the actual order
of the tire position. For additional information, refer to “Low tire
pressure warning light” and “Tire Pressure
Low — Add Air” in the “Instruments and con-
trols” section and “Tire Pressure Monitoring
System (TPMS)” in the “In case of emergency”
section of this manual.
WARNING
∙ Radio waves could adversely affect elec-
tric medical equipment. Those who use a
pacemaker should contact the electric
medical equipment manufacturer for the
possible influences before use.
5-6Starting and driving

∙ If the low tire pressure warning light illu-minates while driving, avoid sudden
steering maneuvers or abrupt braking,
reduce vehicle speed, pull off the road to
a safe location and stop the vehicle as
soon as possible. Driving with under-
inflated tires may permanently damage
the tires and increase the likelihood of
tire failure. Serious vehicle damage could
occur and may lead to an accident and
could result in serious personal injury.
Check the tire pressure for all four tires.
Adjust the tire pressure to the recom-
mended COLD tire pressure shown on
the Tire and Loading Information label to
turn the low tire pressure warning light
off. If you have a flat tire, replace it with a
replacement tire as soon as possible. (For
additional information, refer to “Flat
tire” in the “In case of emergency” section
for changing a flat tire.) ∙ When replacing a wheel without the
TPMS such as the spare tire, when a
spare tire is mounted or a wheel is re-
placed, tire pressure will not be indicated,
the TPMS will not function and the low
tire pressure warning light will flash for
approximately 1 minute. The light will re-
main on after 1 minute. Have your tires
replaced and/or TPMS system reset as
soon as possible. It is recommended that
you visit an INFINITI retailer for this
service.
∙ Replacing tires with those not originally specified by INFINITI could affect the
proper operation of the TPMS.
∙ Do not inject any tire liquid or aerosol tire sealant into the tires, as this may cause a
malfunction of the tire pressure sensors.
CAUTION
∙ The TPMS may not function properlywhen the wheels are equipped with tire
chains or the wheels are buried in snow.
∙ Do not place metalized film or any metal parts (antenna, etc.) on the windows.
This may cause poor reception of the sig-
nals from the tire pressure sensors, and
the TPMS will not function properly. Some devices and transmitters may tempo-
rarily interfere with the operation of the
TPMS and cause the low tire pressure warn-
ing light to illuminate.
Some examples are:
∙ Facilities or electric devices using similar radio frequencies are near the vehicle.
∙ If a transmitter set to similar frequencies is being used in or near the vehicle.
∙ If a computer (or similar equipment) or a DC/AC converter is being used in or near
the vehicle.
The low tire pressure warning light may illu-
minate in the following cases: ∙ If the vehicle is equipped with a wheel and tire without TPMS.
∙ If the TPMS has been replaced and the ID has not been registered.
∙ If the wheel is not originally specified by INFINITI.
Starting and driving5-7
