A pinch strip is mounted on each side of the
liftgate. If an obstacle is detected by a pinch
strip during power close, the liftgate will re-
verse direction and return to the full open
position.
NOTE:
If the pinch strip is damaged or removed, the
power close function will not operate.
WARNING
There are some small distances immedi-
ately before the closed position which can-
not be detected. Make sure that all passen-
gers have their hands, etc., inside the
vehicle before closing the liftgate.Manual Mode:
If power operation is not available, the lift-
gate may be operated manually. Power op-
eration may not be available if multiple ob-
stacles have been detected in a single power
cycle or if the battery voltage is low.
If the power liftgate opener switch
Ais
pushed during power open or close, the
power operation will be canceled and the
liftgate can be operated manually.
To open the liftgate manually, unlock the
doors, push the liftgate opener switch
Aand
lift the liftgate. To close, lower and push the liftgate down
securely.
MOTION-ACTIVATED LIFTGATE
(if so equipped)
The liftgate can be operated using a quick
kicking motion under the center of the rear
bumper.
To operate, the Intelligent Key must be within
31.5 in (80 cm) of the liftgate.
NOTE:
Tow hitches are available as an accessory for
this vehicle. If a tow hitch is installed, the
liftgate electronic control unit (ECU) needs
to be replaced with an ECU programmed
with towing logic for the Motion-Activated
Liftgate to function properly.
LPD2721
3-26Pre-driving checks and adjustments

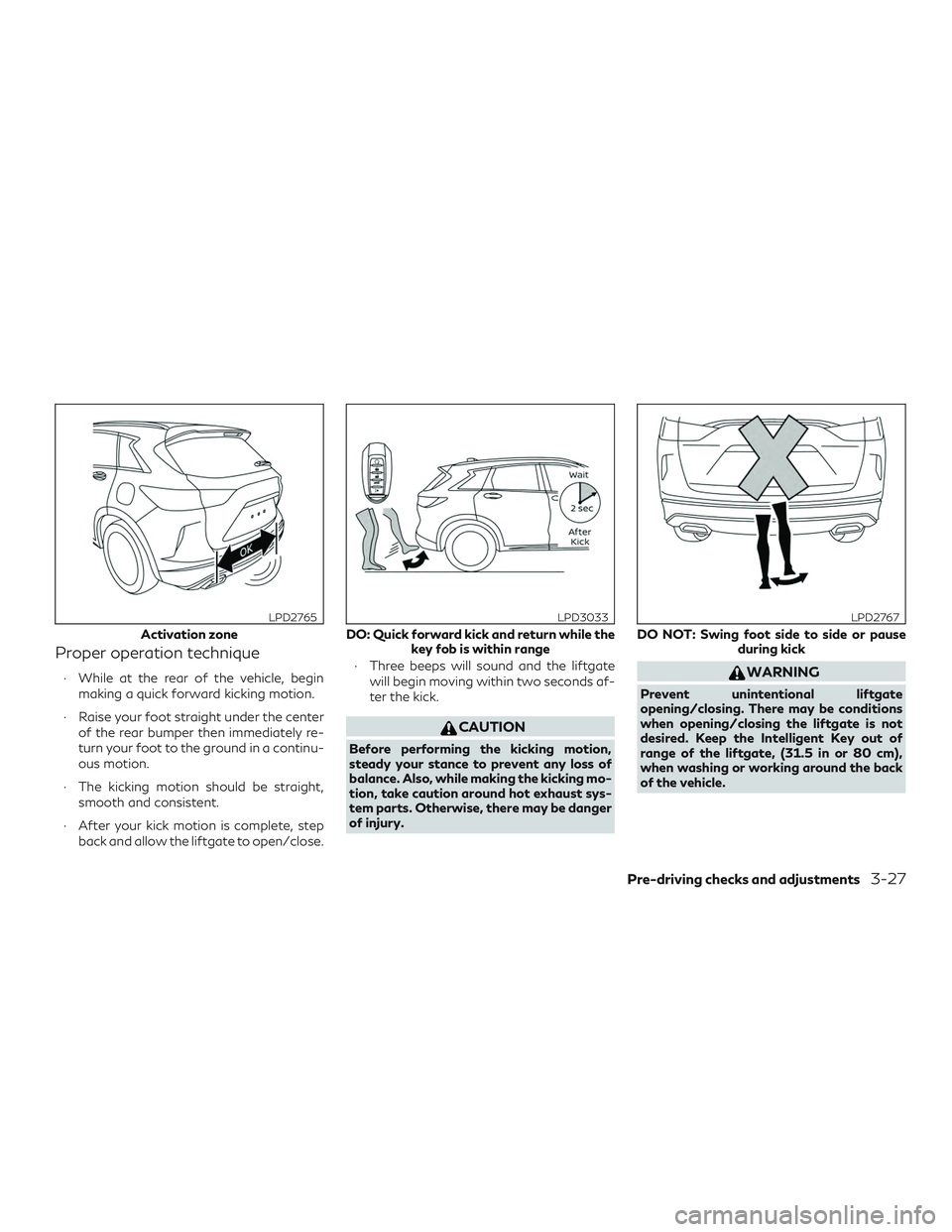

Proper operation technique
∙ While at the rear of the vehicle, beginmaking a quick forward kicking motion.
∙ Raise your foot straight under the center of the rear bumper then immediately re-
turn your foot to the ground in a continu-
ous motion.
∙ The kicking motion should be straight, smooth and consistent.
∙ After your kick motion is complete, step back and allow the liftgate to open/close. ∙ Three beeps will sound and the liftgate
will begin moving within two seconds af-
ter the kick.
CAUTION
Before performing the kicking motion,
steady your stance to prevent any loss of
balance. Also, while making the kicking mo-
tion, take caution around hot exhaust sys-
tem parts. Otherwise, there may be danger
of injury.
WARNING
Prevent unintentional liftgate
opening/closing. There may be conditions
when opening/closing the liftgate is not
desired. Keep the Intelligent Key out of
range of the liftgate, (31.5 in or 80 cm),
when washing or working around the back
of the vehicle.
Activation zone
LPD2765
DO: Quick forward kick and return while the key fob is within range
LPD3033
DO NOT: Swing foot side to side or pause during kick
LPD2767
Pre-driving checks and adjustments3-27

CAUTION
∙ Interference or malfunction can becaused by parking in close proximity to
radio or satellite towers.
∙ Intelligent Key interference could be caused if you have your key fob stored
next to your cell phone or any RF-enabled
smart card. For additional information,
refer to “INFINITI Intelligent Key” in this
section.
POWER LIFTGATE MAIN
SWITCH
The power liftgate operation can be turned
ON
Aor OFFBby the power liftgate main
switch located in the glove box.
When the power liftgate main switch is
pushed to the OFF position, the power op-
eration is not available by the power liftgate
switch or liftgate request switch on the lift-
gate.
Power operation is only available when the
power liftgate main switch is in the OFF po-
sition by pushing the instrument panel switch
or pressing the liftgate button on the key fob. Motion-Activated Liftgate (if so equipped)
will not function when the power liftgate
main switch is in the OFF position.
LIFTGATE RELEASE
WARNING
∙ Always be sure the liftgate has been
closed securely to prevent it from open-
ing while driving.
∙ Do not drive with the liftgate open. This could allow dangerous exhaust gases to
be drawn into the vehicle. For additional
information, refer to “Exhaust gas (car-
bon monoxide)” in the “Starting and driv-
ing” section of this manual.
∙ To avoid personal injury, do not attempt to activate the power liftgate if one or
both of the liftgate struts are removed.
LPD2723
3-28Pre-driving checks and adjustments

CAUTION
∙ If the power liftgate does not stay openor if the liftgate unexpectedly closes at
any time while a continuous warning
chime sounds, do not operate the lift-
gate. There may be a pressure loss in one
or both of the liftgate struts. It is recom-
mended that you have the liftgate in-
spected. It is recommended that you visit
an INFINITI retailer for this service.
∙ Do not activate the power liftgate if one or both of the liftgate struts are re-
moved. Damage to the liftgate or power
liftgate mechanisms may occur.
∙ Keep the power liftgate main switch (if so equipped) in the OFF position when
washing or working around the back of
the vehicle (with Intelligent Key) to pre-
vent inadvertent opening/closing.
Power liftgate release
If the liftgate cannot be opened with the
instrument panel switch, liftgate opener
switch or key fob due to a discharged battery,
follow these steps:
1. Remove the cover
Aon the inside of the
liftgate.
2. Move the lever
Bas illustrated to open
the liftgate.
It is recommended that you visit an INFINITI
retailer as soon as possible for repair.
LIFTGATE POSITION SETTING
The liftgate can be set to open to a specific
height (garage mode) by performing the fol-
lowing:
1. Open the liftgate using the request switch or the Intelligent Key.
2. Pull the liftgate down and move to the desired height position (the liftgate will
have some resistance when being manu-
ally adjusted).
LPD2749LPD3031
Pre-driving checks and adjustments3-29

3. Push and hold the power liftgate closeswitch
located on the liftgate for
more than 3 seconds or until two beeps
are heard.
The liftgate will open to the selected position
setting. To change the position of the liftgate,
repeat steps 1-3.
OPENING THE FUEL-FILLER
DOOR
The fuel-filler door automatically unlocks
when the driver’s door is unlocked.
1. Unlock the fuel-filler door using one of the following operations:
∙ Unlock the driver’s door with the Intel- ligent Key.
∙ Push the power door lock switch to the unlock position.
∙ Touch the one touch unlock sensor (driver’s or front passenger’s) while
carrying the Intelligent Key with you. For additional information, refer to
“Locking all doors and fuel-filler door”
in this section.
2. To open the fuel-filler door, push the right side of the fuel-filler door to re-
lease.
To lock, close the fuel-filler door securely and
lock the doors.
FUEL-FILLER CAP
WARNING
∙ Gasoline is extremely flammable and highly explosive under certain conditions.
You could be burned or seriously injured if
it is misused or mishandled. Always stop
the engine and do not smoke or allow
open flames or sparks near the vehicle
when refueling.
∙ Do not attempt to top off the fuel tank after the fuel pump nozzle shuts off au-
tomatically. Continued refueling may
cause fuel overflow, resulting in fuel
spray and possibly a fire.LPD2725
FUEL-FILLER DOOR
3-30Pre-driving checks and adjustments

∙ Use only an original equipment type fuel-filler cap as a replacement. It has a
built-in safety valve needed for proper
operation of the fuel system and emission
control system. An incorrect cap can re-
sult in a serious malfunction and possible
injury. It could also cause the
Mal-
function Indicator Light (MIL) to come
on.
∙ Never pour fuel into the throttle body to attempt to start your vehicle.
∙ Do not fill a portable fuel container in the vehicle or trailer. Static electricity can
cause an explosion of flammable liquid,
vapor or gas in any vehicle or trailer. To
reduce the risk of serious injury or death
when filling portable fuel containers:
– Always place the container on the ground when filling.
– Do not use electronic devices when filling.
– Keep the pump nozzle in contact with the container while you are filling it.
– Use only approved portable fuel con- tainers for flammable liquid.
CAUTION
∙ Do not use a fuel containing more than15% ethanol in your vehicle. For addi-
tional information, refer to “Fuel recom-
mendation” in the “Technical and con-
sumer information” section of this
manual.
∙ The Loose Fuel Cap warning message will be displayed if the fuel-filler cap is not
properly tightened. It may take a few
driving trips for the message to be dis-
played. Failure to tighten the fuel-filler
cap properly after the Loose Fuel Cap
warning is displayed may cause the Mal-
function Indicator Light (MIL) to
illuminate.
∙ Failure to tighten the fuel-filler cap prop- erly may cause the
Malfunction In-
dicator Light (MIL) to illuminate. If
the
light illuminates because the
fuel-filler cap is loose or missing, tighten
or install the cap and continue to drive
the vehicle. The
light should turn
off after a few driving trips. If the
light does not turn off after a few driving
trips, have the vehicle inspected. It is rec-
ommended that you visit an INFINITI re-
tailer for this service. ∙ For additional information, refer to
“Malfunction Indicator Light (MIL)” in
the “Instruments and controls” section of
this manual.
∙ If fuel is spilled on the vehicle body, flush it away with water to avoid paint
damage.
NOTE:
Changing ignition switch status during the
refueling process may cause a delay in fuel
gauge response.
Pre-driving checks and adjustments3-31

To remove the fuel-filler cap:1. Turn the fuel-filler cap counterclockwise to remove.
2. Put the fuel-filler cap on the cap holder
Awhile refueling.
To install the fuel-filler cap: 1. Insert the fuel-filler cap straight into the fuel-filler tube.
2. Turn the fuel-filler cap clockwise until a single click is heard.
Loose Fuel Cap warning
The Loose Fuel Cap warning will appear in
the vehicle information display when the
fuel-filler cap is not tightened correctly after
the vehicle has been refueled. It may take a
few driving trips for the message to be dis-
played. To turn off the warning, perform the
following:
1. Remove and install the fuel-filler cap as soon as possible. For additional informa-
tion, refer to “Fuel-filler cap” in this sec-
tion.
2. Tighten the fuel-filler cap until it a single click is heard. 3. Press the
button on the steering
wheel for about 1 second to turn off the
Loose Fuel Cap warning message in the
vehicle information display.
LPD2726LPD2985
3-32Pre-driving checks and adjustments

CARD HOLDER
To use the card holder, slide card into the clip.
Do not view information while operating the
vehicle.
MANUAL ANTI-GLARE
REARVIEW MIRROR (if so
equipped)
Use the night position1to reduce glare
from the headlights of vehicles behind you at
night.
Use the day position
2when driving in day-
light hours.
WARNING
Use the night position only when necessary,
because it reduces rear view clarity.
AUTOMATIC ANTI-GLARE
REARVIEW MIRROR (if so
equipped)
The inside mirror is designed so that it auto-
matically dims during night time conditions
and according to the intensity of the head-
lights of the vehicle following you. The auto-
matic anti-glare feature is activated when
the ignition switch is in the ON position.
Driver’s and passenger’s side
LPD2340WPD0126LPD0469
MIRRORS
Pre-driving checks and adjustments3-35

NOTE:
Do not hang any objects over the sensors
1
or apply glass cleaner to the sensors. Doing
so will reduce the sensitivity of the sensors,
resulting in improper operation.
The indicator light
2will illuminate when the
automatic anti-glare feature is operating.
To turn off the automatic anti-glare feature,
press the O button. The indicator light will
turn off.
To turn on the automatic anti-glare feature,
press the | button. The indicator light will
turn on.
For additional information on HomeLink®
Universal Transceiver operation, refer to
“HomeLink® Universal Transceiver” in the
“Instruments and controls” section of this
manual.
OUTSIDE MIRRORS
The outside mirror remote control will oper-
ate only when the ignition switch is in the ON
position.
Move the small switch
1to select the left or
right mirror. Adjust each mirror to the desired
position using the large switch
2. Move the
small switch
1to the center (neutral) posi-
tion to prevent accidentally moving the mir-
ror.
WARNING
∙ Objects viewed in the outside mirror on the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.
∙ Do not adjust the mirrors while driving. You could lose control of your vehicle and
cause an accident.
LPD3035
3-36Pre-driving checks and adjustments

WARNING
∙ Failure to follow the warnings and in-structions for proper use of the RearView
Monitor system could result in serious in-
jury or death.
∙ RearView Monitor is a convenience fea- ture and is not a substitute for proper
backing. Always turn and look out the
windows and check mirrors to be sure
that it is safe to move before operating
the vehicle. Always back up slowly.
∙ The system is designed as an aid to the driver in showing large stationary ob-
jects directly behind the vehicle, to help
avoid damaging the vehicle.
∙ The distance guide line and the vehicle width line should be used as a reference
only when the vehicle is on a level paved
surface. The distance viewed on the
monitor is for reference only and may be
different than the actual distance be-
tween the vehicle and displayed objects.
CAUTION
Do not scratch the camera lens when clean-
ing dirt or snow from the front of the
camera. The RearView Monitor system automatically
shows a rear view of the vehicle in the upper
touch-screen display (upper display) when
the shift lever is shifted into the R (Reverse)
position. When activating the RearView
Monitor, the guide lines, the icons and the
messages may not be displayed immediately.
The radio can still be heard while the Rear-
View Monitor is active.
To display the rear view, the RearView Moni-
tor system uses a camera located just above
the vehicle’s license plate
1.
REARVIEW MONITOR SYSTEM
OPERATION
With the engine running, move the shift lever
to the R (Reverse) position to operate the
RearView Monitor. When activating the
RearView Monitor, the guide lines, the icons
and the messages may not be displayed im-
mediately.
LHA4552
4-4Monitor, climate, audio, phone and voice recognition systems
