INFINITI QX50 2020 Owners Manual

CARD HOLDER
To use the card holder, slide card into the clip.
Do not view information while operating the
vehicle.
MANUAL ANTI-GLARE
REARVIEW MIRROR (if so
equipped)
Use the night position1to reduce glare
from the headlights of vehicles behind you at
night.
Use the day position
2when driving in day-
light hours.
WARNING
Use the night position only when necessary,
because it reduces rear view clarity.
AUTOMATIC ANTI-GLARE
REARVIEW MIRROR (if so
equipped)
The inside mirror is designed so that it auto-
matically dims during night time conditions
and according to the intensity of the head-
lights of the vehicle following you. The auto-
matic anti-glare feature is activated when
the ignition switch is in the ON position.
Driver’s and passenger’s side
LPD2340WPD0126LPD0469
MIRRORS
Pre-driving checks and adjustments3-35

NOTE:
Do not hang any objects over the sensors
1
or apply glass cleaner to the sensors. Doing
so will reduce the sensitivity of the sensors,
resulting in improper operation.
The indicator light
2will illuminate when the
automatic anti-glare feature is operating.
To turn off the automatic anti-glare feature,
press the O button. The indicator light will
turn off.
To turn on the automatic anti-glare feature,
press the | button. The indicator light will
turn on.
For additional information on HomeLink®
Universal Transceiver operation, refer to
“HomeLink® Universal Transceiver” in the
“Instruments and controls” section of this
manual.
OUTSIDE MIRRORS
The outside mirror remote control will oper-
ate only when the ignition switch is in the ON
position.
Move the small switch
1to select the left or
right mirror. Adjust each mirror to the desired
position using the large switch
2. Move the
small switch
1to the center (neutral) posi-
tion to prevent accidentally moving the mir-
ror.
WARNING
∙ Objects viewed in the outside mirror on the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.
∙ Do not adjust the mirrors while driving. You could lose control of your vehicle and
cause an accident.
LPD3035
3-36Pre-driving checks and adjustments

Manual folding outside mirrors
Pull the outside mirror toward the door to
fold it.
Heated mirrors (if so equipped)
The electric control type outside mirrors can
be heated to defrost, defog, or de-ice for
improved visibility. Push the rear window de-
froster switch to activate the heating func-
tion. Push the switch again to deactivate, or
the heating function will automatically turn
off after approximately 15 minutes.
Reverse tilt-down feature (if so
equipped)
The reverse tilt-down feature will turn both
outside mirror surfaces downward to provide
better rear visibility close to the vehicle when
the mirror control switch is in either the L or R
position.
The mirrors automatically return to their
original position when you shift out of R (Re-
verse).
The outside mirror surfaces will return to
their original position when one of the fol-
lowing conditions has occurred:∙ The shift lever is moved to any position other than R (Reverse).
∙ The outside mirror control switch is set to the neutral or center position.
∙ The ignition switch is placed in the OFF position. NOTE:
If the outside mirror control switch is in the
center position, the mirror surface will NOT
turn downward when the shift lever is
moved to R (Reverse).
For additional information, refer to “Auto-
matic drive positioner” in this section.
LPD3034
Pre-driving checks and adjustments3-37

The automatic drive positioner system has
two features:∙ Memory storage function
∙ Entry/exit function
MEMORY STORAGE FUNCTION
Two positions for the driver’s seat, steering
column, and outside mirrors can be stored in
the automatic drive positioner memory. Fol-
low these procedures to set the memory sys-
tem.
NOTE:
The vehicle should be stopped while setting
the memory. 1. Adjust the driver’s seat, steering column,
and outside mirrors to the desired posi-
tions by manually operating each adjust-
ing switch. For additional information,
refer to “Seats” in the “Safety—Seats,
seat belts and supplemental restraint
system” section of this manual, and
“Steering wheel” and “Outside mirrors” in
this section.
2. Push the SET switch and, within 5 sec- onds, push the memory switch (1 or 2).
The indicator light for the pushed
memory switch will come on and stay on
for approximately 5 seconds
The chime will sound when the memory is
stored.
NOTE:
If a new memory position is stored in the
same memory switch, the previous memory
position will be overwritten by the new
stored position.
Confirming memory storage
∙ Push the SET switch.
∙ If a memory position has been stored in the switch (1 or 2) then the indicator light
for the respective switch will stay on for
approximately 5 seconds.
LPD2729
AUTOMATIC DRIVE POSITIONER (if
so equipped)
3-38Pre-driving checks and adjustments

Linking log-in function to a stored
memory position
The log-in function can be linked to a stored
memory position with the following proce-
dure.1. Place the ignition switch in the ON posi- tion while carrying the Intelligent Key
that was registered to the vehicle with a
log-in function.
NOTE:
Make sure the Intelligent Keys are far apart.
Otherwise, the vehicle may detect the
wrong Intelligent Key. 2. Adjust the position of the driver’s seat, steering column and outside mirrors. For
additional information, refer to “Seats” in
the “Safety—Seats, seat belts and
supplemental restraint system” section
of this manual, and “Steering wheel” and
“Outside mirrors” in this section.
3. Place the ignition switch in the OFF po- sition.
The next time you log in (selecting the user on
the display) after placing the ignition switch in
the ON position while carrying the Intelligent
Key, the system will automatically adjust to
the memorized driving position. For additional information, refer to the sepa-
rate INFINITI InTouch™ Owner’s Manual and
“Log-in function” in this section.ENTRY/EXIT FUNCTION
This system is designed so that the driver’s
seat and steering column will automatically
move when you the vehicle is engaged in the
P (Park) position. This allows the driver to
easily get in and out of the driver’s seat.
The driver’s seat will slide backward and the
steering column will move up when the igni-
tion is switched to OFF and the driver’s door
is opened.
The driver’s seat and steering wheel will re-
turn to the previous position when the igni-
tion is switched to ON.
The entry/exit function can be adjusted or
canceled through the “Comfort & Conve-
nience” options of the “Settings” menu in the
lower touch-screen display by performing the
following:
∙ Switch the Lift Steering upon Exit from ON to OFF.
∙ Switch the Slide Driver Seat Back on Exit from ON to OFF.
For additional information, refer to the sepa-
rate INFINITI InTouch™ Owner’s Manual.
Restarting the entry/exit function
If the battery cable is disconnected, or if the
fuse opens, the stored memory positions will
be lost and some of the functions will be
restricted: 1. Drive the vehicle over 25 mph (40 km/h).
OR 2. Open and close the driver’s door more than two times with the ignition switch
in the OFF position.
The entry/exit function should now work
properly.
SETTING MEMORY FUNCTION
The position of the following settings can be
linked to the Intelligent Key and the memo-
rized settings can be available for each Intel-
ligent Key. ∙ Climate control system
∙ Navigation system
∙ Audio system
Pre-driving checks and adjustments3-39

To use the memory function, set the climate,
navigation and audio systems to the driver’s
preferred settings. Lock the doors with the
Intelligent Key. Each Intelligent Key may be
set with the driver’s individual preferences.
When a new Intelligent Key is used, “Connec-
tion with the key has been done” will be dis-
played on the vehicle information display and
the memorized settings are available.
To engage the memorized settings, perform
the following:1. Carry the Intelligent Key that is linked to the memorized settings.
2. Unlock the doors by pushing the driver’s door handle request switch or the
button on the Intelligent Key.
3. Place the ignition switch in the ON posi- tion. The settings linked to the Intelligent
Key will start.
For additional information on using the cli-
mate control system, refer to “Heater and air
conditioner (automatic)” in the “Monitor, cli-
mate, audio, phone and voice recognition
systems” section of this manual. For additional information, refer to the
“Monitor, climate, audio, phone and voice
recognition systems” section of this manual
or the separate INFINITI InTouch™ Owner’s
Manual.
SYSTEM OPERATION
The automatic drive positioner system will
not work or will stop operating under the
following conditions:
∙ When the vehicle speed is above 4 mph (7 km/h).
∙ When any of the memory switches are pushed while the automatic drive posi-
tioner is operating.
∙ When the switch for the driver’s seat and steering column is pushed while the au-
tomatic drive positioner is operating.
∙ When the seat has already been moved to the memorized position.
∙ When no seat position is stored in the memory switch.
∙ When the shift lever is moved from P (Park) to any other position.
3-40Pre-driving checks and adjustments

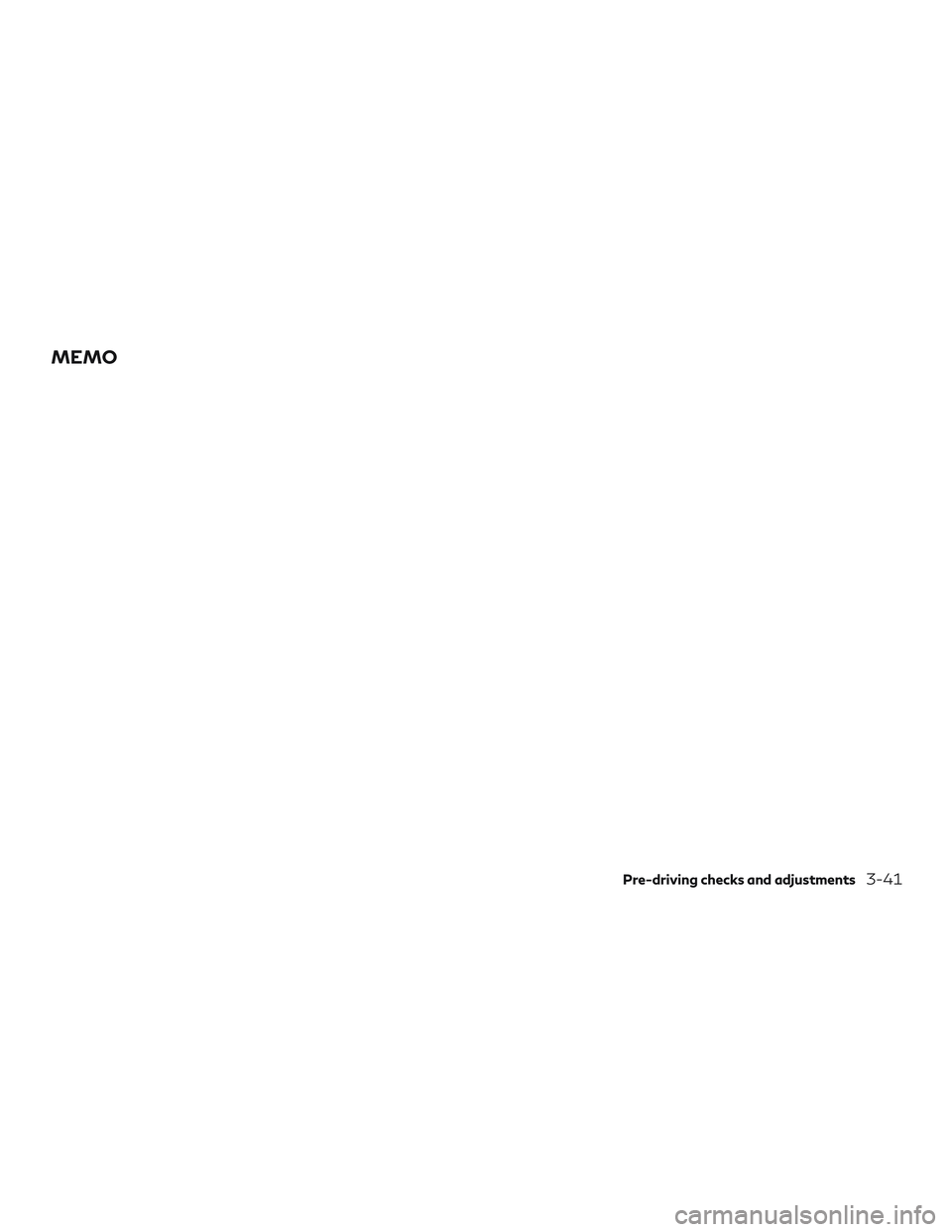

MEMO
Pre-driving checks and adjustments3-41

4 Monitor, climate, audio, phone and voice
recognition systems
INFINITI InTouchTMOwner’s Manual.............4-2
RearView Monitor (if so equipped) ................4-3
RearView Monitor system operation ...........4-4
How to read the displayed lines ................4-5
Difference between predicted and actual
distances .....................................4-5
How to park with predicted course lines ........4-7
Adjusting the screen ...........................4-9
How to turn on and off predicted course
lines ..........................................4-9
RearView Monitor system limitations ..........4-9
System maintenance ........................ 4-10
Around View® Monitor (if so equipped) ..........4-11
Around View® Monitor system operation ....4-12
Difference between predicted and actual
distances .................................... 4-17
How to park with predicted course lines ......4-18
How to switch the display ...................4-20
Around View® Monitor settings .............4-20
Adjusting the screen ......................... 4-21
Around View® Monitor system
limitations .................................. 4-22
System maintenance ........................ 4-24Camera aiding sonar (parking sensor)
(if so equipped)
................................. 4-24
Sonar system operation .....................4-25
Turning on and off the sonar function ........4-26
Sonar system limitations .....................4-27
System maintenance ........................ 4-28
Moving Object Detection (MOD)
(if so equipped) ................................. 4-29
MOD system operation ......................4-30
Turning MOD on and off ....................4-32
MOD system limitations .....................4-32
System maintenance ........................ 4-33
Vents .......................................... 4-34
Heater and air conditioner (automatic) ..........4-35
Automatic operation ........................ 4-36
Manual operation ........................... 4-37
Operating tips ............................... 4-38
CLIMATE setting screen .....................4-39
Rear climate

control (if so equipped) .........4-41
Heater and air conditioner settings
(if so equipped) ................................. 4-42
Servicing air conditioner ........................ 4-43

USB/iPod® charging ports.....................4-43
Antenna ....................................... 4-44Car phone or CB radio
.......................... 4-44

Refer to the INFINITI InTouchTMOwner’s
Manual that includes the following informa-
tion.
∙ INFINITI InTouch
TMServices (if so
equipped)
∙ Navigation system (if so equipped)
∙ Audio system
∙ Apple CarPlay®
∙ Android Auto
TM
∙ Bluetooth® Hands-Free Phone system
∙ Viewing information
∙ Other settings
∙ Voice recognition
∙ General system information
INFINITI INTOUCHTMOWNER’S
MANUAL
4-2Monitor, climate, audio, phone and voice recognition systems
