Underbody:The underbody is frequently ex-
posed to corrosive substances such as those
used on icy roads or to control dust. It is very
important to remove these substances, oth-
erwise rust may form on the floor pan, frame,
fuel lines and around the exhaust system. At
the end of winter, the underbody should be
thoroughly flushed with plain water, being
careful to clean those areas where mud and
dirt may accumulate. For additional informa-
tion, refer to the “Appearance and care” sec-
tion of this manual.
Windshield-washer fluid*: Check that there
is adequate fluid in the reservoir. The following descriptions are provided to
give you a better understanding of the sched-
uled maintenance items that should be regu-
larly checked or replaced. The maintenance
schedule indicates at which mileage/time in-
tervals each item requires service.
In addition to scheduled maintenance, your
vehicle requires that some items be checked
during normal day-to-day operation. For ad-
ditional information, refer to “General main-
tenance” in this section.
Items marked with
“*”are recommended by
INFINITI for reliable vehicle operation. You
are not required to perform maintenance on
these items in order to maintain the warran-
ties which come with your INFINITI. Other
maintenance items and intervals are required.
When applicable, additional information can
be found in the “Do-it-yourself” section of
this manual. NOTE:
INFINITI does not advocate the use of non-
OEM approved aftermarket flushing sys-
tems and strongly advises against perform-
ing these services on an INFINITI product.
Many of the aftermarket flushing systems
use non-OEM approved chemicals or sol-
vents, the use of which has not been vali-
dated by INFINITI.
For recommended fuel, lubricants, fluids,
grease, and refrigerant, refer to “Recom-
mended fluids/lubricants and capacities” in
the “Technical and consumer information”
section of this manual.
EMISSION CONTROL SYSTEM
MAINTENANCE:
Drive belt*:
Check engine drive belt for wear,
fraying or cracking and for proper tension.
Replace any damaged drive belt.
Engine air filter: Replace at specified inter-
vals. When driving for prolonged periods in
dusty conditions, check/replace the filter
more frequently.
EXPLANATION OF SCHEDULED
MAINTENANCE ITEMS
Maintenance and schedules9-5

Engine coolant*:Replace coolant at the
specified interval. When adding or replacing
coolant, be sure to use only Genuine NISSAN
Long Life Antifreeze/Coolant (blue) or
equivalent with the proper mixture. (For ad-
ditional information on the proper mixture for
your area, refer to “Engine cooling system” in
the “Do-it-yourself” section of this manual.)
NOTE: Mixing any other type of coolant or
the use of non-distilled water may reduce
the recommended service interval of the
coolant.
Engine oil and oil filter: Replace engine oil
and oil filter at the specified intervals. For
recommended oil grade and viscosity refer to
“Recommended fluids/lubricants and capaci-
ties” in the “Technical and consumer informa-
tion” section of this manual.
Engine valve clearance*: Inspect only if valve
noise increases. Adjust valve clearance if nec-
essary.
Evaporative emissions control vapor lines*:
Check vapor lines for leaks or looseness.
Tighten connections or replace parts as nec-
essary. Fuel lines*:
Check the fuel hoses, piping and
connections for leaks, looseness, or deterio-
ration. Tighten connections or replace parts
as necessary.
Spark plugs: Replace at specified intervals.
Install new plugs of the same type as origi-
nally equipped.
CHASSIS AND BODY
MAINTENANCE:
Brake lines and cables: Visually inspect for
proper installation. Check for chafing, cracks,
deterioration, and signs of leaking. Replace
any deteriorated or damaged parts immedi-
ately.
Brake pads and rotors: Check for wear, de-
terioration and fluid leaks. Replace any dete-
riorated or damaged parts immediately.
Exhaust system: Visually inspect the exhaust
pipes, muffler and hangers for leaks, cracks,
deterioration, and damage. Tighten connec-
tions or replace parts as necessary.
In-cabin microfilter: Replace at specified in-
tervals. When driving for prolonged periods in
dusty conditions, replace the filter more fre-
quently. Propeller shaft(s):
Check for damage, loose-
ness, and grease leakage. (AWD)
Steering gear and linkage, axle and suspen-
sion parts, drive shaft boots: Check for dam-
age, looseness, and leakage of oil or grease.
Under severe driving conditions, inspect more
frequently.
Tire rotation: Tires should be rotated every
7,500 miles (12,000 km) according to the
instructions under “Explanation of general
maintenance items” in this section. When ro-
tating tires, check for damage and uneven
wear. Replace if necessary.
Transmission fluid/oil, differential oil and
transfer case oil: Visually inspect for signs of
leakage at specified intervals.
Replace at specified intervals.
9-6Maintenance and schedules

To help ensure smooth, safe and economical
driving, INFINITI provides two maintenance
schedules that may be used, depending upon
the conditions in which you usually drive.
These schedules contain both distance and
time intervals, up to 90,000 miles
(144,000 km)/144 months. For most
people, the odometer reading will indicate
when service is needed. However, if you drive
very little, your vehicle should be serviced at
the regular time intervals shown in the sched-
ule.
After 90,000 miles (144,000 km)/144 months,
continue maintenance at the same mileage/time
intervals.
ADDITIONAL MAINTENANCE
ITEMS FOR SEVERE OPERATING
CONDITIONS
Additional maintenance items for severe op-
erating conditionsshould be performed on
vehicles that are driven under especially de-
manding conditions. Additional maintenance
items should be performed if you primarily
operate your vehicle under the following con-
ditions:
∙ Repeated short trips of less than 5 miles (8 km). ∙ Repeated short trips of less than 10 miles
(16 km) with outside temperatures re-
maining below freezing.
∙ Operating in hot weather in stop-and-go “rush hour” traffic.
∙ Extensive idling and/or low speed driving for long distances, such as police, taxi or
door-to-door delivery use.
∙ Driving in dusty conditions.
∙ Driving on rough, muddy or salt spread roads.
∙ Towing a trailer, using a camper or using a car-top carrier.
OIL CONTROL SYSTEM
Your vehicle is equipped with oil control sys-
tem. It calculates engine oil and filter change
intervals based on driving conditions. Driving
in the following severe conditions will shorten
the engine oil and filter change interval.
MAINTENANCE SCHEDULES
Maintenance and schedules9-7

How driving conditions affect OCS display
timing
ConditionsDriving Scene Display timing
Light ∙ Freeway driving
∙ City driving (flat/moderate hills)
∙ No towing or heavy loads
∙ No extended engine idling Normal
Extreme ∙ Repeated short trips of less than 5 miles (8 km).
∙ Repeated short trips of less than 10 miles (16 km) with outside temperatures remaining below
freezing.
∙ Operating in hot weather in stop-and-go “rush hour” traffic.
∙ Extensive idling and/or low speed driving for long distances, such as police, taxi or door-to-
door delivery use.
∙ Towing a trailer or caravan, or using a car-top carrier.
∙ Driving with frequent use of braking or in mountainous areas.
∙ Sustained high speed driving. Early
CAUTION
∙ If the oil replacement indicator is dis-
played, change the engine oil within two
weeks or less than 500 miles (800 km).
∙ Operating your vehicle with deteriorated oil can damage the engine.
∙ If your oil replacement indicator resets prematurely or becomes inoperative,
please change the oil within six months or
3,750 miles (6,000 km) from your last oil
change.
9-8Maintenance and schedules

The following tables show the standard
maintenance schedule. Depending upon
weather and atmospheric conditions, varyingroad surfaces, individual driving habits and
vehicle usage, additional or more frequent
maintenance may be required.
After90,000 miles (144,000 km)/144 months,
continue maintenance at the same
mileage/time interval.
STANDARD MAINTENANCE
Abbreviations: I = Inspect and correct or replace as necessary, R = Replace
MAINTENANCE OPERATION
Perform at number of miles, kilometers or
months, whichever comes first. Miles x 1,000
(km x 1,000) Months MAINTENANCE INTERVAL
3.75 (6)6 7.5
(12) 12 11.25
(18)18 15
(24) 24 18.75
(30)30 22.5
(36) 36 26.25
(42)42 30
(48) 48 33.75
(54)54 37.5
(60) 60 41.25
(66)66 45
(72) 72
Air cleaner filter NOTE (1) R
Brake fluid RRR
Brake lines and cables IIIIII
Brake pads and rotors I IIIII
CVT fluid NOTE (2)IIIIII
Drive belt NOTE (3) I*I*I*
Engine coolant* NOTE (4)(5)
Engine oil & oil filter NOTE (6)RRRRRR
EVAP vapor lines & Fuel lines I*I*I*
Exhaust system III
Fuel filter NOTE (7)
In-cabin microfilter RRRR
Intelligent Key battery IR RR
Intake & exhaust valve clearance* NOTE (8)
Propeller shaft & drive shaft boots
(AWD models) I IIIII
Spark plugs NOTE (9) Replace every 105,000 miles (168,000 km)
Steering gear & linkage, axle &
suspension parts  III
Tire rotation NOTE (10)
Transfer fluid & differential gear oil NOTE (11)IIIIII
STANDARD MAINTENANCE
Maintenance and schedules9-9

Abbreviations: I = Inspect and correct or replace as necessary, R = Replace
MAINTENANCE OPERATION
Perform at number of miles, kilometers or
months, whichever comes first. Miles x 1,000
(km x 1,000) Months MAINTENANCE INTERVAL
48.75 (78)78 52.5
(84) 84 56.25
(90)90 60
(96) 96 63.75
(102) 102 67.5
(108) 108 71.25
(114) 114 75
(120) 120 78.75
(126) 126 82.5
(138) 138 86.25
(138) 138 90
(144) 144
Air cleaner filter NOTE (1) R R
Brake fluid RRR
Brake lines and cables IIIIII
Brake pads and rotors IIIIII
CVT fluid NOTE (2) IIIIII
Drive belt NOTE (3) I* I* I* I* I* I*
Engine coolant* NOTE (4)(5)
Engine oil & oil filter NOTE (6) RRRRRR
EVAP vapor lines & Fuel lines I* I* I*
Exhaust system III
Fuel filter NOTE (7)
In-cabin microfilter RRRR
Intelligent Key battery RRRR
Intake & exhaust valve clearance* NOTE (8)
Propeller shaft & drive shaft boots
(AWD models) IIIIII
Spark plugs NOTE (9)Replace every 105,000 miles (168,000 km)
Steering gear & linkage, axle &
suspension parts  III
Tire rotation NOTE (10)
Transfer fluid & differential gear oil NOTE (11)IIIIII
9-10Maintenance and schedules

NOTE:
Maintenance items with “” should be performed more frequently according to “ Maintenance under severe driving conditions”.
(1) If operating mainly in dusty conditions, more frequent maintenance may be required.
(2) If towing a trailer, using a camper or a car-top carrier or driving on rough or muddy roads, inspect CVT fluid deterioration every
60,000 miles (96,000 km), then change CVT fluid if necessary. And if the inspection is not performed, change (not just inspect) CVT fluid
every 60,000 miles (96,000 km).
(3) After 30,000 miles (48,000 km) or 48 months, inspect every 7,500 miles (12,000 km) or 12 months.
Replace the drive belts if found damaged.
(4) First replacement interval is 105,000 miles (168,000 km) or 84 months. After first replacement, replace every 75,000 miles
(120,000 km) or 60 months.
(5) Use only Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent with proper mixture ratio of 50% antifreeze and 50%
demineralized or distilled water. Mixing any other type of coolant or the use of non-distilled water may reduce the life expectancy of the
factory fill coolant.
(6) If the oil replacement indicator is displayed, change the engine oil and filter within two weeks or less than 500 miles (800 km).
(7) Periodic maintenance is not required.
(8) Periodic maintenance is not required. However, if valve noise increased, inspect valve clearance.
(9) Replace spark plug when the plug gap exceeds 0.045 in (1.25 mm) even if within specified replacement mileage.
(10) For additional information on tire rotation, refer to “General maintenance” in the section
(11) If towing a trailer, using a camper or a car-top carrier, or driving on rough or muddy roads, change (not just inspect) oil every 20,000 miles
(32,000 km) or 24 months.
* Maintenance items and intervals with “*” are recommended by INFINITI for reliable vehicle operation. The owner need not perform such
maintenance in order to maintain the emission warranty or manufacturer recall liability. Other maintenance items and intervals are required.
Maintenance and schedules9-11

The maintenance intervals shown on the pre-
ceding pages are for normal operating condi-
tions. If the vehicle is mainly operated under
severe driving conditions as shown below,
more frequent maintenance must be per-
formed on the following items as shown in
the table.SEVERE DRIVING CONDITIONS
∙ Repeated short trips of less than 5 miles(8 km).
∙ Repeated short trips of less than 10 miles (16 km) with outside temperatures re-
maining below freezing.
∙ Operating in hot weather in stop-and-go “rush hour” traffic.
∙ Extensive idling and/or low speed driving for long distances, such as police, taxi or
door-to-door delivery use. ∙ Driving in dusty conditions.
∙ Driving on rough, muddy or salt spread
roads.
∙ Towing a trailer, using a camper or a car-top carrier.
Maintenance operation: Inspect = Inspect
and correct or replace as necessary.
Maintenance operation: Inspect = Inspect and correct or replace as necessary.
Maintenance item Maintenance operation Maintenance interval
Brake fluid ReplaceEvery 7,500 miles (12,000 km) or 12 months
Brake pads & rotors InspectEvery 3,750 miles (6,000 km) or 6 months
Exhaust system InspectEvery 3,750 miles (6,000 km) or 6 months
Propeller shaft & drive shaft boots (AWD models) InspectEvery 3,750 miles (6,000 km) or 6 months
Steering gear & linkage, axle & suspension parts InspectEvery 3,750 miles (6,000 km) or 6 months
MAINTENANCE UNDER SEVERE
OPERATING CONDITIONS
9-12Maintenance and schedules

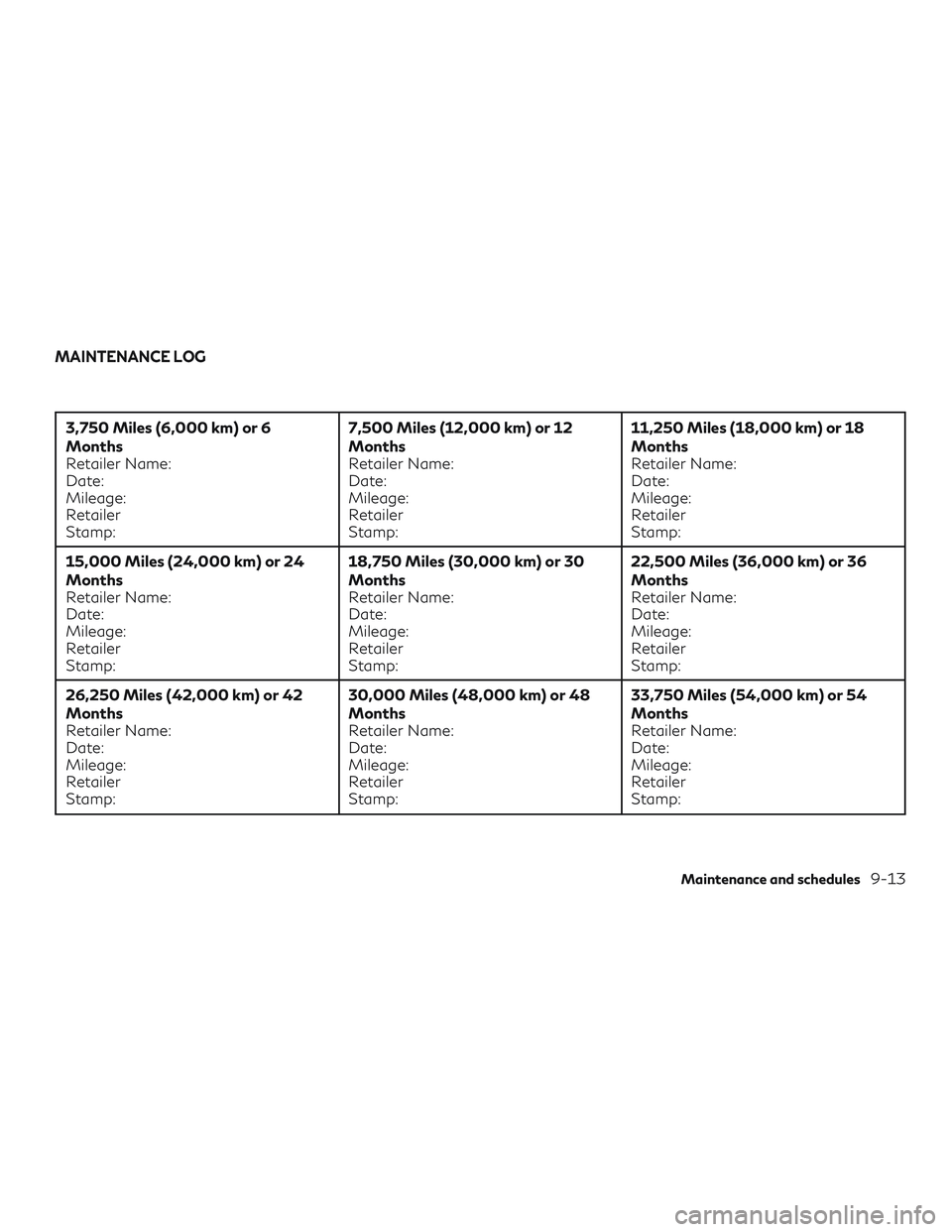

3,750 Miles (6,000 km) or 6
Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp:7,500 Miles (12,000 km) or 12
Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp:11,250 Miles (18,000 km) or 18
Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp:
15,000 Miles (24,000 km) or 24
Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp: 18,750 Miles (30,000 km) or 30
Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp:22,500 Miles (36,000 km) or 36
Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp:
26,250 Miles (42,000 km) or 42
Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp: 30,000 Miles (48,000 km) or 48
Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp:33,750 Miles (54,000 km) or 54
Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp:
MAINTENANCE LOG
Maintenance and schedules9-13

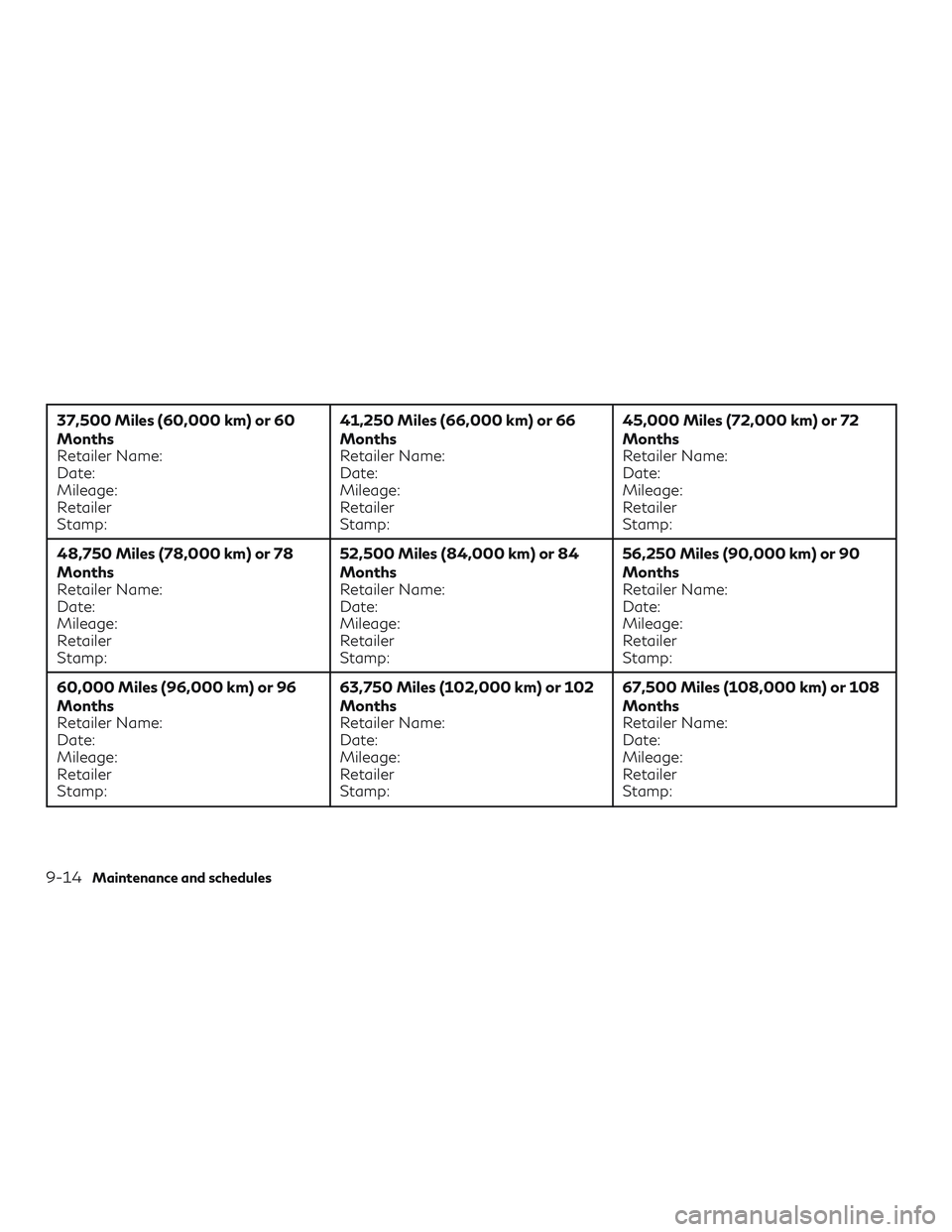

37,500 Miles (60,000 km) or 60
Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp:41,250 Miles (66,000 km) or 66
Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp:45,000 Miles (72,000 km) or 72
Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp:
48,750 Miles (78,000 km) or 78
Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp: 52,500 Miles (84,000 km) or 84
Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp:56,250 Miles (90,000 km) or 90
Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp:
60,000 Miles (96,000 km) or 96
Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp: 63,750 Miles (102,000 km) or 102
Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp:67,500 Miles (108,000 km) or 108
Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp:
9-14
Maintenance and schedules
