DOT (Department of Transportation) Quality
Grades: All passenger car tires must conform
to federal safety requirements in addition to
these grades.
Quality grades can be found where appli-
cable on the tire sidewall between tread
shoulder and maximum section width. For
example:
Treadwear 200 Traction AA Temperature A
Treadwear
The treadwear grade is a comparative rating
based on the wear rate of the tire when
tested under controlled conditions on a
specified government test course. For ex-
ample, a tire graded 150 would wear one and
one-half (1 1/2) times as well on the govern-
ment course as a tire graded 100. The rela-
tive performance of tires depends upon the
actual conditions of their use, however, and
may depart significantly from the norm due
to variations in driving habits, service prac-
tices and differences in road characteristics
and climate.
Traction AA, A, B and C
The traction grades, from highest to lowest,
are AA, A, B, and C. Those grades represent
the tire’s ability to stop on wet pavement as
measured under controlled conditions onspecified government test surfaces of as-
phalt and concrete. A tire marked C may have
poor traction performance.
WARNING
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration,
cornering, hydroplaning, or peak traction
characteristics.
Temperature A, B and C
The temperature grades are A (the highest),
B, and C, representing the tire’s resistance to
the generation of heat, and its ability to dis-
sipate heat when tested under controlled
conditions on a specified indoor laboratory
test wheel. Sustained high temperature can
cause the material of the tire to degenerate
and reduce tire life, and excessive tempera-
ture can lead to sudden tire failure. The grade
C corresponds to a level of performance
which all passenger car tires must meet under
the Federal Motor Vehicle Safety Standard
No. 109. Grades B and A represent higher
levels of performance on the laboratory test
wheel than the minimum required by law.
WARNING
The temperature grade for this tire is es-
tablished for a tire that is properly inflated
and not overloaded. Excessive speed,
under-inflation, or excessive loading, either
separately or in combination, can cause
heat build-up and possible tire failure.
UNIFORM TIRE QUALITY GRADING
Technical and consumer information10-29

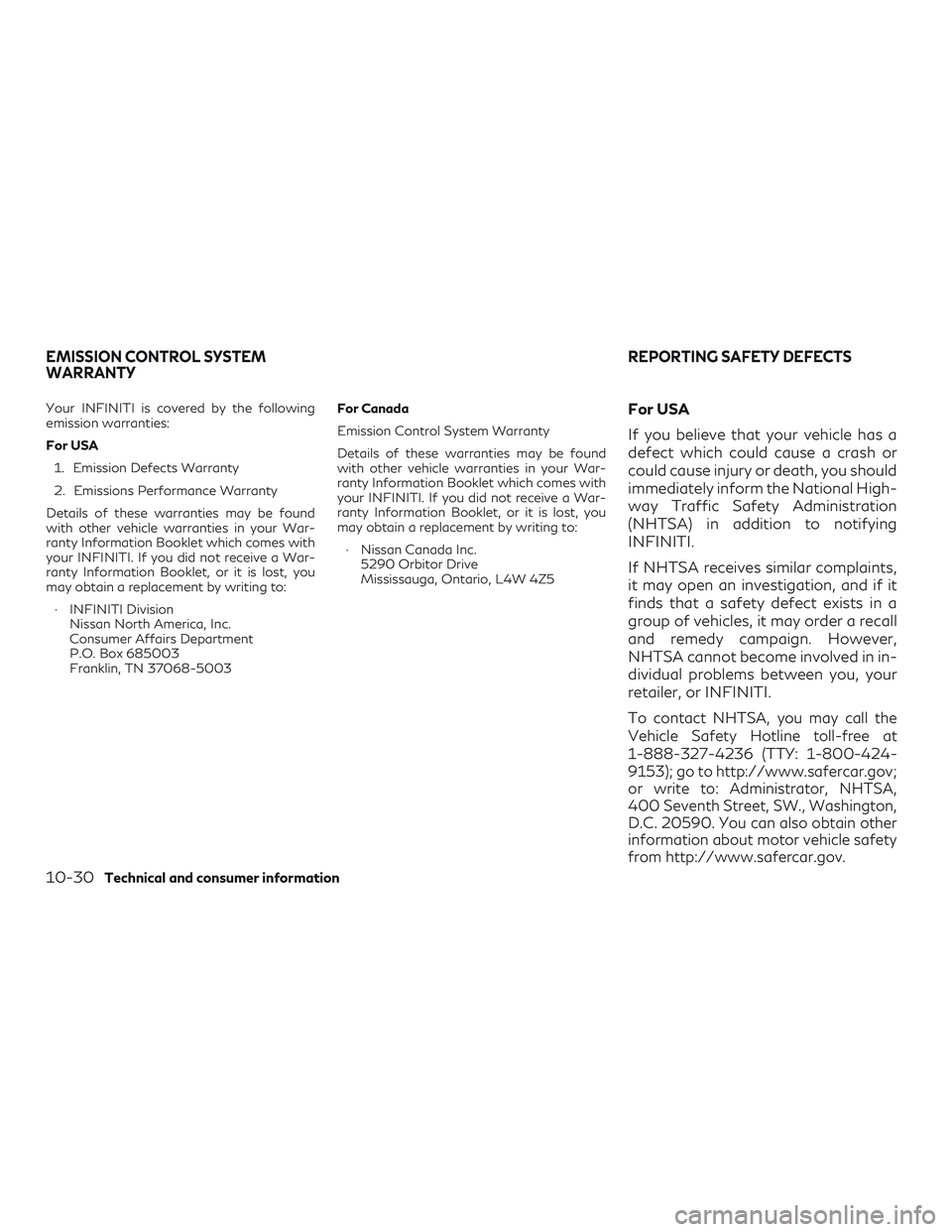

Your INFINITI is covered by the following
emission warranties:
For USA1. Emission Defects Warranty
2. Emissions Performance Warranty
Details of these warranties may be found
with other vehicle warranties in your War-
ranty Information Booklet which comes with
your INFINITI. If you did not receive a War-
ranty Information Booklet, or it is lost, you
may obtain a replacement by writing to: ∙ INFINITI Division Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003 For Canada
Emission Control System Warranty
Details of these warranties may be found
with other vehicle warranties in your War-
ranty Information Booklet which comes with
your INFINITI. If you did not receive a War-
ranty Information Booklet, or it is lost, you
may obtain a replacement by writing to:
∙ Nissan Canada Inc. 5290 Orbitor Drive
Mississauga, Ontario, L4W 4Z5For USA
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform the National High-
way Traffic Safety Administration
(NHTSA) in addition to notifying
INFINITI.
If NHTSA receives similar complaints,
it may open an investigation, and if it
finds that a safety defect exists in a
group of vehicles, it may order a recall
and remedy campaign. However,
NHTSA cannot become involved in in-
dividual problems between you, your
retailer, or INFINITI.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov;
or write to: Administrator, NHTSA,
400 Seventh Street, SW., Washington,
D.C. 20590. You can also obtain other
information about motor vehicle safety
from http://www.safercar.gov.
EMISSION CONTROL SYSTEM
WARRANTY REPORTING SAFETY DEFECTS
10-30Technical and consumer information

You may notify INFINITI by contacting
our Consumer Affairs Department,
toll-free, at 1-800-662-6200.
For Canada
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform Transport Canada
in addition to notifying INFINITI.
If Transport Canada receives com-
plaints, it may open an investigation,
and if it finds that a safety defect ex-
ists in a group of vehicles, it may re-
quest that INFINITI conduct a recall
campaign. However, Transport
Canada cannot become involved in in-
dividual problems between you, your
retailer, or INFINITI.
You may contact Transport Canada’s
Defect Investigations and Recalls Divi-
sion toll free at 1-800-333-0510. You
may also report safety defects online
at: https://wwwapps.tc.gc.ca/Saf-
Sec-Sur/7/PCDB-BDPP/fc-
cp.aspx?lang=eng (English speakers) orhttps://wwwapps.tc.gc.ca/Saf-Sec-
Sur/7/PCDB-BDPP/fc-
cp.aspx?lang=fra (French speakers)
Additional information concerning mo-
tor vehicle safety may be obtained from
Transport Canada’s Road Safety Infor-
mation Centre at 1-800-333-0371 or
online at www.tc.gc.ca/roadsafety
(English speakers) or
www.tc.gc.ca/securiteroutiere (French
speakers).
To notify INFINITI of any safety con-
cerns please contact our Consumer In-
formation Centre toll free at 1-800-
361-4792.
WARNING
A vehicle equipped with All-Wheel Drive
(AWD) should never be tested using a two
wheel dynamometer (such as the dyna-
mometers used by some states for emis-
sions testing), or similar equipment. Make
sure you inform the test facility personnel
that your vehicle is equipped with AWD be-
fore it is placed on a dynamometer. Using
the wrong test equipment may result in
transmission damage or unexpected vehicle
movement which could result in serious ve-
hicle damage or personal injury.
Due to legal requirements in some states and
Canadian Provinces, your vehicle may be re-
quired to be in what is called the “ready con-
dition” for an Inspection/Maintenance (I/M)
test of the emission control system.
The vehicle is set to the “ready condition”
when it is driven through certain driving pat-
terns. Usually, the ready condition can be
obtained by ordinary usage of the vehicle.
If a powertrain system component is repaired
or the battery is disconnected, the vehicle
may be reset to a “not ready” condition. Be-
fore taking the I/M test, check the vehicle’s
inspection/maintenance test readiness con-
dition. Place the ignition switch in the ON
position without starting the engine. If the
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST
Technical and consumer information10-31

Malfunction Indicator Light (MIL) comes on
steady for 20 seconds and then blinks for
10 seconds , the I/M test condition is “not
ready”. If the MIL does not blink after 20 sec-
onds, the I/M test condition is “ready”. It is
recommended that you visit an INFINITI re-
tailer to set the “ready condition” or to pre-
pare the vehicle for testing.The ProPILOT Assist is equipped with an
Event Data Recording function.
The main purpose is to record, in certain crash
or near crash-like situations, such as an air
bag deployment or hitting a road obstacle,
data that will assist in understanding how a
vehicle’s systems performed. The Data re-
cording function is designed to record data
related to driver operation, vehicle dynamics
and system status for a short period of time.
The Data recording function in this vehicle is
designed to record such data as:
∙ Driver operational status of accelerator, brake, handle etc.
∙ Detection status of a vehicle ahead and lane markers
∙ Vehicle information such as vehicle speed
∙ Information on the operation of the Pro- PILOT Assist
∙ ProPILOT Assist malfunction diagnosis information
∙ Images from multi-sensing front camera (Available only when SRS air bag or FEB
with Pedestrian Detection system is acti-
vated) The ProPILOT Assist does not record con-
versations, sounds or images of the inside of
the vehicle.
NISSAN and third parties entrusted by
NISSAN may use the data recorded for the
purpose of improving NISSAN’s vehicle
safety performance.
NISSAN and third parties entrusted by
NISSAN will not disclose/provide the re-
corded data to a third party except:
∙ With the consent of the vehicle owner or with the consent of the lessee In re-
sponse to an official request by the po-
lice, a court of law or a government of-
fice.
∙ For use as part of NISSAN’s defense of litigation
∙ For research purposes where the data is not tied to a specific vehicle or vehicle
owner
EVENT DATA RECORDERS (EDR)
10-32Technical and consumer information

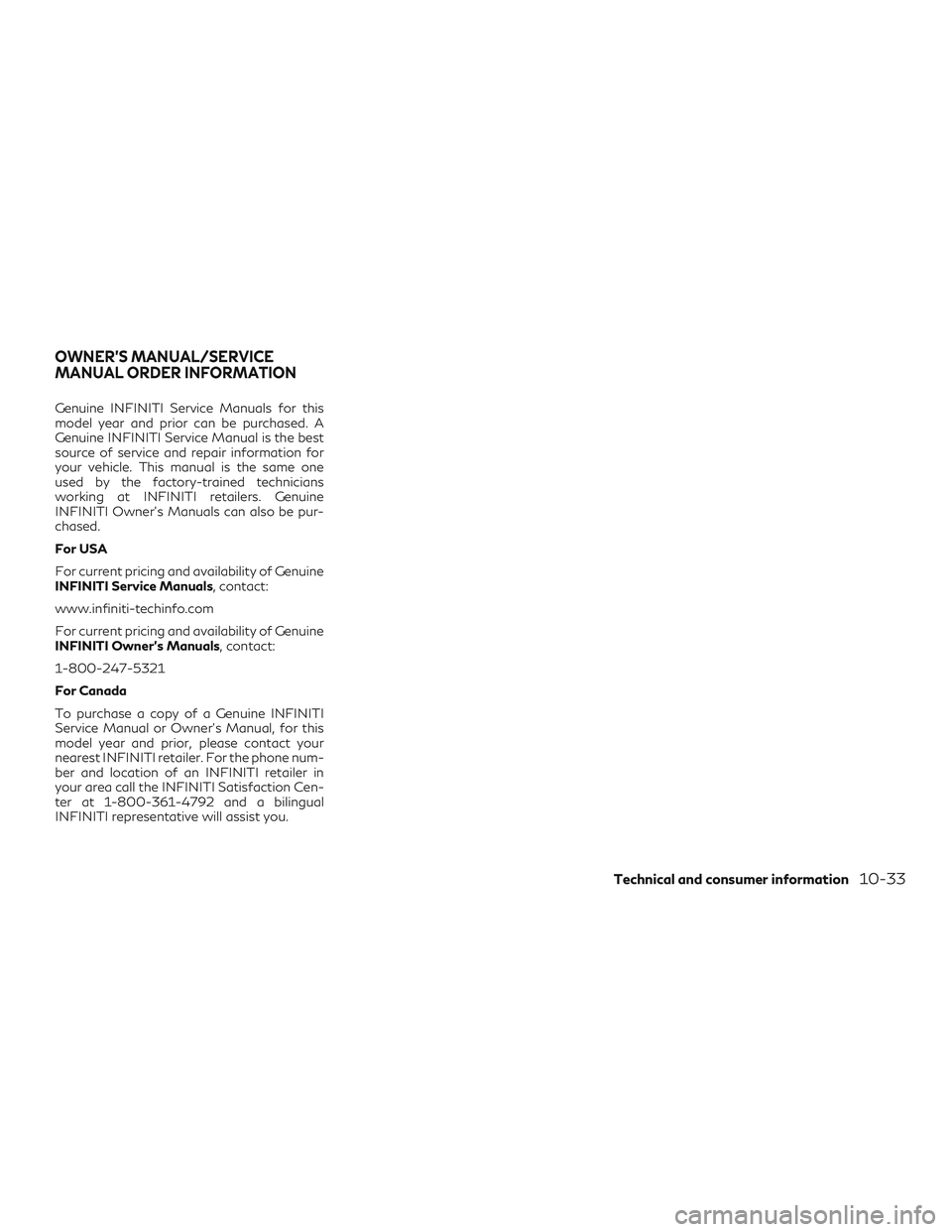

Genuine INFINITI Service Manuals for this
model year and prior can be purchased. A
Genuine INFINITI Service Manual is the best
source of service and repair information for
your vehicle. This manual is the same one
used by the factory-trained technicians
working at INFINITI retailers. Genuine
INFINITI Owner’s Manuals can also be pur-
chased.
For USA
For current pricing and availability of Genuine
INFINITI Service Manuals, contact:
www.infiniti-techinfo.com
For current pricing and availability of Genuine
INFINITI Owner’s Manuals, contact:
1-800-247-5321
For Canada
To purchase a copy of a Genuine INFINITI
Service Manual or Owner’s Manual, for this
model year and prior, please contact your
nearest INFINITI retailer. For the phone num-
ber and location of an INFINITI retailer in
your area call the INFINITI Satisfaction Cen-
ter at 1-800-361-4792 and a bilingual
INFINITI representative will assist you.
OWNER’S MANUAL/SERVICE
MANUAL ORDER INFORMATION
Technical and consumer information10-33

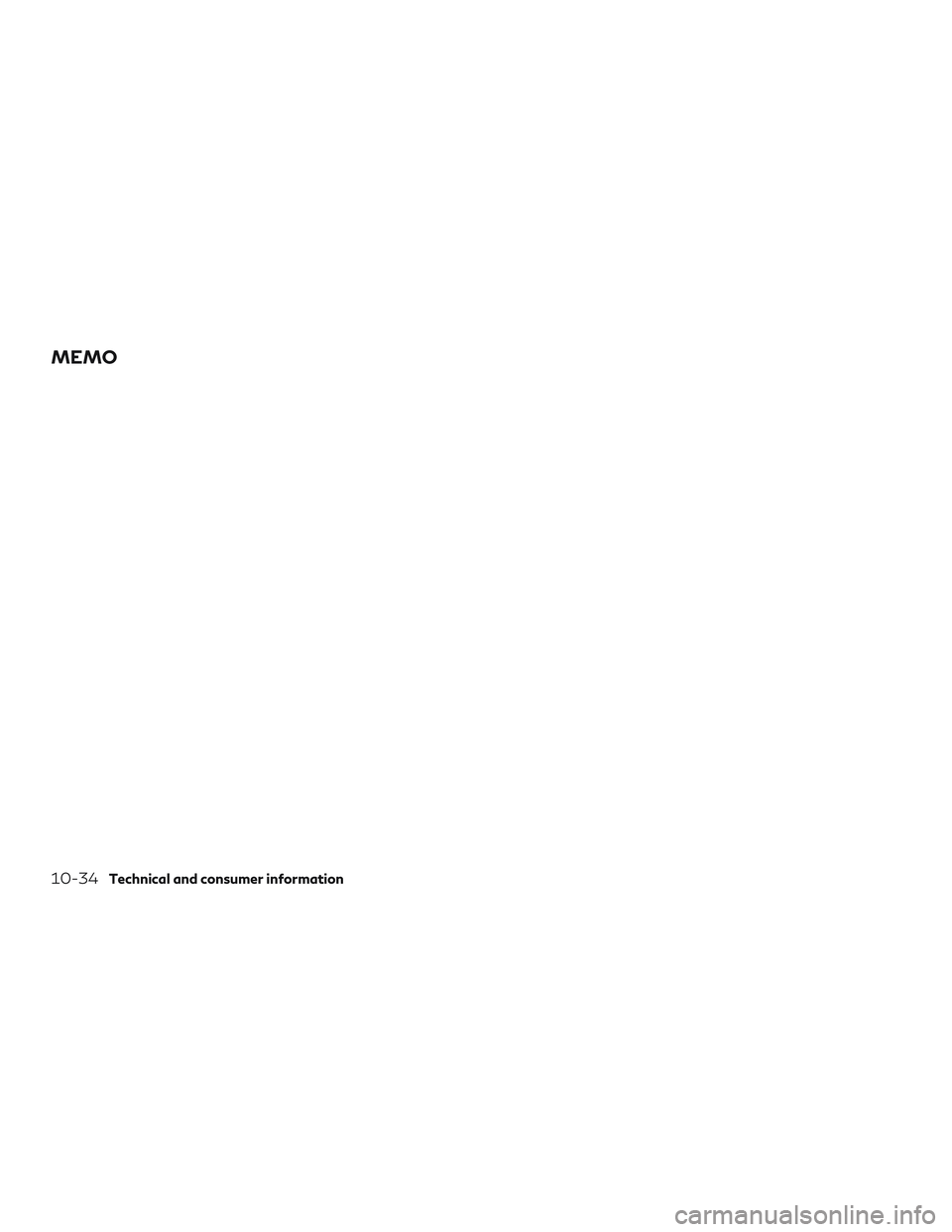

MEMO
10-34Technical and consumer information

11 Index
2nd row bench seat adjustment.......1-4
A
Active Engine Brake ............5-185
Active noise cancellation Active sound enhancement. .5-193, 5-194
Active Trace Control ............5-184
Aiming control, headlights .........2-44
Air bag (See supplemental restraint
system).....................1-43
Air bag system Front (See supplemental front impact air
bag system) ................1-51
Air bag warning labels ............1-63
Airbagwarninglight.........1-63,2-15
Air bag warning light,
supplemental ..............1-63,2-15
Air cleaner ...................8-15
Air cleaner housing filter ...........8-15
Air conditioner Air conditioner operation ........4-36
Air conditioner specification label . .10-12
Air conditioner system refrigerant and oil
recommendations ............10-7
Heater and air conditioner (automatic)
(if so equipped) ..............4-35
Heater and air conditioner controls . .4-36
Servicing air conditioner .........4-43
Alarm system
(See vehicle security system) ........2-33
Anchor point locations ............1-27 Antenna
....................4-44
Antifreeze ..................5-191
Anti-lock brake warning light ........2-10
Anti-lock Braking System (ABS) .....5-180
Armrests.....................1-5
Around View® Monitor ...........4-11
Audible reminders ...............2-19
Autolight switch ...............2-40
Automatic Automatic drive positioner . . .3-38, 3-40
Automatic power window switch . . .2-70
Automatic anti-glare inside mirror .....3-35
Automaticbrakehold ............5-26
Automatic door locks .............3-6
Automatic drive positioner .....3-38,3-40
B
Battery.................5- 191, 8-11
Charge warning light ...........2-11
Battery replacement .............8-21
INFINITI Intelligent Key .........8-21
Keyfob...................8-21
Before starting the engine ..........5-17
Belt (See drive belt) ..............8-13
Blind Spot Intervention® (BSI) .......5-54
Blind Spot Warning (BSW) .........5-46
Boosterseats.................1-40
Brake Anti-lock Braking System (ABS) . . .5-180
Brakefluid.................8-10
Brakelight(Seestoplight) .......8-23 Brake system
.............. 5-180
Brakewarninglight ...........2-10
Brake wear indicators ......2-19,8-18
Self-adjusting brakes ..........8-18
Brake Assist .................5-181
Brakefluid...................8-10
Brakes.....................8-18
Brake system ................5-180
Break-in schedule ..............5-171
Brightness control Instrument panel .............2-45
Bulb check/instrument panel ........2-10
Bulb replacement ...............8-23
C
Camera Aiding Sonar (parking sensor) . .4-24
Capacities and recommended
fuel/lubricants ................10-2
Cargoareastoragebin ...........2-61
Cargocover.................. 2-67
Cargo
(See vehicle

loading information) .....10-14
Car phone or CB radio ............4-44
Chassis control ...............5-184
Check tire pressure .............. 2-26
Child restraints .....1-20,1-20, 1-22, 1-24
LATCH (Lower Anchors and Tethers for
CHildren) System .............1-24
Precautions on child
restraints ......1-23, 1-29, 1-35, 1-40

Top tether strap anchor point
locations...................1-27
Child restraint with top tether strap ....1-27
Child safety rear door lock ...........3-6
Chimes, audible reminders ..........2-19
Cleaning exterior and interior ......7-2,7-4
Climate control seat switch .........2-47
C.M.V.S.S. certification label ........10-11
Cold weather driving .............5-191
Console box ..................2-58
Continuously Variable Transmission
(CVT) .......................5-19
Continuously Variable Transmission (CVT)
fluid.....................8-10
Driving with Continuously Variable
Transmission (CVT) ............5-19
Controls Heater and air conditioner controls . . .4-36
Coolant Capacities and recommended
fuel/lubricants...............10-2
Changing engine coolant ..........8-5
Checking engine coolant level .......8-5
Engine coolant temperature gauge ....2-6
Corrosion protection ..............7-7
Cruisecontrol..............5-75,5-76
Cupholders...................2-59
D
Diesel Particulate Filter (DPF) ........2-32
Dimensionsandweights...........10-9
Dimmer switch for instrument panel ....2-45
Distance Control Assist (DCA) system . .5-133
Door locks .................3-4,3-5 Drivebelt....................8-13
Drive positioner, Automatic
.....3-38,3-40
Driving Cold weather driving ...........5-191
Driving with Continuously Variable
Transmission (CVT) ............5-19
Precautions when starting and
driving .................5-4,5-11
Driving the vehicle ...............5-19
Dual panel moonroof .............2-71
Dual power moonroof .........2-71,2-71
Dynamic driver assistance switch
(for vehicles without ProPILOT Assist) . .2-49
E
E-call (SOS) Button ..............2-53
Economy - fuel ................5-173
Electronic parking brake ...........5-24
Emergency engine shutoff .......5-16,6-3
Emission control information label ....10-11
Emission control system warranty ....10-30
Engine Before starting the engine ........5-17
Block heater ................5-193
Capacities and recommended
fuel/lubricants...............10-2
Changing engine coolant ..........8-5
Changing engine oil .............8-6
Changing engine oil filter ..........8-6
Checking engine coolant level .......8-5
Checking engine oil level ..........8-6
Engine compartment check locations . .8-3
Engine coolant temperature gauge ....2-6
Engine cooling system ...........8-4 Engine oil
...................8-6
Engine oil and oil filter
recommendation ..............10-6
Engine oil pressure warning light ....2-11
Engine oil viscosity ............10-6
Engine serial number ..........10-11
Engine specifications ...........10-8
Starting the

engine ............5-17
Engine coolant temperature gauge ......2-6
Event Data recorders ............10-32
Exhaust gas (Carbon monoxide) .......5-4
Explanation of maintenance items ......9-2
Explanation of scheduled maintenance
items........................9-5
Extended storage switch ...........2-55
F
Flashers
(See hazard warning flasher switch) .....6-2
Flat tire ......................6-3
Floor mat positioning aid ............7-6
Fluid Brakefluid .................8-10
Capacities and recommended
fuel/lubricants............... 10-2
Continuously Variable Transmission (CVT)
fluid.....................8-10
Engine coolant ................8-4
Engine oil ...................8-6
Windshield-washerfluid.........8-11
F.M.V.S.S. certification label ........10-11
Fog light switch ................2-46
Forward Emergency Braking (FEB) with
Pedestrian Detection system ....2-12,5-150
11-2

Front air bag system
(See supplemental restraint system)....1-51
Front and rear sonar system ........5-187
Front and rear sonar system switch ....2-50
Front-door pocket ...............2-56
Front power seat adjustment .........1-3
Frontseats....................1-2
Fuel Capacities and recommended
fuel/lubricants...............10-2
Fuel economy ...............5-173
Fuel-filler door and cap ..........3-30
Fuel gauge ..................2-7
Fueloctanerating.............10-5
Fuel recommendation ...........10-3
Loose fuel cap warning ..........2-26
Fuel efficient driving tips ..........5-172
Fuel-filler door .................3-30
Fuel gauge ....................2-7
Fuses ......................8-18
Fusiblelinks...................8-19
G
Garage door opener, HomeLink® Universal
Transceiver............2-76,2-78,2-79
Gascap.....................3-30
Gauge Engine coolant temperature gauge ....2-6
Fuel gauge ..................2-7
Odometer ...................2-5
Speedometer ..............2-4,2-5
Tachometer .................2-6
Trip odometer .............2-4,2-5
General maintenance ..............9-2 Glovebox....................2-58
Gloveboxlock.................2-58
Grocery hooks
.................2-62
H
Hazard warning flasher switch ........6-2
Headlight aiming control ...........2-44
Headlight and turn signal switch ......2-40
Headlights ...................8-23
Headlights, aiming control ..........2-44
Headlight switch ...............2-40
Head restraints ..................1-7
Head Up Display (HUD) ............2-51
Heated seats ..................2-48
Heater Heater and air conditioner (automatic)
(if so equipped) ...............4-35
Heater and air conditioner controls . . .4-36
Heater operation .............4-37
Heater and air conditioner (automatic) . . .4-35
Heater and air conditioner settings .....4-42
Hill start assist system ............5-186
HomeLink® Universal
Transceiver............2-76,2-78,2-79
Hood .......................3-23
Hook Luggage hook ...............2-61
Horn.......................2-46
I
Ignition switch Push-button ignition switch .......5-13Immobilizer system
..............5-17
Important vehicle information label . . . .10-11
In-cabin microfilter ..............8-15
Increasing fuel economy ..........5-173
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders) .............2-9,2-10,2-16
INFINITI Drive Mode Selector ........5-29
INFINITI Intelligent Key System .....3-2,
3-7
INFINITI
InTouch™ Owner's Manual .....4-2
INFINITI Vehicle Immobilizer
System ...............2-34,3-4,5-17
Inside automatic anti-glare mirror .....3-35
Instrument brightness control ........2-45
Instrument panel .............0-6,2-2
Instrument panel dimmer switch ......2-45
Intelligent All-Wheel Drive (AWD) .....5-173
Intelligent Cruise Control (ICC)
(for vehicles without ProPILOT Assist) . . .5-77
Intelligent Key system Key operating range ............3-8
Keyoperation ...............3-10
Mechanical key ...............3-3
Remote keyless entry operation .....3-14
Troubleshooting guide ..........3-17
Warningsignals ..............3-17
Interiorlight................... 2-74
ISOFIX child restraints ............1-24
J
Jump starting ............... 6-5, 8-12
11-3

K
Key.........................3-2
Key fob battery replacement .........8-21
Keyless entry With Intelligent Key system
(See Intelligent Key system) .......3-14
L
Label Tire and Loading Information label . .10-12
Labels Air conditioner specification label . . .10-12
C.M.V.S.S. certification label ......10-11
Emission control information label . .10-11
Engine serial number ..........10-11
F.M.V.S.S. certification label ......10-11
Tire and Loading Information label . .10-12
Vehicle identification number (VIN) . .10-10
Vehicle identification number (VIN)
plate....................10-10
Warning labels (for SRS) .........1-63
Lane Departure Prevention (LDP) .....5-40
Lane Departure Warning (LDW) ......5-35
LATCH (Lower Anchors and Tethers for
CHildren)System ...............1-24
LED Daytime Running Lights (DRL)
system......................2-44
License plate Installing the license plate ........10-12
Liftgate.....................3-23
Liftgaterelease ................3-28
Light Airbagwarninglight........1-63,2-15 Brakelight(Seestoplight)........8-23
Bulb check/instrument panel
......2-10
Bulb replacement .............8-23
Charge warning light ...........2-11
ExteriorandInteriorlights........8-23
Foglights..................8-23
Fog light switch ..............2-46
Headlight and turn signal switch ....2-40
Headlights .................8-23
Interiorlight.................2-74
Lightbulbs.................8-23
Low tire pressure warning light .....2-12
Low windshield-washer fluid warning
light .....................2-26
Passenger air bag and status light . . .1-54
Personal lights ...............2-75
Security indicator light ..........2-18
Trunklight..................2-75
Warning/indicator lights and audible
reminders ...........2-9,2-10,2-16
Lights......................8-23 Maplights..................2-75
Lock Child safety rear door lock .........3-6
Door locks ...............3-4,3-5
Gloveboxlock...............2-58
Liftgaterelease ..............3-28
Power door locks ...........3-5,3-6
Loose fuel cap warning ............2-26
Lowfuelwarninglight ........2-14,2-26
Low tire pressure warning light .......2-12
Low windshield-washer fluid warning
light .......................2-26
Luggage hook .................2-61
Luggage rack (see roof rack) .....2-62,2-63Luggage
(See vehicle loading information)
.....10-14
M
Maintenance Generalmaintenance............9-2
Inside the vehicle ..............9-3
Maintenance precautions .........8-2
Outside the vehicle .............9-2
Seat belt maintenance ..........1-19
Under the hood and vehicle ........9-4
Maintenance log ................9-13
Maintenance requirements ..........9-2
Maintenance schedules ..........9-7, 9-7
Maintenance under severe operation
conditions....................9-12
Malfunctionindicatorlight..........2-17
Maplights.................... 2-75
Memory Seat ..............3-38,3-40
Meters and gauges ...............2-4
Instrument brightness control ......2-45
Mirror Automatic anti-glare inside mirror . . .3-35
Outside mirrors ..............3-36
Rearview .................. 3-35
Vanity mirror................ 3-34
Mirrors .....................

3-35
Moonroof ................. 2-71, 7-5
Moving Object Detection (MOD) ......4-29
O
Octane rating (See fuel octane rating) . . .10-5
11-4
