To set the rain-sensing auto wiper system,
place the lever in the AUTO position
O1. The
wiper will sweep once while the ignition
switch is in the ON position.
The rain sensor sensitivity level can be ad-
justed by turning the knob toward the front
O2(High) or toward the rearO3(Low).
– High — High sensitive operation
– Low — Low sensitive operation
To turn the rain-sensing auto wiper system
off, rotate the lever to the OFF position, or
rotate the lever to the low or high position.
The rain-sensing feature may be disabled.
For additional information, refer to the sepa-
rate INFINITI InTouch™ Owner’s Manual.
REAR SWITCH OPERATION
WARNING
In freezing temperatures the washer solu-
tion may freeze on the rear window and
obscure your vision which may lead to an
accident. Warm the rear window with the
defroster before you wash the rear
window.
CAUTION
• Do not operate the washer continuously
for more than 30 seconds.
• Do not operate the washer if the
windshield-washer fluid reservoir is
empty.
• Do not fill the windshield-washer fluid
reservoir with windshield-washer fluid
concentrates at full strength. Some
methyl alcohol based windshield-washer
fluid concentrates may permanently
stain the grille if spilled while filling the
windshield-washer fluid reservoir.
• Pre-mix windshield-washer fluid con-
centrates with water to the manufactur-
er’s recommended levels before pouring
the fluid into the windshield-washer
fluid reservoir. Do not use the
windshield-washer fluid reservoir to mix
the windshield-washer fluid concentrate
and water.
LIC4244
2-34Instruments and controls

–When the headlights of the oncoming
vehicle or the leading vehicle are
turned off, when the color of the light
is affected due to foreign materials on
the lights, or when the light beam is
out of position.
– When there is a sudden, continuous
change in brightness.
– When driving on a road that passes
over rolling hills, or a road that has
level differences.
– When driving on a road with many
curves.
– When a sign or mirror-like surface is
reflecting intense light towards the
front of the vehicle.
– When the container, etc. being towed
by a leading vehicle is reflecting in-
tense light.
– When a headlight on your vehicle is
damaged or dirty.
– When the vehicle is leaning at an
angle due to a punctured tire, being
towed, etc. •
The timing of switching the low beam
and high beam may change under the fol-
lowing situations.
– The brightness of the headlights of
the oncoming vehicle or leading
vehicle.
– The movement and direction of the
oncoming vehicle and the leading
vehicle.
– When only one light on the oncoming
vehicle or the leading vehicle is
illuminated.
– When the oncoming vehicle or the
leading vehicle is a two-wheeled
vehicle.
– Road conditions (incline, curve, the
road surface, etc.).
– The number of passengers and the
amount of luggage.
High Beam Assist operation
To activate the High Beam Assist system,
turn the headlight switch to the AUTO posi-
tion
O1and push the lever forwardO2(high
beam position). The High Beam Assist indica-
tor light in the meter will illuminate while the
headlights are turned on.
If the High Beam Assist indicator light does
not illuminate in the above condition, it may
indicate that the system is not functioning
properly. Have the system checked. It is rec-
ommended that you visit an INFINITI retailer
for this service.
LIC3819
2-38Instruments and controls

Adaptive Front lighting System
(AFS) (if so equipped)
The Adaptive Front lighting System (AFS) will
automatically adjust the headlights (low
beam) toward the turning direction to im-
prove the driver’s view. When the headlight
switch is ON and the driver operates the
steering wheel in a turn, the AFS system will
be activated.
The AFS will operate:
• when the headlight switch is ON.
• when the shift lever is in any position otherthan P (Park) or R (Reverse).
• when the vehicle is driven at above 16 mph (25 km/h) for the left-side headlight. Note
that the right-side low beam headlight will
swivel but the left side will not swivel when
the vehicle is at a stop and the steering
wheel is turned. The vehicle must attain a
speed above 16 mph (25 km/h) before AFS
activates the left-side headlight.
AFS will also adjust the headlight to a proper
axis automatically, depending on the number
of occupants in the vehicle, the load the ve-
hicle is carrying and the road conditions. If the AFS OFF indicator blinks or the vehicle
information display shows an AFS system
error message after the ignition switch has
been pushed to the ON position, this may
indicate that the AFS is not functioning prop-
erly. Have the system checked. It is recom-
mended you visit an INFINITI retailer for this
service. When the engine is started, the head-
lights will vibrate to check the system condi-
tion. This is not a malfunction.
Automatic headlight aiming control
(if so equipped)
Your vehicle is equipped with an automatic
headlight levelling system. The headlight axis
is controlled automatically.
INFINITI recommends that you consult the
local regulations on the use of lights.
LED DAYTIME RUNNING LIGHTS
(DRL) SYSTEM
The LED portion of the headlights automati-
cally illuminate at 100% intensity when the
engine is started and the parking brake re-
leased. The LED Daytime Running Lights
(DRL) system operates with the headlight
switch in the OFF position. When you turn
the headlight switch to the
position for
full illumination, the LED lights switch from
LED DRL system to the park function. If the parking brake is applied before the
engine is started, the LED DRL system does
not illuminate. The LED DRL system illumi-
nates when the parking brake is released. The
LED DRL system will remain on until the
ignition switch is placed in the OFF position.
It is necessary at dusk to turn the headlight
switch on for interior controls and switches
to illuminate, as those remain off while the
switch is in the OFF position.
WARNING
When the LED DRL system is active, tail
lights on your vehicle are not on. It is nec-
essary at dusk to turn on your headlights.
Failure to do so could cause an accident
injuring yourself and others.
2-40Instruments and controls

SEATBACK POCKETS
The seatback pockets may be located on the
back of the driver’s and/or passenger’s seats.
The pockets can be used to store maps.
WARNING
To ensure proper operation of the driver’s
and/or front passenger's INFINITI Ad-
vanced Air Bag System (if so equipped),
please observe the following items:
• Do not allow a passenger in the rear seat
to push or pull on the seatback pocket or
head restraint/head rest. •
Do not place heavy loads heavier than
9.1 lbs. (4 kg) on the seatback, head
restraint/head rest or in the seatback
pocket.
FRONT CONSOLE LID
The front console lid covers the front console
storage tray and the front cup holders.
Slide the pocket lid towards the front of the
vehicle to open.
LIC1328LIC4550
Instruments and controls2-51

POWER MOONROOF
The front moonroof is a power moonroof,
the rear moonroof is fixed glass. The power
moonroof will only operate when the ignition
switch is placed in the ON position. The
moonroof is operational for a period of time,
even if the ignition switch is placed in the OFF
position. If the driver's door or the front pas-
senger's door is opened during this period of
time, the power to the moonroof is canceled.
Sliding the moonroof
To slide the moonroof:
• To fully open the moonroof, push theswitch
O1toward the open position until it
reaches the second detent. If the switch
O1
is pushed to the first detent, only the sun-
shade will open.
• To fully close the moonroof, push the switch
O2toward the close position until it
reaches the second detent. If the switch
O2
is pushed to the first detent, the moonroof
will close but the sunshade will remain
open.
• To stop the moonroof during operation, push the
O1,O2orO3switch to the desired
position.
Tilting the moonroof
To tilt up, push the moonroof switchO3.To
tilt down the moonroof, push the switch
O3,
or the switch
O2to the first detent. When the
switch
O2is pushed to the second detent, the
moonroof will tilt down and the sunshade will
close.
Resetting the moonroof switch
If the moonroof does not operate properly,
perform the following procedure to initialize
the moonroof operation system.
1. If the moonroof and sunshade are open, close them fully by repeatedly pushing the
moonroof switch to the close
O2position.
2. Push and hold the moonroof switch to the close position
O2at the first detent.
3. After holding the switch for 10 seconds, the moonroof and sunshade move slightly
to the closed position and then move back
a little.
4. The moonroof and sunshade will fully open and then fully close automatically.
5. Release the switch. Check if the moonroof switch operates normally.
If the moonroof does not operate properly
after performing the procedure above, have
your vehicle checked. It is recommended that
you visit an INFINITI retailer for this service.
Auto-reverse function
(when closing or tilting down the
moonroof)
The auto-reverse function can be activated
when the moonroof and sunshade are closed
LIC3912
MOONROOF (if so equipped)
2-66Instruments and controls

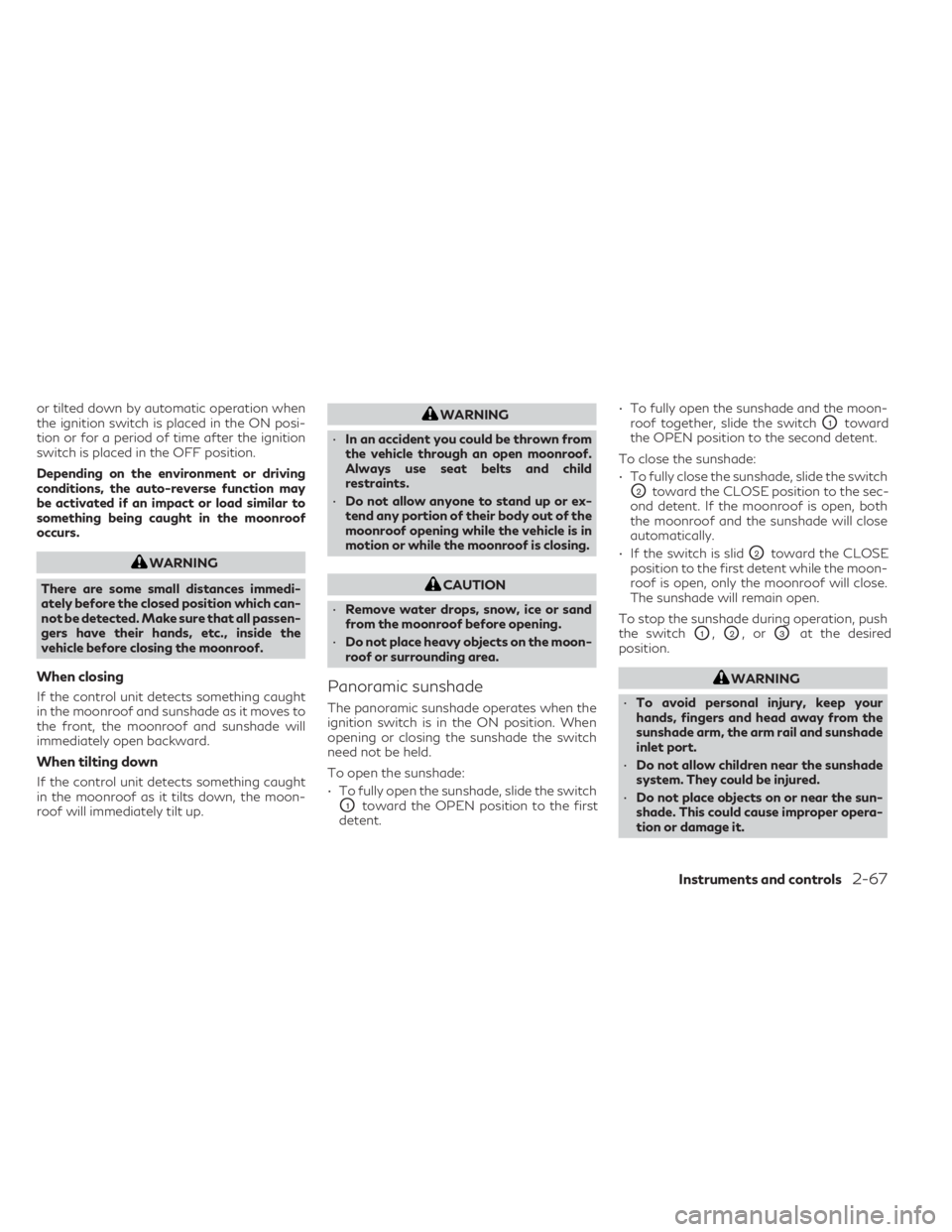

or tilted down by automatic operation when
the ignition switch is placed in the ON posi-
tion or for a period of time after the ignition
switch is placed in the OFF position.
Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the moonroof
occurs.
WARNING
There are some small distances immedi-
ately before the closed position which can-
not be detected. Make sure that all passen-
gers have their hands, etc., inside the
vehicle before closing the moonroof.
When closing
If the control unit detects something caught
in the moonroof and sunshade as it moves to
the front, the moonroof and sunshade will
immediately open backward.
When tilting down
If the control unit detects something caught
in the moonroof as it tilts down, the moon-
roof will immediately tilt up.
WARNING
• In an accident you could be thrown from
the vehicle through an open moonroof.
Always use seat belts and child
restraints.
• Do not allow anyone to stand up or ex-
tend any portion of their body out of the
moonroof opening while the vehicle is in
motion or while the moonroof is closing.
CAUTION
• Remove water drops, snow, ice or sand
from the moonroof before opening.
• Do not place heavy objects on the moon-
roof or surrounding area.
Panoramic sunshade
The panoramic sunshade operates when the
ignition switch is in the ON position. When
opening or closing the sunshade the switch
need not be held.
To open the sunshade:
• To fully open the sunshade, slide the switch
O1toward the OPEN position to the first
detent. • To fully open the sunshade and the moon-
roof together, slide the switch
O1toward
the OPEN position to the second detent.
To close the sunshade:
• To fully close the sunshade, slide the switch
O2toward the CLOSE position to the sec-
ond detent. If the moonroof is open, both
the moonroof and the sunshade will close
automatically.
• If the switch is slid
O2toward the CLOSE
position to the first detent while the moon-
roof is open, only the moonroof will close.
The sunshade will remain open.
To stop the sunshade during operation, push
the switch
O1,O2,orO3at the desired
position.
WARNING
• To avoid personal injury, keep your
hands, fingers and head away from the
sunshade arm, the arm rail and sunshade
inlet port.
• Do not allow children near the sunshade
system. They could be injured.
• Do not place objects on or near the sun-
shade. This could cause improper opera-
tion or damage it.
Instruments and controls2-67

INFINITI VEHICLE IMMOBILIZER
SYSTEM KEYS
Additional or replacement keys:
If you still have a key, the key number is not
necessary when you need extra INFINITI Ve-
hicle Immobilizer System keys. Your existing
key can be duplicated without knowing the
key number. As many as four INFINITI Ve-
hicle Immobilizer System keys can be used
with one vehicle. You should bring all
INFINITI Vehicle Immobilizer System keys
that you have to the INFINITI retailer for
registration. This is because the registration
process will erase the memory of all key
codes previously registered into the INFINITI
Vehicle Immobilizer System. After the regis-
tration process, these components will only
recognize keys coded into the INFINITI Ve-
hicle Immobilizer System during registration.
Any key that is not given to the retailer at the
time of registration will no longer be able to
start your vehicle.
CAUTION
Do not allow the immobilizer system key,
which contains an electrical transponder,
to come into contact with water or salt
water. This could affect system function. When the doors are locked using one of the
following methods, the doors cannot be
opened using the inside or outside door
handles. The doors must be unlocked to open
the doors.
WARNING
• Always have the doors locked while driv-
ing. Along with the use of seat belts, this
provides greater safety in the event of an
accident by helping to prevent persons
from being thrown from the vehicle. This
also helps keep children and others from
unintentionally opening the doors, and
will help keep out intruders.
• Before opening any door, always look for
and avoid oncoming traffic.
• To help avoid risk of injury or death
through unintended operation of the ve-
hicle and/or its systems, including en-
trapment in windows or inadvertent
door lock activation, do not leave chil-
dren, people who require the assistance
of others or pets unattended in your ve-
hicle. Additionally, the temperature in-
side a closed vehicle on a warm day can
quickly become high enough to cause a
significant risk of injury or death to
people and pets.
LOCKING WITH KEY
To lock or unlock the driver’s door, turn the
key toward the front of the vehicle
O1.
To unlock the driver’s door, turn the key to-
ward the rear of the vehicle
O3, then return it
to the neutral position
O2.
LPD2750
Driver’s door
DOORS
3-4Pre-driving checks and adjustments

•Make sure to engage the P (Park) posi-
tion and apply the parking brake when
parking your vehicle, riding on or off the
vehicle or loading luggage. Failure to do
so could cause the vehicle to move or roll
away unexpectedly and result in serious
personal injury or property damage.
The Intelligent Key system can operate all the
door locks using the remote control function
or pushing the request switch on the vehicle
without taking the key out from a pocket or
purse. The operating environment and/or
conditions may affect the Intelligent Key sys-
tem operation.
Be sure to read the following before using the
Intelligent Key system.
CAUTION
• Be sure to carry the Intelligent Key with
you when operating the vehicle.
• Never leave the Intelligent Key in the ve-
hicle when you leave the vehicle. The Intelligent Key is always communicating
with the vehicle as it receives radio waves.
The Intelligent Key system transmits weak
radio waves. Environmental conditions may
interfere with the operation of the Intelligent
Key system under the following operating
conditions:
• When operating near a location where
strong radio waves are transmitted, such as
a TV tower, power station and broadcast-
ing station.
• When in possession of wireless equipment, such as a cellular telephone, transceiver or
a CB radio.
• When the Intelligent Key is in contact with or covered by metallic materials.
• When any type of radio wave remote con- trol is used nearby.
• When the Intelligent Key is placed near an electric appliance such as a personal
computer.
• When the vehicle is parked near a parking meter.
In such cases, correct the operating condi-
tions before using the Intelligent Key function
or use the mechanical key. Although the life of the battery varies de-
pending on the operating conditions, the bat-
tery’s life is approximately two years. If the
battery is discharged, replace it with a new
one.
When the Intelligent Key battery is low, a
“Key Battery Low” indicator illuminates in the
vehicle information display. For additional in-
formation, see “Vehicle information display
warnings and indicators” (P. 2-21).
Since the Intelligent Key is continuously re-
ceiving radio waves, if the key is left near
equipment which transmits strong radio
waves, such as signals from a TV and per-
sonal computer, the battery life may become
shorter.
For additional information, see “Battery re-
placement” (P. 8-22).
CAUTION
Listed below are conditions or occurrences
which will damage the Intelligent Key:
• Do not allow the Intelligent Key, which
contains electrical components, to come
into contact with water or salt water.
This could affect the system function.
• Do not drop the Intelligent Key.
Pre-driving checks and adjustments3-7

A pinch strip is mounted on each side of the
liftgate. If an obstacle is detected by a pinch
strip during power close, the liftgate will re-
verse direction and return to the full open
position.
NOTE:
If the pinch strip is damaged or removed, the
power close function will not operate.
WARNING
There are some small distances immedi-
ately before the closed position which can-
not be detected. Make sure that all passen-
gers have their hands, etc., inside the
vehicle before closing the liftgate. Manual Mode:
If power operation is not available, the lift-
gate may be operated manually. Power op-
eration may not be available if multiple ob-
stacles have been detected in a single power
cycle or if the battery voltage is low.
If the power liftgate opener switch
OAis
pushed during power open or close, the
power operation will be canceled and the
liftgate can be operated manually.
To open the liftgate manually, unlock the
doors, push the liftgate opener switch
OAand
lift the liftgate.
To close, lower and push the liftgate down
securely.
MOTION-ACTIVATED LIFTGATE
(if so equipped)
The liftgate can be operated using a quick
kicking motion under the center of the rear
bumper.
To operate, the Intelligent Key must be within
31.5 in (80 cm) of the liftgate.
NOTE:
Tow hitches are available as an accessory for
this vehicle. If a tow hitch is installed, the
liftgate electronic control unit (ECU) needs
to be replaced with an ECU programmed
with towing logic for the Motion-Activated
Liftgate to function properly.
LPD2721
3-24Pre-driving checks and adjustments

CAUTION
• Interference or malfunction can be
caused by parking in close proximity to
radio or satellite towers.
• Intelligent Key interference could be
caused if you have your key fob stored
next to your cell phone or any RF-
enabled smart card. For additional infor-
mation, see “INFINITI Intelligent Key”
(P. 3-6).
POWER LIFTGATE MAIN
SWITCH
The power liftgate operation can be turned
ON
OAor OFFOBby the power liftgate main
switch located in the glove box.
When the power liftgate main switch is
pushed to the OFF position, the power op-
eration is not available by the power liftgate
switch or liftgate request switch on the
liftgate.
Power operation is only available when the
power liftgate main switch is in the OFF po-
sition by pressing the liftgate button on the
key fob. Motion-Activated Liftgate (if so equipped)
will not function when the power liftgate
main switch is in the OFF position.
LIFTGATE RELEASE
WARNING
• Always be sure the liftgate has been
closed securely to prevent it from open-
ing while driving.
• Do not drive with the liftgate open. This
could allow dangerous exhaust gases to
be drawn into the vehicle. For additional
information, see “Exhaust gas (carbon
monoxide)” (P. 5-4).
• To avoid personal injury, do not attempt
to activate the power liftgate if one or
both of the liftgate struts are removed.
CAUTION
• If the power liftgate does not stay open
or if the liftgate unexpectedly closes at
any time while a continuous warning
chime sounds, do not operate the lift-
gate. There may be a pressure loss in one
or both of the liftgate struts. It is recom-
mended that you have the liftgate in-
spected. It is recommended that you visit
an INFINITI retailer for this service.
LPD2723
3-26Pre-driving checks and adjustments
