warning light INFINITI QX50 2022 Owners Manual

–When the vehicle is equipped with
non-original brake or suspension
parts
– When an object that obstructs the
camera unit detection range is
attached
– When excessively heavy baggage is
loaded in the rear seat or luggage
area of your vehicle
– When the vehicle load capacity is
exceeded
– When towing a trailer or other vehicle
• Excessive noise will interfere with the
warning chime sound, and the beep may
not be heard.
• For the ProPILOT Assist system to oper-
ate properly, the windshield in front of
the camera must be clean. Replace worn
wiper blades. The correct size wiper
blades must be used to help make sure
the windshield is kept clean. Only use
Genuine INFINITI wiper blades, or
equivalent wiper blades, that are specifi-
cally designed for use on your vehicle
model and model year. It is recommended
that you visit your INFINITI retailer for
the correct parts for your vehicle.Steering Assist temporary standby
Automatic standby due to driving operation:
When the driver activates the turn signal, the
Steering Assist is temporarily placed in a
standby mode. (The Steering Assist restarts
automatically when the operating conditions
are met again.)
Automatic standby:
In the following cases, a warning message is
displayed along with the chime, and the
Steering Assist is placed in a temporary
standby mode. (The Steering Assist restarts
automatically when the operating conditions
are met again.)
• When lane markers on both sides are no longer detected
• When a vehicle ahead is no longer detected under approximately 37 mph (60 km/h)
Steering Assist cancel
Under the following conditions, the Steering
Assist cancels, and the Steering Assist status
indicator and the Steering Assist indicator
turn off: • When unusual lane markers appear in the
traveling lane or when the lane marker can-
not be correctly detected for some time due
to certain conditions (for example, a snow
rut, the reflection of light on a rainy day, the
presence of several unclear lane markers)
• When the windshield wiper operates in the high (HI) speed operation (the Steering As-
sist is disabled when the wiper operates for
more than approximately 10 seconds)
Action to take:
Turn the ICC system off using the CANCEL
switch. When the conditions listed above are
no longer present, turn the ICC system on
again.
Steering Assist malfunction
When the system malfunctions, it turns off
automatically. The Steering Assist status
warning illuminates (orange). A chime may
sound depending on the situation.
Action to take:
Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the en-
gine off, restart the engine, resume driving,
and set the Intelligent Cruise Control system
again. If the warning (orange) continues to
illuminate, the Steering Assist is malfunction-
ing. Although the vehicle is still drivable under
5-98Starting and driving

To reset at a slower cruising speed, use one
of the following three methods:
1. Lightly tap the brake pedal. When the ve-hicle attains the desired speed, push the
SET- switch and release it.
2. Push and hold the SET- switch. Release the switch when the vehicle slows down
to the desired speed.
3. Push, then quickly release the SET- switch. Each time you do this, the set
speed will decrease by about 1 mph (1
km/h).
To resume the preset speed, push and release
the RES+ switch. The vehicle will resume the
last set cruising speed when the vehicle speed
is over 25 mph (40 km/h).WARNING
Failure to follow the warnings and instruc-
tions for proper use of the RAB system
could result in serious injury or death.
• The RAB system is a supplemental aid to
the driver. It is not a replacement for
proper driving procedures. Always use
the side and rear mirrors and turn and
look in the direction you will move before
and while backing up. Never rely solely
on the RAB system. It is the driver’s re-
sponsibility to stay alert, drive safely,
and be in control of the vehicle at all
times.
• Inclement weather or ultrasonic sources
such as an automatic car wash, a truck’s
compressed-air brakes or a pneumatic
drill may affect the function of the sys-
tem; this may include reduced perfor-
mance or a false activation.
• There is a limitation to the RAB system
capability. The RAB system is not effec-
tive in all situations.
The RAB system can assist the driver when
the vehicle is backing up and approaching
objects directly behind the vehicle. The RAB system detects obstacles behind
the vehicle using the parking sensors
O1lo-
cated on the rear bumper.
NOTE:
You can temporarily cancel the sonar func-
tion in the vehicle, but the RAB system will
continue to operate. For additional informa-
tion, see “Front and rear sonar system”
(P. 5-146).
LSD3559
REAR AUTOMATIC BRAKING (RAB)
Starting and driving5-103

RAB SYSTEM OPERATION
1RAB system warning light and RAB sys-
tem warning indicator
2Lower display buttons
3Center display (if so equipped) When the shift lever is in the R (Reverse)
position and the vehicle speed is less than
approximately 9 mph (15 km/h), the RAB
system operates.
If a risk of a collision with an obstacle is
detected when your vehicle is backing up, the
RAB system warning indicator will flash in the
vehicle information display, a red frame will
appear in the center display (for vehicles with
the Around View® Monitor system), and the
system will chime three times. The system will
then automatically apply the brakes. After
the automatic brake application, the driver
must depress the brake pedal to maintain
brake pressure.
NOTE:
• The brake lights of the vehicle come on
when braking is performed by the RAB
system.
• When the brakes operate, a noise may be heard. This is not a malfunction.
LSD3561
5-104Starting and driving

TURNING THE RAB SYSTEM
ON/OFF
Perform the following steps to turn the RAB
system ON or OFF.
1. Press the MENU button below the lowerdisplay screen.
2. Select “Driver Assistance.”
3. Select “Emergency Assist.”
4. Select “ON” to turn the “Backward” sys- tem on or off.
When the RAB system is turned off, the RAB
system warning light illuminates.
NOTE:
The RAB system will be automatically
turned on when the engine is restarted.
RAB SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
the RAB system. Failure to follow the
warnings and instructions for proper use of
the RAB system could result in serious in-
jury or death.
LSD3610
Starting and driving5-105

–Snow chains are used.
– Wheels or tires other than INFINITI
recommended are used.
– The brakes are cold at low ambient
temperatures or immediately after
driving has started.
– The braking force becomes poor due
to wet brakes after driving through a
puddle or washing the vehicle.
• Turn the RAB system off in the following
conditions to prevent the occurrence of
an unexpected accident resulting from
sudden system operation:
– The vehicle is towed.
– The vehicle is carried on a flatbed
truck.
– The vehicle is on the chassis
dynamometer.
– The vehicle drives on an uneven road
surface.
– Suspension parts other than those
designated as Genuine INFINITI
parts are used. (If the vehicle height
or the vehicle body inclination is
changed, the system may not detect
an obstacle correctly.)
– The vehicle is towing an object (if so
equipped). –
If a vehicle is using an accessory like a
bike rack, or cargo carrier that blocks
the sensors.
• Excessive noise (e.g., audio system vol-
ume, an open vehicle window) will inter-
fere with the chime sound, and it may not
be heard.
SYSTEM MALFUNCTION
If the RAB system malfunctions, it will be
turned off automatically, the RAB system
warning light will illuminate, and the “System
fault” warning message will appear in the
vehicle information display.
Action to take
If the warning light illuminates, park the ve-
hicle in a safe location, turn the engine off,
and restart the engine. If the warning light
continues to illuminate, have the RAB system
checked. It is recommended that you visit an
INFINITI retailer for this service.
NOTE:
If the RAB system cannot be operated tem-
porarily, the RAB system warning light
blinks.
SYSTEM MAINTENANCE
Observe the following items to ensure proper
operation of the system:
• Always keep the parking sensors
O1clean.
• If the parking sensors are dirty, wipe them off with a soft cloth while being careful to
not damage them.
• Do not subject the area around the parking sensors
O1to strong impact. Also, do not
remove or disassemble the parking sensors.
If the parking sensors and peripheral areas
are deformed in an accident, etc., have the
sensors checked. It is recommended that
you visit an INFINITI retailer for this service.
LSD3559
Starting and driving5-107

SYSTEM OPERATION1. Vehicle ahead detection indicator
2. FEB with Pedestrian Detection emer-gency warning indicator 3. FEB with Pedestrian Detection system
warning light
The FEB with Pedestrian Detection system
operates at speeds above approximately 3
mph (5 km/h). For the pedestrian detection
function, the FEB with Pedestrian Detection
system operates at speeds between 6 – 37
mph (10 – 60 km/h).
If a risk of a forward collision is detected, the
FEB with Pedestrian Detection system will
firstly provide the warning to the driver by
flashing the vehicle ahead detection indicator
(yellow) in the vehicle information display and
providing an audible alert. If the driver applies
the brakes quickly and forcefully after the
warning, and the FEB with Pedestrian De-
tection system detects that there is still the
possibility of a forward collision, the system
will automatically increase the braking force.
If the driver does not take action, the FEB with
Pedestrian Detection system issues the second
visual (flashing) (red and white) and audible
warning. If the driver releases the accelerator
pedal, then the system applies partial braking.
If the risk of a collision becomes imminent, the
FEB with Pedestrian Detection system applies
harder braking automatically.
While the FEB with Pedestrian Detection
system is operating, you may hear the sound
LSD3919
Starting and driving5-109

1. Press the MENU button below the lowerdisplay screen.
2. Select “Driver Assistance.”
3. Select “Emergency Assist.”
4. Select “ON” to turn the “Forward” system on or off.
When the FEB with Pedestrian Detection
system is turned off, the FEB with Pedestrian
Detection system warning light illuminates.
NOTE:
• The FEB with Pedestrian Detection sys- tem will be automatically turned on when
the engine is restarted.
• The Predictive Forward Collision Warning (PFCW) system (if so equipped) is inte-
grated into the FEB with Pedestrian De-
tection system. There is not a separate se-
lection in the lower display for the PFCW
system. When the FEB with Pedestrian
Detection is turned off, the PFCW system
is also turned off.
FEB WITH PEDESTRIAN
DETECTION SYSTEM
LIMITATIONS
WARNING
Listed below are the system limitations for
the FEB with Pedestrian Detection system.
Failure to operate the vehicle in accor-
dance with these system limitations could
result in serious injury or death.
• The FEB with Pedestrian Detection sys-
tem cannot detect all vehicles or pedes-
trians under all conditions.
• The FEB with Pedestrian Detection sys-
tem does not detect the following:
– Pedestrians that are small (for ex- ample, children), in a sitting position,
operating toys/skateboards, on
scooters or in wheelchairs, or not in
an upright standing or walking
position.
– Animals of any size.
– Obstacles (for examples, cargo or de- bris) on the roadway or roadside.
– Oncoming or crossing vehicles.
– Vehicles where the tires are difficult to see or the shape of the rear of the
vehicle is unclear or obstructed.
– Parked vehicles. •
The FEB with Pedestrian Detection sys-
tem has some performance limitations.
– If a stationary vehicle is in the vehi- cle’s path, the FEB with Pedestrian
Detection system will not function
when the vehicle approaches the sta-
tionary vehicle at speeds over ap-
proximately 50 mph (80 km/h).
– Pedestrian detection will not func- tion when the vehicle is driven at
speeds over approximately 37 mph
(60 km/h) or below approximately 6
mph (10km/h).
• For pedestrians, the FEB with Pedes-
trian Detection system will not issue the
first warning.
• The FEB with Pedestrian Detection sys-
tem may not function properly or detect
a vehicle or pedestrian ahead in the fol-
lowing conditions:
– In poor visibility conditions (such as rain, snow, fog, dust storms, sand
storms, smoke, and road spray from
other vehicles).
– If dirt, ice, snow, fog or other material is covering the radar sensor area or
camera area of windshield.
Starting and driving5-111

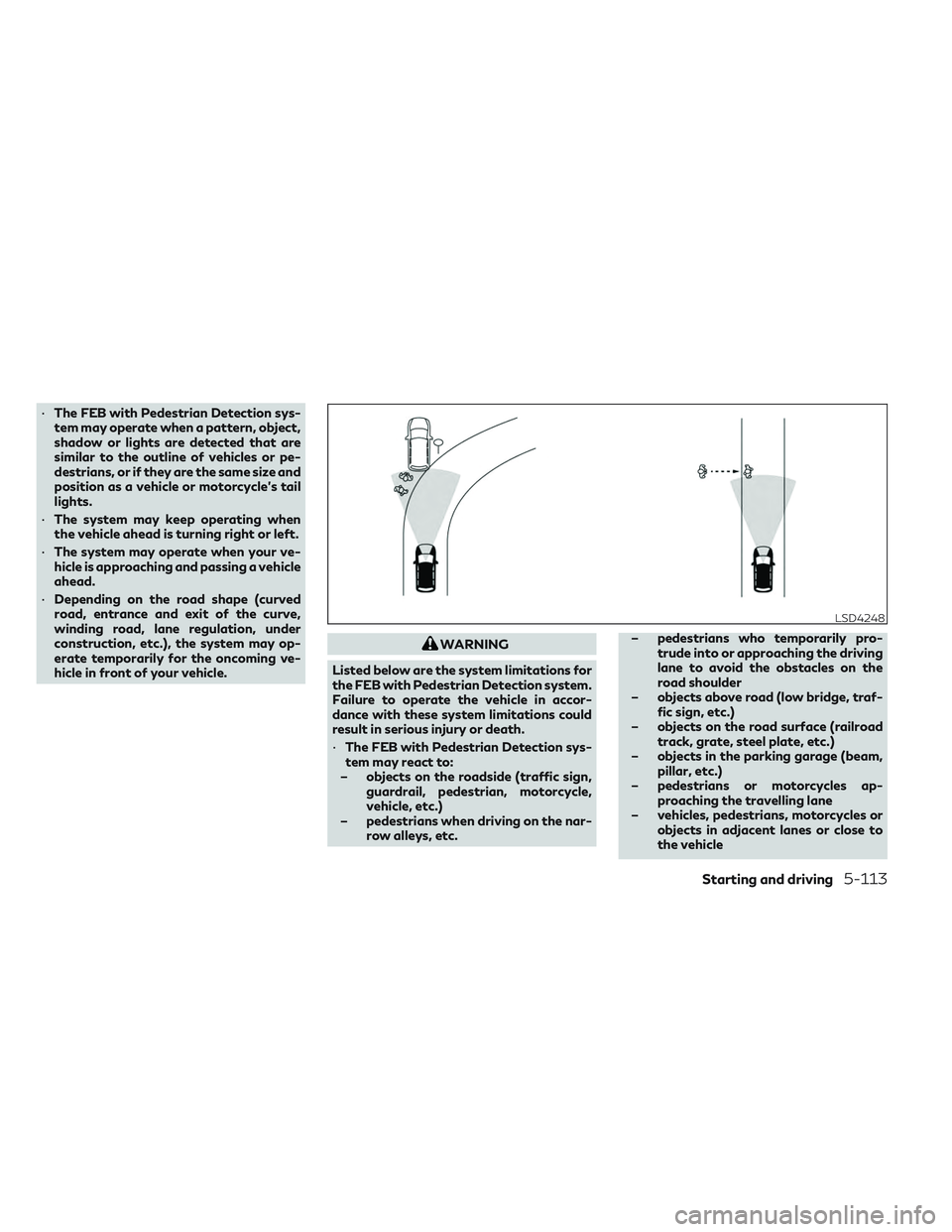

•The FEB with Pedestrian Detection sys-
tem may operate when a pattern, object,
shadow or lights are detected that are
similar to the outline of vehicles or pe-
destrians, or if they are the same size and
position as a vehicle or motorcycle’s tail
lights.
• The system may keep operating when
the vehicle ahead is turning right or left.
• The system may operate when your ve-
hicle is approaching and passing a vehicle
ahead.
• Depending on the road shape (curved
road, entrance and exit of the curve,
winding road, lane regulation, under
construction, etc.), the system may op-
erate temporarily for the oncoming ve-
hicle in front of your vehicle.
WARNING
Listed below are the system limitations for
the FEB with Pedestrian Detection system.
Failure to operate the vehicle in accor-
dance with these system limitations could
result in serious injury or death.
• The FEB with Pedestrian Detection sys-
tem may react to:
– objects on the roadside (traffic sign, guardrail, pedestrian, motorcycle,
vehicle, etc.)
– pedestrians when driving on the nar- row alleys, etc. – pedestrians who temporarily pro-
trude into or approaching the driving
lane to avoid the obstacles on the
road shoulder
– objects above road (low bridge, traf- fic sign, etc.)
– objects on the road surface (railroad track, grate, steel plate, etc.)
– objects in the parking garage (beam, pillar, etc.)
– pedestrians or motorcycles ap- proaching the travelling lane
– vehicles, pedestrians, motorcycles or objects in adjacent lanes or close to
the vehicle
LSD4248
Starting and driving5-113

SYSTEM TEMPORARILY
UNAVAILABLE
Condition A:
In the following conditions, the FEB with Pe-
destrian Detection system warning light
blinks and the system will be turned off
automatically.
• The radar sensor picks up interference fromanother radar source.
• The camera area of the windshield is misted or frozen.
• Strong light is shining from the front.
• The cabin temperature is over approxi- mately 104°F (40°C) in direct sunlight.
• The camera area of the windshield glass is continuously covered with dirt, etc.
Action to take
When the above conditions no longer exist,
the FEB with Pedestrian Detection system
will resume automatically.
NOTE:
When the inside of the windshield or camera
area is misted or frozen, it will take a period
of time to remove it after A/C turns ON. If
dirt appears on this area have it checked. It is
recommended that you visit an INFINITI re-
tailer for this service.
LSD3920
Starting and driving5-115

Condition B:
In the following conditions, the FEB with Pe-
destrian Detection system warning light will
illuminate, the system will be turned off au-
tomatically and the “Forward Driving Aids
temporarily disabled Front Sensor blocked
See Owner’s Manual” warning message will
appear in the vehicle information display.
• The sensor area of the front bumper iscovered with dirt or is obstructed.
Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe place, place the shift
position in the P (Park) position and turn the
engine off. Clean the radar sensor area of the
front bumper or the camera area of the wind-
shield with a soft cloth, and restart the en-
gine. If the warning light continues to illumi-
nate, have the FEB with Pedestrian
Detection system checked. It is recom-
mended that you visit an INFINITI retailer for
this service.
Condition C:
When driving on roads with limited road
structures or buildings (for example, long
bridges, deserts, snow fields, driving next to
long walls). Action to take
When the above conditions no longer exist,
the FEB with pedestrian detection system
will resume automatically.
NOTE:
If the FEB with Pedestrian Detection system
stops working, the PFCW system (if so
equipped) will also stop working.
SYSTEM MALFUNCTION
If the FEB with Pedestrian Detection system
malfunctions, it will be turned off automati-
cally, a chime will sound, the FEB with Pedes-
trian Detection system warning light (orange)
will illuminate and the warning message
[Malfunction] will appear in the vehicle infor-
mation display.
Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe location, turn the engine
off and restart the engine. If the warning light
continues to illuminate, have the FEB with
Pedestrian Detection system checked. It is
recommended that you visit an INFINITI re-
tailer for this service.
NOTE:
If the FEB with Pedestrian Detection system
stops working, the PFCW system (if so
equipped) will also stop working.
5-116Starting and driving
