INFINITI QX50 2022 User Guide

1. Engine hood (P. 3-21)
2. Wiper and washer switch (P. 2-32)Wiper blades (P. 8-17)
3. Windshield (P. 8-17) 4. Front camera (P. 5-30, 4-11, 4-29,
5-108)
5. Power windows (P. 2-66) 6. Door locks (P. 3-4)
INFINITI Intelligent Key system (P. 3-6)
Keys (P. 3-2)
7. Mirrors (P. 3-33) Side camera (if so equipped) (P. 4-11)
8. Tire pressure (P. 8-27) Flat tire (P. 6-3)
Tire chains (P. 8-38)
9. Replacing bulbs (P. 8-24) Headlight switch (P. 2-36)
Turn signal switch (P. 2-42)
LED Daytime Running Lights (DRL)
system (P. 2-41)
10. Fog light switch (if so equipped) (P. 2-43)
11. Sonar sensors (if so equipped) (P. 5-146)
12. Front view camera (if so equipped)
(P. 4-11)
See the page number indicated in parenthe-
ses for operating details.
LII2611
EXTERIOR FRONT
Illustrated table of contents0-3

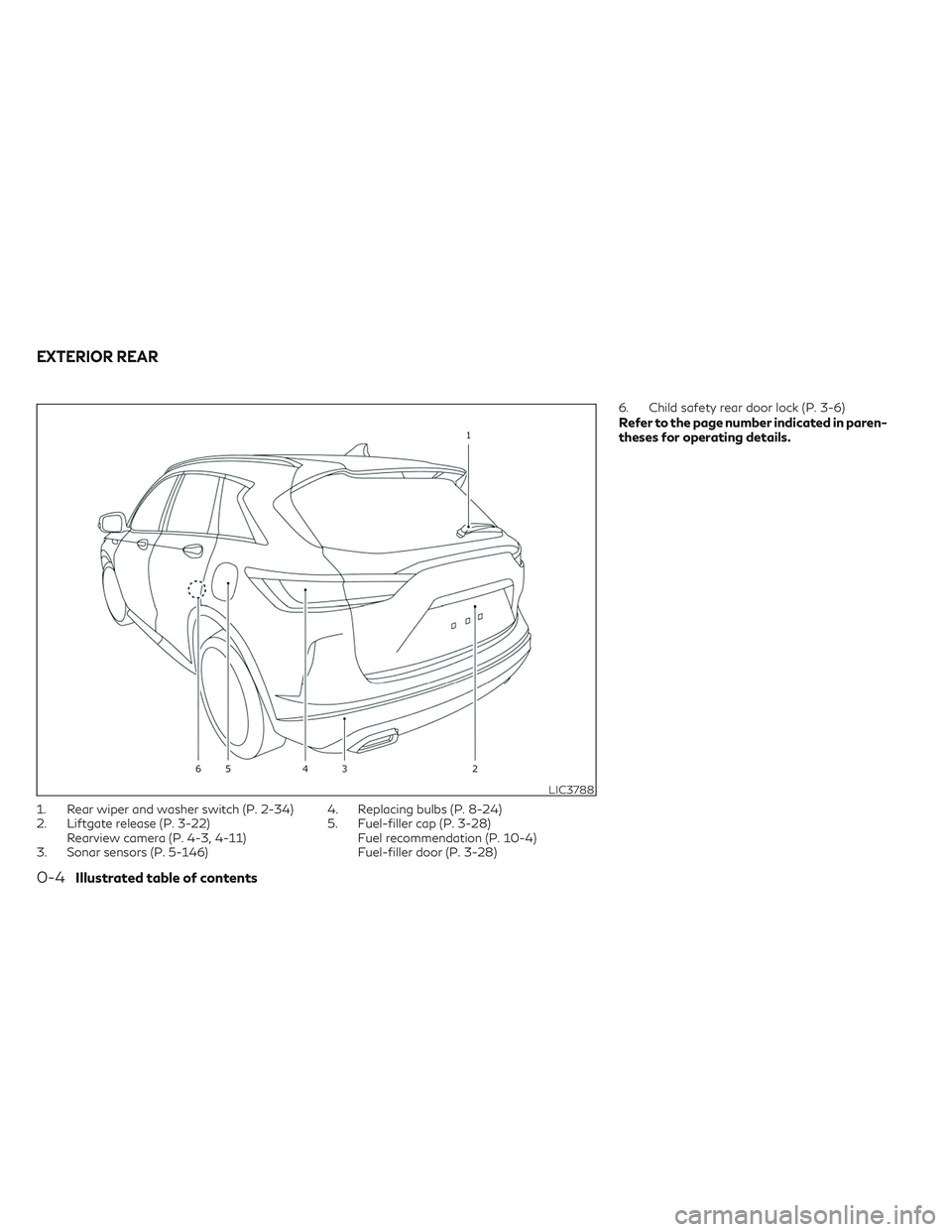

1. Rear wiper and washer switch (P. 2-34)
2. Liftgate release (P. 3-22)Rearview camera (P. 4-3, 4-11)
3. Sonar sensors (P. 5-146) 4. Replacing bulbs (P. 8-24)
5. Fuel-filler cap (P. 3-28)
Fuel recommendation (P. 10-4)
Fuel-filler door (P. 3-28) 6. Child safety rear door lock (P. 3-6)
Refer to the page number indicated in paren-
theses for operating details.
LIC3788
EXTERIOR REAR
0-4Illustrated table of contents

1. Moonroof (if so equipped) (P. 2-69)
2. Sun visors (P. 3-32)
3. Map lights (P. 2-72)
4. Sunglasses storage (P. 2-56)5. Rearview mirror (P. 3-33)
6. Glove box (P. 2-56)
7. Console box (P. 2-56)
8. Cup holders (P. 2-57)
Refer to the page number indicated in paren-
theses for operating details.
LIC3789
PASSENGER COMPARTMENT
Illustrated table of contents0-5

1. Vent (P. 4-34)
2. Bluetooth® Hands-Free Phone System*Steering wheel switch for audio control*
Center display multi-function control
buttons*
3. High beam/turn signal switch (P. 2-42) Paddle shifters (P. 5-21)
Trip reset switch (P. 2-5)
4. Driver supplemental air bag (P. 1-41) Horn (P. 2-44)
5. Meters and gauges (P. 2-4) Warning and indicator lights (P. 2-9)
Vehicle information display (P. 2-19)
6. Wiper and washer switch (P. 2-32) Rear wiper and washer switch (P. 2-34)
7. Automatic heater and air conditioning
controls (P. 4-35)
Driver side climate controlled seat
switches (if so equipped) (P. 2-44)
Driver side heated seat switches (if so
equipped) (P. 2-45)
8. Upper and lower displays* Navigation system* (if so equipped)
9. Automatic heater and air conditioning
controls (P. 4-35)
Passenger side climate controlled seat
switches (if so equipped) (P. 2-44)
Passenger side heated seat switches (if
so equipped) (P. 2-45)
LII2654
INSTRUMENT PANEL
0-6Illustrated table of contents

Rear window defroster, outside mirror
defroster (if so equipped), and wiper
deicer (if so equipped) switch (P. 2-35)
10. Front passenger supplemental air bag
(P. 1-41)
11. Front passenger supplemental knee air
bag (P. 1-59)
12. Glove box (P. 2-56)
13. Audio system controls* Front passenger air bag status light
(P. 1-49)
14. INFINITI controller*
15. Power outlet (P. 2-52) USB port*
Cup holders (P. 2-57)
Storage (P. 2-54)
16. Shift lever (P. 5-18)
17. Push-button ignition switch (P. 5-13) Electronic parking brake switch (P. 5-23)
Automatic brake hold switch (P. 5-25)
INFINITI Drive Mode Selector switch
(P. 5-28)
18. Hazard warning flasher switch (P. 6-2)
19. ProPILOT Assist Switch (P. 5-74) Cruise control switches (P. 5-76)
Distance control switch (P. 5-74)
Control panel and vehicle information
display switches (P. 2-19)
20. Driver supplemental knee air bag
(P. 1-59) 21. Tilt and telescopic steering wheel control
(P. 3-31)
22. Hood release (P. 3-21)
23. Instrument brightness control (P. 2-42) Front and rear sonar system switch
(if so equipped) (P. 2-47)
Steering assist switch (P. 2-47)
Instrument panel liftgate switch (P. 3-22)
Headlight switch (P. 2-36)
Fog light switch (if so equipped) (P. 2-43)
Head Up Display (HUD) OFF switch
(if so equipped) (P. 2-48)
*: Refer to the separate INFINITI InTouchTM
Owner's Manual.
Refer to the page number indicated in paren-
theses for operating details.
Illustrated table of contents0-7

2.0L 4 cylinder (KR20DDET engine model)
1. Engine coolant reservoir (P. 8-5)
2. Drive belt location (P. 8-15)
3. Air filter (P. 8-16)4. Brake fluid reservoir (P. 8-10)
5. Battery (P. 8-12)
6. Fuse/Fusible link box (P. 8-20)7. Windshield-washer fluid reservoir
(P. 8-11)
8. Engine oil filler cap (P. 8-6)
9. Engine oil dipstick (P. 8-6)
NOTE:
Your vehicle may not be equipped with an
engine cover.
Refer to the page number indicated in paren-
theses for operating details.
LDI3173
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents

Warning/Indicator
light (red) Name Page
or
Brake warning
light
2-10
Charge warning
light2-10
Electric shift con-
trol system
warning light 2-11
or
Electronic parking
brake indicator
light2-11
Warning/
Indicator
light (red) Name Page
Engine oil pressure
warning light
2-11
Master warning
light2-11
Pop-up engine
hood warning light2-12
Seat belt warning
light and chime 2-12
Security indicator
light2-12
Supplemental air
bag warning light2-12
Warning/
Indicator light
(yellow) Name Page
or
Anti-lock Braking
System (ABS)
warning light
2-13
or
Electronic parking
brake warning
light2-13
Forward Emer-
gency Braking
(FEB) with Pedes-
trian Detection
system warning
light2-13
WARNING/INDICATOR LIGHTS
Illustrated table of contents0-9

Warning/Indicator light
(yellow) Name Page
Front passenger
air bag status light
2-13
Low tire pressure
warning light2-13
Malfunction Indi-
cator Light (MIL) 2-15
Master warning
light2-15
Power steering
warning light2-16
Rear Automatic
Braking (RAB)
warning light2-16
Warning/
Indicator light
(yellow) Name Page
Slip indicator light 2-16
Vehicle Dynamic
Control (VDC)
OFF indicator light
2-17
Warning/
Indicator light
(other) Name Page
Automatic brake
hold indicator light
(white/green)
2-17
Eco drive indicator
light (green) (if so
equipped)2-17
Warning/
Indicator light
(other) Name Page
Front fog light in-
dicator light
(green) (if so
equipped) 2-17
High Beam Assist
indicator light
(green)
2-17
High beam indica-
tor light (blue)
2-17
Side light and
headlight indicator
light (green)2-18
Turn signal/hazard
indicator lights
(green)2-18
0-10Illustrated table of contents

1 Safety-Seats, seat belts and supplemental
restraint system
Seats............................................1-2
Front power seat adjustment ..................1-3
Rear bench seat adjustment ...................1-5
Armrest ......................................1-5
Flexible seating ...............................1-5
Head restraints/headrests .......................1-7
Adjustable head restraint/headrest
components ..................................1-8
Non-adjustable head restraint/headrest
components ..................................1-9
Remove ......................................1-9
Install ...................................... 1-10
Adjust ...................................... 1-10
Seat belts ....................................... 1-12
Precautions on seat belt usage ...............1-12
Seat belt warning light and chime .............1-15
Injured persons .............................. 1-15
Pregnant women ............................ 1-16
Three-point type seat belt with retractor ......1-16
Seat belt extenders .......................... 1-19
Seat belt maintenance .......................1-19
Child safety .................................... 1-20
Infants ..................................... 1-20Small Children
............................... 1-21
Larger children ............................... 1-21
Child restraints .................................. 1-22
Precautions on child restraints ................1-22
LATCH (Lower Anchors and Tethers for
CHildren) system ............................ 1-24
Rear-facing child restraint installation
using LATCH ................................ 1-27
Rear-facing child restraint installation
using the seat belts ......................... 1-29
Forward-facing child restraint installation
using LATCH ............................... 1-32
Forward-facing child restraint installation
using the seat belts ......................... 1-34
Booster seats ............................... 1-38
Supplemental Restraint System (SRS) ............1-41
Precautions on SRS .......................... 1-41
Supplemental air bag warning labels .........1-62
Supplemental air bag warning light ..........1-62
Pop-up engine hood ........................... 1-64
Pop-up engine hood activation
conditions ..................................
1-65

WARNING
• Do not ride in a moving vehicle when the
seatback is reclined. This can be danger-
ous. The shoulder belt will not be against
your body. In an accident, you could be
thrown into it and receive neck or other
serious injuries. You could also slide un-
der the lap belt and receive serious inter-
nal injuries. •
For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back and up-
right in the seat with both feet on the
floor and adjust the seat properly. For
additional information, see “Precautions
on seat belt usage” (P. 1-12).
• After adjustment, gently rock in the seat
to make sure it is securely locked.
• Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls or make the
vehicle move. Unattended children could
become involved in serious accidents. •
To help avoid risk of injury or death
through unintended operation of the ve-
hicle and/or its systems, do not leave
children, people who require the assis-
tance of others or pets unattended in
your vehicle. Additionally, the tempera-
ture inside a closed vehicle on a warm day
can quickly become high enough to cause
a significant risk of injury or death to
people and pets.
• Do not adjust the driver’s seat while
driving so full attention may be given to
vehicle operation. The seat may move
suddenly and could cause loss of control
of the vehicle.
• The seatback should not be reclined any
more than needed for comfort. Seat
belts are most effective when the pas-
senger sits well back and straight up in
the seat. If the seatback is reclined, the
risk of sliding under the lap belt and be-
ing injured is increased.
CAUTION
When adjusting the seat positions, be sure
not to contact any moving parts to avoid
possible injuries and/or damage.
ARS1152
SEATS
1-2Safety-Seats, seat belts and supplemental restraint system
