CAUTION
Be careful not to burn yourself, as the en-
gine oil is hot.
WARNING
• Prolonged and repeated contact with
used engine oil may cause skin cancer.
• Try to avoid direct skin contact with
used oil. If skin contact is made, wash
thoroughly with soap or hand cleaner as
soon as possible.
• Keep used engine oil out of reach of
children.
4. Loosen the oil filter with an oil filter wrench by turning it counterclockwise.
Remove the oil filter by turning it by hand.
5. Wipe the engine oil filter mounting sur- face with a clean rag.
CAUTION
Be sure to remove any old gasket material
remaining on the sealing surface of the en-
gine. Failure to do so could lead to an oil
leak and engine damage. •
The dipstick must be inserted in place to
prevent oil spillage from the dipstick hole
when filling the engine with oil.
6. Coat the gasket on the new filter with clean engine oil.
7. Screw in the oil filter clockwise until a slight resistance is felt, then tighten addi-
tionally more than 2/3 turn.
Oil filter tightening torque: 14.7 to 20.6 N·m (11 to 15 ft-lb)
8. Clean and re-install the drain plug with a new washer. Securely tighten the drain
plug with a wrench. Do not use excessive
force.
Drain plug tightening torque: 29.4 to 39.2 N·m (22 to 29 ft-lb)
9. Refill the engine with the recommended oil through the oil filler opening, and install
the oil filler cap securely.
For additional information about drain and
refill capacity, see “Recommended fluids/
lubricants and capacities” (P. 10-2). The drain
and refill capacity depends on the oil tem-
perature and drain time. Use these specifica-
tions for reference only. Always use the dip-
stick to determine the proper amount of oil in
the engine. 10. Start the engine and check for leakage
around the drain plug and the oil filter.
Correct as required. Turn the engine off
and wait more than 15 minutes. Check
the oil level with the dipstick. Add engine
oil if necessary.
After the operation
1. Reinstall engine protectors in reverse or-der of removal.
2. Lower the vehicle carefully to the ground.
3. Reset the oil control system. For addi- tional information, see “Oil control sys-
tem” (P. 2-20)
• Dispose of waste oil and filter properly.
• Check your local regulations.
Do-it-yourself8-9

WINDSHIELD-WASHER FLUID
RESERVOIR
Fill the windshield-washer fluid reservoir pe-
riodically. Add windshield-washer fluid when
the “Low Washer Fluid” warning message
shows on the vehicle information display.To fill the windshield-washer fluid reservoir,
lift the cap off the reservoir and pour the
windshield-washer fluid into the reservoir
opening.
Add a washer solvent to the washer for bet-
ter cleaning. In the winter season, add a
windshield-washer antifreeze. Follow the
manufacturer's instructions for the mixture
ratio.
Refill the reservoir more frequently when
driving conditions require an increased
amount of windshield-washer fluid.
Recommended fluid is Genuine NISSAN
Windshield Washer Concentrate Cleaner &
Antifreeze or equivalent.CAUTION
• Do not substitute engine antifreeze
coolant for windshield-washer fluid.
This may result in damage to the paint. •
Do not fill the windshield-washer fluid
reservoir with washer fluid concentrates
at full strength. Some methyl alcohol
based washer fluid concentrates may
permanently stain the grille if spilled
while filling the windshield-washer fluid
reservoir.
• Pre-mix washer fluid concentrates with
water to the manufacturer's recom-
mended levels before pouring the fluid
into the windshield-washer fluid reser-
voir. Do not use the windshield-washer
fluid reservoir to mix the washer fluid
concentrate and water.
LDI3162
WINDSHIELD-WASHER FLUID
Do-it-yourself8-11

Continuously Variable Transmission (CVT) P
(Park) position mechanism:On a fairly steep
hill check that the vehicle is held securely with
the shift position in the P (Park) position
without applying any brakes.
Parking brake: Check the parking brake op-
eration regularly. The vehicle should be se-
curely held on a fairly steep hill with only the
parking brake applied. If the parking brake
does not securely hold the vehicle, it is recom-
mended that you visit an INFINITI retailer for
service.
Seat belts: Check that all parts of the seat
belt system (for example, buckles, anchors,
adjusters and retractors) operate properly
and smoothly, and are installed securely.
Check the belt webbing for cuts, fraying,
wear or damage.
Seats: Check seat position controls such as
seat adjusters, seatback recliner, etc., to en-
sure they operate smoothly and all latches
lock securely in every position. Check that the
head restraints/headrests move up and
down smoothly and the locks (if so equipped)
hold securely in all latched positions.
Steering wheel: Check for changes in the
steering system, such as excessive free play,
hard steering or strange noises. Warning lights and chimes:
Make sure all
warning lights and chimes are operating
properly.
Windshield defroster: Check that the air
comes out of the defroster outlets properly
and in sufficient quantity when operating the
heater or air conditioner.
Windshield wiper and washer*: Check that
the wipers and washer operate properly and
that the wipers do not streak.
Under the hood and vehicle
The maintenance items listed here should be
checked periodically (for example, each time
you check the engine oil or refuel).
Battery (for maintenance free batteries)*:
This vehicle is equipped with a sealed main-
tenance free battery. It is recommended that
you visit an INFINITI retailer for this service.
NOTE:
Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:
1. Installation or extended use of electronic
accessories that consume battery power
when the engine is not running (Phone
chargers, GPS, DVD players, etc.). 2.
Vehicle is not driven regularly and/or
only driven short distances.
In these cases, the battery may need to be
charged to maintain battery health.
Brake fluid level*: Make sure that the brake
fluid level is between the MAX and MIN lines
on the reservoir.
Engine coolant level*: Check the coolant level
when the engine is cold.
Engine drive belt*: Make sure the drive belt is
not frayed, worn, cracked or oily.
Engine oil level*: Check the level after parking
the vehicle on a level spot and turning off the
engine. Wait more than 15 minutes for the oil
to drain back into the oil pan.
Exhaust system: Make sure there are no
loose supports, cracks or holes. If the sound
of the exhaust seems unusual or there is a
smell of exhaust fumes, immediately have the
exhaust system inspected. It is recommended
that you visit an INFINITI retailer for this
service. For additional information, see “Ex-
haust gas (carbon monoxide)” (P. 5-4).
Fluid leaks: Check under the vehicle for fuel,
oil, water or other fluid leaks after the vehicle
has been parked for a while. Water dripping
from the air conditioner after use is normal. If
you should notice any leaks or if fuel fumes
9-4Maintenance and schedules

are evident, check for the cause and have it
corrected immediately.
Radiator and hoses:Check the front of the
radiator and clean off any dirt, insects, leaves,
etc., that may have accumulated. Make sure
the hoses have no cracks, deformation, rot or
loose connections.
Underbody: The underbody is frequently ex-
posed to corrosive substances such as those
used on icy roads or to control dust. It is very
important to remove these substances, oth-
erwise rust may form on the floor pan, frame,
fuel lines and around the exhaust system. At
the end of winter, the underbody should be
thoroughly flushed with plain water, being
careful to clean those areas where mud and
dirt may accumulate. For additional informa-
tion, see “Cleaning exterior” (P. 7-2).
Windshield-washer fluid*: Check that there
is adequate fluid in the reservoir. The following descriptions are provided to
give you a better understanding of the sched-
uled maintenance items that should be regu-
larly checked or replaced. The maintenance
schedule indicates at which mileage/time in-
tervals each item requires service.
In addition to scheduled maintenance, your
vehicle requires that some items be checked
during normal day-to-day operation. For ad-
ditional information, see “General mainte-
nance” (P. 9-2).
Items marked with
“*”are recommended by
INFINITI for reliable vehicle operation. You
are not required to perform maintenance on
these items in order to maintain the warran-
ties which come with your INFINITI. Other
maintenance items and intervals are required.
When applicable, additional information can
be found in the “Do-it-yourself” section of
this manual.NOTE:
INFINITI does not advocate the use of non-
OEM approved aftermarket flushing sys-
tems and strongly advises against perform-
ing these services on an INFINITI product.
Many of the aftermarket flushing systems
use non-OEM approved chemicals or sol-
vents, the use of which has not been vali-
dated by INFINITI.
For recommended fuel, lubricants, fluids,
grease, and refrigerant, see “Recommended
fluids/lubricants and capacities” (P. 10-2).
EMISSION CONTROL SYSTEM
MAINTENANCE:
Engine Drive belt*: Check engine drive belt
for wear, fraying or cracking and for proper
tension. Replace any damaged drive belt.
Engine air filter: Replace at specified inter-
vals. When driving for prolonged periods in
dusty conditions, check/replace the filter
more frequently.
EXPLANATION OF SCHEDULED
MAINTENANCE ITEMS
Maintenance and schedules9-5

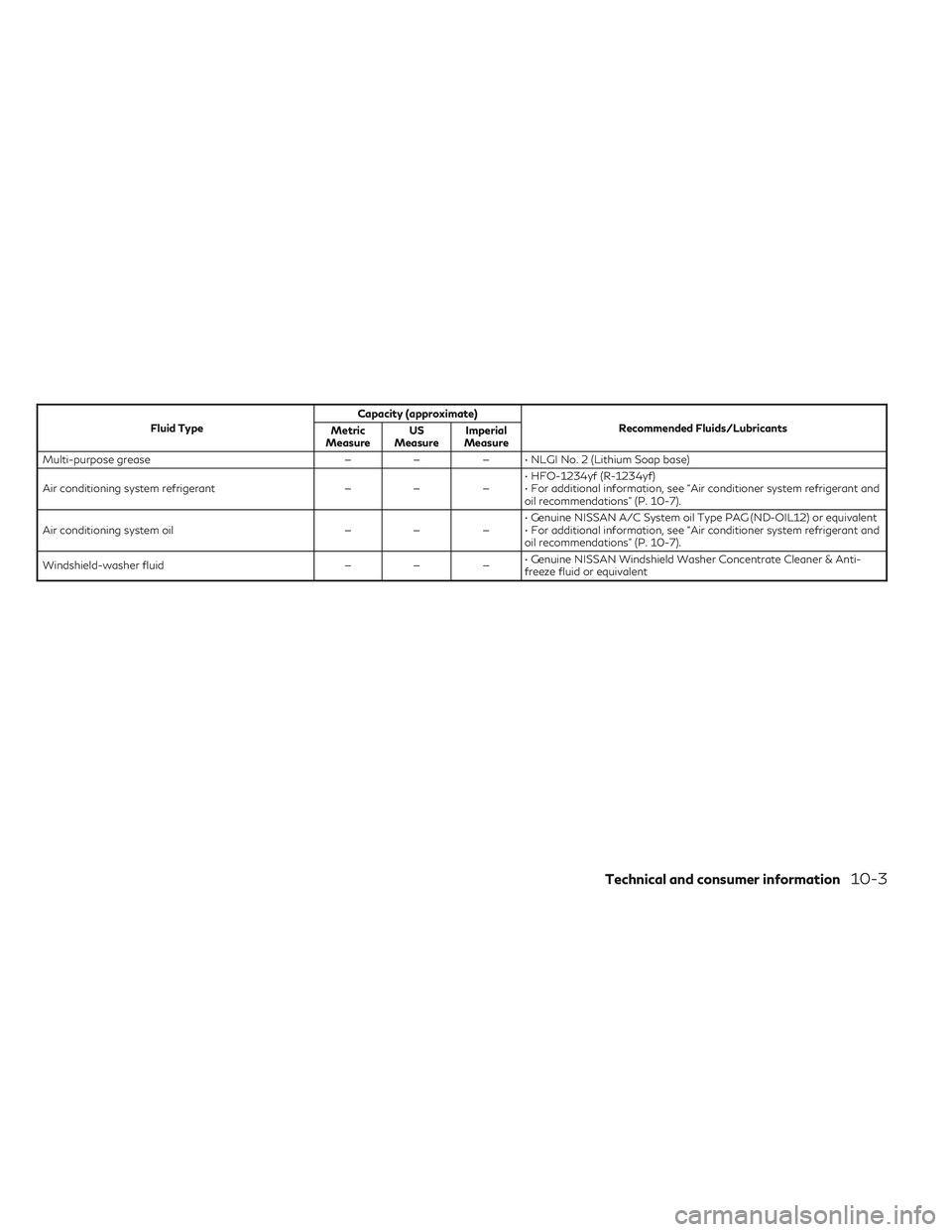

Fluid TypeCapacity (approximate)
Recommended Fluids/Lubricants
Metric
Measure US
Measure Imperial
Measure
Multi-purpose grease —— — • NLGI No. 2 (Lithium Soap base)
Air conditioning system refrigerant —— —• HFO-1234yf (R-1234yf)
• For additional information, see “Air conditioner system refrigerant and
oil recommendations” (P. 10-7).
Air conditioning system oil —— —• Genuine NISSAN A/C System oil Type PAG (ND-OIL12) or equivalent
• For additional information, see “Air conditioner system refrigerant and
oil recommendations” (P. 10-7).
Windshield-washer fluid —— —• Genuine NISSAN Windshield Washer Concentrate Cleaner & Anti-
freeze fluid or equivalent
Technical and consumer information10-3

LATCH (Lower Anchors and Tethers for
CHildren) System..............1-24Precautions on child
restraints.......1-22, 1-29, 1-34, 1-38Top tether strap anchor point
locations.................. .1-27Child safety rear door lock...........3-6Cleaning exterior and interior......7-2, 7-4Climate control seat switch.........2-44Cold weather driving........... .5-152Console box................. .2-56Continuously Variable Transmission
(CVT)..................... .5-18Continuously Variable Transmission (CVT)
fluid.....................8-10Driving with Continuously Variable
Transmission (CVT)............5-18Controls
Heater and air conditioner controls. . .4-36CoolantCapacities and recommended
fuel/lubricants
.............. .10-2Changing engine coolant..........8-5Checking engine coolant level.......8-5Engine coolant temperature gauge. . . .2-6Corrosion protection..............7-7Cup holders.................. .2-57
D
Dimensions and weights...........10-9Dimmer switch for instrument panel. . . .2-42Door locks................... .3-4
Drive belt....................8-15Driving
Cold weather driving.......... .5-152Driving with Continuously Variable
Transmission (CVT)........... .5-18Precautions when starting and
driving................ .5-4, 5-10Driving the vehicle...............5-18Dual power moonroof............2-69
E
E-call (SOS) Button............. .2-51Economy - fuel............... .5-131Electronic parking brake...........5-23Emergency engine shutoff.......5-15, 6-3Emission control information label. . . .10-11Emission control system warranty. . . .10-30Engine
Before starting the engine........5-16Capacities and recommended
fuel/lubricants.............. .10-2Changing engine coolant..........8-5Changing engine oil.............8-6Changing engine oil filter..........8-6Checking engine coolant level.......8-5Checking engine oil level..........8-6Engine compartment check locations. .8-3Engine coolant temperature gauge. . . .2-6Engine cooling system...........8-4Engine oil.................. .8-6Engine oil and oil filter
recommendation..............10-6
Engine oil pressure warning light. . . .2-11Engine oil viscosity.............10-7Engine serial number...........10-11Engine specifications...........10-8Starting the engine............ .5-16Engine coolant temperature gauge. . . . .2-6Event Data recorders............10-33Exhaust gas (Carbon monoxide).......5-4Explanation of maintenance items......9-2Explanation of scheduled maintenance
items...................... .9-5Extended storage switch...........2-53
F
F.M.V.S.S. certification label........10-11Flashers (See hazard warning flasher
switch)..................... .6-2Flat tire......................6-3Floor mat positioning aid...........7-6Fluid
Brake fluid................ .8-10Capacities and recommended
fuel/lubricants...............10-2Continuously Variable Transmission (CVT)
fluid.................... .8-10Engine coolant................8-4Engine oil.................. .8-6Windshield-washer fluid.........8-11Fog light switch................2-43Forward Driving Aids
System Temporarily Unavailable. . . .2-26
11-2

Warning signals..............3-16Interior light................. .2-71ISOFIX child restraints............1-24
J
Jump starting............. .6-5, 8-14
K
Key....................... .3-2Key fob battery replacement........8-22Keyless entry
With Intelligent Key system
(See Intelligent Key system)
.......3-13
L
LabelTire and Loading Information label. .10-12LabelsAir conditioner specification label. . .10-12C.M.V.S.S. certification label......10-11Emission control information label. . .10-11Engine serial number.......... .10-11F.M.V.S.S. certification label......10-11Tire and Loading Information label. .10-12Vehicle identification number (VIN). .10-10Vehicle identification number (VIN)
plate................... .10-10Warning labels (for SRS).........1-62Lane Departure Prevention (LDP).....5-38
Lane Departure Warning (LDW)......5-33LATCH (Lower Anchors and Tethers for
CHildren) System...............1-24LED Daytime Running Lights (DRL)
system..................... .2-41License plate
Installing the license plate........10-13Liftgate.................... .3-22Liftgate release................3-27Light
Air bag warning light........1-62, 2-12Brake light (See stop light)........8-25Bulb check/instrument panel......2-10Bulb replacement............ .8-25Charge warning light...........2-10Exterior and Interior lights........8-25Fog light switch............. .2-43Fog lights................. .8-24Headlight and turn signal switch. . . .2-36Headlights.................8-24Interior light.................2-71Light bulbs.................8-24Low tire pressure warning light.....2-13Low windshield-washer fluid warning
light.................... .2-22Personal lights...............2-72Security indicator light...........2-12Warning/indicator lights and audible
reminders.............. .2-9, 2-10Lights..................... .8-24Map lights..................2-72Lock
Child safety rear door lock.........3-6Door locks................. .3-4
Glove box lock...............2-56Liftgate release...............3-27Power door locks..............3-5Loose fuel cap warning...........2-22Low fuel warning light. . . .2-11, 2-15, 2-22Low tire pressure warning light.......2-13Low windshield-washer fluid warning
light...................... .2-22Luggage (See vehicle loading
information).................10-15Luggage hook.................2-59Luggage rack (see roof rack)........2-60
M
Maintenance
General maintenance........... .9-2Inside the vehicle.............. .9-3Maintenance precautions.........8-2Outside the vehicle.............9-2Seat belt maintenance...........1-19Under the hood and vehicle........9-4Maintenance requirements..........9-2Maintenance schedules........... .9-7Malfunction indicator light..........2-15Map lights.................. .2-72Memory seat..............3-37, 3-39Meters and gauges.............. .2-4Instrument brightness control......2-42Mirror
Automatic anti-glare inside
mirror
............... .3-33, 3-34Heated mirrors...............3-36
11-4

Outside mirrors...............3-35Vanity mirror............... .3-33Mirrors.................... .3-33Moonroof................2-69, 7-5Moving Object Detection (MOD)......4-29
O
Octane rating (See fuel octane rating). . .10-6Odometer................... .2-5Oil
Capacities and recommended
fuel/lubricants
.............. .10-2Changing engine oil.............8-6Changing engine oil filter..........8-6Checking engine oil level..........8-6Engine oil.................. .8-6Engine oil and oil filter
recommendation..............10-6Engine oil viscosity.............10-7Outside mirrors............... .3-35Overhead sunglasses holder.........2-56Overheat
If your vehicle overheats..........6-7Owner's manual order form........10-34Owner's manual/service manual order
information................. .10-34
P
Parking
Parking/parking on hills.........5-134Parking brake..........2-11, 2-13, 2-17
Personal lights................ .2-72Power
Power door locks............. .3-5Power outlet............... .2-52Power rear windows...........2-67Power steering system. . . .5-135, 5-136Power windows............. .2-66Rear power windows...........2-67Power outlet................. .2-52Power steering...........5-135, 5-136Precautions
Maintenance precautions.........8-2On-pavement and off-road driving
precautions................. .5-8Precautions on booster
seats.........1-22, 1-29, 1-34, 1-38Precautions on child
restraints.......1-22, 1-29, 1-34, 1-38Precautions on seat belt usage.....1-12Precautions on supplemental restraint
system................... .1-41Precautions when starting and
driving.................5-4, 5-10Predictive Forward Collision Warning
(PFCW)................... .5-118ProPILOT Assist................5-71Push starting.................. .6-7
R
Radio
Car phone or CB radio..........4-44Rain sensor.................. .2-33
Readiness for inspection maintenance (I/M)
test..................... .10-32Rear Automatic Braking (RAB). .2-16, 5-103Rear bench seat adjustment..........1-5Rear Cross Traffic Alert (RCTA)......5-64Rear power sunshade............2-68Rear power windows............ .2-67Rear window defroster, outside mirror
defroster, and wiper deicer switch.....2-35Rear window wiper and washer
switches................... .2-34RearView Monitor...............4-3Recommended Fluids.............10-2Recorders
Event Data............... .10-33Refrigerant recommendation........10-7Registering a vehicle in another
country................... .10-10Remote Engine Start.........3-18, 5-17Reporting safety defects (US only). . . .10-31Roadside assistance program.........6-2Roof rack....................2-60
S
Safety
Child safety rear door lock.........3-6Child seat belts. . .1-22, 1-29, 1-34, 1-38Reporting safety defects (US only). .10-31SeatMemory seat........... .3-37, 3-39Seat adjustment
Front power seat adjustment.......1-3
11-5

Wheels and tires..............8-27Tire pressure
Low tire pressure warning light.....2-13Tire Pressure Monitoring System (TPMS). .5-5Top tether strap child restraint.......1-26Towing2-wheel drive models.......... .6-10All-wheel drive models...........6-9Flat towing...........10-28, 10-29Tow truck towing............. .6-8Towing load/specification.......10-23Trailer towing.............. .10-19Towing a trailer...............10-19Traffic Sign Recognition (TSR).......5-30Transceiver
HomeLink® Universal Transceiver. . .2-73,
2-74, 2-75, 2-76, 2-77
Transmission Continuously Variable Transmission (CVT)
fluid
.................... .8-10Driving with Continuously Variable
Transmission (CVT)............5-18Travel (See registering a vehicle in another
country)................... .10-10Trip odometer..................2-5Turn signal switch...............2-42
U
Uniform tire quality grading........10-29USB/iPod® Charging Ports.........2-51
V
Vanity mirror................. .3-33Variable voltage control system......8-14Vehicle dimensions and weights......10-9Vehicle Dynamic Control (VDC)
system................... .5-140Vehicle identification............10-10Vehicle identification number (VIN). . .10-10Vehicle identification number (VIN)
(Chassis number)............. .10-10Vehicle identification number (VIN)
plate..................... .10-10Vehicle immobilizer system.........5-16Vehicle information display.........2-19Vehicle loading information........10-15Vehicle recovery................6-11Vehicle security system............2-29(INFINITI vehicle immobilizer system),
engine start..........2-30, 3-4, 5-16Vents..................... .4-34Visors......................3-32
W
Warning
Air bag warning light........1-62, 2-12Anti-lock brake warning light. .2-10, 2-13Battery charge warning light.......2-10Brake warning light........... .2-10Engine oil pressure warning light. . . .2-11Hazard warning flasher switch......6-2Loose fuel cap warning..........2-22
Low fuel warning light. . .2-11, 2-15, 2-22Low tire pressure warning light.....2-13Low windshield-washer fluid warning
light.................... .2-22Seat belt warning light.......1-15, 2-12Supplemental air bag warning
light..................1-62, 2-12Vehicle security system..........2-29Warning labels (for SRS).........1-62Warning/indicator lights and audible
reminders...............2-9, 2-10Warning lights..............2-9, 2-10Warning lights, indicator lights and audible
reminders.................... .2-9Warning systems switch...........2-47Warning/indicator lights and audible
reminders................ .2-9, 2-10Audible reminders..........2-9, 2-10Indicator lights............2-9, 2-10Warning lights............2-9, 2-10Washer switch
Rear window wiper and washer
switches
.................. .2-34Weights (See dimensions and weights). .10-9Wheel/tire size................10-9Wheels and tires................8-27When traveling or registering in another
country................... .10-10Windows....................2-66Locking passengers' windows......2-66Power rear windows...........2-67Power windows............. .2-66Rear power windows...........2-67Windshield wiper blades...........8-17
11-7

Windshield-washer fluid...........8-11Wiper
Rear window wiper and washer
switches
.................. .2-34Wiper blades................8-17Wiper and washer switch..........2-32
11-8
