• The radar sensors may be blocked by tem-porary ambient conditions such as splash-
ing water, mist or fog. The blocked condi-
tion may also be caused by objects such as
ice, frost or dirt obstructing the radar sen-
sors. Check for and remove objects ob-
structing the area around the radar
sensors.
• Do not attach stickers (including transpar- ent material), install accessories or apply
additional paint near the camera unit or
radar sensors.
• Do not place reflective materials, such as white paper or a mirror, on the instrument
panel. The reflection of sunlight may ad-
versely affect the camera unit’s capability
of detecting the lane markers.
• Do not strike or damage the area around the radar sensors. Do not touch the camera
lens or remove the screw located on the
camera unit. It is recommended that you
visit an INFINITI retailer if the camera unit
and/or area around the radar sensors is
damaged due to a collision.Radio frequency statement
For USA
FCC ID: OAYSRR3B
This device complies with Part 15 of the FCC
Rules.
Operation is subject to the following two
conditions:
(1) this device may not cause harmful inter-
ference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
CAUTION TO USERS
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment. For Canada
Model: SRR3–B
Applicable law: Canada 310
This device complies with Industry Canada’s
RSS — 310.
Operation is subject to the condition that this
device must not cause harmful interference
and must accept any interference, including
interference that may cause undesired op-
eration of the device.
Cet appareil est conforme au RSS — 310
d’Industrie Canada.
Le fonctionnement est soumis à la condition
que cet appareil ne provoque pas
d’interférences nuisibles et accepte toute in-
terférence, y compris les interférences sus-
ceptibles de provoquer un fonctionnement
indésirable de l’appareil.
Starting and driving5-63

WARNING
Failure to follow the warnings and instruc-
tions for proper use of the RCTA system
could result in serious injury or death.
• The RCTA system is not a replacement
for proper driving procedures and is not
designed to prevent contact with ve-
hicles or objects. When backing out of a
parking space, always use the side and
rear mirrors and turn and look in the di-
rection your vehicle will move. Never rely
solely on the RCTA system.
The RCTA system will assist you when back-
ing out from a parking space. When the ve-
hicle is in reverse, the system is designed to
detect other vehicles approaching from the
right or left of the vehicle. If the system de-
tects cross traffic, it will alert you.
RCTA SYSTEM OPERATION
1. Side indicator light
LSD3608
REAR CROSS TRAFFIC ALERT
(RCTA)
5-64Starting and driving

The RCTA system can help alert the driver of
an approaching vehicle when the driver is
backing out of a parking space.
When the shift position is in R (Reverse) and
the vehicle speed is less than approximately 5
mph (8 km/h), the RCTA system is
operational.
If the radar detects an approaching vehicle
from either side, the system chimes (once)
and the side indicator light flashes on the side
the vehicle is approaching from.The RCTA system uses radar sensors
O1in-
stalled on both sides near the rear bumper to
detect an approaching vehicle.
The radar sensors
O1can detect an ap-
proaching vehicle from up to approximately
66 ft (20 m) away.
LSD2216LSD2920
Starting and driving5-65

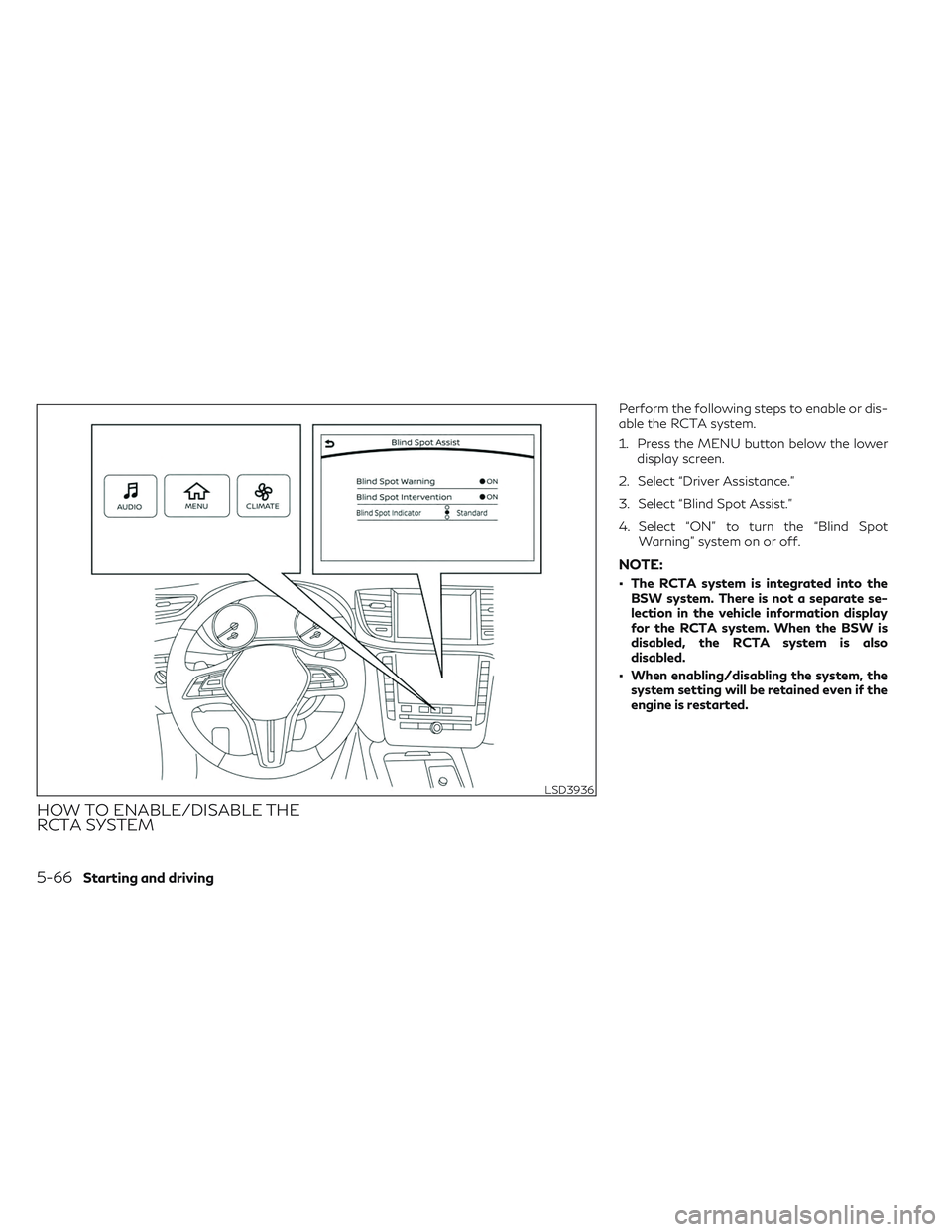

HOW TO ENABLE/DISABLE THE
RCTA SYSTEM
Perform the following steps to enable or dis-
able the RCTA system.
1. Press the MENU button below the lowerdisplay screen.
2. Select “Driver Assistance.”
3. Select “Blind Spot Assist.”
4. Select “ON” to turn the “Blind Spot Warning” system on or off.
NOTE:
• The RCTA system is integrated into theBSW system. There is not a separate se-
lection in the vehicle information display
for the RCTA system. When the BSW is
disabled, the RCTA system is also
disabled.
• When enabling/disabling the system, the system setting will be retained even if the
engine is restarted.
LSD3936
5-66Starting and driving

RCTA SYSTEM LIMITATIONSWARNING
Listed below are the system limitations for
the RCTA system. Failure to operate the
vehicle in accordance with these system
limitations could result in serious injury or
death. •
Always check surroundings and turn to
check what is behind you before backing
up. The radar sensors detect approach-
ing (moving) vehicles. The radar sensors
cannot detect every object such as:
– Pedestrians, bicycles, motorcycles,
animals or child-operated toy ve-
hicles
– A vehicle that is passing at speeds
greater than approximately 19 mph
(30 km/h)
– A vehicle that is passing at speeds
lower than approximately 5 mph (8
km/h)
• The radar sensors may not detect ap-
proaching vehicles in certain situations:
– Illustration
OA: When a vehicle
parked next to you obstructs the
beam of the radar sensor.
– Illustration
OB: When the vehicle is
parked in an angled parking space.
– Illustration
OC: When the vehicle is
parked on inclined ground.
– Illustration
OD: When an approaching
vehicle turns into your vehicle's park-
ing lot aisle.
– Illustration
OE: When the angle
formed by your vehicle and ap-
proaching vehicle is small.
LSD3195
Starting and driving5-67

•The following conditions may reduce the
ability of the radar to detect other ve-
hicles:
– Severe weather
– Road spray
– Ice/frost/snow/dirt build-up on the
vehicle
• Do not attach stickers (including trans-
parent material), install accessories or
apply additional paint near the radar
sensors. These conditions may reduce
the ability of the radar to detect other
vehicles.
• Excessive noise (e.g., audio system vol-
ume, open vehicle window) will interfere
with the chime sound, and it may not be
heard.
NOTE:
In the case of several vehicles approaching in
a row (Illustration 1) or in the opposite direc-
tion (Illustration 2), a chime may not be
sounded by the RCTA system after the first
vehicle passes the sensors.
LSD2043
Illustration 1
LSD2044
Illustration 2
5-68Starting and driving

SYSTEM TEMPORARILY
UNAVAILABLE
When radar blockage is detected, the system
will be deactivated automatically. The “Un-
available: Side Radar Obstruction” warning
message will appear in the vehicle informa-
tion display.
The systems are not available until the condi-
tions no longer exist.
The radar sensors may be blocked by tempo-
rary ambient conditions such as splashing
water, mist or fog.
The blocked condition may also be caused by
conditions such as ice, snow, frost or dirt
obstructing the radar sensors.
NOTE:
If the BSW system stops working, the RCTA
system will also stop working.
Action to take
When the above conditions no longer exist,
the system will resume automatically.
LSD3609
Starting and driving5-69

Malfunction
When the RCTA system malfunctions, it will
turn off automatically. The system malfunc-
tion warning message will appear in the ve-
hicle information display.
NOTE:
If the BSW system stops working, the RCTA
system will also stop working.
Action to take
Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the en-
gine off and restart the engine. If the mes-
sage continues to appear, have the system
checked. It is recommended that you visit an
INFINITI retailer for this service.
SYSTEM MAINTENANCE
The two radar sensorsO1for the BSW and
RCTA systems are located near the rear
bumper. Always keep the area near the radar
sensors clean.
The radar sensors may be blocked by tempo-
rary ambient conditions such as splashing
water, mist or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing
the radar sensors.
Check for and remove objects obstructing
the area around the radar sensors. Do not attach stickers (including transparent
material), install accessories or apply addi-
tional paint near the radar sensors.
Do not strike or damage the area around the
radar sensors. It is recommended that you
visit an INFINITI retailer if the area around
the radar sensors is damaged due to a
collision.
Radio frequency statement
For USA
FCC ID: OAYSRR3B
This device complies with Part 15 of the FCC
Rules.
Operation is subject to the following two
conditions:
(1) this device may not cause harmful inter-
ference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
LSD2920
5-70Starting and driving

CAUTION TO USERS
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.
For Canada
Model: SRR3–B
Applicable law: Canada 310
This device complies with Industry Canada’s
RSS — 310.
Operation is subject to the condition that this
device must not cause harmful interference
and must accept any interference, including
interference that may cause undesired op-
eration of the device.
Cet appareil est conforme au RSS — 310
d’Industrie Canada.
Le fonctionnement est soumis à la condition
que cet appareil ne provoque pas
d’interférences nuisibles et accepte toute in-
terférence, y compris les interférences sus-
ceptibles de provoquer un fonctionnement
indésirable de l’appareil.WARNING
Failure to follow the warnings and instruc-
tions for proper use of the ProPILOT Assist
system could result in serious injury or
death.
• ProPILOT Assist is not a self-driving
system. Within the limits of its capabili-
ties, as described in this manual, it helps
the driver with certain driving activities.
• The ProPILOT Assist system is not a re-
placement for proper driving procedures
and is not designed to correct careless,
inattentive or absent-minded driving.
ProPILOT Assist will not always steer
the vehicle to keep it in the lane. The Pro-
PILOT Assist system is not designed to
prevent loss of control. It is the driver’s
responsibility to stay alert, drive safely,
keep the vehicle in the traveling lane, and
be in control of the vehicle at all times.
• There are limitations to the ProPILOT
Assist system capability. The ProPILOT
Assist system does not function in all
driving, traffic, weather, and road condi-
tions. It is the driver’s responsibility to
stay alert, drive safely, keep the vehicle
in the traveling lane, and be in control of
the vehicle at all times. •
The ProPILOT Assist system is only an
aid to assist the driver and is not a colli-
sion warning or avoidance device.
• The ProPILOT Assist system is for high-
way use only and is not intended for city
driving. Failure to apply the brakes or
steer the vehicle when necessary may re-
sult in a serious accident.
• Always observe posted speed limits and
do not set the speed over them.
• Never take your hands off the steering
wheel when driving. Always keep your
hands on the steering wheel and drive
your vehicle safely.
• Never unfasten your safety belt when
using ProPILOT Assist. Doing so auto-
matically cancels the ProPILOT Assist
system.
• The ProPILOT Assist system does not
react to stationary and slow moving
vehicles.
PROPILOT ASSIST
Starting and driving5-71

•Always drive carefully and attentively
when using the ProPILOT Assist system.
Read and understand the Owner’s
Manual thoroughly before using the
ProPILOT Assist system. To avoid seri-
ous injury or death, do not rely on the
system to prevent accidents or to control
the vehicle’s speed in emergency situa-
tions. Do not use the ProPILOT Assist
system except in appropriate road and
traffic conditions.
The ProPILOT Assist system is intended to
enhance the operation of the vehicle when
following a vehicle traveling in the same lane
and direction.
The ProPILOT Assist system uses a multi-
sensing front camera
OAinstalled behind the
windshield and a radar sensor located on the
front of the vehicle
OBto measure the dis-
tance to the vehicle ahead in the same lane
and to monitor the lane markers. If the vehicle
detects a slower moving vehicle ahead, the
system will reduce the vehicle speed so that
your vehicle follows the vehicle in front at the
selected distance. The system will also help keep the vehicle centered in the traveling lane
when clear lane markings are detected.
LSD2943
5-72Starting and driving
