park assist INFINITI QX50 2022 Owners Manual

Rear window defroster, outside mirror
defroster (if so equipped), and wiper
deicer (if so equipped) switch (P. 2-35)
10. Front passenger supplemental air bag
(P. 1-41)
11. Front passenger supplemental knee air
bag (P. 1-59)
12. Glove box (P. 2-56)
13. Audio system controls* Front passenger air bag status light
(P. 1-49)
14. INFINITI controller*
15. Power outlet (P. 2-52) USB port*
Cup holders (P. 2-57)
Storage (P. 2-54)
16. Shift lever (P. 5-18)
17. Push-button ignition switch (P. 5-13) Electronic parking brake switch (P. 5-23)
Automatic brake hold switch (P. 5-25)
INFINITI Drive Mode Selector switch
(P. 5-28)
18. Hazard warning flasher switch (P. 6-2)
19. ProPILOT Assist Switch (P. 5-74) Cruise control switches (P. 5-76)
Distance control switch (P. 5-74)
Control panel and vehicle information
display switches (P. 2-19)
20. Driver supplemental knee air bag
(P. 1-59) 21. Tilt and telescopic steering wheel control
(P. 3-31)
22. Hood release (P. 3-21)
23. Instrument brightness control (P. 2-42) Front and rear sonar system switch
(if so equipped) (P. 2-47)
Steering assist switch (P. 2-47)
Instrument panel liftgate switch (P. 3-22)
Headlight switch (P. 2-36)
Fog light switch (if so equipped) (P. 2-43)
Head Up Display (HUD) OFF switch
(if so equipped) (P. 2-48)
*: Refer to the separate INFINITI InTouchTM
Owner's Manual.
Refer to the page number indicated in paren-
theses for operating details.
Illustrated table of contents0-7

12. Glove box (P. 2-56)
13. Audio system controls*Front passenger air bag status light
(P. 1-49)
14. INFINITI controller*
15. Power outlet (P. 2-52) USB port*
Cup holders (P. 2-57)
Storage (P. 2-54)
16. Shift lever (P. 5-18)
17. Push-button ignition switch (P. 5-13) Electronic parking brake switch (P. 5-23)
Automatic brake hold switch (P. 5-25)
INFINITI Drive Mode Selector switch
(P. 5-28)
18. Hazard warning flasher switch (P. 6-2)
19. ProPILOT Assist Switch (P. 5-74) Cruise control switches (P. 5-76)
Distance control switch (P. 5-74)
Control panel and vehicle information
display switches (P. 2-19)
20. Driver supplemental knee air bag
(P. 1-59)
21. Tilt and telescopic steering wheel control
(P. 3-31)
22. Hood release (P. 3-21) 23. Instrument brightness control (P. 2-42)
Front and rear sonar system switch (if so
equipped) (P. 2-47)
Steering assist switch (P. 2-47)
Instrument panel liftgate switch (P. 3-22)
Headlight switch (P. 2-36)
Fog light switch (if so equipped) (P. 2-43)
Head Up Display (HUD) OFF switch
(if so equipped) (P. 2-48)
*: Refer to the separate INFINITI InTouchTM
Owner's Manual.
Refer to the page number indicated in paren-
theses for operating details.
Instruments and controls2-3

Warning/Indicator light (red)Warning/Indicator light (yellow) Warning/Indicator light (other)
orBrake warning lightorAnti-lock Braking System (ABS)
warning lightAutomatic brake hold indicator light (white/
green)
Charge warning lightorElectronic parking brake warning
lightEco drive indicator light (green) (if so
equipped)
Electric shift control system warning lightForward Emergency Braking (FEB) with Pe-
destrian Detection system warning lightFront fog light indicator light (green) (if so
equipped)
orElectronic parking brake indica-
tor lightFront passenger air bag status lightHigh Beam Assist indicator light (green)
Engine oil pressure warning lightLow tire pressure warning lightHigh beam indicator light (blue)
Master warning lightMalfunction Indicator Light (MIL)Side light and headlight indicator light
(green)
Pop-up engine hood warning lightMaster warning lightTurn signal/hazard indicator lights (green)
Seat belt warning light and chimePower steering warning light
Security indicator lightRear Automatic Braking (RAB) warning light
Supplemental air bag warning lightSlip indicator light
Vehicle Dynamic Control (VDC) OFF indica-
tor light
WARNING LIGHTS, INDICATOR
LIGHTS AND AUDIBLE REMINDERS
Instruments and controls2-9

Laws in some local communities may restrict
or prohibit the use of Remote Engine Start, or
the amount of time a parked vehicle engine
may idle. For example, some laws require a
person using Remote Engine Start to have
the vehicle in view or may restrict idling time
except in freezing temperatures. Check local
regulations for any requirements.
Other conditions may affect the function of
the Remote Engine Start feature. For addi-
tional information, see “Conditions the Re-
mote Engine Start will not work” (P. 3-20).
Other conditions can affect the performance
of the Intelligent Key transmitter. For addi-
tional information, see “INFINITI Intelligent
Key” (P. 3-2).REMOTE ENGINE START
OPERATING RANGE
WARNING
• To help avoid risk of injury or death
through unintended operation of the ve-
hicle and/or its systems, including en-
trapment in windows or inadvertent
door lock activation, do not leave chil-
dren, people who require the assistance
of others or pets unattended in your ve-
hicle. Additionally, the temperature in-
side a closed vehicle on a warm day can
quickly become high enough to cause a
significant risk of injury or death to
people and pets.
• Do not use Remote Engine Start in closed
spaces such as a garage. Do not breathe
exhaust gases; they contain colorless
and odorless carbon monoxide. Carbon
monoxide is dangerous. It can cause un-
consciousness or death.
CAUTION
When the Intelligent Key battery is dis-
charged or other strong radio wave
sources are present near the operating lo-
cation, the Intelligent Key operating range
becomes narrower, and the Intelligent Key
may not function properly.
The Remote Engine Start function can only
be used when the Intelligent Key is within the
specified operating range from the vehicle.
The Remote Engine Start operating range is
approximately 197 ft (60 m) from the vehicle.
REMOTE STARTING THE
VEHICLE
To use the Remote Engine Start feature per-
form the following:
1. Aim the Intelligent Key at the vehicle.
2. Press the
button to lock all doors.
3. Within 5 seconds press and hold the
button until the turn signal lights flash and
the tail lamps turn on. If the vehicle is not
within view press and hold the
but-
ton for at least 2 seconds.
Pre-driving checks and adjustments3-19

System malfunction........................ 5-107
System maintenance ....................... 5-107
Forward Emergency Braking (FEB) with
Pedestrian Detection system ..................5-108
System operation .......................... 5-109
Turning the FEB with Pedestrian
Detection system on/off ...................5-110
FEB with Pedestrian Detection system
limitations ................................. 5-111
System temporarily unavailable .............5-115
System malfunction ........................ 5-116
System maintenance ....................... 5-117
Predictive Forward Collision Warning (PFCW) . 5-118 PFCW system operation ...................5-120
Turning the PFCW system on/off ..........5-121
PFCW system limitations ...................5-122
System temporarily unavailable .............5-127
System malfunction ........................ 5-128
System maintenance ....................... 5-128
Break-in schedule ............................. 5-130
Fuel efficient driving tips ......................5-130
Increasing fuel economy .......................5-131
Intelligent All-Wheel Drive (AWD)
(if so equipped) ............................... 5-131
Parking/parking on hills .......................5-134Power steering
............................... 5-135
Electric power steering type ................5-135
Direct Adaptive Steering® type .............5-136
Brake system ................................. 5-138
Brake precautions .......................... 5-138
Anti-lock Braking System (ABS) .............5-138
Brake Assist ............................... 5-139
Vehicle Dynamic Control (VDC) system ........5-140
Brake force distribution ....................5-141
Chassis Control ............................... 5-142
Active Trace Control ....................... 5-142
Active Engine Brake ........................ 5-143
Active Ride Control ........................
5-144
Hill

start assist system ........................ 5-145
Front and rear sonar system (if so equipped) . . . 5-146 System operation .......................... 5-147
How to enable/disable the sonar system ....5-149
Sonar limitations ........................... 5-150
System temporarily unavailable .............5-151
System maintenance ....................... 5-151
Cold weather driving .......................... 5-152
Freeing a frozen door lock ..................5-152
Antifreeze ................................. 5-152
Battery .................................... 5-152
Draining of coolant water ..................5-152

WARNING
• Do not leave children or adults who
would normally require the assistance of
others alone in your vehicle. Pets should
also not be left alone. They could acci-
dentally injure themselves or others
through inadvertent operation of the
vehicle. Also, on hot, sunny days, tem-
peratures in a closed vehicle could
quickly become high enough to cause se-
vere or possibly fatal injuries to people or
animals.
• Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. Do not place cargo higher than
the seatbacks. In a sudden stop or colli-
sion, unsecured cargo could cause per-
sonal injury.
EXHAUST GAS (carbon monoxide)
WARNING
• Do not breathe exhaust gases; they con-
tain colorless and odorless carbon mon-
oxide. Carbon monoxide is dangerous. It
can cause unconsciousness or death. •
If you suspect that exhaust fumes are
entering the vehicle, drive with all win-
dows fully open, and have the vehicle in-
spected immediately.
• Do not run the engine in closed spaces
such as a garage.
• Do not park the vehicle with the engine
running for any extended length of time.
• Keep the rear vent windows, liftgates,
doors and trunk lids (if so equipped)
closed while driving, otherwise exhaust
gases could be drawn into the passenger
compartment. If you must drive with one
of these open, follow these precautions:
1. Open all the windows.
2. Set the
air recirculation button
to off and the fan control dial to high
to circulate the air.
• If electrical wiring or other cable connec-
tions must pass to a trailer through the
seal on the liftgate or the body, follow
the manufacturer's recommendation to
prevent carbon monoxide entry into the
vehicle.
• The exhaust system and body should be
inspected by a qualified mechanic when-
ever:
a. The vehicle is raised for service. b. You suspect that exhaust fumes are
entering into the passenger
compartment.
c. You notice a change in the sound of the exhaust system.
d. You have had an accident involving damage to the exhaust system, un-
derbody, or rear of the vehicle.
THREE-WAY CATALYST
The three-way catalyst is an emission control
device installed in the exhaust system. Ex-
haust gases in the three-way catalyst are
burned at high temperatures to help reduce
pollutants.
WARNING
• The exhaust gas and the exhaust system
are very hot. Keep people, animals or
flammable materials away from the ex-
haust system components.
• Do not stop or park the vehicle over
flammable materials such as dry grass,
waste paper or rags. They may ignite and
cause a fire.
PRECAUTIONS WHEN STARTING
AND DRIVING
5-4Starting and driving

–When rain, snow or dirt adheres to
the windshield in front of the multi-
sensing camera unit.
– When the headlights are not bright,
for example, due to dirt on the lens or
if the aiming is not adjusted properly.
– When strong light enters the camera
unit. (For example, the light directly
shines on the front of the vehicle at
sunrise or sunset.)
– When a sudden change in brightness
occurs. (For example, when the ve-
hicle enters or exits a tunnel or under
a bridge.)
– In areas not covered by the naviga-
tion system.
– If there are deviations in relation to
the navigation, for example due to
changes in the road routing.
– When overtaking buses or trucks
with speed stickers.
TURNING THE TRAFFIC SIGN
RECOGNITION (TSR) SYSTEM ON
AND OFF
Perform the following steps to enable or dis-
able the TSR system.
1. Press the MENU button
O1below the
lower display screen.
2. Select “Driver Assistance.”
3. Select “Traffic Sign Assist.”
4. Select “ON” to turn the “Traffic Sign Rec- ognition” system on or off.
SYSTEM TEMPORARILY
UNAVAILABLE
If the vehicle is parked in direct sunlight under
high temperature conditions (over approxi-
mately 104°F [40°C]) and then started, the
TSR system may be deactivated automati-
cally. The “Not Available: High Camera
Temp.” warning message will appear in the
vehicle information display.
Action to take:
When the interior temperature is reduced, the
TSR system will resume operating
automatically.
SYSTEM MALFUNCTION
If the TSR system malfunctions, it will be
turned off automatically and the system
“Malfunction” warning message will appear
in the vehicle information display.
Action to take:
If the TSR “Malfunction” message appears,
pull off the road at a safe location and stop
the vehicle. Turn the engine off and restart
the engine. If the TSR “Malfunction” message
continues to appear, have the system
checked. It is recommended that you visit an
INFINITI retailer for this service.
LSD2965
5-32Starting and driving

While the LDP system is operating, you may
hear a sound of brake operation. This is nor-
mal and indicates that the LDP system is
operating properly.
SYSTEM TEMPORARILY
UNAVAILABLE
Condition A:
The warning and assist functions of the LDP
system are not designed to work under the
following conditions:
• When you operate the lane change signaland change the traveling lanes in the direc-
tion of the signal. (The LDP system will be
deactivated for approximately 2 seconds
after the lane change signal is turned off.)
• When the vehicle speed lowers to less than approximately 37 mph (60 km/h).
After the above conditions have finished and
the necessary operating conditions are satis-
fied, the warning and assist functions will
resume.
Condition B:
The assist function of the LDP system is not
designed to work under the following condi-
tions (warning is still functional):
• When the brake pedal is depressed. • When the steering wheel is turned as far as
necessary for the vehicle to change lanes.
• When the vehicle is accelerated during LDP system operation.
• When the Intelligent Cruise Control (ICC) approach warning occurs.
• When the hazard warning flashers are operated.
• When driving on a curve at high speed.
After the above conditions have finished and
the necessary operating conditions are satis-
fied, the LDP system application of the
brakes will resume.
Condition C:
If the following messages appear in the ve-
hicle information display the LDP system will
be turned off automatically:
• “Not Available Poor Road Conditions”: When the VDC system (except Traction
Control System [TCS] function) or ABS
operates.
• “Currently not available”: When the VDC system is turned off.
Action to take:
When the above conditions no longer exist,
turn off the LDP system. Push the ProPILOT
Assist switch on the steering wheel again to
turn the LDP system back on. Temporary disabled status at high
temperature:
If the vehicle is parked in direct sunlight under
high temperature conditions (over approxi-
mately 104°F [40°C]) and then the LDP sys-
tem is turned on, the LDP system may be
deactivated automatically and the following
message will appear on the vehicle informa-
tion display: “Not available: High Camera
Temp.” When the interior temperature is re-
duced, the system will resume operating
automatically.
SYSTEM MALFUNCTION
If the LDP system malfunctions, it will cancel
automatically. The LDP indicator (orange)
will illuminate in the display. If the LDP indi-
cator (orange) illuminates in the display, pull
off the road to a safe location and stop the
vehicle. Turn the engine off and restart the
engine. If the LDP indicator (orange) contin-
ues to illuminate, have the LDP system
checked. It is recommended that you visit an
INFINITI retailer for this service.
5-42Starting and driving

WARNING
Failure to follow the warnings and instruc-
tions for proper use of the RCTA system
could result in serious injury or death.
• The RCTA system is not a replacement
for proper driving procedures and is not
designed to prevent contact with ve-
hicles or objects. When backing out of a
parking space, always use the side and
rear mirrors and turn and look in the di-
rection your vehicle will move. Never rely
solely on the RCTA system.
The RCTA system will assist you when back-
ing out from a parking space. When the ve-
hicle is in reverse, the system is designed to
detect other vehicles approaching from the
right or left of the vehicle. If the system de-
tects cross traffic, it will alert you.
RCTA SYSTEM OPERATION
1. Side indicator light
LSD3608
REAR CROSS TRAFFIC ALERT
(RCTA)
5-64Starting and driving

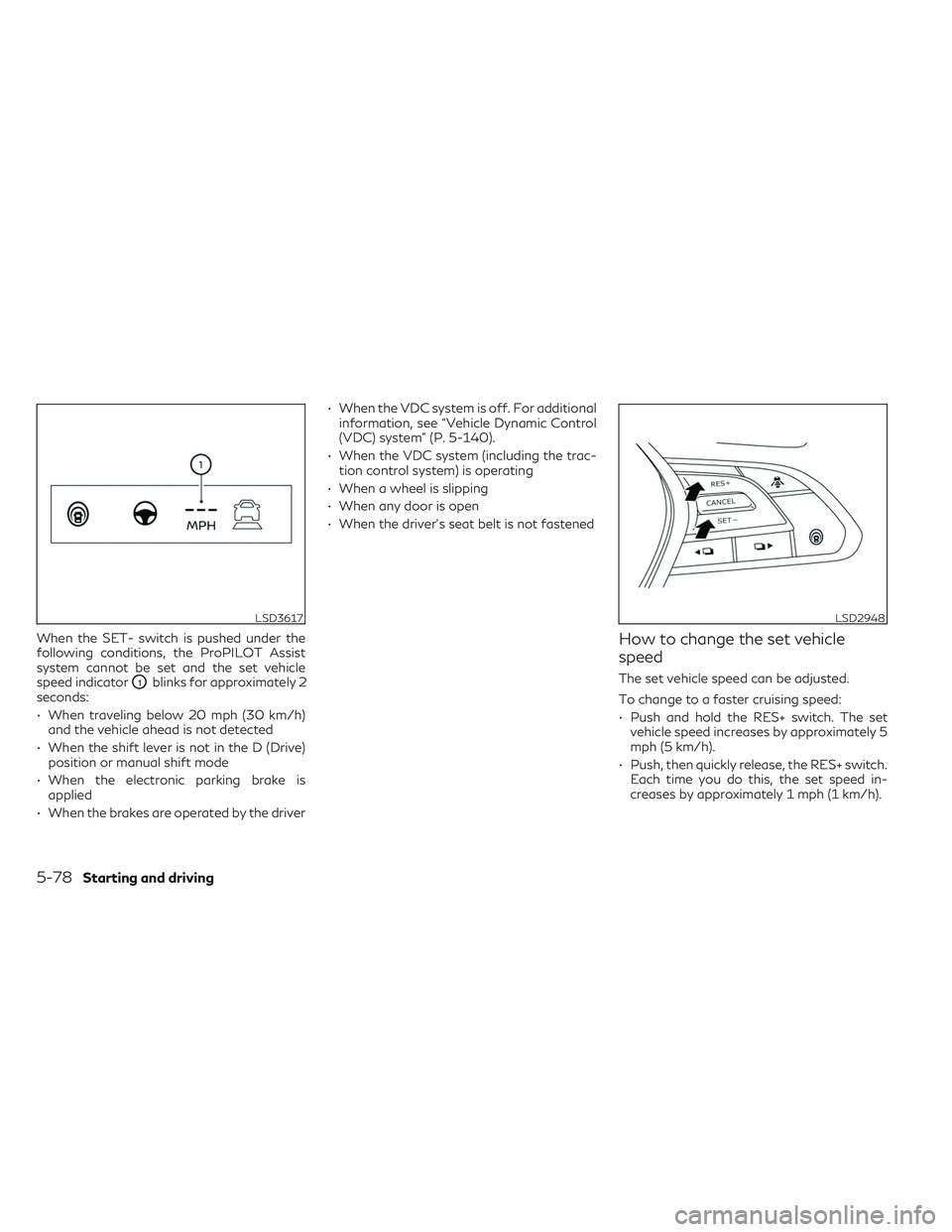

When the SET- switch is pushed under the
following conditions, the ProPILOT Assist
system cannot be set and the set vehicle
speed indicator
O1blinks for approximately 2
seconds:
• When traveling below 20 mph (30 km/h) and the vehicle ahead is not detected
• When the shift lever is not in the D (Drive) position or manual shift mode
• When the electronic parking brake is applied
• When the brakes are operated by the driver • When the VDC system is off. For additional
information, see “Vehicle Dynamic Control
(VDC) system” (P. 5-140).
• When the VDC system (including the trac- tion control system) is operating
• When a wheel is slipping
• When any door is open
• When the driver’s seat belt is not fastened
How to change the set vehicle
speed
The set vehicle speed can be adjusted.
To change to a faster cruising speed:
• Push and hold the RES+ switch. The set vehicle speed increases by approximately 5
mph (5 km/h).
• Push, then quickly release, the RES+ switch. Each time you do this, the set speed in-
creases by approximately 1 mph (1 km/h).
LSD3617LSD2948
5-78Starting and driving
